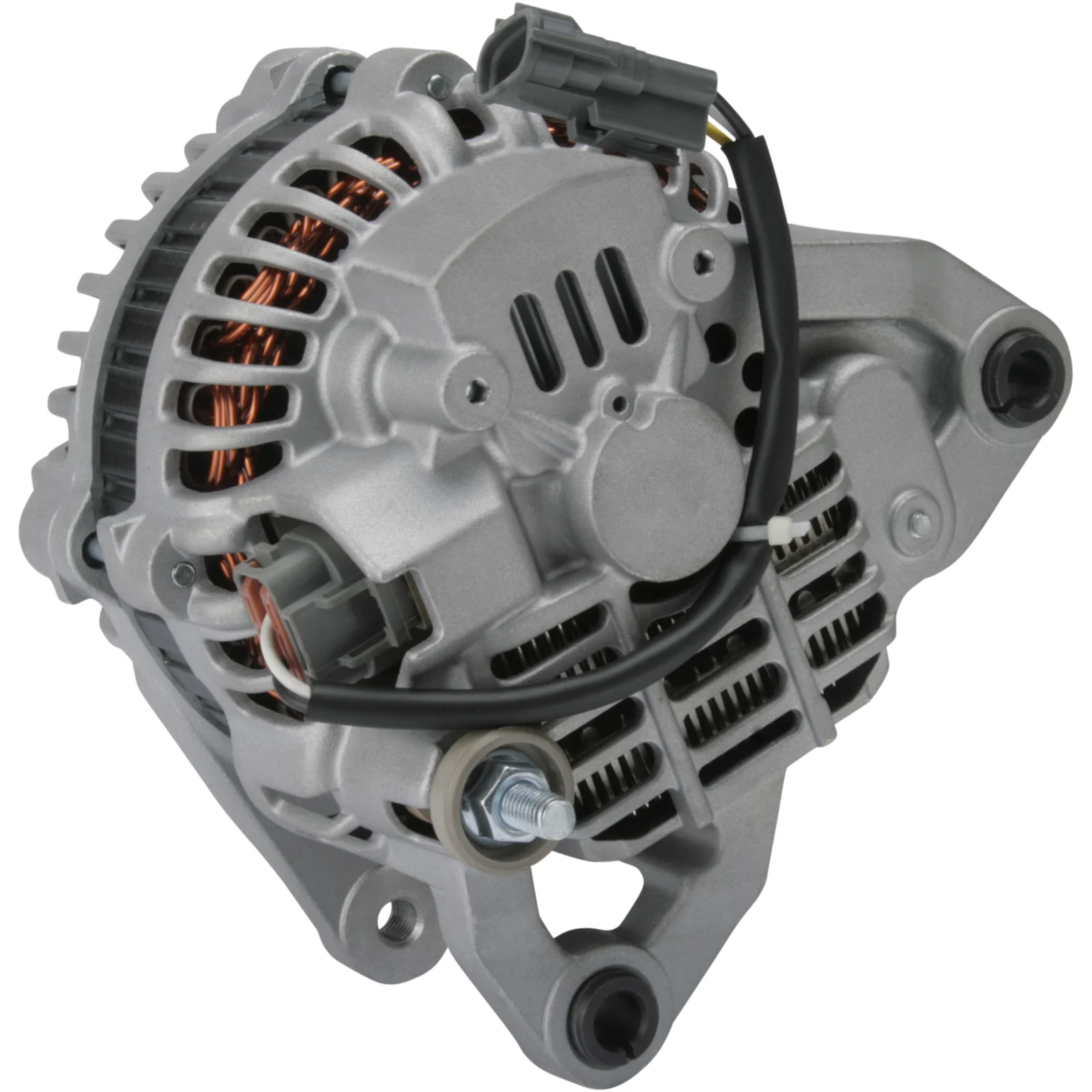

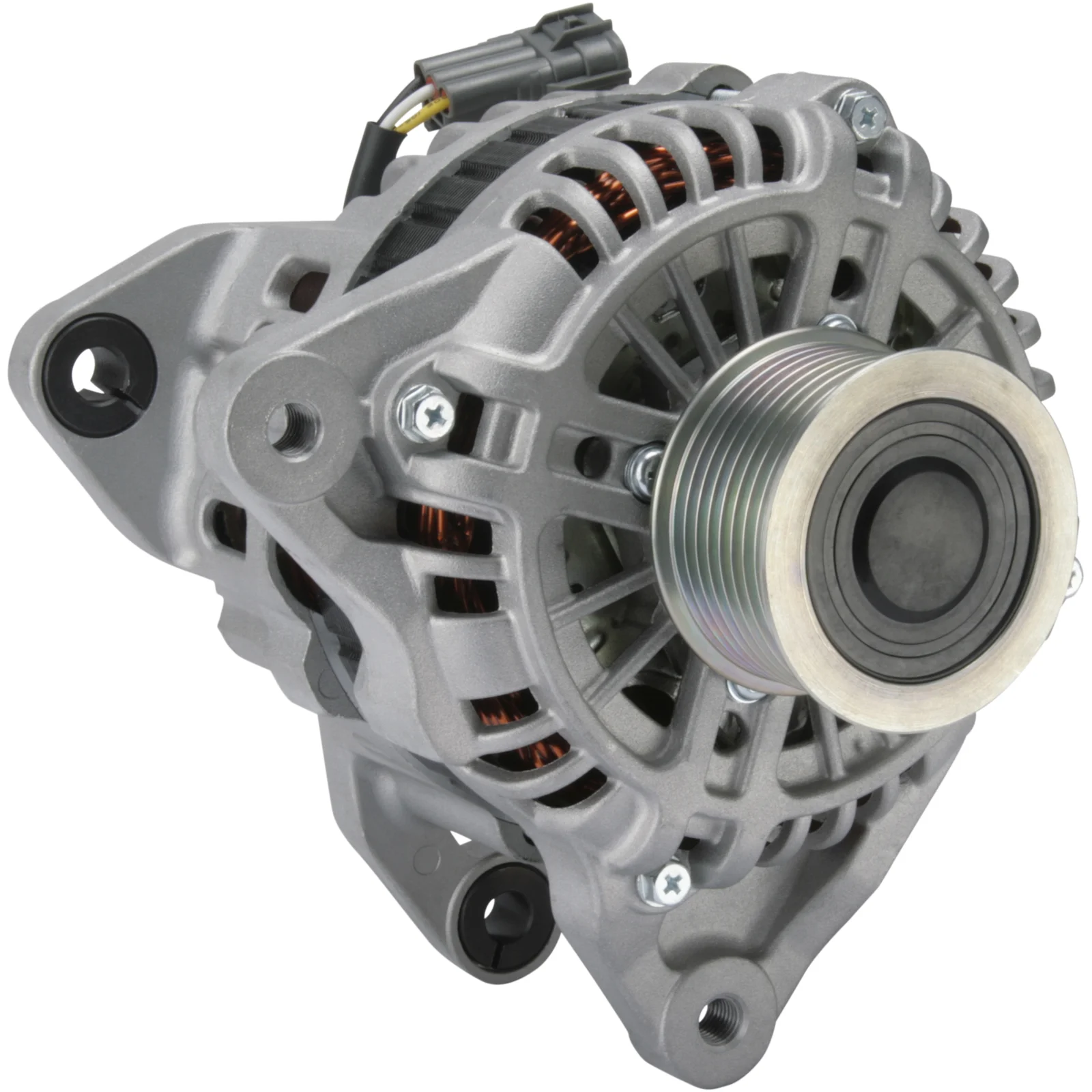

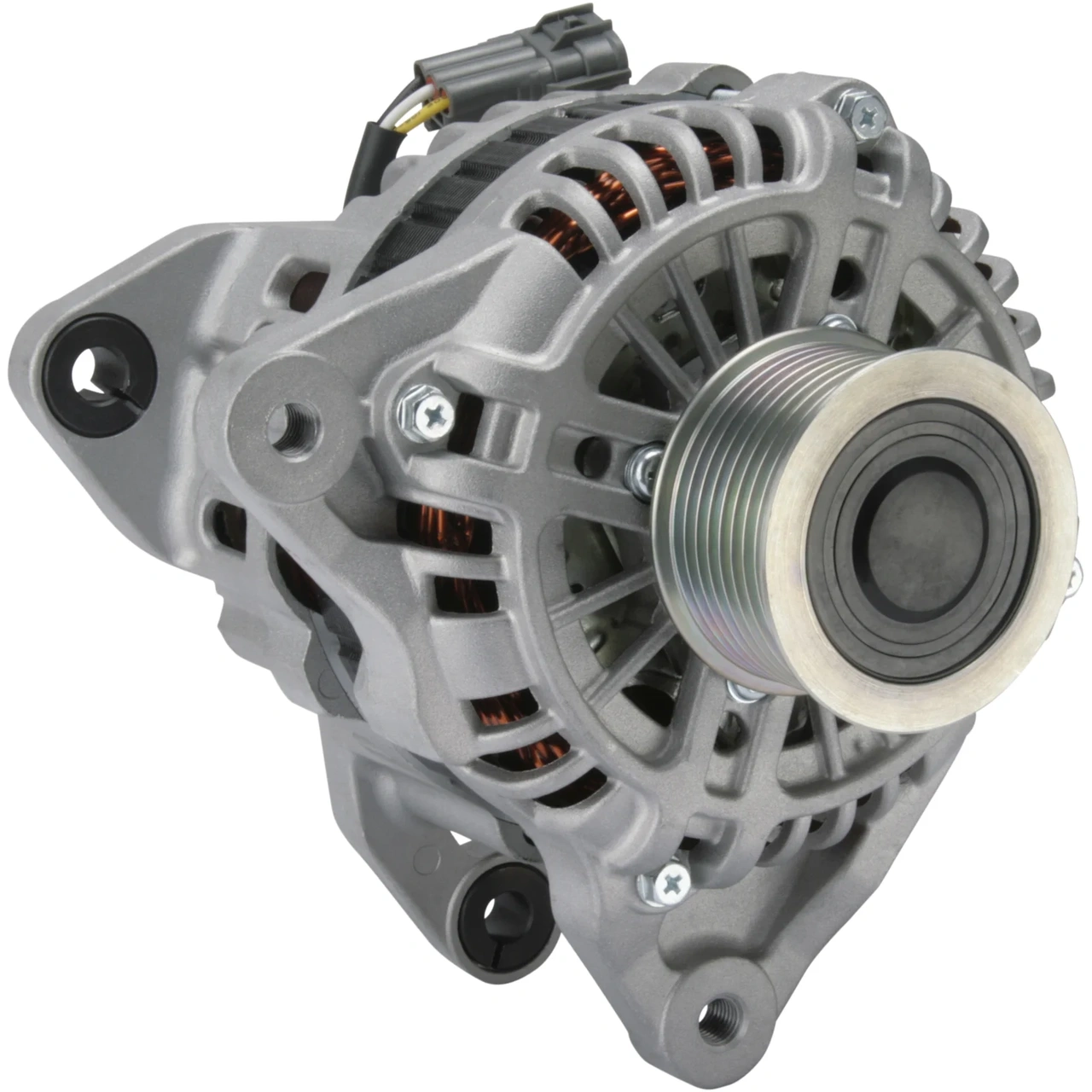

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114111

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 90, Rotasjon: CW, Monteringsbøssing avstand: 66.50

Beskrivelse

Spenning: 14
Amp: 90
Drevskive dist.: 39.00
Bredde/holderarm: 13.00
Festebrakett dist.: 66.50
Brakett hull: M10
Belt.reg. brakkethull pos.: 45
Belt.reg. brakkethull 1: M10
Drevskive dia.: 59.50
Groper/drevskive: 8
Radius: 91.00
Radius 2: 100.00
B+: M8
Posisjon/B+ i min.: 40
Rotasjon: med urviseren
Plugg nr.: PL139
Total lengde mm: 164.00
Drevskive: SP/FW
Spenningsregulator: uten
Prod. informasjon: BN

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 66.50
Belt. adj. bracket hole 1 M10
Belt. adj. brackethole pos. 45
Plug no. PL139
Bracket hole M10
Position/B+ in min. 40
Prod. info BN
Pulley SP/FW
Pulley dia. 59.50
Pulley dist. 39.00
Radius 91.00
Radius 2 100.00
Regulator w/o
Rotation CW
Grooves/pulley 8
Voltage 14
Total length 164.00 mm
Width/holder arm 13.00
Amp 90

  • OEM
    A003TB6581, A3TB6581, F032114111, RF7J-18-300A, 1972

  • Konkurrentreferens
    A5058, A5058(P), ALT-H195, CAL35209, dra0195, F042A0H195, J5113068, LRA02945, 8EL012429-681, 8EL738212-241, 27-5559, 224.188.902, 9332, 23945R, 113027, 210954, 210954A, 301972, 444250, 9090666, 12060913, 0986081130

  • NormaliseratArtNr
    a003tb6581, a3tb6581, a5058, a5058p, alth195, cal35209, dra0195, f032114111, f042a0h195, j5113068, lra02945, rf7j18300a, 8el012429681, 8el738212241, 1972, 9332, 23945r, 113027, 210954, 210954a, 275559, 301972, 444250, 9090666, 12060913, 224188902, 0986081130

  • Passar modeller
    Mazda Model: 3 Model series: 3 Model type: MRZ Type of engine: CD Size of motor: 2.0 Brand of engine: RF7J Type description: BK12 From date: 01-12-2006 To date: 01-06-2009 Fuel: Diesel Approved: Yes
    Mazda Model: 3 Model series: 3 Model type: MRZ Type of engine: CD Size of motor: 2.0 Brand of engine: RF7J Type description: BK14 Body: Hatchback From date: 01-07-2006 To date: 01-06-2009 Fuel: Diesel Approved: Yes
    Mazda Model: 5 Model series: 5 Model type: RF7J Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF7J Body: MPV From date: 01-02-2005 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    Mazda Model: 5 Model series: 5 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF7J Body: MPV From date: 01-02-2005 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF7J Type description: GG Body: Hatchback From date: 01-06-2005 To date: 01-08-2007 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF7J Type description: GG From date: 01-06-2005 To date: 01-08-2007 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF7J Type description: GY Body: Estate From date: 01-06-2005 To date: 01-08-2007 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spenning: 14
    Amp: 90
    Drevskive dist.: 39.00
    Bredde/holderarm: 13.00
    Festebrakett dist.: 66.50
    Brakett hull: M10
    Belt.reg. brakkethull pos.: 45
    Belt.reg. brakkethull 1: M10
    Drevskive dia.: 59.50
    Groper/drevskive: 8
    Radius: 91.00
    Radius 2: 100.00
    B+: M8
    Posisjon/B+ i min.: 40
    Rotasjon: med urviseren
    Plugg nr.: PL139
    Total lengde mm: 164.00
    Drevskive: SP/FW
    Spenningsregulator: uten
    Prod. informasjon: BN

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 66.50
    Belt. adj. bracket hole 1 M10
    Belt. adj. brackethole pos. 45
    Plug no. PL139
    Bracket hole M10
    Position/B+ in min. 40
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 59.50
    Pulley dist. 39.00
    Radius 91.00
    Radius 2 100.00
    Regulator w/o
    Rotation CW
    Grooves/pulley 8
    Voltage 14
    Total length 164.00 mm
    Width/holder arm 13.00
    Amp 90
  • Kjøretøymatching

    • OEM
      A003TB6581, A3TB6581, F032114111, RF7J-18-300A, 1972

    • Konkurrentreferens
      A5058, A5058(P), ALT-H195, CAL35209, dra0195, F042A0H195, J5113068, LRA02945, 8EL012429-681, 8EL738212-241, 27-5559, 224.188.902, 9332, 23945R, 113027, 210954, 210954A, 301972, 444250, 9090666, 12060913, 0986081130

    • NormaliseratArtNr
      a003tb6581, a3tb6581, a5058, a5058p, alth195, cal35209, dra0195, f032114111, f042a0h195, j5113068, lra02945, rf7j18300a, 8el012429681, 8el738212241, 1972, 9332, 23945r, 113027, 210954, 210954a, 275559, 301972, 444250, 9090666, 12060913, 224188902, 0986081130

    • Passar modeller
      Mazda Model: 3 Model series: 3 Model type: MRZ Type of engine: CD Size of motor: 2.0 Brand of engine: RF7J Type description: BK12 From date: 01-12-2006 To date: 01-06-2009 Fuel: Diesel Approved: Yes
      Mazda Model: 3 Model series: 3 Model type: MRZ Type of engine: CD Size of motor: 2.0 Brand of engine: RF7J Type description: BK14 Body: Hatchback From date: 01-07-2006 To date: 01-06-2009 Fuel: Diesel Approved: Yes
      Mazda Model: 5 Model series: 5 Model type: RF7J Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF7J Body: MPV From date: 01-02-2005 To date: 01-05-2010 Fuel: Diesel Approved: Yes
      Mazda Model: 5 Model series: 5 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF7J Body: MPV From date: 01-02-2005 To date: 01-05-2010 Fuel: Diesel Approved: Yes
      Mazda Model: 6 Model series: 6 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF7J Type description: GG Body: Hatchback From date: 01-06-2005 To date: 01-08-2007 Fuel: Diesel Approved: Yes
      Mazda Model: 6 Model series: 6 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF7J Type description: GG From date: 01-06-2005 To date: 01-08-2007 Fuel: Diesel Approved: Yes
      Mazda Model: 6 Model series: 6 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF7J Type description: GY Body: Estate From date: 01-06-2005 To date: 01-08-2007 Fuel: Diesel Approved: Yes
