Varenr.: F032113771

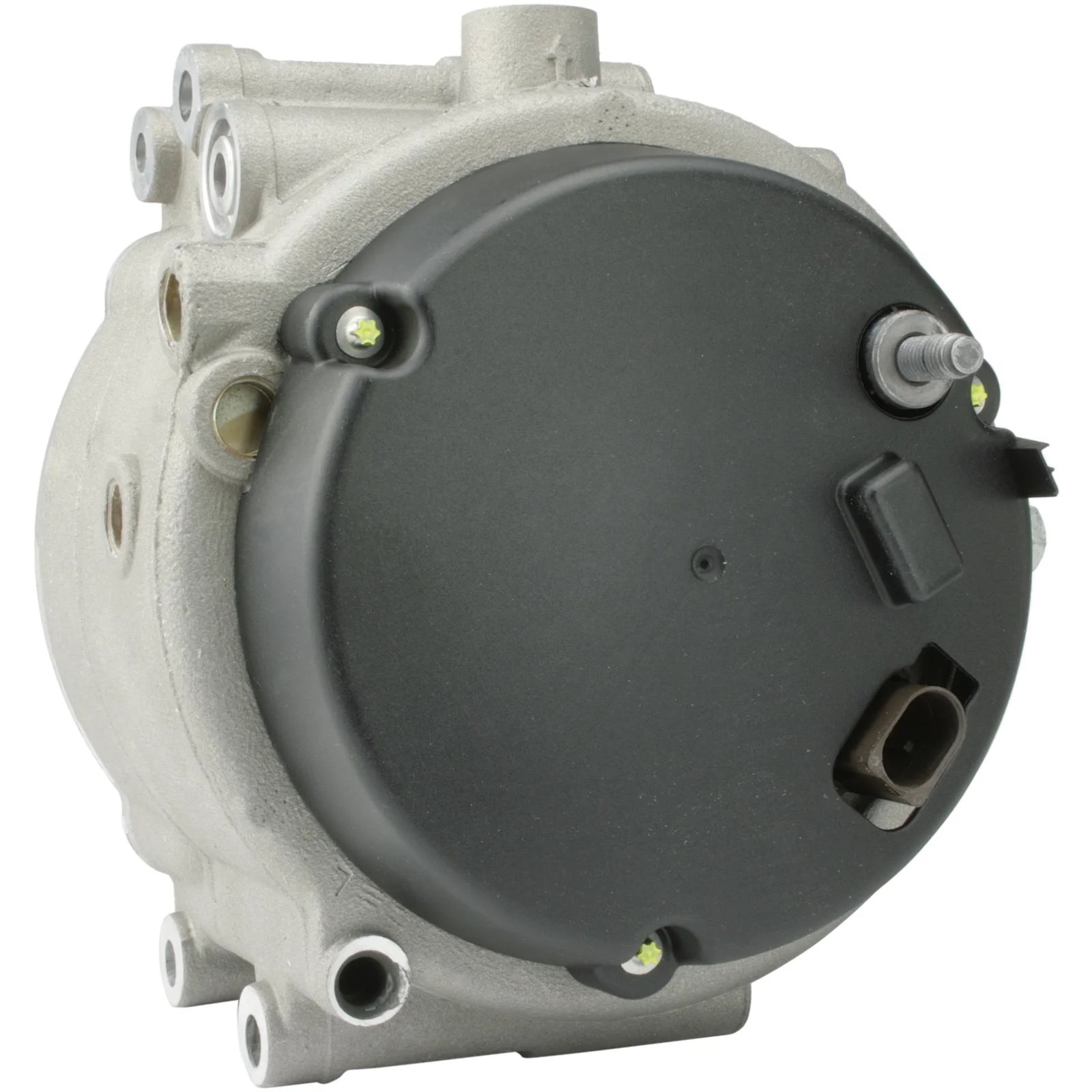

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 190, Rotasjon: med klokka, Monteringsbrakett avstand: 56,70

Beskrivelse

Spenningsnivå: 14
Amp: 190
Drevdist.: 33.00
Bredde/holdearm: 93.50
Festebrakettavstand: 56.70
Brakettåpning: 8.00/9.50
Belt. justering brakkettholdpos.: 60
Belt. justering brakettåpning 1: 7.80
Drevskive diameter: 49.80
Riller/drevskive: 6
Radius: 83.00
Radius 2: 83.00
B+: M8
Posisjon/B+ i min.: 10
D+ Størrelse: Plugg
Rotasjon: med urviseren
Plugg nr.: PL91
Total lengde mm: 196.00
Drevskive: SP/FW
Regulator type: IR
Prod. info: BN
Service: Mercedes
Anmerkninger: Vannkjølt.

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 56.70
Belt. adj. bracket hole 1 7.80
Belt. adj. brackethole pos. 60
Plug no. PL91
Bracket hole 8.00/9.50
Position/B+ in min. 10
Prod. info BN
Pulley SP/FW
Pulley dia. 49.80
Pulley dist. 33.00
Radius 83.00
D+ Size Plug
Radius 2 83.00
Regulator type IR
Remarks Water cooled.
Rotation CW
Servicing Mercedes
Grooves/pulley 6
Voltage 14
Total length 196.00 mm
Width/holder arm 93.50
Amp 190

  • OEM
    A0001501650, A0001502450, AAN7101, aan7111, F032113771, 11.203.468, 11.203.631, 1677ir, 0001501650, 0001502450, 10480403, 10480407

  • Konkurrentreferens
    A1016, A1016PR, A1016R, CAL12110, DRA4146, DRA4146N, IA1228, LRA02073, 28-4509, 28-4616, 525.112.1902, 4818, 23161N, 23162R, 210354, 210354A, 301677RI, 440659, 9048980, 12048980, 32041780, 0986042446, 0986048980, 0986048983, 0986048986

  • NormaliseratArtNr
    a0001501650, a0001502450, a1016, a1016pr, a1016r, aan7101, aan7111, cal12110, dra4146, dra4146n, f032113771, ia1228, lra02073, 1677ir, 4818, 23161n, 23162r, 210354, 210354a, 284509, 284616, 301677ri, 440659, 0001501650, 0001502450, 9048980, 10480403, 10480407, 11203468, 11203631, 12048980, 32041780, 0986042446, 0986048980, 0986048983, 0986048986, 5251121902

  • Passar modeller
    Mercedes-Benz Model: 200 Model series: E 200 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM611.961 Type description: 210 From date: 01-07-1999 To date: 01-03-2002 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 200 Model series: E 200 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM611.961 Type description: 210 From date: 01-06-1998 To date: 01-03-2002 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: E 220 T Type of engine: CDI Size of motor: 2.1 Brand of engine: OM611.961 Type description: S210 Body: Estate From date: 01-05-1999 To date: 01-03-2003 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDI Size of motor: 2.1 Brand of engine: OM611.961 Type description: VF210 Body: Platform / Chassis From date: 01-07-1999 To date: 01-12-2002 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDI Size of motor: 2.1 Brand of engine: OM611.961 Type description: W210 From date: 01-07-1999 To date: 01-03-2002 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM611.961 Type description: 210 Body: Estate From date: 01-07-1999 To date: 01-03-2003 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM611.961 Type description: 210 From date: 01-07-1999 To date: 01-03-2002 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 270 Model series: E 270 T Type of engine: CDi Size of motor: 2.7 Brand of engine: OM612.961 Type description: 210 Body: Estate From date: 01-07-1999 To date: 01-03-2003 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 270 Model series: E 270 Type of engine: CDi Size of motor: 2.7 Brand of engine: OM612.961 Type description: 210 From date: 01-07-1999 To date: 01-03-2002 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 270 Model series: E 270 Type of engine: CDI Size of motor: 2.7 Brand of engine: OM612.961 Type description: VF210 Body: Platform / Chassis From date: 01-07-1999 To date: 01-12-2002 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 270 Model series: ML 270 Type of engine: CDi Size of motor: 2.7 Brand of engine: OM612.963 Type description: 163 From date: 01-12-1999 To date: 01-06-2005 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 320 Model series: E 320 T Type of engine: CDi Size of motor: 3.2 Brand of engine: OM613.961 Type description: 210 Body: Estate From date: 01-07-1999 To date: 01-03-2003 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 320 Model series: E 320 Type of engine: CDi Size of motor: 3.2 Brand of engine: OM613.961 Type description: 210 From date: 01-07-1999 To date: 01-03-2002 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 320 Model series: S 320 Type of engine: CDi Size of motor: 3.2 Brand of engine: OM613.960 Type description: 220 From date: 01-08-1999 To date: 01-09-2002 Fuel: Diesel Approved: Yes
