Varenr.: F032111676

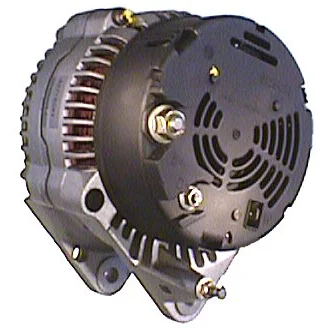

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 90, Rotasjon: CW, Monteringsbrakettavstand: 59.00

Beskrivelse

Spenningsnivå: 14
Amper: 90
Terminal: W
Drevavstand: 41.00
Bredde/holderarm: 14.80
Festebrakett avstand: 59.00
Brakettåpning: 8.40
Båndjustering brakettåpning pos.: 45
Båndjustering brakettåpning 1: 8.50
Drev diameter: 49.60
Grooves/drev: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 45
D+ Størrelse: M5
Rotasjon: medurs
W støpseletype: 6.30
Total lengde mm: 198.00
Drev: SP
Regulators type: IR
Prod. info: BN
Service: Audi

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 59.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Bracket hole 8.40
Position/B+ in min. 45
Prod. info BN
Pulley SP
Pulley dia. 49.60
Pulley dist. 41.00
Radius 90.00
D+ Size M5
Radius 2 90.00
Regulator type IR
Rotation CW
Servicing Audi
Grooves/pulley 6
Terminal W
Voltage 14
W plug type 6.30
Total length 198.00 mm
Width/holder arm 14.80
Amp 90

  • OEM
    a13vi126, a13vi63, b120411182, F032111676, 829ir, 2541626, 2541626E, 2541817, 027911287A, 028903017, 028903018f, 028903018FX, 028903023e, 028903023EX, 028903025e, 028903025EX, 050903017, 0120485019, 0120485020, 0123320003, 0123320048, 0123340001

  • Konkurrentreferens
    00-10.290, A0078, A0455, AL0183X, ALT-2038, ALT2038, ALT30044, CAL10205, dra8610, F042301061, F042A01061, ia1253, ia1256, lrb00252, MG364, NA440, QA2283, 1-1844-01BO, 8EL012428-931, 8el731690-001, 28-1833, 41-38.610, 211.153.902, 212.105.902, 2655, 13441N, 22708N, 30829RI, 56483, 210120, 210120A, 436449, 9038610, 12038610, 12040930, 20110252, 32038610, 35214955, 35215245, 0986038610

  • NormaliseratArtNr
    a0078, a0455, a13vi126, a13vi63, al0183x, alt2038, alt30044, b120411182, cal10205, dra8610, f032111676, f042301061, f042a01061, ia1253, ia1256, lrb00252, mg364, na440, qa2283, 8el012428931, 8el731690001, 829ir, 2655, 0010290, 13441n, 22708n, 30829ri, 56483, 210120, 210120a, 281833, 436449, 1184401bo, 2541626, 2541626e, 2541817, 4138610, 9038610, 12038610, 12040930, 20110252, 027911287a, 028903017, 028903018f, 028903018fx, 028903023e, 028903023ex, 028903025e, 028903025ex, 32038610, 35214955, 35215245, 050903017, 0120485019, 0120485020, 0123320003, 0123320048, 0123340001, 211153902, 212105902, 0986038610

  • Passar modeller
    Audi Model: 80 Model series: 80 Type of engine: TD Size of motor: 1.9 Brand of engine: AAZ From date: 01-09-1991 To date: 01-12-1994 Fuel: Diesel Approved: Yes
    Audi Model: 80 Model series: 80 Type of engine: TDi Size of motor: 1.9 Brand of engine: 1Z Body: Estate From date: 01-07-1992 To date: 01-01-1996 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: 80 Model series: 80 Type of engine: TDi Size of motor: 1.9 Brand of engine: 1Z From date: 01-09-1991 To date: 01-12-1994 Fuel: Diesel Approved: Yes
    Audi Model: Cabriolet Model series: Cabriolet Type of engine: TDi Size of motor: 1.9 Brand of engine: 1Z Body: Convertible From date: 01-06-1995 To date: 01-08-2000 Fuel: Diesel Approved: Yes
    Audi Model: Cabriolet Model series: Cabriolet Type of engine: TDi Size of motor: 1.9 Brand of engine: AHU Body: Convertible From date: 01-06-1995 To date: 01-08-2000 Fuel: Diesel Approved: Yes
    Skoda Model: Felicia Model series: Felicia Cube Van Type of engine: Diesel Size of motor: 1.9 Brand of engine: AEF Type description: 6U5 Body: Estate From date: 01-03-1997 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Skoda Model: Felicia Model series: Felicia Type of engine: Diesel Size of motor: 1.9 Brand of engine: AEF Body: Hatchback From date: 01-01-1998 To date: 01-06-2001 Fuel: Diesel Approved: Yes
    Skoda Model: Felicia Model series: Felicia Type of engine: Diesel Size of motor: 1.9 Brand of engine: AEF Body: Pick Up From date: 01-06-1997 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Skoda Model: Felicia Model series: Felicia Type of engine: Diesel Size of motor: 1.9 Brand of engine: AEF Type description: 6U1 Body: Hatchback From date: 01-10-1995 To date: 01-03-1998 Fuel: Diesel Approved: Yes
    Skoda Model: Felicia Model series: Felicia Type of engine: Diesel Size of motor: 1.9 Brand of engine: AEF Type description: 6U5 Body: Estate From date: 01-10-1995 To date: 01-03-1998 Fuel: Diesel Approved: Yes
    VW Model: California Model series: California T4 Camper Model type: VR6 Size of motor: 2.8 Brand of engine: AES Type description: 7DJ, 7DK, 70J Body: Bus From date: 01-07-1996 To date: 01-05-2000 Fuel: Petrol Approved: Yes
    VW Model: Corrado Model series: Corrado Model type: VR6 Size of motor: 2.8 Brand of engine: AAA Type description: 53I Body: Coupe From date: 01-09-1991 To date: 01-12-1995 Fuel: Petrol Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.0 Brand of engine: AAC Body: Bus From date: 01-09-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.0 Brand of engine: AAC Body: Platform / Chassis From date: 01-07-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.0 Brand of engine: AAC Body: Van From date: 01-07-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
