HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115742

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amper: 100, Rotasjon: CW, Montasjebrakett avstand: 83.00

Beskrivelse

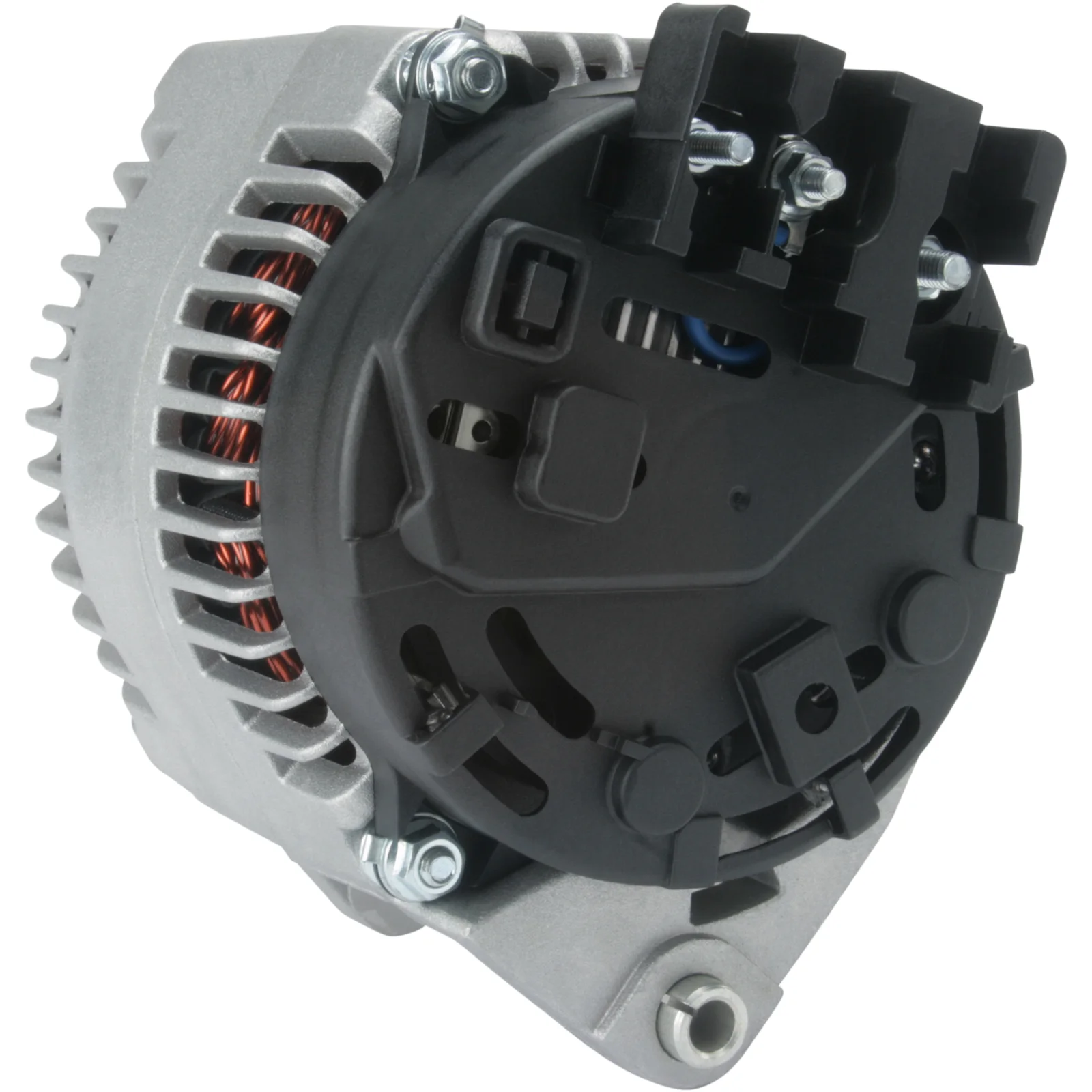

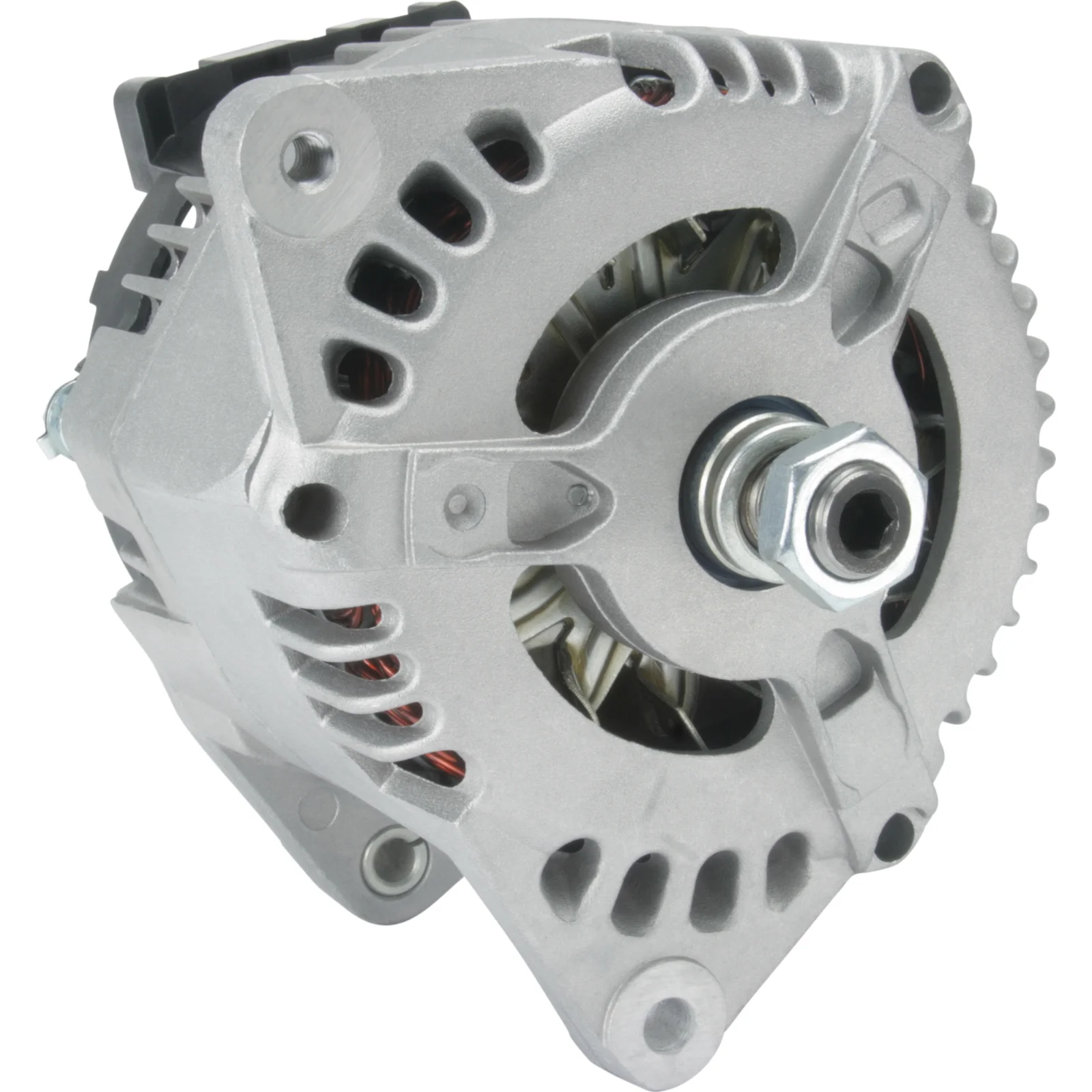

Land Rover Dynamo 12V-100A 12V - 100A, 4 trinse belte For Yourex produkt bestilling 90-484-2469

Spenning: 14
Ampere: 100
Bredde/beslag arm: 14,00
Monteringsbrakett avstand: 83,00
Brakettåpning: 8,20
Beltejustering brakettåpning pos.: 50
Beltejustering brakettåpning 1: M8
Radius: 86,00
Radius 2: 86,00
B+: M6
Posisjon/B+ i min.: 7
D+ Størrelse: M5
Rotasjon: medur
Kontakt nr.: PL31
W kontakt type: M5
Total lengde mm: 177,00
Skruehjul: uten
Regulator type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 83.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 50
Plug no. PL31
Bracket hole 8.20
Position/B+ in min. 7
Prod. info BN
Pulley w/o
Radius 86.00
D+ Size M5
Radius 2 86.00
Regulator type IR
Rotation CW
Voltage 14
W plug type M5
Total length 177.00 mm
Width/holder arm 14.00
Amp 100

  • OEM
    F032115742, LRB 368, MAN 675, T412401, YLE 10099, YLE 10100, YLE 10118, YLE10100, 2871 A309, 2871-A304, 2871A304, 2871A309, 101210-1570, 102211-8120, 102211-8121, 115742, 3469824, 3832556, 20130195, 54022469, 54022470, 63322469, 63340003, 63340005, 63377463

  • Konkurrentreferens
    A6071, A6071(DENSO), CAL30195, DAN009, DAN1091, DAN649, DRA0028, MAN7463, 28-2760, 705.503.100, 12739N, 13697N, 13697R, 12090211, 063377463, 063377463010

  • Bilmärken
    JCB, Land Rover, Manitou, Perkins Engines

  • NormaliseratArtNr
    a6071, a6071denso, cal30195, dan009, dan1091, dan649, dra0028, f032115742, lrb368, man675, man7463, t412401, yle10099, yle10100, yle10118, 2871a304, 2871a309, 12739n, 13697n, 13697r, 115742, 282760, 3469824, 3832556, 12090211, 20130195, 54022469, 54022470, 63322469, 63340003, 63340005, 063377463, 63377463, 705503100, 1012101570, 1022118120, 1022118121, 063377463010

  • Passar modeller
    JCB Model: 411 Model series: 411 Model type: Loader Approved: Yes
    JCB Model: 530 Model series: 530 Model type: Backhoe Approved: Yes
    JCB Model: 580 Model series: 580 Model type: Loader Approved: Yes
    JCB Series: Fastrac Model: 1135
    JCB Series: Fastrac Model: 125, 135, 145, 155
    JCB Series: Teleskoplastare Model: 525-58, 525-67 Engine type: Perkins
    Land Rover Model: Range Rover Model series: Range Rover Model type: 4x4 Size of motor: 3.9 Brand of engine: 42D Body: Closed Off-Road Vehicle Fuel: Petrol Approved: Yes
    Land Rover Series: Defender Model: 90 V8 Engine volume: 3.9 Year: 01.95-
    Land Rover Series: Range - Rover Model: 3.9i Engine volume: 3.9 Year: 10.92-12.94
    Land Rover Series: Range - Rover Model: 4.2 Engine volume: 4.2 Year: 10.92-12.94
    Manitou Series: Teleskoplastare Model: MT 1030S, 1033HLT Engine type: Perkins
    Manitou Series: Teleskoplastare Model: MT 1235S, ST Engine type: Perkins
    Manitou Series: Teleskoplastare Model: MT 1240LT Engine type: Perkins
    Manitou Series: Teleskoplastare Model: MT 1335H, SL, SLT Engine type: Perkins
    Manitou Series: Teleskoplastare Model: MT 1435H, SL, SLT Engine type: Perkins
    Manitou Series: Teleskoplastare Model: MT 1440SLT Engine type: Perkins
    Manitou Series: Teleskoplastare Model: MT 1740SLT Engine type: Perkins
    Manitou Series: Teleskoplastare Model: MT 732, 928, 932, 940 Engine type: Perkins
    1 / 4
  • Beskrivelse
    Land Rover Dynamo 12V-100A 12V - 100A, 4 trinse belte For Yourex produkt bestilling 90-484-2469

    Spenning: 14
    Ampere: 100
    Bredde/beslag arm: 14,00
    Monteringsbrakett avstand: 83,00
    Brakettåpning: 8,20
    Beltejustering brakettåpning pos.: 50
    Beltejustering brakettåpning 1: M8
    Radius: 86,00
    Radius 2: 86,00
    B+: M6
    Posisjon/B+ i min.: 7
    D+ Størrelse: M5
    Rotasjon: medur
    Kontakt nr.: PL31
    W kontakt type: M5
    Total lengde mm: 177,00
    Skruehjul: uten
    Regulator type: IR
    Prod. info: BN

    Filer

  • Spesifikasjon
    B+ M6
    Mount. bracket dist. 83.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 50
    Plug no. PL31
    Bracket hole 8.20
    Position/B+ in min. 7
    Prod. info BN
    Pulley w/o
    Radius 86.00
    D+ Size M5
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Voltage 14
    W plug type M5
    Total length 177.00 mm
    Width/holder arm 14.00
    Amp 100
  • Kjøretøymatching

    • OEM
      F032115742, LRB 368, MAN 675, T412401, YLE 10099, YLE 10100, YLE 10118, YLE10100, 2871 A309, 2871-A304, 2871A304, 2871A309, 101210-1570, 102211-8120, 102211-8121, 115742, 3469824, 3832556, 20130195, 54022469, 54022470, 63322469, 63340003, 63340005, 63377463

    • Konkurrentreferens
      A6071, A6071(DENSO), CAL30195, DAN009, DAN1091, DAN649, DRA0028, MAN7463, 28-2760, 705.503.100, 12739N, 13697N, 13697R, 12090211, 063377463, 063377463010

    • Bilmärken
      JCB, Land Rover, Manitou, Perkins Engines

    • NormaliseratArtNr
      a6071, a6071denso, cal30195, dan009, dan1091, dan649, dra0028, f032115742, lrb368, man675, man7463, t412401, yle10099, yle10100, yle10118, 2871a304, 2871a309, 12739n, 13697n, 13697r, 115742, 282760, 3469824, 3832556, 12090211, 20130195, 54022469, 54022470, 63322469, 63340003, 63340005, 063377463, 63377463, 705503100, 1012101570, 1022118120, 1022118121, 063377463010

    • Passar modeller
      JCB Model: 411 Model series: 411 Model type: Loader Approved: Yes
      JCB Model: 530 Model series: 530 Model type: Backhoe Approved: Yes
      JCB Model: 580 Model series: 580 Model type: Loader Approved: Yes
      JCB Series: Fastrac Model: 1135
      JCB Series: Fastrac Model: 125, 135, 145, 155
      JCB Series: Teleskoplastare Model: 525-58, 525-67 Engine type: Perkins
      Land Rover Model: Range Rover Model series: Range Rover Model type: 4x4 Size of motor: 3.9 Brand of engine: 42D Body: Closed Off-Road Vehicle Fuel: Petrol Approved: Yes
      Land Rover Series: Defender Model: 90 V8 Engine volume: 3.9 Year: 01.95-
      Land Rover Series: Range - Rover Model: 3.9i Engine volume: 3.9 Year: 10.92-12.94
      Land Rover Series: Range - Rover Model: 4.2 Engine volume: 4.2 Year: 10.92-12.94
      Manitou Series: Teleskoplastare Model: MT 1030S, 1033HLT Engine type: Perkins
      Manitou Series: Teleskoplastare Model: MT 1235S, ST Engine type: Perkins
      Manitou Series: Teleskoplastare Model: MT 1240LT Engine type: Perkins
      Manitou Series: Teleskoplastare Model: MT 1335H, SL, SLT Engine type: Perkins
      Manitou Series: Teleskoplastare Model: MT 1435H, SL, SLT Engine type: Perkins
      Manitou Series: Teleskoplastare Model: MT 1440SLT Engine type: Perkins
      Manitou Series: Teleskoplastare Model: MT 1740SLT Engine type: Perkins
      Manitou Series: Teleskoplastare Model: MT 732, 928, 932, 940 Engine type: Perkins
      1 / 4
