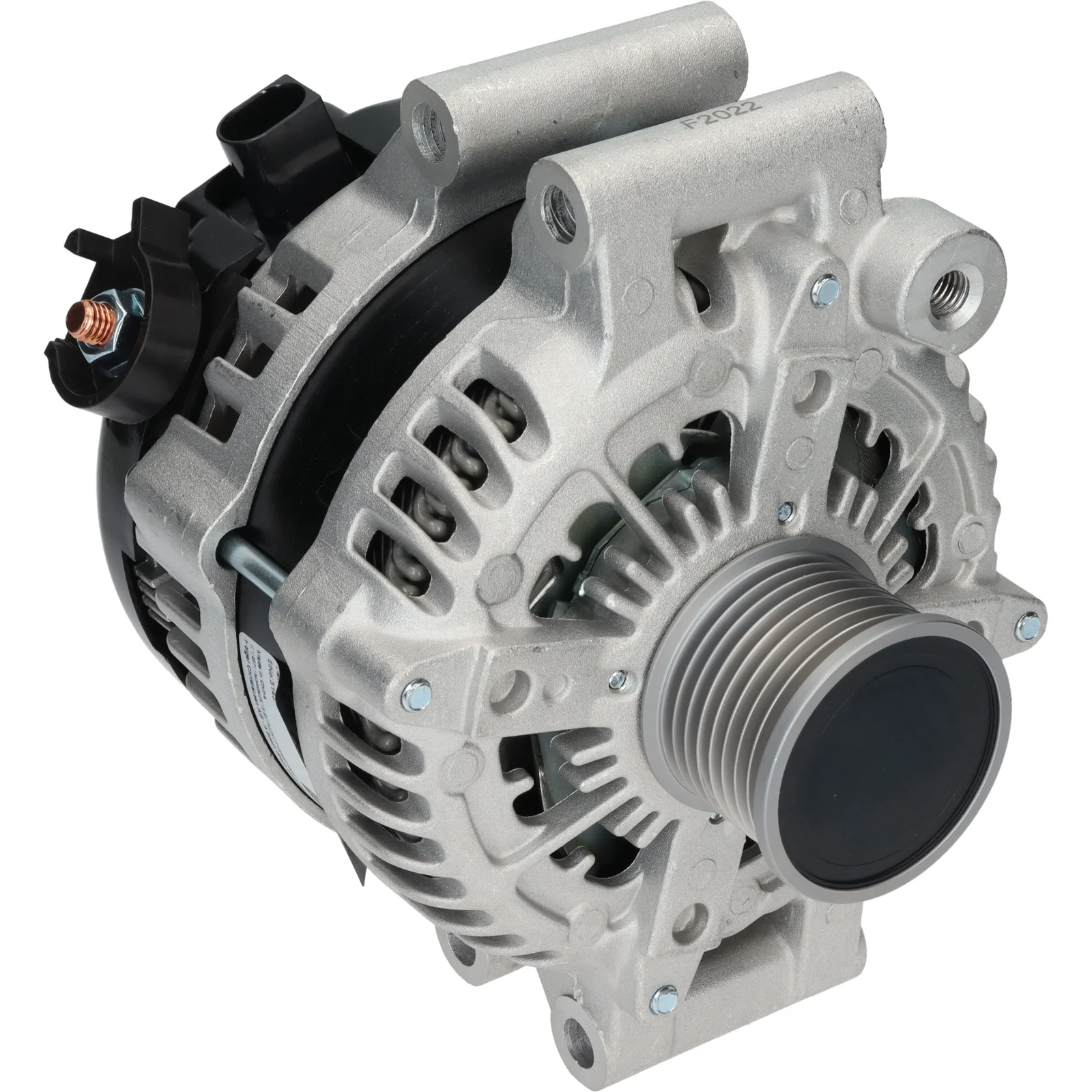

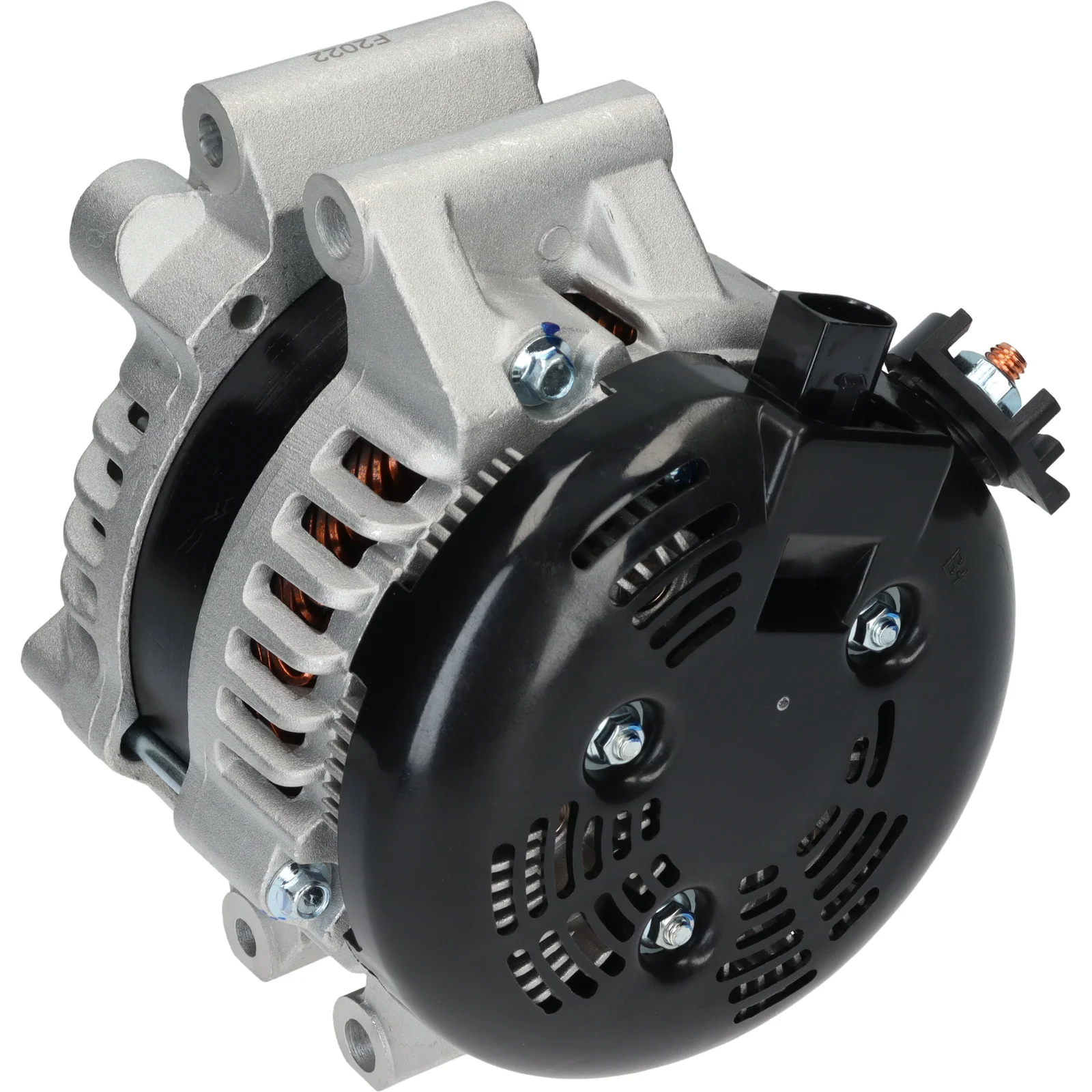

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116668

HC-Cargo Dynamo

Teknisk info:

Spenningsap: 14, Amp: 210, Rotasjon: CW, Monteringsbøssing avstand: 40,50

Beskrivelse

Spenningsvar. | Spenning → Spenning: 14
Amp.: 210
Drevkugg. dist.: 30.00
Bredde/holder arm: 62.50
Monteringsbrakett dist.: 40.50
Bracket holes: 8.00
Belt. justering brakett hull 1: 8.00x9.50
Drev diameter: 49.00
Spor/ Drevkugg.: 8
Radius: 87.00
Radius 2: 87.00
B+: M8
Posisjon/B+ i min.: 10
Rotasjon: CW
Stift nr.: PL125
Total lengde mm: 172.00
Terminaltype: COM
Kommunikasjon: BSS
Drevkugg.: SP/FW
Vifte: IF
Regulator type: IR
Merkninger: Denne Dynamo har en COM terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication BSS
Mount. bracket dist. 40.50
Belt. adj. bracket hole 1 8.00x9.50
Plug no. PL125
Bracket hole 8.00
Position/B+ in min. 10
Pulley SP/FW
Pulley dia. 49.00
Pulley dist. 30.00
Radius 87.00
Radius 2 87.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 8
Terminal type COM
Voltage 14
Total length 172.00 mm
Width/holder arm 62.50
Amp 210

  • OEM
    F032116668, TG23C042, 104210-6250, 104210-6251, 12317591268, 12317591271

  • Konkurrentreferens
    A6347, CAL40499, DRA0881, LRA03636, 8EL015630-001, 28-6776, 215.520.210, 40458, 440990, 555134RI, 9090711, 12090417, 32001010

  • NormaliseratArtNr
    a6347, cal40499, dra0881, f032116668, lra03636, tg23c042, 8el015630001, 40458, 286776, 440990, 555134ri, 9090711, 12090417, 32001010, 215520210, 1042106250, 1042106251, 12317591268, 12317591271

  • Passar modeller
    BMW Model: 5 Model series: 523 Type of engine: i Size of motor: 2.5 Brand of engine: N52B25A Type description: F10 From date: 01-01-2010 To date: 01-08-2011 Fuel: Gasoline Approved: Yes
    BMW Model: 5 Model series: 523 Type of engine: i Size of motor: 2.5 Brand of engine: N52B25A Type description: F11 Body: Estate From date: 01-11-2009 To date: 01-08-2011 Fuel: Gasoline Approved: Yes Manufacture type: Touring
    BMW Model: 5 Model series: 523 Type of engine: i Size of motor: 3.0 Brand of engine: N53 B30A Type description: F10 From date: 01-01-2010 To date: 01-08-2011 Fuel: Gasoline Approved: Yes
    BMW Model: 5 Model series: 523 Type of engine: i Size of motor: 3.0 Brand of engine: N53B30A Type description: F10 From date: 01-06-2009 To date: 01-08-2011 Fuel: Gasoline Approved: Yes
    BMW Model: 5 Model series: 523 Type of engine: i Size of motor: 3.0 Brand of engine: N53B30A Type description: F11 Body: Estate From date: 01-11-2009 To date: 01-08-2011 Fuel: Gasoline Approved: Yes Manufacture type: Touring
    BMW Model: 5 Model series: 528 i Model type: 528 i Size of motor: 3.0 Brand of engine: N52B30A Type description: F10 Body: Saloon From date: 01-10-2009 To date: 01-08-2011 Fuel: Petrol Approved: Yes
    BMW Model: 5 Model series: 528 Type of engine: i Size of motor: 3.0 Brand of engine: N53B30A Type description: F10 From date: 01-03-2010 To date: 01-08-2011 Fuel: Gasoline Approved: Yes
    BMW Model: 5 Model series: 528 Type of engine: i Size of motor: 3.0 Brand of engine: N53B30A Type description: F11 Body: Estate From date: 01-11-2009 To date: 01-08-2011 Fuel: Gasoline Approved: Yes Manufacture type: Touring
    BMW Model: 5 Model series: 530 Type of engine: i Size of motor: 3.0 Brand of engine: N52B30A Type description: F10 From date: 01-03-2010 To date: 01-06-2013 Fuel: Gasoline Approved: Yes
    BMW Model: 5 Model series: 530 Type of engine: i Size of motor: 3.0 Brand of engine: N52B30A Type description: F11 Body: Estate From date: 01-03-2010 To date: 01-05-2013 Fuel: Gasoline Approved: Yes Manufacture type: Touring
    BMW Model: 5 Model series: 530 Type of engine: i Size of motor: 3.0 Brand of engine: N52B30AF Type description: F10 From date: 01-03-2010 To date: 01-06-2013 Fuel: Gasoline Approved: Yes
    BMW Model: 5 Model series: 530 Type of engine: i Size of motor: 3.0 Brand of engine: N52B30AF Type description: F11 Body: Estate From date: 01-03-2010 To date: 01-05-2013 Fuel: Gasoline Approved: Yes Manufacture type: Touring
    BMW Model: 5 Model series: 530 Type of engine: i Size of motor: 3.0 Brand of engine: N52B30BF Type description: F10 From date: 01-03-2010 To date: 01-06-2013 Fuel: Gasoline Approved: Yes
    BMW Model: 5 Model series: 530 Type of engine: i Size of motor: 3.0 Brand of engine: N53B30A Type description: F10 From date: 01-05-2011 To date: 01-06-2013 Fuel: Gasoline Approved: Yes
    BMW Model: 5 Model series: 530 Type of engine: i Size of motor: 3.0 Brand of engine: N53B30A Type description: F11 Body: Estate From date: 01-07-2011 To date: 01-06-2013 Fuel: Gasoline Approved: Yes Manufacture type: Touring
    BMW Model: 7 Model series: 730 Type of engine: i Size of motor: 3.0 Brand of engine: N52B30A Type description: F01, F02, F03, F04 From date: 01-09-2009 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    BMW Model: 7 Model series: 730 Type of engine: i Size of motor: 3.0 Brand of engine: N52B30BF Type description: F01, F02, F03, F04 From date: 01-09-2009 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    BMW Model: X3 Model series: X3 Model type: xDrive 28i Type of engine: Diesel Size of motor: 3.0 Brand of engine: N52B30A Type description: F25 From date: 01-01-2011 To date: 01-10-2012 Fuel: Gasoline Approved: Yes
    1 / 4
