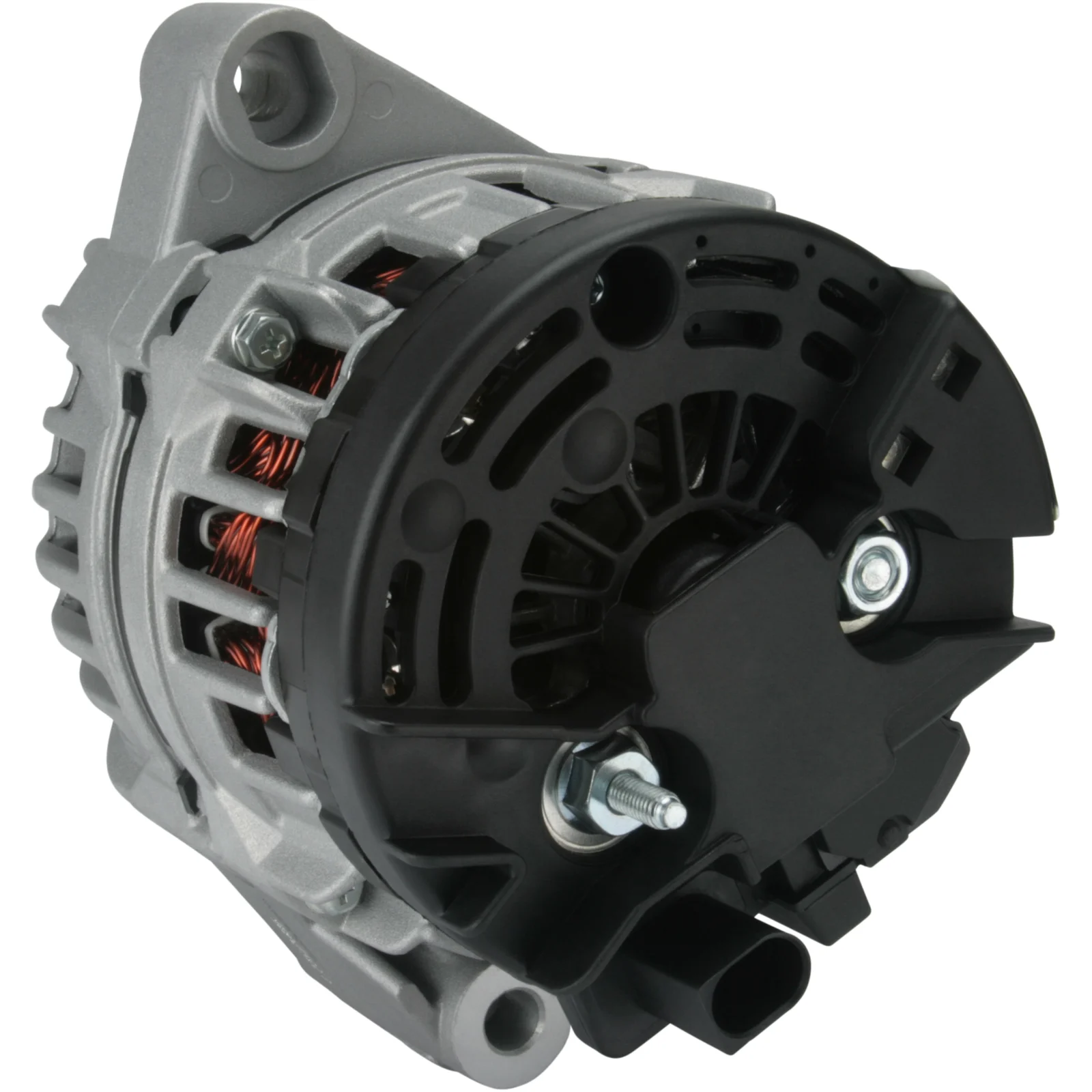

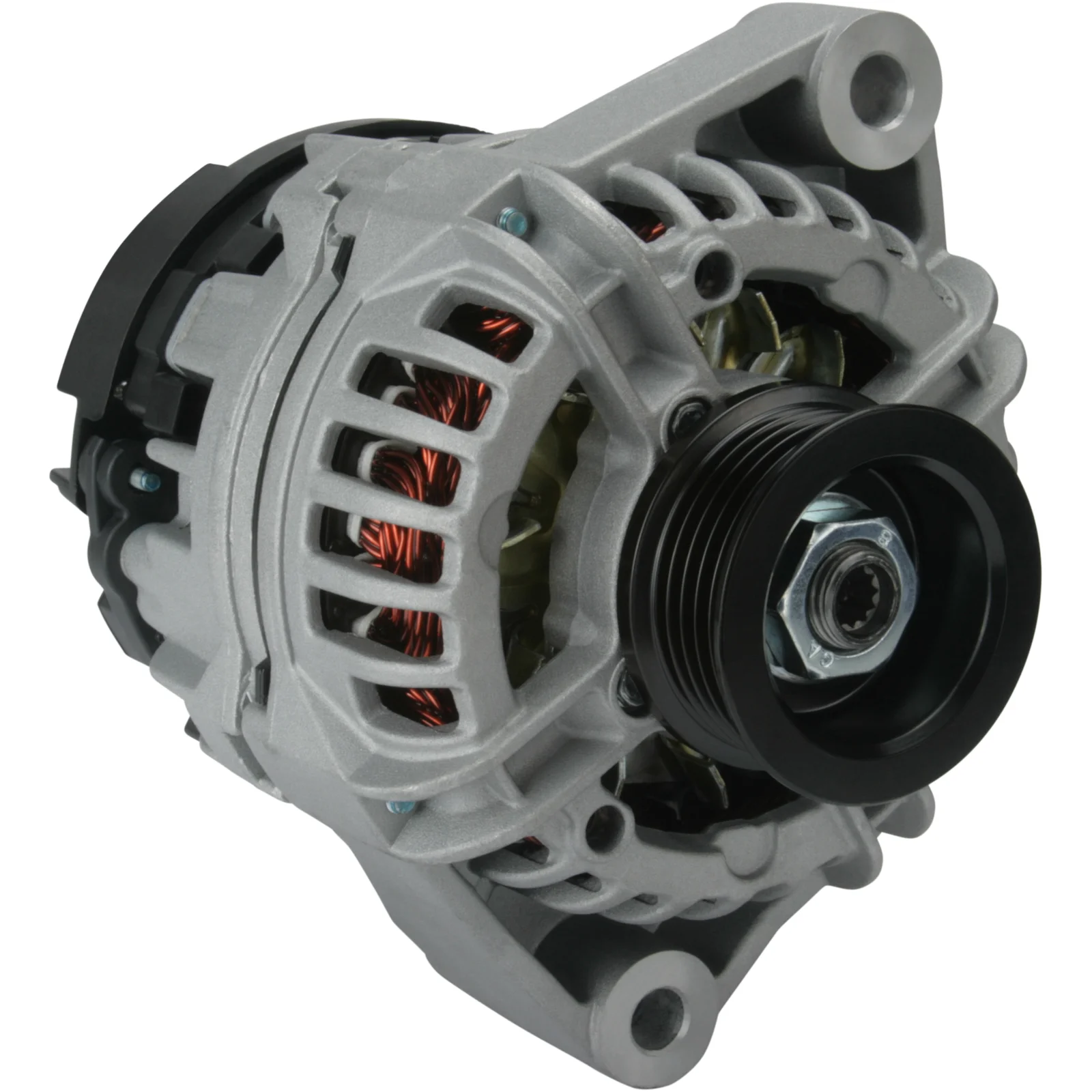

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115746

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 90, Rotasjon: PÅ, Bøssing diameter: 54,00

Beskrivelse

Strømforsyning: 14
Amp: 90
Drivehjul avstand: 90.50
Bredde/beslag arm: 58.20
Klemmehull: 10.50
Belt. just. brakett hull pos.: 5
Belt. just. brakett hull 1: 11.40
Drivehjul dia.: 54.00
Groner/drivehjul: 5
Radius: 80.00
Radius 2: 80.00
B+: M6
Posisjon/B+ i min.: 37
Rotasjon: med urviseren
Plugg nr.: PL181
Total lengde mm: 174.00
Terminaltype: COM
Kommunikasjon: LIN
Drivehjul: SP
Regulator type: IR
Prod. info: BN
Anmerkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M6
Communication LIN
Belt. adj. bracket hole 1 11.40
Belt. adj. brackethole pos. 5
Plug no. PL181
Bracket hole 10.50
Position/B+ in min. 37
Prod. info BN
Pulley SP
Pulley dia. 54.00
Pulley dist. 90.50
Radius 80.00
Radius 2 80.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 5
Terminal type COM
Voltage 14
Total length 174.00 mm
Width/holder arm 58.20
Amp 90

  • OEM
    a0131546902, F032115746, 0124225058, 0124225074, 0131546902

  • Konkurrentreferens
    A0476, CAL10419, DRA1223, LRA03518, 28-6628, 525.136.902, 555.573.090, 209042, 209042A, 9090729, 12090470

  • NormaliseratArtNr
    a0131546902, a0476, cal10419, dra1223, f032115746, lra03518, 209042, 209042a, 286628, 9090729, 12090470, 0124225058, 0124225074, 0131546902, 525136902, 555573090

  • Passar modeller
    Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.950 Type description: 451 Body: Convertible From date: 01-01-2007 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.950 Type description: 451 Body: Coupe From date: 01-01-2007 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.951 Type description: 451 Body: Convertible From date: 01-08-2009 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.951 Type description: 451 Body: Coupe From date: 01-08-2009 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Strømforsyning: 14
    Amp: 90
    Drivehjul avstand: 90.50
    Bredde/beslag arm: 58.20
    Klemmehull: 10.50
    Belt. just. brakett hull pos.: 5
    Belt. just. brakett hull 1: 11.40
    Drivehjul dia.: 54.00
    Groner/drivehjul: 5
    Radius: 80.00
    Radius 2: 80.00
    B+: M6
    Posisjon/B+ i min.: 37
    Rotasjon: med urviseren
    Plugg nr.: PL181
    Total lengde mm: 174.00
    Terminaltype: COM
    Kommunikasjon: LIN
    Drivehjul: SP
    Regulator type: IR
    Prod. info: BN
    Anmerkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M6
    Communication LIN
    Belt. adj. bracket hole 1 11.40
    Belt. adj. brackethole pos. 5
    Plug no. PL181
    Bracket hole 10.50
    Position/B+ in min. 37
    Prod. info BN
    Pulley SP
    Pulley dia. 54.00
    Pulley dist. 90.50
    Radius 80.00
    Radius 2 80.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 5
    Terminal type COM
    Voltage 14
    Total length 174.00 mm
    Width/holder arm 58.20
    Amp 90
  • Kjøretøymatching

    • OEM
      a0131546902, F032115746, 0124225058, 0124225074, 0131546902

    • Konkurrentreferens
      A0476, CAL10419, DRA1223, LRA03518, 28-6628, 525.136.902, 555.573.090, 209042, 209042A, 9090729, 12090470

    • NormaliseratArtNr
      a0131546902, a0476, cal10419, dra1223, f032115746, lra03518, 209042, 209042a, 286628, 9090729, 12090470, 0124225058, 0124225074, 0131546902, 525136902, 555573090

    • Passar modeller
      Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.950 Type description: 451 Body: Convertible From date: 01-01-2007 Fuel: Diesel Approved: Yes
      Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.950 Type description: 451 Body: Coupe From date: 01-01-2007 Fuel: Diesel Approved: Yes
      Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.951 Type description: 451 Body: Convertible From date: 01-08-2009 Fuel: Diesel Approved: Yes
      Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.951 Type description: 451 Body: Coupe From date: 01-08-2009 Fuel: Diesel Approved: Yes
