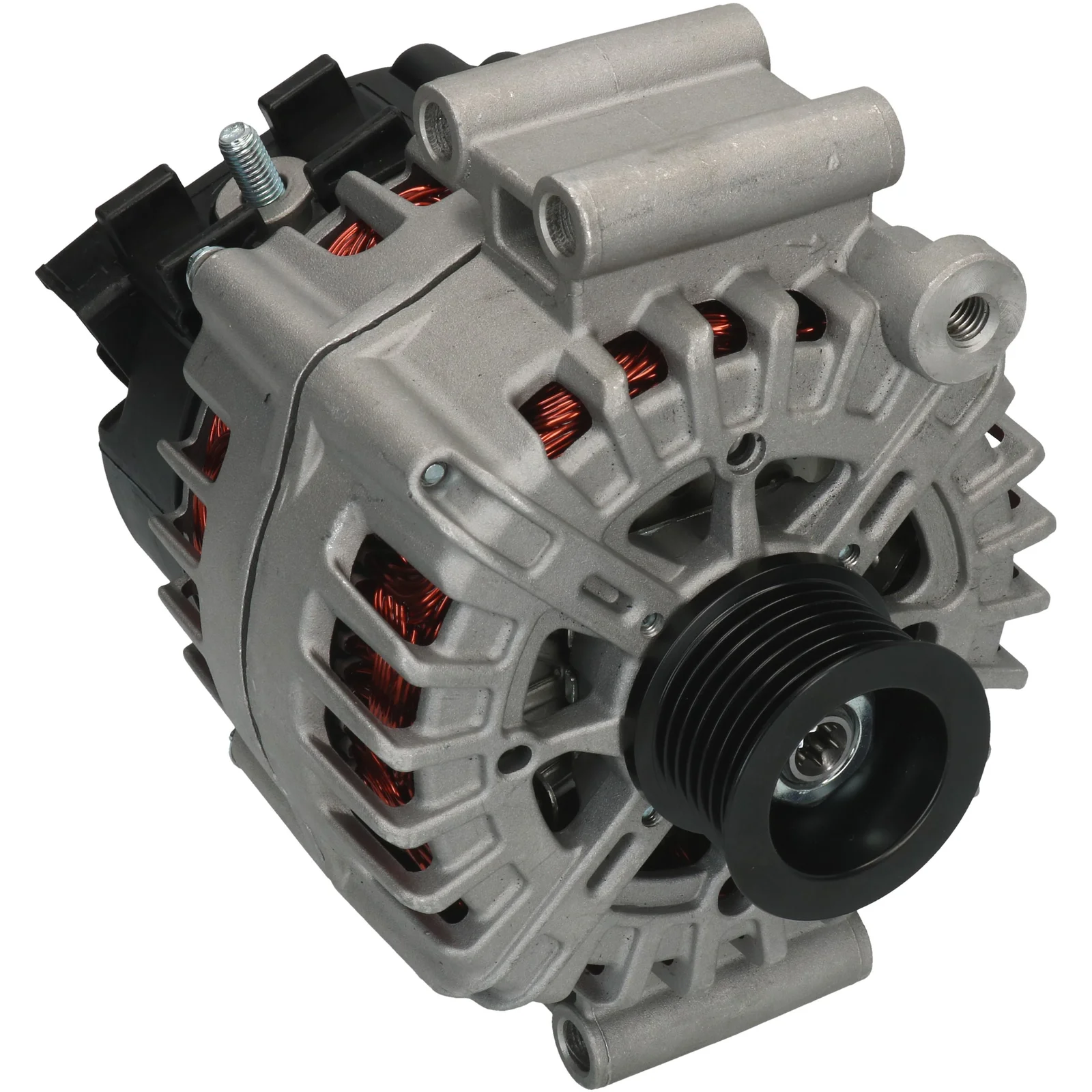

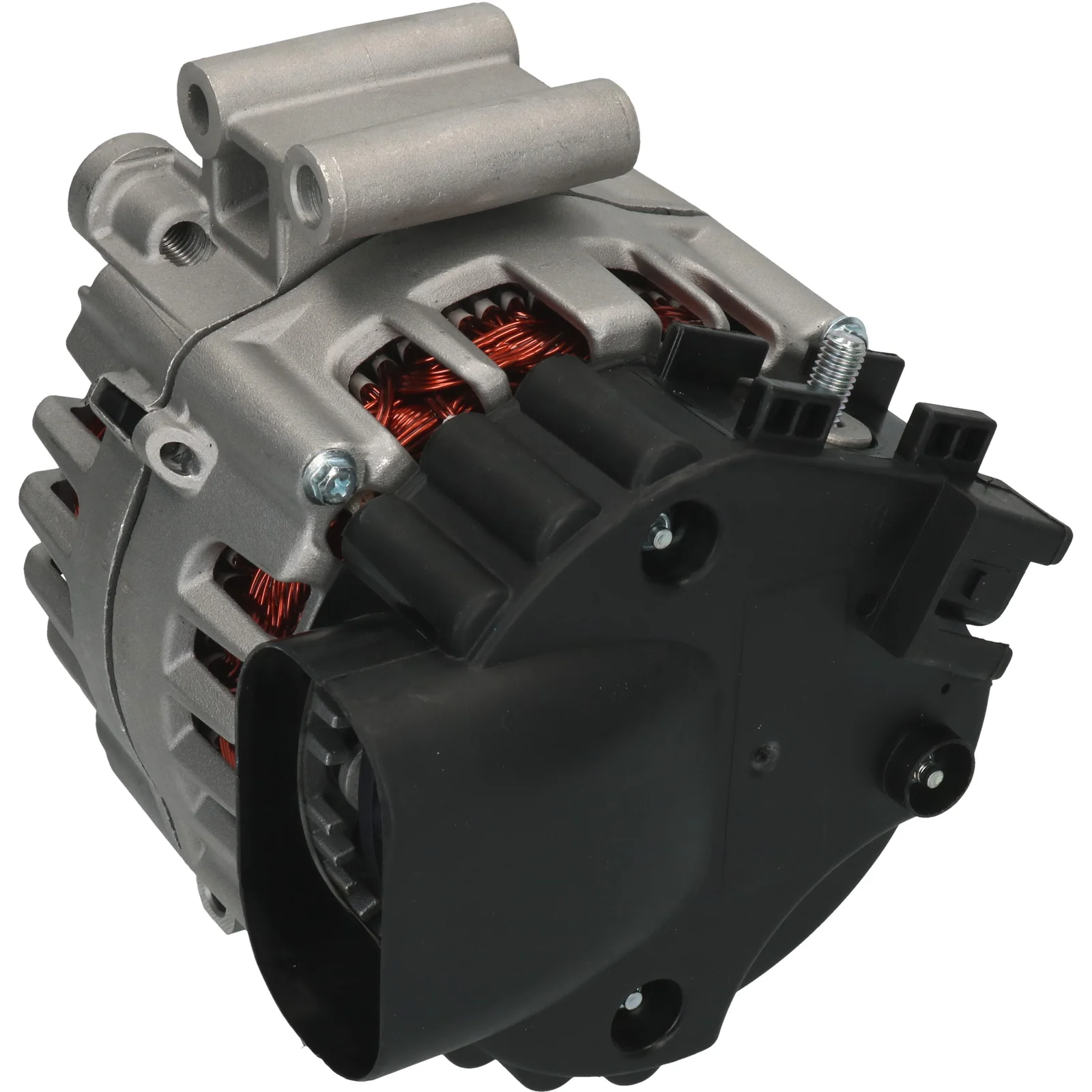

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115807

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 230, Rotasjon: CW, Monteringsbrakett avstand: 41,00

Beskrivelse

Spenningsstyrke: 14
Amp: 230
Drevkugg dist.: 30,00
Bredde/holder arm: 62,50
Monteringsbeslag dist.: 41,00
Beslagshull: 8,20
Bånd. just. bes. hull 1: 8,20/9,20
Drevdiameter: 48,50
Beslag/groove: 7
Radius: 87,00
Radius 2: 87,00
B+: M8
Posisjon/B+ i min.: 4
Rotasjon: medurs
Plugg nr.: PL86
Total lengde mm: 188,00
Terminaltype: COM
Kommunikasjon: BSS
Drev: SP
Vifte: IF
Regulator type: IR
Anmerkninger: Denne generatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication BSS
Mount. bracket dist. 41.00
Belt. adj. bracket hole 1 8.20/9.20
Plug no. PL86
Bracket hole 8.20
Position/B+ in min. 4
Pulley SP
Pulley dia. 48.50
Pulley dist. 30.00
Radius 87.00
Radius 2 87.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 7
Terminal type COM
Voltage 14
Total length 188.00 mm
Width/holder arm 62.50
Amp 230

  • OEM
    A3409S, CAL15440, DRA0737, F032115807, FG23S010, FG23S043, LRA03209, 8EL011713-881, 28-5821, 215.186.2202, 11393N, 209208, 209208A, 439636, 440203, 554173RI, 2543518, 12090408, 32439636, 12317575344, 12317575347, 12317603779, 12317603782

  • Konkurrentreferens
    A3409S, CAL15440, DRA0737, LRA03209, 8EL011713-881, 28-5821, 215.186.2202, 11393N, 209208, 209208A, 439636, 440203, 554173RI, 12090408, 32439636

  • Bilmärken
    AUDI, BMW

  • NormaliseratArtNr
    a3409s, cal15440, dra0737, f032115807, fg23s010, fg23s043, lra03209, 8el011713881, 11393n, 209208, 209208a, 285821, 439636, 440203, 554173ri, 2543518, 12090408, 32439636, 2151862202, 12317575344, 12317575347, 12317603779, 12317603782

  • Passar modeller
    AUDI A4 Allroad B8 (8KH) 3.0 TDI quattro Engine volume: 3.0 Engine type: CCWA Year: 04.09-01.12
    AUDI A4 B8 (8K2) 2.7 TDI Engine volume: 2.7 Engine type: CAMA, CGKA Year: 11.07-03.12
    AUDI A4 B8 (8K2) 2.7 TDI Engine volume: 2.7 Engine type: CAMB, CGKB Year: 11.07-03.12
    AUDI A4 B8 (8K2) 3.0 TDI quattro Engine volume: 3.0 Engine type: CCLA, CAPA, CCWA Year: 11.07-03.12
    AUDI A4 B8 (8K2) 3.0 TDI quattro Engine volume: 3.0 Engine type: CCWB Year: 06.08-05.10
    AUDI A4 B8 Avant (8K5) 2.7 TDI Engine volume: 2.7 Engine type: CAMB, CGKB Year: 04.08-03.12
    AUDI A4 B8 Avant (8K5) 3.0 TDI quattro Engine volume: 3.0 Engine type: CCLA, CAPA, CCWA Year: 04.08-03.12
    AUDI A4 B8 Avant (8K5) 3.0 TDI quattro Engine volume: 3.0 Engine type: CCWB Year: 06.08-05.10
    AUDI A5 (8T3) 2.7 TDI Engine volume: 2.7 Engine type: CAMA, CGKA Year: 06.07-03.12
    AUDI A5 (8T3) 2.7 TDI Engine volume: 2.7 Engine type: CAMB, CGKB Year: 09.07-03.12
    AUDI A5 (8T3) 3.0 TDI quattro Engine volume: 3.0 Engine type: CAPA, CCWA Year: 06.07-03.12
    AUDI A5 (8T3) 3.0 TDI quattro Engine volume: 3.0 Engine type: CCWB Year: 03.08-05.10
    AUDI A5 (8T3) 3.2 FSI Engine volume: 3.2 Engine type: CALA Year: 06.07-03.12
    AUDI A5 (8T3) 3.2 FSI quattro Engine volume: 3.2 Engine type: CALA Year: 06.07-03.12
    AUDI A5 Cabriolet (8F7) 2.7 TDI Engine volume: 2.7 Engine type: CGKA Year: 03.09-03.12
    AUDI A5 Cabriolet (8F7) 3.0 TDI quattro Engine volume: 3.0 Engine type: CCWA Year: 03.09-03.12
    AUDI A5 Sportback (8TA) 2.7 TDI Engine volume: 2.7 Engine type: CGKA Year: 09.09-03.12
    AUDI A5 Sportback (8TA) 3.0 TDI quattro Engine volume: 3.0 Engine type: CCWA Year: 09.09-03.12
    AUDI Q5 (8RB) 3.0 TDI quattro Engine volume: 3.0 Engine type: CCWB Year: 11.08-09.12
    AUDI Q5 (8RB) 3.0 TDI quattro Engine volume: 3.0 Engine type: CPNB, CCWA Year: 11.08-05.17
    BMW 7 (F01, F02, F03, F04) 750 i, Li xDrive Engine volume: 4.4 Engine type: N63 B44 A Year: 09.09-06.12
    BMW X5 (E70) xDrive 40 i Engine volume: 3.0 Engine type: N55 B30 A Year: 01.12-06.13
    BMW X6 (E71, E72) xDrive 35 i Engine volume: 3.0 Engine type: N55 B30 A, N54 B30 A Year: 01.08-06.14
    BMW X6 (E71, E72) xDrive 50 i Engine volume: 4.4 Engine type: N63 B44 A Year: 10.07-06.14
