- Dynamo
-
HC-Cargo Dynamo
- Dynamo
-
HC-Cargo Dynamo
Varenr.: F032115412

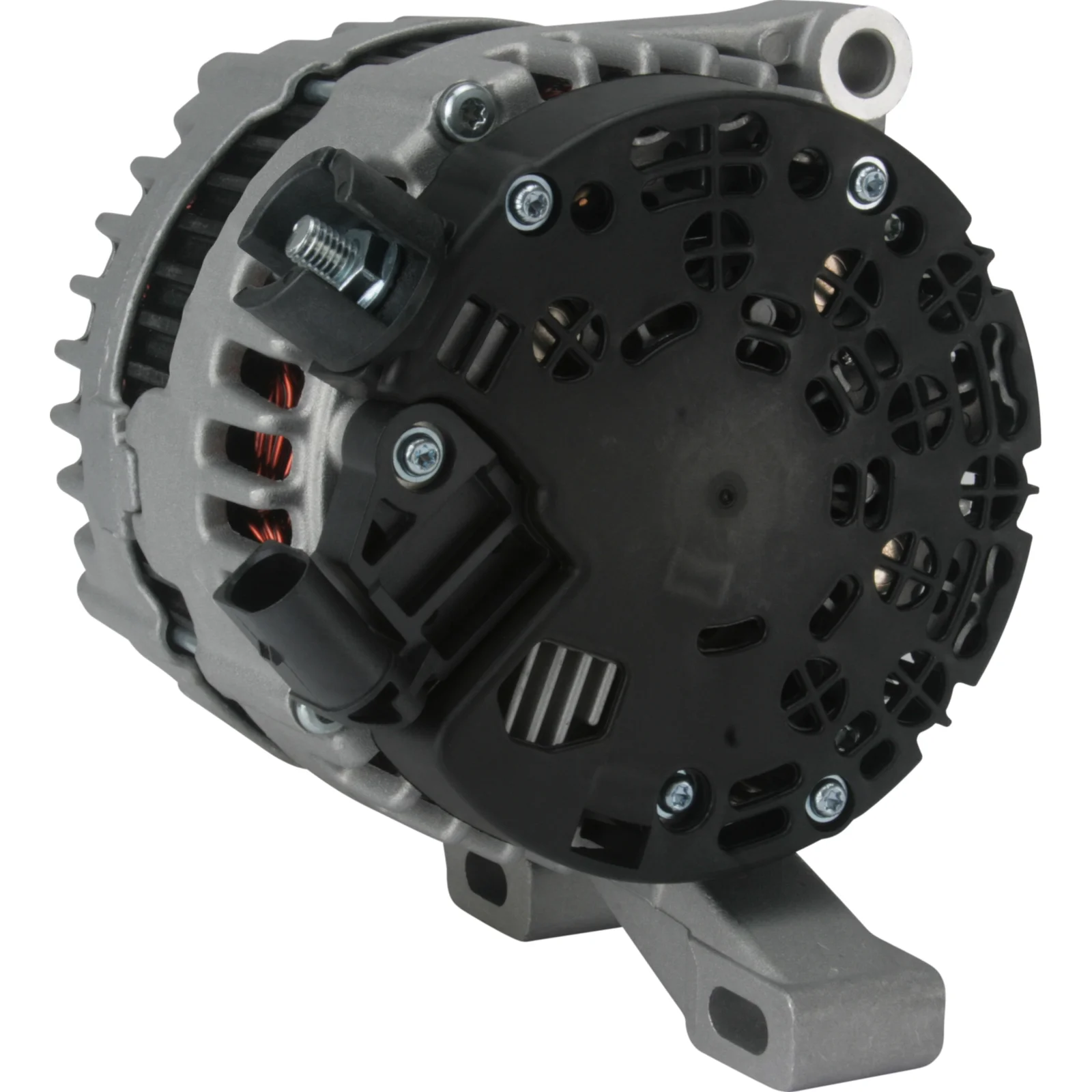

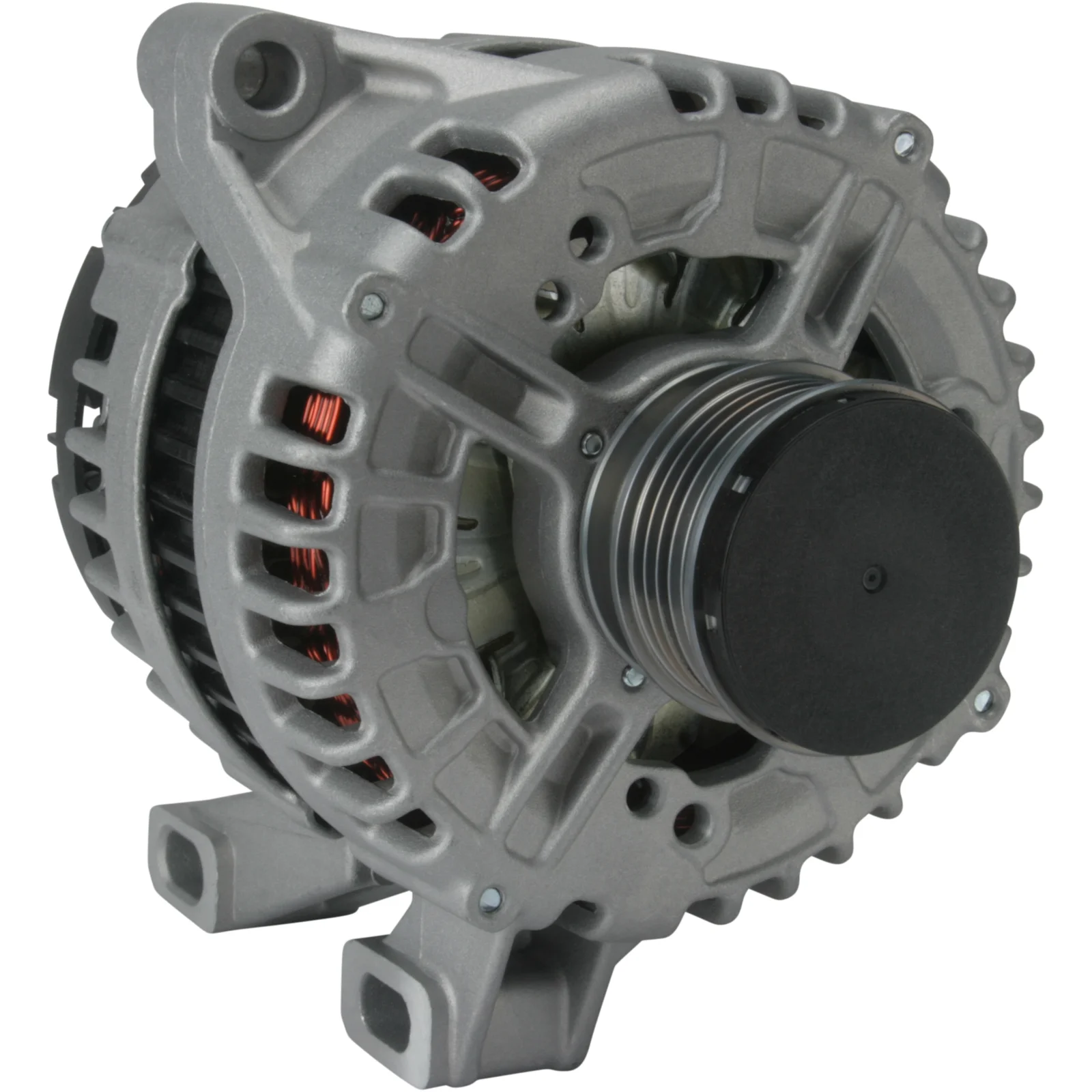

HC-Cargo Dynamo
Spenningsgiver: 14, Amp: 180, Rotasjon: CW, Monteringsbrakett avstand: 92.00
Beskrivelse
Gen. 12V-180A passer for Volvo 12V - 180A, 5 gr. frg (LIN) ID-kode : 88 5gr. frg (LIN), For Yourex produktordre 91-600-6093
Spenning: 14
Ampere: 180
Drivskive avstand: 61.00
Bredde/holderarm: 32.00
Montasje-beslag avstand: 92.00
Beslagshull: 9.00x18.00
Beltejusterings brakethull pos.: 54
Beltejusterings brakethull 1: 10.50
Drivskive diameter: 54.00
Grotter/drivskive: 5
Radius: 92.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 50
Rotasjon: Medur
Plugg nr.: PL137
Total lengde mm: 194.00
Terminaltype: COM
Kommunikasjon: LIN
Drivskive: SP/FW
Regulator type: IR
Anmerkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.
Filer
Spesifikasjon
| B+ | M8 |
|---|---|
| Communication | LIN |
| Mount. bracket dist. | 92.00 |
| Belt. adj. bracket hole 1 | 10.50 |
| Belt. adj. brackethole pos. | 54 |
| Plug no. | PL137 |
| Bracket hole | 9.00x18.00 |
| Position/B+ in min. | 50 |
| Pulley | SP/FW |
| Pulley dia. | 54.00 |
| Pulley dist. | 61.00 |
| Radius | 92.00 |
| Radius 2 | 90.00 |
| Regulator type | IR |
| Remarks | This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering. |
| Rotation | CW |
| Grooves/pulley | 5 |
| Terminal type | COM |
| Voltage | 14 |
| Total length | 194.00 mm |
| Width/holder arm | 32.00 |
| Amp | 180 |
-
OEM
A0432, A0432PR, A0439, A0439(BOSCH), A0564S, CAL10449, DRA0283, DRA0871, F032115412, LEA0788, LRA03376, LRA03568, 06E903018H, 06E903018HX, 6G9N-10300JB, 6G9N-10300JD, 6G9N10300JD, 8EL011712-231, 8EL738212-611, 28-5988, 28-6678, 0121 715 008, 0121 715 079, 0121 715 179, 0125 811 005, 0125 811 020, 0125 811 109, 0125 811 110, 219.192.1802, 238.159.1802, 815.532.180, 0986 048 400, 1986A01054, 11478N, 20620R, 113048, 115412, 209032, 209032A, 302001RI, 440906, 443397, 3600038, 3601261, 9090555, 12090230, 12090425, 30659131, 30659136, 30659341, 30667119, 31285628, 31419556, 32048400, 36000038, 36001341, 36001454, 36012619, 0121715008, 0121715079, 0121715108, 0121715179, 0125811002, 0125811005, 0125811019, 0125811020, 0125811109, 0125811110, 360013410, 0986048400, 0986048407 -
Konkurrentreferens
A0432, A0432PR, A0439, A0439(BOSCH), A0564S, CAL10449, DRA0283, DRA0871, LEA0788, LRA03376, LRA03568, 8EL011712-231, 8EL738212-611, 28-5988, 28-6678, 219.192.1802, 238.159.1802, 815.532.180, 11478N, 20620R, 113048, 209032, 209032A, 302001RI, 440906, 443397, 9090555, 12090230, 12090425, 32048400, 0986048400, 0986048407 -
Bilmärken
AUDI, VOLVO -
NormaliseratArtNr
a0432, a0432pr, a0439, a0439bosch, a0564s, cal10449, dra0283, dra0871, f032115412, lea0788, lra03376, lra03568, 06e903018h, 06e903018hx, 6g9n10300jb, 6g9n10300jd, 8el011712231, 8el738212611, 1986a01054, 11478n, 20620r, 113048, 115412, 209032, 209032a, 285988, 286678, 302001ri, 440906, 443397, 3600038, 3601261, 9090555, 12090230, 12090425, 30659131, 30659136, 30659341, 30667119, 31285628, 31419556, 32048400, 36000038, 36001341, 36001454, 36012619, 0121715008, 0121715079, 0121715108, 0121715179, 0125811002, 0125811005, 0125811019, 0125811020, 0125811109, 0125811110, 360013410, 815532180, 0986048400, 0986048407, 2191921802, 2381591802 -
Passar modeller
AUDI A6 Allroad C6 (4FH) 3.0 TFSI quattro Engine volume: 3.0 Engine type: CAJA Year: 10.08-08.11 AUDI A6 C6 (4F2) 2.8 FSI Engine volume: 2.8 Engine type: CCEA Year: 10.08-03.11 AUDI A6 C6 (4F2) 2.8 FSI quattro Engine volume: 2.8 Engine type: CCDA Year: 10.08-03.11 AUDI A6 C6 (4F2) 2.8 FSI quattro Engine volume: 2.8 Engine type: CCEA Year: 10.08-03.11 AUDI A6 C6 (4F2) 3.0 TFSI quattro Engine volume: 3.0 Engine type: CAJA Year: 10.08-03.11 AUDI A6 C6 (4F2) 3.0 TFSI quattro Engine volume: 3.0 Engine type: CCAA Year: 10.08-03.11 AUDI A6 C6 (4F2) 3.2 FSI Engine volume: 3.2 Engine type: CALA Year: 05.09-03.11 AUDI A6 C6 Avant (4F5) 2.8 FSI Engine volume: 2.8 Engine type: CCDA Year: 10.08-08.11 AUDI A6 C6 Avant (4F5) 2.8 FSI Engine volume: 2.8 Engine type: CCEA Year: 10.08-08.11 AUDI A6 C6 Avant (4F5) 2.8 FSI quattro Engine volume: 2.8 Engine type: CCDA Year: 10.08-08.11 AUDI A6 C6 Avant (4F5) 2.8 FSI quattro Engine volume: 2.8 Engine type: CCEA Year: 10.08-08.11 AUDI A6 C6 Avant (4F5) 3.0 TFSI quattro Engine volume: 3.0 Engine type: CAJA Year: 10.08-08.11 AUDI A6 C6 Avant (4F5) 3.0 TFSI quattro Engine volume: 3.0 Engine type: CCAA Year: 10.08-08.11 VOLVO C30 (533) D4 Engine volume: 2.0 Engine type: D 5204 T Year: 10.10-12.12 VOLVO C70 II Cabriolet (542) D3 Engine volume: 2.0 Engine type: D 5204 T5 Year: 10.10-06.13 VOLVO C70 II Cabriolet (542) D4 Engine volume: 2.0 Engine type: D 5204 T Year: 10.10-06.13 VOLVO S60 II (134) 2.0 T Engine volume: 2.0 Engine type: B 5204 T8 Year: 05.12-12.15 VOLVO S60 II (134) 2.5 T Engine volume: 2.5 Engine type: B 5254 T14 Year: 01.13-01.16 VOLVO S60 II (134) D3 Engine volume: 2.0 Engine type: D 5204 T2, D 5204 T3 Year: 04.10-12.14 VOLVO S60 II (134) D3 Engine volume: 2.0 Engine type: D 5204 T7 Year: 05.12-12.15 VOLVO S60 II (134) D4 AWD Engine volume: 2.4 Engine type: D 5244 T21 Year: 03.15-05.18 VOLVO S60 II (134) D4 Engine volume: 2.0 Engine type: D 5204 T3 Year: 04.10-12.14 VOLVO S60 II (134) D5 AWD Engine volume: 2.4 Engine type: D 5244 T10 Year: 04.10-12.11 VOLVO S60 II (134) D5 AWD Engine volume: 2.4 Engine type: D 5244 T15 Year: 04.11-12.15 VOLVO S60 II (134) D5 AWD Engine volume: 2.4 Engine type: D 5244 T15 Year: 04.14-12.15 VOLVO S60 II (134) D5 Engine volume: 2.4 Engine type: D 5244 T10 Year: 04.10-12.11 VOLVO S60 II (134) D5 Engine volume: 2.4 Engine type: D 5244 T11, D 5244 T15 Year: 04.11-12.15 VOLVO S60 II (134) D5 Engine volume: 2.4 Engine type: D 5244 T15 Year: 04.14-12.15 VOLVO S60 II (134) T5 AWD Engine volume: 2.5 Engine type: B 5254 T12 Year: 08.15-12.18 VOLVO S60 II (134) T5 Engine volume: 2.5 Engine type: B 5254 T5 Year: 09.11-12.15 VOLVO S60 II Cross Country (134) D4 AWD Engine volume: 2.4 Engine type: D 5244 T21 Year: 03.15-05.18 VOLVO S60 II Cross Country (134) D4 Polestar AWD Engine volume: 2.4 Engine type: D 5244 T21 Year: 03.15-07.18 VOLVO S60 II Cross Country (134) T5 AWD Engine volume: 2.5 Engine type: B 5254 T12 Year: 03.15-12.18 VOLVO S60 II Cross Country (134) T5 AWD Engine volume: 2.5 Engine type: B 5254 T14 Year: 03.15-12.18 VOLVO S80 II (124) 2.4 D Engine volume: 2.4 Engine type: D 5244 T14 Year: 01.10-03.11 VOLVO S80 II (124) 2.4 D Engine volume: 2.4 Engine type: D 5244 T5, D 5244 T19 Year: 03.06-03.11 VOLVO S80 II (124) 2.5 T Engine volume: 2.5 Engine type: B 5254 T10 Year: 01.10-12.12 VOLVO S80 II (124) 2.5 T Engine volume: 2.5 Engine type: B 5254 T12 Year: 01.12-04.16 VOLVO S80 II (124) 2.5 T Engine volume: 2.5 Engine type: B 5254 T14 Year: 09.12-12.16 VOLVO S80 II (124) 2.5 T Engine volume: 2.5 Engine type: B 5254 T6 Year: 03.06-12.11 VOLVO S80 II (124) 2.5 T FlexFuel Engine volume: 2.5 Engine type: B 5254 T11 Year: 01.10-12.11 VOLVO S80 II (124) 2.5 T FlexFuel Engine volume: 2.5 Engine type: B 5254 T8 Year: 05.08-12.11 VOLVO S80 II (124) D3 / D4 Engine volume: 2.0 Engine type: D 5204 T2, D 5204 T3 Year: 01.10-12.16 VOLVO S80 II (124) D3 Engine volume: 2.0 Engine type: D 5204 T7 Year: 05.12-05.14 VOLVO S80 II (124) D5 AWD Engine volume: 2.4 Engine type: D 5244 T10 Year: 01.10-12.11 VOLVO S80 II (124) D5 AWD Engine volume: 2.4 Engine type: D 5244 T15 Year: 06.11-04.15 VOLVO S80 II (124) D5 AWD Engine volume: 2.4 Engine type: D 5244 T4 Year: 01.07-05.09 VOLVO S80 II (124) D5 Engine volume: 2.4 Engine type: D 5244 T10 Year: 01.10-12.11 VOLVO S80 II (124) D5 Engine volume: 2.4 Engine type: D 5244 T11, D 5244 T15 Year: 06.11-04.15 VOLVO S80 II (124) D5 Engine volume: 2.4 Engine type: D 5244 T4 Year: 03.06-08.09 VOLVO V60 I (155) 2.0 BiFuel Engine volume: 2.0 Engine type: B 5204 T9 Year: 03.14-12.15 VOLVO V60 I (155) 2.0 T Engine volume: 2.0 Engine type: B 5204 T8 Year: 01.14-07.18 VOLVO V60 I (155) D3 / D4 Engine volume: 2.0 Engine type: D 5204 T2, D 5204 T3 Year: 07.10-12.14 VOLVO V60 I (155) D3 Engine volume: 2.0 Engine type: D 5204 T7 Year: 05.12-12.15 VOLVO V60 I (155) D4 AWD Engine volume: 2.4 Engine type: D 5244 T12 Year: 10.13-12.15 VOLVO V60 I (155) D4 AWD Engine volume: 2.4 Engine type: D 5244 T17 Year: 05.12-12.15 VOLVO V60 I (155) D4 AWD Engine volume: 2.4 Engine type: D 5244 T21 Year: 03.15-05.18 VOLVO V60 I (155) D5 AWD Engine volume: 2.4 Engine type: D 5244 T10 Year: 07.10-12.11 VOLVO V60 I (155) D5 AWD Engine volume: 2.4 Engine type: D 5244 T15 Year: 04.11-12.15 VOLVO V60 I (155) D5 AWD Engine volume: 2.4 Engine type: D 5244 T15 Year: 04.14-12.15 VOLVO V60 I (155) D5 Engine volume: 2.4 Engine type: D 5244 T10 Year: 07.10-12.11 VOLVO V60 I (155) D5 Engine volume: 2.4 Engine type: D 5244 T11, D 5244 T15 Year: 04.11-12.15 VOLVO V60 I (155) D5 Engine volume: 2.4 Engine type: D 5244 T23 Year: 04.14-12.15 VOLVO V60 I (155) T5 AWD Engine volume: 2.5 Engine type: B 5254 T12 Year: 04.15-05.18 VOLVO V60 I (155) T5 Engine volume: 2.0 Engine type: B 5204 T9 Year: 10.13-05.18 VOLVO V60 I Cross Country (157) D4 AWD Engine volume: 2.4 Engine type: D 5244 T21 Year: 03.15-05.18 VOLVO V60 I Cross Country (157) D4 Polestar AWD Engine volume: 2.4 Engine type: D 5244 T21 Year: 03.15-05.18 VOLVO V60 I Cross Country (157) T5 AWD Engine volume: 2.5 Engine type: B 5254 T12 Year: 03.15-05.18 VOLVO V60 I Cross Country (157) T5 AWD Engine volume: 2.5 Engine type: B 5254 T14 Year: 03.15-05.18 VOLVO V60 I Skåp / kombi (155) 2.0 D3 Engine volume: 2.0 Engine type: D 5204 T7 Year: 09.13-12.15 VOLVO V60 I Skåp / kombi (155) 2.0 D4 Engine volume: 2.0 Engine type: D 5204 T3 Year: 09.13-12.15 VOLVO V60 I Skåp / kombi (155) 2.4 D4 AWD Engine volume: 2.4 Engine type: D 5244 T12 Year: 09.13-12.15 VOLVO V60 I Skåp / kombi (155) 2.4 D5 Engine volume: 2.4 Engine type: D 5244 T15 Year: 09.13-12.15 VOLVO V70 III (135) 2.0 BiFuel Engine volume: 2.0 Engine type: B 5204 T9 Year: 03.13-12.15 VOLVO V70 III (135) 2.0 GDI Engine volume: 2.0 Engine type: B 5204 T9 Year: 04.12-12.15 VOLVO V70 III (135) 2.4 D Engine volume: 2.4 Engine type: D 5244 T14 Year: 04.09-12.10 VOLVO V70 III (135) 2.4 D Engine volume: 2.4 Engine type: D 5244 T5, D 5244 T19 Year: 04.07-12.10 VOLVO V70 III (135) 2.5 T Engine volume: 2.5 Engine type: B 5254 T10 Year: 04.09-12.12 VOLVO V70 III (135) 2.5 T Engine volume: 2.5 Engine type: B 5254 T6 Year: 08.07-12.09 VOLVO V70 III (135) 2.5 T FlexiFuel Engine volume: 2.5 Engine type: B 5254 T11 Year: 04.09-12.11 VOLVO V70 III (135) 2.5 T FlexiFuel Engine volume: 2.5 Engine type: B 5254 T8 Year: 05.08-12.09 VOLVO V70 III (135) D3 / D4 Engine volume: 2.0 Engine type: D 5204 T2, D 5204 T3 Year: 03.10-12.15 VOLVO V70 III (135) D3 Engine volume: 2.0 Engine type: D 5204 T7 Year: 10.07-12.15 VOLVO V70 III (135) D4 AWD Engine volume: 2.4 Engine type: D 5244 T12 Year: 10.13-04.16 VOLVO V70 III (135) D4 AWD Engine volume: 2.4 Engine type: D 5244 T17 Year: 10.07-12.15 VOLVO V70 III (135) D5 AWD Engine volume: 2.4 Engine type: D 5244 T10 Year: 12.09-12.11 VOLVO V70 III (135) D5 AWD Engine volume: 2.4 Engine type: D 5244 T15 Year: 03.11-04.16 VOLVO V70 III (135) D5 AWD Engine volume: 2.4 Engine type: D 5244 T15 Year: 04.11-12.15 VOLVO V70 III (135) D5 AWD Engine volume: 2.4 Engine type: D 5244 T4 Year: 04.07-12.09 VOLVO V70 III (135) D5 Engine volume: 2.4 Engine type: D 5244 T10 Year: 10.08-12.11 VOLVO V70 III (135) D5 Engine volume: 2.4 Engine type: D 5244 T11, D 5244 T15 Year: 04.11-12.15 VOLVO V70 III (135) D5 Engine volume: 2.4 Engine type: D 5244 T4 Year: 04.07-12.09 VOLVO V70 III (135) D5 Engine volume: 2.4 Year: 03.11-04.16 VOLVO V70 III Skåp / kombi (135) 2.0 D3 DRIVe Engine volume: 2.0 Engine type: D 5204 T7 Year: 09.13-12.15 VOLVO V70 III Skåp / kombi (135) 2.4 D4 AWD Engine volume: 2.4 Engine type: D 5244 T17 Year: 09.13-12.15 VOLVO V70 III Skåp / kombi (135) 2.4 D5 Engine volume: 2.4 Engine type: D 5244 T11, D 5244 T15 Year: 09.13-12.15 VOLVO XC60 I SUV (156) 2.4 D / D3 / D4 AWD Engine volume: 2.4 Engine type: D 5244 T5, D 5244 T17, D 5244 T16 Year: 05.08-02.17 VOLVO XC60 I SUV (156) 2.4 D Engine volume: 2.4 Engine type: D 5244 T14 Year: 04.09-12.10 VOLVO XC60 I SUV (156) D3 / D4 Engine volume: 2.0 Engine type: D 5204 T2, D 5204 T3 Year: 03.10-12.14 VOLVO XC60 I SUV (156) D3 Engine volume: 2.0 Engine type: D 5204 T7 Year: 04.12-12.15 VOLVO XC60 I SUV (156) D4 AWD Engine volume: 2.4 Engine type: D 5244 T12 Year: 10.13-12.15 VOLVO XC60 I SUV (156) D4 AWD Engine volume: 2.4 Engine type: D 5244 T21 Year: 03.15-02.17 VOLVO XC60 I SUV (156) D5 AWD Engine volume: 2.4 Engine type: D 5244 T10 Year: 07.09-06.11 VOLVO XC60 I SUV (156) D5 AWD Engine volume: 2.4 Engine type: D 5244 T11, D 5244 T15 Year: 04.11-12.15 VOLVO XC60 I SUV (156) D5 AWD Engine volume: 2.4 Engine type: D 5244 T22, D 5244 T20 Year: 03.15-02.17 VOLVO XC60 I SUV (156) D5 AWD Engine volume: 2.4 Engine type: D 5244 T23 Year: 04.14-12.15 VOLVO XC60 I SUV (156) D5 AWD Engine volume: 2.4 Engine type: D 5244 T4 Year: 05.08-12.09 VOLVO XC60 I SUV (156) D5 Engine volume: 2.4 Engine type: D 5244 T11, D 5244 T15 Year: 06.11-02.17 VOLVO XC60 I SUV (156) T5 AWD Engine volume: 2.5 Engine type: B 5254 T12 Year: 04.14-02.17 VOLVO XC60 I VAN (156) D3 Engine volume: 2.0 Engine type: D 5204 T7 Year: 09.13-12.15 VOLVO XC60 I VAN (156) D4 AWD Engine volume: 2.4 Engine type: D 5244 T17 Year: 09.13-02.17 VOLVO XC60 I VAN (156) D4 Engine volume: 2.0 Engine type: D 5204 T3 Year: 09.13-02.17 VOLVO XC60 I VAN (156) D5 AWD Engine volume: 2.4 Engine type: D 5244 T11, D 5244 T15 Year: 09.13-02.17 VOLVO XC70 II (136) 2.4 D / D4 AWD Engine volume: 2.4 Engine type: D 5244 T5, D 5244 T17, D 5244 T16 Year: 08.07-04.16 VOLVO XC70 II (136) 2.4 D Engine volume: 2.4 Engine type: D 5244 T14 Year: 06.09-12.10 VOLVO XC70 II (136) D3 Engine volume: 2.0 Engine type: D 5204 T2, D 5204 T3 Year: 04.10-12.15 VOLVO XC70 II (136) D4 AWD Engine volume: 2.4 Engine type: D 5244 T12 Year: 10.13-04.16 VOLVO XC70 II (136) D4 Engine volume: 2.0 Engine type: D 4204 T5 Year: 10.13-04.16 VOLVO XC70 II (136) D5 AWD Engine volume: 2.4 Engine type: D 5244 T10 Year: 04.09-12.11 VOLVO XC70 II (136) D5 AWD Engine volume: 2.4 Engine type: D 5244 T11, D 5244 T15 Year: 04.11-12.15 VOLVO XC70 II (136) D5 AWD Engine volume: 2.4 Engine type: D 5244 T15 Year: 11.13-04.16 VOLVO XC70 II (136) D5 AWD Engine volume: 2.4 Engine type: D 5244 T20 Year: 03.15-04.16 VOLVO XC70 II (136) D5 AWD Engine volume: 2.4 Engine type: D 5244 T4 Year: 04.07-12.09 VOLVO XC70 II (136) T5 AWD Engine volume: 2.5 Engine type: B 5254 T12 Year: 08.15-12.16 VOLVO XC70 II VAN (136) 2.0 D4 Engine volume: 2.0 Engine type: D 5204 T3 Year: 09.13-12.16 VOLVO XC70 II VAN (136) 2.4 D4 AWD Engine volume: 2.4 Engine type: D 5244 T17 Year: 09.13-04.16 VOLVO XC70 II VAN (136) 2.4 D5 AWD Engine volume: 2.4 Engine type: D 5244 T15 Year: 09.13-12.16 VOLVO XC90 I (275) 2.5 T AWD Engine volume: 2.5 Engine type: B 5254 T9 Year: 10.12-09.14 1 / 26
-
