- Dynamo
-

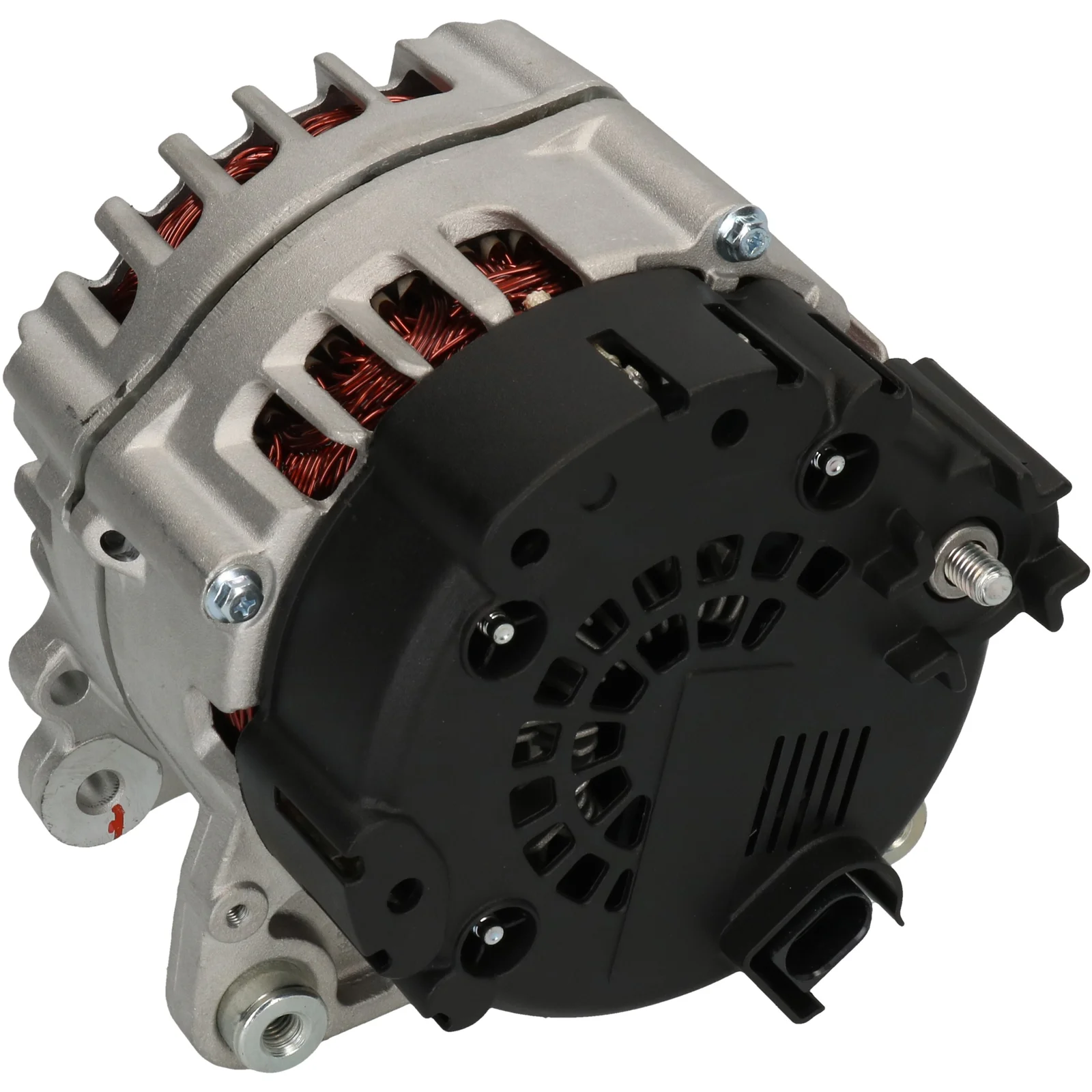

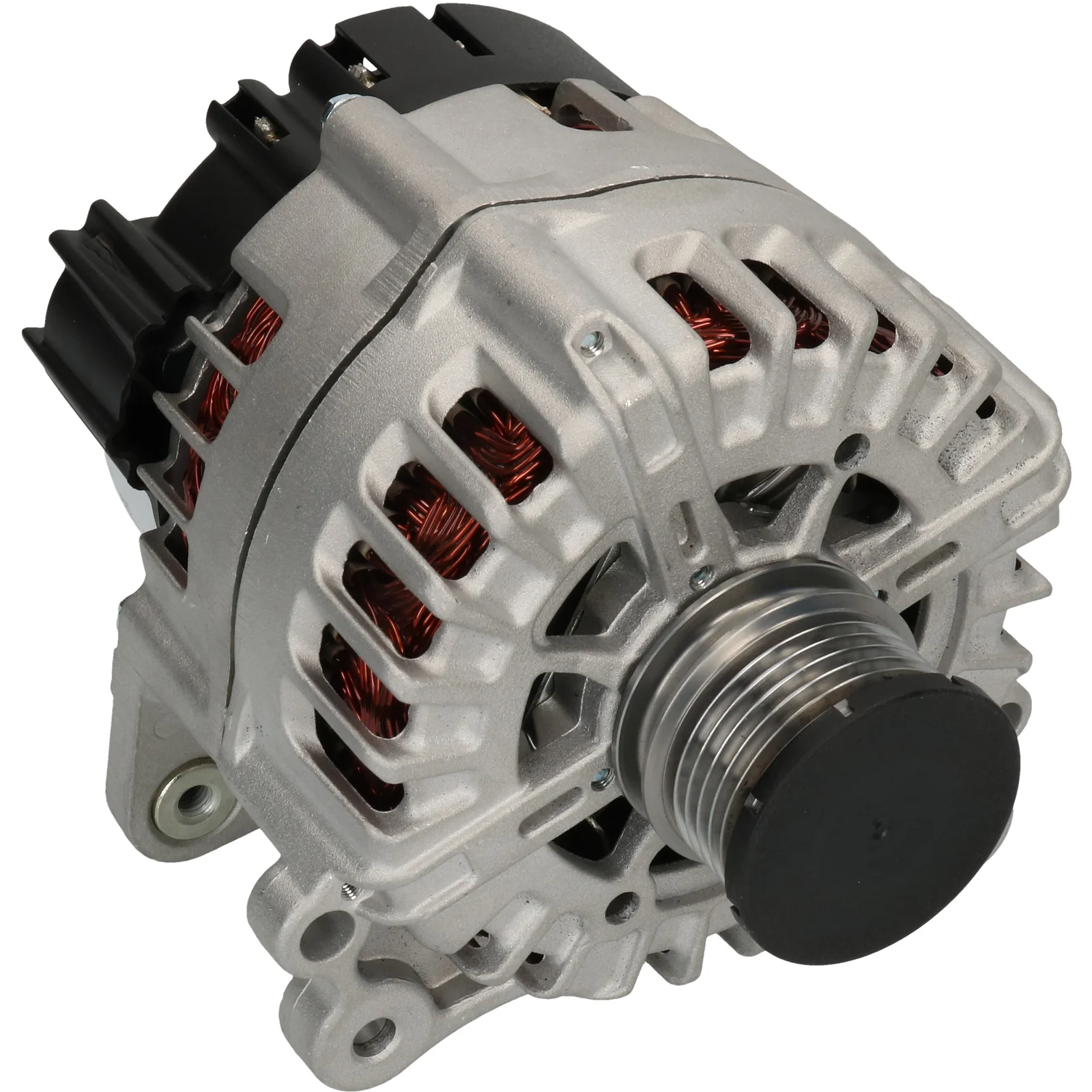

HC-Cargo Dynamo
- Dynamo
-
HC-Cargo Dynamo
Varenr.: F032116146
HC-Cargo Dynamo
Spenningsregulator: 14, Amp: 200, Rotasjon: CW, Monteringsfeste avstand.: 60.00
Beskrivelse
Spenning: 14
Amp: 200
Drevets diam.: 40.50
Bredde/holder arm: 14.00
Festebrakett avstand: 60.00
Brakett hull: 8.50
Belt. justeringsbrakett hull pos.: 45
Belt. justeringsbrakett hull 1: 8.50
Belt. justeringsbrakett hull 2: M8
Drevs diam.: 50.00
Riller/drev: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 4
Rotasjon: CW
Stikkontakt nr.: PL181
Total lengde mm: 190.00
Terminaltype: COM
Kommunikasjon: LIN
Drev: SP/FW
Vifte: IF
Regulator type: IR
Anmerkninger: Denne Dynamo har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å kontrollere egnethet før bestilling.
Amp: 200
Drevets diam.: 40.50
Bredde/holder arm: 14.00
Festebrakett avstand: 60.00
Brakett hull: 8.50
Belt. justeringsbrakett hull pos.: 45
Belt. justeringsbrakett hull 1: 8.50
Belt. justeringsbrakett hull 2: M8
Drevs diam.: 50.00
Riller/drev: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 4
Rotasjon: CW
Stikkontakt nr.: PL181
Total lengde mm: 190.00
Terminaltype: COM
Kommunikasjon: LIN
Drev: SP/FW
Vifte: IF
Regulator type: IR
Anmerkninger: Denne Dynamo har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å kontrollere egnethet før bestilling.
Filer
Spesifikasjon
| B+ | M8 |
|---|---|
| Communication | LIN |
| Mount. bracket dist. | 60.00 |
| Belt. adj. bracket hole 1 | 8.50 |
| Belt. adj. bracket hole 2 | M8 |
| Belt. adj. brackethole pos. | 45 |
| Plug no. | PL181 |
| Bracket hole | 8.50 |
| Position/B+ in min. | 4 |
| Pulley | SP/FW |
| Pulley dia. | 50.00 |
| Pulley dist. | 40.50 |
| Radius | 90.00 |
| Radius 2 | 90.00 |
| Regulator type | IR |
| Remarks | This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering. |
| Rotation | CW |
| Fan | IF |
| Grooves/pulley | 6 |
| Terminal type | COM |
| Voltage | 14 |
| Total length | 190.00 mm |
| Width/holder arm | 14.00 |
| Amp | 200 |
-
OEM
F032116146, FG20S014, FG20S016, FGN20S014, 03L903016A, 03L903016AX, 03L903017B, 1986A01494, 2613304, 2613304A, 2614130D, 2614130E -
Konkurrentreferens
A3304PR, A3304S, A3490S, CAL15491, DRA0955, DRA1073, LRA03396, 28-6508, 205.543.200, 211.379.1802, 20339R, 20660-OS, 20660N, 209202, 209202A, 439771, 440362, 553619RI, 9090626, 12090668, 12090671, 32000020, 0986084730 -
NormaliseratArtNr
a3304pr, a3304s, a3490s, cal15491, dra0955, dra1073, f032116146, fg20s014, fg20s016, fgn20s014, lra03396, 03l903016a, 03l903016ax, 03l903017b, 1986a01494, 20339r, 20660n, 20660os, 209202, 209202a, 286508, 439771, 440362, 553619ri, 2613304, 2613304a, 2614130d, 2614130e, 9090626, 12090668, 12090671, 32000020, 205543200, 0986084730, 2113791802 -
Passar modeller
Audi Model: A4 Model series: A4 Model type: Quattro Allroad Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLC Type description: 8KH, B8 Body: Estate From date: 01-11-2011 To date: 01-05-2016 Fuel: Diesel Approved: Yes Manufacture type: Allroad Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CAGA Type description: 8K2 From date: 01-11-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CAGA Type description: 8K5 Body: Estate From date: 01-04-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: Avant Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CAGA Type description: 8KH Body: Estate From date: 01-09-2009 To date: 01-05-2016 Fuel: Diesel Approved: Yes Manufacture type: Allroad Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CAGB Type description: 8KH Body: Estate From date: 01-09-2009 To date: 01-05-2016 Fuel: Diesel Approved: Yes Manufacture type: Allroad Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CAHB Type description: 8KH Body: Estate From date: 01-04-2009 To date: 01-05-2016 Fuel: Diesel Approved: Yes Manufacture type: Allroad Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLC Type description: 8K2, B8 From date: 01-11-2011 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLC Type description: 8K5, B8 Body: Estate From date: 01-11-2011 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: Avant Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLD Type description: 8KH Body: Estate From date: 01-04-2009 To date: 01-05-2016 Fuel: Diesel Approved: Yes Manufacture type: Allroad Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCA Type description: 8K2 From date: 01-11-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCA Type description: 8K5 Body: Estate From date: 01-04-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: Avant Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCA Type description: 8KH Body: Estate From date: 01-09-2009 To date: 01-05-2016 Fuel: Diesel Approved: Yes Manufacture type: Allroad Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCB Type description: 8KH Body: Estate From date: 01-09-2009 To date: 01-05-2016 Fuel: Diesel Approved: Yes Manufacture type: Allroad Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCD Type description: 8K2, B8 From date: 01-05-2013 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCD Type description: 8K5, B8 Body: Estate From date: 01-05-2013 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: Avant Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCD Type description: 8KH, B8 Body: Estate From date: 01-05-2013 To date: 01-05-2016 Fuel: Diesel Approved: Yes Manufacture type: Allroad Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CSUA Type description: 8K2, B8 From date: 01-05-2013 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CSUA Type description: 8K5, B8 Body: Estate From date: 01-05-2013 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: Avant Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAGA Type description: 8K2 From date: 01-11-2007 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAGA Type description: 8K5 Body: Estate From date: 01-04-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAGB Type description: 8K2 From date: 01-11-2007 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAGB Type description: 8K5 Body: Estate From date: 01-04-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAGC Type description: 8K5 Body: Estate From date: 01-06-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAHB Type description: 8K2 From date: 01-08-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAHB Type description: 8K5 Body: Estate From date: 01-08-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLC Type description: 8K2, B8 From date: 01-11-2011 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLC Type description: 8K5, B8 Body: Estate From date: 01-11-2011 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: Avant Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLD Type description: 8K2 From date: 01-08-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLD Type description: 8K5 Body: Estate From date: 01-08-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCA Type description: 8K2 From date: 01-11-2007 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCA Type description: 8K5 Body: Estate From date: 01-04-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCB Type description: 8K2 From date: 01-11-2007 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCB Type description: 8K5 Body: Estate From date: 01-04-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCC Type description: 8K2 From date: 01-06-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCC Type description: 8K5 Body: Estate From date: 01-06-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: A4 Model series: A4 Type of engine: TDI Size of motor: 2.0 Brand of engine: CJCD Type description: 8K2, B8 From date: 01-05-2013 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDI Size of motor: 2.0 Brand of engine: CJCD Type description: 8K5, B8 Body: Estate From date: 01-05-2013 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: Avant Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CMEA Type description: 8K2 From date: 01-11-2007 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CMEA Type description: 8K5 Body: Estate From date: 01-04-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CMFA Type description: 8K2 From date: 01-11-2007 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CMFA Type description: 8K5 Body: Estate From date: 01-04-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: A4 Model series: A4 Type of engine: TDI Size of motor: 2.0 Brand of engine: CMFB Type description: 8K2, B8 From date: 01-05-2013 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDI Size of motor: 2.0 Brand of engine: CMFB Type description: 8K5, B8 Body: Estate From date: 01-05-2013 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: Avant Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CMGB Type description: 8K2, B8 From date: 01-11-2011 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CNHC Type description: 8K2 From date: 01-08-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CNHC Type description: 8K5 Body: Estate From date: 01-08-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: A4 Model series: A4 Type of engine: TDI Size of motor: 2.0 Brand of engine: CSUA Type description: 8K2, B8 From date: 01-05-2013 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDI Size of motor: 2.0 Brand of engine: CSUA Type description: 8K5, B8 Body: Estate From date: 01-05-2013 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: Avant Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CSUB Type description: 8K2 From date: 01-11-2007 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CSUB Type description: 8K5 Body: Estate From date: 01-04-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: A5 Model series: A5 Model type: Quattro Sportback Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLC Type description: 8TA Body: Hatchback From date: 01-12-2011 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLC Type description: 8F7 Body: Convertible From date: 01-01-2012 To date: 01-05-2015 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLC Type description: 8T3 Body: Coupe From date: 01-12-2011 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Model type: Sportback Type of engine: TDi Size of motor: 2.0 Brand of engine: CAGA Type description: 8TA Body: Hatchback From date: 01-09-2009 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Model type: Sportback Type of engine: TDi Size of motor: 2.0 Brand of engine: CAGB Type description: 8TA Body: Hatchback From date: 01-09-2009 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Model type: Sportback Type of engine: TDi Size of motor: 2.0 Brand of engine: CAHB Type description: 8TA Body: Hatchback From date: 01-09-2009 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Model type: Sportback Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLC Type description: 8TA Body: Hatchback From date: 01-10-2011 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Model type: Sportback Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLD Type description: 8TA Body: Hatchback From date: 01-09-2009 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Model type: Sportback Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCA Type description: 8TA Body: Hatchback From date: 01-09-2009 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Model type: Sportback Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCB Type description: 8TA Body: Hatchback From date: 01-09-2009 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Model type: Sportback Type of engine: TDI Size of motor: 2.0 Brand of engine: CJCD Type description: 8TA Body: Hatchback From date: 01-05-2013 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Model type: Sportback Type of engine: TDi Size of motor: 2.0 Brand of engine: CMEA Type description: 8TA Body: Hatchback From date: 01-09-2009 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Model type: Sportback Type of engine: TDi Size of motor: 2.0 Brand of engine: CMFA Type description: 8TA Body: Hatchback From date: 01-09-2009 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAHB Type description: 8F Body: Convertible From date: 01-05-2009 To date: 01-06-2014 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAHB Type description: 8T3, 8TA Body: Coupe From date: 01-08-2008 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLC Type description: 8F7 Body: Convertible From date: 01-10-2011 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLC Type description: 8T3 Body: Coupe From date: 01-10-2011 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLD Type description: 8F Body: Convertible From date: 01-05-2009 To date: 01-06-2014 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLD Type description: 8T3, 8TA Body: Coupe From date: 01-08-2008 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCA Type description: 8F7 Body: Convertible From date: 01-10-2011 To date: 01-05-2015 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Type of engine: TDI Size of motor: 2.0 Brand of engine: CJCD Type description: 8F7 Body: Convertible From date: 01-05-2013 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A6 Model series: A6 Type of engine: TDI Size of motor: 2.0 Brand of engine: CGLC Type description: 4G2 From date: 01-03-2011 To date: 01-09-2018 Fuel: Diesel Approved: Yes Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLC Type description: 4G5 Body: Estate From date: 01-05-2011 To date: 01-09-2018 Fuel: Diesel Approved: Yes Manufacture type: Avant Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLD Type description: 4G2 From date: 01-03-2011 To date: 01-09-2018 Fuel: Diesel Approved: Yes Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLD Type description: 4G5 Body: Estate From date: 01-05-2011 To date: 01-09-2018 Fuel: Diesel Approved: Yes Manufacture type: Avant Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLE Type description: 4G2, C7 From date: 01-01-2012 To date: 01-09-2018 Fuel: Diesel Approved: Yes Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLE Type description: 4G5, C7 Body: Estate From date: 01-01-2012 To date: 01-09-2018 Fuel: Diesel Approved: Yes Manufacture type: Avant Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: CMGB Type description: 4G2 From date: 01-03-2011 To date: 01-09-2018 Fuel: Diesel Approved: Yes Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: CMGB Type description: 4G5 Body: Estate From date: 01-05-2011 To date: 01-09-2018 Fuel: Diesel Approved: Yes Manufacture type: Avant Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: CSUE Type description: 4G2, C7 From date: 01-01-2012 To date: 01-09-2018 Fuel: Diesel Approved: Yes Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: CSUE Type description: 4G5, C7 Body: Estate From date: 01-01-2012 To date: 01-09-2018 Fuel: Diesel Approved: Yes Manufacture type: Avant Audi Model: Q5 Model series: Q5 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLC Type description: 8R From date: 01-06-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes Audi Model: Q5 Model series: Q5 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLC Type description: 8RB Body: Box Body / Estate From date: 01-07-2012 To date: 01-06-2014 Fuel: Diesel Approved: Yes Audi Model: Q5 Model series: Q5 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCD Type description: 8R From date: 01-05-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes Audi Model: Q5 Model series: Q5 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CMGB Type description: 8R From date: 01-06-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes Audi Model: Q5 Model series: Q5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAHB Type description: 8R Body: SUV From date: 01-11-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes Audi Model: Q5 Model series: Q5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLA Type description: 8R Body: SUV From date: 01-11-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes Audi Model: Q5 Model series: Q5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLD Type description: 8R Body: SUV From date: 01-11-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes Audi Model: Q5 Model series: Q5 Type of engine: TDI Size of motor: 2.0 Brand of engine: CJCD Type description: 8R From date: 01-05-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes Audi Model: Q5 Model series: Q5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCD,CSUA Type description: 8RB Body: Box Body / Estate From date: 01-06-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes 1 / 18
-
Beskrivelse
Spenning: 14
Amp: 200
Drevets diam.: 40.50
Bredde/holder arm: 14.00
Festebrakett avstand: 60.00
Brakett hull: 8.50
Belt. justeringsbrakett hull pos.: 45
Belt. justeringsbrakett hull 1: 8.50
Belt. justeringsbrakett hull 2: M8
Drevs diam.: 50.00
Riller/drev: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 4
Rotasjon: CW
Stikkontakt nr.: PL181
Total lengde mm: 190.00
Terminaltype: COM
Kommunikasjon: LIN
Drev: SP/FW
Vifte: IF
Regulator type: IR
Anmerkninger: Denne Dynamo har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å kontrollere egnethet før bestilling.Filer
-
Spesifikasjon
B+ M8 Communication LIN Mount. bracket dist. 60.00 Belt. adj. bracket hole 1 8.50 Belt. adj. bracket hole 2 M8 Belt. adj. brackethole pos. 45 Plug no. PL181 Bracket hole 8.50 Position/B+ in min. 4 Pulley SP/FW Pulley dia. 50.00 Pulley dist. 40.50 Radius 90.00 Radius 2 90.00 Regulator type IR Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering. Rotation CW Fan IF Grooves/pulley 6 Terminal type COM Voltage 14 Total length 190.00 mm Width/holder arm 14.00 Amp 200 -
Kjøretøymatching
-
OEM
F032116146, FG20S014, FG20S016, FGN20S014, 03L903016A, 03L903016AX, 03L903017B, 1986A01494, 2613304, 2613304A, 2614130D, 2614130E -
Konkurrentreferens
A3304PR, A3304S, A3490S, CAL15491, DRA0955, DRA1073, LRA03396, 28-6508, 205.543.200, 211.379.1802, 20339R, 20660-OS, 20660N, 209202, 209202A, 439771, 440362, 553619RI, 9090626, 12090668, 12090671, 32000020, 0986084730 -
NormaliseratArtNr
a3304pr, a3304s, a3490s, cal15491, dra0955, dra1073, f032116146, fg20s014, fg20s016, fgn20s014, lra03396, 03l903016a, 03l903016ax, 03l903017b, 1986a01494, 20339r, 20660n, 20660os, 209202, 209202a, 286508, 439771, 440362, 553619ri, 2613304, 2613304a, 2614130d, 2614130e, 9090626, 12090668, 12090671, 32000020, 205543200, 0986084730, 2113791802 -
Passar modeller
Audi Model: A4 Model series: A4 Model type: Quattro Allroad Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLC Type description: 8KH, B8 Body: Estate From date: 01-11-2011 To date: 01-05-2016 Fuel: Diesel Approved: Yes Manufacture type: Allroad Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CAGA Type description: 8K2 From date: 01-11-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CAGA Type description: 8K5 Body: Estate From date: 01-04-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: Avant Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CAGA Type description: 8KH Body: Estate From date: 01-09-2009 To date: 01-05-2016 Fuel: Diesel Approved: Yes Manufacture type: Allroad Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CAGB Type description: 8KH Body: Estate From date: 01-09-2009 To date: 01-05-2016 Fuel: Diesel Approved: Yes Manufacture type: Allroad Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CAHB Type description: 8KH Body: Estate From date: 01-04-2009 To date: 01-05-2016 Fuel: Diesel Approved: Yes Manufacture type: Allroad Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLC Type description: 8K2, B8 From date: 01-11-2011 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLC Type description: 8K5, B8 Body: Estate From date: 01-11-2011 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: Avant Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLD Type description: 8KH Body: Estate From date: 01-04-2009 To date: 01-05-2016 Fuel: Diesel Approved: Yes Manufacture type: Allroad Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCA Type description: 8K2 From date: 01-11-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCA Type description: 8K5 Body: Estate From date: 01-04-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: Avant Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCA Type description: 8KH Body: Estate From date: 01-09-2009 To date: 01-05-2016 Fuel: Diesel Approved: Yes Manufacture type: Allroad Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCB Type description: 8KH Body: Estate From date: 01-09-2009 To date: 01-05-2016 Fuel: Diesel Approved: Yes Manufacture type: Allroad Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCD Type description: 8K2, B8 From date: 01-05-2013 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCD Type description: 8K5, B8 Body: Estate From date: 01-05-2013 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: Avant Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCD Type description: 8KH, B8 Body: Estate From date: 01-05-2013 To date: 01-05-2016 Fuel: Diesel Approved: Yes Manufacture type: Allroad Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CSUA Type description: 8K2, B8 From date: 01-05-2013 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CSUA Type description: 8K5, B8 Body: Estate From date: 01-05-2013 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: Avant Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAGA Type description: 8K2 From date: 01-11-2007 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAGA Type description: 8K5 Body: Estate From date: 01-04-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAGB Type description: 8K2 From date: 01-11-2007 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAGB Type description: 8K5 Body: Estate From date: 01-04-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAGC Type description: 8K5 Body: Estate From date: 01-06-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAHB Type description: 8K2 From date: 01-08-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAHB Type description: 8K5 Body: Estate From date: 01-08-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLC Type description: 8K2, B8 From date: 01-11-2011 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLC Type description: 8K5, B8 Body: Estate From date: 01-11-2011 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: Avant Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLD Type description: 8K2 From date: 01-08-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLD Type description: 8K5 Body: Estate From date: 01-08-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCA Type description: 8K2 From date: 01-11-2007 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCA Type description: 8K5 Body: Estate From date: 01-04-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCB Type description: 8K2 From date: 01-11-2007 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCB Type description: 8K5 Body: Estate From date: 01-04-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCC Type description: 8K2 From date: 01-06-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCC Type description: 8K5 Body: Estate From date: 01-06-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: A4 Model series: A4 Type of engine: TDI Size of motor: 2.0 Brand of engine: CJCD Type description: 8K2, B8 From date: 01-05-2013 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDI Size of motor: 2.0 Brand of engine: CJCD Type description: 8K5, B8 Body: Estate From date: 01-05-2013 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: Avant Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CMEA Type description: 8K2 From date: 01-11-2007 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CMEA Type description: 8K5 Body: Estate From date: 01-04-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CMFA Type description: 8K2 From date: 01-11-2007 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CMFA Type description: 8K5 Body: Estate From date: 01-04-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: A4 Model series: A4 Type of engine: TDI Size of motor: 2.0 Brand of engine: CMFB Type description: 8K2, B8 From date: 01-05-2013 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDI Size of motor: 2.0 Brand of engine: CMFB Type description: 8K5, B8 Body: Estate From date: 01-05-2013 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: Avant Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CMGB Type description: 8K2, B8 From date: 01-11-2011 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CNHC Type description: 8K2 From date: 01-08-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CNHC Type description: 8K5 Body: Estate From date: 01-08-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: A4 Model series: A4 Type of engine: TDI Size of motor: 2.0 Brand of engine: CSUA Type description: 8K2, B8 From date: 01-05-2013 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDI Size of motor: 2.0 Brand of engine: CSUA Type description: 8K5, B8 Body: Estate From date: 01-05-2013 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: Avant Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CSUB Type description: 8K2 From date: 01-11-2007 To date: 01-12-2015 Fuel: Diesel Approved: Yes Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.0 Brand of engine: CSUB Type description: 8K5 Body: Estate From date: 01-04-2008 To date: 01-12-2015 Fuel: Diesel Approved: Yes Manufacture type: AVANT Audi Model: A5 Model series: A5 Model type: Quattro Sportback Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLC Type description: 8TA Body: Hatchback From date: 01-12-2011 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLC Type description: 8F7 Body: Convertible From date: 01-01-2012 To date: 01-05-2015 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLC Type description: 8T3 Body: Coupe From date: 01-12-2011 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Model type: Sportback Type of engine: TDi Size of motor: 2.0 Brand of engine: CAGA Type description: 8TA Body: Hatchback From date: 01-09-2009 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Model type: Sportback Type of engine: TDi Size of motor: 2.0 Brand of engine: CAGB Type description: 8TA Body: Hatchback From date: 01-09-2009 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Model type: Sportback Type of engine: TDi Size of motor: 2.0 Brand of engine: CAHB Type description: 8TA Body: Hatchback From date: 01-09-2009 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Model type: Sportback Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLC Type description: 8TA Body: Hatchback From date: 01-10-2011 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Model type: Sportback Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLD Type description: 8TA Body: Hatchback From date: 01-09-2009 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Model type: Sportback Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCA Type description: 8TA Body: Hatchback From date: 01-09-2009 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Model type: Sportback Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCB Type description: 8TA Body: Hatchback From date: 01-09-2009 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Model type: Sportback Type of engine: TDI Size of motor: 2.0 Brand of engine: CJCD Type description: 8TA Body: Hatchback From date: 01-05-2013 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Model type: Sportback Type of engine: TDi Size of motor: 2.0 Brand of engine: CMEA Type description: 8TA Body: Hatchback From date: 01-09-2009 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Model type: Sportback Type of engine: TDi Size of motor: 2.0 Brand of engine: CMFA Type description: 8TA Body: Hatchback From date: 01-09-2009 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAHB Type description: 8F Body: Convertible From date: 01-05-2009 To date: 01-06-2014 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAHB Type description: 8T3, 8TA Body: Coupe From date: 01-08-2008 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLC Type description: 8F7 Body: Convertible From date: 01-10-2011 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLC Type description: 8T3 Body: Coupe From date: 01-10-2011 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLD Type description: 8F Body: Convertible From date: 01-05-2009 To date: 01-06-2014 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLD Type description: 8T3, 8TA Body: Coupe From date: 01-08-2008 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCA Type description: 8F7 Body: Convertible From date: 01-10-2011 To date: 01-05-2015 Fuel: Diesel Approved: Yes Audi Model: A5 Model series: A5 Type of engine: TDI Size of motor: 2.0 Brand of engine: CJCD Type description: 8F7 Body: Convertible From date: 01-05-2013 To date: 01-01-2017 Fuel: Diesel Approved: Yes Audi Model: A6 Model series: A6 Type of engine: TDI Size of motor: 2.0 Brand of engine: CGLC Type description: 4G2 From date: 01-03-2011 To date: 01-09-2018 Fuel: Diesel Approved: Yes Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLC Type description: 4G5 Body: Estate From date: 01-05-2011 To date: 01-09-2018 Fuel: Diesel Approved: Yes Manufacture type: Avant Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLD Type description: 4G2 From date: 01-03-2011 To date: 01-09-2018 Fuel: Diesel Approved: Yes Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLD Type description: 4G5 Body: Estate From date: 01-05-2011 To date: 01-09-2018 Fuel: Diesel Approved: Yes Manufacture type: Avant Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLE Type description: 4G2, C7 From date: 01-01-2012 To date: 01-09-2018 Fuel: Diesel Approved: Yes Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLE Type description: 4G5, C7 Body: Estate From date: 01-01-2012 To date: 01-09-2018 Fuel: Diesel Approved: Yes Manufacture type: Avant Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: CMGB Type description: 4G2 From date: 01-03-2011 To date: 01-09-2018 Fuel: Diesel Approved: Yes Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: CMGB Type description: 4G5 Body: Estate From date: 01-05-2011 To date: 01-09-2018 Fuel: Diesel Approved: Yes Manufacture type: Avant Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: CSUE Type description: 4G2, C7 From date: 01-01-2012 To date: 01-09-2018 Fuel: Diesel Approved: Yes Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 2.0 Brand of engine: CSUE Type description: 4G5, C7 Body: Estate From date: 01-01-2012 To date: 01-09-2018 Fuel: Diesel Approved: Yes Manufacture type: Avant Audi Model: Q5 Model series: Q5 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLC Type description: 8R From date: 01-06-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes Audi Model: Q5 Model series: Q5 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLC Type description: 8RB Body: Box Body / Estate From date: 01-07-2012 To date: 01-06-2014 Fuel: Diesel Approved: Yes Audi Model: Q5 Model series: Q5 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCD Type description: 8R From date: 01-05-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes Audi Model: Q5 Model series: Q5 Model type: Quattro Type of engine: TDi Size of motor: 2.0 Brand of engine: CMGB Type description: 8R From date: 01-06-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes Audi Model: Q5 Model series: Q5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CAHB Type description: 8R Body: SUV From date: 01-11-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes Audi Model: Q5 Model series: Q5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLA Type description: 8R Body: SUV From date: 01-11-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes Audi Model: Q5 Model series: Q5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CGLD Type description: 8R Body: SUV From date: 01-11-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes Audi Model: Q5 Model series: Q5 Type of engine: TDI Size of motor: 2.0 Brand of engine: CJCD Type description: 8R From date: 01-05-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes Audi Model: Q5 Model series: Q5 Type of engine: TDi Size of motor: 2.0 Brand of engine: CJCD,CSUA Type description: 8RB Body: Box Body / Estate From date: 01-06-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes 1 / 18
-
