HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032113343

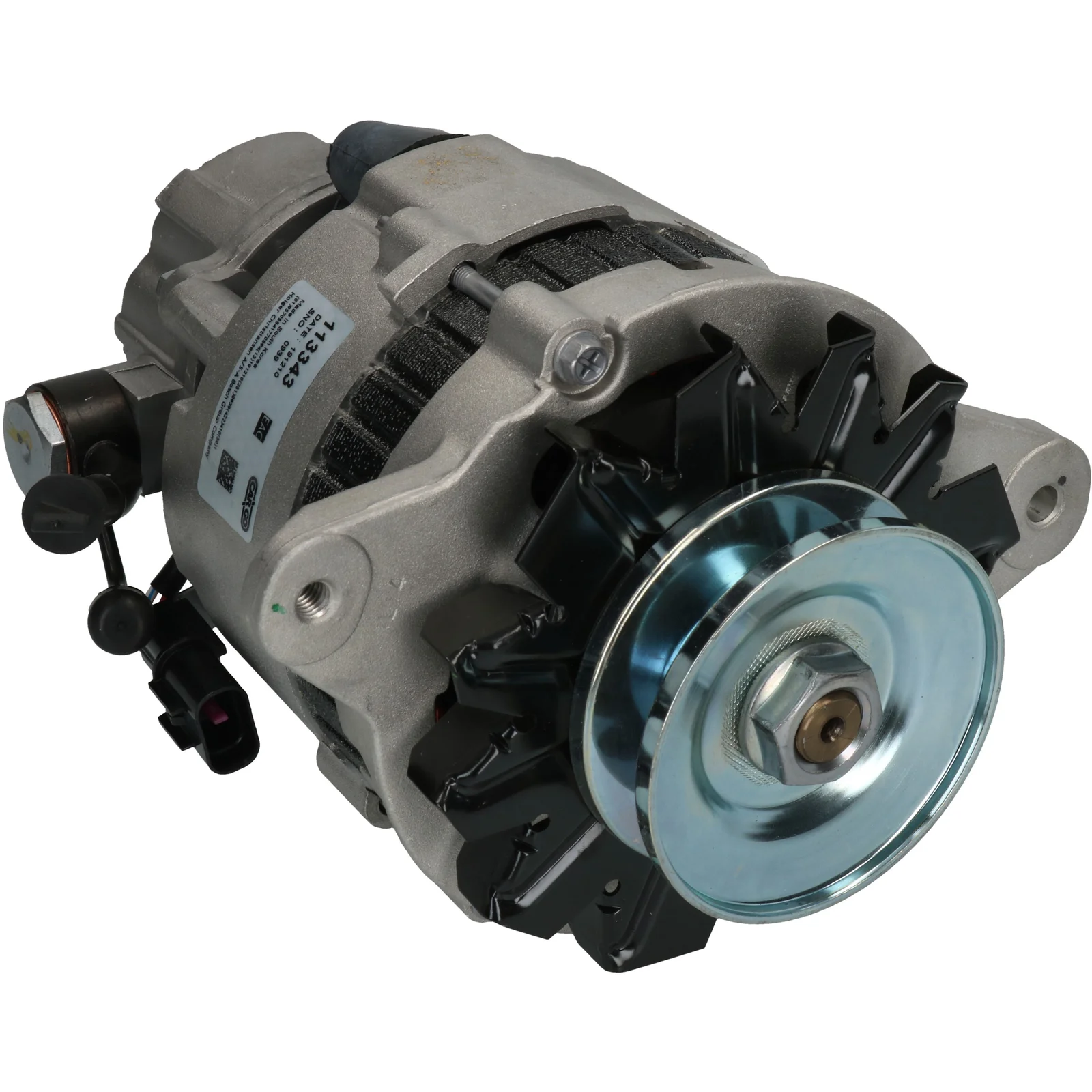

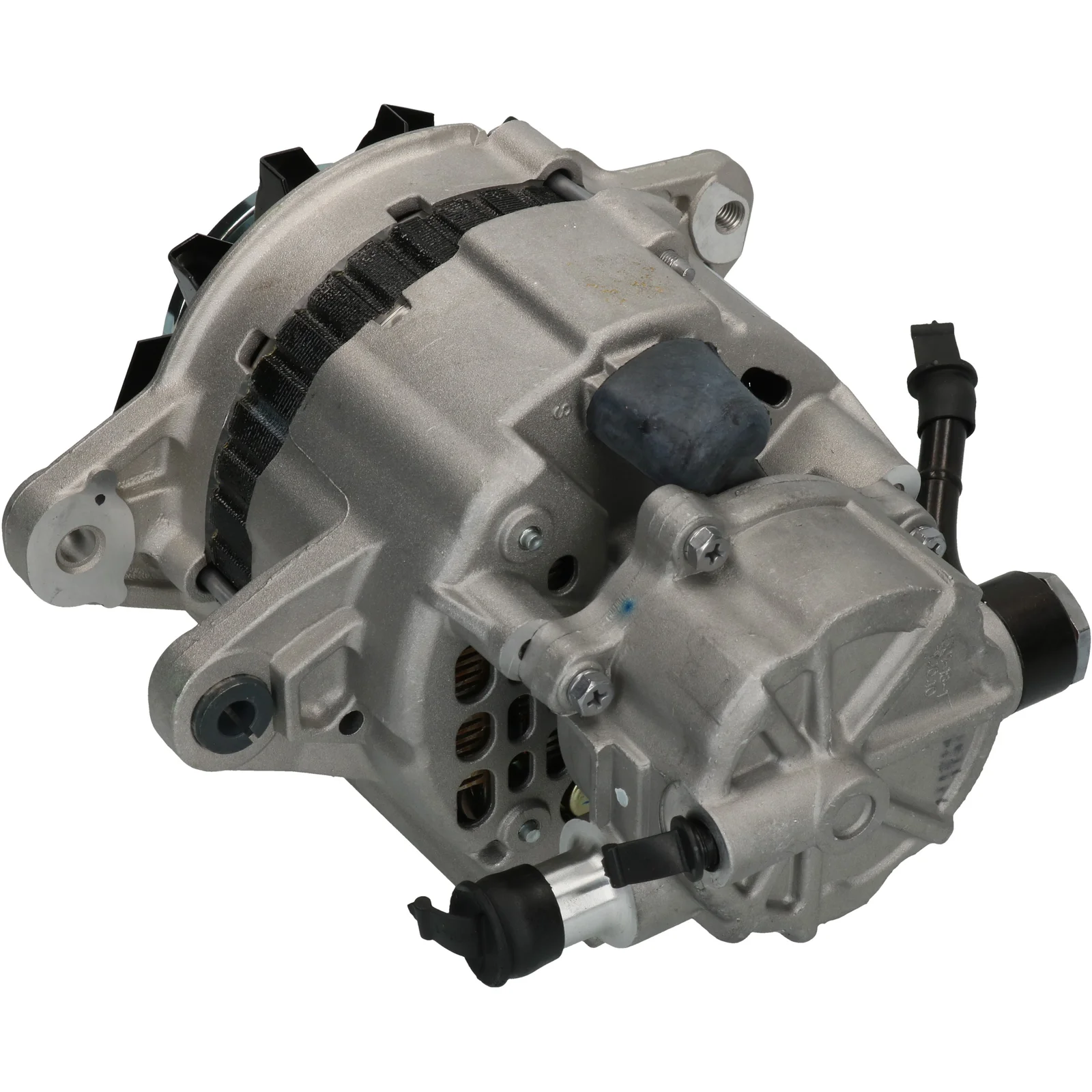

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 65, Rotasjon: CW, Monteringsbrakett avstand: 54,70

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsverdi: 14
Ampere: 65
Drevskive dist.: 44.50
Bredde/holderarm: 13.00
Festebrakett dist.: 54.70
Brakettåpning: 8.50
Belt. justere brakkettåpningsposisjon: 2
Belt. justere brakettåpningshull 1: M8
Drevskive dia.: 85.00
Riller/drevskive: 1
Radius: 90.00
Radius 2: 87.00
B+: M6
Posisjon/B+ i min.: 10
D+ Størrelse: Plugg
Rotasjon: CW
Plugg nr.: PL111
Total lengde mm: 224.00
Drevskive: P
Regulator-type: IR
Vakuumpumpe: Ja
Prod. info: BN
Service: Hyundai

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 54.70
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 2
Plug no. PL111
Bracket hole 8.50
Position/B+ in min. 10
Prod. info BN
Pulley P
Pulley dia. 85.00
Pulley dist. 44.50
Radius 90.00
D+ Size Plug
Radius 2 87.00
Regulator type IR
Rotation CW
Servicing Hyundai
Grooves/pulley 1
Vac. pump Yes
Voltage 14
Total length 224.00 mm
Width/holder arm 13.00
Amp 65

  • OEM
    ad165206, ad165439, ad165440, AD165444, ad165454, ad165471, F032113343, ja1618ir, TA000A58201, 37300-42502, 37300-42620, 37300-42621, 37300-42622, 37300-42624, 37300-47400, 37300-47450, 37300-47451

  • Konkurrentreferens
    A9007, ALT-H132, ALT35010, CAL32144, F042A0H132, LRA02072, 8EL012428-331, 226.153.652, 226.155.652, 23071N, 23071R, 111171, 111253, 119858, 210334, 210334A, 210386, 210386A, 401618RI, 600255, 600303, 600319, 600846, 608357, 9212833, 12060735, 063532604, 063532625, 0986080910, 063532604010, 063532625010, 944390904440

  • NormaliseratArtNr
    a9007, ad165206, ad165439, ad165440, ad165444, ad165454, ad165471, alt35010, alth132, cal32144, f032113343, f042a0h132, ja1618ir, lra02072, ta000a58201, 8el012428331, 23071n, 23071r, 111171, 111253, 119858, 210334, 210334a, 210386, 210386a, 401618ri, 600255, 600303, 600319, 600846, 608357, 9212833, 12060735, 063532604, 063532625, 226153652, 226155652, 0986080910, 3730042502, 3730042620, 3730042621, 3730042622, 3730042624, 3730047400, 3730047450, 3730047451, 063532604010, 063532625010, 944390904440

  • Passar modeller
    Hyundai Model: H-100 Model series: H-100 P Type of engine: Diesel Size of motor: 2.5 Brand of engine: D4BA Type description: P Body: Bus From date: 01-07-1993 To date: 01-12-1994 Fuel: Diesel Approved: Yes
    Hyundai Model: H-100 Model series: H-100 Type of engine: Diesel Size of motor: 2.5 Brand of engine: D4BA Body: Bus From date: 01-12-1994 To date: 01-03-2000 Fuel: Diesel Approved: Yes
    Hyundai Model: H-100 Model series: H-100 Type of engine: Diesel Size of motor: 2.5 Brand of engine: D4BA Body: Van From date: 01-07-1993 To date: 01-12-1994 Fuel: Diesel Approved: Yes
    Hyundai Model: H-100 Model series: H-100 Type of engine: Diesel Size of motor: 2.5 Brand of engine: D4BA Body: Van From date: 01-12-1994 To date: 01-03-2000 Fuel: Diesel Approved: Yes
    Hyundai Model: H-100 Model series: H-100 Type of engine: Diesel Size of motor: 2.5 Brand of engine: D4BX Body: Van From date: 01-07-1993 To date: 01-12-1994 Fuel: Diesel Approved: Yes
    Hyundai Model: H-100 Model series: H-100 Type of engine: TD Size of motor: 2.5 Brand of engine: D4BF Type description: P Body: Bus From date: 01-07-1993 To date: 01-03-2000 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsverdi: 14
    Ampere: 65
    Drevskive dist.: 44.50
    Bredde/holderarm: 13.00
    Festebrakett dist.: 54.70
    Brakettåpning: 8.50
    Belt. justere brakkettåpningsposisjon: 2
    Belt. justere brakettåpningshull 1: M8
    Drevskive dia.: 85.00
    Riller/drevskive: 1
    Radius: 90.00
    Radius 2: 87.00
    B+: M6
    Posisjon/B+ i min.: 10
    D+ Størrelse: Plugg
    Rotasjon: CW
    Plugg nr.: PL111
    Total lengde mm: 224.00
    Drevskive: P
    Regulator-type: IR
    Vakuumpumpe: Ja
    Prod. info: BN
    Service: Hyundai

    Filer

  • Spesifikasjon
    B+ M6
    Mount. bracket dist. 54.70
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 2
    Plug no. PL111
    Bracket hole 8.50
    Position/B+ in min. 10
    Prod. info BN
    Pulley P
    Pulley dia. 85.00
    Pulley dist. 44.50
    Radius 90.00
    D+ Size Plug
    Radius 2 87.00
    Regulator type IR
    Rotation CW
    Servicing Hyundai
    Grooves/pulley 1
    Vac. pump Yes
    Voltage 14
    Total length 224.00 mm
    Width/holder arm 13.00
    Amp 65
  • Kjøretøymatching

    • OEM
      ad165206, ad165439, ad165440, AD165444, ad165454, ad165471, F032113343, ja1618ir, TA000A58201, 37300-42502, 37300-42620, 37300-42621, 37300-42622, 37300-42624, 37300-47400, 37300-47450, 37300-47451

    • Konkurrentreferens
      A9007, ALT-H132, ALT35010, CAL32144, F042A0H132, LRA02072, 8EL012428-331, 226.153.652, 226.155.652, 23071N, 23071R, 111171, 111253, 119858, 210334, 210334A, 210386, 210386A, 401618RI, 600255, 600303, 600319, 600846, 608357, 9212833, 12060735, 063532604, 063532625, 0986080910, 063532604010, 063532625010, 944390904440

    • NormaliseratArtNr
      a9007, ad165206, ad165439, ad165440, ad165444, ad165454, ad165471, alt35010, alth132, cal32144, f032113343, f042a0h132, ja1618ir, lra02072, ta000a58201, 8el012428331, 23071n, 23071r, 111171, 111253, 119858, 210334, 210334a, 210386, 210386a, 401618ri, 600255, 600303, 600319, 600846, 608357, 9212833, 12060735, 063532604, 063532625, 226153652, 226155652, 0986080910, 3730042502, 3730042620, 3730042621, 3730042622, 3730042624, 3730047400, 3730047450, 3730047451, 063532604010, 063532625010, 944390904440

    • Passar modeller
      Hyundai Model: H-100 Model series: H-100 P Type of engine: Diesel Size of motor: 2.5 Brand of engine: D4BA Type description: P Body: Bus From date: 01-07-1993 To date: 01-12-1994 Fuel: Diesel Approved: Yes
      Hyundai Model: H-100 Model series: H-100 Type of engine: Diesel Size of motor: 2.5 Brand of engine: D4BA Body: Bus From date: 01-12-1994 To date: 01-03-2000 Fuel: Diesel Approved: Yes
      Hyundai Model: H-100 Model series: H-100 Type of engine: Diesel Size of motor: 2.5 Brand of engine: D4BA Body: Van From date: 01-07-1993 To date: 01-12-1994 Fuel: Diesel Approved: Yes
      Hyundai Model: H-100 Model series: H-100 Type of engine: Diesel Size of motor: 2.5 Brand of engine: D4BA Body: Van From date: 01-12-1994 To date: 01-03-2000 Fuel: Diesel Approved: Yes
      Hyundai Model: H-100 Model series: H-100 Type of engine: Diesel Size of motor: 2.5 Brand of engine: D4BX Body: Van From date: 01-07-1993 To date: 01-12-1994 Fuel: Diesel Approved: Yes
      Hyundai Model: H-100 Model series: H-100 Type of engine: TD Size of motor: 2.5 Brand of engine: D4BF Type description: P Body: Bus From date: 01-07-1993 To date: 01-03-2000 Fuel: Diesel Approved: Yes
      1 / 2
