HC-Cargo Dynamo

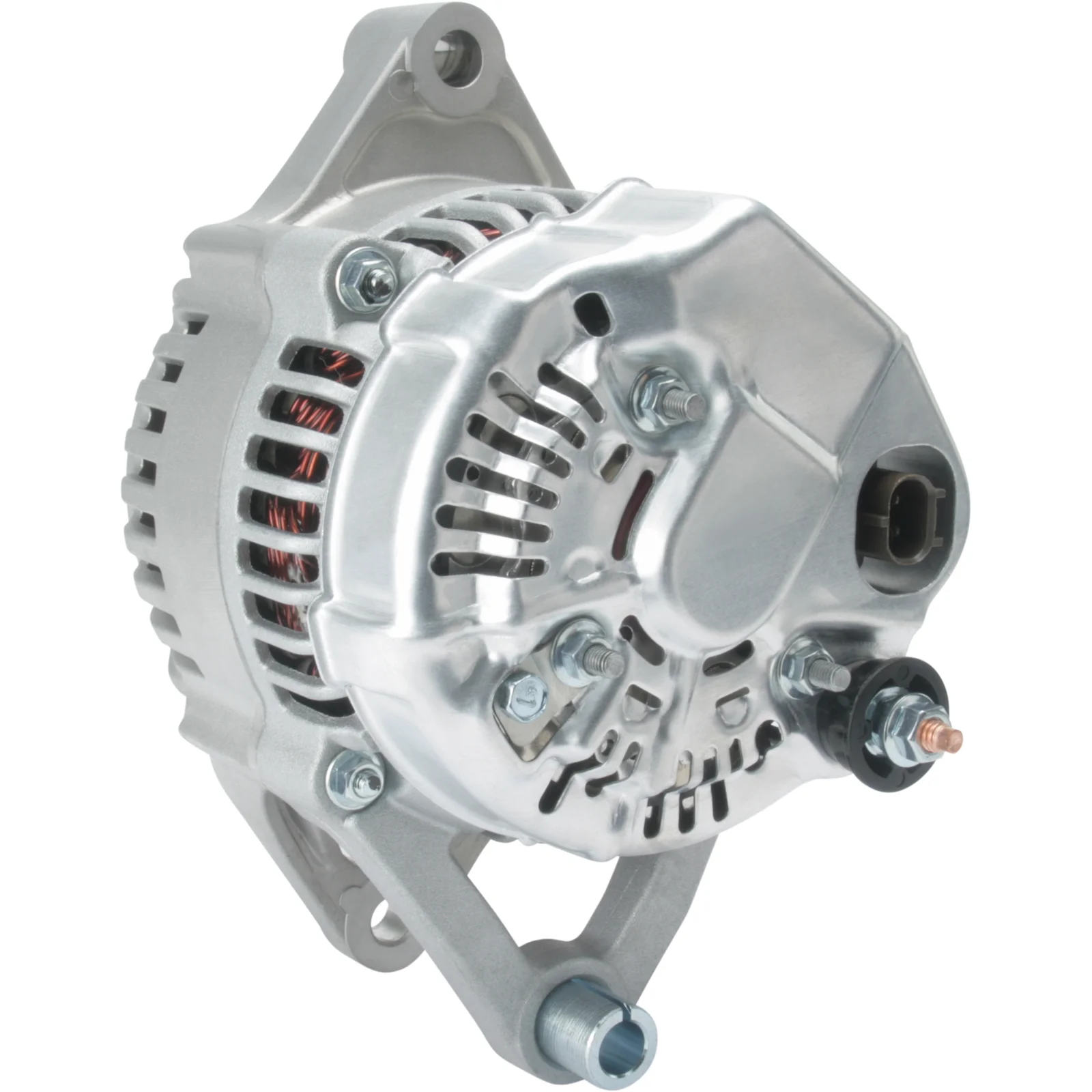

HC-Cargo Dynamo
Varenr.: F032113358

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 117, Rotasjon: CW, Monteringsbeslag avstand: 54.00

Beskrivelse

Spenning: 14
Amp: 117
Remskive avstand: 33,20
Bredde/beslagarm: 13,30
Festebrakett avstand: 54,00
Brakettåpning: 10,00
Båndjust. brakettåpning pos.: 60
Båndjust. brakettåpning 1: 11,50
Remskivediameter: 55,00
Spor/remskive: 6
Radius: 96,50
Radius 2: 88,50
B+: M6
Posisjon/B+ i min.: 20
D+ størrelse: Plugg
Rotasjon: medurs
Plugg nr.: PL135
Total lengde mm: 187,00
Remskive: SP
Prod. info: BN
Service: Jeep

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 54.00
Belt. adj. bracket hole 1 11.50
Belt. adj. brackethole pos. 60
Plug no. PL135
Bracket hole 10.00
Position/B+ in min. 20
Prod. info BN
Pulley SP
Pulley dia. 55.00
Pulley dist. 33.20
Radius 96.50
D+ Size Plug
Radius 2 88.50
Rotation CW
Servicing Jeep
Grooves/pulley 6
Voltage 14
Total length 187.00 mm
Width/holder arm 13.30
Amp 117

  • OEM
    F032113358, 121000-3620, 121000-3670, 121000-3671, 56005685ac, 56041822aa

  • Konkurrentreferens
    A6505S, ALT-5214, CAL40211, DRA0644, F042302107, F042A02107, LRA01164, 1-2224-01nd, 1-2224-01ND-2, 1-2224-02ND, 27-4785, 13822, 13822N, 13822R, 13940, 553142RI, 12090814

  • NormaliseratArtNr
    a6505s, alt5214, cal40211, dra0644, f032113358, f042302107, f042a02107, lra01164, 13822, 13822n, 13822r, 13940, 274785, 553142ri, 1222401nd, 1222401nd2, 1222402nd, 12090814, 56005685ac, 56041822aa, 1210003620, 1210003670, 1210003671

  • Passar modeller
    Dodge Model: Dakota Model series: Dakota Size of motor: 2.5 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Model type: 4x4 Size of motor: 2.5 Brand of engine: EPE Type description: XJ Body: Closed Off-Road Vehicle From date: 01-10-1990 To date: 01-09-1996 Fuel: Petrol Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Size of motor: 2.5 From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Size of motor: 2.5 From date: 01-01-2000 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Size of motor: 4.0 From date: 01-01-2000 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Type of engine: i Size of motor: 4.0 Brand of engine: ERH Type description: XJ From date: 01-02-1999 To date: 01-09-2001 Fuel: Gasoline Approved: Yes
    Jeep Model: Wrangler Model series: Wrangler Model type: 4x4 Size of motor: 4.0 Brand of engine: ERH Type description: TJ Body: Open Off-Road Vehicle From date: 01-01-1997 To date: 01-12-2007 Fuel: Petrol Approved: Yes
    Jeep Model: Wrangler Model series: Wrangler Size of motor: 2.5 From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
    Jeep Model: Wrangler Model series: Wrangler Size of motor: 2.5 From date: 01-01-2000 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spenning: 14
    Amp: 117
    Remskive avstand: 33,20
    Bredde/beslagarm: 13,30
    Festebrakett avstand: 54,00
    Brakettåpning: 10,00
    Båndjust. brakettåpning pos.: 60
    Båndjust. brakettåpning 1: 11,50
    Remskivediameter: 55,00
    Spor/remskive: 6
    Radius: 96,50
    Radius 2: 88,50
    B+: M6
    Posisjon/B+ i min.: 20
    D+ størrelse: Plugg
    Rotasjon: medurs
    Plugg nr.: PL135
    Total lengde mm: 187,00
    Remskive: SP
    Prod. info: BN
    Service: Jeep

    Filer

  • Spesifikasjon
    B+ M6
    Mount. bracket dist. 54.00
    Belt. adj. bracket hole 1 11.50
    Belt. adj. brackethole pos. 60
    Plug no. PL135
    Bracket hole 10.00
    Position/B+ in min. 20
    Prod. info BN
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 33.20
    Radius 96.50
    D+ Size Plug
    Radius 2 88.50
    Rotation CW
    Servicing Jeep
    Grooves/pulley 6
    Voltage 14
    Total length 187.00 mm
    Width/holder arm 13.30
    Amp 117
  • Kjøretøymatching

    • OEM
      F032113358, 121000-3620, 121000-3670, 121000-3671, 56005685ac, 56041822aa

    • Konkurrentreferens
      A6505S, ALT-5214, CAL40211, DRA0644, F042302107, F042A02107, LRA01164, 1-2224-01nd, 1-2224-01ND-2, 1-2224-02ND, 27-4785, 13822, 13822N, 13822R, 13940, 553142RI, 12090814

    • NormaliseratArtNr
      a6505s, alt5214, cal40211, dra0644, f032113358, f042302107, f042a02107, lra01164, 13822, 13822n, 13822r, 13940, 274785, 553142ri, 1222401nd, 1222401nd2, 1222402nd, 12090814, 56005685ac, 56041822aa, 1210003620, 1210003670, 1210003671

    • Passar modeller
      Dodge Model: Dakota Model series: Dakota Size of motor: 2.5 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Model type: 4x4 Size of motor: 2.5 Brand of engine: EPE Type description: XJ Body: Closed Off-Road Vehicle From date: 01-10-1990 To date: 01-09-1996 Fuel: Petrol Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Size of motor: 2.5 From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Size of motor: 2.5 From date: 01-01-2000 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Size of motor: 4.0 From date: 01-01-2000 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Type of engine: i Size of motor: 4.0 Brand of engine: ERH Type description: XJ From date: 01-02-1999 To date: 01-09-2001 Fuel: Gasoline Approved: Yes
      Jeep Model: Wrangler Model series: Wrangler Model type: 4x4 Size of motor: 4.0 Brand of engine: ERH Type description: TJ Body: Open Off-Road Vehicle From date: 01-01-1997 To date: 01-12-2007 Fuel: Petrol Approved: Yes
      Jeep Model: Wrangler Model series: Wrangler Size of motor: 2.5 From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
      Jeep Model: Wrangler Model series: Wrangler Size of motor: 2.5 From date: 01-01-2000 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
