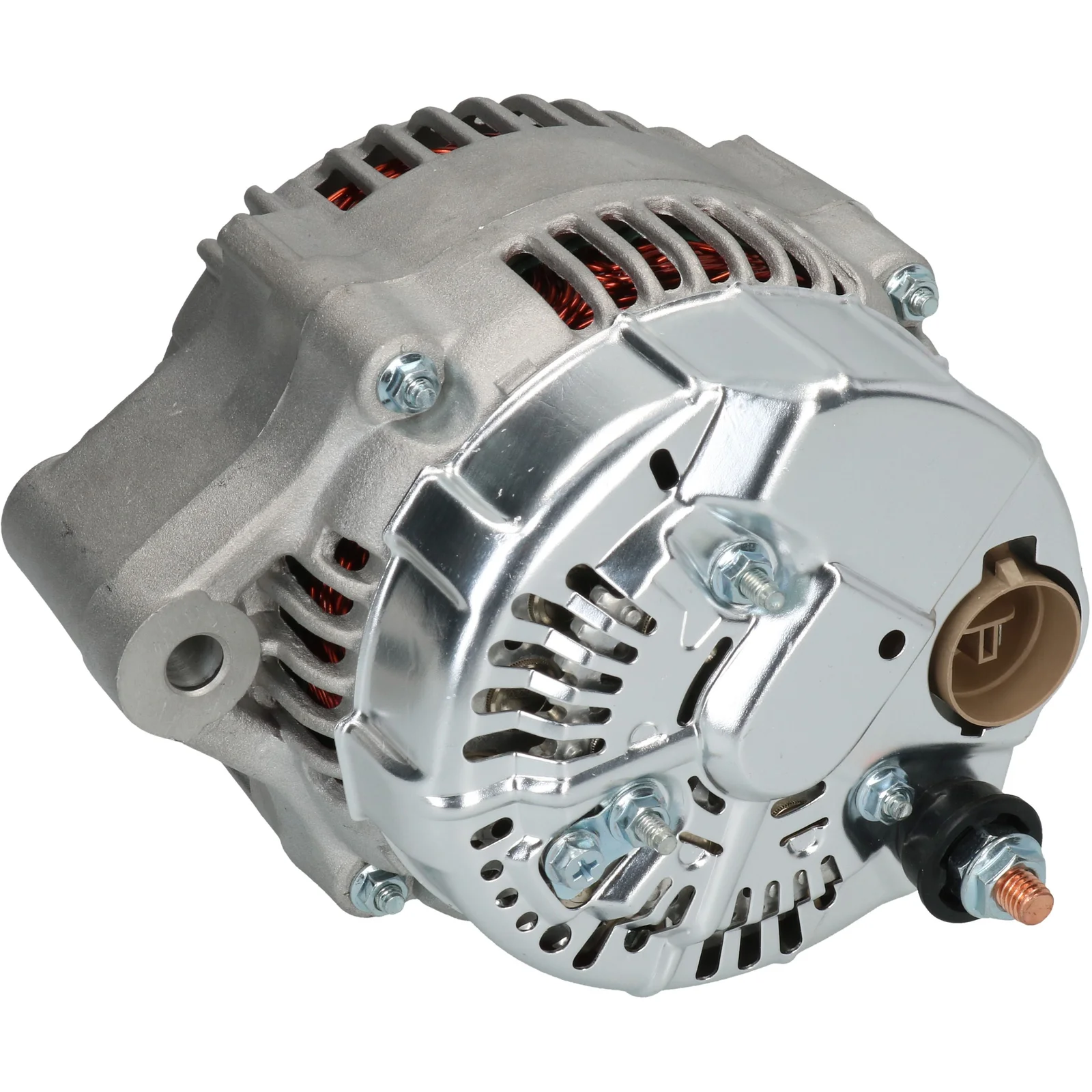

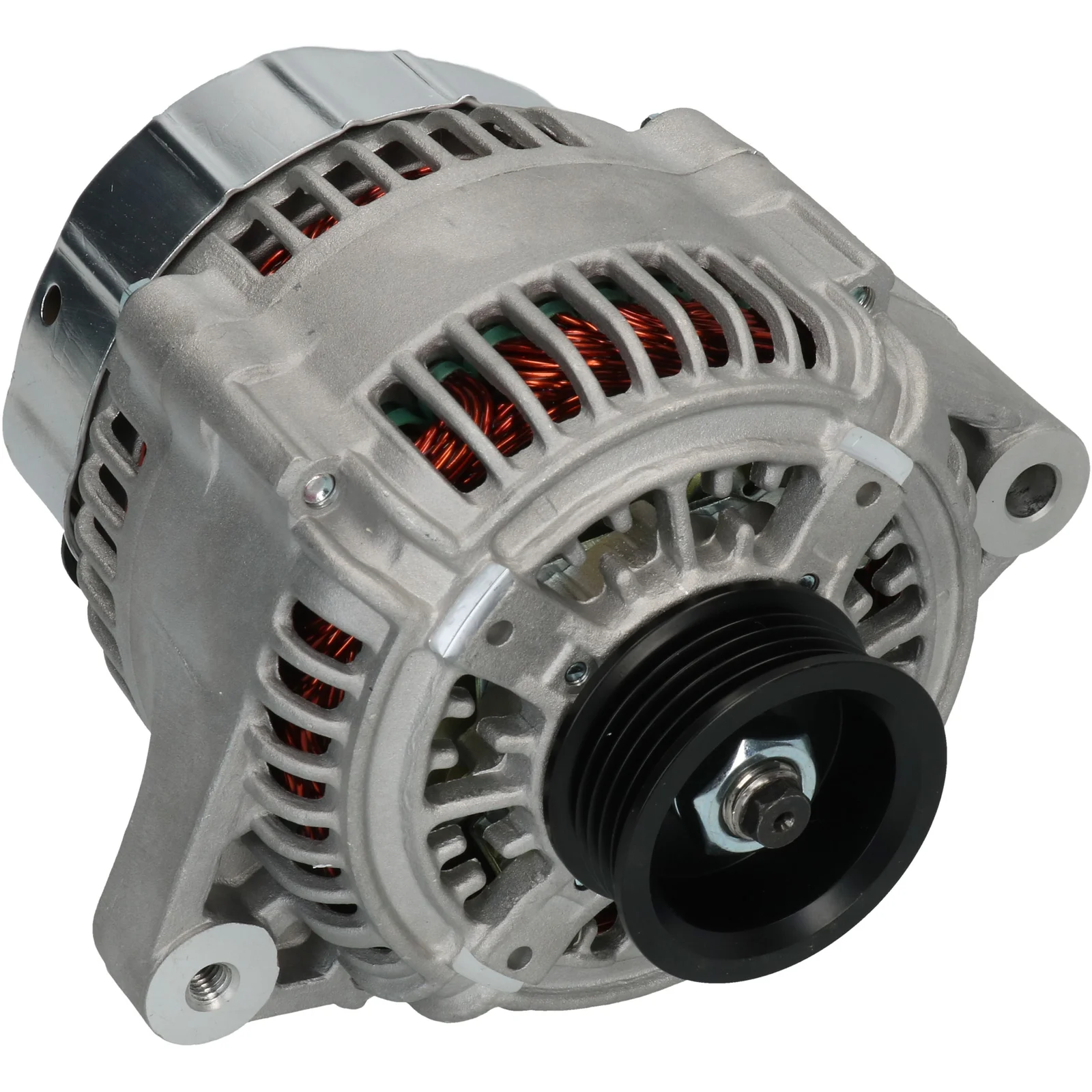

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116492

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 120, Rotasjon: CW, Trekkskive dia.: 55,00

Beskrivelse

Jaguar Dynamo 12V-120A 12V - 120A, 5gr, (D, IG, L) for Yourex produktordre 90-270-6310

Spenningsnivå: 14
Ampere: 120
Trommelavstand: 90.00
Bredde/holderarm: 58.00
Festehull: 10.50
Belt. justeringshull pos.: 55
Belt. justeringshull 1: M8
Trommeldiameter: 55.00
Riller/trommel: 5
Radius: 83.00
Radius 2: 85.50
B+: M8
Posisjon/B+ i min.: 7
D+ størrelse: Plugg
Rotasjon: med klokken
Plugg nr.: PL11
Total lengde mm: 187.00
Terminaltype: IG-L-S
Trommel: SP
Vifte: IF

Filer

Spesifikasjon

B+ M8
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 55
Plug no. PL11
Bracket hole 10.50
Position/B+ in min. 7
Pulley SP
Pulley dia. 55.00
Pulley dist. 90.00
Radius 83.00
D+ Size Plug
Radius 2 85.50
Rotation CW
Fan IF
Grooves/pulley 5
Terminal type IG-L-S
Voltage 14
Total length 187.00 mm
Width/holder arm 58.00
Amp 120

  • OEM
    A 18000BA, A 18000DA, A1800AA, A1800BA, A1800DA, DBC 11590, DBC6819, DBC6820, F032116492, NA1800BA, 100211-6310, 100211-6320, 100211-6450, 101211-7191, 101211-7640, 116492

  • Konkurrentreferens
    A6196(DENSO), CAL40249, DAN671, DRA3666, 8EL015637-711, 28-4748, 514.101.1202, 845.502.120, 13260R, 13524N, 111725, 553941RI, 12060669, 12061053, 0986043087

  • Bilmärken
    Jaguar, John Deere - (EU)

  • NormaliseratArtNr
    a18000ba, a18000da, a1800aa, a1800ba, a1800da, a6196denso, cal40249, dan671, dbc11590, dbc6819, dbc6820, dra3666, f032116492, na1800ba, 8el015637711, 13260r, 13524n, 111725, 116492, 284748, 553941ri, 12060669, 12061053, 845502120, 0986043087, 1002116310, 1002116320, 1002116450, 1012117191, 1012117640, 5141011202

  • Passar modeller
    Jaguar Model: Vanden Plas Saloon Model series: Vanden Plas Saloon Size of motor: 4.0 Brand of engine: 9EPCNA Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
    Jaguar Model: XJ Model series: XJ Model type: 6 Size of motor: 4.0 Brand of engine: 9E Body: Saloon Fuel: Petrol Approved: Yes
    Jaguar Model: XJ Model series: XJ Size of motor: 4.0 Brand of engine: 9JPFRB Type description: X300, X330 Body: Saloon From date: 01-11-1994 To date: 01-07-1997 Fuel: Petrol Approved: Yes
    Jaguar Model: XJ Model series: XJ Size of motor: 4.0 Type description: XJ40, XJ81 From date: 01-10-1989 To date: 01-08-1994 Fuel: Gasoline Approved: Yes
    Jaguar Series: XJ 12 Model: 6.0 Engine volume: 6.0 Year: 11.94-07.97
    Jaguar Series: XJ 6 Model: 4.0 R Super Charged Engine volume: 4.0 Year: 11.94-07.97
    Jaguar Series: XJ 6 Model: 4.0 Sovereign Engine volume: 4.0 Year: 11.94-07.97
    Jaguar Series: XJS Model: 6.0 Coupe Engine volume: 6.0 Year: 05.93-03.96
    1 / 2
  • Beskrivelse
    Jaguar Dynamo 12V-120A 12V - 120A, 5gr, (D, IG, L) for Yourex produktordre 90-270-6310

    Spenningsnivå: 14
    Ampere: 120
    Trommelavstand: 90.00
    Bredde/holderarm: 58.00
    Festehull: 10.50
    Belt. justeringshull pos.: 55
    Belt. justeringshull 1: M8
    Trommeldiameter: 55.00
    Riller/trommel: 5
    Radius: 83.00
    Radius 2: 85.50
    B+: M8
    Posisjon/B+ i min.: 7
    D+ størrelse: Plugg
    Rotasjon: med klokken
    Plugg nr.: PL11
    Total lengde mm: 187.00
    Terminaltype: IG-L-S
    Trommel: SP
    Vifte: IF

    Filer

  • Spesifikasjon
    B+ M8
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 55
    Plug no. PL11
    Bracket hole 10.50
    Position/B+ in min. 7
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 90.00
    Radius 83.00
    D+ Size Plug
    Radius 2 85.50
    Rotation CW
    Fan IF
    Grooves/pulley 5
    Terminal type IG-L-S
    Voltage 14
    Total length 187.00 mm
    Width/holder arm 58.00
    Amp 120
  • Kjøretøymatching

    • OEM
      A 18000BA, A 18000DA, A1800AA, A1800BA, A1800DA, DBC 11590, DBC6819, DBC6820, F032116492, NA1800BA, 100211-6310, 100211-6320, 100211-6450, 101211-7191, 101211-7640, 116492

    • Konkurrentreferens
      A6196(DENSO), CAL40249, DAN671, DRA3666, 8EL015637-711, 28-4748, 514.101.1202, 845.502.120, 13260R, 13524N, 111725, 553941RI, 12060669, 12061053, 0986043087

    • Bilmärken
      Jaguar, John Deere - (EU)

    • NormaliseratArtNr
      a18000ba, a18000da, a1800aa, a1800ba, a1800da, a6196denso, cal40249, dan671, dbc11590, dbc6819, dbc6820, dra3666, f032116492, na1800ba, 8el015637711, 13260r, 13524n, 111725, 116492, 284748, 553941ri, 12060669, 12061053, 845502120, 0986043087, 1002116310, 1002116320, 1002116450, 1012117191, 1012117640, 5141011202

    • Passar modeller
      Jaguar Model: Vanden Plas Saloon Model series: Vanden Plas Saloon Size of motor: 4.0 Brand of engine: 9EPCNA Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
      Jaguar Model: XJ Model series: XJ Model type: 6 Size of motor: 4.0 Brand of engine: 9E Body: Saloon Fuel: Petrol Approved: Yes
      Jaguar Model: XJ Model series: XJ Size of motor: 4.0 Brand of engine: 9JPFRB Type description: X300, X330 Body: Saloon From date: 01-11-1994 To date: 01-07-1997 Fuel: Petrol Approved: Yes
      Jaguar Model: XJ Model series: XJ Size of motor: 4.0 Type description: XJ40, XJ81 From date: 01-10-1989 To date: 01-08-1994 Fuel: Gasoline Approved: Yes
      Jaguar Series: XJ 12 Model: 6.0 Engine volume: 6.0 Year: 11.94-07.97
      Jaguar Series: XJ 6 Model: 4.0 R Super Charged Engine volume: 4.0 Year: 11.94-07.97
      Jaguar Series: XJ 6 Model: 4.0 Sovereign Engine volume: 4.0 Year: 11.94-07.97
      Jaguar Series: XJS Model: 6.0 Coupe Engine volume: 6.0 Year: 05.93-03.96
      1 / 2
