- Dynamo
-

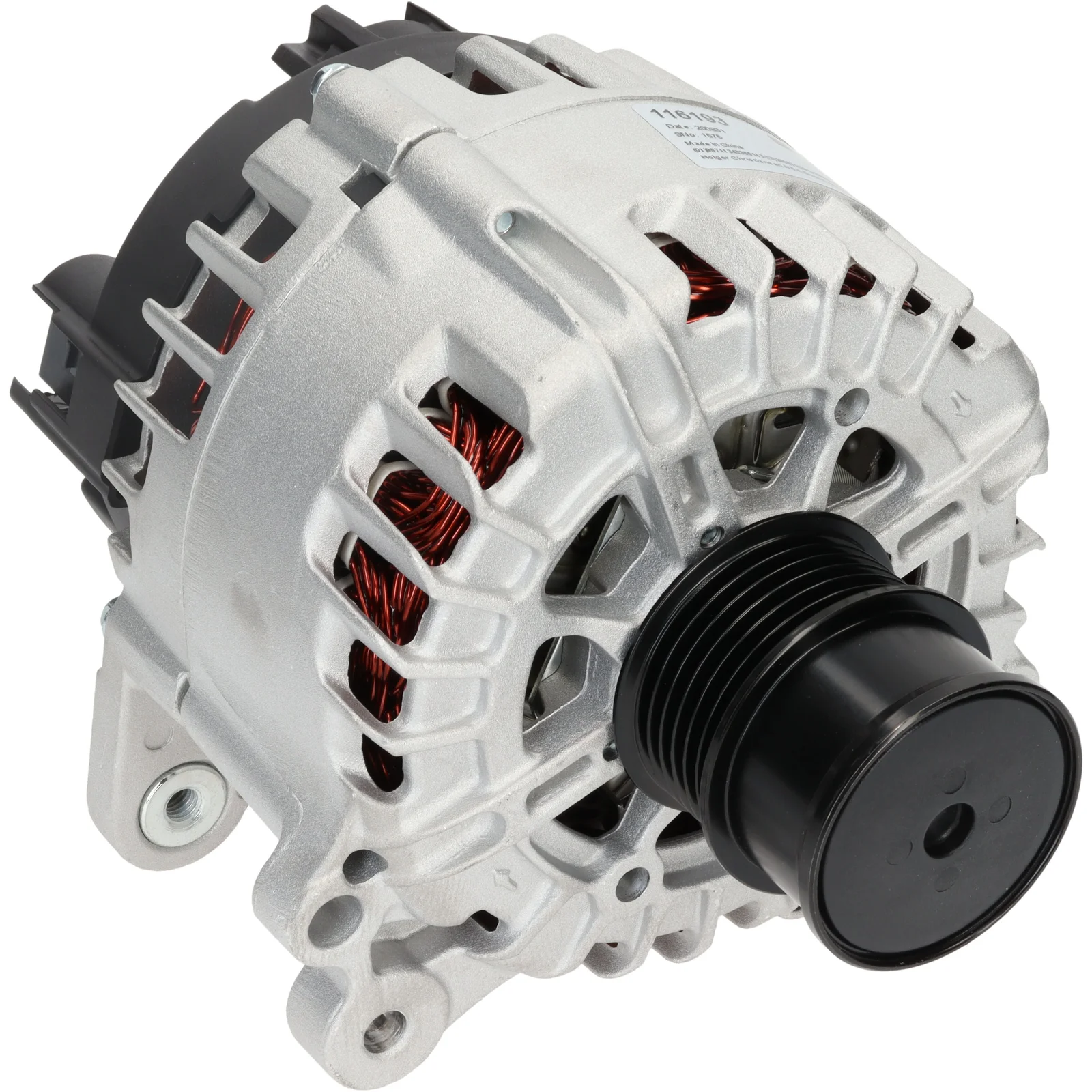

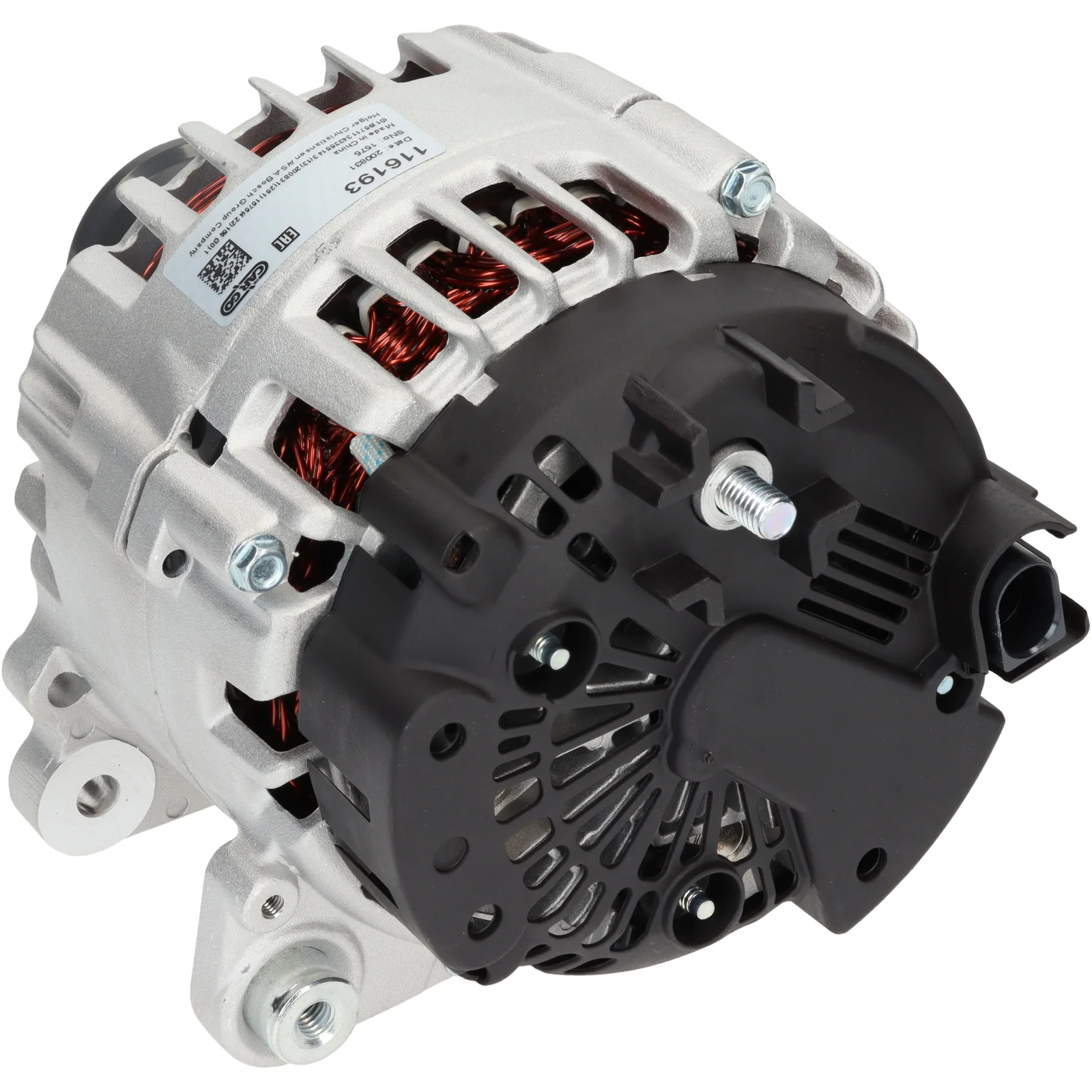

HC-Cargo Dynamo
- Dynamo
-
HC-Cargo Dynamo
Varenr.: F032116193
HC-Cargo Dynamo
Spenning: 14, Amp: 140, Rotasjon: CW, Festebrakett avstand: 61.00
Beskrivelse
Dynamo 12V-140A 12V - 140A, 6gr.frg, (LIN) For Yourex produktordre 90-620-8334
Spenning: 14
Ampere: 140
Drivskive avstand: 31.00
Bredde/holderarm: 14.00
Monteringsbeslag avstand: 61.00
Beslaghull: 8.50
Beltetilpassingsbeslag hullposisjon: 45
Beltetilpassingsbeslag hull 1: 8.50
Beltetilpassingsbeslag hull 2: M8
Drevskivediameter: 52.40
Riller/drev: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 53
Rotasjon: CW
Kontakt nr.: PL125
Total lengde mm: 208.00
Terminaltype: COM
Drevskive: SP/FW
Vifte: IF
Regulator type: IR
Anmerkninger: Denne generatoren har en COM-terminal på regulatoren. Det anbefales at OEM-nummer brukes for å sjekke egnethet før bestilling.
Filer
Spesifikasjon
| B+ | M8 |
|---|---|
| Mount. bracket dist. | 61.00 |
| Belt. adj. bracket hole 1 | 8.50 |
| Belt. adj. bracket hole 2 | M8 |
| Belt. adj. brackethole pos. | 45 |
| Plug no. | PL125 |
| Bracket hole | 8.50 |
| Position/B+ in min. | 53 |
| Pulley | SP/FW |
| Pulley dia. | 52.40 |
| Pulley dist. | 31.00 |
| Radius | 90.00 |
| Radius 2 | 90.00 |
| Regulator type | IR |
| Remarks | This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering. |
| Rotation | CW |
| Fan | IF |
| Grooves/pulley | 6 |
| Terminal type | COM |
| Voltage | 14 |
| Total length | 208.00 mm |
| Width/holder arm | 14.00 |
| Amp | 140 |
-
OEM
A0627PR, A0627S, A3340PR, A3340S, A3340SR, CAL15594, DRA1346, F032116193, LRA03893, TG14C 071, TG14C 103, TG14C071, TG14C094, TG14C103, 04C 903 023K, 04C 903 023M, 04C903021A, 04C903023K, 04C903023KX, 04C903023M, 4C903023K, 4C903023KX, 8EL015630-201, 28-7503, 211.520.1402, 305.999.140, 0986 083 340, 20352N-OE, 116193, 200285, 209492, 209492A, 439894, 440640, 442303, 554055RI, 2622499A, 2715992A, 0986083340 -
Konkurrentreferens
A0627PR, A0627S, A3340PR, A3340S, A3340SR, CAL15594, DRA1346, LRA03893, 8EL015630-201, 28-7503, 211.520.1402, 305.999.140, 20352N-OE, 200285, 209492, 209492A, 439894, 440640, 442303, 554055RI, 0986083340 -
Bilmärken
AUDI, SEAT, SKODA, VW -
NormaliseratArtNr
a0627pr, a0627s, a3340pr, a3340s, a3340sr, cal15594, dra1346, f032116193, lra03893, tg14c071, tg14c094, tg14c103, 04c903021a, 04c903023k, 04c903023kx, 04c903023m, 4c903023k, 4c903023kx, 8el015630201, 20352noe, 116193, 200285, 209492, 209492a, 287503, 439894, 440640, 442303, 554055ri, 2622499a, 2715992a, 305999140, 0986083340, 2115201402 -
Passar modeller
AUDI A1 City Carver (GBH) 25 TFSI Engine volume: 1.0 Engine type: DKLA Year: 07.19-06.22 AUDI A1 City Carver (GBH) 30 TFSI Engine volume: 1.0 Engine type: DKJA, DKRF Year: 07.19-06.22 AUDI A1 City Carver (GBH) 35 TFSI Engine volume: 1.5 Engine type: DPCA Year: 07.19-06.22 AUDI A1 Sportback (GBA) 25 TFSI Engine volume: 1.0 Engine type: DKLA, DUSB, DLAC Year: 11.18- AUDI A1 Sportback (GBA) 30 TFSI Engine volume: 1.0 Engine type: DKJA, DKRF, DUSA Year: 07.18- AUDI A1 Sportback (GBA) 35 TFSI Engine volume: 1.5 Engine type: DXDB, DPCA, DADA Year: 09.18- AUDI A3 (8V1, 8VK) 1.2 TFSI Engine volume: 1.2 Engine type: CYVB Year: 05.14-08.16 AUDI A3 (8V1, 8VK) 1.4 TFSI Engine volume: 1.4 Engine type: CXSA, CMBA Year: 04.12-05.14 AUDI A3 (8V1, 8VK) 1.4 TFSI Engine volume: 1.4 Engine type: CZCA, CXSB Year: 05.14-08.16 AUDI A3 (8V1, 8VK) 2.0 TDI quattro Engine volume: 2.0 Engine type: DCYA, CRBC, CRLB Year: 10.12-12.17 AUDI A3 Cabriolet (8V7, 8VE) 35 TFSI Engine volume: 1.5 Engine type: DPCA, DADA Year: 10.18-10.20 AUDI A3 Limousine (8VS, 8VM) 1.5 TFSI Engine volume: 1.5 Engine type: DADA Year: 05.17-10.18 AUDI A3 Limousine (8VS, 8VM) 30 TFSI Engine volume: 1.0 Engine type: DKRF Year: 07.18-10.20 AUDI A3 Limousine (8VS, 8VM) 35 TFSI Engine volume: 1.5 Engine type: DPCA, DADA Year: 10.18-10.20 AUDI A3 Sportback (8VA, 8VF) 30 TFSI Engine volume: 1.0 Engine type: DKRF Year: 07.18-10.20 AUDI A3 Sportback (8VA, 8VF) 35 TFSI Engine volume: 1.5 Engine type: DPCA, DADA Year: 10.18-10.20 AUDI Q2 (GAB, GAG) 1.0 TFSI Engine volume: 1.0 Engine type: CHZJ Year: 10.16-10.20 AUDI Q2 (GAB, GAG) 1.4 TFSI Engine volume: 1.4 Engine type: CZEA Year: 06.16- AUDI Q3 (8UB, 8UG) 1.4 TSI Engine volume: 1.4 Engine type: CZEA, CZDA, CHPB Year: 10.13-10.18 AUDI Q3 (F3B) 35 TFSI Engine volume: 1.5 Engine type: DXDB, DPCA, DADA Year: 08.18- SEAT ALHAMBRA (710, 711) 1.4 TSI Engine volume: 1.4 Engine type: CZDA, DJKA Year: 05.15-12.22 SEAT ALHAMBRA VAN (711) TSi Engine volume: 1.4 Engine type: CZDA Year: 05.15-12.22 SEAT ARONA (KJ7, KJP) 1.0 TSI Engine volume: 1.0 Engine type: DUSA, DKJA, DXUA, DKRF, CHZJ Year: 07.17- SEAT ATECA (KH7, KHP) 1.5 TSI 4Drive Engine volume: 1.5 Engine type: DADA, DPCA Year: 07.18- SEAT ATECA (KH7, KHP) 1.5 TSI Engine volume: 1.5 Engine type: DADA, DPCA, DXDB Year: 07.18- SEAT LEON (5F1) 1.2 TSI Engine volume: 1.2 Engine type: CJZA Year: 01.13-08.20 SEAT LEON (5F1) 1.2 TSI Engine volume: 1.2 Engine type: CYVB Year: 04.14-08.20 SEAT LEON (5F1) 1.4 TGI Engine volume: 1.4 Engine type: CPWA Year: 02.13-08.18 SEAT LEON (5F1) 1.4 TSI Engine volume: 1.4 Engine type: CHPA, CPTA Year: 09.12-08.20 SEAT LEON (5F1) 1.4 TSI Engine volume: 1.4 Engine type: CMBA, CXSA Year: 11.12-10.16 SEAT LEON (5F1) 1.4 TSI Engine volume: 1.4 Engine type: CZDA, CZEA Year: 05.14-08.20 SEAT LEON (5F1) 1.5 TGi Engine volume: 1.5 Engine type: DHFA Year: 10.18-08.20 SEAT LEON Skåpbil/halvkombi (5F1) 1.0 TSI Engine volume: 1.0 Engine type: CHZD Year: 05.15-08.20 SEAT LEON Skåpbil/halvkombi (5F1) 1.2 TSI Engine volume: 1.2 Engine type: CYVA, CJZB Year: 01.13-08.18 SEAT LEON Skåpbil/halvkombi (5F1) 1.2 TSI Engine volume: 1.2 Engine type: CYVB Year: 04.14-08.18 SEAT LEON Skåpbil/halvkombi (5F1) 1.4 TSI Engine volume: 1.4 Engine type: CHPA, CPTA Year: 09.12-10.16 SEAT LEON Skåpbil/halvkombi (5F1) 1.4 TSI Engine volume: 1.4 Engine type: CMBA, CXSA Year: 09.12-10.16 SEAT LEON Skåpbil/halvkombi (5F1) 1.4 TSI Engine volume: 1.4 Engine type: CZEA Year: 05.14-08.20 SEAT LEON ST (5F8) 1.2 TSI Engine volume: 1.2 Engine type: CYVB Year: 05.14-08.20 SEAT LEON ST (5F8) 1.5 TGi Engine volume: 1.5 Engine type: DHFA Year: 10.18-08.20 SEAT LEON ST Skåp / kombi (5F8) 1.0 TSI Engine volume: 1.0 Engine type: CHZD Year: 05.15-08.20 SEAT LEON ST Skåp / kombi (5F8) 1.2 TSI Engine volume: 1.2 Engine type: CYVA, CJZB Year: 01.13-08.18 SEAT LEON ST Skåp / kombi (5F8) 1.2 TSI Engine volume: 1.2 Engine type: CYVB Year: 05.14-08.18 SEAT LEON ST Skåp / kombi (5F8) 1.4 TSI Engine volume: 1.4 Engine type: CZDA, CZEA Year: 05.14-08.20 SEAT TARRACO (KN2) 1.5 TSI ACT Engine volume: 1.5 Engine type: DADA, DPCA, DXDB Year: 09.18-05.24 SEAT TOLEDO IV (KG3) 1.2 TSI Engine volume: 1.2 Engine type: CJZC Year: 05.15-05.17 SEAT TOLEDO IV (KG3) 1.2 TSI Engine volume: 1.2 Engine type: CJZD Year: 05.15-05.17 SEAT TOLEDO IV (KG3) 1.4 TSI Engine volume: 1.4 Engine type: CZCA Year: 05.15-04.19 SKODA FABIA III (NJ3) 1.0 TSI Engine volume: 1.0 Engine type: DKRC, CHZC Year: 08.14-06.21 SKODA FABIA III (NJ3) 1.2 TSI Engine volume: 1.2 Engine type: CJZC Year: 08.14-06.21 SKODA FABIA III Kombi (NJ5) 1.0 TSI Engine volume: 1.0 Engine type: DKRC, CHZC Year: 08.14-12.22 SKODA KAMIQ (NW4) 1.0 TGI CNG Engine volume: 1.0 Engine type: DBYA Year: 11.19- SKODA KAMIQ (NW4) 1.0 TSI Engine volume: 1.0 Engine type: DUSB, DKLA, DLAC Year: 07.19- SKODA KAMIQ (NW4) 1.5 TSI Engine volume: 1.5 Engine type: DPCA, DADA, DXDB Year: 07.19- SKODA KAROQ (NU7, ND7) 1.4 TSI Engine volume: 1.4 Engine type: CZEA, DJKA Year: 07.17- SKODA KAROQ (NU7, ND7) 1.5 TSI 4x4 Engine volume: 1.5 Engine type: DPCA, DADA Year: 07.17- SKODA KODIAQ I (NS6, NS7, NV7) 1.5 TSI 4x4 Engine volume: 1.5 Engine type: DPCA, DADA Year: 07.18- SKODA KODIAQ I (NS6, NS7, NV7) 1.5 TSI Engine volume: 1.5 Engine type: DPCA, DADA Year: 07.18- SKODA OCTAVIA III (5E3, NL3, NR3) 1.5 TSI Engine volume: 1.5 Engine type: DPCA, DADA Year: 02.17-10.20 SKODA OCTAVIA III Combi (5E5, 5E6) 1.0 TSI Engine volume: 1.0 Engine type: DKRF, DKRA, CHZD Year: 05.16-10.20 SKODA OCTAVIA III Combi (5E5, 5E6) 1.2 TSI Engine volume: 1.2 Engine type: CJZA Year: 11.12-02.17 SKODA OCTAVIA III Combi (5E5, 5E6) 1.4 TSI Engine volume: 1.4 Engine type: CHPA Year: 11.12-02.17 SKODA OCTAVIA III Combi (5E5, 5E6) 1.4 TSI Engine volume: 1.4 Engine type: CZDA, CHPB Year: 08.14-10.20 SKODA OCTAVIA III Combi (5E5, 5E6) 1.4 TSI G-TEC Engine volume: 1.4 Engine type: CPWA Year: 11.12-02.17 SKODA OCTAVIA III Combi (5E5, 5E6) 1.5 TSI Engine volume: 1.5 Engine type: DPCA, DADA Year: 02.17-10.20 SKODA OCTAVIA III Combi (5E5, 5E6) 1.5 TSI G-TEC Engine volume: 1.5 Engine type: DHFA Year: 01.19-10.20 SKODA RAPID (NH3, NK3, NK6) 1.2 TSI Engine volume: 1.2 Engine type: CJZC Year: 05.15-12.19 SKODA RAPID (NH3, NK3, NK6) 1.2 TSI Engine volume: 1.2 Engine type: CJZD Year: 05.15-12.19 SKODA RAPID (NH3, NK3, NK6) 1.4 TSI Engine volume: 1.4 Engine type: CZCA Year: 05.15-03.22 SKODA RAPID Spaceback (NH1) 1.0 TSI Engine volume: 1.0 Engine type: CHZB, DKLD Year: 06.17-12.19 SKODA RAPID Spaceback (NH1) 1.0 TSI Engine volume: 1.0 Engine type: DKRC, CHZC Year: 06.17-12.19 SKODA RAPID Spaceback (NH1) 1.2 TSI Engine volume: 1.2 Engine type: CJZC Year: 05.15-12.19 SKODA RAPID Spaceback (NH1) 1.2 TSI Engine volume: 1.2 Engine type: CJZD Year: 05.15-12.19 SKODA RAPID Spaceback (NH1) 1.4 TSI Engine volume: 1.4 Engine type: CZCA Year: 05.15-12.19 SKODA SCALA (NW1) 1.0 TGI CNG Engine volume: 1.0 Engine type: DBYA Year: 11.19- SKODA SCALA (NW1) 1.0 TSI Engine volume: 1.0 Engine type: DKJA, DKRF, DUSA, DXUA Year: 02.19- SKODA SCALA (NW1) 1.0 TSI Engine volume: 1.0 Engine type: DUSB, DKLA, DLAC Year: 02.19- SKODA SCALA (NW1) 1.5 TSI Engine volume: 1.5 Engine type: DPCA, DADA, DXDB Year: 02.19- SKODA YETI (5L) 1.2 TSI Engine volume: 1.2 Engine type: CYVB Year: 05.15-12.17 SKODA YETI (5L) 1.4 TSI Engine volume: 1.4 Engine type: CZCA Year: 05.15-12.17 VW CADDY ALLTRACK IV Minibus, minivan (SAB) 1.0 TSI Engine volume: 1.0 Engine type: DKRD Year: 11.18-07.19 VW CADDY ALLTRACK IV Skåpbil/minivan (SAA) 1.4 TSI Engine volume: 1.4 Engine type: DJKD Year: 06.19-09.20 VW CADDY IV Minibus, minivan (SAB, SAJ) 1.0 TSI Engine volume: 1.0 Engine type: DKRD Year: 11.18-07.19 VW CADDY IV Minibus, minivan (SAB, SAJ) 1.4 TGI CNG Engine volume: 1.4 Engine type: CPWA Year: 06.15-09.20 VW CADDY IV Skåpbil/minivan (SAA, SAH) 1.4 TSI Engine volume: 1.4 Engine type: DJKD Year: 06.19-09.20 VW GOLF SPORTSVAN VII (AM1, AN1) 1.2 TSI Engine volume: 1.2 Engine type: CYVB Year: 04.14-11.17 VW GOLF SPORTSVAN VII (AM1, AN1) 1.4 TSI Engine volume: 1.4 Engine type: CZDA Year: 02.14-07.18 VW GOLF SPORTSVAN VII (AM1, AN1) 1.4 TSI MultiFuel Engine volume: 1.4 Engine type: CPVB Year: 04.14-11.17 VW GOLF VAN VII Variant (BA5) 1.2 TSi Engine volume: 1.2 Engine type: CJZA Year: 04.13-03.17 VW GOLF VAN VII Variant (BA5) 1.2 TSi Engine volume: 1.2 Engine type: CJZB, CYVA Year: 05.13-03.17 VW GOLF VAN VII Variant (BA5) 1.4 TSi Engine volume: 1.4 Engine type: CHPA Year: 05.13-03.17 VW GOLF VAN VII Variant (BA5) 1.4 TSi Engine volume: 1.4 Engine type: CXSA Year: 05.13-03.17 VW GOLF VII (5G1, BQ1, BE1, BE2) 1.0 TSI Engine volume: 1.0 Engine type: DKRF, CHZD Year: 05.15-08.20 VW GOLF VII (5G1, BQ1, BE1, BE2) 1.2 TSI Engine volume: 1.2 Engine type: CJZA Year: 11.12-08.20 VW GOLF VII (5G1, BQ1, BE1, BE2) 1.4 TGI CNG Engine volume: 1.4 Engine type: CPWA, CZBA Year: 06.13-07.18 VW GOLF VII (5G1, BQ1, BE1, BE2) 1.4 TSI Engine volume: 1.4 Engine type: CPTA, CHPA Year: 08.12-08.20 VW GOLF VII (5G1, BQ1, BE1, BE2) 1.5 TGI Engine volume: 1.5 Engine type: DHFA Year: 11.18-08.20 VW GOLF VII Van (5G1, BQ1) 1.2 TSi Engine volume: 1.2 Engine type: CJZA Year: 11.12-03.17 VW GOLF VII Van (5G1, BQ1) 1.2 TSi Engine volume: 1.2 Engine type: CJZB Year: 08.12-03.17 VW GOLF VII Van (5G1, BQ1) 1.4 TSi Engine volume: 1.4 Engine type: CHPA Year: 08.12-03.17 VW GOLF VII Van (5G1, BQ1) 1.4 TSi Engine volume: 1.4 Engine type: CXSA Year: 05.13-03.17 VW GOLF VII Variant (BA5, BV5) 1.5 TGI Engine volume: 1.5 Engine type: DHFA Year: 12.18-08.20 VW JETTA IV (162, 163, AV3, AV2) 1.2 TSI 16V Engine volume: 1.2 Engine type: CYVD Year: 08.14-12.17 VW JETTA VII Sedan (BU3, BU4, BU5) 1.4 TSI Engine volume: 1.4 Engine type: CZDA, DSJA, CWLA, DJXA, DGXA Year: 12.17- VW PASSAT ALLTRACK B8 Variant (3G5, CB5) 1.4 TSI 4motion Engine volume: 1.4 Engine type: CZEA Year: 05.15-11.18 VW PASSAT B8 (3G2, CB2) 1.5 TSI Engine volume: 1.5 Engine type: DPCA, DADA Year: 08.18-03.24 VW PASSAT B8 Variant (3G5, CB5) 1.5 TSI Engine volume: 1.5 Engine type: DPCA, DADA Year: 08.18-03.24 VW POLO V (6R1, 6C1) 1.2 TSI 16V Engine volume: 1.2 Engine type: CJZC Year: 02.14-10.17 VW POLO V Skåp/halvkombi (6R1, 6C1) 1.0 TSI Engine volume: 1.0 Engine type: CHZC Year: 11.14-10.17 VW POLO V Skåpbil/halvkombi (6R1, 6C1) 1.0 TSI Engine volume: 1.0 Engine type: CHZB Year: 11.14-10.17 VW POLO V Skåpbil/halvkombi (6R1, 6C1) 1.2 TSI Engine volume: 1.2 Engine type: CJZC Year: 02.14-10.17 VW POLO V Skåpbil/halvkombi (6R1, 6C1) 1.2 TSI Engine volume: 1.2 Engine type: CJZD Year: 01.14-10.17 VW POLO V Skåpbil/halvkombi (6R1, 6C1) 1.4 TSI Engine volume: 1.4 Engine type: CZEA Year: 05.14-10.17 VW POLO VI (AW1, BZ1, AE1) 1.0 TGI Engine volume: 1.0 Engine type: DBYA Year: 09.17- VW POLO VI (AW1, BZ1, AE1) 1.5 TSI Engine volume: 1.5 Engine type: DPCA, DADA Year: 10.18-08.21 VW SCIROCCO III (137, 138) 1.4 TSI Engine volume: 1.4 Engine type: CZCA, CXSB Year: 11.13-11.17 VW T-CROSS (C11, D31) 1.0 TSi Engine volume: 1.0 Engine type: DKJA, DKRF, DUSA, DXUA Year: 12.18- VW T-CROSS (C11, D31) 1.0 TSi Engine volume: 1.0 Engine type: DKLA, DUSB, CHZL, DXTA, DLAC Year: 12.18- VW T-CROSS (C11, D31) 1.5 TSI Engine volume: 1.5 Engine type: DPCA, DADA, DXDB Year: 01.20- VW T-ROC (A11, D11) 1.5 TSI 4motion Engine volume: 1.5 Engine type: DPCA, DADA Year: 05.18-11.19 VW TIGUAN (5N_) 1.4 TSI Engine volume: 1.4 Engine type: CZDA Year: 05.15-07.18 VW TIGUAN (AD1, AX1) 1.5 TSI Engine volume: 1.5 Engine type: DPBE, DACB Year: 07.18-04.24 VW TIGUAN (AD1, AX1) 1.5 TSI Engine volume: 1.5 Engine type: DPCA, DADA, DXDB Year: 11.18-04.24 VW TIGUAN ALLSPACE (BW2, BJ2) 1.4 TSI Engine volume: 1.4 Engine type: CZDA, CZEA Year: 06.17- VW TOURAN (5T1) 1.0 TSI Engine volume: 1.0 Engine type: DKRB Year: 12.18-07.19 VW TOURAN (5T1) 1.2 TSI Engine volume: 1.2 Engine type: CYVB Year: 05.15-07.18 VW TOURAN (5T1) 1.4 TSI Engine volume: 1.4 Engine type: CZDA Year: 05.15-07.22 VW TOURAN (5T1) 1.5 TSI Engine volume: 1.5 Engine type: DPCA, DADA, DXDB Year: 11.18- 1 / 26
-
Beskrivelse
Dynamo 12V-140A 12V - 140A, 6gr.frg, (LIN) For Yourex produktordre 90-620-8334
Spenning: 14
Ampere: 140
Drivskive avstand: 31.00
Bredde/holderarm: 14.00
Monteringsbeslag avstand: 61.00
Beslaghull: 8.50
Beltetilpassingsbeslag hullposisjon: 45
Beltetilpassingsbeslag hull 1: 8.50
Beltetilpassingsbeslag hull 2: M8
Drevskivediameter: 52.40
Riller/drev: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 53
Rotasjon: CW
Kontakt nr.: PL125
Total lengde mm: 208.00
Terminaltype: COM
Drevskive: SP/FW
Vifte: IF
Regulator type: IR
Anmerkninger: Denne generatoren har en COM-terminal på regulatoren. Det anbefales at OEM-nummer brukes for å sjekke egnethet før bestilling.Filer
-
Spesifikasjon
B+ M8 Mount. bracket dist. 61.00 Belt. adj. bracket hole 1 8.50 Belt. adj. bracket hole 2 M8 Belt. adj. brackethole pos. 45 Plug no. PL125 Bracket hole 8.50 Position/B+ in min. 53 Pulley SP/FW Pulley dia. 52.40 Pulley dist. 31.00 Radius 90.00 Radius 2 90.00 Regulator type IR Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering. Rotation CW Fan IF Grooves/pulley 6 Terminal type COM Voltage 14 Total length 208.00 mm Width/holder arm 14.00 Amp 140 -
Kjøretøymatching
-
OEM
A0627PR, A0627S, A3340PR, A3340S, A3340SR, CAL15594, DRA1346, F032116193, LRA03893, TG14C 071, TG14C 103, TG14C071, TG14C094, TG14C103, 04C 903 023K, 04C 903 023M, 04C903021A, 04C903023K, 04C903023KX, 04C903023M, 4C903023K, 4C903023KX, 8EL015630-201, 28-7503, 211.520.1402, 305.999.140, 0986 083 340, 20352N-OE, 116193, 200285, 209492, 209492A, 439894, 440640, 442303, 554055RI, 2622499A, 2715992A, 0986083340 -
Konkurrentreferens
A0627PR, A0627S, A3340PR, A3340S, A3340SR, CAL15594, DRA1346, LRA03893, 8EL015630-201, 28-7503, 211.520.1402, 305.999.140, 20352N-OE, 200285, 209492, 209492A, 439894, 440640, 442303, 554055RI, 0986083340 -
Bilmärken
AUDI, SEAT, SKODA, VW -
NormaliseratArtNr
a0627pr, a0627s, a3340pr, a3340s, a3340sr, cal15594, dra1346, f032116193, lra03893, tg14c071, tg14c094, tg14c103, 04c903021a, 04c903023k, 04c903023kx, 04c903023m, 4c903023k, 4c903023kx, 8el015630201, 20352noe, 116193, 200285, 209492, 209492a, 287503, 439894, 440640, 442303, 554055ri, 2622499a, 2715992a, 305999140, 0986083340, 2115201402 -
Passar modeller
AUDI A1 City Carver (GBH) 25 TFSI Engine volume: 1.0 Engine type: DKLA Year: 07.19-06.22 AUDI A1 City Carver (GBH) 30 TFSI Engine volume: 1.0 Engine type: DKJA, DKRF Year: 07.19-06.22 AUDI A1 City Carver (GBH) 35 TFSI Engine volume: 1.5 Engine type: DPCA Year: 07.19-06.22 AUDI A1 Sportback (GBA) 25 TFSI Engine volume: 1.0 Engine type: DKLA, DUSB, DLAC Year: 11.18- AUDI A1 Sportback (GBA) 30 TFSI Engine volume: 1.0 Engine type: DKJA, DKRF, DUSA Year: 07.18- AUDI A1 Sportback (GBA) 35 TFSI Engine volume: 1.5 Engine type: DXDB, DPCA, DADA Year: 09.18- AUDI A3 (8V1, 8VK) 1.2 TFSI Engine volume: 1.2 Engine type: CYVB Year: 05.14-08.16 AUDI A3 (8V1, 8VK) 1.4 TFSI Engine volume: 1.4 Engine type: CXSA, CMBA Year: 04.12-05.14 AUDI A3 (8V1, 8VK) 1.4 TFSI Engine volume: 1.4 Engine type: CZCA, CXSB Year: 05.14-08.16 AUDI A3 (8V1, 8VK) 2.0 TDI quattro Engine volume: 2.0 Engine type: DCYA, CRBC, CRLB Year: 10.12-12.17 AUDI A3 Cabriolet (8V7, 8VE) 35 TFSI Engine volume: 1.5 Engine type: DPCA, DADA Year: 10.18-10.20 AUDI A3 Limousine (8VS, 8VM) 1.5 TFSI Engine volume: 1.5 Engine type: DADA Year: 05.17-10.18 AUDI A3 Limousine (8VS, 8VM) 30 TFSI Engine volume: 1.0 Engine type: DKRF Year: 07.18-10.20 AUDI A3 Limousine (8VS, 8VM) 35 TFSI Engine volume: 1.5 Engine type: DPCA, DADA Year: 10.18-10.20 AUDI A3 Sportback (8VA, 8VF) 30 TFSI Engine volume: 1.0 Engine type: DKRF Year: 07.18-10.20 AUDI A3 Sportback (8VA, 8VF) 35 TFSI Engine volume: 1.5 Engine type: DPCA, DADA Year: 10.18-10.20 AUDI Q2 (GAB, GAG) 1.0 TFSI Engine volume: 1.0 Engine type: CHZJ Year: 10.16-10.20 AUDI Q2 (GAB, GAG) 1.4 TFSI Engine volume: 1.4 Engine type: CZEA Year: 06.16- AUDI Q3 (8UB, 8UG) 1.4 TSI Engine volume: 1.4 Engine type: CZEA, CZDA, CHPB Year: 10.13-10.18 AUDI Q3 (F3B) 35 TFSI Engine volume: 1.5 Engine type: DXDB, DPCA, DADA Year: 08.18- SEAT ALHAMBRA (710, 711) 1.4 TSI Engine volume: 1.4 Engine type: CZDA, DJKA Year: 05.15-12.22 SEAT ALHAMBRA VAN (711) TSi Engine volume: 1.4 Engine type: CZDA Year: 05.15-12.22 SEAT ARONA (KJ7, KJP) 1.0 TSI Engine volume: 1.0 Engine type: DUSA, DKJA, DXUA, DKRF, CHZJ Year: 07.17- SEAT ATECA (KH7, KHP) 1.5 TSI 4Drive Engine volume: 1.5 Engine type: DADA, DPCA Year: 07.18- SEAT ATECA (KH7, KHP) 1.5 TSI Engine volume: 1.5 Engine type: DADA, DPCA, DXDB Year: 07.18- SEAT LEON (5F1) 1.2 TSI Engine volume: 1.2 Engine type: CJZA Year: 01.13-08.20 SEAT LEON (5F1) 1.2 TSI Engine volume: 1.2 Engine type: CYVB Year: 04.14-08.20 SEAT LEON (5F1) 1.4 TGI Engine volume: 1.4 Engine type: CPWA Year: 02.13-08.18 SEAT LEON (5F1) 1.4 TSI Engine volume: 1.4 Engine type: CHPA, CPTA Year: 09.12-08.20 SEAT LEON (5F1) 1.4 TSI Engine volume: 1.4 Engine type: CMBA, CXSA Year: 11.12-10.16 SEAT LEON (5F1) 1.4 TSI Engine volume: 1.4 Engine type: CZDA, CZEA Year: 05.14-08.20 SEAT LEON (5F1) 1.5 TGi Engine volume: 1.5 Engine type: DHFA Year: 10.18-08.20 SEAT LEON Skåpbil/halvkombi (5F1) 1.0 TSI Engine volume: 1.0 Engine type: CHZD Year: 05.15-08.20 SEAT LEON Skåpbil/halvkombi (5F1) 1.2 TSI Engine volume: 1.2 Engine type: CYVA, CJZB Year: 01.13-08.18 SEAT LEON Skåpbil/halvkombi (5F1) 1.2 TSI Engine volume: 1.2 Engine type: CYVB Year: 04.14-08.18 SEAT LEON Skåpbil/halvkombi (5F1) 1.4 TSI Engine volume: 1.4 Engine type: CHPA, CPTA Year: 09.12-10.16 SEAT LEON Skåpbil/halvkombi (5F1) 1.4 TSI Engine volume: 1.4 Engine type: CMBA, CXSA Year: 09.12-10.16 SEAT LEON Skåpbil/halvkombi (5F1) 1.4 TSI Engine volume: 1.4 Engine type: CZEA Year: 05.14-08.20 SEAT LEON ST (5F8) 1.2 TSI Engine volume: 1.2 Engine type: CYVB Year: 05.14-08.20 SEAT LEON ST (5F8) 1.5 TGi Engine volume: 1.5 Engine type: DHFA Year: 10.18-08.20 SEAT LEON ST Skåp / kombi (5F8) 1.0 TSI Engine volume: 1.0 Engine type: CHZD Year: 05.15-08.20 SEAT LEON ST Skåp / kombi (5F8) 1.2 TSI Engine volume: 1.2 Engine type: CYVA, CJZB Year: 01.13-08.18 SEAT LEON ST Skåp / kombi (5F8) 1.2 TSI Engine volume: 1.2 Engine type: CYVB Year: 05.14-08.18 SEAT LEON ST Skåp / kombi (5F8) 1.4 TSI Engine volume: 1.4 Engine type: CZDA, CZEA Year: 05.14-08.20 SEAT TARRACO (KN2) 1.5 TSI ACT Engine volume: 1.5 Engine type: DADA, DPCA, DXDB Year: 09.18-05.24 SEAT TOLEDO IV (KG3) 1.2 TSI Engine volume: 1.2 Engine type: CJZC Year: 05.15-05.17 SEAT TOLEDO IV (KG3) 1.2 TSI Engine volume: 1.2 Engine type: CJZD Year: 05.15-05.17 SEAT TOLEDO IV (KG3) 1.4 TSI Engine volume: 1.4 Engine type: CZCA Year: 05.15-04.19 SKODA FABIA III (NJ3) 1.0 TSI Engine volume: 1.0 Engine type: DKRC, CHZC Year: 08.14-06.21 SKODA FABIA III (NJ3) 1.2 TSI Engine volume: 1.2 Engine type: CJZC Year: 08.14-06.21 SKODA FABIA III Kombi (NJ5) 1.0 TSI Engine volume: 1.0 Engine type: DKRC, CHZC Year: 08.14-12.22 SKODA KAMIQ (NW4) 1.0 TGI CNG Engine volume: 1.0 Engine type: DBYA Year: 11.19- SKODA KAMIQ (NW4) 1.0 TSI Engine volume: 1.0 Engine type: DUSB, DKLA, DLAC Year: 07.19- SKODA KAMIQ (NW4) 1.5 TSI Engine volume: 1.5 Engine type: DPCA, DADA, DXDB Year: 07.19- SKODA KAROQ (NU7, ND7) 1.4 TSI Engine volume: 1.4 Engine type: CZEA, DJKA Year: 07.17- SKODA KAROQ (NU7, ND7) 1.5 TSI 4x4 Engine volume: 1.5 Engine type: DPCA, DADA Year: 07.17- SKODA KODIAQ I (NS6, NS7, NV7) 1.5 TSI 4x4 Engine volume: 1.5 Engine type: DPCA, DADA Year: 07.18- SKODA KODIAQ I (NS6, NS7, NV7) 1.5 TSI Engine volume: 1.5 Engine type: DPCA, DADA Year: 07.18- SKODA OCTAVIA III (5E3, NL3, NR3) 1.5 TSI Engine volume: 1.5 Engine type: DPCA, DADA Year: 02.17-10.20 SKODA OCTAVIA III Combi (5E5, 5E6) 1.0 TSI Engine volume: 1.0 Engine type: DKRF, DKRA, CHZD Year: 05.16-10.20 SKODA OCTAVIA III Combi (5E5, 5E6) 1.2 TSI Engine volume: 1.2 Engine type: CJZA Year: 11.12-02.17 SKODA OCTAVIA III Combi (5E5, 5E6) 1.4 TSI Engine volume: 1.4 Engine type: CHPA Year: 11.12-02.17 SKODA OCTAVIA III Combi (5E5, 5E6) 1.4 TSI Engine volume: 1.4 Engine type: CZDA, CHPB Year: 08.14-10.20 SKODA OCTAVIA III Combi (5E5, 5E6) 1.4 TSI G-TEC Engine volume: 1.4 Engine type: CPWA Year: 11.12-02.17 SKODA OCTAVIA III Combi (5E5, 5E6) 1.5 TSI Engine volume: 1.5 Engine type: DPCA, DADA Year: 02.17-10.20 SKODA OCTAVIA III Combi (5E5, 5E6) 1.5 TSI G-TEC Engine volume: 1.5 Engine type: DHFA Year: 01.19-10.20 SKODA RAPID (NH3, NK3, NK6) 1.2 TSI Engine volume: 1.2 Engine type: CJZC Year: 05.15-12.19 SKODA RAPID (NH3, NK3, NK6) 1.2 TSI Engine volume: 1.2 Engine type: CJZD Year: 05.15-12.19 SKODA RAPID (NH3, NK3, NK6) 1.4 TSI Engine volume: 1.4 Engine type: CZCA Year: 05.15-03.22 SKODA RAPID Spaceback (NH1) 1.0 TSI Engine volume: 1.0 Engine type: CHZB, DKLD Year: 06.17-12.19 SKODA RAPID Spaceback (NH1) 1.0 TSI Engine volume: 1.0 Engine type: DKRC, CHZC Year: 06.17-12.19 SKODA RAPID Spaceback (NH1) 1.2 TSI Engine volume: 1.2 Engine type: CJZC Year: 05.15-12.19 SKODA RAPID Spaceback (NH1) 1.2 TSI Engine volume: 1.2 Engine type: CJZD Year: 05.15-12.19 SKODA RAPID Spaceback (NH1) 1.4 TSI Engine volume: 1.4 Engine type: CZCA Year: 05.15-12.19 SKODA SCALA (NW1) 1.0 TGI CNG Engine volume: 1.0 Engine type: DBYA Year: 11.19- SKODA SCALA (NW1) 1.0 TSI Engine volume: 1.0 Engine type: DKJA, DKRF, DUSA, DXUA Year: 02.19- SKODA SCALA (NW1) 1.0 TSI Engine volume: 1.0 Engine type: DUSB, DKLA, DLAC Year: 02.19- SKODA SCALA (NW1) 1.5 TSI Engine volume: 1.5 Engine type: DPCA, DADA, DXDB Year: 02.19- SKODA YETI (5L) 1.2 TSI Engine volume: 1.2 Engine type: CYVB Year: 05.15-12.17 SKODA YETI (5L) 1.4 TSI Engine volume: 1.4 Engine type: CZCA Year: 05.15-12.17 VW CADDY ALLTRACK IV Minibus, minivan (SAB) 1.0 TSI Engine volume: 1.0 Engine type: DKRD Year: 11.18-07.19 VW CADDY ALLTRACK IV Skåpbil/minivan (SAA) 1.4 TSI Engine volume: 1.4 Engine type: DJKD Year: 06.19-09.20 VW CADDY IV Minibus, minivan (SAB, SAJ) 1.0 TSI Engine volume: 1.0 Engine type: DKRD Year: 11.18-07.19 VW CADDY IV Minibus, minivan (SAB, SAJ) 1.4 TGI CNG Engine volume: 1.4 Engine type: CPWA Year: 06.15-09.20 VW CADDY IV Skåpbil/minivan (SAA, SAH) 1.4 TSI Engine volume: 1.4 Engine type: DJKD Year: 06.19-09.20 VW GOLF SPORTSVAN VII (AM1, AN1) 1.2 TSI Engine volume: 1.2 Engine type: CYVB Year: 04.14-11.17 VW GOLF SPORTSVAN VII (AM1, AN1) 1.4 TSI Engine volume: 1.4 Engine type: CZDA Year: 02.14-07.18 VW GOLF SPORTSVAN VII (AM1, AN1) 1.4 TSI MultiFuel Engine volume: 1.4 Engine type: CPVB Year: 04.14-11.17 VW GOLF VAN VII Variant (BA5) 1.2 TSi Engine volume: 1.2 Engine type: CJZA Year: 04.13-03.17 VW GOLF VAN VII Variant (BA5) 1.2 TSi Engine volume: 1.2 Engine type: CJZB, CYVA Year: 05.13-03.17 VW GOLF VAN VII Variant (BA5) 1.4 TSi Engine volume: 1.4 Engine type: CHPA Year: 05.13-03.17 VW GOLF VAN VII Variant (BA5) 1.4 TSi Engine volume: 1.4 Engine type: CXSA Year: 05.13-03.17 VW GOLF VII (5G1, BQ1, BE1, BE2) 1.0 TSI Engine volume: 1.0 Engine type: DKRF, CHZD Year: 05.15-08.20 VW GOLF VII (5G1, BQ1, BE1, BE2) 1.2 TSI Engine volume: 1.2 Engine type: CJZA Year: 11.12-08.20 VW GOLF VII (5G1, BQ1, BE1, BE2) 1.4 TGI CNG Engine volume: 1.4 Engine type: CPWA, CZBA Year: 06.13-07.18 VW GOLF VII (5G1, BQ1, BE1, BE2) 1.4 TSI Engine volume: 1.4 Engine type: CPTA, CHPA Year: 08.12-08.20 VW GOLF VII (5G1, BQ1, BE1, BE2) 1.5 TGI Engine volume: 1.5 Engine type: DHFA Year: 11.18-08.20 VW GOLF VII Van (5G1, BQ1) 1.2 TSi Engine volume: 1.2 Engine type: CJZA Year: 11.12-03.17 VW GOLF VII Van (5G1, BQ1) 1.2 TSi Engine volume: 1.2 Engine type: CJZB Year: 08.12-03.17 VW GOLF VII Van (5G1, BQ1) 1.4 TSi Engine volume: 1.4 Engine type: CHPA Year: 08.12-03.17 VW GOLF VII Van (5G1, BQ1) 1.4 TSi Engine volume: 1.4 Engine type: CXSA Year: 05.13-03.17 VW GOLF VII Variant (BA5, BV5) 1.5 TGI Engine volume: 1.5 Engine type: DHFA Year: 12.18-08.20 VW JETTA IV (162, 163, AV3, AV2) 1.2 TSI 16V Engine volume: 1.2 Engine type: CYVD Year: 08.14-12.17 VW JETTA VII Sedan (BU3, BU4, BU5) 1.4 TSI Engine volume: 1.4 Engine type: CZDA, DSJA, CWLA, DJXA, DGXA Year: 12.17- VW PASSAT ALLTRACK B8 Variant (3G5, CB5) 1.4 TSI 4motion Engine volume: 1.4 Engine type: CZEA Year: 05.15-11.18 VW PASSAT B8 (3G2, CB2) 1.5 TSI Engine volume: 1.5 Engine type: DPCA, DADA Year: 08.18-03.24 VW PASSAT B8 Variant (3G5, CB5) 1.5 TSI Engine volume: 1.5 Engine type: DPCA, DADA Year: 08.18-03.24 VW POLO V (6R1, 6C1) 1.2 TSI 16V Engine volume: 1.2 Engine type: CJZC Year: 02.14-10.17 VW POLO V Skåp/halvkombi (6R1, 6C1) 1.0 TSI Engine volume: 1.0 Engine type: CHZC Year: 11.14-10.17 VW POLO V Skåpbil/halvkombi (6R1, 6C1) 1.0 TSI Engine volume: 1.0 Engine type: CHZB Year: 11.14-10.17 VW POLO V Skåpbil/halvkombi (6R1, 6C1) 1.2 TSI Engine volume: 1.2 Engine type: CJZC Year: 02.14-10.17 VW POLO V Skåpbil/halvkombi (6R1, 6C1) 1.2 TSI Engine volume: 1.2 Engine type: CJZD Year: 01.14-10.17 VW POLO V Skåpbil/halvkombi (6R1, 6C1) 1.4 TSI Engine volume: 1.4 Engine type: CZEA Year: 05.14-10.17 VW POLO VI (AW1, BZ1, AE1) 1.0 TGI Engine volume: 1.0 Engine type: DBYA Year: 09.17- VW POLO VI (AW1, BZ1, AE1) 1.5 TSI Engine volume: 1.5 Engine type: DPCA, DADA Year: 10.18-08.21 VW SCIROCCO III (137, 138) 1.4 TSI Engine volume: 1.4 Engine type: CZCA, CXSB Year: 11.13-11.17 VW T-CROSS (C11, D31) 1.0 TSi Engine volume: 1.0 Engine type: DKJA, DKRF, DUSA, DXUA Year: 12.18- VW T-CROSS (C11, D31) 1.0 TSi Engine volume: 1.0 Engine type: DKLA, DUSB, CHZL, DXTA, DLAC Year: 12.18- VW T-CROSS (C11, D31) 1.5 TSI Engine volume: 1.5 Engine type: DPCA, DADA, DXDB Year: 01.20- VW T-ROC (A11, D11) 1.5 TSI 4motion Engine volume: 1.5 Engine type: DPCA, DADA Year: 05.18-11.19 VW TIGUAN (5N_) 1.4 TSI Engine volume: 1.4 Engine type: CZDA Year: 05.15-07.18 VW TIGUAN (AD1, AX1) 1.5 TSI Engine volume: 1.5 Engine type: DPBE, DACB Year: 07.18-04.24 VW TIGUAN (AD1, AX1) 1.5 TSI Engine volume: 1.5 Engine type: DPCA, DADA, DXDB Year: 11.18-04.24 VW TIGUAN ALLSPACE (BW2, BJ2) 1.4 TSI Engine volume: 1.4 Engine type: CZDA, CZEA Year: 06.17- VW TOURAN (5T1) 1.0 TSI Engine volume: 1.0 Engine type: DKRB Year: 12.18-07.19 VW TOURAN (5T1) 1.2 TSI Engine volume: 1.2 Engine type: CYVB Year: 05.15-07.18 VW TOURAN (5T1) 1.4 TSI Engine volume: 1.4 Engine type: CZDA Year: 05.15-07.22 VW TOURAN (5T1) 1.5 TSI Engine volume: 1.5 Engine type: DPCA, DADA, DXDB Year: 11.18- 1 / 26
-
