- Dynamo
-
HC-Cargo Dynamo
- Dynamo
-
HC-Cargo Dynamo
Varenr.: F032115521
HC-Cargo Dynamo
Spenning: 14, Amp: 150, Rotasjon: CW, Montasjebrakett avstand: 90,00
Beskrivelse

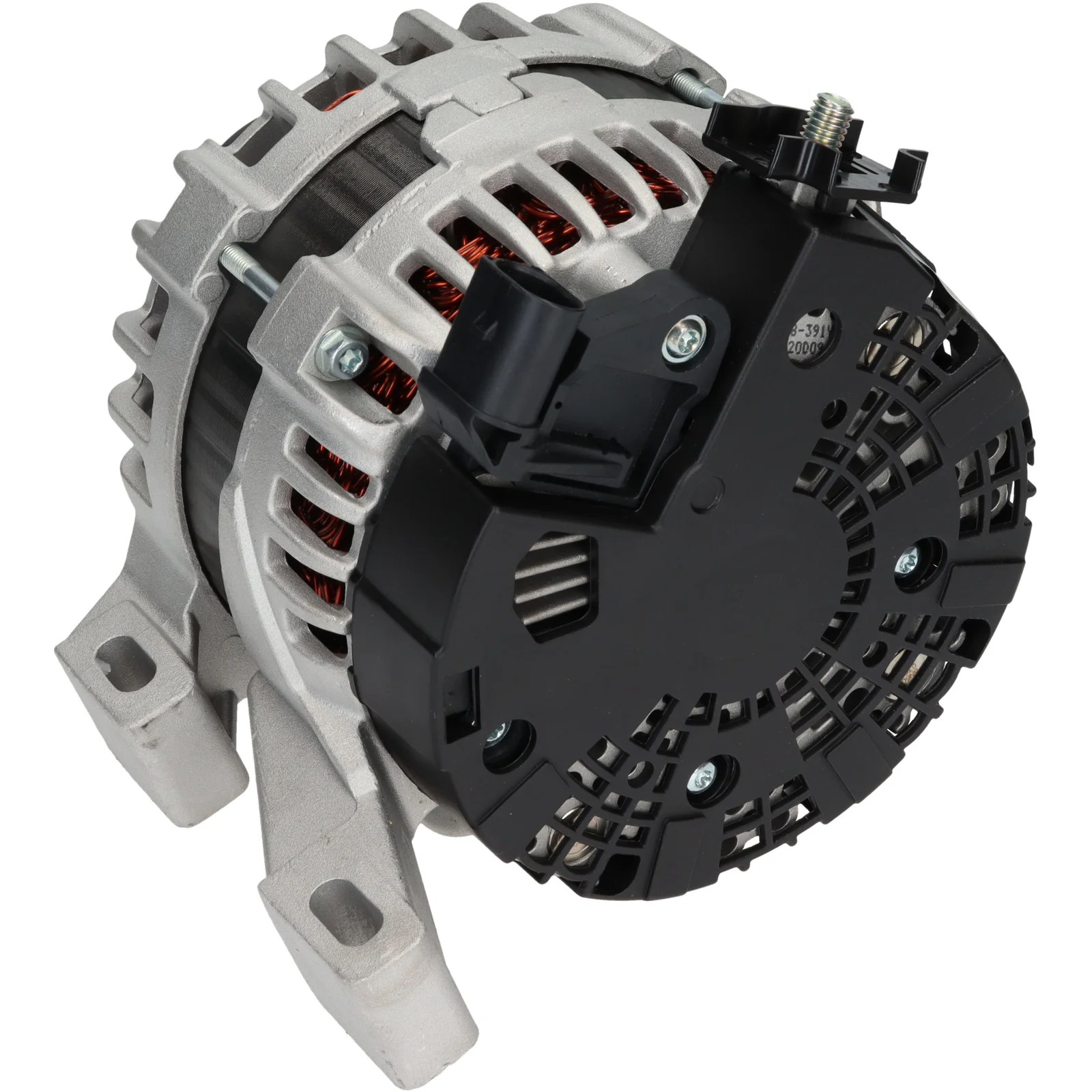

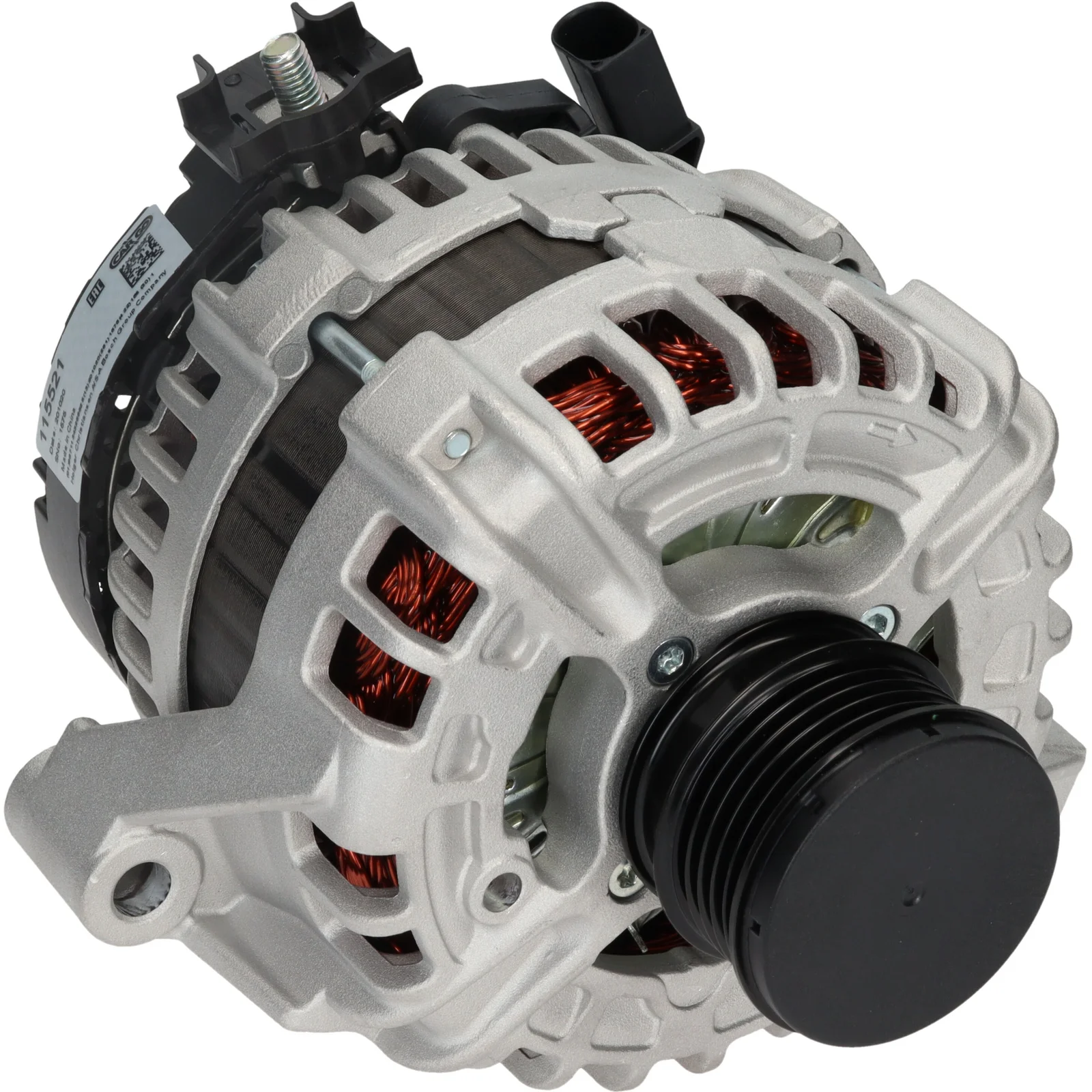

Generator 12V-150A passer for Volvo 12V - 150A, 5gr (LIN, Dummy) ID-kode: 88 (COM / LIN1-D) Obs! Ch.nr! For Yourex produkt bestilling 90-600-8261
Spenningsutgang: 14
Amp: 150
Drivreimskive avstand: 61,00
Bredde/holderarm: 31,70
Festebrakets avstand: 90,00
Brakethulling: 17,70x9,00
Belt-justering brakethulling 1: 10,20
Drivreimskivens dia.: 54,00
Groover/drivreimskive: 5
Radius: 92,50
Radius 2: 90,00
B+: M8
Rotasjon: med klokken
Støpselets nummer: PL137
Total lengde mm: 182,00
Terminaltype: COM
Kommunikasjon: LIN
Reimhjul: SP/FW
Vifte: IF
Regulator-typ: IR
Anmerkninger: Denne Generatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnetheten før bestilling.
Filer
Spesifikasjon
| B+ | M8 |
|---|---|
| Communication | LIN |
| Mount. bracket dist. | 90.00 |
| Belt. adj. bracket hole 1 | 10.20 |
| Plug no. | PL137 |
| Bracket hole | 17.70x9.00 |
| Pulley | SP/FW |
| Pulley dia. | 54.00 |
| Pulley dist. | 61.00 |
| Radius | 92.50 |
| Radius 2 | 90.00 |
| Regulator type | IR |
| Remarks | This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering. |
| Rotation | CW |
| Fan | IF |
| Grooves/pulley | 5 |
| Terminal type | COM |
| Voltage | 14 |
| Total length | 182.00 mm |
| Width/holder arm | 31.70 |
| Amp | 150 |
-
OEM
A0487, A0487S, CAL10477, DRA1033, F032115521, LRA03571, 6G9J10300HA, 6G9N10300HA, 6G9N10300HB, 6G9N10300HC, 6G9N10300HD, 6G9N10399HB, 28-6681, 0125 711 002, 0125 711 047, 0125 711 079, 0125 711 158, 0125 711 179, 238.159.1502, 815.535.150, 1986A01675, 24142N, 115521, 210852, 210852A, 443581, 444297, 554183RI, 1379701, 1388004, 1425016, 2099442, 12090535, 30667118, 31285627, 31419555, 36000037, 36001105, 36012618, 0125711002, 0125711047, 0125711079, 360001105, 0986082610, 0986082613, 0986082617 -
Konkurrentreferens
A0487, A0487S, CAL10477, DRA1033, LRA03571, 28-6681, 238.159.1502, 815.535.150, 24142N, 210852, 210852A, 443581, 444297, 554183RI, 12090535, 0986082610, 0986082613, 0986082617 -
Bilmärken
FORD, VOLVO -
NormaliseratArtNr
a0487, a0487s, cal10477, dra1033, f032115521, lra03571, 6g9j10300ha, 6g9n10300ha, 6g9n10300hb, 6g9n10300hc, 6g9n10300hd, 6g9n10399hb, 1986a01675, 24142n, 115521, 210852, 210852a, 286681, 443581, 444297, 554183ri, 1379701, 1388004, 1425016, 2099442, 12090535, 30667118, 31285627, 31419555, 36000037, 36001105, 36012618, 0125711002, 0125711047, 0125711079, 0125711158, 0125711179, 360001105, 815535150, 0986082610, 0986082613, 0986082617, 2381591502 -
Passar modeller
FORD MONDEO IV (BA7) 2.5 Engine volume: 2.5 Engine type: HUBA Year: 03.07-01.15 FORD MONDEO IV Sedan (BA7) 2.5 Engine volume: 2.5 Engine type: HUBA Year: 03.07-01.15 FORD MONDEO IV Turnier (BA7) 2.5 Engine volume: 2.5 Engine type: HUBA Year: 03.07-12.12 FORD S-MAX (WA6) 2.5 ST Engine volume: 2.5 Engine type: HUWA Year: 05.06-12.14 VOLVO S60 II (134) D3 Engine volume: 2.0 Engine type: D 5204 T2, D 5204 T3 Year: 04.10-12.14 VOLVO S60 II (134) D3 Engine volume: 2.0 Engine type: D 5204 T7 Year: 05.12-12.15 VOLVO S60 II (134) D4 AWD Engine volume: 2.4 Engine type: D 5244 T21 Year: 03.15-05.18 VOLVO S60 II (134) D4 Engine volume: 2.0 Engine type: D 5204 T3 Year: 04.10-12.14 VOLVO S60 II (134) D5 AWD Engine volume: 2.4 Engine type: D 5244 T10 Year: 04.10-12.11 VOLVO S60 II (134) D5 AWD Engine volume: 2.4 Engine type: D 5244 T15 Year: 04.11-12.15 VOLVO S60 II (134) D5 AWD Engine volume: 2.4 Engine type: D 5244 T15 Year: 04.14-12.15 VOLVO S60 II (134) D5 Engine volume: 2.4 Engine type: D 5244 T10 Year: 04.10-12.11 VOLVO S60 II (134) D5 Engine volume: 2.4 Engine type: D 5244 T11, D 5244 T15 Year: 04.11-12.15 VOLVO S60 II (134) D5 Engine volume: 2.4 Engine type: D 5244 T15 Year: 04.14-12.15 VOLVO S60 II (134) T5 AWD Engine volume: 2.5 Engine type: B 5254 T12 Year: 08.15-12.18 VOLVO S60 II Cross Country (134) D4 AWD Engine volume: 2.4 Engine type: D 5244 T21 Year: 03.15-05.18 VOLVO S60 II Cross Country (134) D4 Polestar AWD Engine volume: 2.4 Engine type: D 5244 T21 Year: 03.15-07.18 VOLVO S60 II Cross Country (134) T5 AWD Engine volume: 2.5 Engine type: B 5254 T12 Year: 03.15-12.18 VOLVO S60 II Cross Country (134) T5 AWD Engine volume: 2.5 Engine type: B 5254 T14 Year: 03.15-12.18 VOLVO S80 II (124) 2.4 D Engine volume: 2.4 Engine type: D 5244 T14 Year: 01.10-03.11 VOLVO S80 II (124) 2.4 D Engine volume: 2.4 Engine type: D 5244 T5, D 5244 T19 Year: 03.06-03.11 VOLVO S80 II (124) 2.5 T Engine volume: 2.5 Engine type: B 5254 T10 Year: 01.10-12.12 VOLVO S80 II (124) 2.5 T Engine volume: 2.5 Engine type: B 5254 T12 Year: 01.12-04.16 VOLVO S80 II (124) 2.5 T Engine volume: 2.5 Engine type: B 5254 T14 Year: 09.12-12.16 VOLVO S80 II (124) 2.5 T Engine volume: 2.5 Engine type: B 5254 T6 Year: 03.06-12.11 VOLVO S80 II (124) 2.5 T FlexFuel Engine volume: 2.5 Engine type: B 5254 T11 Year: 01.10-12.11 VOLVO S80 II (124) 2.5 T FlexFuel Engine volume: 2.5 Engine type: B 5254 T8 Year: 05.08-12.11 VOLVO S80 II (124) D3 / D4 Engine volume: 2.0 Engine type: D 5204 T2, D 5204 T3 Year: 01.10-12.16 VOLVO S80 II (124) D3 Engine volume: 2.0 Engine type: D 5204 T7 Year: 05.12-05.14 VOLVO S80 II (124) D5 AWD Engine volume: 2.4 Engine type: D 5244 T10 Year: 01.10-12.11 VOLVO S80 II (124) D5 AWD Engine volume: 2.4 Engine type: D 5244 T15 Year: 06.11-04.15 VOLVO S80 II (124) D5 AWD Engine volume: 2.4 Engine type: D 5244 T4 Year: 01.07-05.09 VOLVO S80 II (124) D5 Engine volume: 2.4 Engine type: D 5244 T10 Year: 01.10-12.11 VOLVO S80 II (124) D5 Engine volume: 2.4 Engine type: D 5244 T11, D 5244 T15 Year: 06.11-04.15 VOLVO S80 II (124) D5 Engine volume: 2.4 Engine type: D 5244 T4 Year: 03.06-08.09 VOLVO V60 I (155) 2.0 BiFuel Engine volume: 2.0 Engine type: B 5204 T9 Year: 03.14-12.15 VOLVO V60 I (155) 2.0 T Engine volume: 2.0 Engine type: B 5204 T8 Year: 01.14-07.18 VOLVO V60 I (155) D3 / D4 Engine volume: 2.0 Engine type: D 5204 T2, D 5204 T3 Year: 07.10-12.14 VOLVO V60 I (155) D3 Engine volume: 2.0 Engine type: D 5204 T7 Year: 05.12-12.15 VOLVO V60 I (155) D4 AWD Engine volume: 2.4 Engine type: D 5244 T12 Year: 10.13-12.15 VOLVO V60 I (155) D4 AWD Engine volume: 2.4 Engine type: D 5244 T17 Year: 05.12-12.15 VOLVO V60 I (155) D4 AWD Engine volume: 2.4 Engine type: D 5244 T21 Year: 03.15-05.18 VOLVO V60 I (155) D5 AWD Engine volume: 2.4 Engine type: D 5244 T10 Year: 07.10-12.11 VOLVO V60 I (155) D5 AWD Engine volume: 2.4 Engine type: D 5244 T15 Year: 04.11-12.15 VOLVO V60 I (155) D5 AWD Engine volume: 2.4 Engine type: D 5244 T15 Year: 04.14-12.15 VOLVO V60 I (155) D5 Engine volume: 2.4 Engine type: D 5244 T10 Year: 07.10-12.11 VOLVO V60 I (155) D5 Engine volume: 2.4 Engine type: D 5244 T11, D 5244 T15 Year: 04.11-12.15 VOLVO V60 I (155) D5 Engine volume: 2.4 Engine type: D 5244 T23 Year: 04.14-12.15 VOLVO V60 I (155) T5 AWD Engine volume: 2.5 Engine type: B 5254 T12 Year: 04.15-05.18 VOLVO V60 I (155) T5 Engine volume: 2.0 Engine type: B 5204 T9 Year: 10.13-05.18 VOLVO V60 I Cross Country (157) D4 AWD Engine volume: 2.4 Engine type: D 5244 T21 Year: 03.15-05.18 VOLVO V60 I Cross Country (157) T5 AWD Engine volume: 2.5 Engine type: B 5254 T12 Year: 03.15-05.18 VOLVO V60 I Cross Country (157) T5 AWD Engine volume: 2.5 Engine type: B 5254 T14 Year: 03.15-05.18 VOLVO V60 I Skåp / kombi (155) 2.0 D3 Engine volume: 2.0 Engine type: D 5204 T7 Year: 09.13-12.15 VOLVO V60 I Skåp / kombi (155) 2.0 D4 Engine volume: 2.0 Engine type: D 5204 T3 Year: 09.13-12.15 VOLVO V60 I Skåp / kombi (155) 2.4 D4 AWD Engine volume: 2.4 Engine type: D 5244 T12 Year: 09.13-12.15 VOLVO V60 I Skåp / kombi (155) 2.4 D5 Engine volume: 2.4 Engine type: D 5244 T15 Year: 09.13-12.15 VOLVO V70 III (135) 2.0 BiFuel Engine volume: 2.0 Engine type: B 5204 T9 Year: 03.13-12.15 VOLVO V70 III (135) 2.0 GDI Engine volume: 2.0 Engine type: B 5204 T9 Year: 04.12-12.15 VOLVO V70 III (135) 2.4 D Engine volume: 2.4 Engine type: D 5244 T14 Year: 04.09-12.10 VOLVO V70 III (135) 2.4 D Engine volume: 2.4 Engine type: D 5244 T5, D 5244 T19 Year: 04.07-12.10 VOLVO V70 III (135) 2.5 T Engine volume: 2.5 Engine type: B 5254 T10 Year: 04.09-12.12 VOLVO V70 III (135) 2.5 T Engine volume: 2.5 Engine type: B 5254 T6 Year: 08.07-12.09 VOLVO V70 III (135) 2.5 T FlexiFuel Engine volume: 2.5 Engine type: B 5254 T11 Year: 04.09-12.11 VOLVO V70 III (135) 2.5 T FlexiFuel Engine volume: 2.5 Engine type: B 5254 T8 Year: 05.08-12.09 VOLVO V70 III (135) D3 / D4 Engine volume: 2.0 Engine type: D 5204 T2, D 5204 T3 Year: 03.10-12.15 VOLVO V70 III (135) D3 Engine volume: 2.0 Engine type: D 5204 T7 Year: 10.07-12.15 VOLVO V70 III (135) D4 AWD Engine volume: 2.4 Engine type: D 5244 T12 Year: 10.13-04.16 VOLVO V70 III (135) D4 AWD Engine volume: 2.4 Engine type: D 5244 T17 Year: 10.07-12.15 VOLVO V70 III (135) D5 AWD Engine volume: 2.4 Engine type: D 5244 T10 Year: 12.09-12.11 VOLVO V70 III (135) D5 AWD Engine volume: 2.4 Engine type: D 5244 T15 Year: 03.11-04.16 VOLVO V70 III (135) D5 AWD Engine volume: 2.4 Engine type: D 5244 T15 Year: 04.11-12.15 VOLVO V70 III (135) D5 AWD Engine volume: 2.4 Engine type: D 5244 T4 Year: 04.07-12.09 VOLVO V70 III (135) D5 Engine volume: 2.4 Engine type: D 5244 T10 Year: 10.08-12.11 VOLVO V70 III (135) D5 Engine volume: 2.4 Engine type: D 5244 T11, D 5244 T15 Year: 04.11-12.15 VOLVO V70 III (135) D5 Engine volume: 2.4 Engine type: D 5244 T4 Year: 04.07-12.09 VOLVO V70 III (135) D5 Engine volume: 2.4 Year: 03.11-04.16 VOLVO V70 III Skåp / kombi (135) 2.0 D3 DRIVe Engine volume: 2.0 Engine type: D 5204 T7 Year: 09.13-12.15 VOLVO V70 III Skåp / kombi (135) 2.4 D4 AWD Engine volume: 2.4 Engine type: D 5244 T17 Year: 09.13-12.15 VOLVO V70 III Skåp / kombi (135) 2.4 D5 Engine volume: 2.4 Engine type: D 5244 T11, D 5244 T15 Year: 09.13-12.15 VOLVO XC60 I SUV (156) 2.4 D / D3 / D4 AWD Engine volume: 2.4 Engine type: D 5244 T5, D 5244 T17, D 5244 T16 Year: 05.08-02.17 VOLVO XC60 I SUV (156) 2.4 D Engine volume: 2.4 Engine type: D 5244 T14 Year: 04.09-12.10 VOLVO XC60 I SUV (156) D3 / D4 Engine volume: 2.0 Engine type: D 5204 T2, D 5204 T3 Year: 03.10-12.14 VOLVO XC60 I SUV (156) D3 Engine volume: 2.0 Engine type: D 5204 T7 Year: 04.12-12.15 VOLVO XC60 I SUV (156) D4 AWD Engine volume: 2.4 Engine type: D 5244 T12 Year: 10.13-12.15 VOLVO XC60 I SUV (156) D4 AWD Engine volume: 2.4 Engine type: D 5244 T21 Year: 03.15-02.17 VOLVO XC60 I SUV (156) D5 AWD Engine volume: 2.4 Engine type: D 5244 T10 Year: 07.09-06.11 VOLVO XC60 I SUV (156) D5 AWD Engine volume: 2.4 Engine type: D 5244 T11, D 5244 T15 Year: 04.11-12.15 VOLVO XC60 I SUV (156) D5 AWD Engine volume: 2.4 Engine type: D 5244 T22, D 5244 T20 Year: 03.15-02.17 VOLVO XC60 I SUV (156) D5 AWD Engine volume: 2.4 Engine type: D 5244 T23 Year: 04.14-12.15 VOLVO XC60 I SUV (156) D5 AWD Engine volume: 2.4 Engine type: D 5244 T4 Year: 05.08-12.09 VOLVO XC60 I SUV (156) D5 Engine volume: 2.4 Engine type: D 5244 T11, D 5244 T15 Year: 06.11-02.17 VOLVO XC60 I SUV (156) T5 AWD Engine volume: 2.5 Engine type: B 5254 T12 Year: 04.14-02.17 VOLVO XC60 I VAN (156) D3 Engine volume: 2.0 Engine type: D 5204 T7 Year: 09.13-12.15 VOLVO XC60 I VAN (156) D4 AWD Engine volume: 2.4 Engine type: D 5244 T17 Year: 09.13-02.17 VOLVO XC60 I VAN (156) D4 Engine volume: 2.0 Engine type: D 5204 T3 Year: 09.13-02.17 VOLVO XC60 I VAN (156) D5 AWD Engine volume: 2.4 Engine type: D 5244 T11, D 5244 T15 Year: 09.13-02.17 VOLVO XC70 II (136) 2.4 D / D4 AWD Engine volume: 2.4 Engine type: D 5244 T5, D 5244 T17, D 5244 T16 Year: 08.07-04.16 VOLVO XC70 II (136) 2.4 D Engine volume: 2.4 Engine type: D 5244 T14 Year: 06.09-12.10 VOLVO XC70 II (136) D3 Engine volume: 2.0 Engine type: D 5204 T2, D 5204 T3 Year: 04.10-12.15 VOLVO XC70 II (136) D4 AWD Engine volume: 2.4 Engine type: D 5244 T12 Year: 10.13-04.16 VOLVO XC70 II (136) D5 AWD Engine volume: 2.4 Engine type: D 5244 T10 Year: 04.09-12.11 VOLVO XC70 II (136) D5 AWD Engine volume: 2.4 Engine type: D 5244 T11, D 5244 T15 Year: 04.11-12.15 VOLVO XC70 II (136) D5 AWD Engine volume: 2.4 Engine type: D 5244 T15 Year: 11.13-04.16 VOLVO XC70 II (136) D5 AWD Engine volume: 2.4 Engine type: D 5244 T20 Year: 03.15-04.16 VOLVO XC70 II (136) D5 AWD Engine volume: 2.4 Engine type: D 5244 T4 Year: 04.07-12.09 VOLVO XC70 II (136) T5 AWD Engine volume: 2.5 Engine type: B 5254 T12 Year: 08.15-12.16 VOLVO XC70 II VAN (136) 2.0 D4 Engine volume: 2.0 Engine type: D 5204 T3 Year: 09.13-12.16 VOLVO XC70 II VAN (136) 2.4 D4 AWD Engine volume: 2.4 Engine type: D 5244 T17 Year: 09.13-04.16 VOLVO XC70 II VAN (136) 2.4 D5 AWD Engine volume: 2.4 Engine type: D 5244 T15 Year: 09.13-12.16 VOLVO XC90 I (275) 2.5 T AWD Engine volume: 2.5 Engine type: B 5254 T9 Year: 10.12-09.14 1 / 23
-
