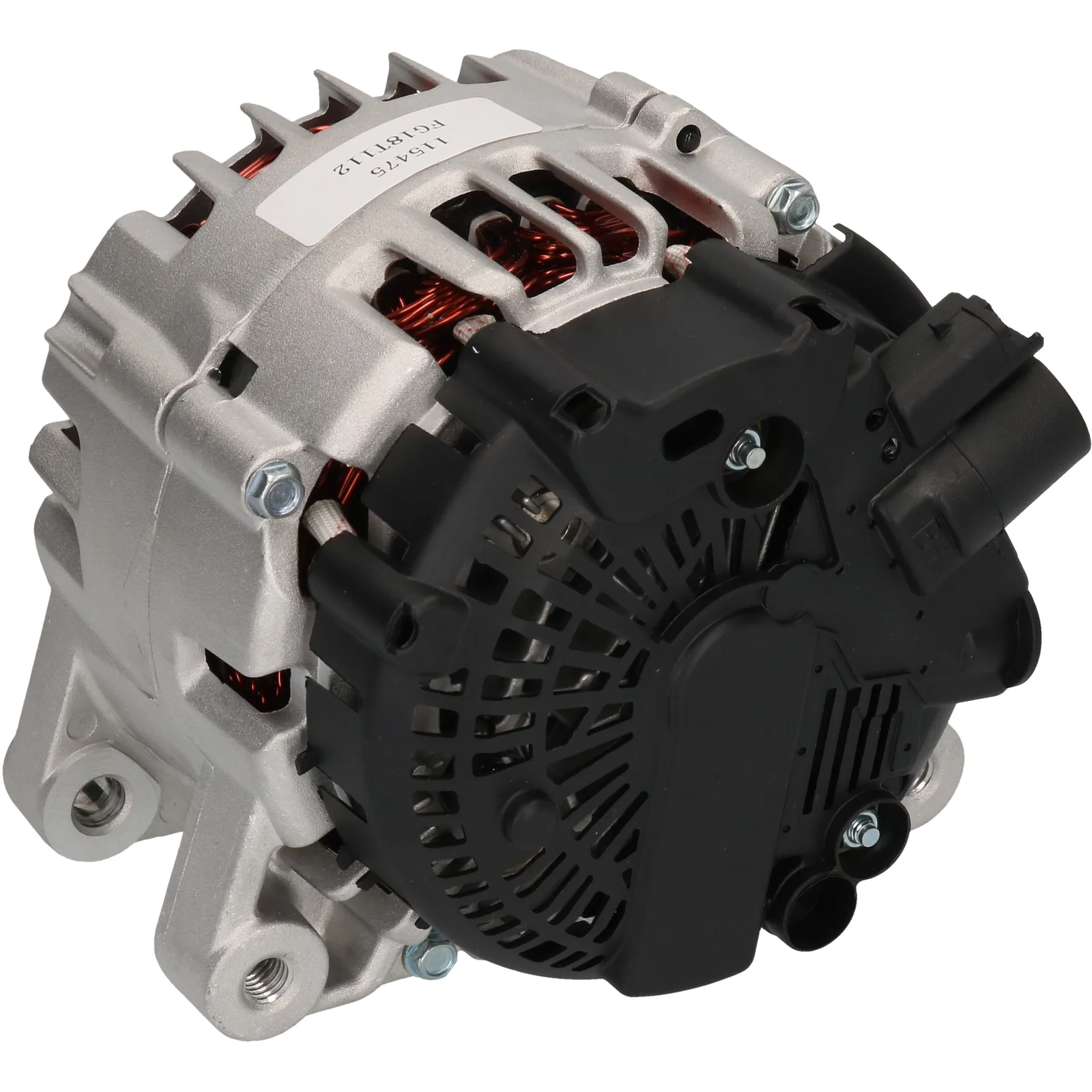

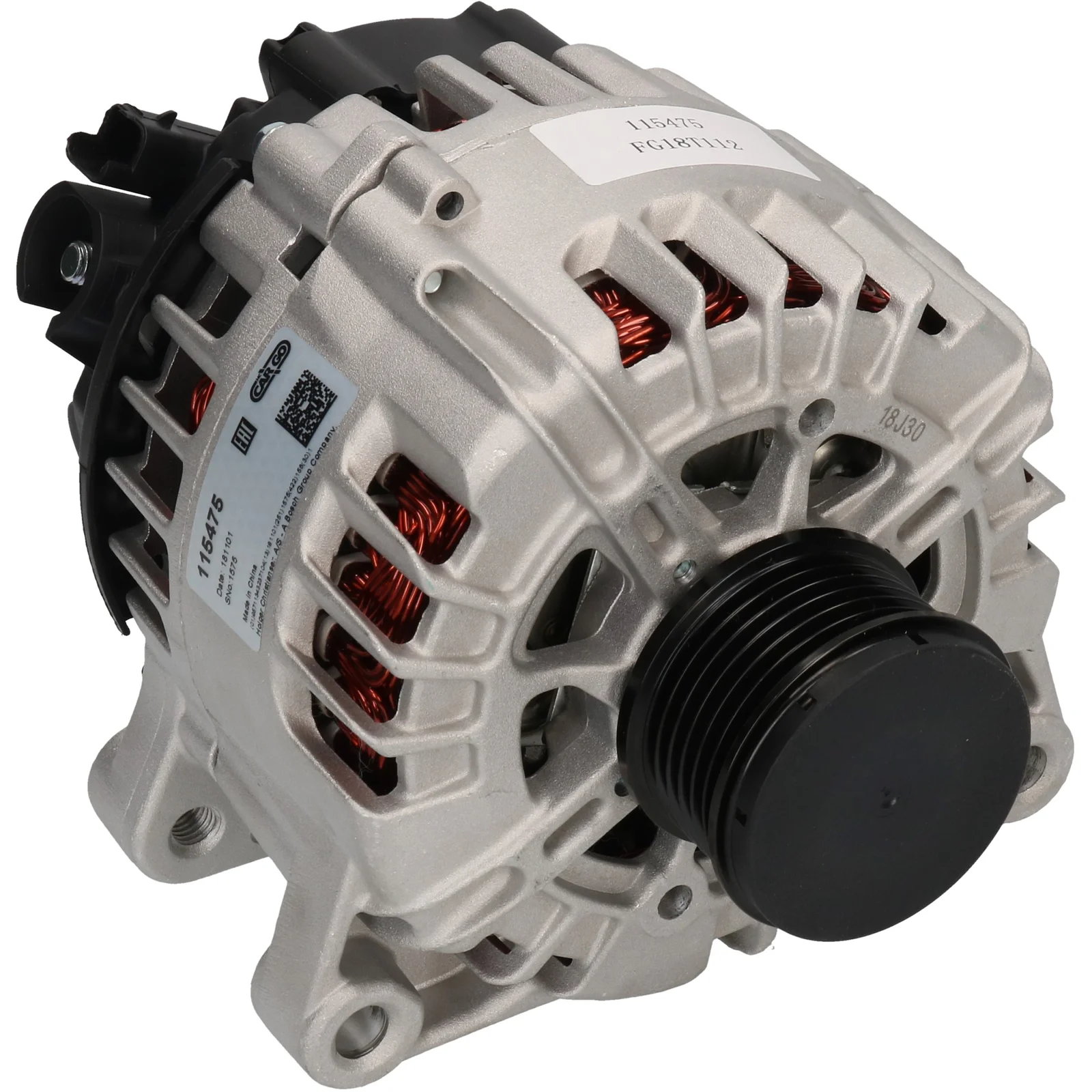

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115475

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 180, Rotasjon: CW, Monteringsbeslag avstand: 45.00

Beskrivelse

HC-Cargo Generator 14V - 180A, 5gr

Spenning: 14
Amp: 180
Drevskive avstand: 42,50
Bredde/holderarm: 21,00
Monteringsbeslag avstand: 45,00
Beslagshull: 10,50
Bøl. justeringsbeslag hull 1: 10,50
Bøl. justeringsbeslag hull 2: M10
Drevskivens diameter: 54,50
Grooves/drevskive: 5
Radius: 90,00
Radius 2: 90,00
B+: M8
Posisjon/B+ i min.: 60
D+ Størrelse: Plugg
Rotasjon: CW
Plugg nr.: PL132
Total lengde mm: 182,00
Terminaltype: KOM
Kommunikasjon: LIN
Drevskive: SP/FW
Regulator type: IR
Merk: Denne dynamoen har en KOM-terminal på regulatoren. Det anbefales at OEM-nummeret brukes for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 45.00
Belt. adj. bracket hole 1 10.50
Belt. adj. bracket hole 2 M10
Plug no. PL132
Bracket hole 10.50
Position/B+ in min. 60
Pulley SP/FW
Pulley dia. 54.50
Pulley dist. 42.50
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 5
Terminal type COM
Voltage 14
Total length 182.00 mm
Width/holder arm 21.00
Amp 180

  • OEM
    A3193(VALEO), A3193PR, A3193S, A3579S, CAL15030, CAL15471, DRA0597, F032115475, FG18S027, FG18S095, FG18T 112, FG18T112, FGN18S095, K9803750980, LRA03626, SU001-A4986, SU001A2548, SU001A4986, 8EL012430-121, 8EL015637-211, 28-6736, 229.151.1802, 1986A01262, 5702J4, 5705KR, 20650N, 20650N-OE, 115475, 200229, 209196, 209196A, 302030RI, 439779, 440275, 2543611, 2614017A, 2617908, 2617908A, 9090587, 12090303, 0986082510, 1606856980, 1609016080, 1611285780, 1612817080, 1648236080, 9663010980, 9664074280, 9678049480, 9678058480, 9803750980, 9810527180

  • Konkurrentreferens
    A3193(VALEO), A3193PR, A3193S, A3579S, CAL15030, CAL15471, DRA0597, LRA03626, 8EL012430-121, 8EL015637-211, 28-6736, 229.151.1802, 5702J4, 5705KR, 20650N, 20650N-OE, 200229, 209196, 209196A, 302030RI, 439779, 440275, 9090587, 12090303, 0986082510

  • Bilmärken
    CITROËN, DS, FIAT, PEUGEOT, TOYOTA

  • NormaliseratArtNr
    a3193pr, a3193s, a3193valeo, a3579s, cal15030, cal15471, dra0597, f032115475, fg18s027, fg18s095, fg18t112, fgn18s095, k9803750980, lra03626, su001a2548, su001a4986, 8el012430121, 8el015637211, 1986a01262, 5702j4, 5705kr, 20650n, 20650noe, 115475, 200229, 209196, 209196a, 286736, 302030ri, 439779, 440275, 2543611, 2614017a, 2617908, 2617908a, 9090587, 12090303, 0986082510, 1606856980, 1609016080, 1611285780, 1612817080, 1648236080, 2291511802, 9663010980, 9664074280, 9678049480, 9678058480, 9803750980, 9810527180

  • Passar modeller
    CITROËN BERLINGO (ER_, EC_) 1.6 HDi 92 Engine volume: 1.6 Engine type: 9HP (DV6DTED), BHN (DV6DR) Year: 09.18-
    CITROËN BERLINGO Flak/chassi (B9) 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 12.14-04.21
    CITROËN BERLINGO Flak/chassi (B9) 1.6 HDi 90 Engine volume: 1.6 Engine type: 9HF (DV6DTED) Year: 07.10-12.18
    CITROËN BERLINGO Flak/chassi (B9) 1.6 HDi 92 Engine volume: 1.6 Engine type: 9HJ (DV6DTEDM) Year: 07.10-12.17
    CITROËN BERLINGO MULTISPACE (B9) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 12.14-08.18
    CITROËN BERLINGO MULTISPACE (B9) 1.6 HDi 110 Engine volume: 1.6 Engine type: 9HL (DV6C), 9HR (DV6C) Year: 07.10-12.18
    CITROËN BERLINGO MULTISPACE (B9) 1.6 HDi 115 4x4 Engine volume: 1.6 Engine type: 9HR (DV6C) Year: 02.12-12.18
    CITROËN BERLINGO MULTISPACE (B9) 1.6 HDi 115 Engine volume: 1.6 Engine type: 9HR (DV6C) Year: 07.10-12.18
    CITROËN BERLINGO MULTISPACE (B9) 1.6 HDi 75 / BlueHDi 75 Engine volume: 1.6 Engine type: 9HN (DV6ETED), BHW (DV6FE) Year: 04.08-04.20
    CITROËN BERLINGO MULTISPACE (B9) 1.6 HDi 90 4x4 Engine volume: 1.6 Engine type: 9HF (DV6DTED) Year: 02.12-12.14
    CITROËN BERLINGO MULTISPACE (B9) 1.6 HDi 90 Engine volume: 1.6 Engine type: 9HP (DV6DTED), 9HJ (DV6DTEDM) Year: 07.10-12.18
    CITROËN BERLINGO Skåpbil/minivan (B9) 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 12.14-04.21
    CITROËN BERLINGO Skåpbil/minivan (B9) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 12.14-08.18
    CITROËN BERLINGO Skåpbil/minivan (B9) 1.6 HDi 110 Engine volume: 1.6 Engine type: 9HL (DV6C), 9HR (DV6C) Year: 07.10-12.18
    CITROËN BERLINGO Skåpbil/minivan (B9) 1.6 HDi 115 4x4 Engine volume: 1.6 Engine type: DV6CTED Year: 02.12-12.18
    CITROËN BERLINGO Skåpbil/minivan (B9) 1.6 HDi 115 Engine volume: 1.6 Engine type: 9HL (DV6C) Year: 07.10-12.18
    CITROËN BERLINGO Skåpbil/minivan (B9) 1.6 HDi 75 4x4 Engine volume: 1.6 Engine type: 9HN (DV6ETED) Year: 02.12-12.18
    CITROËN BERLINGO Skåpbil/minivan (B9) 1.6 HDi 90 4x4 Engine volume: 1.6 Engine type: 9HF (DV6DTED) Year: 02.12-12.14
    CITROËN BERLINGO Skåpbil/minivan (B9) 1.6 HDi 90 Engine volume: 1.6 Engine type: 9HF (DV6DTED) Year: 07.10-12.17
    CITROËN BERLINGO Skåpbil/minivan (B9) 1.6 HDi 90 Engine volume: 1.6 Engine type: 9HP (DV6DTED), 9HJ (DV6DTEDM) Year: 07.10-12.18
    CITROËN C3 AIRCROSS II (2R_, 2C_) 1.6 BlueHDi 100 (2CBHYB) Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 07.17-08.18
    CITROËN C3 AIRCROSS II (2R_, 2C_) 1.6 BlueHDi 120 (2CBHZH) Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 07.17-05.18
    CITROËN C3 AIRCROSS II Van (2R_, 2C_) 1.6 BlueHDI 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 05.19-
    CITROËN C3 II Skåpbil/halvkombi (SC_) 1.6 BlueHDi Engine volume: 1.6 Engine type: BHW (DV6FE) Year: 03.15-09.16
    CITROËN C4 GRAND PICASSO I (UA_) 1.6 HDi 110 Engine volume: 1.6 Engine type: 9HR (DV6C) Year: 09.10-08.13
    CITROËN C4 GRAND PICASSO I (UA_) 2.0 HDi 150 Engine volume: 2.0 Engine type: RHE (DW10CTED4) Year: 07.09-08.13
    CITROËN C4 GRAND PICASSO I (UA_) 2.0 HDi 165 Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 09.10-08.13
    CITROËN C4 GRAND PICASSO II (DA_, DE_) 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 01.15-04.16
    CITROËN C4 GRAND PICASSO II (DA_, DE_) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 07.14-12.18
    CITROËN C4 GRAND PICASSO II (DA_, DE_) 1.6 HDi / BlueHDi 115 Engine volume: 1.6 Engine type: 9HC (DV6C), BHX (DV6FC) Year: 09.13-03.18
    CITROËN C4 GRAND PICASSO II (DA_, DE_) 1.6 HDi 90 Engine volume: 1.6 Engine type: 9HP (DV6DTED) Year: 09.13-
    CITROËN C4 II (NC_) 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 07.14-05.18
    CITROËN C4 II (NC_) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 02.15-05.18
    CITROËN C4 II (NC_) 1.6 HDi 110 Engine volume: 1.6 Engine type: 9HR (DV6C) Year: 11.09-
    CITROËN C4 II (NC_) 1.6 HDi 115 Engine volume: 1.6 Engine type: 9HD (DV6C) Year: 07.12-
    CITROËN C4 II (NC_) 1.6 HDi 90 Engine volume: 1.6 Engine type: 9HP (DV6DTED), 9HJ (DV6DTEDM) Year: 11.09-
    CITROËN C4 II (NC_) 2.0 HDi / BlueHDi 150 Engine volume: 2.0 Engine type: AHR (DW10FD), RHE (DW10CTED4) Year: 11.09-
    CITROËN C4 II (NC_) 2.0 HDi / BlueHDi 160 Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 10.10-
    CITROËN C4 II Skåpbil/halvkombi (NC_) 1.6 BlueHDi Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 07.14-
    CITROËN C4 II Skåpbil/halvkombi (NC_) 1.6 BlueHDi Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 02.15-
    CITROËN C4 II Skåpbil/halvkombi (NC_) 1.6 HDi Engine volume: 1.6 Engine type: 9HP (DV6DTED) Year: 06.10-
    CITROËN C4 II Skåpbil/halvkombi (NC_) 1.6 HDi Engine volume: 1.6 Engine type: 9HR (DV6C) Year: 11.09-
    CITROËN C4 PICASSO I Minivan (UD_) 1.6 HDi 110 Engine volume: 1.6 Engine type: 9HR (DV6C) Year: 09.10-08.13
    CITROËN C4 PICASSO I Minivan (UD_) 2.0 HDi 150 Engine volume: 2.0 Engine type: RHE (DW10CTED4) Year: 07.09-08.13
    CITROËN C4 PICASSO I Minivan (UD_) 2.0 HDi 165 Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 09.10-08.13
    CITROËN C4 PICASSO II 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 12.14-12.18
    CITROËN C4 PICASSO II 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 07.14-12.18
    CITROËN C4 PICASSO II 1.6 HDi / BlueHDi 115 Engine volume: 1.6 Engine type: 9HC (DV6C), BHX (DV6FC) Year: 02.13-03.18
    CITROËN C4 PICASSO II 1.6 HDi 90 Engine volume: 1.6 Engine type: 9HP (DV6DTED) Year: 02.13-
    CITROËN C4 PICASSO II Van (DD_) e-HDi (DD9HC8, DD9HCT) Engine volume: 1.6 Engine type: 9HC (DV6C) Year: 02.13-
    CITROËN C4 PICASSO II Van (DD_) HDi / e-HDi (DD9HP0, DD9HPT) Engine volume: 1.6 Engine type: 9HP (DV6DTED) Year: 02.13-
    CITROËN C4 SPACETOURER (3D_) 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 04.18-04.19
    CITROËN C4 SPACETOURER (3D_) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 04.18-04.19
    CITROËN C5 III (RD_) 1.6 HDi 110 (RD9HL0, RD9HR8, RD9HRA) Engine volume: 1.6 Engine type: 9HL (DV6C), 9HR (DV6C) Year: 07.10-05.12
    CITROËN C5 III (RD_) 1.6 HDi 115 (RD9HRA, RD9HLA, RD9HL0) Engine volume: 1.6 Engine type: 9HL (DV6C), 9HR (DV6C) Year: 01.12-06.15
    CITROËN C5 III (RD_) 2.0 HDi (RDRHD8, RDRHDJ, RDRHR8, RDRHRJ) Engine volume: 2.0 Engine type: RHR (DW10BTED4), RHD (DW10CTED4), RHF (DW10BTED4) Year: 02.08-06.14
    CITROËN C5 III (RD_) 2.0 HDi 140 (RDRHF8, RDRHFA, RDRHA8, RDRHAJ) Engine volume: 2.0 Engine type: RHA (DW10CTED4), RHF (DW10BTED4) Year: 11.08-06.15
    CITROËN C5 III (RD_) 2.0 HDi 150 / BlueHDi 150 (RDRHEA, RDRHE8, RDAHRM,... Engine volume: 2.0 Engine type: AHR (DW10FD), RHE (DW10CTED4), AHX (DW10FD) Year: 04.09-05.17
    CITROËN C5 III (RD_) 2.0 HDi 165 (RDRHHA, RDRHH8) Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 04.09-07.16
    CITROËN C5 III (RD_) 2.2 HDi 200 (RD4HLA) Engine volume: 2.2 Engine type: 4HL (DW12C) Year: 07.10-06.15
    CITROËN C5 III Break (RW_) 1.6 HDi 110 Engine volume: 1.6 Engine type: 9HL (DV6C), 9HR (DV6C) Year: 07.10-05.12
    CITROËN C5 III Break (RW_) 1.6 HDi 115 Engine volume: 1.6 Engine type: 9HL (DV6C), 9HR (DV6C) Year: 06.12-06.15
    CITROËN C5 III Break (RW_) 2.0 HDi 140 Engine volume: 2.0 Engine type: RHA (DW10CTED4), RHF (DW10BTED4) Year: 04.09-06.15
    CITROËN C5 III Break (RW_) 2.0 HDi 150 / BlueHDi 150 (RWRHEJ, RWRHE8) Engine volume: 2.0 Engine type: AHR (DW10FD), RHE (DW10CTED4) Year: 04.09-05.17
    CITROËN C5 III Break (RW_) 2.0 HDi 165 Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 04.09-07.16
    CITROËN C5 III Break (RW_) 2.0 HDi Engine volume: 2.0 Engine type: RHR (DW10BTED4), RHD (DW10CTED4) Year: 02.08-06.14
    CITROËN C5 III Break (RW_) 2.2 HDi 200 Engine volume: 2.2 Engine type: 4HL (DW12C) Year: 07.10-06.15
    CITROËN C8 (EA_, EB_) 2.0 HDi 135 Engine volume: 2.0 Engine type: RHD (DW10CB), RHR (DW10BTED4), RHD (DW10CTED4) Year: 03.06-
    CITROËN C8 (EA_, EB_) 2.0 HDi 165 Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 03.06-
    CITROËN DS4 (NX_) 1.6 HDi 110 Engine volume: 1.6 Engine type: 9HR (DV6C) Year: 04.11-07.15
    CITROËN DS4 (NX_) 1.6 HDi 115 Engine volume: 1.6 Engine type: 9HD (DV6C) Year: 08.12-07.15
    CITROËN DS4 (NX_) 1.6 HDi 90 Engine volume: 1.6 Engine type: 9HP (DV6DTED) Year: 05.11-07.15
    CITROËN DS4 (NX_) 2.0 HDi / BlueHDi 135 Engine volume: 2.0 Engine type: RHD (DW10CB), AHV (DW10FD), RHD (DW10CTED4), AHS (DW10FD) Year: 09.11-07.15
    CITROËN DS4 (NX_) 2.0 HDi 165 Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 04.11-07.15
    CITROËN DS5 2.0 HDi 135 Engine volume: 2.0 Engine type: RHD (DW10CB) Year: 11.11-07.15
    CITROËN DS5 2.0 HDi 165 Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 11.11-07.15
    CITROËN GRAND C4 SPACETOURER (3A_, 3E_) 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 04.18-04.19
    CITROËN GRAND C4 SPACETOURER (3A_, 3E_) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 04.18-08.18
    CITROËN GRAND C4 SPACETOURER (3A_, 3E_) 1.6 HDi 115 Engine volume: 1.6 Engine type: 9HC (DV6C) Year: 04.18-
    CITROËN JUMPY II (VF7) 1.6 HDi 90 8V Engine volume: 1.6 Engine type: 9HH (DV6DUM), 9HM (DV6UC) Year: 01.07-03.16
    CITROËN JUMPY II (VF7) 2.0 HDi 125 Engine volume: 2.0 Engine type: AHZ (DW10CD) Year: 07.11-03.16
    CITROËN JUMPY II (VF7) 2.0 HDi 165 Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 07.10-03.16
    CITROËN JUMPY II (VF7) 2.0 HDi 95 Engine volume: 2.0 Engine type: AHY (DW10CE) Year: 07.11-03.16
    CITROËN JUMPY II Flak/chassi 2.0 HDI (X_RHH) Engine volume: 2.0 Year: 07.10-03.16
    CITROËN JUMPY II Flak/chassi 2.0 HDI 100 (X_AHY) Engine volume: 2.0 Engine type: AHY (DW10CE) Year: 07.11-03.16
    CITROËN JUMPY II Flak/chassi 2.0 HDi 125 Engine volume: 2.0 Engine type: AHZ (DW10CD) Year: 07.11-
    CITROËN JUMPY II Skåp 1.6 HDi 90 8V Engine volume: 1.6 Engine type: 9HH (DV6DUM), 9HM (DV6UC) Year: 01.07-03.16
    CITROËN JUMPY II Skåp 2.0 HDi 125 4x4 Engine volume: 2.0 Engine type: AHZ (DW10CD) Year: 07.11-03.16
    CITROËN JUMPY II Skåp 2.0 HDi 125 Engine volume: 2.0 Engine type: AHZ (DW10CD) Year: 07.11-03.16
    CITROËN JUMPY II Skåp 2.0 HDi 165 Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 07.10-03.16
    CITROËN JUMPY II Skåp 2.0 HDi 95 Engine volume: 2.0 Engine type: AHY (DW10CE) Year: 07.11-03.16
    CITROËN JUMPY III Buss (V_) 1.6 BlueHDi 115 Engine volume: 1.6 Engine type: BHX (DV6FCU) Year: 04.16-06.22
    CITROËN JUMPY III Buss (V_) 1.6 BlueHDi 95 Engine volume: 1.6 Engine type: BHS (DV6FDU) Year: 04.16-
    CITROËN JUMPY III Flak/chassi (V_) 1.6 BlueHDi 95 Engine volume: 1.6 Engine type: BHV (DV6FDU), BHS (DV6FDU) Year: 09.16-04.20
    CITROËN JUMPY III Skåp (V_) 1.6 BlueHDi 115 Engine volume: 1.6 Engine type: BHX (DV6FCU) Year: 04.16-06.22
    CITROËN JUMPY III Skåp (V_) 1.6 BlueHDi 90 Engine volume: 1.6 Engine type: 9HF (DV6DU) Year: 09.18-
    CITROËN JUMPY III Skåp (V_) 1.6 BlueHDi 95 Engine volume: 1.6 Engine type: BHV (DV6FDU), BHS (DV6FDU) Year: 04.16-04.20
    CITROËN SPACETOURER Buss (V_) 1.6 BlueHDi 115 Engine volume: 1.6 Engine type: BHX (DV6FCU) Year: 04.16-04.19
    CITROËN SPACETOURER Buss (V_) 1.6 BlueHDi 95 Engine volume: 1.6 Engine type: BHV (DV6FDU), BHS (DV6FDU) Year: 04.16-04.19
    CITROËN SPACETOURER Buss (V_) 1.6 HDi 90 Engine volume: 1.6 Engine type: 9HF (DV6DU) Year: 07.18-
    DS DS 4 / DS 4 CROSSBACK (NX_) 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 04.16-12.18
    DS DS 5 (KF_) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 06.15-12.18
    FIAT SCUDO Buss (270_, 272_) 2.0 D Multijet Engine volume: 2.0 Engine type: RH02 Year: 04.11-03.16
    FIAT SCUDO Buss (270_, 272_) 2.0 D Multijet Engine volume: 2.0 Engine type: RH02, RHH Year: 07.10-03.16
    FIAT SCUDO Skåp (270_, 272_) 2.0 D Multijet 4x4 Engine volume: 2.0 Engine type: RH02 Year: 05.11-03.16
    FIAT SCUDO Skåp (270_, 272_) 2.0 D Multijet Engine volume: 2.0 Engine type: RH02 Year: 05.11-03.16
    FIAT SCUDO Skåp (270_, 272_) 2.0 D Multijet Engine volume: 2.0 Engine type: RH02, RHH Year: 07.10-03.16
    PEUGEOT 3008 I Minivan (0U_) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 05.14-08.16
    PEUGEOT 3008 I Minivan (0U_) 1.6 HDi 115 / BlueHDi 115 Engine volume: 1.6 Engine type: 9HC (DV6C), BHX (DV6FC) Year: 02.13-08.16
    PEUGEOT 3008 I Minivan (0U_) 1.6 HDi Engine volume: 1.6 Engine type: 9HD (DV6CTED) Year: 03.13-08.16
    PEUGEOT 3008 I Minivan (0U_) 1.6 HDi Engine volume: 1.6 Engine type: 9HR (DV6C) Year: 12.09-08.16
    PEUGEOT 3008 I Minivan (0U_) 2.0 HDi 150 / BlueHDi 150 Engine volume: 2.0 Engine type: RHE (DW10CTED4), AHX (DW10FD) Year: 06.09-08.16
    PEUGEOT 3008 I Minivan (0U_) 2.0 HDi Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 06.09-08.16
    PEUGEOT 3008 II SUV (MC_, MR_, MJ_, M4_) 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 11.16-12.19
    PEUGEOT 3008 II SUV (MC_, MR_, MJ_, M4_) 1.6 BlueHDi 115 (MCBHXW, MCBHYB) Engine volume: 1.6 Engine type: BHX (DV6FC) Year: 11.16-12.19
    PEUGEOT 3008 II SUV (MC_, MR_, MJ_, M4_) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 05.16-12.19
    PEUGEOT 3008 Van (0U_) HDi (0URHHT) Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 06.09-08.16
    PEUGEOT 3008 Van (0U_) HDi 150 (0URHEM) Engine volume: 2.0 Engine type: RHE (DW10CTED4) Year: 06.09-08.16
    PEUGEOT 308 CC (4B_) 1.6 HDi Engine volume: 1.6 Engine type: 9HD (DV6C) Year: 03.13-12.14
    PEUGEOT 308 CC (4B_) 1.6 HDi Engine volume: 1.6 Engine type: 9HR (DV6C) Year: 06.09-12.14
    PEUGEOT 308 CC (4B_) 2.0 HDi (4BRHRH, 4BRHRJ) Engine volume: 2.0 Engine type: RHR (DW10BTED4), RHR (DW10CB) Year: 04.09-12.14
    PEUGEOT 308 CC (4B_) 2.0 HDi Engine volume: 2.0 Engine type: RHF (DW10BTED4) Year: 04.09-12.12
    PEUGEOT 308 CC (4B_) 2.0 HDi Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 06.09-12.14
    PEUGEOT 308 I (4A_, 4C_) 1.6 HDi Engine volume: 1.6 Engine type: 9HD (DV6C), 9HG (DV6C M) Year: 03.13-10.14
    PEUGEOT 308 I (4A_, 4C_) 1.6 HDi Engine volume: 1.6 Engine type: 9HP (DV6DTED), 9HJ (DV6DTEDM) Year: 11.09-10.14
    PEUGEOT 308 I (4A_, 4C_) 1.6 HDi Engine volume: 1.6 Engine type: 9HR (DV6C) Year: 12.09-10.14
    PEUGEOT 308 I (4A_, 4C_) 2.0 HDi Engine volume: 2.0 Engine type: RHE (DW10CTED4) Year: 10.11-10.14
    PEUGEOT 308 I (4A_, 4C_) 2.0 HDi Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 04.12-10.14
    PEUGEOT 308 I (4A_, 4C_) 2.0 HDi Engine volume: 2.0 Engine type: RHR (DW10BTED4) Year: 07.10-12.12
    PEUGEOT 308 I (4A_, 4C_) 2.0 HDi Engine volume: 2.0 Engine type: RHR (DW10BTED4), RHR (DW10CB) Year: 09.07-10.14
    PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 11.13-06.21
    PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 1.6 HDi / BlueHDi 115 Engine volume: 1.6 Engine type: 9HC (DV6C), BHX (DV6FC), BHZ (DV6FC) Year: 09.13-06.21
    PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 1.6 HDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 04.14-06.21
    PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 1.6 HDi Engine volume: 1.6 Engine type: 9HP (DV6DTED) Year: 09.13-06.21
    PEUGEOT 308 Skåpbil/halvkombi (LB_) 1.6 BlueHDi 120 (LBBHZM) Engine volume: 1.6 Engine type: BHX (DV6FC) Year: 03.15-06.21
    PEUGEOT 308 SW I (4E_, 4H_) 1.6 HDi Engine volume: 1.6 Engine type: 9HD (DV6C) Year: 03.13-10.14
    PEUGEOT 308 SW I (4E_, 4H_) 1.6 HDi Engine volume: 1.6 Engine type: 9HP (DV6DTED) Year: 11.09-10.14
    PEUGEOT 308 SW I (4E_, 4H_) 1.6 HDi Engine volume: 1.6 Engine type: 9HR (DV6C) Year: 12.09-10.14
    PEUGEOT 308 SW I (4E_, 4H_) 2.0 HDi Engine volume: 2.0 Engine type: RHE (DW10CTED4) Year: 04.11-10.14
    PEUGEOT 308 SW I (4E_, 4H_) 2.0 HDi Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 06.09-10.14
    PEUGEOT 308 SW I (4E_, 4H_) 2.0 HDi Engine volume: 2.0 Engine type: RHR (DW10BTED4) Year: 09.07-10.14
    PEUGEOT 308 SW I (4E_, 4H_) 2.0 HDi Engine volume: 2.0 Engine type: RHR (DW10BTED4) Year: 09.07-12.12
    PEUGEOT 308 SW I Skåp / kombi (4E_) 2.0 HDi Engine volume: 2.0 Engine type: RHR (DW10BTED4) Year: 01.08-12.11
    PEUGEOT 308 SW II (LC_) 1.6 BlueHDi Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 04.14-06.21
    PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 04.14-06.21
    PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 03.14-06.21
    PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 HDi / BlueHDi 115 (LCBHXM, LCBHXT) Engine volume: 1.6 Engine type: 9HC (DV6C), BHX (DV6FC), BHZ (DV6FC) Year: 03.14-06.21
    PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 HDi 92 Engine volume: 1.6 Engine type: 9HP (DV6DTED) Year: 03.14-06.21
    PEUGEOT 407 (6D_) 2.0 HDi (6DRHHA) Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 06.09-12.10
    PEUGEOT 407 Coupé (6C_) 2.0 HDi Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 06.09-
    PEUGEOT 407 SW (6E_, 6D_) 2.0 HDi Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 06.09-12.10
    PEUGEOT 407 SW Skåp / kombi (6E_) 2.0 HDi Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 06.09-12.10
    PEUGEOT 5008 (0U_, 0E_) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 05.14-03.17
    PEUGEOT 5008 (0U_, 0E_) 1.6 HDi Engine volume: 1.6 Engine type: 9HD (DV6C) Year: 03.13-03.17
    PEUGEOT 5008 (0U_, 0E_) 1.6 HDi Engine volume: 1.6 Engine type: 9HR (DV6C) Year: 08.10-03.17
    PEUGEOT 5008 (0U_, 0E_) 2.0 HDi 136 / BlueHDi 136 Engine volume: 2.0 Engine type: RHD (DW10CB), RHD (DW10CTED4), AHV (DW10FD) Year: 02.12-03.17
    PEUGEOT 5008 (0U_, 0E_) 2.0 HDi 150 / BlueHDi 150 Engine volume: 2.0 Engine type: RHE (DW10CTED4), AHX (DW10FD) Year: 06.09-03.17
    PEUGEOT 5008 (0U_, 0E_) 2.0 HDi Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 09.09-03.17
    PEUGEOT 5008 I Van (0U_) HDi (0U9HR8) Engine volume: 1.6 Engine type: 9HR (DV6C) Year: 08.10-03.17
    PEUGEOT 5008 I Van (0U_) HDi / e-HDi (0U9HD8, 0U9HDA) Engine volume: 1.6 Engine type: 9HD (DV6C) Year: 03.13-03.17
    PEUGEOT 5008 I Van (0U_) HDi 136 (0URHEM) Engine volume: 2.0 Engine type: RHE (DW10CTED4) Year: 02.12-03.17
    PEUGEOT 5008 I Van (0U_) HDi 150 (0URHEM) Engine volume: 2.0 Engine type: RHE (DW10CTED4) Year: 06.09-03.17
    PEUGEOT 5008 I Van (0U_) HDi 165 (0URHHT) Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 06.09-03.17
    PEUGEOT 5008 II (MC_, MJ_, MR_, M4_) 1.6 BlueHDi 100 (MCBHYB) Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 12.16-
    PEUGEOT 5008 II (MC_, MJ_, MR_, M4_) 1.6 BlueHDi 115 (MCBHXH, MCBHXW) Engine volume: 1.6 Engine type: BHX (DV6FC) Year: 12.16-11.19
    PEUGEOT 5008 II (MC_, MJ_, MR_, M4_) 1.6 BlueHDi 120 (MCBHZH, MCBHZW) Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 12.16-11.19
    PEUGEOT 508 I (8D_) 1.6 HDi Engine volume: 1.6 Engine type: 9HD (DV6CTED) Year: 02.12-12.18
    PEUGEOT 508 I (8D_) 1.6 HDi Engine volume: 1.6 Engine type: 9HR (DV6C), 9HL (DV6C) Year: 11.10-12.18
    PEUGEOT 508 I (8D_) 2.0 HDi Engine volume: 2.0 Engine type: RHF (DW10BTED4), RHA (DW10CTED4) Year: 11.10-12.18
    PEUGEOT 508 I (8D_) 2.0 HDi Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 11.10-12.18
    PEUGEOT 508 I (8D_) 2.0 HDi Engine volume: 2.0 Engine type: RHR (DW10BTED4), AHX (DW10FD), AHV (DW10FD), AHS (DW10FD) Year: 11.10-12.18
    PEUGEOT 508 I (8D_) 2.2 HDi Engine volume: 2.2 Engine type: 4HL (DW12C) Year: 11.10-12.18
    PEUGEOT 508 SW I (8E_) 1.6 HDi Engine volume: 1.6 Engine type: 9HR (DV6C), 9HL (DV6C) Year: 02.12-12.18
    PEUGEOT 508 SW I (8E_) 1.6 HDi Engine volume: 1.6 Engine type: 9HR (DV6C), 9HL (DV6C) Year: 11.10-12.18
    PEUGEOT 508 SW I (8E_) 2.0 HDi Engine volume: 2.0 Engine type: RHF (DW10BTED4), RHA (DW10CTED4) Year: 11.10-12.18
    PEUGEOT 508 SW I (8E_) 2.0 HDi Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 11.10-12.18
    PEUGEOT 508 SW I (8E_) 2.0 HDi Engine volume: 2.0 Engine type: RHR (DW10BTED4), AHX (DW10FD), AHV (DW10FD), AHS (DW10FD) Year: 11.10-12.18
    PEUGEOT 508 SW I (8E_) 2.2 HDi Engine volume: 2.2 Engine type: 4HL (DW12C) Year: 11.10-12.18
    PEUGEOT 508 SW Skåp / kombi (8E_) 1.6 HDi Engine volume: 1.6 Engine type: 9HL (DV6C) Year: 03.13-12.18
    PEUGEOT 508 SW Skåp / kombi (8E_) 2.0 HDi Engine volume: 2.0 Engine type: RHF (DW10BTED4) Year: 03.13-12.18
    PEUGEOT 508 SW Skåp / kombi (8E_) 2.0 HDi Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 03.13-12.18
    PEUGEOT 508 SW Skåp / kombi (8E_) 2.2 HDi Engine volume: 2.2 Engine type: 4HL (DW12C) Year: 11.11-
    PEUGEOT 807 (EB_) 2.0 HDi Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 06.09-
    PEUGEOT 807 Van (EB_) 2.0 HDi Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 05.10-
    PEUGEOT EXPERT Buss (V_) 1.6 BlueHDi 115 Engine volume: 1.6 Engine type: BHX (DV6FCU) Year: 04.16-12.19
    PEUGEOT EXPERT Buss (V_) 1.6 BlueHDi 95 Engine volume: 1.6 Engine type: BHV (DV6FDU), BHS (DV6FDU) Year: 04.16-12.19
    PEUGEOT EXPERT Flak/chassi (V_) 1.6 BlueHDi 95 Engine volume: 1.6 Engine type: BHV (DV6FDU) Year: 09.16-12.19
    PEUGEOT EXPERT Flak/chassi 1.6 HDi 90 8V Engine volume: 1.6 Engine type: 9HM (DV6UC), 9HH (DV6DUM) Year: 01.07-
    PEUGEOT EXPERT Flak/chassi 2.0 HDi 130 Engine volume: 2.0 Engine type: AHZ (DW10CD) Year: 03.11-
    PEUGEOT EXPERT Flak/chassi 2.0 HDi 165 Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 09.09-
    PEUGEOT EXPERT Skåp (VF3A_, VF3U_, VF3X_) 1.6 HDi 90 8V Engine volume: 1.6 Engine type: 9HM (DV6UC), 9HH (DV6DUM) Year: 01.07-
    PEUGEOT EXPERT Skåp (VF3A_, VF3U_, VF3X_) 2.0 HDi 130 Engine volume: 2.0 Engine type: AHZ (DW10CD) Year: 03.11-
    PEUGEOT EXPERT Skåp (VF3A_, VF3U_, VF3X_) 2.0 HDi 165 Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 09.09-
    PEUGEOT EXPERT Skåp (V_) 1.6 BlueHDi 115 Engine volume: 1.6 Engine type: BHX (DV6FCU) Year: 04.16-12.19
    PEUGEOT EXPERT Skåp (V_) 1.6 BlueHDi 95 Engine volume: 1.6 Engine type: BHV (DV6FDU) Year: 04.16-12.19
    PEUGEOT EXPERT TEPEE (VF3X_) 1.6 HDi 90 8V Engine volume: 1.6 Engine type: 9HM (DV6UC), 9HH (DV6DUM) Year: 01.07-03.16
    PEUGEOT EXPERT TEPEE (VF3X_) 2.0 HDi 100 Engine volume: 2.0 Engine type: AHY (DW10CE) Year: 03.11-03.16
    PEUGEOT EXPERT TEPEE (VF3X_) 2.0 HDi 130 Engine volume: 2.0 Engine type: AHZ (DW10CD) Year: 02.12-
    PEUGEOT EXPERT TEPEE (VF3X_) 2.0 HDi 165 Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 09.09-
    PEUGEOT PARTNER Flak/chassi 1.6 HDi Engine volume: 1.6 Engine type: 9HF (DV6DTED) Year: 03.13-
    PEUGEOT PARTNER Skåp/stor limousine (K9) 1.6 BlueHDI 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 09.18-
    PEUGEOT PARTNER Skåp/stor limousine (K9) 1.6 BlueHDI 75 Engine volume: 1.6 Engine type: BHW (DV6FE) Year: 09.18-
    PEUGEOT PARTNER Skåp/stor limousine (K9) 1.6 HDi 92 Engine volume: 1.6 Engine type: 9HP (DV6DTED), BHN (DV6DR) Year: 09.18-
    PEUGEOT PARTNER Skåpbil/minivan (5_, G_) 1.6 HDi 75 Engine volume: 1.6 Engine type: 9HK (DV6ETEDM) Year: 08.05-07.08
    PEUGEOT PARTNER Skåpbil/minivan 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 04.15-
    PEUGEOT PARTNER Skåpbil/minivan 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 04.15-
    PEUGEOT PARTNER Skåpbil/minivan 1.6 HDi / BlueHDi 75 Engine volume: 1.6 Engine type: 9HK (DV6ETEDM), 9HN (DV6ETED), BHW (DV6FE) Year: 07.11-
    PEUGEOT PARTNER Skåpbil/minivan 1.6 HDi 16V Engine volume: 1.6 Engine type: 9HX (DV6ATED4) Year: 04.10-
    PEUGEOT PARTNER Skåpbil/minivan 1.6 HDi 4x4 Engine volume: 1.6 Engine type: 9HD (DV6C) Year: 07.12-
    PEUGEOT PARTNER Skåpbil/minivan 1.6 HDi 90 Engine volume: 1.6 Engine type: 9HP (DV6DTED), 9HJ (DV6DTEDM) Year: 04.10-
    PEUGEOT PARTNER Skåpbil/minivan 1.6 HDi Engine volume: 1.6 Engine type: 9HF (DV6DTED) Year: 12.11-
    PEUGEOT PARTNER Skåpbil/minivan 1.6 HDi Engine volume: 1.6 Engine type: 9HL (DV6C) Year: 03.13-
    PEUGEOT PARTNER Skåpbil/minivan 1.6 HDi Engine volume: 1.6 Engine type: 9HL (DV6C) Year: 08.10-
    PEUGEOT PARTNER TEPEE 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 12.14-
    PEUGEOT PARTNER TEPEE 1.6 HDi 4x4 Engine volume: 1.6 Engine type: 9HL (DV6C) Year: 07.12-
    PEUGEOT PARTNER TEPEE 1.6 HDi 90 4x4 Engine volume: 1.6 Engine type: 9HP (DV6DTED) Year: 07.12-
    PEUGEOT PARTNER TEPEE 1.6 HDi 90 Engine volume: 1.6 Engine type: 9HP (DV6DTED), 9HJ (DV6DTEDM) Year: 04.10-
    PEUGEOT PARTNER TEPEE 1.6 HDi Engine volume: 1.6 Engine type: 9HF (DV6DTED) Year: 03.13-
    PEUGEOT PARTNER TEPEE 1.6 HDi Engine volume: 1.6 Engine type: 9HL (DV6C) Year: 03.13-
    PEUGEOT PARTNER TEPEE 1.6 HDi Engine volume: 1.6 Engine type: 9HL (DV6C) Year: 08.10-
    PEUGEOT RIFTER 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 09.18-
    PEUGEOT RIFTER 1.6 HDi 75 / BlueHDi 75 Engine volume: 1.6 Engine type: 9HN (DV6ETED), BHW (DV6FE) Year: 09.18-
    PEUGEOT RIFTER 1.6 HDi 92 Engine volume: 1.6 Engine type: 9HP (DV6DTED), BHN (DV6DR) Year: 09.18-
    PEUGEOT TRAVELLER Buss (V_) 1.6 BlueHDi 115 Engine volume: 1.6 Engine type: BHX (DV6FCU) Year: 04.16-12.19
    PEUGEOT TRAVELLER Buss (V_) 1.6 BlueHDi 95 Engine volume: 1.6 Engine type: BHV (DV6FDU), BHS (DV6FDU) Year: 04.16-12.19
    TOYOTA PROACE VERSO Buss (MPY_) 1.6 D4d (MPY2) Engine volume: 1.6 Engine type: 3WZ-HV (DV6FCU) Year: 02.16-04.20
    TOYOTA PROACE VERSO Buss (MPY_) 1.6 D4d (MPY9) Engine volume: 1.6 Engine type: 3WZ-TV (DV6FDU) Year: 02.16-12.19
    1 / 46
  • Beskrivelse

    HC-Cargo Generator 14V - 180A, 5gr

    Spenning: 14
    Amp: 180
    Drevskive avstand: 42,50
    Bredde/holderarm: 21,00
    Monteringsbeslag avstand: 45,00
    Beslagshull: 10,50
    Bøl. justeringsbeslag hull 1: 10,50
    Bøl. justeringsbeslag hull 2: M10
    Drevskivens diameter: 54,50
    Grooves/drevskive: 5
    Radius: 90,00
    Radius 2: 90,00
    B+: M8
    Posisjon/B+ i min.: 60
    D+ Størrelse: Plugg
    Rotasjon: CW
    Plugg nr.: PL132
    Total lengde mm: 182,00
    Terminaltype: KOM
    Kommunikasjon: LIN
    Drevskive: SP/FW
    Regulator type: IR
    Merk: Denne dynamoen har en KOM-terminal på regulatoren. Det anbefales at OEM-nummeret brukes for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication LIN
    Mount. bracket dist. 45.00
    Belt. adj. bracket hole 1 10.50
    Belt. adj. bracket hole 2 M10
    Plug no. PL132
    Bracket hole 10.50
    Position/B+ in min. 60
    Pulley SP/FW
    Pulley dia. 54.50
    Pulley dist. 42.50
    Radius 90.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 5
    Terminal type COM
    Voltage 14
    Total length 182.00 mm
    Width/holder arm 21.00
    Amp 180
  • Kjøretøymatching

    • OEM
      A3193(VALEO), A3193PR, A3193S, A3579S, CAL15030, CAL15471, DRA0597, F032115475, FG18S027, FG18S095, FG18T 112, FG18T112, FGN18S095, K9803750980, LRA03626, SU001-A4986, SU001A2548, SU001A4986, 8EL012430-121, 8EL015637-211, 28-6736, 229.151.1802, 1986A01262, 5702J4, 5705KR, 20650N, 20650N-OE, 115475, 200229, 209196, 209196A, 302030RI, 439779, 440275, 2543611, 2614017A, 2617908, 2617908A, 9090587, 12090303, 0986082510, 1606856980, 1609016080, 1611285780, 1612817080, 1648236080, 9663010980, 9664074280, 9678049480, 9678058480, 9803750980, 9810527180

    • Konkurrentreferens
      A3193(VALEO), A3193PR, A3193S, A3579S, CAL15030, CAL15471, DRA0597, LRA03626, 8EL012430-121, 8EL015637-211, 28-6736, 229.151.1802, 5702J4, 5705KR, 20650N, 20650N-OE, 200229, 209196, 209196A, 302030RI, 439779, 440275, 9090587, 12090303, 0986082510

    • Bilmärken
      CITROËN, DS, FIAT, PEUGEOT, TOYOTA

    • NormaliseratArtNr
      a3193pr, a3193s, a3193valeo, a3579s, cal15030, cal15471, dra0597, f032115475, fg18s027, fg18s095, fg18t112, fgn18s095, k9803750980, lra03626, su001a2548, su001a4986, 8el012430121, 8el015637211, 1986a01262, 5702j4, 5705kr, 20650n, 20650noe, 115475, 200229, 209196, 209196a, 286736, 302030ri, 439779, 440275, 2543611, 2614017a, 2617908, 2617908a, 9090587, 12090303, 0986082510, 1606856980, 1609016080, 1611285780, 1612817080, 1648236080, 2291511802, 9663010980, 9664074280, 9678049480, 9678058480, 9803750980, 9810527180

    • Passar modeller
      CITROËN BERLINGO (ER_, EC_) 1.6 HDi 92 Engine volume: 1.6 Engine type: 9HP (DV6DTED), BHN (DV6DR) Year: 09.18-
      CITROËN BERLINGO Flak/chassi (B9) 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 12.14-04.21
      CITROËN BERLINGO Flak/chassi (B9) 1.6 HDi 90 Engine volume: 1.6 Engine type: 9HF (DV6DTED) Year: 07.10-12.18
      CITROËN BERLINGO Flak/chassi (B9) 1.6 HDi 92 Engine volume: 1.6 Engine type: 9HJ (DV6DTEDM) Year: 07.10-12.17
      CITROËN BERLINGO MULTISPACE (B9) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 12.14-08.18
      CITROËN BERLINGO MULTISPACE (B9) 1.6 HDi 110 Engine volume: 1.6 Engine type: 9HL (DV6C), 9HR (DV6C) Year: 07.10-12.18
      CITROËN BERLINGO MULTISPACE (B9) 1.6 HDi 115 4x4 Engine volume: 1.6 Engine type: 9HR (DV6C) Year: 02.12-12.18
      CITROËN BERLINGO MULTISPACE (B9) 1.6 HDi 115 Engine volume: 1.6 Engine type: 9HR (DV6C) Year: 07.10-12.18
      CITROËN BERLINGO MULTISPACE (B9) 1.6 HDi 75 / BlueHDi 75 Engine volume: 1.6 Engine type: 9HN (DV6ETED), BHW (DV6FE) Year: 04.08-04.20
      CITROËN BERLINGO MULTISPACE (B9) 1.6 HDi 90 4x4 Engine volume: 1.6 Engine type: 9HF (DV6DTED) Year: 02.12-12.14
      CITROËN BERLINGO MULTISPACE (B9) 1.6 HDi 90 Engine volume: 1.6 Engine type: 9HP (DV6DTED), 9HJ (DV6DTEDM) Year: 07.10-12.18
      CITROËN BERLINGO Skåpbil/minivan (B9) 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 12.14-04.21
      CITROËN BERLINGO Skåpbil/minivan (B9) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 12.14-08.18
      CITROËN BERLINGO Skåpbil/minivan (B9) 1.6 HDi 110 Engine volume: 1.6 Engine type: 9HL (DV6C), 9HR (DV6C) Year: 07.10-12.18
      CITROËN BERLINGO Skåpbil/minivan (B9) 1.6 HDi 115 4x4 Engine volume: 1.6 Engine type: DV6CTED Year: 02.12-12.18
      CITROËN BERLINGO Skåpbil/minivan (B9) 1.6 HDi 115 Engine volume: 1.6 Engine type: 9HL (DV6C) Year: 07.10-12.18
      CITROËN BERLINGO Skåpbil/minivan (B9) 1.6 HDi 75 4x4 Engine volume: 1.6 Engine type: 9HN (DV6ETED) Year: 02.12-12.18
      CITROËN BERLINGO Skåpbil/minivan (B9) 1.6 HDi 90 4x4 Engine volume: 1.6 Engine type: 9HF (DV6DTED) Year: 02.12-12.14
      CITROËN BERLINGO Skåpbil/minivan (B9) 1.6 HDi 90 Engine volume: 1.6 Engine type: 9HF (DV6DTED) Year: 07.10-12.17
      CITROËN BERLINGO Skåpbil/minivan (B9) 1.6 HDi 90 Engine volume: 1.6 Engine type: 9HP (DV6DTED), 9HJ (DV6DTEDM) Year: 07.10-12.18
      CITROËN C3 AIRCROSS II (2R_, 2C_) 1.6 BlueHDi 100 (2CBHYB) Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 07.17-08.18
      CITROËN C3 AIRCROSS II (2R_, 2C_) 1.6 BlueHDi 120 (2CBHZH) Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 07.17-05.18
      CITROËN C3 AIRCROSS II Van (2R_, 2C_) 1.6 BlueHDI 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 05.19-
      CITROËN C3 II Skåpbil/halvkombi (SC_) 1.6 BlueHDi Engine volume: 1.6 Engine type: BHW (DV6FE) Year: 03.15-09.16
      CITROËN C4 GRAND PICASSO I (UA_) 1.6 HDi 110 Engine volume: 1.6 Engine type: 9HR (DV6C) Year: 09.10-08.13
      CITROËN C4 GRAND PICASSO I (UA_) 2.0 HDi 150 Engine volume: 2.0 Engine type: RHE (DW10CTED4) Year: 07.09-08.13
      CITROËN C4 GRAND PICASSO I (UA_) 2.0 HDi 165 Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 09.10-08.13
      CITROËN C4 GRAND PICASSO II (DA_, DE_) 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 01.15-04.16
      CITROËN C4 GRAND PICASSO II (DA_, DE_) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 07.14-12.18
      CITROËN C4 GRAND PICASSO II (DA_, DE_) 1.6 HDi / BlueHDi 115 Engine volume: 1.6 Engine type: 9HC (DV6C), BHX (DV6FC) Year: 09.13-03.18
      CITROËN C4 GRAND PICASSO II (DA_, DE_) 1.6 HDi 90 Engine volume: 1.6 Engine type: 9HP (DV6DTED) Year: 09.13-
      CITROËN C4 II (NC_) 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 07.14-05.18
      CITROËN C4 II (NC_) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 02.15-05.18
      CITROËN C4 II (NC_) 1.6 HDi 110 Engine volume: 1.6 Engine type: 9HR (DV6C) Year: 11.09-
      CITROËN C4 II (NC_) 1.6 HDi 115 Engine volume: 1.6 Engine type: 9HD (DV6C) Year: 07.12-
      CITROËN C4 II (NC_) 1.6 HDi 90 Engine volume: 1.6 Engine type: 9HP (DV6DTED), 9HJ (DV6DTEDM) Year: 11.09-
      CITROËN C4 II (NC_) 2.0 HDi / BlueHDi 150 Engine volume: 2.0 Engine type: AHR (DW10FD), RHE (DW10CTED4) Year: 11.09-
      CITROËN C4 II (NC_) 2.0 HDi / BlueHDi 160 Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 10.10-
      CITROËN C4 II Skåpbil/halvkombi (NC_) 1.6 BlueHDi Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 07.14-
      CITROËN C4 II Skåpbil/halvkombi (NC_) 1.6 BlueHDi Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 02.15-
      CITROËN C4 II Skåpbil/halvkombi (NC_) 1.6 HDi Engine volume: 1.6 Engine type: 9HP (DV6DTED) Year: 06.10-
      CITROËN C4 II Skåpbil/halvkombi (NC_) 1.6 HDi Engine volume: 1.6 Engine type: 9HR (DV6C) Year: 11.09-
      CITROËN C4 PICASSO I Minivan (UD_) 1.6 HDi 110 Engine volume: 1.6 Engine type: 9HR (DV6C) Year: 09.10-08.13
      CITROËN C4 PICASSO I Minivan (UD_) 2.0 HDi 150 Engine volume: 2.0 Engine type: RHE (DW10CTED4) Year: 07.09-08.13
      CITROËN C4 PICASSO I Minivan (UD_) 2.0 HDi 165 Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 09.10-08.13
      CITROËN C4 PICASSO II 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 12.14-12.18
      CITROËN C4 PICASSO II 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 07.14-12.18
      CITROËN C4 PICASSO II 1.6 HDi / BlueHDi 115 Engine volume: 1.6 Engine type: 9HC (DV6C), BHX (DV6FC) Year: 02.13-03.18
      CITROËN C4 PICASSO II 1.6 HDi 90 Engine volume: 1.6 Engine type: 9HP (DV6DTED) Year: 02.13-
      CITROËN C4 PICASSO II Van (DD_) e-HDi (DD9HC8, DD9HCT) Engine volume: 1.6 Engine type: 9HC (DV6C) Year: 02.13-
      CITROËN C4 PICASSO II Van (DD_) HDi / e-HDi (DD9HP0, DD9HPT) Engine volume: 1.6 Engine type: 9HP (DV6DTED) Year: 02.13-
      CITROËN C4 SPACETOURER (3D_) 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 04.18-04.19
      CITROËN C4 SPACETOURER (3D_) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 04.18-04.19
      CITROËN C5 III (RD_) 1.6 HDi 110 (RD9HL0, RD9HR8, RD9HRA) Engine volume: 1.6 Engine type: 9HL (DV6C), 9HR (DV6C) Year: 07.10-05.12
      CITROËN C5 III (RD_) 1.6 HDi 115 (RD9HRA, RD9HLA, RD9HL0) Engine volume: 1.6 Engine type: 9HL (DV6C), 9HR (DV6C) Year: 01.12-06.15
      CITROËN C5 III (RD_) 2.0 HDi (RDRHD8, RDRHDJ, RDRHR8, RDRHRJ) Engine volume: 2.0 Engine type: RHR (DW10BTED4), RHD (DW10CTED4), RHF (DW10BTED4) Year: 02.08-06.14
      CITROËN C5 III (RD_) 2.0 HDi 140 (RDRHF8, RDRHFA, RDRHA8, RDRHAJ) Engine volume: 2.0 Engine type: RHA (DW10CTED4), RHF (DW10BTED4) Year: 11.08-06.15
      CITROËN C5 III (RD_) 2.0 HDi 150 / BlueHDi 150 (RDRHEA, RDRHE8, RDAHRM,... Engine volume: 2.0 Engine type: AHR (DW10FD), RHE (DW10CTED4), AHX (DW10FD) Year: 04.09-05.17
      CITROËN C5 III (RD_) 2.0 HDi 165 (RDRHHA, RDRHH8) Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 04.09-07.16
      CITROËN C5 III (RD_) 2.2 HDi 200 (RD4HLA) Engine volume: 2.2 Engine type: 4HL (DW12C) Year: 07.10-06.15
      CITROËN C5 III Break (RW_) 1.6 HDi 110 Engine volume: 1.6 Engine type: 9HL (DV6C), 9HR (DV6C) Year: 07.10-05.12
      CITROËN C5 III Break (RW_) 1.6 HDi 115 Engine volume: 1.6 Engine type: 9HL (DV6C), 9HR (DV6C) Year: 06.12-06.15
      CITROËN C5 III Break (RW_) 2.0 HDi 140 Engine volume: 2.0 Engine type: RHA (DW10CTED4), RHF (DW10BTED4) Year: 04.09-06.15
      CITROËN C5 III Break (RW_) 2.0 HDi 150 / BlueHDi 150 (RWRHEJ, RWRHE8) Engine volume: 2.0 Engine type: AHR (DW10FD), RHE (DW10CTED4) Year: 04.09-05.17
      CITROËN C5 III Break (RW_) 2.0 HDi 165 Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 04.09-07.16
      CITROËN C5 III Break (RW_) 2.0 HDi Engine volume: 2.0 Engine type: RHR (DW10BTED4), RHD (DW10CTED4) Year: 02.08-06.14
      CITROËN C5 III Break (RW_) 2.2 HDi 200 Engine volume: 2.2 Engine type: 4HL (DW12C) Year: 07.10-06.15
      CITROËN C8 (EA_, EB_) 2.0 HDi 135 Engine volume: 2.0 Engine type: RHD (DW10CB), RHR (DW10BTED4), RHD (DW10CTED4) Year: 03.06-
      CITROËN C8 (EA_, EB_) 2.0 HDi 165 Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 03.06-
      CITROËN DS4 (NX_) 1.6 HDi 110 Engine volume: 1.6 Engine type: 9HR (DV6C) Year: 04.11-07.15
      CITROËN DS4 (NX_) 1.6 HDi 115 Engine volume: 1.6 Engine type: 9HD (DV6C) Year: 08.12-07.15
      CITROËN DS4 (NX_) 1.6 HDi 90 Engine volume: 1.6 Engine type: 9HP (DV6DTED) Year: 05.11-07.15
      CITROËN DS4 (NX_) 2.0 HDi / BlueHDi 135 Engine volume: 2.0 Engine type: RHD (DW10CB), AHV (DW10FD), RHD (DW10CTED4), AHS (DW10FD) Year: 09.11-07.15
      CITROËN DS4 (NX_) 2.0 HDi 165 Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 04.11-07.15
      CITROËN DS5 2.0 HDi 135 Engine volume: 2.0 Engine type: RHD (DW10CB) Year: 11.11-07.15
      CITROËN DS5 2.0 HDi 165 Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 11.11-07.15
      CITROËN GRAND C4 SPACETOURER (3A_, 3E_) 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 04.18-04.19
      CITROËN GRAND C4 SPACETOURER (3A_, 3E_) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 04.18-08.18
      CITROËN GRAND C4 SPACETOURER (3A_, 3E_) 1.6 HDi 115 Engine volume: 1.6 Engine type: 9HC (DV6C) Year: 04.18-
      CITROËN JUMPY II (VF7) 1.6 HDi 90 8V Engine volume: 1.6 Engine type: 9HH (DV6DUM), 9HM (DV6UC) Year: 01.07-03.16
      CITROËN JUMPY II (VF7) 2.0 HDi 125 Engine volume: 2.0 Engine type: AHZ (DW10CD) Year: 07.11-03.16
      CITROËN JUMPY II (VF7) 2.0 HDi 165 Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 07.10-03.16
      CITROËN JUMPY II (VF7) 2.0 HDi 95 Engine volume: 2.0 Engine type: AHY (DW10CE) Year: 07.11-03.16
      CITROËN JUMPY II Flak/chassi 2.0 HDI (X_RHH) Engine volume: 2.0 Year: 07.10-03.16
      CITROËN JUMPY II Flak/chassi 2.0 HDI 100 (X_AHY) Engine volume: 2.0 Engine type: AHY (DW10CE) Year: 07.11-03.16
      CITROËN JUMPY II Flak/chassi 2.0 HDi 125 Engine volume: 2.0 Engine type: AHZ (DW10CD) Year: 07.11-
      CITROËN JUMPY II Skåp 1.6 HDi 90 8V Engine volume: 1.6 Engine type: 9HH (DV6DUM), 9HM (DV6UC) Year: 01.07-03.16
      CITROËN JUMPY II Skåp 2.0 HDi 125 4x4 Engine volume: 2.0 Engine type: AHZ (DW10CD) Year: 07.11-03.16
      CITROËN JUMPY II Skåp 2.0 HDi 125 Engine volume: 2.0 Engine type: AHZ (DW10CD) Year: 07.11-03.16
      CITROËN JUMPY II Skåp 2.0 HDi 165 Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 07.10-03.16
      CITROËN JUMPY II Skåp 2.0 HDi 95 Engine volume: 2.0 Engine type: AHY (DW10CE) Year: 07.11-03.16
      CITROËN JUMPY III Buss (V_) 1.6 BlueHDi 115 Engine volume: 1.6 Engine type: BHX (DV6FCU) Year: 04.16-06.22
      CITROËN JUMPY III Buss (V_) 1.6 BlueHDi 95 Engine volume: 1.6 Engine type: BHS (DV6FDU) Year: 04.16-
      CITROËN JUMPY III Flak/chassi (V_) 1.6 BlueHDi 95 Engine volume: 1.6 Engine type: BHV (DV6FDU), BHS (DV6FDU) Year: 09.16-04.20
      CITROËN JUMPY III Skåp (V_) 1.6 BlueHDi 115 Engine volume: 1.6 Engine type: BHX (DV6FCU) Year: 04.16-06.22
      CITROËN JUMPY III Skåp (V_) 1.6 BlueHDi 90 Engine volume: 1.6 Engine type: 9HF (DV6DU) Year: 09.18-
      CITROËN JUMPY III Skåp (V_) 1.6 BlueHDi 95 Engine volume: 1.6 Engine type: BHV (DV6FDU), BHS (DV6FDU) Year: 04.16-04.20
      CITROËN SPACETOURER Buss (V_) 1.6 BlueHDi 115 Engine volume: 1.6 Engine type: BHX (DV6FCU) Year: 04.16-04.19
      CITROËN SPACETOURER Buss (V_) 1.6 BlueHDi 95 Engine volume: 1.6 Engine type: BHV (DV6FDU), BHS (DV6FDU) Year: 04.16-04.19
      CITROËN SPACETOURER Buss (V_) 1.6 HDi 90 Engine volume: 1.6 Engine type: 9HF (DV6DU) Year: 07.18-
      DS DS 4 / DS 4 CROSSBACK (NX_) 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 04.16-12.18
      DS DS 5 (KF_) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 06.15-12.18
      FIAT SCUDO Buss (270_, 272_) 2.0 D Multijet Engine volume: 2.0 Engine type: RH02 Year: 04.11-03.16
      FIAT SCUDO Buss (270_, 272_) 2.0 D Multijet Engine volume: 2.0 Engine type: RH02, RHH Year: 07.10-03.16
      FIAT SCUDO Skåp (270_, 272_) 2.0 D Multijet 4x4 Engine volume: 2.0 Engine type: RH02 Year: 05.11-03.16
      FIAT SCUDO Skåp (270_, 272_) 2.0 D Multijet Engine volume: 2.0 Engine type: RH02 Year: 05.11-03.16
      FIAT SCUDO Skåp (270_, 272_) 2.0 D Multijet Engine volume: 2.0 Engine type: RH02, RHH Year: 07.10-03.16
      PEUGEOT 3008 I Minivan (0U_) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 05.14-08.16
      PEUGEOT 3008 I Minivan (0U_) 1.6 HDi 115 / BlueHDi 115 Engine volume: 1.6 Engine type: 9HC (DV6C), BHX (DV6FC) Year: 02.13-08.16
      PEUGEOT 3008 I Minivan (0U_) 1.6 HDi Engine volume: 1.6 Engine type: 9HD (DV6CTED) Year: 03.13-08.16
      PEUGEOT 3008 I Minivan (0U_) 1.6 HDi Engine volume: 1.6 Engine type: 9HR (DV6C) Year: 12.09-08.16
      PEUGEOT 3008 I Minivan (0U_) 2.0 HDi 150 / BlueHDi 150 Engine volume: 2.0 Engine type: RHE (DW10CTED4), AHX (DW10FD) Year: 06.09-08.16
      PEUGEOT 3008 I Minivan (0U_) 2.0 HDi Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 06.09-08.16
      PEUGEOT 3008 II SUV (MC_, MR_, MJ_, M4_) 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 11.16-12.19
      PEUGEOT 3008 II SUV (MC_, MR_, MJ_, M4_) 1.6 BlueHDi 115 (MCBHXW, MCBHYB) Engine volume: 1.6 Engine type: BHX (DV6FC) Year: 11.16-12.19
      PEUGEOT 3008 II SUV (MC_, MR_, MJ_, M4_) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 05.16-12.19
      PEUGEOT 3008 Van (0U_) HDi (0URHHT) Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 06.09-08.16
      PEUGEOT 3008 Van (0U_) HDi 150 (0URHEM) Engine volume: 2.0 Engine type: RHE (DW10CTED4) Year: 06.09-08.16
      PEUGEOT 308 CC (4B_) 1.6 HDi Engine volume: 1.6 Engine type: 9HD (DV6C) Year: 03.13-12.14
      PEUGEOT 308 CC (4B_) 1.6 HDi Engine volume: 1.6 Engine type: 9HR (DV6C) Year: 06.09-12.14
      PEUGEOT 308 CC (4B_) 2.0 HDi (4BRHRH, 4BRHRJ) Engine volume: 2.0 Engine type: RHR (DW10BTED4), RHR (DW10CB) Year: 04.09-12.14
      PEUGEOT 308 CC (4B_) 2.0 HDi Engine volume: 2.0 Engine type: RHF (DW10BTED4) Year: 04.09-12.12
      PEUGEOT 308 CC (4B_) 2.0 HDi Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 06.09-12.14
      PEUGEOT 308 I (4A_, 4C_) 1.6 HDi Engine volume: 1.6 Engine type: 9HD (DV6C), 9HG (DV6C M) Year: 03.13-10.14
      PEUGEOT 308 I (4A_, 4C_) 1.6 HDi Engine volume: 1.6 Engine type: 9HP (DV6DTED), 9HJ (DV6DTEDM) Year: 11.09-10.14
      PEUGEOT 308 I (4A_, 4C_) 1.6 HDi Engine volume: 1.6 Engine type: 9HR (DV6C) Year: 12.09-10.14
      PEUGEOT 308 I (4A_, 4C_) 2.0 HDi Engine volume: 2.0 Engine type: RHE (DW10CTED4) Year: 10.11-10.14
      PEUGEOT 308 I (4A_, 4C_) 2.0 HDi Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 04.12-10.14
      PEUGEOT 308 I (4A_, 4C_) 2.0 HDi Engine volume: 2.0 Engine type: RHR (DW10BTED4) Year: 07.10-12.12
      PEUGEOT 308 I (4A_, 4C_) 2.0 HDi Engine volume: 2.0 Engine type: RHR (DW10BTED4), RHR (DW10CB) Year: 09.07-10.14
      PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 11.13-06.21
      PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 1.6 HDi / BlueHDi 115 Engine volume: 1.6 Engine type: 9HC (DV6C), BHX (DV6FC), BHZ (DV6FC) Year: 09.13-06.21
      PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 1.6 HDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 04.14-06.21
      PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) 1.6 HDi Engine volume: 1.6 Engine type: 9HP (DV6DTED) Year: 09.13-06.21
      PEUGEOT 308 Skåpbil/halvkombi (LB_) 1.6 BlueHDi 120 (LBBHZM) Engine volume: 1.6 Engine type: BHX (DV6FC) Year: 03.15-06.21
      PEUGEOT 308 SW I (4E_, 4H_) 1.6 HDi Engine volume: 1.6 Engine type: 9HD (DV6C) Year: 03.13-10.14
      PEUGEOT 308 SW I (4E_, 4H_) 1.6 HDi Engine volume: 1.6 Engine type: 9HP (DV6DTED) Year: 11.09-10.14
      PEUGEOT 308 SW I (4E_, 4H_) 1.6 HDi Engine volume: 1.6 Engine type: 9HR (DV6C) Year: 12.09-10.14
      PEUGEOT 308 SW I (4E_, 4H_) 2.0 HDi Engine volume: 2.0 Engine type: RHE (DW10CTED4) Year: 04.11-10.14
      PEUGEOT 308 SW I (4E_, 4H_) 2.0 HDi Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 06.09-10.14
      PEUGEOT 308 SW I (4E_, 4H_) 2.0 HDi Engine volume: 2.0 Engine type: RHR (DW10BTED4) Year: 09.07-10.14
      PEUGEOT 308 SW I (4E_, 4H_) 2.0 HDi Engine volume: 2.0 Engine type: RHR (DW10BTED4) Year: 09.07-12.12
      PEUGEOT 308 SW I Skåp / kombi (4E_) 2.0 HDi Engine volume: 2.0 Engine type: RHR (DW10BTED4) Year: 01.08-12.11
      PEUGEOT 308 SW II (LC_) 1.6 BlueHDi Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 04.14-06.21
      PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 04.14-06.21
      PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 03.14-06.21
      PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 HDi / BlueHDi 115 (LCBHXM, LCBHXT) Engine volume: 1.6 Engine type: 9HC (DV6C), BHX (DV6FC), BHZ (DV6FC) Year: 03.14-06.21
      PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 HDi 92 Engine volume: 1.6 Engine type: 9HP (DV6DTED) Year: 03.14-06.21
      PEUGEOT 407 (6D_) 2.0 HDi (6DRHHA) Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 06.09-12.10
      PEUGEOT 407 Coupé (6C_) 2.0 HDi Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 06.09-
      PEUGEOT 407 SW (6E_, 6D_) 2.0 HDi Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 06.09-12.10
      PEUGEOT 407 SW Skåp / kombi (6E_) 2.0 HDi Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 06.09-12.10
      PEUGEOT 5008 (0U_, 0E_) 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 05.14-03.17
      PEUGEOT 5008 (0U_, 0E_) 1.6 HDi Engine volume: 1.6 Engine type: 9HD (DV6C) Year: 03.13-03.17
      PEUGEOT 5008 (0U_, 0E_) 1.6 HDi Engine volume: 1.6 Engine type: 9HR (DV6C) Year: 08.10-03.17
      PEUGEOT 5008 (0U_, 0E_) 2.0 HDi 136 / BlueHDi 136 Engine volume: 2.0 Engine type: RHD (DW10CB), RHD (DW10CTED4), AHV (DW10FD) Year: 02.12-03.17
      PEUGEOT 5008 (0U_, 0E_) 2.0 HDi 150 / BlueHDi 150 Engine volume: 2.0 Engine type: RHE (DW10CTED4), AHX (DW10FD) Year: 06.09-03.17
      PEUGEOT 5008 (0U_, 0E_) 2.0 HDi Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 09.09-03.17
      PEUGEOT 5008 I Van (0U_) HDi (0U9HR8) Engine volume: 1.6 Engine type: 9HR (DV6C) Year: 08.10-03.17
      PEUGEOT 5008 I Van (0U_) HDi / e-HDi (0U9HD8, 0U9HDA) Engine volume: 1.6 Engine type: 9HD (DV6C) Year: 03.13-03.17
      PEUGEOT 5008 I Van (0U_) HDi 136 (0URHEM) Engine volume: 2.0 Engine type: RHE (DW10CTED4) Year: 02.12-03.17
      PEUGEOT 5008 I Van (0U_) HDi 150 (0URHEM) Engine volume: 2.0 Engine type: RHE (DW10CTED4) Year: 06.09-03.17
      PEUGEOT 5008 I Van (0U_) HDi 165 (0URHHT) Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 06.09-03.17
      PEUGEOT 5008 II (MC_, MJ_, MR_, M4_) 1.6 BlueHDi 100 (MCBHYB) Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 12.16-
      PEUGEOT 5008 II (MC_, MJ_, MR_, M4_) 1.6 BlueHDi 115 (MCBHXH, MCBHXW) Engine volume: 1.6 Engine type: BHX (DV6FC) Year: 12.16-11.19
      PEUGEOT 5008 II (MC_, MJ_, MR_, M4_) 1.6 BlueHDi 120 (MCBHZH, MCBHZW) Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 12.16-11.19
      PEUGEOT 508 I (8D_) 1.6 HDi Engine volume: 1.6 Engine type: 9HD (DV6CTED) Year: 02.12-12.18
      PEUGEOT 508 I (8D_) 1.6 HDi Engine volume: 1.6 Engine type: 9HR (DV6C), 9HL (DV6C) Year: 11.10-12.18
      PEUGEOT 508 I (8D_) 2.0 HDi Engine volume: 2.0 Engine type: RHF (DW10BTED4), RHA (DW10CTED4) Year: 11.10-12.18
      PEUGEOT 508 I (8D_) 2.0 HDi Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 11.10-12.18
      PEUGEOT 508 I (8D_) 2.0 HDi Engine volume: 2.0 Engine type: RHR (DW10BTED4), AHX (DW10FD), AHV (DW10FD), AHS (DW10FD) Year: 11.10-12.18
      PEUGEOT 508 I (8D_) 2.2 HDi Engine volume: 2.2 Engine type: 4HL (DW12C) Year: 11.10-12.18
      PEUGEOT 508 SW I (8E_) 1.6 HDi Engine volume: 1.6 Engine type: 9HR (DV6C), 9HL (DV6C) Year: 02.12-12.18
      PEUGEOT 508 SW I (8E_) 1.6 HDi Engine volume: 1.6 Engine type: 9HR (DV6C), 9HL (DV6C) Year: 11.10-12.18
      PEUGEOT 508 SW I (8E_) 2.0 HDi Engine volume: 2.0 Engine type: RHF (DW10BTED4), RHA (DW10CTED4) Year: 11.10-12.18
      PEUGEOT 508 SW I (8E_) 2.0 HDi Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 11.10-12.18
      PEUGEOT 508 SW I (8E_) 2.0 HDi Engine volume: 2.0 Engine type: RHR (DW10BTED4), AHX (DW10FD), AHV (DW10FD), AHS (DW10FD) Year: 11.10-12.18
      PEUGEOT 508 SW I (8E_) 2.2 HDi Engine volume: 2.2 Engine type: 4HL (DW12C) Year: 11.10-12.18
      PEUGEOT 508 SW Skåp / kombi (8E_) 1.6 HDi Engine volume: 1.6 Engine type: 9HL (DV6C) Year: 03.13-12.18
      PEUGEOT 508 SW Skåp / kombi (8E_) 2.0 HDi Engine volume: 2.0 Engine type: RHF (DW10BTED4) Year: 03.13-12.18
      PEUGEOT 508 SW Skåp / kombi (8E_) 2.0 HDi Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 03.13-12.18
      PEUGEOT 508 SW Skåp / kombi (8E_) 2.2 HDi Engine volume: 2.2 Engine type: 4HL (DW12C) Year: 11.11-
      PEUGEOT 807 (EB_) 2.0 HDi Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 06.09-
      PEUGEOT 807 Van (EB_) 2.0 HDi Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 05.10-
      PEUGEOT EXPERT Buss (V_) 1.6 BlueHDi 115 Engine volume: 1.6 Engine type: BHX (DV6FCU) Year: 04.16-12.19
      PEUGEOT EXPERT Buss (V_) 1.6 BlueHDi 95 Engine volume: 1.6 Engine type: BHV (DV6FDU), BHS (DV6FDU) Year: 04.16-12.19
      PEUGEOT EXPERT Flak/chassi (V_) 1.6 BlueHDi 95 Engine volume: 1.6 Engine type: BHV (DV6FDU) Year: 09.16-12.19
      PEUGEOT EXPERT Flak/chassi 1.6 HDi 90 8V Engine volume: 1.6 Engine type: 9HM (DV6UC), 9HH (DV6DUM) Year: 01.07-
      PEUGEOT EXPERT Flak/chassi 2.0 HDi 130 Engine volume: 2.0 Engine type: AHZ (DW10CD) Year: 03.11-
      PEUGEOT EXPERT Flak/chassi 2.0 HDi 165 Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 09.09-
      PEUGEOT EXPERT Skåp (VF3A_, VF3U_, VF3X_) 1.6 HDi 90 8V Engine volume: 1.6 Engine type: 9HM (DV6UC), 9HH (DV6DUM) Year: 01.07-
      PEUGEOT EXPERT Skåp (VF3A_, VF3U_, VF3X_) 2.0 HDi 130 Engine volume: 2.0 Engine type: AHZ (DW10CD) Year: 03.11-
      PEUGEOT EXPERT Skåp (VF3A_, VF3U_, VF3X_) 2.0 HDi 165 Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 09.09-
      PEUGEOT EXPERT Skåp (V_) 1.6 BlueHDi 115 Engine volume: 1.6 Engine type: BHX (DV6FCU) Year: 04.16-12.19
      PEUGEOT EXPERT Skåp (V_) 1.6 BlueHDi 95 Engine volume: 1.6 Engine type: BHV (DV6FDU) Year: 04.16-12.19
      PEUGEOT EXPERT TEPEE (VF3X_) 1.6 HDi 90 8V Engine volume: 1.6 Engine type: 9HM (DV6UC), 9HH (DV6DUM) Year: 01.07-03.16
      PEUGEOT EXPERT TEPEE (VF3X_) 2.0 HDi 100 Engine volume: 2.0 Engine type: AHY (DW10CE) Year: 03.11-03.16
      PEUGEOT EXPERT TEPEE (VF3X_) 2.0 HDi 130 Engine volume: 2.0 Engine type: AHZ (DW10CD) Year: 02.12-
      PEUGEOT EXPERT TEPEE (VF3X_) 2.0 HDi 165 Engine volume: 2.0 Engine type: RHH (DW10CTED4) Year: 09.09-
      PEUGEOT PARTNER Flak/chassi 1.6 HDi Engine volume: 1.6 Engine type: 9HF (DV6DTED) Year: 03.13-
      PEUGEOT PARTNER Skåp/stor limousine (K9) 1.6 BlueHDI 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 09.18-
      PEUGEOT PARTNER Skåp/stor limousine (K9) 1.6 BlueHDI 75 Engine volume: 1.6 Engine type: BHW (DV6FE) Year: 09.18-
      PEUGEOT PARTNER Skåp/stor limousine (K9) 1.6 HDi 92 Engine volume: 1.6 Engine type: 9HP (DV6DTED), BHN (DV6DR) Year: 09.18-
      PEUGEOT PARTNER Skåpbil/minivan (5_, G_) 1.6 HDi 75 Engine volume: 1.6 Engine type: 9HK (DV6ETEDM) Year: 08.05-07.08
      PEUGEOT PARTNER Skåpbil/minivan 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 04.15-
      PEUGEOT PARTNER Skåpbil/minivan 1.6 BlueHDi 120 Engine volume: 1.6 Engine type: BHZ (DV6FC) Year: 04.15-
      PEUGEOT PARTNER Skåpbil/minivan 1.6 HDi / BlueHDi 75 Engine volume: 1.6 Engine type: 9HK (DV6ETEDM), 9HN (DV6ETED), BHW (DV6FE) Year: 07.11-
      PEUGEOT PARTNER Skåpbil/minivan 1.6 HDi 16V Engine volume: 1.6 Engine type: 9HX (DV6ATED4) Year: 04.10-
      PEUGEOT PARTNER Skåpbil/minivan 1.6 HDi 4x4 Engine volume: 1.6 Engine type: 9HD (DV6C) Year: 07.12-
      PEUGEOT PARTNER Skåpbil/minivan 1.6 HDi 90 Engine volume: 1.6 Engine type: 9HP (DV6DTED), 9HJ (DV6DTEDM) Year: 04.10-
      PEUGEOT PARTNER Skåpbil/minivan 1.6 HDi Engine volume: 1.6 Engine type: 9HF (DV6DTED) Year: 12.11-
      PEUGEOT PARTNER Skåpbil/minivan 1.6 HDi Engine volume: 1.6 Engine type: 9HL (DV6C) Year: 03.13-
      PEUGEOT PARTNER Skåpbil/minivan 1.6 HDi Engine volume: 1.6 Engine type: 9HL (DV6C) Year: 08.10-
      PEUGEOT PARTNER TEPEE 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 12.14-
      PEUGEOT PARTNER TEPEE 1.6 HDi 4x4 Engine volume: 1.6 Engine type: 9HL (DV6C) Year: 07.12-
      PEUGEOT PARTNER TEPEE 1.6 HDi 90 4x4 Engine volume: 1.6 Engine type: 9HP (DV6DTED) Year: 07.12-
      PEUGEOT PARTNER TEPEE 1.6 HDi 90 Engine volume: 1.6 Engine type: 9HP (DV6DTED), 9HJ (DV6DTEDM) Year: 04.10-
      PEUGEOT PARTNER TEPEE 1.6 HDi Engine volume: 1.6 Engine type: 9HF (DV6DTED) Year: 03.13-
      PEUGEOT PARTNER TEPEE 1.6 HDi Engine volume: 1.6 Engine type: 9HL (DV6C) Year: 03.13-
      PEUGEOT PARTNER TEPEE 1.6 HDi Engine volume: 1.6 Engine type: 9HL (DV6C) Year: 08.10-
      PEUGEOT RIFTER 1.6 BlueHDi 100 Engine volume: 1.6 Engine type: BHY (DV6FD) Year: 09.18-
      PEUGEOT RIFTER 1.6 HDi 75 / BlueHDi 75 Engine volume: 1.6 Engine type: 9HN (DV6ETED), BHW (DV6FE) Year: 09.18-
      PEUGEOT RIFTER 1.6 HDi 92 Engine volume: 1.6 Engine type: 9HP (DV6DTED), BHN (DV6DR) Year: 09.18-
      PEUGEOT TRAVELLER Buss (V_) 1.6 BlueHDi 115 Engine volume: 1.6 Engine type: BHX (DV6FCU) Year: 04.16-12.19
      PEUGEOT TRAVELLER Buss (V_) 1.6 BlueHDi 95 Engine volume: 1.6 Engine type: BHV (DV6FDU), BHS (DV6FDU) Year: 04.16-12.19
      TOYOTA PROACE VERSO Buss (MPY_) 1.6 D4d (MPY2) Engine volume: 1.6 Engine type: 3WZ-HV (DV6FCU) Year: 02.16-04.20
      TOYOTA PROACE VERSO Buss (MPY_) 1.6 D4d (MPY9) Engine volume: 1.6 Engine type: 3WZ-TV (DV6FDU) Year: 02.16-12.19
      1 / 46

Vi bruker informasjonskapsler for å gi deg den beste opplevelsen på nettstedet vårt. Du godtar bruken av informasjonskapsler ved å trykke OK og fortsette å bla gjennom nettstedet.
