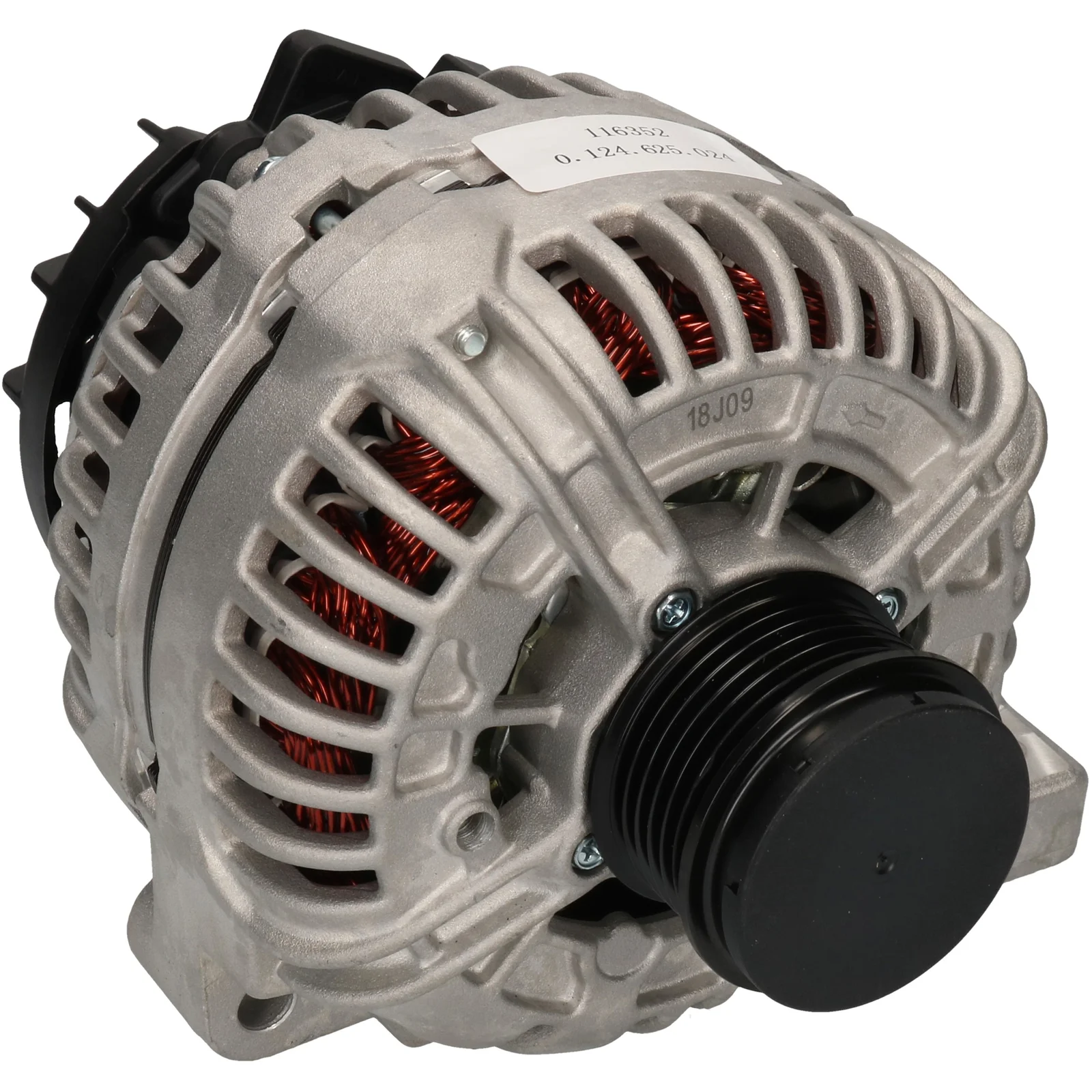

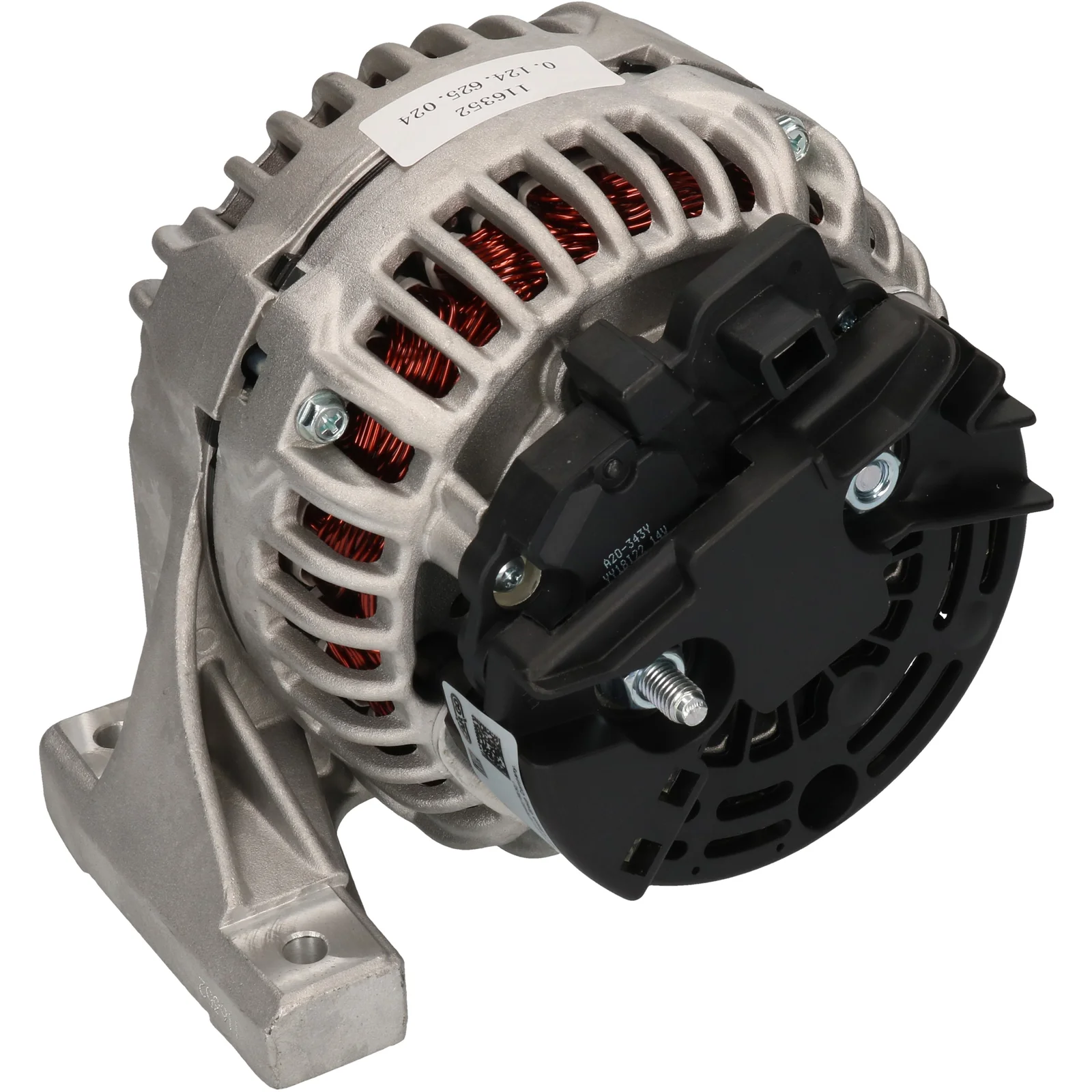

HC-Cargo Dynamo
- Dynamo
-
HC-Cargo Dynamo
Varenr.: F032116352
HC-Cargo Dynamo
Spennings: 14, Amp: 160, Rotasjon: CCW, Montasjehengselsavstand: 82,00
Beskrivelse
Generator 12V-160A passer for Volvo LIN 12V - 160A , 6gr.frg, (LIN) ID-kode : 88 12V - 160A , 6gr.frg, (LIN) For Yourex produktordre 90-600-4750
Spenningsnivå: 14
Ampere: 160
Bøssing av remskive: 44.00
Bredde/holderarm: 20.00
Festeanordning av festebrakett avstand: 82.00
Brakettåpning: 8.50
Brakettåpning 2: 8.50
Beltetilpasset brakettåpning posisjon: 60
Beltetilpasset brakettåpning 1: M8
Remskivens diameter: 56.00
Riller/remskive: 6
Radius: 92.00
Radius 2: 89.00
B+: M8
Posisjon/B+ i min.: 25
Rotasjon: Mot klokken
Støpselets nummer: PL150
Total lengde mm: 196.00
Klemme-type: COM
Kommunikasjon: LIN
Remskive: SP/FW
Vifte: IF
Regulator-type: IR
Merknader: Denne Generatoren har en COM-terminal på spolen. Det anbefales å bruke OEM-nummeret for å sjekke egnetheten før bestilling.
Filer
Spesifikasjon
| B+ | M8 |
|---|---|
| Communication | LIN |
| Mount. bracket dist. | 82.00 |
| Belt. adj. bracket hole 1 | M8 |
| Belt. adj. brackethole pos. | 60 |
| Plug no. | PL150 |
| Bracket hole | 8.50 |
| Bracket hole 2 | 8.50 |
| Position/B+ in min. | 25 |
| Pulley | SP/FW |
| Pulley dia. | 56.00 |
| Pulley dist. | 44.00 |
| Radius | 92.00 |
| Radius 2 | 89.00 |
| Regulator type | IR |
| Remarks | This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering. |
| Rotation | CCW |
| Fan | IF |
| Grooves/pulley | 6 |
| Terminal type | COM |
| Voltage | 14 |
| Total length | 196.00 mm |
| Width/holder arm | 20.00 |
| Amp | 160 |
-
OEM
A0430, A0737S, CAL10358, DRB7510, F032116352, LRA03119, 8EL012426-331, 8EL738212-431, 28-5731, 28-6979, 0124 625 024, 238.144.1602, 815.518.160, 0986 047 500, 1986A00953, 11081, 111841, 116352, 209055, 209055A, 302028RI, 444301, 8603264, 8603265, 8603266, 9047500, 12047500, 12047510, 30658086, 30658087, 30658088, 30667788, 30667893, 30667895, 32047500, 36050266, 36050269, 0124625024, 0124625025, 0124625209, 0986047500, 0986047503, 0986047507, 0986047510 -
Konkurrentreferens
A0430, A0737S, CAL10358, drb7500, DRB7510, LRA03119, 8EL012426-331, 8EL738212-431, 28-5731, 28-6979, 238.144.1602, 815.518.160, 11081, 111841, 209055, 209055A, 302028RI, 444301, 9047500, 12047500, 12047510, 32047500, 0986047500, 0986047503, 0986047507, 0986047510 -
Bilmärken
VOLVO -
NormaliseratArtNr
a0430, a0737s, cal10358, drb7510, f032116352, lra03119, 8el012426331, 8el738212431, 1986a00953, 11081, 111841, 116352, 209055, 209055a, 285731, 286979, 302028ri, 444301, 8603264, 8603265, 8603266, 9047500, 12047500, 12047510, 30658086, 30658087, 30658088, 30667788, 30667893, 30667895, 32047500, 36050266, 36050269, 0124625024, 0124625025, 0124625209, 815518160, 0986047500, 0986047503, 0986047507, 0986047510, 2381441602 -
Passar modeller
VOLVO S60 I (384) 2.0 T Engine volume: 2.0 Engine type: B 5204 T5 Year: 07.00-04.10 VOLVO S60 I (384) 2.4 Bifuel (CNG) Engine volume: 2.4 Engine type: B 5244 SG, B 5244 SG2 Year: 07.01-04.10 VOLVO S60 I (384) 2.4 Bifuel (LPG) Engine volume: 2.4 Engine type: B 5244 SG2 Year: 07.01-04.10 VOLVO S60 I (384) 2.4 D Engine volume: 2.4 Engine type: D 5244 T2 Year: 05.01-04.10 VOLVO S60 I (384) 2.4 D Engine volume: 2.4 Engine type: D 5244 T6 Year: 05.05-12.06 VOLVO S60 I (384) 2.4 D Engine volume: 2.4 Engine type: D 5244 T7 Year: 03.05-04.10 VOLVO S60 I (384) 2.4 Engine volume: 2.4 Engine type: B 5244 S Year: 11.00-04.10 VOLVO S60 I (384) 2.4 Engine volume: 2.4 Engine type: B 5244 S2 Year: 07.00-04.10 VOLVO S60 I (384) 2.4 Engine volume: 2.4 Engine type: B 5244 T4 Year: 01.05-10.06 VOLVO S60 I (384) 2.5 T AWD Engine volume: 2.5 Engine type: B 5254 T2 Year: 07.02-04.10 VOLVO S60 I (384) 2.5 T Engine volume: 2.5 Engine type: B 5254 T2 Year: 01.03-04.10 VOLVO S60 I (384) D5 Engine volume: 2.4 Engine type: D 5244 T4 Year: 03.05-04.10 VOLVO S60 I (384) D5 Engine volume: 2.4 Engine type: D 5244 T5, D 5244 T Year: 01.01-04.10 VOLVO S60 I (384) R 2,5 T AWD Engine volume: 2.5 Engine type: B 5254 T4 Year: 01.03-04.10 VOLVO S60 I (384) T5 Engine volume: 2.4 Engine type: B 5244 T5 Year: 04.04-04.10 VOLVO S80 I (184) 2.0 T Engine volume: 2.0 Engine type: B 5204 T5 Year: 12.99-07.06 VOLVO S80 I (184) 2.3 R Engine volume: 2.3 Engine type: B 5234 T7 Year: 04.00-08.05 VOLVO S80 I (184) 2.4 Bifuel (CNG) Engine volume: 2.4 Engine type: B 5244 SG2 Year: 09.01-07.06 VOLVO S80 I (184) 2.4 Bifuel (LPG) Engine volume: 2.4 Engine type: B 5244 SG Year: 09.01-07.06 VOLVO S80 I (184) 2.5 T AWD Engine volume: 2.5 Engine type: B 5254 T2 Year: 07.03-07.06 VOLVO S80 I (184) 2.5 T Engine volume: 2.5 Engine type: B 5254 T2 Year: 03.03-07.06 VOLVO S80 I (184) 2.9 Engine volume: 2.9 Engine type: B 6294 S2 Year: 05.98-02.08 VOLVO V70 II (285) 2.0 T Engine volume: 2.0 Engine type: B 5204 T5 Year: 11.99-08.07 VOLVO V70 II (285) 2.4 Bifuel (CNG) Engine volume: 2.4 Engine type: B 5244 SG, B 5244 SG2 Year: 09.01-08.07 VOLVO V70 II (285) 2.4 Bifuel (LPG) Engine volume: 2.4 Engine type: B 5244 SG2 Year: 09.01-08.07 VOLVO V70 II (285) 2.4 CDI Engine volume: 2.4 Engine type: D 5244 T6 Year: 07.05-12.08 VOLVO V70 II (285) 2.4 D Engine volume: 2.4 Engine type: D 5244 T2 Year: 07.01-08.07 VOLVO V70 II (285) 2.4 D Engine volume: 2.4 Engine type: D 5244 T7 Year: 04.05-12.08 VOLVO V70 II (285) 2.4 Engine volume: 2.4 Engine type: B 5244 S Year: 03.00-08.07 VOLVO V70 II (285) 2.5 T AWD Engine volume: 2.5 Engine type: B 5254 T2 Year: 07.02-08.07 VOLVO V70 II (285) 2.5 T Engine volume: 2.5 Engine type: B 5254 T2 Year: 07.01-08.07 VOLVO V70 II (285) D5 AWD Engine volume: 2.4 Engine type: D 5244 T4 Year: 05.05-08.07 VOLVO V70 II (285) D5 AWD Engine volume: 2.4 Engine type: D 5244 T5, D 5244 T, D 5244 T2 Year: 07.02-08.07 VOLVO V70 II (285) D5 Engine volume: 2.4 Engine type: D 5244 T5, D 5244 T, D 5244 T2 Year: 01.01-12.08 VOLVO V70 II (285) R 2,5 T AWD Engine volume: 2.5 Engine type: B 5254 T4 Year: 03.03-08.07 VOLVO V70 II (285) T5 Engine volume: 2.4 Engine type: B 5244 T5 Year: 04.04-08.07 VOLVO XC70 I Cross Country (295) 2.5 T XC AWD Engine volume: 2.5 Engine type: B 5254 T2 Year: 09.02-08.07 VOLVO XC70 I Cross Country (295) D5 AWD Engine volume: 2.4 Engine type: D 5244 T4 Year: 12.05-08.07 VOLVO XC70 I Cross Country (295) D5 XC AWD Engine volume: 2.4 Engine type: D 5244 T Year: 09.02-08.07 VOLVO XC90 I (275) 2.5 AWD Engine volume: 2.5 Engine type: B 5254 T2 Year: 06.02-12.14 VOLVO XC90 I (275) 2.5 Engine volume: 2.5 Engine type: B 5254 T2 Year: 01.03-12.06 VOLVO XC90 I (275) 2.5 T AWD Engine volume: 2.5 Engine type: B 5254 T2 Year: 10.02-09.14 VOLVO XC90 I (275) D3 / D5 Engine volume: 2.4 Engine type: D 5244 T5 Year: 04.09-12.14 VOLVO XC90 I (275) D5 AWD Engine volume: 2.4 Engine type: D 5244 T Year: 10.02-12.06 VOLVO XC90 I (275) D5 AWD Engine volume: 2.4 Engine type: D 5244 T18 Year: 01.11-12.14 VOLVO XC90 I (275) D5 AWD Engine volume: 2.4 Engine type: D 5244 T18 Year: 11.13-09.14 VOLVO XC90 I (275) D5 AWD Engine volume: 2.4 Engine type: D 5244 T4 Year: 04.05-12.12 VOLVO XC90 I (275) D5 AWD Engine volume: 2.4 Engine type: D 5244 T5 Year: 10.07-12.10 VOLVO XC90 I (275) T6 AWD Engine volume: 2.9 Engine type: B 6294 T Year: 10.02-12.06 1 / 10
-
