HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116199

HC-Cargo Dynamo

Teknisk info:

Spennings: 14, Amp: 140, Rotasjon: med klokka, Reimhjul diam.: 52,50

Beskrivelse

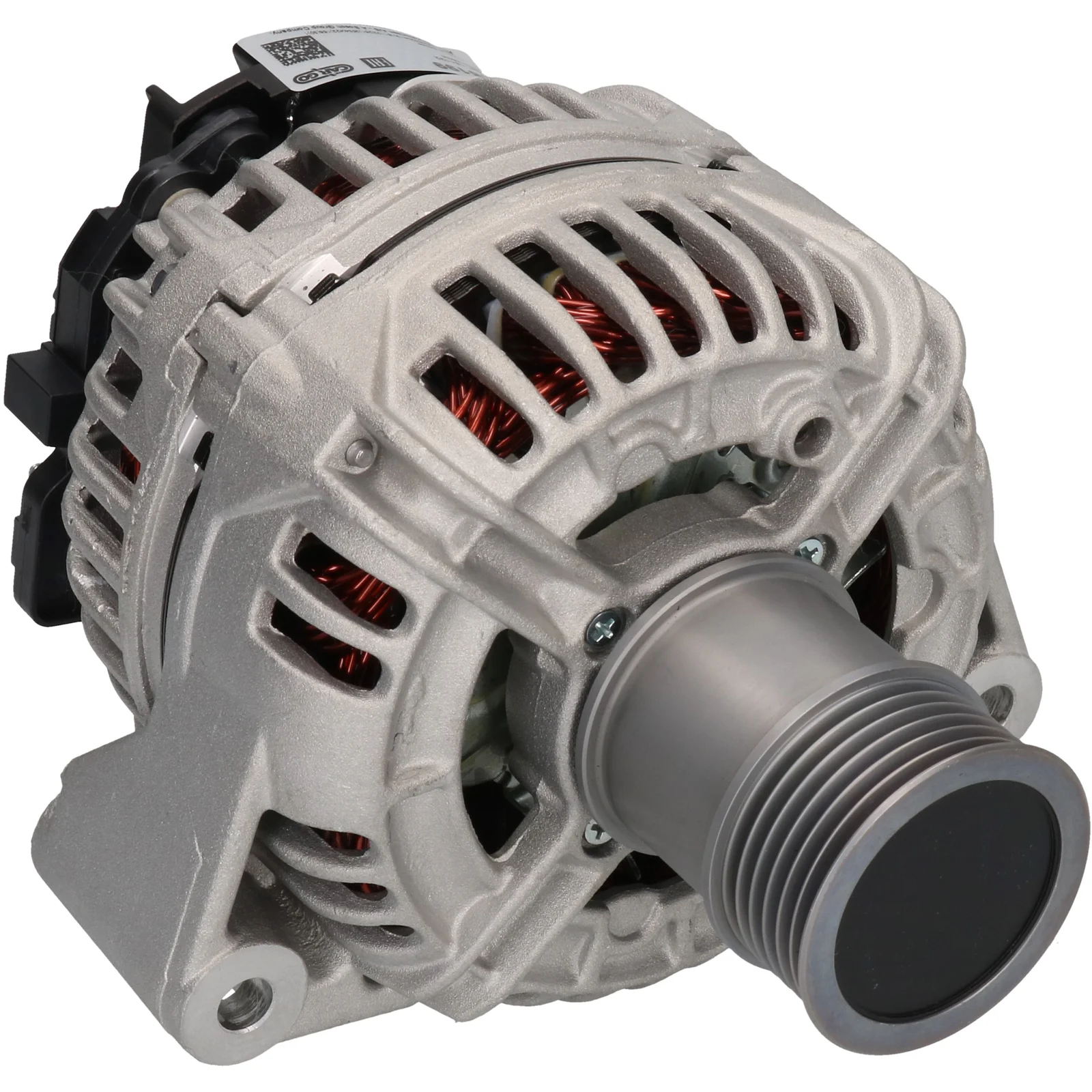

Saab Dynamo 12V-140A 12V - 140A, 6gr. frg For Yourex produktordre 90-485-5143

Spenning: 14
Ampere: 140
Drivreimskive avstand: 118.00
Bredde/holderarm: 56.00
Klemmehull: 10.00
Reimjusteringsbrakethull pos.: 50
Reimjusteringsbrakethull 1: 10.00
Drivreimskivediameter: 52.50
Riller/drivreimskive: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 47
D+ Størrelse: M5
Rotasjon: CW
Total lengde mm: 219.00
Drivreimskive: SP/FW
Regulator type: IR

Filer

Spesifikasjon

B+ M8
Belt. adj. bracket hole 1 10.00
Belt. adj. brackethole pos. 50
Bracket hole 10.00
Position/B+ in min. 47
Pulley SP/FW
Pulley dia. 52.50
Pulley dist. 118.00
Radius 90.00
D+ Size M5
Radius 2 90.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 219.00 mm
Width/holder arm 56.00
Amp 140

  • OEM
    F032116199, 0124 525 143, 1961IR, 1986A00882, 1986A01160, 116199, 12770124, 0123510096, 0124525143

  • Konkurrentreferens
    A0565S, DRA0585, 28-5818, 11454R, 12046020, 32039660, 0986049337

  • Bilmärken
    Saab

  • NormaliseratArtNr
    a0565s, dra0585, f032116199, 1961ir, 1986a00882, 1986a01160, 11454r, 116199, 285818, 12046020, 12770124, 32039660, 0123510096, 0124525143, 0986049337

  • Passar modeller
    Saab Model: 9-5 Model series: 9-5 Type of engine: Turbo 16V Size of motor: 2.3 Brand of engine: B235E From date: 01-09-1997 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
    Saab Model: 9-5 Model series: 9-5 Type of engine: Turbo Size of motor: 2.0 Brand of engine: B205E Body: Estate From date: 01-10-1998 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
    Saab Model: 9-5 Model series: 9-5 Type of engine: Turbo Size of motor: 2.0 Brand of engine: B205E From date: 01-09-1997 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
    Saab Series: 9-5 Kombi Model: 2.0 t BioPower AUT Engine volume: 2.0 Engine type: B 205 E Year: 02.06-02.07
    Saab Series: 9-5 Kombi Model: 2.0 t BioPower Engine volume: 2.0 Engine type: B 205 E Year: 02.07-02.10
    Saab Series: 9-5 Kombi Model: 2.3 t BioPower Engine volume: 2.3 Engine type: B 235 E Year: 01.07-
    Saab Series: 9-5 Kombi Model: 2.3 Turbo Engine volume: 2.3 Engine type: B 235 R Year: 01.06-
    Saab Series: 9-5 Model: 2.0 Engine volume: 2.0 Engine type: B 205 L Year: 02.02-
    Saab Series: 9-5 Model: 2.3 t BioPower Engine volume: 2.3 Engine type: B 235 E Year: 01.07-
    Saab Series: 9-5 Model: 2.3 Turbo Engine volume: 2.3 Engine type: B 235 R Year: 02.07-
    1 / 2
  • Beskrivelse
    Saab Dynamo 12V-140A 12V - 140A, 6gr. frg For Yourex produktordre 90-485-5143

    Spenning: 14
    Ampere: 140
    Drivreimskive avstand: 118.00
    Bredde/holderarm: 56.00
    Klemmehull: 10.00
    Reimjusteringsbrakethull pos.: 50
    Reimjusteringsbrakethull 1: 10.00
    Drivreimskivediameter: 52.50
    Riller/drivreimskive: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Posisjon/B+ i min.: 47
    D+ Størrelse: M5
    Rotasjon: CW
    Total lengde mm: 219.00
    Drivreimskive: SP/FW
    Regulator type: IR

    Filer

  • Spesifikasjon
    B+ M8
    Belt. adj. bracket hole 1 10.00
    Belt. adj. brackethole pos. 50
    Bracket hole 10.00
    Position/B+ in min. 47
    Pulley SP/FW
    Pulley dia. 52.50
    Pulley dist. 118.00
    Radius 90.00
    D+ Size M5
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 219.00 mm
    Width/holder arm 56.00
    Amp 140
  • Kjøretøymatching

    • OEM
      F032116199, 0124 525 143, 1961IR, 1986A00882, 1986A01160, 116199, 12770124, 0123510096, 0124525143

    • Konkurrentreferens
      A0565S, DRA0585, 28-5818, 11454R, 12046020, 32039660, 0986049337

    • Bilmärken
      Saab

    • NormaliseratArtNr
      a0565s, dra0585, f032116199, 1961ir, 1986a00882, 1986a01160, 11454r, 116199, 285818, 12046020, 12770124, 32039660, 0123510096, 0124525143, 0986049337

    • Passar modeller
      Saab Model: 9-5 Model series: 9-5 Type of engine: Turbo 16V Size of motor: 2.3 Brand of engine: B235E From date: 01-09-1997 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
      Saab Model: 9-5 Model series: 9-5 Type of engine: Turbo Size of motor: 2.0 Brand of engine: B205E Body: Estate From date: 01-10-1998 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
      Saab Model: 9-5 Model series: 9-5 Type of engine: Turbo Size of motor: 2.0 Brand of engine: B205E From date: 01-09-1997 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
      Saab Series: 9-5 Kombi Model: 2.0 t BioPower AUT Engine volume: 2.0 Engine type: B 205 E Year: 02.06-02.07
      Saab Series: 9-5 Kombi Model: 2.0 t BioPower Engine volume: 2.0 Engine type: B 205 E Year: 02.07-02.10
      Saab Series: 9-5 Kombi Model: 2.3 t BioPower Engine volume: 2.3 Engine type: B 235 E Year: 01.07-
      Saab Series: 9-5 Kombi Model: 2.3 Turbo Engine volume: 2.3 Engine type: B 235 R Year: 01.06-
      Saab Series: 9-5 Model: 2.0 Engine volume: 2.0 Engine type: B 205 L Year: 02.02-
      Saab Series: 9-5 Model: 2.3 t BioPower Engine volume: 2.3 Engine type: B 235 E Year: 01.07-
      Saab Series: 9-5 Model: 2.3 Turbo Engine volume: 2.3 Engine type: B 235 R Year: 02.07-
