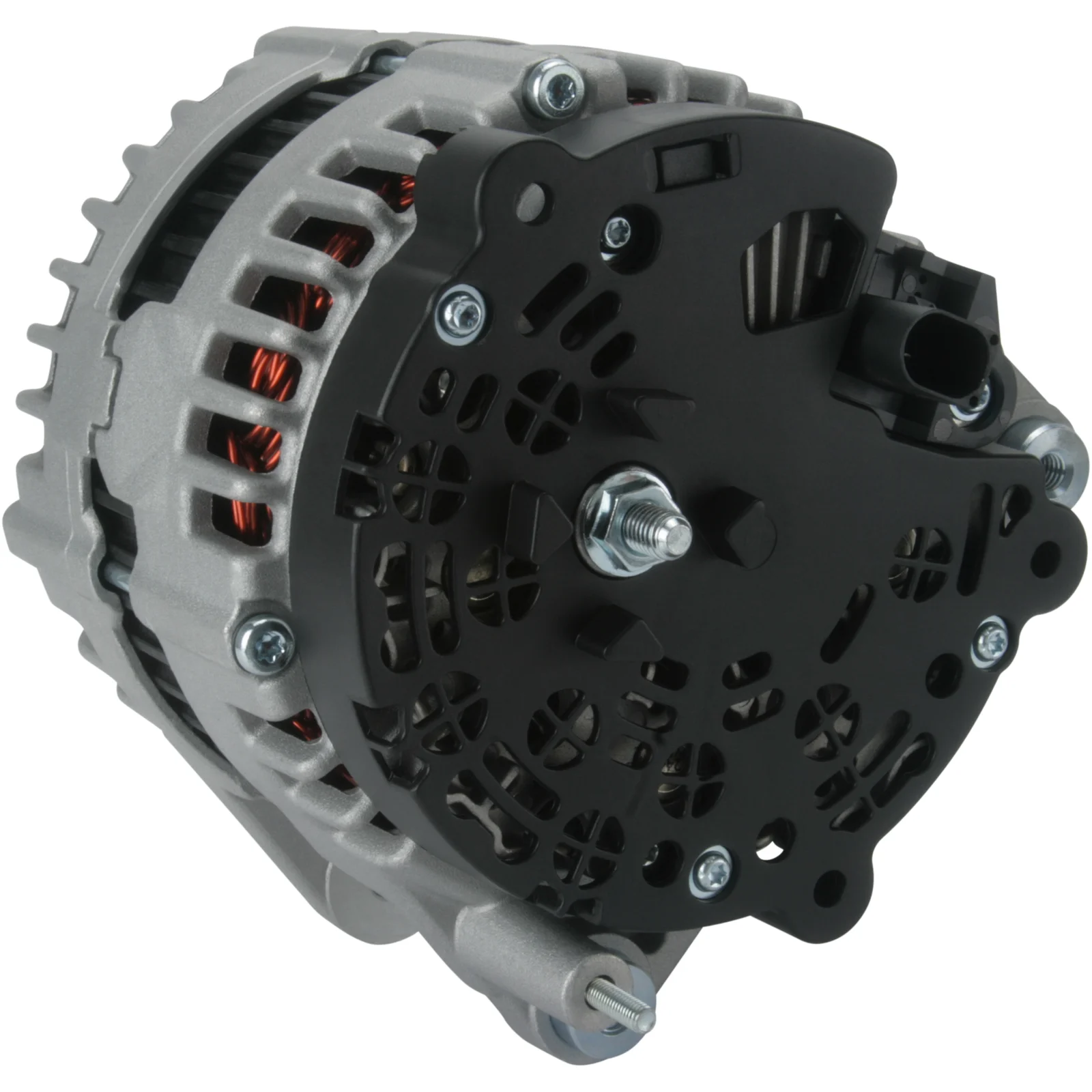

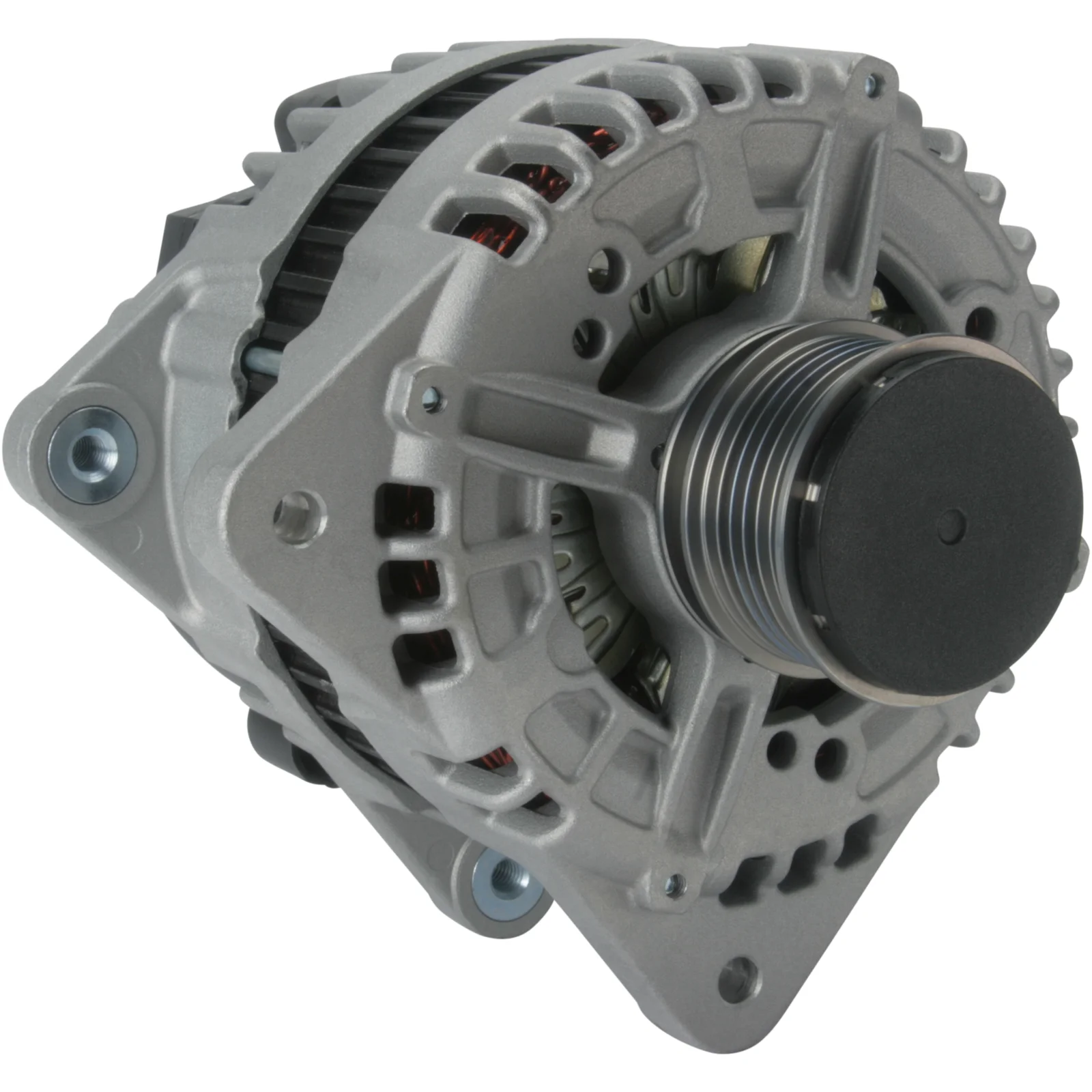

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116038

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 180, Rotasjon: CW, Festebrakett avstand: 61.00

Beskrivelse

VW Dynamo 12V-180A 12V - 180A, 6gr.frg, (L, DFM) for kjøretøy uten start-stopp-funksjon! For Yourex produkt bestilling 90-620-4535

Voltage: 14
Amp: 180
Pulley distanse: 39,50
Bredde/holderarm: 14,20
Monteringsfeste avstand: 61,00
Festehull: 8,50
Båndjuster. festehull posisjon: 45
Båndjuster. festehull 1: 8,50
Båndjuster. festehull 2: M8
Drevkugg diameter: 55,80
Grooves/drevet: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Posisjon/B+ i min.: 46
D+ Størrelse: Plugg
Rotasjon: CW
Plugg nr.: PL61
Total lengde mm: 193,00
Terminaltype: L-DFM
Drevkugg: SP/FW
Regulator type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 8.50
Belt. adj. bracket hole 2 M8
Belt. adj. brackethole pos. 45
Plug no. PL61
Bracket hole 8.50
Position/B+ in min. 46
Prod. info BN
Pulley SP/FW
Pulley dia. 55.80
Pulley dist. 39.50
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Terminal type L-DFM
Voltage 14
Total length 193.00 mm
Width/holder arm 14.20
Amp 180

  • OEM
    F00E100027, F032114109, F032116038, FG18T 033, HVW0001540202, TG17C 019, TG17C019, 03G 903 023, 03g903023, 03L 903 023E, 021 903 026G, 021 903 026L, 022 903 028B, 0121 715 003, 0121 715 103, 0124 625 010, 0124 625 028, 0986 045 350, 0986 081 230, 1986A00764, 114109, 116038, 437555, 2542783, 2542783C, 2542783D, 2605717, 04801715AA, 4801715AA, 021903026l, 0121715003, 0121715047, 0121715103

  • Konkurrentreferens
    A0321, A0331, A3203, A3203PR, CAL15325, LRA02931, 28-5545, 4656, 11221N, 200199, 210898, 210898A, 437555, 439558, 12090344, 32081230, 0986081230

  • Bilmärken
    VW, VW Trucks & Vans

  • NormaliseratArtNr
    a0321, a0331, a3203, a3203pr, cal15325, f00e100027, f032114109, f032116038, fg18t033, hvw0001540202, lra02931, tg17c019, 03g903023, 03l903023e, 1986a00764, 4656, 11221n, 114109, 116038, 200199, 210898, 210898a, 285545, 437555, 439558, 2542783, 2542783c, 2542783d, 2605717, 04801715aa, 4801715aa, 12090344, 021903026g, 021903026l, 022903028b, 32081230, 0121715003, 0121715047, 0121715103, 0124625010, 0124625028, 0986045350, 0986081230

  • Passar modeller
    Dodge Model: Journey Model series: Journey Type of engine: CRD Size of motor: 2.0 Brand of engine: ECE Body: MPV From date: 01-06-2008 Fuel: Diesel Approved: Yes
    Dodge Model: Journey Model series: Journey Van Type of engine: CRD Size of motor: 2.0 Brand of engine: ECE Type description: JC Body: Van From date: 01-06-2008 To date: 01-12-2011 Fuel: Diesel Approved: Yes
    VW Model: Caddy Model series: Caddy Alltrack Model type: 4Motion Type of engine: TDI Size of motor: 2.0 Brand of engine: CFHC Type description: SAA Body: Box From date: 01-05-2015 Fuel: Diesel Approved: Yes
    VW Model: Caddy Model series: Caddy Alltrack Model type: 4Motion Type of engine: TDI Size of motor: 2.0 Brand of engine: CFHF Type description: SAA Body: Box From date: 01-05-2015 To date: 01-05-2016 Fuel: Diesel Approved: Yes
    VW Model: Caddy Model series: Caddy Alltrack Model type: 4Motion Type of engine: TDI Size of motor: 2.0 Brand of engine: CFHF Type description: SAB Body: Estate From date: 01-05-2015 To date: 01-05-2016 Fuel: Diesel Approved: Yes
    VW Model: Caddy Model series: Caddy Alltrack Type of engine: TDI Size of motor: 1.6 Brand of engine: CAYD Type description: SAA Body: Box From date: 01-05-2015 Fuel: Diesel Approved: Yes
    VW Model: Caddy Model series: Caddy Alltrack Type of engine: TDI Size of motor: 1.6 Brand of engine: CAYD Type description: SAB Body: Estate From date: 01-05-2015 Fuel: Diesel Approved: Yes
    VW Model: Caddy Model series: Caddy Alltrack Type of engine: TDI Size of motor: 1.6 Brand of engine: CAYE Type description: SAA Body: Box From date: 01-05-2015 To date: 01-11-2017 Fuel: Diesel Approved: Yes
    VW Model: Caddy Model series: Caddy Alltrack Type of engine: TDI Size of motor: 1.6 Brand of engine: CAYE Type description: SAB Body: Estate From date: 01-05-2015 To date: 01-11-2017 Fuel: Diesel Approved: Yes
    VW Model: Caddy Model series: Caddy Alltrack Type of engine: TDI Size of motor: 2.0 Brand of engine: CFHC Type description: SAB Body: Estate From date: 01-05-2015 Fuel: Diesel Approved: Yes
    VW Model: Caddy Model series: Caddy Model type: TDI Type of engine: TDI Size of motor: 2.0 Brand of engine: CLCA Type description: SAA Body: Box Body/MPV Fuel: Diesel Approved: Yes Manufacture type: Alltrack
    VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJJ Type description: 2E_ Body: Bus From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJK Type description: 2E Body: Bus From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJL Type description: 2E Body: Bus From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJM Type description: 2E Body: Bus From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: CEBA Type description: 2E_ Body: Bus From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: CEBB Type description: 2E Body: Bus From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: CECA Type description: 2E Body: Bus From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: CECB Type description: 2E Body: Bus From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJJ Type description: 2E Body: Platform / Chassis From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJJ Type description: 2E Body: Van From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJK Type description: 2E Body: Platform / Chassis From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJK Type description: 2E Body: Van From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJL Type description: 2E Body: Platform / Chassis From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJL Type description: 2E Body: Van From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJM Type description: 2E Body: Platform / Chassis From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJM Type description: 2E Body: Van From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: CEBA Type description: 2E Body: Platform / Chassis From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: CEBA Type description: 2E Body: Van From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: CEBB Type description: 2E Body: Platform / Chassis From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: CEBB Type description: 2E Body: Van From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: CECA Type description: 2E Body: Platform / Chassis From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: CECA Type description: 2E Body: Van From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: CECB Type description: 2E Body: Platform / Chassis From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: CECB Type description: 2E Body: Van From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat B7 Model type: TDI Type of engine: TDI Size of motor: 2.0 Brand of engine: CFFA Type description: 365 Body: Estate Van Fuel: Diesel Approved: Yes Manufacture type: Estate
    VW Model: Passat Model series: Passat B7 Model type: TDI Type of engine: TDI Size of motor: 2.0 Brand of engine: CFGC Type description: 365 Body: Estate Van Fuel: Diesel Approved: Yes Manufacture type: Estate
    VW Model: Passat Model series: Passat Model type: 4 Motion Type of engine: TDi 16V Size of motor: 2.0 Brand of engine: BKP Type description: 3C2 From date: 01-03-2005 To date: 01-08-2010 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: 4 Motion Type of engine: TDi 16V Size of motor: 2.0 Brand of engine: BKP Type description: 3C5 Body: Estate From date: 01-08-2005 To date: 01-11-2010 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Model type: 4 Motion Type of engine: TDi 16V Size of motor: 2.0 Brand of engine: CBAB Type description: 3C2 From date: 01-03-2005 To date: 01-08-2010 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: 4 Motion Type of engine: TDi 16V Size of motor: 2.0 Brand of engine: CBAB Type description: 3C5 Body: Estate From date: 01-08-2005 To date: 01-11-2010 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Model type: 4 Motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CBAB Body: Coupe From date: 01-08-2009 To date: 01-01-2012 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: 4 Motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CBBB Type description: 3C2 From date: 01-05-2009 To date: 01-07-2010 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: 4 Motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CBBB Type description: 3C5 Body: Estate From date: 01-05-2009 To date: 01-11-2010 Fuel: Diesel Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFB Type description: 362 From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFB Type description: 365 Body: Estate From date: 01-01-2012 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Alltrack
    VW Model: Passat Model series: Passat Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGB Type description: 362 From date: 01-08-2010 To date: 01-01-2013 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGB Type description: 365 Body: Estate From date: 01-01-2012 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Alltrack
    VW Model: Passat Model series: Passat Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGB Type description: 365 Body: Estate From date: 01-08-2010 To date: 01-01-2013 Fuel: Diesel Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Model type: Alltrack 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGC Type description: 365 Body: Estate From date: 01-01-2013 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Alltrack
    VW Model: Passat Model series: Passat Model type: Blue Type of engine: TDi Size of motor: 2.0 Brand of engine: CBAC Body: Coupe From date: 01-05-2009 To date: 01-11-2010 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: BlueMotion Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFB Type description: 365 Body: Box Body / Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: BlueMotion Type of engine: TDi Size of motor: 2.0 Brand of engine: CLLA,CFGB Type description: 365 Body: Box Body / Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: BlueTDi Type of engine: TDi Size of motor: 2.0 Brand of engine: CBAC Type description: 3C2 From date: 01-01-2009 To date: 01-11-2010 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: BlueTDi Type of engine: TDi Size of motor: 2.0 Brand of engine: CBAC Type description: 3C5 Body: Estate From date: 01-01-2009 To date: 01-11-2010 Fuel: Diesel Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Model type: CC Type of engine: TDi Size of motor: 2.0 Brand of engine: CBAA Body: Coupe From date: 01-06-2008 To date: 01-05-2011 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: CC Type of engine: TDi Size of motor: 2.0 Brand of engine: CBBB Body: Coupe From date: 01-06-2008 To date: 01-01-2012 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: CC Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFA Body: Coupe From date: 01-06-2008 To date: 01-05-2011 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: CC Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGB Body: Coupe From date: 01-06-2008 To date: 01-01-2012 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: CC Type of engine: TDi Size of motor: 2.0 Brand of engine: CLLA Body: Coupe From date: 01-06-2008 To date: 01-01-2012 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: Variant 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGC Type description: 365 Body: Estate From date: 01-01-2013 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Type of engine: TDi 16V Size of motor: 2.0 Brand of engine: BKP Type description: 3C2 From date: 01-03-2005 To date: 01-07-2010 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi 16V Size of motor: 2.0 Brand of engine: BKP Type description: 3C5 Body: Estate From date: 01-08-2005 To date: 01-11-2010 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi 16V Size of motor: 2.0 Brand of engine: CBAB Type description: 3C2 From date: 01-03-2005 To date: 01-07-2010 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi 16V Size of motor: 2.0 Brand of engine: CBAB Type description: 3C5 Body: Estate From date: 01-08-2005 To date: 01-11-2010 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: BMA Type description: 3C5 Body: Estate From date: 01-08-2005 To date: 01-11-2010 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: CBAA Type description: 3C5 Body: Estate From date: 01-08-2005 To date: 01-11-2010 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: CBAB Body: Coupe From date: 01-06-2008 To date: 01-01-2012 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: CBBB Type description: 3C5 Body: Estate From date: 01-08-2005 To date: 01-11-2010 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFB Body: Coupe From date: 01-06-2008 To date: 01-01-2012 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFB Type description: 362 From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDI Size of motor: 2.0 Brand of engine: CFFB Type description: 365 Body: Estate From date: 01-01-2012 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Alltrack
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFB Type description: 365 Body: Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGB Type description: 365 Body: Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: CLLA Type description: 365 Body: Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Variant
    VW Series: Multivan V Model: 3.2 V6 Engine volume: 3.2 Engine type: BKK Year: 02.04-11.09
    VW Series: Passat (3C2/3C5) Model: 2.0 FSI Engine volume: 2.0 Engine type: BVZ Year: 11.05-
    VW Series: Passat (3C2/3C5) Model: 2.0 TFSI Engine volume: 2.0 Engine type: BWA Year: 08.05-
    VW Series: Passat (3C2) Model: 2.0 TDI Engine volume: 2.0 Engine type: BMP Year: 03.05-
    VW Series: Passat (3C2) Model: 2.0 TDI Engine volume: 2.0 Engine type: BMR Year: 08.05-
    VW Series: Passat (3C2) Model: 3.2 FSI 4motion Engine volume: 3.2 Engine type: AXZ Year: 11.05-
    VW Series: Passat Variant (365) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGC Year: 01.13-12.14
    VW Series: Passat Variant (3C5) Model: 1.9 TDI Engine volume: 1.9 Engine type: BKC / BLS / BXE Year: 08.05-
    VW Series: Passat Variant (3C5) Model: 2.0 TDI 16V Engine volume: 2.0 Engine type: BKP Year: 08.05-
    VW Series: Passat Variant (3C5) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: BMP Year: 08.05-
    VW Series: Passat Variant (3C5) Model: 2.0 TDI Engine volume: 2.0 Engine type: BMP Year: 08.05-
    VW Series: Passat Variant (3C5) Model: 2.0 TDI Engine volume: 2.0 Engine type: BMR Year: 08.05-
    VW Series: Passat Variant (3C5) Model: 3.2 FSI 4motion Engine volume: 3.2 Engine type: AXZ Year: 11.05-
    VW Trucks & Vans Series: Multivan V Model: 3.2 V6 4Motion Engine volume: 3.2 Engine type: BKK Year: 07.04-
    VW Trucks & Vans Series: Multivan V Model: 3.2 V6 Engine volume: 3.2 Engine type: BDL / BKK Year: 06.04-
    VW Trucks & Vans Series: Multivan V Model: 3.2 V6 4motion Engine volume: 3.2 Engine type: BKK Year: 07.04-11.09
    VW Trucks & Vans Series: Transporter V Model: 3.2 V6 Engine volume: 3.2 Engine type: BKK / BDL Year: 05.03-
    VW Trucks & Vans Series: Transporter V Buss Model: 3.2 V6 Engine volume: 3.2 Engine type: BKK Year: 02.04-11.09
    VW Trucks & Vans Series: Transporter V Skåp Model: 1.9 TDI Engine volume: 1.9 Engine type: BRR Year: 01.06-11.09
    VW Trucks & Vans Series: Transporter V Skåp Model: 3.2 V6 Engine volume: 3.2 Engine type: BKK Year: 02.04-11.09
