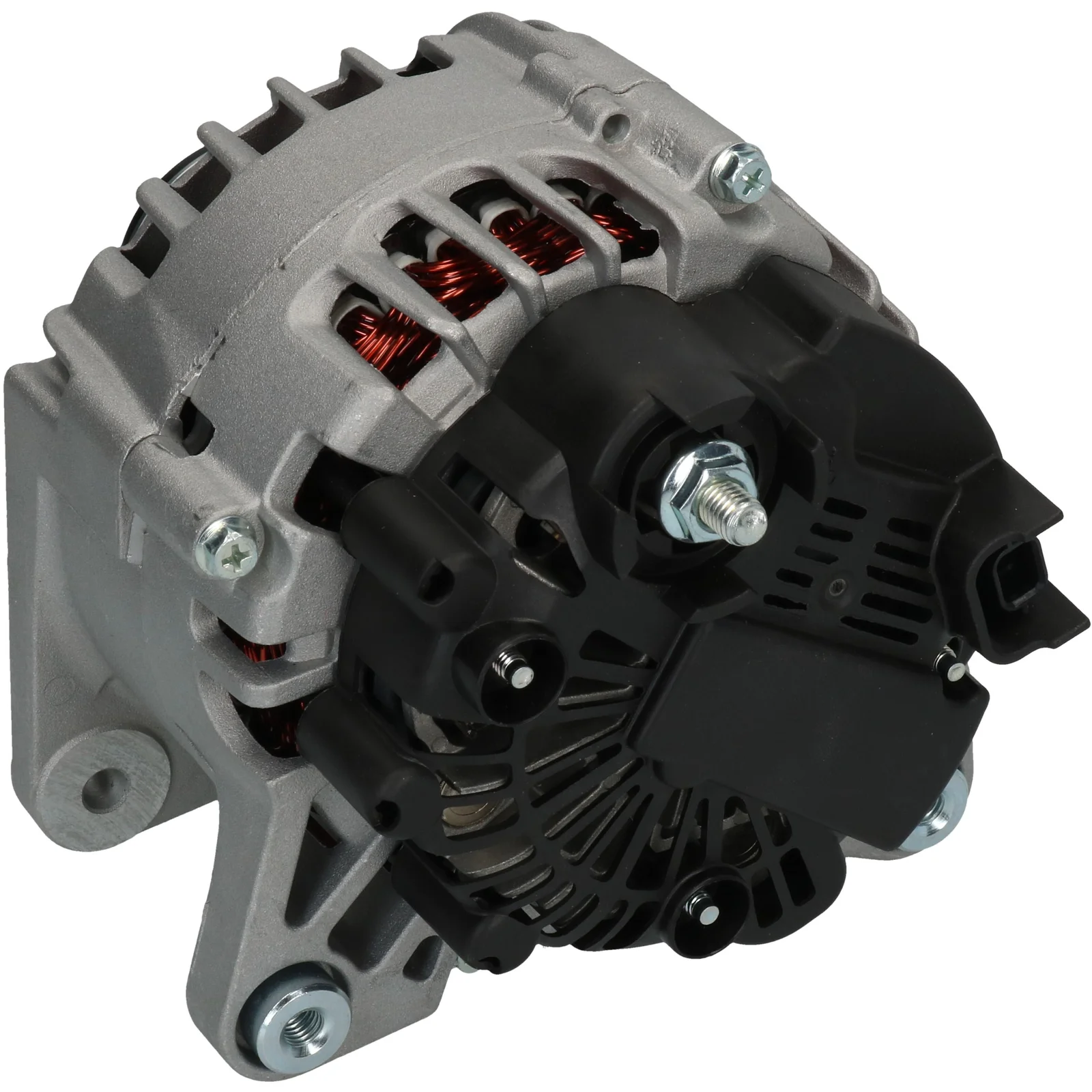

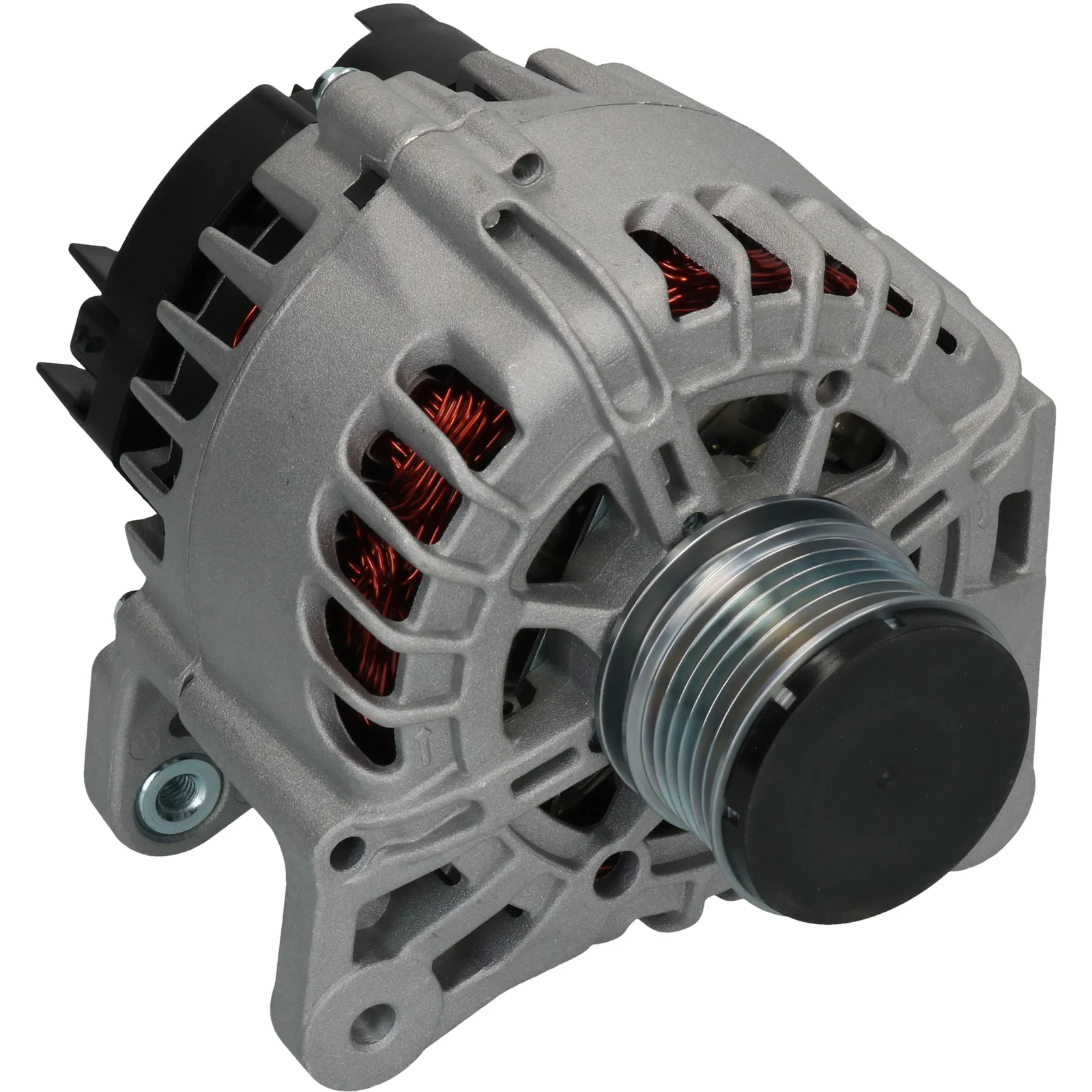

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116363

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 120, Rotasjon: CW, Monteringsbrakett avstand.: 60,50

Beskrivelse

Spenningskilde: 14
Ampere: 120
Bøssing av divergens: 38.50
Bredde/holderarm: 14.00
Festebrakett avstand: 60.50
Brakettets hull: 8.70
Båndjust. braketthull posisjon: 45
Båndjust. braketthull 1: 8.70
Drevskive diameter: 55.00
Riller/drevskive: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 50
Rotasjon: med klokka
Plugg nr.: PL131
Total lengde mm: 195.00
Terminaltype: COM
Kommunikasjon: LIN
Drevskive: SP/FW
Vifte: IF
Regulator type: IR
Merknader: Denne dynamoen har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 60.50
Belt. adj. bracket hole 1 8.70
Belt. adj. brackethole pos. 45
Plug no. PL131
Bracket hole 8.70
Position/B+ in min. 50
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 38.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 195.00 mm
Width/holder arm 14.00
Amp 120

  • OEM
    F032116363, tg12c241, 23100-1318R, 2627732A, 231001318R, 231008918r

  • Konkurrentreferens
    A3215S, 575.962.120, 20610N, 200271, 439983, 440755, 554409RI

  • NormaliseratArtNr
    a3215s, f032116363, tg12c241, 20610n, 200271, 439983, 440755, 554409ri, 2627732a, 231001318r, 231008918r, 575962120

  • Passar modeller
    Dacia Model: Dokker Model series: Dokker Express Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K612 Body: Van From date: 01-12-2012 Fuel: Diesel Approved: Yes
    Dacia Model: Dokker Model series: Dokker Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K612 Body: Estate From date: 01-11-2012 Fuel: Diesel Approved: Yes
    Renault Model: Captur Model series: Captur Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K646 Body: Hatchback From date: 01-01-2015 Fuel: Diesel Approved: Yes
    Renault Model: Captur Model series: Captur Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K608 Body: Hatchback From date: 01-06-2013 Fuel: Diesel Approved: Yes
    Renault Model: Captur Model series: Captur Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K609 Body: Hatchback From date: 01-06-2013 Fuel: Diesel Approved: Yes
    Renault Model: Clio Model series: Clio Grandtour Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K646 Body: Estate From date: 01-06-2016 Fuel: Diesel Approved: Yes Manufacture type: Grandtour
    Renault Model: Clio Model series: Clio Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K646 Body: Hatchback From date: 01-06-2016 Fuel: Diesel Approved: Yes
    Renault Model: Clio Model series: Clio Model type: 90 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K608 Body: Van From date: 01-01-2014 Fuel: Diesel Approved: Yes
    Renault Model: Clio Model series: Clio Model type: Grandtour Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K608 Body: Estate From date: 01-01-2013 Fuel: Diesel Approved: Yes Manufacture type: Grandtour
    Renault Model: Clio Model series: Clio Model type: Grandtour Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K612 Body: Estate From date: 01-01-2013 Fuel: Diesel Approved: Yes Manufacture type: Grandtour
    Renault Model: Clio Model series: Clio Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K608 Body: Hatchback From date: 01-11-2012 Fuel: Diesel Approved: Yes
    Renault Model: Kadjar Model series: Kadjar Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K646 From date: 01-06-2015 Fuel: Diesel Approved: Yes
    Renault Model: Kadjar Model series: Kadjar Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K647 From date: 01-06-2015 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K646 Body: Hatchback From date: 01-11-2015 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K656 Body: Hatchback From date: 01-11-2015 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K656 Type description: K9A/M_ Body: Estate From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K657 Body: Hatchback From date: 01-11-2015 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K657 Type description: K9A/M_ Body: Estate From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Model type: 90 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K656 Body: Hatchback From date: 01-11-2015 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Model type: 90 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K656 Type description: K9A/M_ Body: Estate From date: 01-04-2016 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivelse
    Spenningskilde: 14
    Ampere: 120
    Bøssing av divergens: 38.50
    Bredde/holderarm: 14.00
    Festebrakett avstand: 60.50
    Brakettets hull: 8.70
    Båndjust. braketthull posisjon: 45
    Båndjust. braketthull 1: 8.70
    Drevskive diameter: 55.00
    Riller/drevskive: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Posisjon/B+ i min.: 50
    Rotasjon: med klokka
    Plugg nr.: PL131
    Total lengde mm: 195.00
    Terminaltype: COM
    Kommunikasjon: LIN
    Drevskive: SP/FW
    Vifte: IF
    Regulator type: IR
    Merknader: Denne dynamoen har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication LIN
    Mount. bracket dist. 60.50
    Belt. adj. bracket hole 1 8.70
    Belt. adj. brackethole pos. 45
    Plug no. PL131
    Bracket hole 8.70
    Position/B+ in min. 50
    Pulley SP/FW
    Pulley dia. 55.00
    Pulley dist. 38.50
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 195.00 mm
    Width/holder arm 14.00
    Amp 120
  • Kjøretøymatching

    • OEM
      F032116363, tg12c241, 23100-1318R, 2627732A, 231001318R, 231008918r

    • Konkurrentreferens
      A3215S, 575.962.120, 20610N, 200271, 439983, 440755, 554409RI

    • NormaliseratArtNr
      a3215s, f032116363, tg12c241, 20610n, 200271, 439983, 440755, 554409ri, 2627732a, 231001318r, 231008918r, 575962120

    • Passar modeller
      Dacia Model: Dokker Model series: Dokker Express Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K612 Body: Van From date: 01-12-2012 Fuel: Diesel Approved: Yes
      Dacia Model: Dokker Model series: Dokker Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K612 Body: Estate From date: 01-11-2012 Fuel: Diesel Approved: Yes
      Renault Model: Captur Model series: Captur Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K646 Body: Hatchback From date: 01-01-2015 Fuel: Diesel Approved: Yes
      Renault Model: Captur Model series: Captur Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K608 Body: Hatchback From date: 01-06-2013 Fuel: Diesel Approved: Yes
      Renault Model: Captur Model series: Captur Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K609 Body: Hatchback From date: 01-06-2013 Fuel: Diesel Approved: Yes
      Renault Model: Clio Model series: Clio Grandtour Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K646 Body: Estate From date: 01-06-2016 Fuel: Diesel Approved: Yes Manufacture type: Grandtour
      Renault Model: Clio Model series: Clio Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K646 Body: Hatchback From date: 01-06-2016 Fuel: Diesel Approved: Yes
      Renault Model: Clio Model series: Clio Model type: 90 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K608 Body: Van From date: 01-01-2014 Fuel: Diesel Approved: Yes
      Renault Model: Clio Model series: Clio Model type: Grandtour Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K608 Body: Estate From date: 01-01-2013 Fuel: Diesel Approved: Yes Manufacture type: Grandtour
      Renault Model: Clio Model series: Clio Model type: Grandtour Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K612 Body: Estate From date: 01-01-2013 Fuel: Diesel Approved: Yes Manufacture type: Grandtour
      Renault Model: Clio Model series: Clio Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K608 Body: Hatchback From date: 01-11-2012 Fuel: Diesel Approved: Yes
      Renault Model: Kadjar Model series: Kadjar Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K646 From date: 01-06-2015 Fuel: Diesel Approved: Yes
      Renault Model: Kadjar Model series: Kadjar Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K647 From date: 01-06-2015 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K646 Body: Hatchback From date: 01-11-2015 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K656 Body: Hatchback From date: 01-11-2015 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K656 Type description: K9A/M_ Body: Estate From date: 01-04-2016 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K657 Body: Hatchback From date: 01-11-2015 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K657 Type description: K9A/M_ Body: Estate From date: 01-04-2016 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Model type: 90 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K656 Body: Hatchback From date: 01-11-2015 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Model type: 90 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K656 Type description: K9A/M_ Body: Estate From date: 01-04-2016 Fuel: Diesel Approved: Yes
      1 / 4
