HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116365

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 200, Rotasjon: CW, Festeholderavstand: 56,00

Beskrivelse

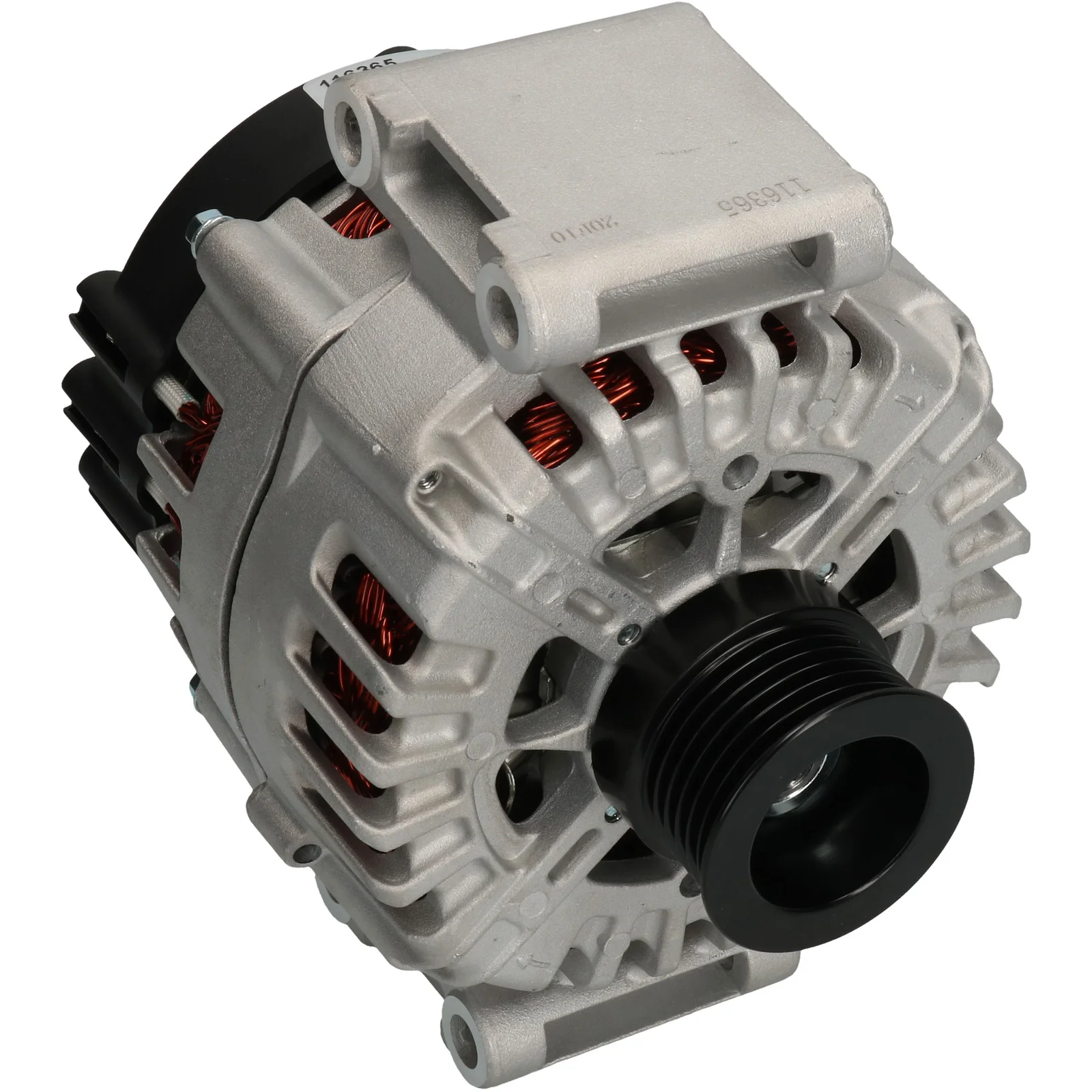

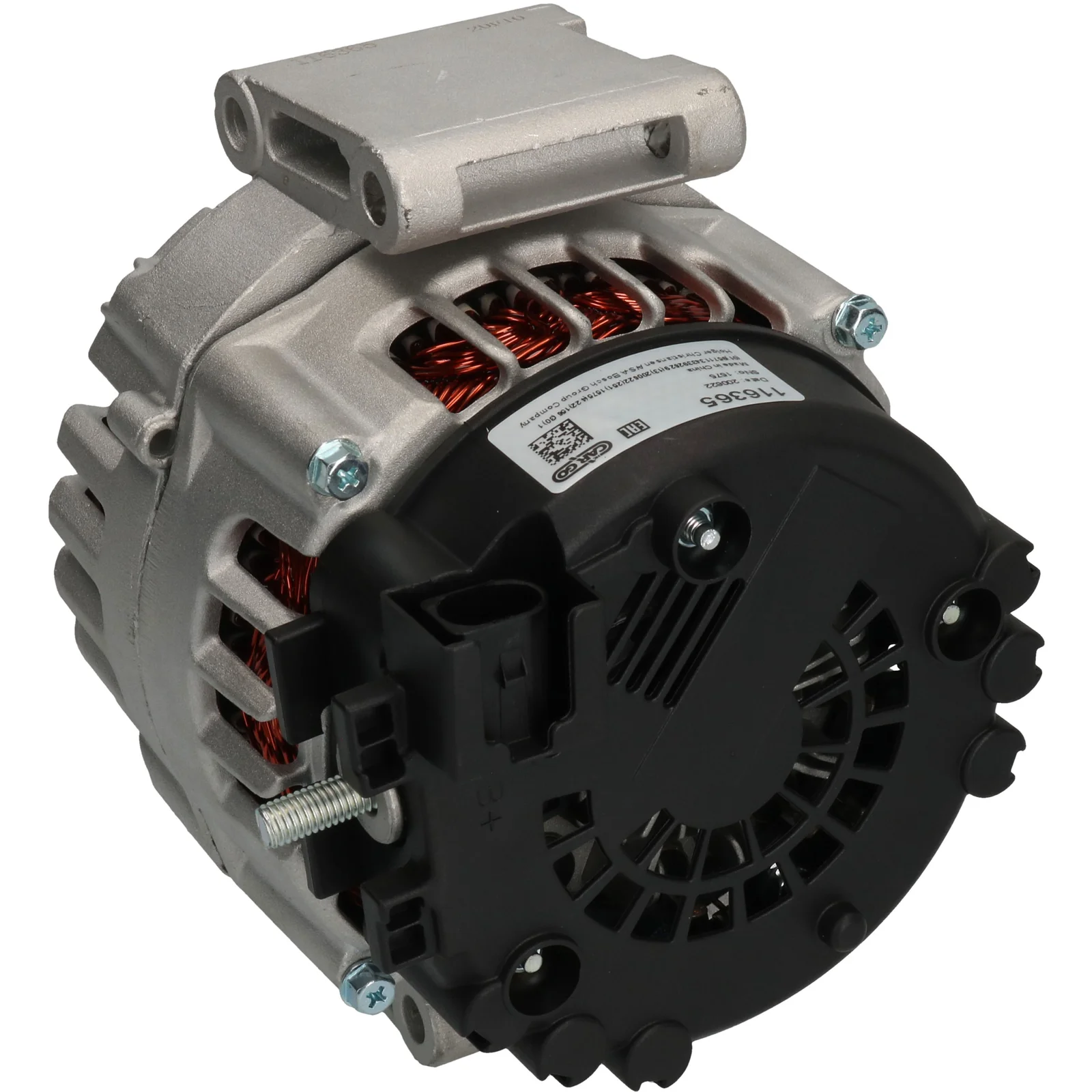

HC-Cargo Dynamo 14V - 200A, 6r

Spenning: 14
Amp: 200
Bøssing av remskive: 31.60
Bredde/holderarm: 73.00
Festebrakettavstand: 56.00
Brakettåpning: 9.00
Belt.spenningsregulator brakettåpning pos.: 45
Belt.spenningsregulator brakettåpning 1: 9.00
Remskive dia.: 50.00
Groover/remskive: 6
Radius: 81.00
Radius 2: 81.00
B+: M8
Posisjon/B+ i min.: 45
Roteringsretning: CW
Plugg nr.: PL166
Total lengde mm: 188.00
Terminaltype: COM
ID-kode: 1
Kommunikasjon: LIN
Remskive: SP
Vifte: IF
Regulator type: IR
Anmerkninger: Denne Generator har en COM-terminal på reg. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 9.00
Belt. adj. brackethole pos. 45
Plug no. PL166
Bracket hole 9.00
Position/B+ in min. 45
Pulley SP
Pulley dia. 50.00
Pulley dist. 31.60
Radius 81.00
Radius 2 81.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
ID Code 1
Terminal type COM
Voltage 14
Total length 188.00 mm
Width/holder arm 73.00
Amp 200

  • OEM
    000 906 8504, A0009068504, CG20U029, F032116365, 116365, 0009068504

  • Konkurrentreferens
    A3361(VALEO), A3361S, 555.940.200, 439941, 440685, 554687RIV, 12090825, 32440685

  • Bilmärken
    Mercedes Benz

  • NormaliseratArtNr
    a0009068504, a3361s, a3361valeo, cg20u029, f032116365, 116365, 439941, 440685, 554687riv, 0009068504, 12090825, 32440685, 555940200

  • Passar modeller
    Mercedes Benz Series: E-KLASS (W212) Model: E 200 CDI / BlueTEC Engine volume: 2.2 Engine type: OM 651.925 Year: 01.09-12.15
    Mercedes Benz Series: E-KLASS (W212) Model: E 220 BlueTEC Engine volume: 2.2 Engine type: OM 651.924 Year: 05.14-12.15
    Mercedes Benz Series: E-KLASS (W212) Model: E 220 CDI / BlueTEC Engine volume: 2.2 Engine type: OM 651.924 Year: 01.09-12.16
    Mercedes Benz Series: E-KLASS (W212) Model: E 250 CDI / BlueTEC Engine volume: 2.2 Engine type: OM 651.924 Year: 01.09-12.16
    Mercedes Benz Series: E-KLASS T-Model Model: E 220 BlueTEC Engine volume: 2.2 Engine type: OM 651.924 Year: 05.15-12.16
    Mercedes Benz Series: SPRINTER 3,5-T FLAK Model: 314 CDI ALLHJULSDRIFT Engine volume: 2.2 Engine type: OM 651.958 Year: 01.19-12.21
    Mercedes Benz Series: SPRINTER 3,5-T FLAK Model: 316 CDI ALLHJULSDRIFT Engine volume: 2.2 Engine type: OM 651.958 Year: 01.19-12.21
    Mercedes Benz Series: SPRINTER 3,5-t Toure Model: 314 CDI Allhjulsdrift Engine volume: 2.2 Engine type: OM 651.958 Year: 01.19-12.21
    Mercedes Benz Series: SPRINTER 3,5T TOUR B Model: 316 CDI ALLHJULSDRIFT Engine volume: 2.2 Engine type: OM 651.958 Year: 01.19-12.21
    Mercedes Benz Series: Sprinter 3-t Flak Model: 214 CDI RWD Engine volume: 2.2 Engine type: OM 651.958 Year: 02.18-12.21
    Mercedes Benz Series: SPRINTER 3-t Flak Model: 216 CDI RWD Engine volume: 2.2 Engine type: OM 651.958 Year: 02.18-12.21
    Mercedes Benz Series: SPRINTER 3-t Tourer Model: 216 CDi Engine volume: 2.2 Engine type: OM 651.958 Year: 02.18-12.21
    Mercedes Benz Series: SPRINTER 4-t Flak Model: 414 CDI Allhjulsdrift Engine volume: 2.2 Engine type: OM 651.958 Year: 01.19-12.21
    Mercedes Benz Series: SPRINTER 4-t Flak Model: 416 CDI Allhjulsdrift Engine volume: 2.2 Engine type: OM 651.958 Year: 01.19-12.21
    Mercedes Benz Series: SPRINTER 4-t Tourer Model: 411CDI Engine volume: 2.2 Engine type: OM 651.958 Year: 02.18-12.21
    Mercedes Benz Series: SPRINTER 4-t Tourer Model: 414 CDI Engine volume: 2.2 Engine type: OM 651.958 Year: 09.19-12.21
    Mercedes Benz Series: Sprinter 5-t Flak Model: 516 CDI Allhjulsdrift Engine volume: 2.2 Engine type: OM 651.958 Year: 01.19-12.21
    Mercedes Benz Series: Sprinter3,5-t Skåp Model: 311 CDI RWD Engine volume: 2.2 Engine type: OM 651.958 Year: 02.18-12.21
    Mercedes Benz Series: Sprinter3,5-t Skåp Model: 314 CDI RWD Engine volume: 2.2 Engine type: OM 651.958 Year: 02.18-12.21
    Mercedes-Benz Model: 200 Model series: E 200 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM651.925 Type description: W212 From date: 01-01-2009 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: E 220 Model type: BlueTec Size of motor: 2.1 Brand of engine: OM651.924 Type description: W212 From date: 01-05-2014 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: E 220 Model type: BlueTec Type of engine: Diesel Size of motor: 2.2 Brand of engine: OM651.924 Type description: S212 Body: Estate From date: 01-05-2015 To date: 01-12-2016 Fuel: Diesel Approved: Yes Manufacture type: T-model
    Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.924 Type description: W212 From date: 01-01-2009 To date: 01-12-2016 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 250 Model series: E 250 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM651.924 Type description: W212 From date: 01-01-2009 To date: 01-12-2016 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 216 Model type: 216 CDi (907.721, 907.723 Type of engine: CDI Size of motor: 2.2 Brand of engine: OM651.958 Type description: B907 Body: Bus From date: 01-02-2018 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 311 Type of engine: CDI Size of motor: 2.2 Brand of engine: OM651.958 Type description: B907, B910 Body: Van From date: 01-02-2018 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 314 Type of engine: CDI Size of motor: 2.2 Brand of engine: OM651.958 Type description: B907, B910 Body: Van From date: 01-02-2018 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 411 Tourer Bus Model type: 411 Type of engine: CDI Size of motor: 2.2 Brand of engine: OM651.958 Type description: B907 Body: Bus From date: 01-02-2018 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 414 Model type: 414 CDI (907.741, 907.743 Type of engine: CDI Size of motor: 2.2 Brand of engine: OM651.958 Type description: B907 Body: Bus From date: 01-09-2019 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 515 Model type: 516 CDI (907.855, 907.857 Type of engine: CDI Size of motor: 2.2 Brand of engine: OM651.958 Type description: B907 Body: Bus Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter Model type: 211 RWD Type of engine: CDI Size of motor: 2.1 Brand of engine: OM651.958 Type description: 910, 907 Body: Box Body / Estate From date: 01-02-2018 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter Model type: 214 RWD Type of engine: CDI Size of motor: 2.1 Brand of engine: OM651.958 Type description: 910, 907 Body: Box Body / Estate From date: 01-02-2018 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter Model type: 216 RWD Type of engine: CDI Size of motor: 2.1 Brand of engine: OM651.958 Type description: 910, 907 Body: Box Body / Estate From date: 01-02-2018 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter Model type: 314 4x4 Type of engine: CDI Size of motor: 2.1 Brand of engine: OM651.958 Type description: 907, 910 Body: Box Body / Estate From date: 01-01-2019 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter Model type: 316 4x4 Type of engine: CDI Size of motor: 2.1 Brand of engine: OM651.958 Type description: 907, 910 Body: Box Body / Estate From date: 01-01-2019 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter Model type: 414 4x4 Type of engine: CDI Size of motor: 2.1 Brand of engine: OM651.958 Type description: 907, 910 Body: Box Body / Estate From date: 01-01-2019 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter Model type: 416 4x4 Type of engine: CDI Size of motor: 2.1 Brand of engine: OM651.958 Type description: 907, 910 Body: Box Body / Estate From date: 01-01-2019 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter Model type: 516 4x4 Type of engine: CDI Size of motor: 2.1 Brand of engine: OM651.958 Type description: 907 Body: Box Body / Estate From date: 01-01-2019 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter Tourer Bus Model type: 314 4x4 Type of engine: CDI Size of motor: 2.1 Brand of engine: OM651.958 Type description: 907 Body: Bus From date: 01-01-2019 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter Tourer Bus Model type: 316 4x4 Type of engine: CDI Size of motor: 2.1 Brand of engine: OM651.958 Type description: 907 Body: Bus From date: 01-01-2019 Fuel: Diesel Approved: Yes
    1 / 8
  • Beskrivelse
    HC-Cargo Dynamo 14V - 200A, 6r

    Spenning: 14
    Amp: 200
    Bøssing av remskive: 31.60
    Bredde/holderarm: 73.00
    Festebrakettavstand: 56.00
    Brakettåpning: 9.00
    Belt.spenningsregulator brakettåpning pos.: 45
    Belt.spenningsregulator brakettåpning 1: 9.00
    Remskive dia.: 50.00
    Groover/remskive: 6
    Radius: 81.00
    Radius 2: 81.00
    B+: M8
    Posisjon/B+ i min.: 45
    Roteringsretning: CW
    Plugg nr.: PL166
    Total lengde mm: 188.00
    Terminaltype: COM
    ID-kode: 1
    Kommunikasjon: LIN
    Remskive: SP
    Vifte: IF
    Regulator type: IR
    Anmerkninger: Denne Generator har en COM-terminal på reg. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication LIN
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 9.00
    Belt. adj. brackethole pos. 45
    Plug no. PL166
    Bracket hole 9.00
    Position/B+ in min. 45
    Pulley SP
    Pulley dia. 50.00
    Pulley dist. 31.60
    Radius 81.00
    Radius 2 81.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    ID Code 1
    Terminal type COM
    Voltage 14
    Total length 188.00 mm
    Width/holder arm 73.00
    Amp 200
