HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115712

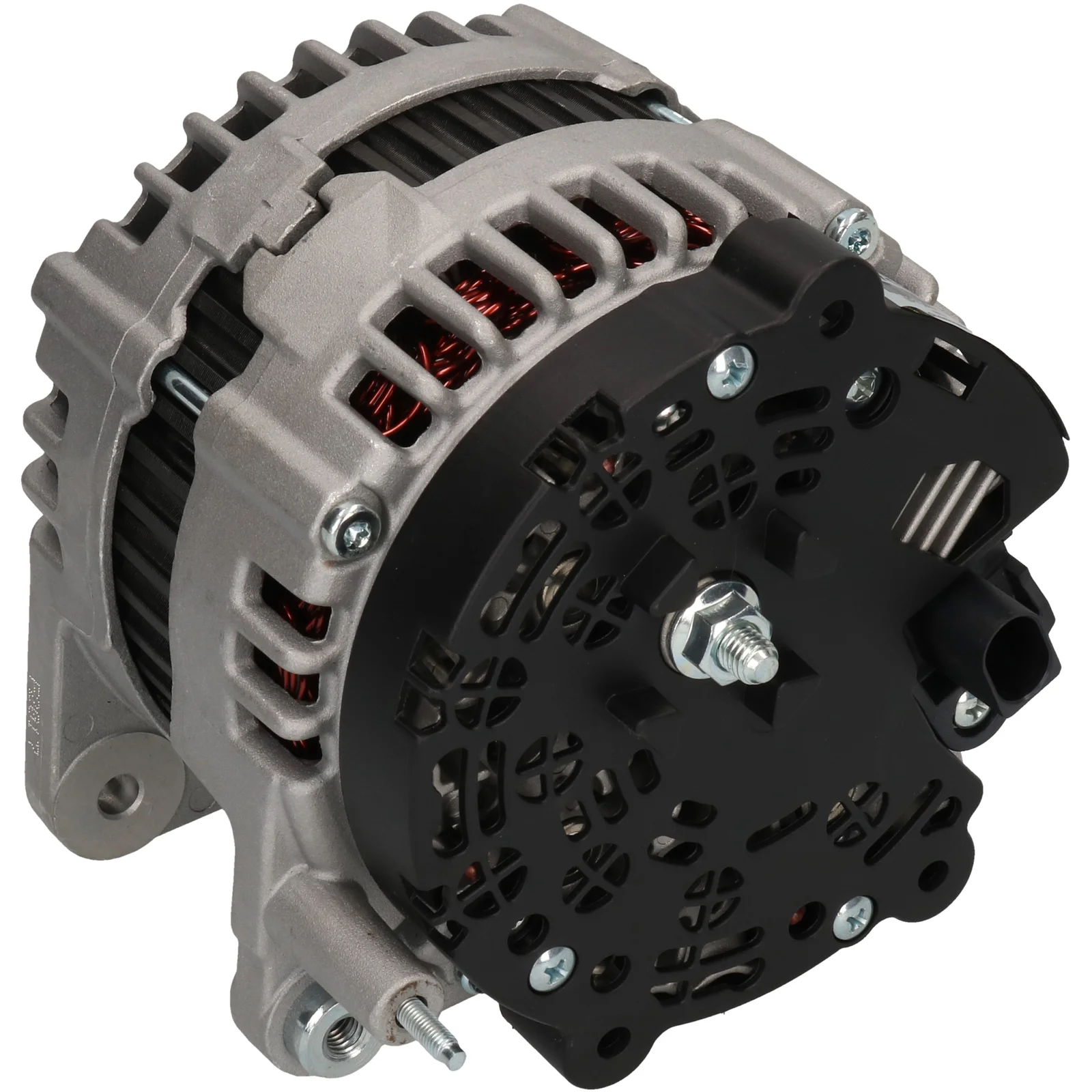

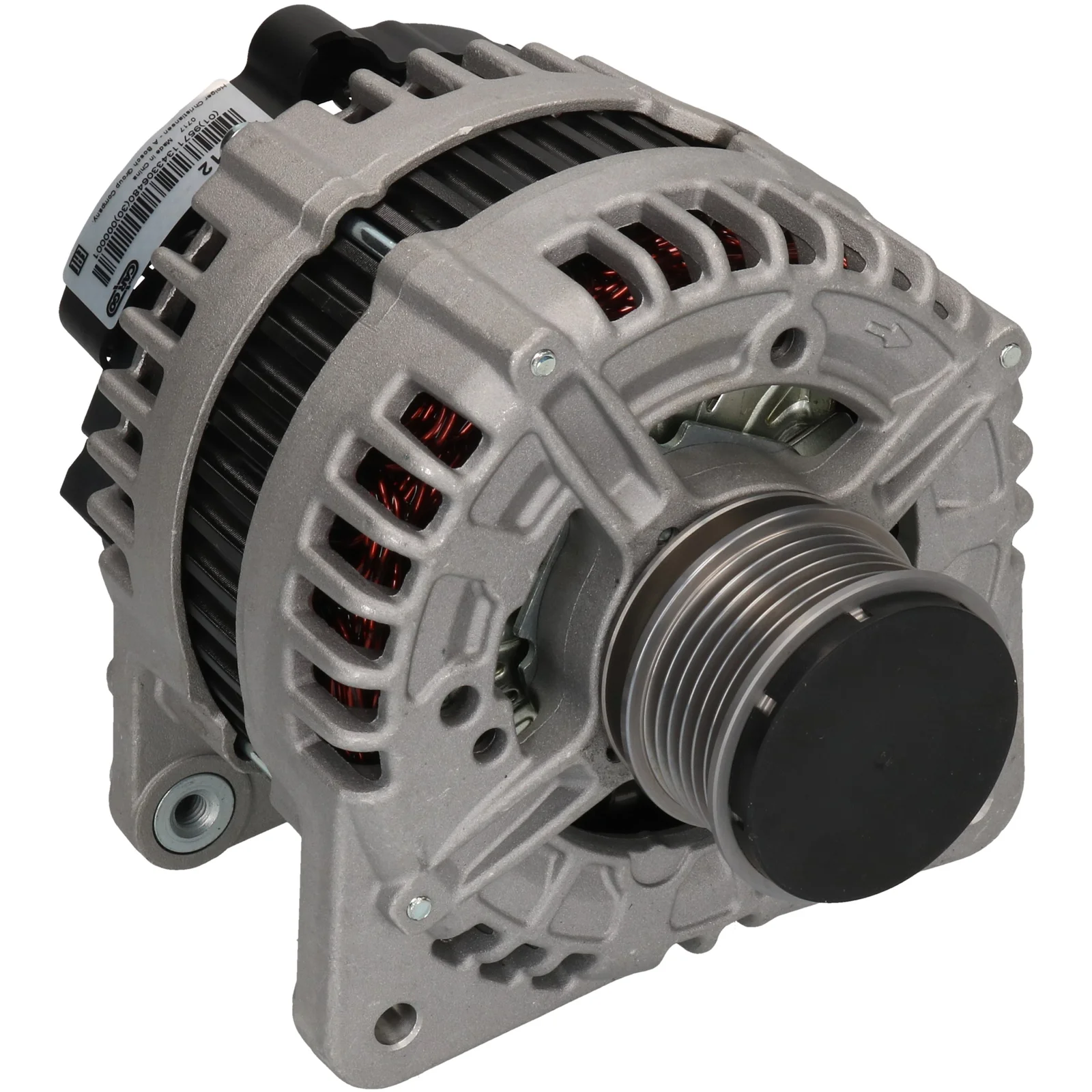

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 180, Rotasjon: CW, Monteringsbrakett avstand: 64,00

Beskrivelse

Generator 12V-180A 12V - 180A, 6gr.frg, (LIN) For Yourex produktordre 90-620-8189

Spenningsnivå: 14
Ampere: 180
Skive avstand: 39.50
Bredde/beslag arm: 14.30
Monteringsbeslag avstand: 64.00
Beslaghull: 8.50
Båndjustering beslagposisjon: 45
Båndjustering beslag hull 1: 8.50
Skivediameter: 55.80
Gjennomgående spor/skive: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i minutter: 5
Rotasjon: medurs
Stikkontakt nr.: PL86
Total lengde mm: 193.00
Klemmtype: COM
Kommunikasjon: LIN
Skive: SP/FW
Regulator type: IR
Prod. info: BN
Merkninger: Dette alternatoren har en COM-klemme på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnetheten før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 64.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL86
Bracket hole 8.50
Position/B+ in min. 5
Prod. info BN
Pulley SP/FW
Pulley dia. 55.80
Pulley dist. 39.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 193.00 mm
Width/holder arm 14.30
Amp 180

  • OEM
    F032115712, FG18T 051, 03L 903 023B, 03L 903 023D, 03L 903 024F, 03l903023d, 03L903023DX, 03L903024F, 03L903024FX, 0121 715 071, 0121 715 171, 0125 811 027, 0125 811 028, 0986 081 890, 1986A01048, 2188ir, 115712, 439718, 440308, 2608426, 0121715071, 0121715171, 0125811027, 0125811028

  • Konkurrentreferens
    A0433, A0433PR, A0608PR, A3310PR, DRA0539, MAN2048, 8EL011713-261, 20330N, 20330R, 20330RW, 209191, 209191A, 553481RI, 9090743, 12090445, 12090448, 32081890, 0986081890, 063537151710

  • Bilmärken
    Seat, Skoda, VW

  • NormaliseratArtNr
    a0433, a0433pr, a0608pr, a3310pr, dra0539, f032115712, fg18t051, man2048, 03l903023b, 03l903023d, 03l903023dx, 03l903024f, 03l903024fx, 8el011713261, 1986a01048, 2188ir, 20330n, 20330r, 20330rw, 115712, 209191, 209191a, 439718, 440308, 553481ri, 2608426, 9090743, 12090445, 12090448, 32081890, 0121715071, 0121715171, 0125811027, 0125811028, 0986081890, 063537151710

  • Passar modeller
    Seat Model: Alhambra Model series: Alhambra Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFB Type description: 710 Body: MPV From date: 01-06-2010 Fuel: Diesel Approved: Yes
    Seat Model: Alhambra Model series: Alhambra Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGB Type description: 710 Body: MPV From date: 01-06-2010 Fuel: Diesel Approved: Yes
    Seat Series: Alhambra (710, 711) Model: 2.0 TDI 4Drive Engine volume: 2.0 Engine type: CFFB Year: 05.11-
    Seat Series: Alhambra (710, 711) Model: 2.0 TDI Engine volume: 2.0 Engine type: CFFB Year: 06.10-
    Skoda Model: Superb Model series: Superb Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYC Type description: 3T4 Body: Hatchback From date: 01-09-2010 To date: 01-05-2015 Fuel: Diesel Approved: Yes
    Skoda Model: Superb Model series: Superb Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGB Type description: 3T5 Body: Estate From date: 01-10-2009 To date: 01-05-2015 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    VW Model: Passat Model series: Passat B7 Model type: TDI Type of engine: TDI Size of motor: 2.0 Brand of engine: CFFA Type description: 365 Body: Estate Van Fuel: Diesel Approved: Yes Manufacture type: Estate
    VW Model: Passat Model series: Passat B7 Model type: TDI Type of engine: TDI Size of motor: 2.0 Brand of engine: CFGC Type description: 365 Body: Estate Van Fuel: Diesel Approved: Yes Manufacture type: Estate
    VW Model: Passat Model series: Passat Model type: Alltrack 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGC Type description: 365 Body: Estate From date: 01-01-2013 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Alltrack
    VW Model: Passat Model series: Passat Model type: BlueMotion Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYC Type description: 365 Body: Box Body / Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: BlueMotion Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFB Type description: 365 Body: Box Body / Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: BlueMotion Type of engine: TDi Size of motor: 2.0 Brand of engine: CLLA,CFGB Type description: 365 Body: Box Body / Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: Variant 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGC Type description: 365 Body: Estate From date: 01-01-2013 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYC Type description: 362 From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYC Type description: 365 Body: Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: CBBB Type description: 3C5 Body: Estate From date: 01-08-2005 To date: 01-11-2010 Fuel: Diesel Approved: Yes
    VW Model: Sharan Model series: Sharan Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFB Type description: 7N Body: MPV From date: 01-05-2011 Fuel: Diesel Approved: Yes
    VW Model: Sharan Model series: Sharan Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFA Type description: 7N Body: MPV From date: 01-05-2010 Fuel: Diesel Approved: Yes
    VW Model: Sharan Model series: Sharan Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFB Type description: 7N Body: MPV From date: 01-05-2010 Fuel: Diesel Approved: Yes
    VW Model: Sharan Model series: Sharan Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGB Type description: 7N Body: MPV From date: 01-08-2010 Fuel: Diesel Approved: Yes
    VW Model: Sharan Model series: Sharan Van Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFA Type description: 7N1, 7N2 Body: Van From date: 01-05-2010 To date: 01-05-2011 Fuel: Diesel Approved: Yes
    VW Model: Sharan Model series: Sharan Van Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFB Type description: 7N1, 7N2 Body: Van From date: 01-05-2010 To date: 01-11-2015 Fuel: Diesel Approved: Yes
    VW Model: Sharan Model series: Sharan Van Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFE Type description: 7N1, 7N2 Body: Van From date: 01-05-2011 To date: 01-11-2015 Fuel: Diesel Approved: Yes
    VW Model: Sharan Model series: Sharan Van Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGB Type description: 7N1, 7N2 Body: Van From date: 01-08-2010 To date: 01-01-2013 Fuel: Diesel Approved: Yes
    VW Series: CC (358) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGB Year: 11.11-
    VW Series: CC Coupé Model: 2.0 TDI Engine volume: 2.0 Engine type: CFGB Year: 11.11-01.13
    VW Series: Passat (362) Model: 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 08.10-
    VW Series: Passat (362) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFFB Year: 08.10-12.14
    VW Series: Passat (362) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGB / CLLA Year: 08.10-
    VW Series: Passat (362) Model: 2.0 TDI Engine volume: 2.0 Engine type: CFFB Year: 08.10-
    VW Series: Passat (362) Model: 2.0 TDI Engine volume: 2.0 Engine type: CFGB / CLLA Year: 08.10-
    VW Series: Passat Alltrack(365) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGB Year: 01.12-12.14
    VW Series: Passat Alltrack(365) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGC Year: 01.13-12.14
    VW Series: Passat Variant (365) Model: 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 08.10-
    VW Series: Passat Variant (365) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFFB Year: 08.10-
    VW Series: Passat Variant (365) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGB / CLLA Year: 08.10-
    VW Series: Passat Variant (365) Model: 2.0 TDI Engine volume: 2.0 Engine type: CFFB Year: 08.10-
    VW Series: Passat Variant (365) Model: 2.0 TDI Engine volume: 2.0 Engine type: CFGB / CLLA Year: 08.10-
    VW Series: Sharan Model: 2.0 TDI Engine volume: 2.0 Engine type: CFGB Year: 08.10-
    1 / 8
  • Beskrivelse
    Generator 12V-180A 12V - 180A, 6gr.frg, (LIN) For Yourex produktordre 90-620-8189

    Spenningsnivå: 14
    Ampere: 180
    Skive avstand: 39.50
    Bredde/beslag arm: 14.30
    Monteringsbeslag avstand: 64.00
    Beslaghull: 8.50
    Båndjustering beslagposisjon: 45
    Båndjustering beslag hull 1: 8.50
    Skivediameter: 55.80
    Gjennomgående spor/skive: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Posisjon/B+ i minutter: 5
    Rotasjon: medurs
    Stikkontakt nr.: PL86
    Total lengde mm: 193.00
    Klemmtype: COM
    Kommunikasjon: LIN
    Skive: SP/FW
    Regulator type: IR
    Prod. info: BN
    Merkninger: Dette alternatoren har en COM-klemme på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnetheten før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication LIN
    Mount. bracket dist. 64.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL86
    Bracket hole 8.50
    Position/B+ in min. 5
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 55.80
    Pulley dist. 39.50
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 193.00 mm
    Width/holder arm 14.30
    Amp 180
  • Kjøretøymatching

    • OEM
      F032115712, FG18T 051, 03L 903 023B, 03L 903 023D, 03L 903 024F, 03l903023d, 03L903023DX, 03L903024F, 03L903024FX, 0121 715 071, 0121 715 171, 0125 811 027, 0125 811 028, 0986 081 890, 1986A01048, 2188ir, 115712, 439718, 440308, 2608426, 0121715071, 0121715171, 0125811027, 0125811028

    • Konkurrentreferens
      A0433, A0433PR, A0608PR, A3310PR, DRA0539, MAN2048, 8EL011713-261, 20330N, 20330R, 20330RW, 209191, 209191A, 553481RI, 9090743, 12090445, 12090448, 32081890, 0986081890, 063537151710

    • Bilmärken
      Seat, Skoda, VW

    • NormaliseratArtNr
      a0433, a0433pr, a0608pr, a3310pr, dra0539, f032115712, fg18t051, man2048, 03l903023b, 03l903023d, 03l903023dx, 03l903024f, 03l903024fx, 8el011713261, 1986a01048, 2188ir, 20330n, 20330r, 20330rw, 115712, 209191, 209191a, 439718, 440308, 553481ri, 2608426, 9090743, 12090445, 12090448, 32081890, 0121715071, 0121715171, 0125811027, 0125811028, 0986081890, 063537151710

    • Passar modeller
      Seat Model: Alhambra Model series: Alhambra Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFB Type description: 710 Body: MPV From date: 01-06-2010 Fuel: Diesel Approved: Yes
      Seat Model: Alhambra Model series: Alhambra Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGB Type description: 710 Body: MPV From date: 01-06-2010 Fuel: Diesel Approved: Yes
      Seat Series: Alhambra (710, 711) Model: 2.0 TDI 4Drive Engine volume: 2.0 Engine type: CFFB Year: 05.11-
      Seat Series: Alhambra (710, 711) Model: 2.0 TDI Engine volume: 2.0 Engine type: CFFB Year: 06.10-
      Skoda Model: Superb Model series: Superb Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYC Type description: 3T4 Body: Hatchback From date: 01-09-2010 To date: 01-05-2015 Fuel: Diesel Approved: Yes
      Skoda Model: Superb Model series: Superb Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGB Type description: 3T5 Body: Estate From date: 01-10-2009 To date: 01-05-2015 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      VW Model: Passat Model series: Passat B7 Model type: TDI Type of engine: TDI Size of motor: 2.0 Brand of engine: CFFA Type description: 365 Body: Estate Van Fuel: Diesel Approved: Yes Manufacture type: Estate
      VW Model: Passat Model series: Passat B7 Model type: TDI Type of engine: TDI Size of motor: 2.0 Brand of engine: CFGC Type description: 365 Body: Estate Van Fuel: Diesel Approved: Yes Manufacture type: Estate
      VW Model: Passat Model series: Passat Model type: Alltrack 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGC Type description: 365 Body: Estate From date: 01-01-2013 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Alltrack
      VW Model: Passat Model series: Passat Model type: BlueMotion Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYC Type description: 365 Body: Box Body / Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Model type: BlueMotion Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFB Type description: 365 Body: Box Body / Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Model type: BlueMotion Type of engine: TDi Size of motor: 2.0 Brand of engine: CLLA,CFGB Type description: 365 Body: Box Body / Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Model type: Variant 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGC Type description: 365 Body: Estate From date: 01-01-2013 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Variant
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYC Type description: 362 From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYC Type description: 365 Body: Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Variant
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: CBBB Type description: 3C5 Body: Estate From date: 01-08-2005 To date: 01-11-2010 Fuel: Diesel Approved: Yes
      VW Model: Sharan Model series: Sharan Model type: 4motion Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFB Type description: 7N Body: MPV From date: 01-05-2011 Fuel: Diesel Approved: Yes
      VW Model: Sharan Model series: Sharan Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFA Type description: 7N Body: MPV From date: 01-05-2010 Fuel: Diesel Approved: Yes
      VW Model: Sharan Model series: Sharan Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFB Type description: 7N Body: MPV From date: 01-05-2010 Fuel: Diesel Approved: Yes
      VW Model: Sharan Model series: Sharan Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGB Type description: 7N Body: MPV From date: 01-08-2010 Fuel: Diesel Approved: Yes
      VW Model: Sharan Model series: Sharan Van Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFA Type description: 7N1, 7N2 Body: Van From date: 01-05-2010 To date: 01-05-2011 Fuel: Diesel Approved: Yes
      VW Model: Sharan Model series: Sharan Van Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFB Type description: 7N1, 7N2 Body: Van From date: 01-05-2010 To date: 01-11-2015 Fuel: Diesel Approved: Yes
      VW Model: Sharan Model series: Sharan Van Type of engine: TDi Size of motor: 2.0 Brand of engine: CFFE Type description: 7N1, 7N2 Body: Van From date: 01-05-2011 To date: 01-11-2015 Fuel: Diesel Approved: Yes
      VW Model: Sharan Model series: Sharan Van Type of engine: TDi Size of motor: 2.0 Brand of engine: CFGB Type description: 7N1, 7N2 Body: Van From date: 01-08-2010 To date: 01-01-2013 Fuel: Diesel Approved: Yes
      VW Series: CC (358) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGB Year: 11.11-
      VW Series: CC Coupé Model: 2.0 TDI Engine volume: 2.0 Engine type: CFGB Year: 11.11-01.13
      VW Series: Passat (362) Model: 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 08.10-
      VW Series: Passat (362) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFFB Year: 08.10-12.14
      VW Series: Passat (362) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGB / CLLA Year: 08.10-
      VW Series: Passat (362) Model: 2.0 TDI Engine volume: 2.0 Engine type: CFFB Year: 08.10-
      VW Series: Passat (362) Model: 2.0 TDI Engine volume: 2.0 Engine type: CFGB / CLLA Year: 08.10-
      VW Series: Passat Alltrack(365) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGB Year: 01.12-12.14
      VW Series: Passat Alltrack(365) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGC Year: 01.13-12.14
      VW Series: Passat Variant (365) Model: 1.6 TDI Engine volume: 1.6 Engine type: CAYC Year: 08.10-
      VW Series: Passat Variant (365) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFFB Year: 08.10-
      VW Series: Passat Variant (365) Model: 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFGB / CLLA Year: 08.10-
      VW Series: Passat Variant (365) Model: 2.0 TDI Engine volume: 2.0 Engine type: CFFB Year: 08.10-
      VW Series: Passat Variant (365) Model: 2.0 TDI Engine volume: 2.0 Engine type: CFGB / CLLA Year: 08.10-
      VW Series: Sharan Model: 2.0 TDI Engine volume: 2.0 Engine type: CFGB Year: 08.10-
      1 / 8
