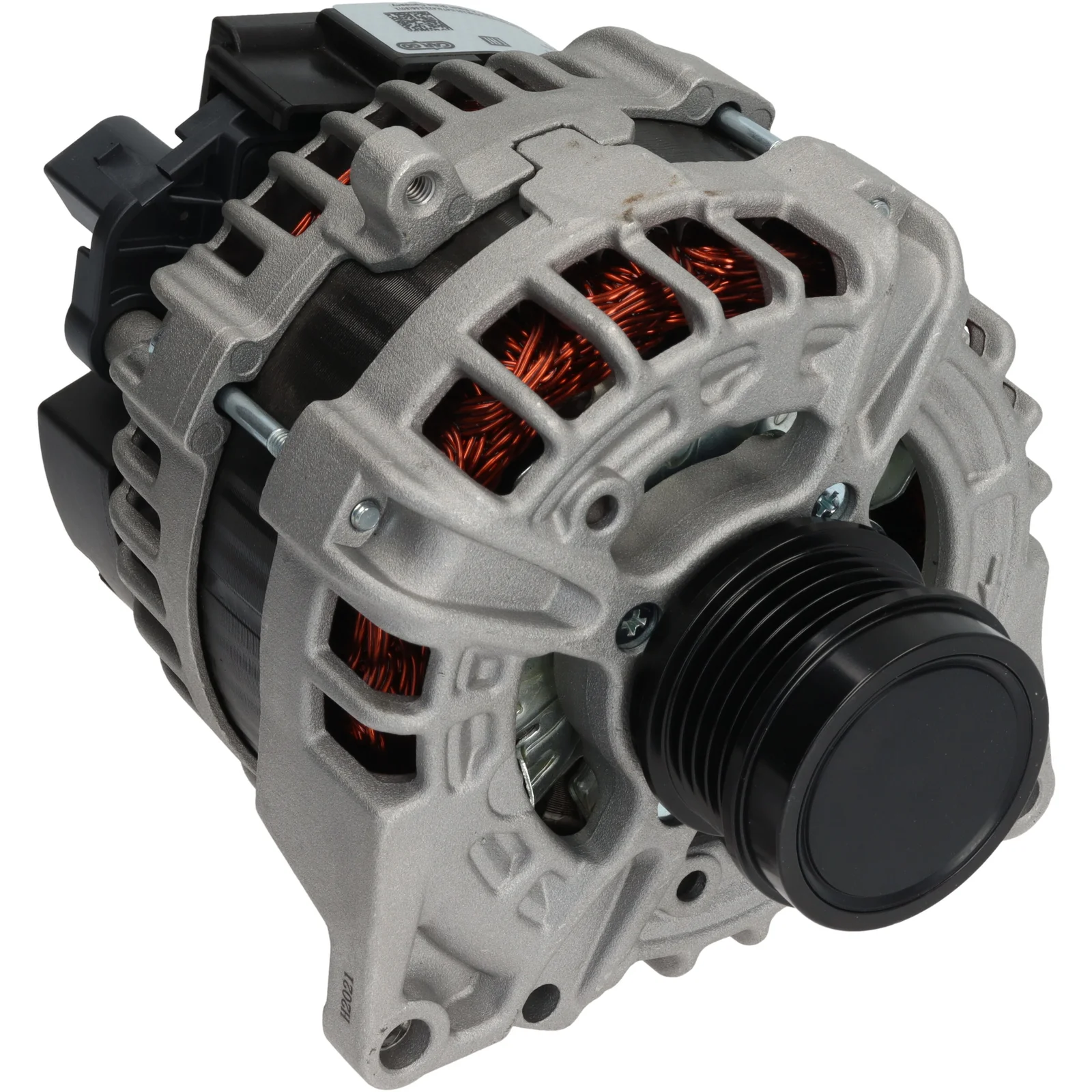

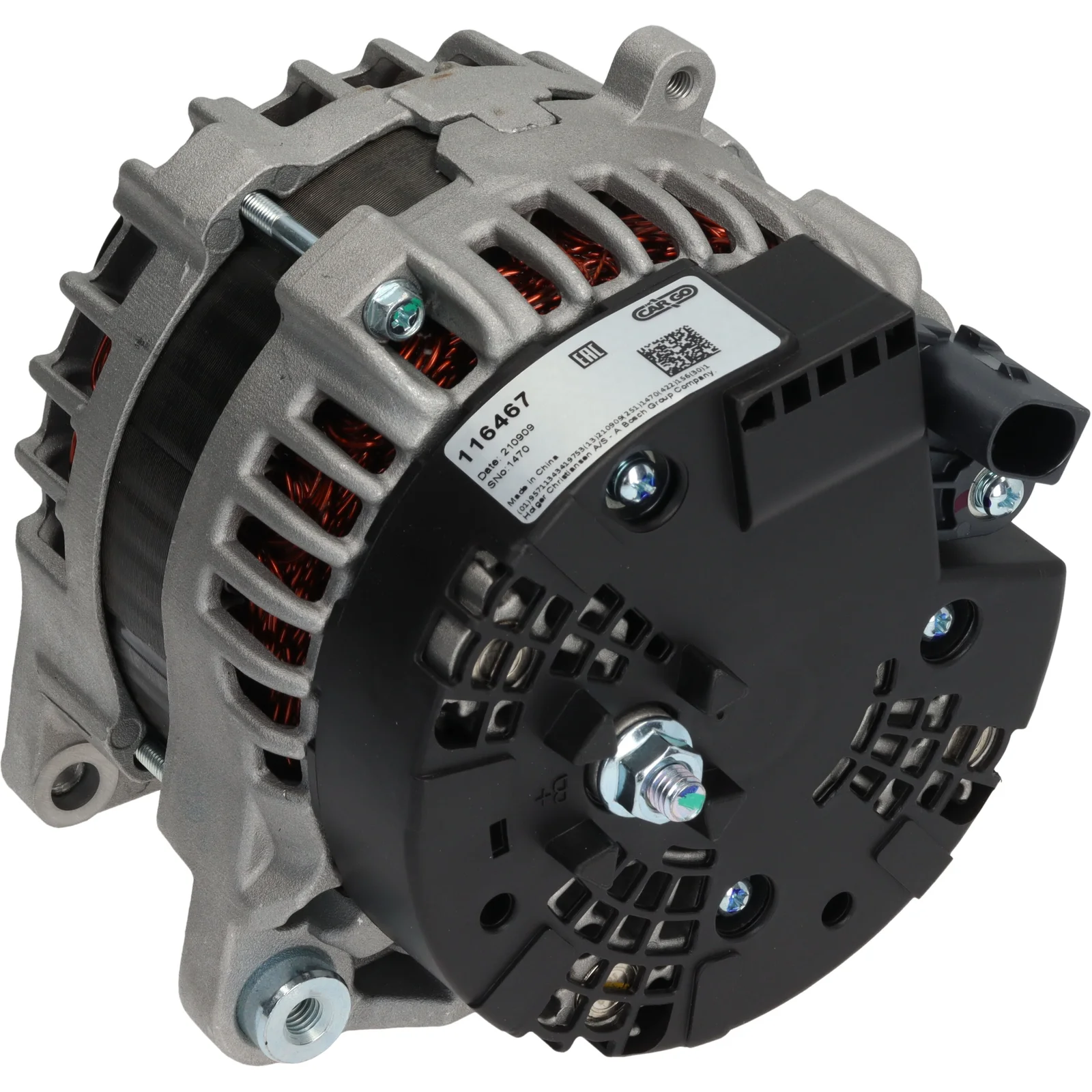

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116467

HC-Cargo Dynamo

Teknisk info:

Spennings: 14, Amp: 150, Rotasjon: CW, Monteringsbøssing avstand: 59,00

Beskrivelse

Dynamo 12V-150A passer for Mercedes 12V - 150A, 5 graders farge, (LIN) For Yourex produktbestilling 90-365-8216

Spenning: 14
Ampere: 150
Drivreimskive avstand: 29,80
Bredde/holderarm: 14,00
Festebrakett avstand: 59,00
Bretting hull: 8,50
Bredning justering brakethull pos.: 47
Bredning justering brakethull 1: 8,50
Drivreimskivediameter: 52,50
Spor/Drivreimskive: 5
Radius: 86,50
Radius 2: 86,50
B+: M8
Posisjon/B+ i min.: 37
Rotasjon: kl. med klokken
Stikkontakt nr.: PL125
Total lengde mm: 186,50
Terminaltype: COM
Kommunikasjon: LIN
Drivreimskive: SP/FW
Vifte: IF
Regulator type: IR
Merknader: Denne generatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummer for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 59.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 47
Plug no. PL125
Bracket hole 8.50
Position/B+ in min. 37
Pulley SP/FW
Pulley dia. 52.50
Pulley dist. 29.80
Radius 86.50
Radius 2 86.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 5
Terminal type COM
Voltage 14
Total length 186.50 mm
Width/holder arm 14.00
Amp 150

  • OEM
    A000 9060022, A000 9061903, A0009060022, A0009061903, A00090619030080, A000906190380, A0009067602, F032116467, 0125 711 030, 0125 711 055, 0986 082 160, 1986A01041, 116467, 0009060022, 0009061903, 0009067602, 0125711030, 0125711055, 00090619030080

  • Konkurrentreferens
    A0545S, CAL10525, DRA1036, 8EL011713-551, 28-6955, 225.319.1502, 555.547.150, 20741N, 442420, 443394, 444277, 554437RI, 9090817, 12090536, 32082160, 0986082160, 0986082163, 0986082167

  • Bilmärken
    Mercedes Benz

  • NormaliseratArtNr
    a0009060022, a0009061903, a00090619030080, a000906190380, a0009067602, a0545s, cal10525, dra1036, f032116467, 8el011713551, 1986a01041, 20741n, 116467, 286955, 442420, 443394, 444277, 554437ri, 0009060022, 0009061903, 0009067602, 9090817, 12090536, 32082160, 0125711030, 0125711055, 555547150, 0986082160, 0986082163, 0986082167, 2253191502, 00090619030080

  • Passar modeller
    Mercedes Benz Series: CLA Coupé (C117) Model: CLA 200 (117.343) Engine volume: 1.6 Engine type: M 270.910 Year: 07.18-03.19
    Mercedes Benz Series: GLA-KLASS (X156) Model: 250 Engine volume: 2.0 Engine type: M 270.920 Year: 01.15-12.19
    Mercedes Benz Series: GLA-KLASS (X156) Model: GLA 200 (156.943) Engine volume: 1.6 Engine type: M 270.910 Year: 07.18-12.19
    Mercedes Benz Series: GLA-KLASS (X156) Model: GLA 220 4-matic (156.947) Engine volume: 2.0 Engine type: M 270.920 Year: 01.17-12.19
    Mercedes-Benz Model: 200 Model series: CLA 200 Size of motor: 1.6 Brand of engine: M270.910 Type description: C117 Body: Coupe From date: 01-07-2018 To date: 01-03-2019 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 220 Model series: B 220 Model type: B 220 (246.245) Sports To Size of motor: 2.0 Brand of engine: M270.920 Type description: W246, W242 Body: Hatchback Fuel: Petrol Approved: Yes Manufacture type: Sports Tou
    Mercedes-Benz Model: 220 Model series: CLA 220 Model type: CLA 220 (117.345) Size of motor: 2.0 Brand of engine: M270.920 Type description: C117 Body: Coupe Fuel: Petrol Approved: Yes
    Mercedes-Benz Model: 220 Model series: GLA 220 Model type: 4-Matic Size of motor: 2.0 Brand of engine: M274.920 Type description: X156 From date: 01-01-2017 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 220 Model series: GLA 220 Model type: GLA 220 (156.945) Size of motor: 2.0 Brand of engine: M270.920 Type description: X156 Body: SUV Fuel: Petrol Approved: Yes
    Mercedes-Benz Model: 250 Model series: GLA 250 Flex Model type: GLA 250 Flex (156.944) Size of motor: 2.0 Brand of engine: M270.920 Type description: X156 Body: SUV From date: 01-01-2015 Fuel: Petrol/Ethanol Approved: Yes
    Mercedes-Benz Model: Gla-Class Model series: Gla-Class Size of motor: 1.6 Brand of engine: M270.910 Type description: X156 Body: Closed Off-Road Vehicle From date: 01-07-2018 Fuel: Gasoline Approved: Yes
    1 / 3
