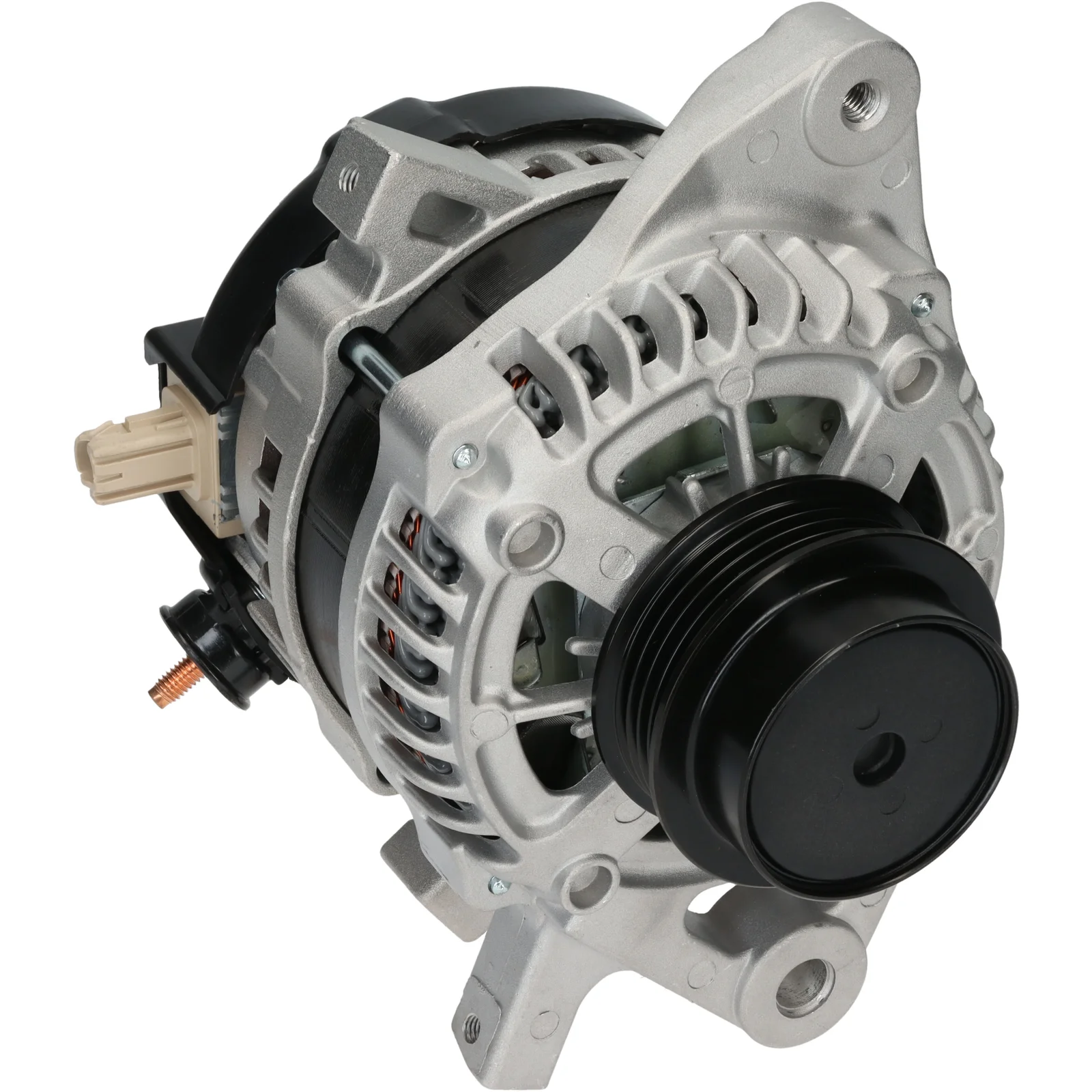

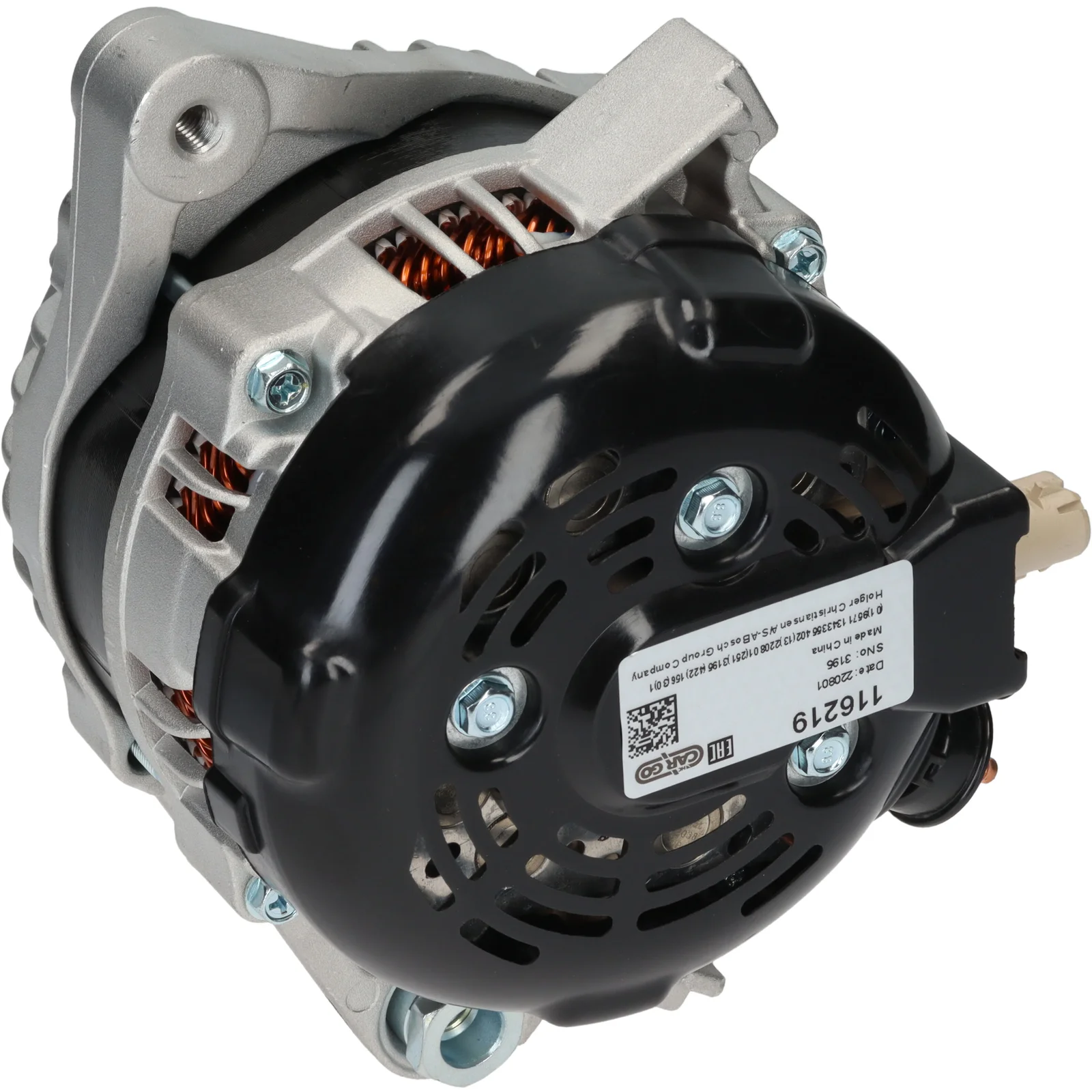

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116219

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 100, Rotasjon: medur, Monteringsbrakett avstand: 37,50

Beskrivelse

Spenningsspenning: 14
Amp: 100
Drevkugg avstand: 29,70
Bredde/holderarm: 19,20
Monteringsbeslag avstand: 37,50
Beslagshull: 11,00
Båndjusteringsbeslagshull pos.: 7
Båndjusteringsbeslagshull 1: M8
Drevkugg diameter: 62,50
Grovjer/ Drevkugg: 4
Radius: 83,00
Radius 2: 87,00
B+: M6
Posisjon/B+ i min.: 20
Rotasjon: medurs
Plugg nr.: PL204
Total lengde mm: 163,00
Terminaltype: COM
Kommunikasjon: LIN
Drevkugg: SP/FW
Regulator type: IR
Anmerkninger: Denne Generatoren har en COM-terminal på regulatoren. Det anbefales at OEM-nummeret brukes for å sjekke egnetheten før bestilling.

Filer

Spesifikasjon

B+ M6
Communication LIN
Mount. bracket dist. 37.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 7
Plug no. PL204
Bracket hole 11.00
Position/B+ in min. 20
Pulley SP/FW
Pulley dia. 62.50
Pulley dist. 29.70
Radius 83.00
Radius 2 87.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 4
Terminal type COM
Voltage 14
Total length 163.00 mm
Width/holder arm 19.20
Amp 100

  • OEM
    F032116219, 1986A00637, 1986A00740, 27060-0Y130, 27060-0Y160, 27060-47150, 27060-47260, 104210-1350, 104210-3020, 104211-3020, 104211-3021, 104211-3022, 104211-3090, 104211-3340, 63377572

  • Konkurrentreferens
    A6250(DENSO), A6250S, A6357, DAN1093, DRA1094, DRA1118, 28-6929, 235.348.1002, 20947-OS, 209107, 209107A, 12061146, 0986085080

  • NormaliseratArtNr
    a6250denso, a6250s, a6357, dan1093, dra1094, dra1118, f032116219, 1986a00637, 1986a00740, 20947os, 209107, 209107a, 270600y130, 270600y160, 286929, 12061146, 63377572, 0986085080, 1042101350, 1042103020, 1042113020, 1042113021, 1042113022, 1042113090, 1042113340, 2353481002, 2706047150, 2706047260

  • Passar modeller
    Toyota Model: Auris Model series: Auris Size of motor: 1.3 Brand of engine: 1NR-FE Type description: NZE18_, ZRE18_ Body: Hatchback From date: 01-10-2012 To date: 01-12-2018 Fuel: Gasoline Approved: Yes
    Toyota Model: Auris Model series: Auris Touring Sports Size of motor: 1.3 Brand of engine: 1NR-FE Body: Estate From date: 01-07-2013 To date: 01-12-2018 Fuel: Gasoline Approved: Yes Manufacture type: Touring Sp
    Toyota Model: Corolla Model series: Corolla Size of motor: 1.3 Brand of engine: 1NR-FE Type description: NRE18_, ZRE18_, NDE18_ From date: 01-06-2013 To date: 01-12-2018 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Size of motor: 1.3 Brand of engine: 1NR-FE Type description: _P13_ Body: Hatchback From date: 01-09-2011 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Size of motor: 1.3 Brand of engine: 1NR-FE Type description: _P13_ Body: Hatchback From date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Size of motor: 1.3 Brand of engine: 1NR-FKE Type description: _P13_ Body: Hatchback From date: 01-09-2011 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsspenning: 14
    Amp: 100
    Drevkugg avstand: 29,70
    Bredde/holderarm: 19,20
    Monteringsbeslag avstand: 37,50
    Beslagshull: 11,00
    Båndjusteringsbeslagshull pos.: 7
    Båndjusteringsbeslagshull 1: M8
    Drevkugg diameter: 62,50
    Grovjer/ Drevkugg: 4
    Radius: 83,00
    Radius 2: 87,00
    B+: M6
    Posisjon/B+ i min.: 20
    Rotasjon: medurs
    Plugg nr.: PL204
    Total lengde mm: 163,00
    Terminaltype: COM
    Kommunikasjon: LIN
    Drevkugg: SP/FW
    Regulator type: IR
    Anmerkninger: Denne Generatoren har en COM-terminal på regulatoren. Det anbefales at OEM-nummeret brukes for å sjekke egnetheten før bestilling.

    Filer

  • Spesifikasjon
    B+ M6
    Communication LIN
    Mount. bracket dist. 37.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 7
    Plug no. PL204
    Bracket hole 11.00
    Position/B+ in min. 20
    Pulley SP/FW
    Pulley dia. 62.50
    Pulley dist. 29.70
    Radius 83.00
    Radius 2 87.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 4
    Terminal type COM
    Voltage 14
    Total length 163.00 mm
    Width/holder arm 19.20
    Amp 100
  • Kjøretøymatching

    • OEM
      F032116219, 1986A00637, 1986A00740, 27060-0Y130, 27060-0Y160, 27060-47150, 27060-47260, 104210-1350, 104210-3020, 104211-3020, 104211-3021, 104211-3022, 104211-3090, 104211-3340, 63377572

    • Konkurrentreferens
      A6250(DENSO), A6250S, A6357, DAN1093, DRA1094, DRA1118, 28-6929, 235.348.1002, 20947-OS, 209107, 209107A, 12061146, 0986085080

    • NormaliseratArtNr
      a6250denso, a6250s, a6357, dan1093, dra1094, dra1118, f032116219, 1986a00637, 1986a00740, 20947os, 209107, 209107a, 270600y130, 270600y160, 286929, 12061146, 63377572, 0986085080, 1042101350, 1042103020, 1042113020, 1042113021, 1042113022, 1042113090, 1042113340, 2353481002, 2706047150, 2706047260

    • Passar modeller
      Toyota Model: Auris Model series: Auris Size of motor: 1.3 Brand of engine: 1NR-FE Type description: NZE18_, ZRE18_ Body: Hatchback From date: 01-10-2012 To date: 01-12-2018 Fuel: Gasoline Approved: Yes
      Toyota Model: Auris Model series: Auris Touring Sports Size of motor: 1.3 Brand of engine: 1NR-FE Body: Estate From date: 01-07-2013 To date: 01-12-2018 Fuel: Gasoline Approved: Yes Manufacture type: Touring Sp
      Toyota Model: Corolla Model series: Corolla Size of motor: 1.3 Brand of engine: 1NR-FE Type description: NRE18_, ZRE18_, NDE18_ From date: 01-06-2013 To date: 01-12-2018 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Size of motor: 1.3 Brand of engine: 1NR-FE Type description: _P13_ Body: Hatchback From date: 01-09-2011 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Size of motor: 1.3 Brand of engine: 1NR-FE Type description: _P13_ Body: Hatchback From date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Size of motor: 1.3 Brand of engine: 1NR-FKE Type description: _P13_ Body: Hatchback From date: 01-09-2011 Fuel: Gasoline Approved: Yes
