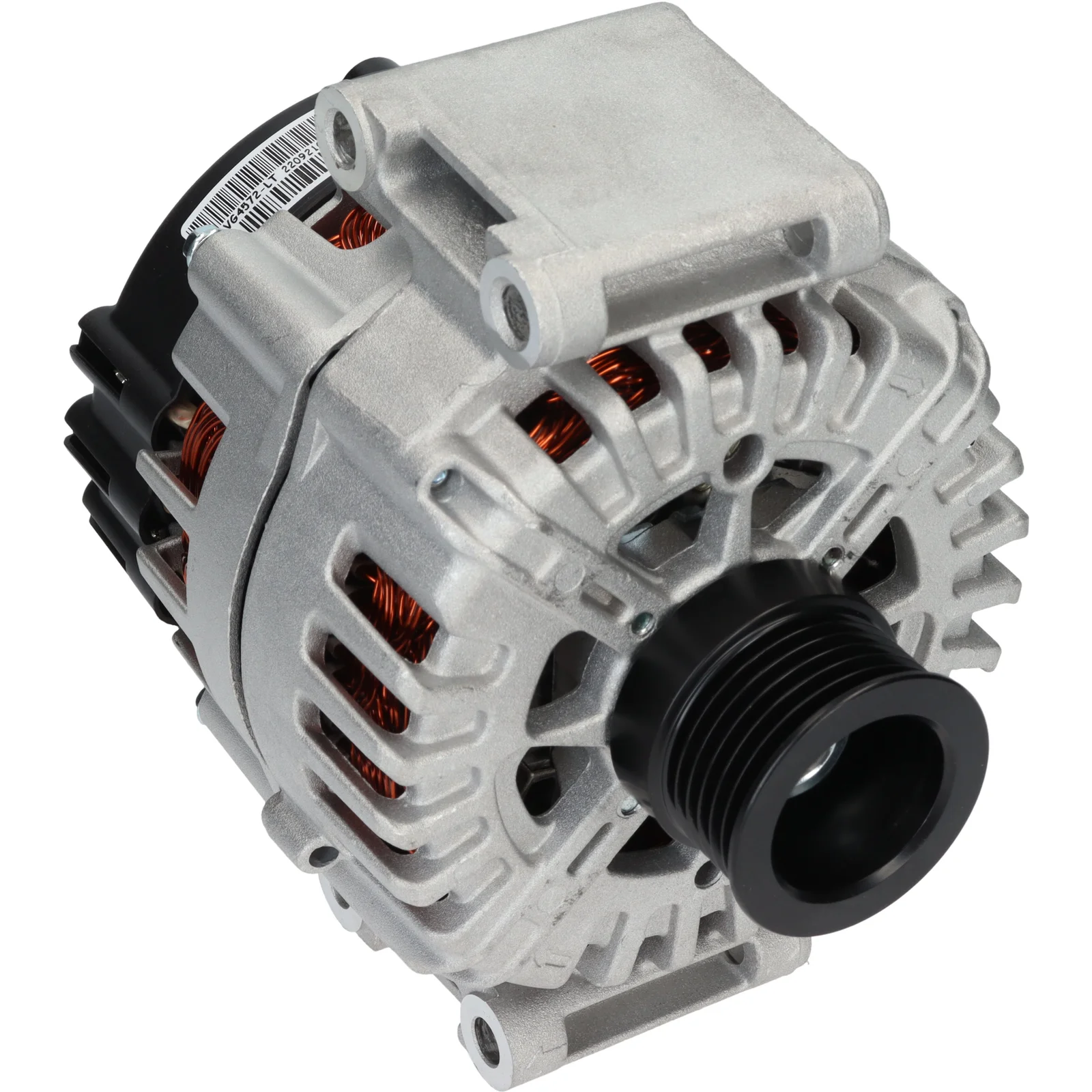

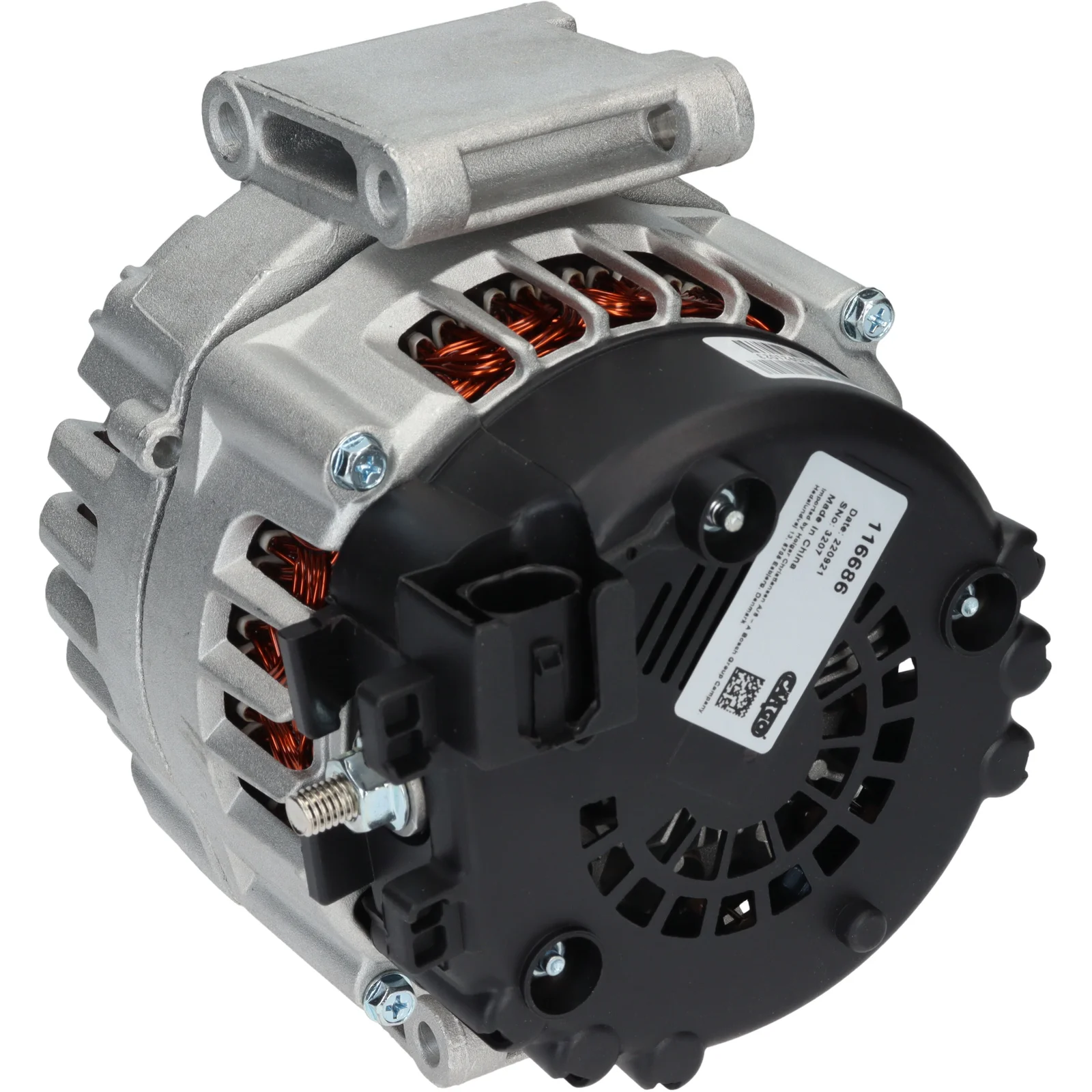

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116686

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 180, Rotasjon: CW, Monteringsbrakett avstand: 56,00

Beskrivelse

Dynamo 12V-180A 12V - 180A, 6rin, (LIN) Biler med stopp-start funksjon For Yourex produkt bestilling 90-365-7802

Voltage: 14
Ampere: 180
Hjulavstand: 32.00
Bredde/holderarm: 70.00
Moun. brakettavstand: 56.00
Brakettåpning: 9.00
Bånd, justering brakettåpning 1: 9.00
Bånd, justering brakettåpning 2: 8.00
Hjul diameter: 50.00
Riller/hjul: 6
Radie: 81.50
Radie 2: 81.50
B+: M8
Posisjon/B+ i min.: 15
Rotasjon: CW
Plugg nr.: PL125
Total lengde mm: 187.00
Terminaltype: COM
ID-kode: 57
Kommunikasjon: LIN
Hjul: SP
Vifte: IF
Regulator type: IR
Merkninger: Denne generatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 9.00
Belt. adj. bracket hole 2 8.00
Plug no. PL125
Bracket hole 9.00
Position/B+ in min. 15
Pulley SP
Pulley dia. 50.00
Pulley dist. 32.00
Radius 81.50
Radius 2 81.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
ID Code 57
Terminal type COM
Voltage 14
Total length 187.00 mm
Width/holder arm 70.00
Amp 180

  • OEM
    000 906 7802, A000 9067802, A0009067802, A000906780280, A3125, A3125(VALEO), BJ3210300AC, BJ3210300AD, C2Z17063, C2Z31658, CAL15015, CZ231658, F032116686, FG18S 127, FG18S127, FGN18S127, LR028116, LR0281166, LR031026, LR088854, 28-6917, 555.918.180, 1986A00620, 1986A00640, 116686, 209188, 209188A, 439819, 440473, 553832RI, 2618187, 2618187A, 2618187B, 2618187C, 0009067802, 9067802, 12090598, 32084860, 000906780280, 906780280, 0986084860

  • Konkurrentreferens
    A3125, A3125(VALEO), CAL15015, 28-6917, 555.918.180, 209188, 209188A, 439819, 440473, 553832RI, 12090598, 32084860, 0986084860

  • Bilmärken
    JAGUAR, LAND ROVER, MERCEDES-BENZ

  • NormaliseratArtNr
    a0009067802, a000906780280, a3125, a3125valeo, bj3210300ac, bj3210300ad, c2z17063, c2z31658, cal15015, cz231658, f032116686, fg18s127, fgn18s127, lr028116, lr0281166, lr031026, lr088854, 1986a00620, 1986a00640, 116686, 209188, 209188a, 286917, 439819, 440473, 553832ri, 2618187, 2618187a, 2618187b, 2618187c, 0009067802, 9067802, 12090598, 32084860, 555918180, 000906780280, 906780280, 0986084860

  • Passar modeller
    JAGUAR XF I (X250) 2.2 D Engine volume: 2.2 Engine type: 224DT(DW12C) Year: 03.12-04.15
    JAGUAR XF I (X250) 2.2 D Engine volume: 2.2 Engine type: 224DT(DW12C) Year: 05.11-04.15
    JAGUAR XF SPORTBRAKE (X250) 2.2 D Engine volume: 2.2 Engine type: 224DT(DW12C) Year: 09.12-04.14
    LAND ROVER RANGE ROVER EVOQUE (L538) 2.2 D 4x4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 05.11-12.19
    LAND ROVER RANGE ROVER EVOQUE (L538) 2.2 D 4x4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 06.11-12.19
    LAND ROVER RANGE ROVER EVOQUE (L538) 2.2 D Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 06.11-12.19
    LAND ROVER RANGE ROVER EVOQUE VAN (L538) SD4 4x4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 05.15-12.19
    LAND ROVER RANGE ROVER EVOQUE VAN (L538) TD4 4x4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 05.15-12.19
    LAND ROVER RANGE ROVER EVOQUE VAN (L538) TD4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 05.15-12.19
    MERCEDES-BENZ C-KLASS (W204) C 220 CDI 4-matic (204.084) Engine volume: 2.2 Engine type: OM 651.912 Year: 02.13-01.14
    MERCEDES-BENZ C-KLASS (W204) C 250 CDI 4-matic (204.082) Engine volume: 2.2 Engine type: OM 651.912 Year: 01.11-01.14
    MERCEDES-BENZ C-KLASS (W205) C 200 d (205.007) Engine volume: 2.2 Engine type: OM 651.921 Year: 10.15-05.18
    MERCEDES-BENZ C-KLASS (W205) C 220 BlueTEC / d (205.002, 205.004) Engine volume: 2.2 Engine type: OM 651.921 Year: 02.14-05.18
    MERCEDES-BENZ C-KLASS (W205) C 220 BlueTEC / d (205.003) Engine volume: 2.2 Engine type: OM 651.921 Year: 03.14-05.16
    MERCEDES-BENZ C-KLASS (W205) C 220 d 4-matic (205.005) Engine volume: 2.2 Engine type: OM 651.921 Year: 04.15-05.18
    MERCEDES-BENZ C-KLASS (W205) C 250 BlueTEC / d (205.008, 205.006) Engine volume: 2.2 Engine type: OM 651.921 Year: 02.14-05.18
    MERCEDES-BENZ C-KLASS (W205) C 250 BlueTEC / d 4-matic (205.009) Engine volume: 2.2 Engine type: OM 651.921 Year: 02.14-05.18
    MERCEDES-BENZ C-KLASS Cabriolet (A205) C 220 d (205.404) Engine volume: 2.2 Engine type: OM 651.921 Year: 06.16-05.18
    MERCEDES-BENZ C-KLASS Cabriolet (A205) C 220 d 4-matic (205.405) Engine volume: 2.2 Engine type: OM 651.921 Year: 06.16-05.18
    MERCEDES-BENZ C-KLASS Cabriolet (A205) C 250 d (205.408) Engine volume: 2.2 Engine type: OM 651.921 Year: 06.16-05.18
    MERCEDES-BENZ C-KLASS Coupé (C205) C 220 d (205.304) Engine volume: 2.2 Engine type: OM 651.921 Year: 10.15-05.18
    MERCEDES-BENZ C-KLASS Coupé (C205) C 220 d 4-matic (205.305) Engine volume: 2.2 Engine type: OM 651.921 Year: 04.16-05.18
    MERCEDES-BENZ C-KLASS Coupé (C205) C 250 d (205.308) Engine volume: 2.2 Engine type: OM 651.921 Year: 10.15-05.18
    MERCEDES-BENZ C-KLASS Coupé (C205) C 250 d 4-matic (205.309) Engine volume: 2.2 Engine type: OM 651.921 Year: 04.16-05.18
    MERCEDES-BENZ C-KLASS T-Model (S204) C 220 CDI 4-matic (204.284) Engine volume: 2.2 Engine type: OM 651.912 Year: 02.13-08.14
    MERCEDES-BENZ C-KLASS T-Model (S204) C 250 CDI 4-matic (204.282) Engine volume: 2.2 Engine type: OM 651.912 Year: 04.10-08.14
    MERCEDES-BENZ C-KLASS T-Model (S205) C 200 d (205.207) Engine volume: 2.2 Engine type: OM 651.921 Year: 10.15-05.18
    MERCEDES-BENZ C-KLASS T-Model (S205) C 220 BlueTEC / d (205.204) Engine volume: 2.2 Engine type: OM 651.921 Year: 09.14-05.18
    MERCEDES-BENZ C-KLASS T-Model (S205) C 220 d 4-matic (205.205) Engine volume: 2.2 Engine type: OM 651.921 Year: 04.15-05.18
    MERCEDES-BENZ C-KLASS T-Model (S205) C 250 BlueTEC / d (205.208) Engine volume: 2.2 Engine type: OM 651.921 Year: 09.14-05.18
    MERCEDES-BENZ C-KLASS T-Model (S205) C 250 BlueTEC / d 4-matic (205.209) Engine volume: 2.2 Engine type: OM 651.921 Year: 10.14-05.18
    MERCEDES-BENZ E-KLASS (W212) E 220 BlueTEC 4-matic (212.011) Engine volume: 2.2 Engine type: OM 651.924 Year: 01.15-12.15
    MERCEDES-BENZ E-KLASS (W212) E 250 CDI / BlueTEC 4-matic (212.082, 212.097) Engine volume: 2.2 Engine type: OM 651.924 Year: 01.11-12.15
    MERCEDES-BENZ E-KLASS T-Model (S212) E 220 BlueTEC 4-matic (212.211) Engine volume: 2.2 Engine type: OM 651.924 Year: 12.14-12.16
    MERCEDES-BENZ E-KLASS T-Model (S212) E 250 CDI / BlueTEC 4-matic (212.282, 212.297) Engine volume: 2.2 Engine type: OM 651.924 Year: 07.10-12.16
    MERCEDES-BENZ GLK-KLASS (X204) 220 CDI 4-matic (204.984) Engine volume: 2.2 Engine type: OM 651.912 Year: 12.08-06.15
    MERCEDES-BENZ GLK-KLASS (X204) 220 CDI 4-matic (204.984, 204.997) Engine volume: 2.2 Engine type: OM 651.912 Year: 12.08-06.15
    MERCEDES-BENZ GLK-KLASS (X204) 250 CDI 4-matic (204.982, 204.904) Engine volume: 2.2 Engine type: OM 651.912 Year: 09.09-06.15
    1 / 8
  • Beskrivelse
    Dynamo 12V-180A 12V - 180A, 6rin, (LIN) Biler med stopp-start funksjon For Yourex produkt bestilling 90-365-7802

    Voltage: 14
    Ampere: 180
    Hjulavstand: 32.00
    Bredde/holderarm: 70.00
    Moun. brakettavstand: 56.00
    Brakettåpning: 9.00
    Bånd, justering brakettåpning 1: 9.00
    Bånd, justering brakettåpning 2: 8.00
    Hjul diameter: 50.00
    Riller/hjul: 6
    Radie: 81.50
    Radie 2: 81.50
    B+: M8
    Posisjon/B+ i min.: 15
    Rotasjon: CW
    Plugg nr.: PL125
    Total lengde mm: 187.00
    Terminaltype: COM
    ID-kode: 57
    Kommunikasjon: LIN
    Hjul: SP
    Vifte: IF
    Regulator type: IR
    Merkninger: Denne generatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication LIN
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 9.00
    Belt. adj. bracket hole 2 8.00
    Plug no. PL125
    Bracket hole 9.00
    Position/B+ in min. 15
    Pulley SP
    Pulley dia. 50.00
    Pulley dist. 32.00
    Radius 81.50
    Radius 2 81.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    ID Code 57
    Terminal type COM
    Voltage 14
    Total length 187.00 mm
    Width/holder arm 70.00
    Amp 180
  • Kjøretøymatching

    • OEM
      000 906 7802, A000 9067802, A0009067802, A000906780280, A3125, A3125(VALEO), BJ3210300AC, BJ3210300AD, C2Z17063, C2Z31658, CAL15015, CZ231658, F032116686, FG18S 127, FG18S127, FGN18S127, LR028116, LR0281166, LR031026, LR088854, 28-6917, 555.918.180, 1986A00620, 1986A00640, 116686, 209188, 209188A, 439819, 440473, 553832RI, 2618187, 2618187A, 2618187B, 2618187C, 0009067802, 9067802, 12090598, 32084860, 000906780280, 906780280, 0986084860

    • Konkurrentreferens
      A3125, A3125(VALEO), CAL15015, 28-6917, 555.918.180, 209188, 209188A, 439819, 440473, 553832RI, 12090598, 32084860, 0986084860

    • Bilmärken
      JAGUAR, LAND ROVER, MERCEDES-BENZ

    • NormaliseratArtNr
      a0009067802, a000906780280, a3125, a3125valeo, bj3210300ac, bj3210300ad, c2z17063, c2z31658, cal15015, cz231658, f032116686, fg18s127, fgn18s127, lr028116, lr0281166, lr031026, lr088854, 1986a00620, 1986a00640, 116686, 209188, 209188a, 286917, 439819, 440473, 553832ri, 2618187, 2618187a, 2618187b, 2618187c, 0009067802, 9067802, 12090598, 32084860, 555918180, 000906780280, 906780280, 0986084860

    • Passar modeller
      JAGUAR XF I (X250) 2.2 D Engine volume: 2.2 Engine type: 224DT(DW12C) Year: 03.12-04.15
      JAGUAR XF I (X250) 2.2 D Engine volume: 2.2 Engine type: 224DT(DW12C) Year: 05.11-04.15
      JAGUAR XF SPORTBRAKE (X250) 2.2 D Engine volume: 2.2 Engine type: 224DT(DW12C) Year: 09.12-04.14
      LAND ROVER RANGE ROVER EVOQUE (L538) 2.2 D 4x4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 05.11-12.19
      LAND ROVER RANGE ROVER EVOQUE (L538) 2.2 D 4x4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 06.11-12.19
      LAND ROVER RANGE ROVER EVOQUE (L538) 2.2 D Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 06.11-12.19
      LAND ROVER RANGE ROVER EVOQUE VAN (L538) SD4 4x4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 05.15-12.19
      LAND ROVER RANGE ROVER EVOQUE VAN (L538) TD4 4x4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 05.15-12.19
      LAND ROVER RANGE ROVER EVOQUE VAN (L538) TD4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 05.15-12.19
      MERCEDES-BENZ C-KLASS (W204) C 220 CDI 4-matic (204.084) Engine volume: 2.2 Engine type: OM 651.912 Year: 02.13-01.14
      MERCEDES-BENZ C-KLASS (W204) C 250 CDI 4-matic (204.082) Engine volume: 2.2 Engine type: OM 651.912 Year: 01.11-01.14
      MERCEDES-BENZ C-KLASS (W205) C 200 d (205.007) Engine volume: 2.2 Engine type: OM 651.921 Year: 10.15-05.18
      MERCEDES-BENZ C-KLASS (W205) C 220 BlueTEC / d (205.002, 205.004) Engine volume: 2.2 Engine type: OM 651.921 Year: 02.14-05.18
      MERCEDES-BENZ C-KLASS (W205) C 220 BlueTEC / d (205.003) Engine volume: 2.2 Engine type: OM 651.921 Year: 03.14-05.16
      MERCEDES-BENZ C-KLASS (W205) C 220 d 4-matic (205.005) Engine volume: 2.2 Engine type: OM 651.921 Year: 04.15-05.18
      MERCEDES-BENZ C-KLASS (W205) C 250 BlueTEC / d (205.008, 205.006) Engine volume: 2.2 Engine type: OM 651.921 Year: 02.14-05.18
      MERCEDES-BENZ C-KLASS (W205) C 250 BlueTEC / d 4-matic (205.009) Engine volume: 2.2 Engine type: OM 651.921 Year: 02.14-05.18
      MERCEDES-BENZ C-KLASS Cabriolet (A205) C 220 d (205.404) Engine volume: 2.2 Engine type: OM 651.921 Year: 06.16-05.18
      MERCEDES-BENZ C-KLASS Cabriolet (A205) C 220 d 4-matic (205.405) Engine volume: 2.2 Engine type: OM 651.921 Year: 06.16-05.18
      MERCEDES-BENZ C-KLASS Cabriolet (A205) C 250 d (205.408) Engine volume: 2.2 Engine type: OM 651.921 Year: 06.16-05.18
      MERCEDES-BENZ C-KLASS Coupé (C205) C 220 d (205.304) Engine volume: 2.2 Engine type: OM 651.921 Year: 10.15-05.18
      MERCEDES-BENZ C-KLASS Coupé (C205) C 220 d 4-matic (205.305) Engine volume: 2.2 Engine type: OM 651.921 Year: 04.16-05.18
      MERCEDES-BENZ C-KLASS Coupé (C205) C 250 d (205.308) Engine volume: 2.2 Engine type: OM 651.921 Year: 10.15-05.18
      MERCEDES-BENZ C-KLASS Coupé (C205) C 250 d 4-matic (205.309) Engine volume: 2.2 Engine type: OM 651.921 Year: 04.16-05.18
      MERCEDES-BENZ C-KLASS T-Model (S204) C 220 CDI 4-matic (204.284) Engine volume: 2.2 Engine type: OM 651.912 Year: 02.13-08.14
      MERCEDES-BENZ C-KLASS T-Model (S204) C 250 CDI 4-matic (204.282) Engine volume: 2.2 Engine type: OM 651.912 Year: 04.10-08.14
      MERCEDES-BENZ C-KLASS T-Model (S205) C 200 d (205.207) Engine volume: 2.2 Engine type: OM 651.921 Year: 10.15-05.18
      MERCEDES-BENZ C-KLASS T-Model (S205) C 220 BlueTEC / d (205.204) Engine volume: 2.2 Engine type: OM 651.921 Year: 09.14-05.18
      MERCEDES-BENZ C-KLASS T-Model (S205) C 220 d 4-matic (205.205) Engine volume: 2.2 Engine type: OM 651.921 Year: 04.15-05.18
      MERCEDES-BENZ C-KLASS T-Model (S205) C 250 BlueTEC / d (205.208) Engine volume: 2.2 Engine type: OM 651.921 Year: 09.14-05.18
      MERCEDES-BENZ C-KLASS T-Model (S205) C 250 BlueTEC / d 4-matic (205.209) Engine volume: 2.2 Engine type: OM 651.921 Year: 10.14-05.18
      MERCEDES-BENZ E-KLASS (W212) E 220 BlueTEC 4-matic (212.011) Engine volume: 2.2 Engine type: OM 651.924 Year: 01.15-12.15
      MERCEDES-BENZ E-KLASS (W212) E 250 CDI / BlueTEC 4-matic (212.082, 212.097) Engine volume: 2.2 Engine type: OM 651.924 Year: 01.11-12.15
      MERCEDES-BENZ E-KLASS T-Model (S212) E 220 BlueTEC 4-matic (212.211) Engine volume: 2.2 Engine type: OM 651.924 Year: 12.14-12.16
      MERCEDES-BENZ E-KLASS T-Model (S212) E 250 CDI / BlueTEC 4-matic (212.282, 212.297) Engine volume: 2.2 Engine type: OM 651.924 Year: 07.10-12.16
      MERCEDES-BENZ GLK-KLASS (X204) 220 CDI 4-matic (204.984) Engine volume: 2.2 Engine type: OM 651.912 Year: 12.08-06.15
      MERCEDES-BENZ GLK-KLASS (X204) 220 CDI 4-matic (204.984, 204.997) Engine volume: 2.2 Engine type: OM 651.912 Year: 12.08-06.15
      MERCEDES-BENZ GLK-KLASS (X204) 250 CDI 4-matic (204.982, 204.904) Engine volume: 2.2 Engine type: OM 651.912 Year: 09.09-06.15
      1 / 8
