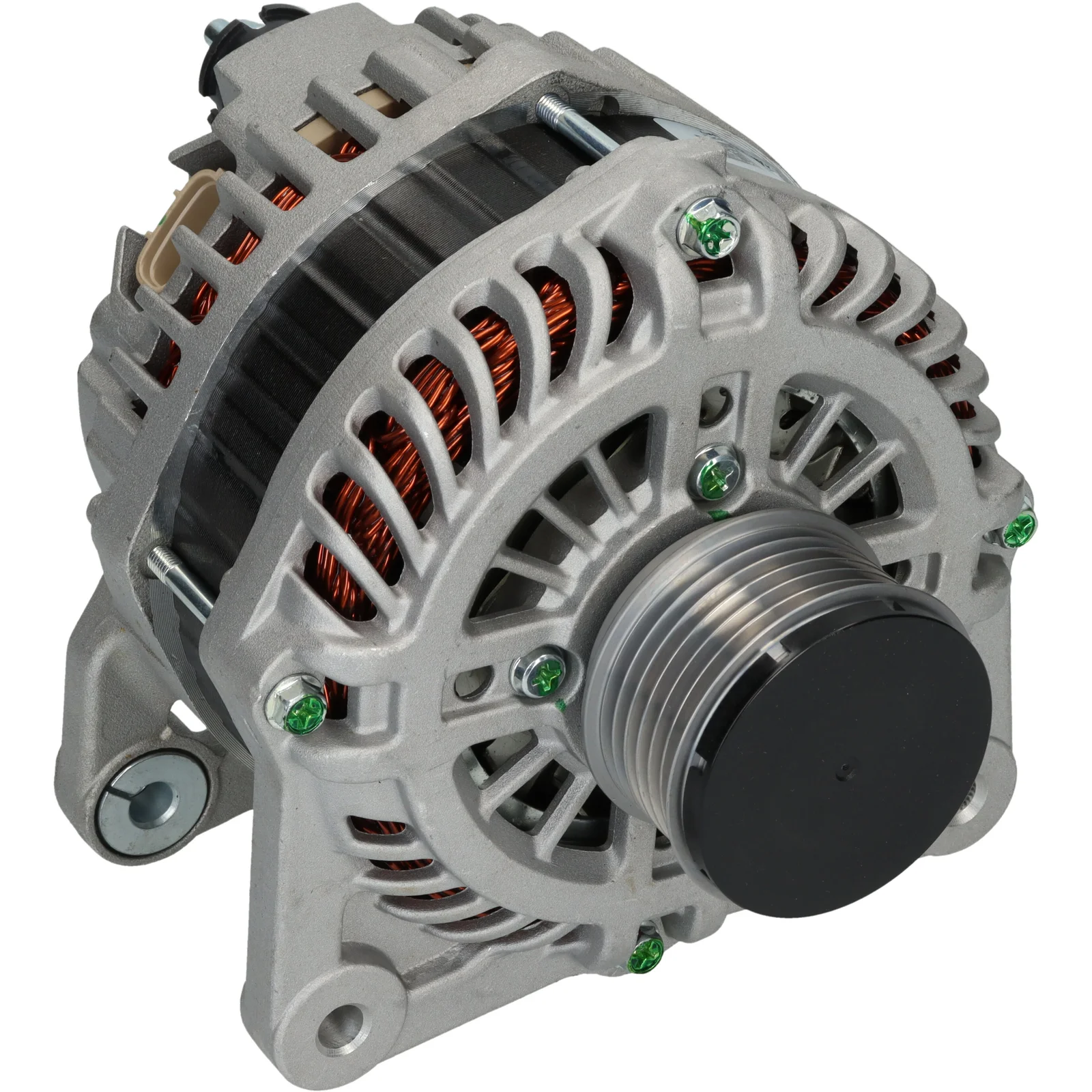

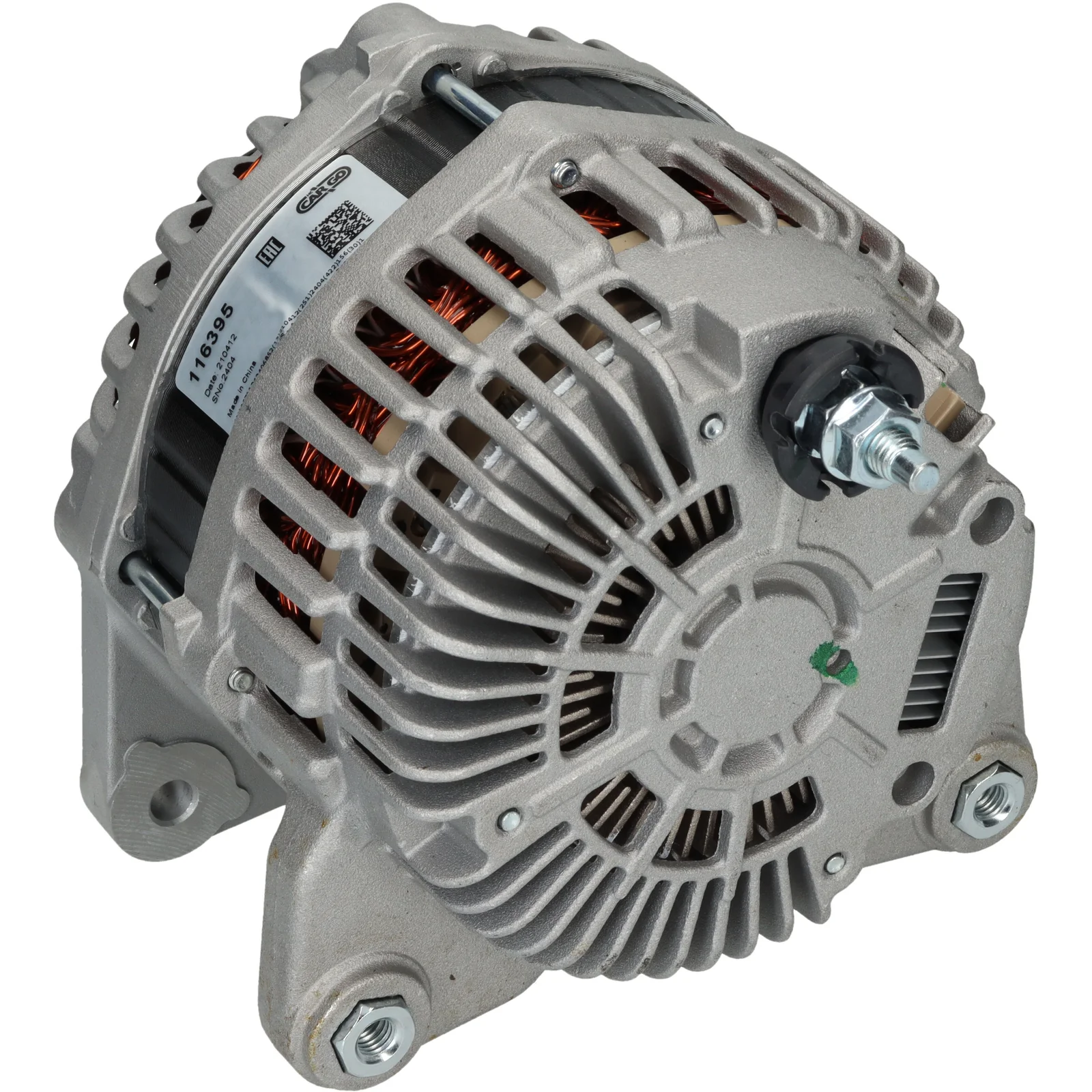

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116395

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 150, Rotasjon: CW, Festebrakett avstand: 60.00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Amp: 150
Skive avstand: 38,50
Bredde/holderarm: 14,00
Festebrakett avstand: 60,00
Braketthull: 8,50
Båndjusteringsbrakettposisjon: 45
Båndjusteringsbrakett hull 1: 8,50
Skivediameter: 55,00
Groper/skive: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Posisjon/B+ i min.: 55
D+ Størrelse: Plugg
Rotasjon: medurs
Pluggnr.: PL163
Total lengde mm: 195,00
Skive: SP/FW
Vifte: IF
Regulator type: IR

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 60.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL163
Bracket hole 8.50
Position/B+ in min. 55
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 38.50
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Voltage 14
Total length 195.00 mm
Width/holder arm 14.00
Amp 150

  • OEM
    A003TJ4081, A3TJ4081, A3TJ4081ZE, F032116395, 23100-3VD1A, 23100-3VDIA

  • Konkurrentreferens
    A5397S, CAL35402, 28-7549, 165.913.150, 227.334.1502, 440939, 12061230

  • NormaliseratArtNr
    a003tj4081, a3tj4081, a3tj4081ze, a5397s, cal35402, f032116395, 231003vd1a, 231003vdia, 287549, 440939, 12061230, 165913150, 2273341502

  • Passar modeller
    Nissan Model: Juke Model series: Juke Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K .. Body: Hatchback From date: 01-06-2010 Fuel: Diesel Approved: Yes
    Nissan Model: Juke Model series: Juke Type of engine: DCI Size of motor: 1.5 Brand of engine: K9K636 Type description: F15 Body: Box Body / Estate From date: 01-06-2010 Fuel: Diesel Approved: Yes
    Nissan Model: Note Model series: Note Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K892 Body: Hatchback From date: 01-06-2013 Fuel: Diesel Approved: Yes
    Nissan Model: NV 200 Evalia Model series: NV 200 Evalia Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K892 Body: Bus From date: 01-04-2011 Fuel: Diesel Approved: Yes
    Nissan Model: NV 200 Model series: NV 200 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K892 Body: Van From date: 01-04-2011 Fuel: Diesel Approved: Yes
    Nissan Model: NV200 Model series: NV200 Model type: dCi 105 (M20N) Type of engine: dci Size of motor: 1.5 Brand of engine: K9K Body: Van Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spenning: 14
    Amp: 150
    Skive avstand: 38,50
    Bredde/holderarm: 14,00
    Festebrakett avstand: 60,00
    Braketthull: 8,50
    Båndjusteringsbrakettposisjon: 45
    Båndjusteringsbrakett hull 1: 8,50
    Skivediameter: 55,00
    Groper/skive: 6
    Radius: 90,00
    Radius 2: 90,00
    B+: M8
    Posisjon/B+ i min.: 55
    D+ Størrelse: Plugg
    Rotasjon: medurs
    Pluggnr.: PL163
    Total lengde mm: 195,00
    Skive: SP/FW
    Vifte: IF
    Regulator type: IR

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 60.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL163
    Bracket hole 8.50
    Position/B+ in min. 55
    Pulley SP/FW
    Pulley dia. 55.00
    Pulley dist. 38.50
    Radius 90.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Voltage 14
    Total length 195.00 mm
    Width/holder arm 14.00
    Amp 150
  • Kjøretøymatching

    • OEM
      A003TJ4081, A3TJ4081, A3TJ4081ZE, F032116395, 23100-3VD1A, 23100-3VDIA

    • Konkurrentreferens
      A5397S, CAL35402, 28-7549, 165.913.150, 227.334.1502, 440939, 12061230

    • NormaliseratArtNr
      a003tj4081, a3tj4081, a3tj4081ze, a5397s, cal35402, f032116395, 231003vd1a, 231003vdia, 287549, 440939, 12061230, 165913150, 2273341502

    • Passar modeller
      Nissan Model: Juke Model series: Juke Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K .. Body: Hatchback From date: 01-06-2010 Fuel: Diesel Approved: Yes
      Nissan Model: Juke Model series: Juke Type of engine: DCI Size of motor: 1.5 Brand of engine: K9K636 Type description: F15 Body: Box Body / Estate From date: 01-06-2010 Fuel: Diesel Approved: Yes
      Nissan Model: Note Model series: Note Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K892 Body: Hatchback From date: 01-06-2013 Fuel: Diesel Approved: Yes
      Nissan Model: NV 200 Evalia Model series: NV 200 Evalia Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K892 Body: Bus From date: 01-04-2011 Fuel: Diesel Approved: Yes
      Nissan Model: NV 200 Model series: NV 200 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K892 Body: Van From date: 01-04-2011 Fuel: Diesel Approved: Yes
      Nissan Model: NV200 Model series: NV200 Model type: dCi 105 (M20N) Type of engine: dci Size of motor: 1.5 Brand of engine: K9K Body: Van Fuel: Diesel Approved: Yes
