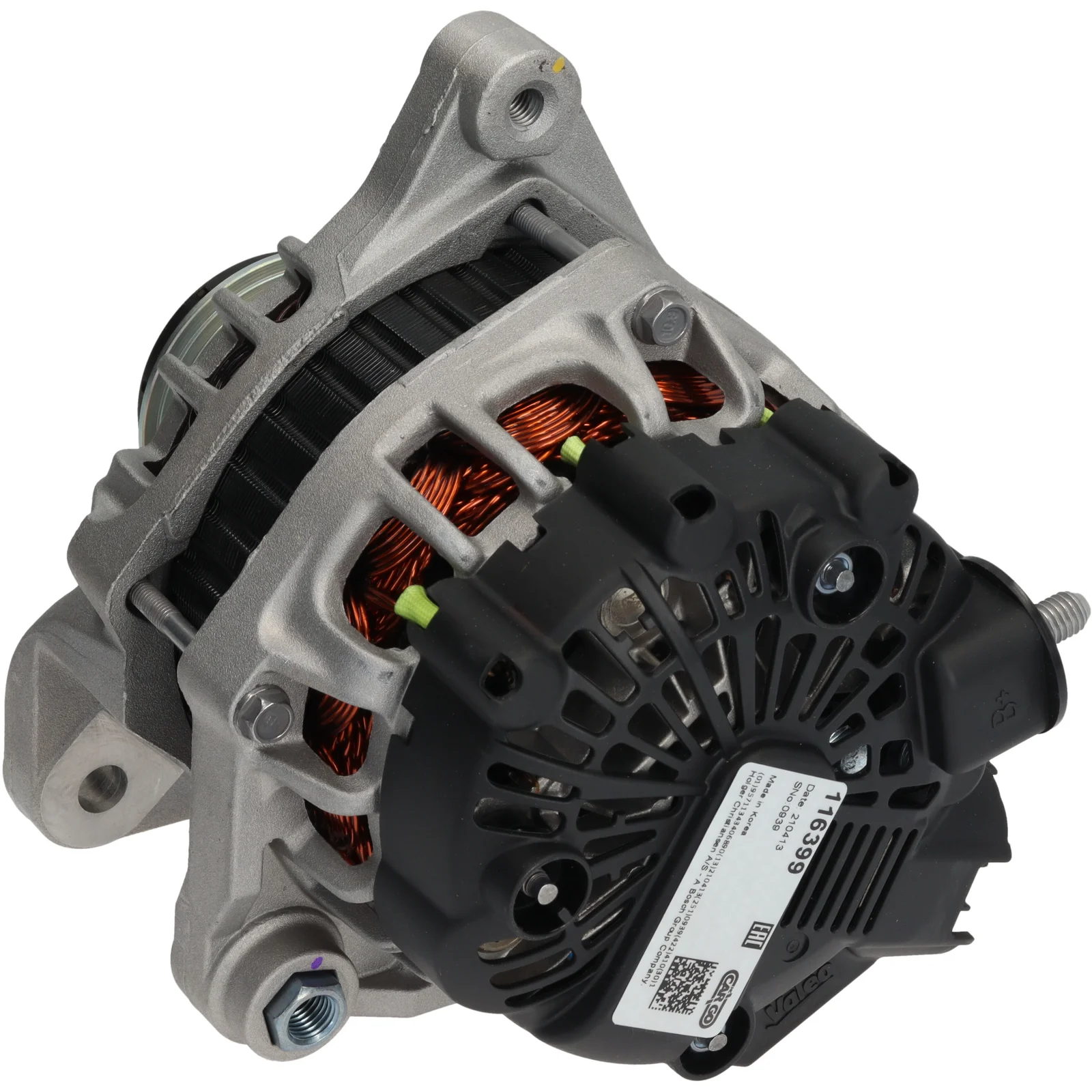

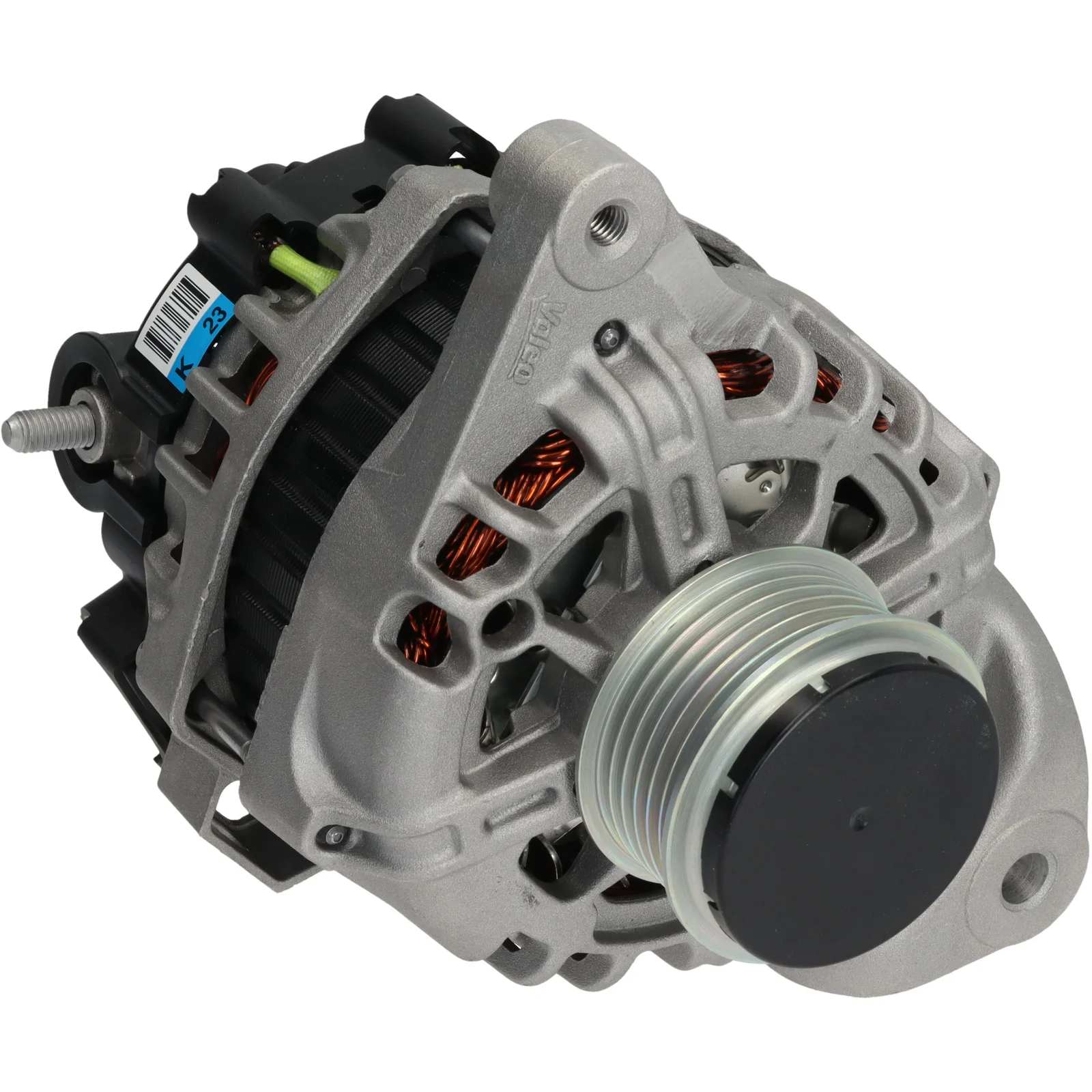

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116399

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 90, Rotasjon: CW, Montering. brakett avstand.: 52,50

Beskrivelse

Spenningsnivå: 14
Amp: 90
Drevavstand: 10.00
Bredde/holderarm: 14.80
Festebrakett avstand: 52.50
Brakettodd: 10.40
Belt. justering brakkettodd pos.: 7
Belt. justering brakettodd 1: M8
Drevskive diameter: 58.00
Veger/dreven: 6
Radius: 78.00
Radius 2: 86.00
B+: M8
Posisjon/B+ i min.: 5
Rotasjon: Klokkevis
Plugg nr.: PL176
Total lengde mm: 177.00
Drevskive: SP/FW
Vifte: IF
Regulator type: IR

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 52.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 7
Plug no. PL176
Bracket hole 10.40
Position/B+ in min. 5
Pulley SP/FW
Pulley dia. 58.00
Pulley dist. 10.00
Radius 78.00
Radius 2 86.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Voltage 14
Total length 177.00 mm
Width/holder arm 14.80
Amp 90

  • OEM
    A0002619299, F032116399, 1986A01451, 37300-04635, 2619299

  • Konkurrentreferens
    A3568(VALEO), CAL32201, 28-6961, 155.915.090, 224.315.902, 443247, 608388, 12061225, 0986085860

  • NormaliseratArtNr
    a0002619299, a3568valeo, cal32201, f032116399, 1986a01451, 286961, 443247, 608388, 2619299, 12061225, 155915090, 224315902, 0986085860, 3730004635

  • Passar modeller
    Hyundai Model: i10 Model series: i10 Size of motor: 1.0 Brand of engine: G3LA Type description: BA Body: Hatchback From date: 01-08-2013 Fuel: Gasoline Approved: Yes
    Hyundai Model: i10 Model series: i10 Size of motor: 1.0 Brand of engine: G3LA Type description: BA, IA Body: Hatchback Van Fuel: Petrol Approved: Yes
    Kia Model: Picanto Model series: Picanto Model type: Bi-Fuel Size of motor: 1.0 Brand of engine: B3LA Type description: TA Body: Hatchback From date: 01-05-2011 Fuel: Diesel Approved: Yes
    Kia Model: Picanto Model series: Picanto Model type: LPG Size of motor: 1.0 Brand of engine: B3LA Type description: TA Body: Hatchback From date: 01-08-2013 Fuel: Bi-Fuel Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G3LA Type description: TA Body: Hatchback From date: 01-04-2015 Fuel: Gasoline Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G3LA Type description: TA Body: Hatchback From date: 01-05-2011 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsnivå: 14
    Amp: 90
    Drevavstand: 10.00
    Bredde/holderarm: 14.80
    Festebrakett avstand: 52.50
    Brakettodd: 10.40
    Belt. justering brakkettodd pos.: 7
    Belt. justering brakettodd 1: M8
    Drevskive diameter: 58.00
    Veger/dreven: 6
    Radius: 78.00
    Radius 2: 86.00
    B+: M8
    Posisjon/B+ i min.: 5
    Rotasjon: Klokkevis
    Plugg nr.: PL176
    Total lengde mm: 177.00
    Drevskive: SP/FW
    Vifte: IF
    Regulator type: IR

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 52.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 7
    Plug no. PL176
    Bracket hole 10.40
    Position/B+ in min. 5
    Pulley SP/FW
    Pulley dia. 58.00
    Pulley dist. 10.00
    Radius 78.00
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Voltage 14
    Total length 177.00 mm
    Width/holder arm 14.80
    Amp 90
  • Kjøretøymatching

    • OEM
      A0002619299, F032116399, 1986A01451, 37300-04635, 2619299

    • Konkurrentreferens
      A3568(VALEO), CAL32201, 28-6961, 155.915.090, 224.315.902, 443247, 608388, 12061225, 0986085860

    • NormaliseratArtNr
      a0002619299, a3568valeo, cal32201, f032116399, 1986a01451, 286961, 443247, 608388, 2619299, 12061225, 155915090, 224315902, 0986085860, 3730004635

    • Passar modeller
      Hyundai Model: i10 Model series: i10 Size of motor: 1.0 Brand of engine: G3LA Type description: BA Body: Hatchback From date: 01-08-2013 Fuel: Gasoline Approved: Yes
      Hyundai Model: i10 Model series: i10 Size of motor: 1.0 Brand of engine: G3LA Type description: BA, IA Body: Hatchback Van Fuel: Petrol Approved: Yes
      Kia Model: Picanto Model series: Picanto Model type: Bi-Fuel Size of motor: 1.0 Brand of engine: B3LA Type description: TA Body: Hatchback From date: 01-05-2011 Fuel: Diesel Approved: Yes
      Kia Model: Picanto Model series: Picanto Model type: LPG Size of motor: 1.0 Brand of engine: B3LA Type description: TA Body: Hatchback From date: 01-08-2013 Fuel: Bi-Fuel Approved: Yes
      Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G3LA Type description: TA Body: Hatchback From date: 01-04-2015 Fuel: Gasoline Approved: Yes
      Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G3LA Type description: TA Body: Hatchback From date: 01-05-2011 Fuel: Gasoline Approved: Yes
