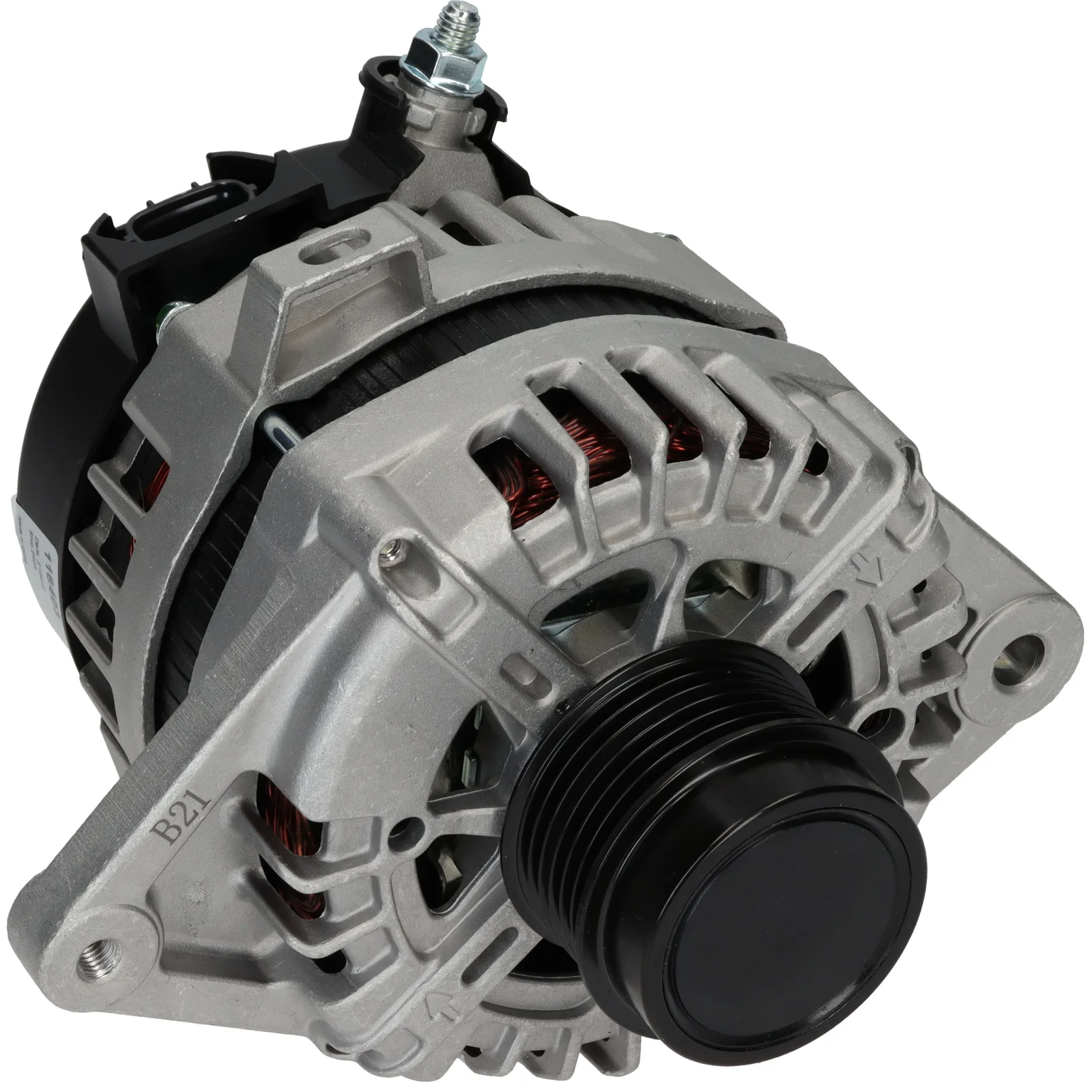

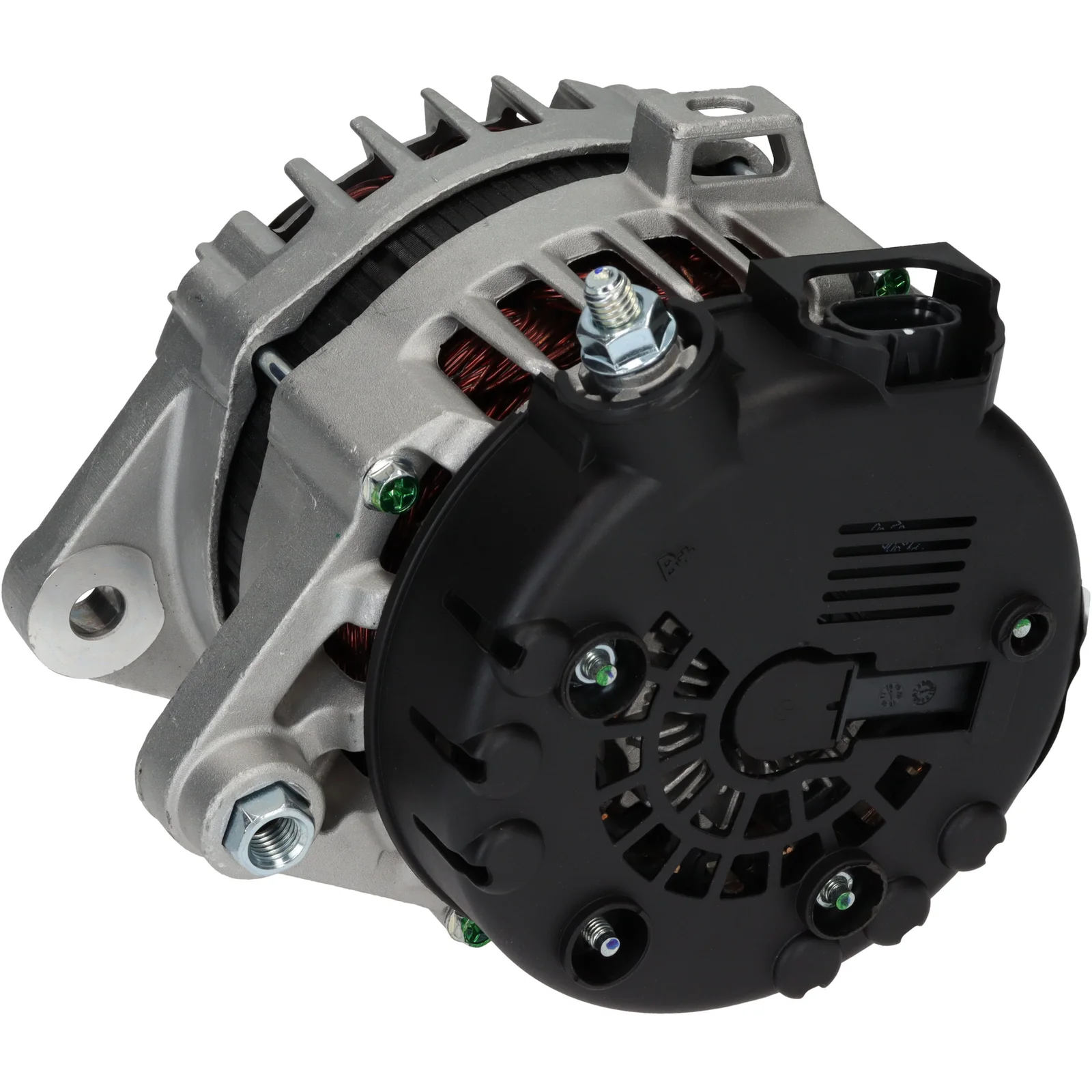

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116403

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 130, Rotasjon: Medur, Monteringsfeste avstand: 50.30

Beskrivelse

HC-Cargo Dynamo 14V - 130A, 6g.frg, (C, L, FR) Spenningsnivå: 14 Ampere: 130 Skivens avstand: 33,30 Bredde/bærestang: 15,00 Monteringsbeslagets avstand: 50,30 Beslagsmultihull: 10,50 Båndjusteringsposisjon for holder: 57 Båndjusteringshull for beslaget 1: M8 Skivdiameter: 58,00 Riller/skive: 6 Radius: 85,00 Radius 2: 96,00 B+: M8 Posisjon/B+ i min.: 43 Rotasjon: HØYRE Plugg no.: PL176 Total lengde mm: 177,00 Lampe type: Inaktiv Skive: SP/FW Regulator type: IR

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 50.30
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 57
Plug no. PL176
Bracket hole 10.50
Position/B+ in min. 43
Pulley SP/FW
Pulley dia. 58.00
Pulley dist. 33.30
Radius 85.00
Radius 2 96.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Lamp type Inactive
Voltage 14
Total length 177.00 mm
Width/holder arm 15.00
Amp 130

  • OEM
    F032116403, 1986A01897, 37300-2B960, 116403, 2622503

  • Konkurrentreferens
    A3502S, CAL32197, 8EL015637-241, 28-7768, 155.922.130, 21153N, 209326, 209326A, 458779, 600775, 12061188, 0986085610

  • Bilmärken
    Hyundai, Kia

  • NormaliseratArtNr
    a3502s, cal32197, f032116403, 8el015637241, 1986a01897, 21153n, 116403, 209326, 209326a, 287768, 373002b960, 458779, 600775, 2622503, 12061188, 155922130, 0986085610

  • Passar modeller
    Hyundai Model: Elantra Model series: Elantra Model type: FLEX Size of motor: 2.0 Brand of engine: F4NA Type description: AD, ADA Body: Saloon Fuel: Petrol/Liquified Nat Approved: Yes Manufacture type: Saloon
    Hyundai Model: Elantra Model series: Elantra Type of engine: MPI Size of motor: 1.6 Brand of engine: G4FC Type description: GD Body: Hatchback From date: 01-06-2014 Fuel: Petrol Approved: Yes
    Hyundai Model: i30 Model series: i30 Model type: 16V Flex Size of motor: 1.6 Brand of engine: F4FC Type description: GD Body: Hatchback From date: 01-11-2011 To date: 01-12-2016 Fuel: Petrol/Ethanol Approved: Yes
    Hyundai Model: i30 Model series: i30 Type of engine: GDi Size of motor: 1.6 Brand of engine: G4FD Type description: GDE Body: Box Body / Hatchback From date: 01-05-2015 Fuel: Petrol Approved: Yes
    Hyundai Model: i30 Model series: i30 Type of engine: GDi Size of motor: 1.6 Brand of engine: G4FD Type description: GDE, GD Body: Box Body / Estate From date: 01-05-2015 Fuel: Petrol Approved: Yes Manufacture type: Kombi Van
    Hyundai Model: i30 Model series: i30 Type of engine: MPI Size of motor: 1.6 Brand of engine: G4FC Body: Coupe From date: 01-06-2014 Fuel: Petrol Approved: Yes
    Hyundai Model: i30 Model series: i30 Type of engine: T-GDI Size of motor: 1.6 Brand of engine: G4FJ Body: Coupe From date: 01-01-2015 Fuel: Gasoline Approved: Yes
    Hyundai Model: i30 Model series: i30 Type of engine: T-GDI Size of motor: 1.6 Brand of engine: G4FJ Type description: GD Body: Hatchback From date: 01-01-2015 Fuel: Petrol Approved: Yes
    Hyundai Model: Kauai Model series: Kauai Type of engine: GDI Size of motor: 1.6 Brand of engine: G4FJ Type description: OS Body: Hatchback From date: 01-07-2017 Fuel: Gasoline Approved: Yes
    Hyundai Model: Kona Model series: Kona Model type: 4WD Type of engine: T-GDI Size of motor: 1.6 Brand of engine: G4FJ Type description: OS, OSE, OSI Body: SUV From date: 01-06-2017 Fuel: Petrol Approved: Yes
    Hyundai Model: Tucson Model series: Tucson Model type: 4X4 Size of motor: 1.6 Brand of engine: G4FJ Type description: TLE From date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Hyundai Model: Tucson Model series: Tucson Model type: GDi All-wheel Drive Type of engine: GDI Size of motor: 1.6 Brand of engine: G4FD Type description: TL, TLE Body: SUV Fuel: Petrol Approved: Yes
    Hyundai Model: Tucson Model series: Tucson Model type: T-GDI Type of engine: GDI Size of motor: 1.6 Brand of engine: G4FJ Type description: TL, TLE Body: SUV Fuel: Petrol Approved: Yes
    Hyundai Model: Tucson Model series: Tucson Size of motor: 1.6 Brand of engine: G4FJ Type description: TLE From date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Hyundai Model: Tucson Model series: Tucson SUV Van Type of engine: T-GDI Size of motor: 1.6 Brand of engine: G4FJ Type description: TLE Body: Box Body / Estate From date: 01-06-2015 Fuel: Petrol Approved: Yes
    Hyundai Model: Tucson Model series: Tucson Type of engine: GDi Size of motor: 1.6 Brand of engine: G4FD Type description: TLE From date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Hyundai Model: Veloster Model series: Veloster Model type: T-GDI Type of engine: GDI Size of motor: 1.6 Brand of engine: G4FJ Type description: JS, JSN Body: Coupe Fuel: Petrol Approved: Yes
    Hyundai Series: i30 Coupe Model: 1.6 T-GDI Engine volume: 1.6 Engine type: G4FJ Year: 01.15-
    Hyundai Series: i30 Model: 1.6 T-GDI Engine volume: 1.6 Engine type: G4FJ Year: 01.15-
    Hyundai Series: KONA Model: 1.6 T-GDi 4WD Engine volume: 1.6 Engine type: G4FJ Year: 06.17-03.23
    Hyundai Series: KONA Model: 1.6 T-GDi Engine volume: 1.6 Engine type: G4FJ Year: 07.17-12.20
    Hyundai Series: Tucson (TL, TLE) Model: 1.6 GDi Engine volume: 1.6 Engine type: G4FD Year: 06.15-09.20
    Hyundai Series: Tucson (TL, TLE) Model: 1.6 T-GDi Allhjulsdrift Engine volume: 1.6 Engine type: G4FJ Year: 06.15-09.20
    Hyundai Series: Tucson (TL, TLE) Model: 1.6 T-GDi Engine volume: 1.6 Engine type: G4FJ Year: 06.15-05.23
    Hyundai Series: TUCSON Skåp/SUV Model: 1.6 T-GDi Engine volume: 1.6 Engine type: G4FJ Year: 06.15-12.20
    Kia Model: Cee'D Model series: Cee'D Model type: CVVT Size of motor: 1.6 Brand of engine: G4FC Type description: JD Body: Hatchback From date: 01-11-2014 To date: 01-07-2018 Fuel: Petrol Approved: Yes
    Kia Model: Ceed Model series: Ceed Model type: T-GDI GT Type of engine: T-GDi Size of motor: 1.6 Brand of engine: G4FJ Type description: CD Body: Box Body / Hatchback From date: 01-10-2018 Fuel: Petrol Approved: Yes
    Kia Model: Ceed Model series: Ceed Type of engine: GDI Size of motor: 1.6 Brand of engine: G4FJ Type description: CD Body: Hatchback From date: 01-10-2018 Fuel: Gasoline Approved: Yes
    Kia Model: Cee`d Model series: Cee`d Type of engine: GDI Size of motor: 1.6 Brand of engine: G4FD Type description: JD Body: Estate From date: 01-04-2015 Fuel: Gasoline Approved: Yes
    Kia Model: Optima Model series: Optima Type of engine: GDI Size of motor: 1.6 Brand of engine: G4FJ Type description: JF Body: Estate From date: 01-01-2018 Fuel: Gasoline Approved: Yes Manufacture type: Sportswago
    Kia Model: Pro Cee'd Model series: Pro Cee'd Type of engine: GDI Size of motor: 1.6 Brand of engine: G4FD Type description: JD Body: Box Body / Hatchback From date: 01-04-2015 Fuel: Gasoline Approved: Yes
    Kia Model: Proceed Model series: Proceed Model type: T-GDI Gt Type of engine: T-GDI Size of motor: 1.6 Brand of engine: G4FJ Type description: CD Body: Van From date: 01-10-2018 Fuel: Petrol Approved: Yes
    Kia Model: Proceed Model series: Proceed Type of engine: GDI Size of motor: 1.6 Brand of engine: G4FJ Type description: CD Body: Estate From date: 01-10-2018 Fuel: Gasoline Approved: Yes
    Kia Model: Sportage Model series: Sportage Model type: GDI Type of engine: GDI Size of motor: 1.6 Brand of engine: G4FD Type description: QL, QLE Body: SUV Fuel: Petrol Approved: Yes
    Kia Model: Sportage Model series: Sportage Type of engine: LPG Size of motor: 1.6 Brand of engine: G4FD Type description: QL, QLE Body: SUV From date: 01-07-2020 Fuel: Petrol/Liquified Pet Approved: Yes
    Kia Model: Sportage Model series: Sportage Type of engine: T-GDI Size of motor: 1.6 Brand of engine: G4FJ Type description: QL, QLE Body: Box Body / Estate From date: 01-05-2018 Fuel: Petrol Approved: Yes
    Kia Model: Xceed Model series: Xceed Type of engine: T-GDi Size of motor: 1.6 Brand of engine: G4FJ Type description: CD Body: Closed Off-Road Vehicle From date: 01-06-2019 Fuel: Petrol Approved: Yes
    Kia Model: Xceed Model series: Xceed Type of engine: T-GDI Size of motor: 1.6 Brand of engine: G4FJ Type description: CD Body: SUV From date: 01-06-2019 Fuel: Petrol Approved: Yes
    Kia Model: Xceed Model series: Xceed Van Type of engine: T-GDI Size of motor: 1.6 Brand of engine: G4FJ Type description: CD Body: Box Body / Estate From date: 01-06-2019 Fuel: Petrol Approved: Yes
    Kia Series: CEED Hatchback Van Model: T-GDI GT Engine volume: 1.6 Engine type: G4FJ Year: 10.18-
    Kia Series: CEED Model: 1.6 T-GDI GT Engine volume: 1.6 Engine type: G4FJ Year: 10.18-
    Kia Series: OPTIMA Sportswagon Model: 1.6 T-GDI Engine volume: 1.6 Engine type: G4FJ Year: 01.18-12.19
    Kia Series: PROCEED (CD) Model: 1.6 T-GDI GT Engine volume: 1.6 Engine type: G4FJ Year: 10.18-
    Kia Series: PROCEED Combi Van Model: 1.6 T-GDI GT Engine volume: 1.6 Engine type: G4FJ Year: 10.18-
    Kia Series: Sportage IV (QL.QLE) Model: 1.6 LPG (QLE) Engine volume: 1.6 Engine type: G4FD Year: 07.20-09.22
    Kia Series: SPORTAGE IV VAN Model: 1.6 T-GDI Engine volume: 1.6 Engine type: G4FJ Year: 05.18-
    Kia Series: XCEED Model: 1.6 T-GDI Engine volume: 1.6 Engine type: G4FJ Year: 06.19-
    Kia Series: XCEED Van Model: 1.6 T-GDI Engine volume: 1.6 Engine type: G4FJ Year: 06.19-
    1 / 10
