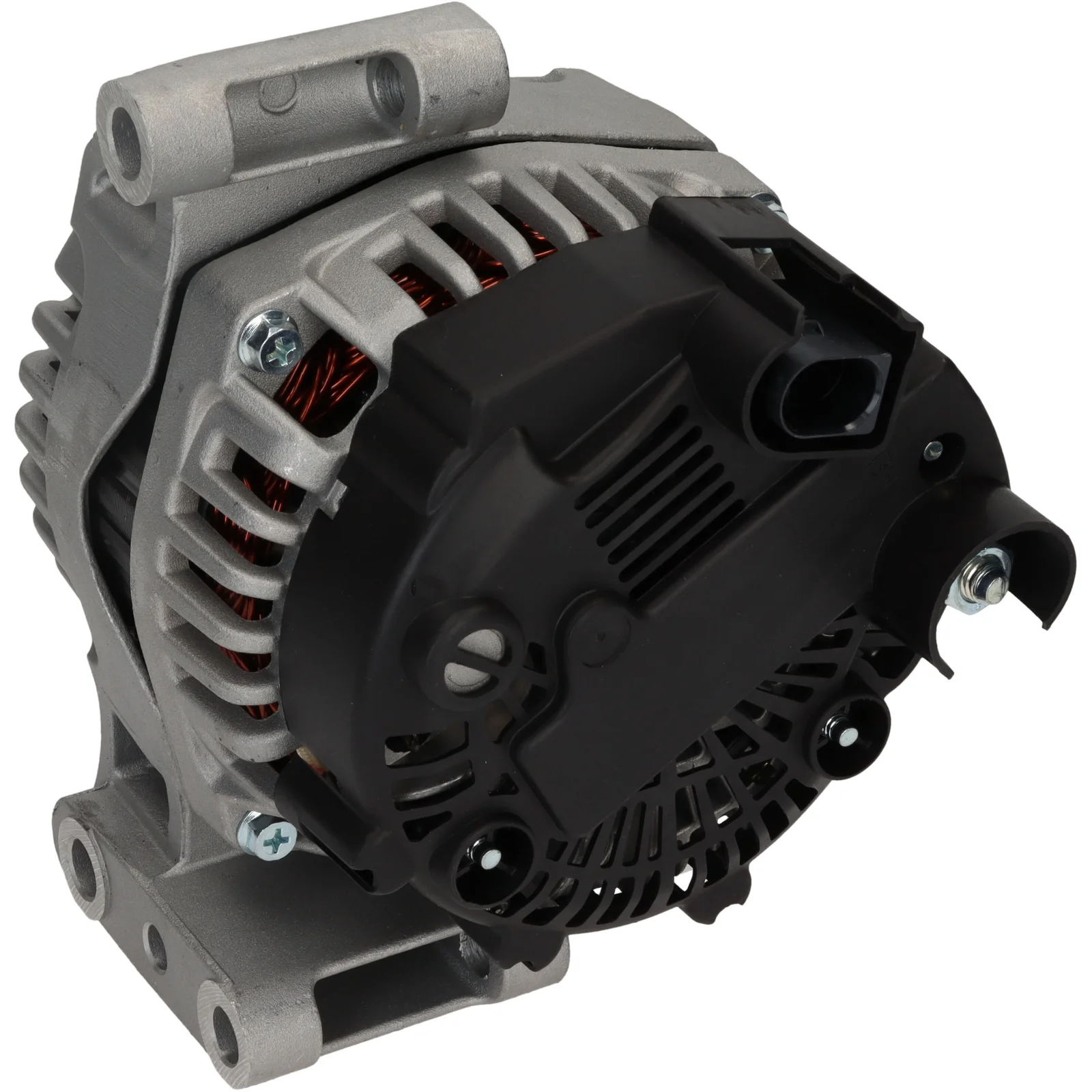

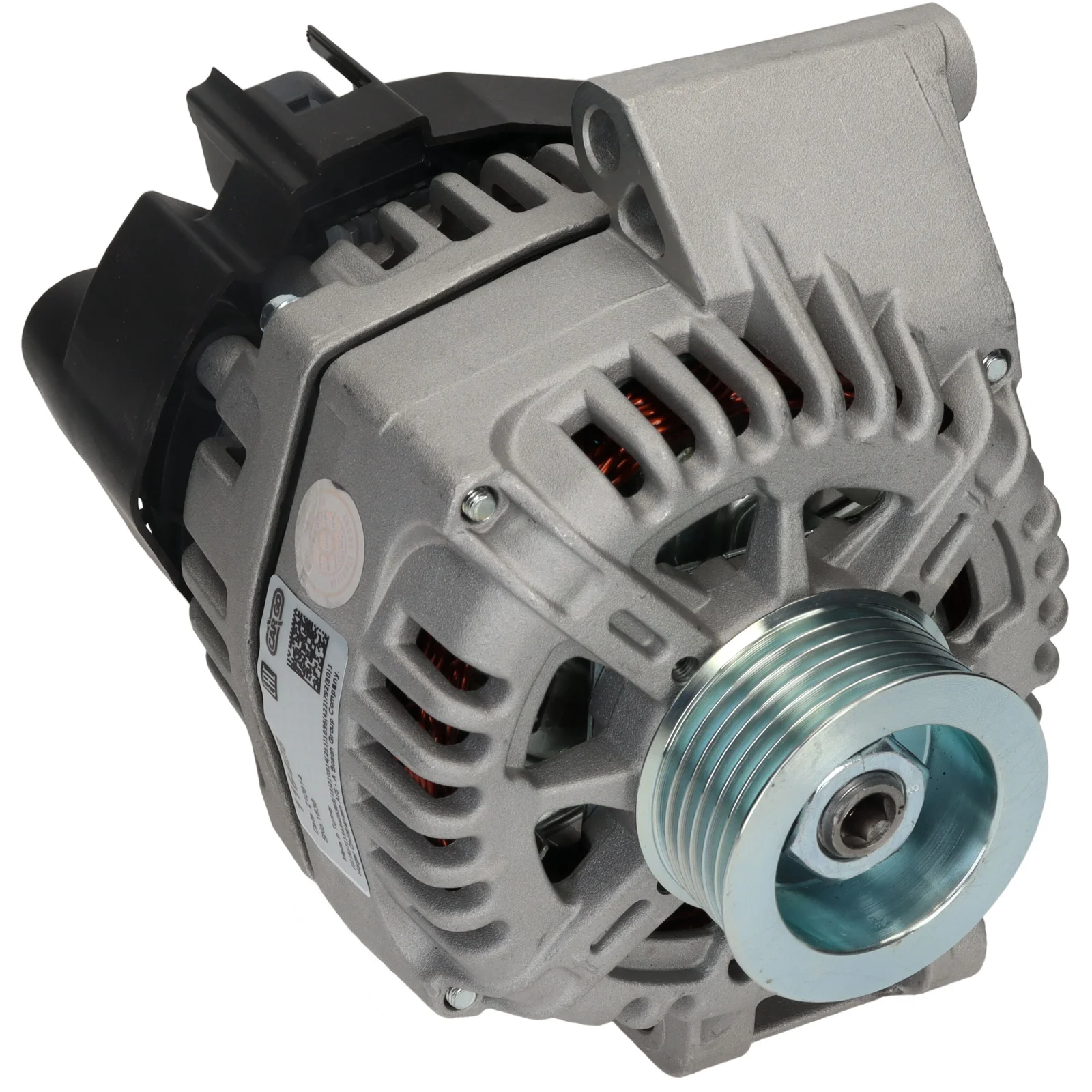

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116406

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 90, Monteringsbeslag avstand: 55,30, Drive: 55,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsnivå: 14
Ampere: 90
Bøssing av remskive: 41,00
Bredde/holderarm: 64,50
Festebrakettavstand: 55,30
Brakettåpning: 10,80
Remskivediameter: 55,00
Gavler/ remskive: 6
Radius: 81,00
Radius 2: 74,00
B+: M8
Posisjon/B+ i minutter: 14
Kontakt nr.: PL174
Total lengde mm: 177,00
Terminaltype: COM
ID-kode: 9
Kommunikasjon: LIN
Remskive: SP
Regulator-type: IR
Merknader: Denne dynamoen har et COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 55.30
Plug no. PL174
Bracket hole 10.80
Position/B+ in min. 14
Pulley SP
Pulley dia. 55.00
Pulley dist. 41.00
Radius 81.00
Radius 2 74.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Grooves/pulley 6
ID Code 9
Terminal type COM
Voltage 14
Total length 177.00 mm
Width/holder arm 64.50
Amp 90

  • OEM
    F032116406, TG9S100, 51984057

  • Konkurrentreferens
    LEA0839, 20581N, 210692, 210692A, 12090402

  • NormaliseratArtNr
    f032116406, lea0839, tg9s100, 20581n, 210692, 210692a, 12090402, 51984057

  • Passar modeller
    Alfa Romeo Model: Mito Model series: Mito Type of engine: JTDM Size of motor: 1.2 Brand of engine: 199B4.000 Type description: 955 Body: Hatchback From date: 01-01-2011 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Mito Model series: Mito Type of engine: JTDM Size of motor: 1.2 Brand of engine: 199B8.000 Type description: 955 Body: Hatchback From date: 01-12-2013 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Mito Model series: Mito Type of engine: JTDM Size of motor: 1.3 Brand of engine: 199A3.000 Body: Hatchback From date: 01-08-2008 To date: 01-08-2010 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Mito Model series: Mito Type of engine: JTDM Size of motor: 1.3 Brand of engine: 199B1.000 Body: Hatchback From date: 01-09-2009 To date: 01-12-2018 Fuel: Diesel Approved: Yes
    Fiat Model: 500 Model series: 500L Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199B4.000 Body: Hatchback From date: 01-09-2012 Fuel: Diesel Approved: Yes
    Fiat Model: Fiorino Model series: Fiorino Model type: QUBO Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A2.000 Type description: 300 Body: MPV From date: 01-02-2008 Fuel: Diesel Approved: Yes
    Fiat Model: Fiorino Model series: Fiorino MPV Type of engine: Multijet Size of motor: 1.2 Brand of engine: 199A2.000,199A9.000 Type description: 225_ Body: MPV From date: 01-11-2007 Fuel: Diesel Approved: Yes
    Fiat Model: Fiorino Model series: Fiorino Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A2.000 Type description: 225 Body: Van From date: 01-11-2007 Fuel: Diesel Approved: Yes
    Fiat Model: Fiorino Model series: Fiorino Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A9.000 Type description: 225 Body: Van From date: 01-11-2007 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Grande Punto Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199B4.000 Type description: 199 Body: Hatchback From date: 01-04-2010 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Grande Punto Type of engine: Multijet Size of motor: 1.3 Brand of engine: 223A9.000 Type description: 199 Body: Hatchback From date: 01-04-2010 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Punto Evo Type of engine: 16V Multijet Size of motor: 1.3 Brand of engine: 199B4.000 Type description: 199 Body: Hatchback From date: 01-10-2009 To date: 01-02-2012 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Punto Evo Type of engine: 16V Multijet Size of motor: 1.3 Brand of engine: 223A9.000 Type description: 199 Body: Hatchback From date: 01-10-2009 To date: 01-02-2012 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Punto Evo Van Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199B4.000 Type description: 199 Body: Van From date: 01-03-2012 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Punto Type of engine: Multijet Size of motor: 1.2 Brand of engine: 199B8.000 Type description: 199 Body: Hatchback From date: 01-12-2013 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Punto Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199B4.000 Type description: 199 Body: Hatchback From date: 01-03-2012 Fuel: Diesel Approved: Yes
