HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114495

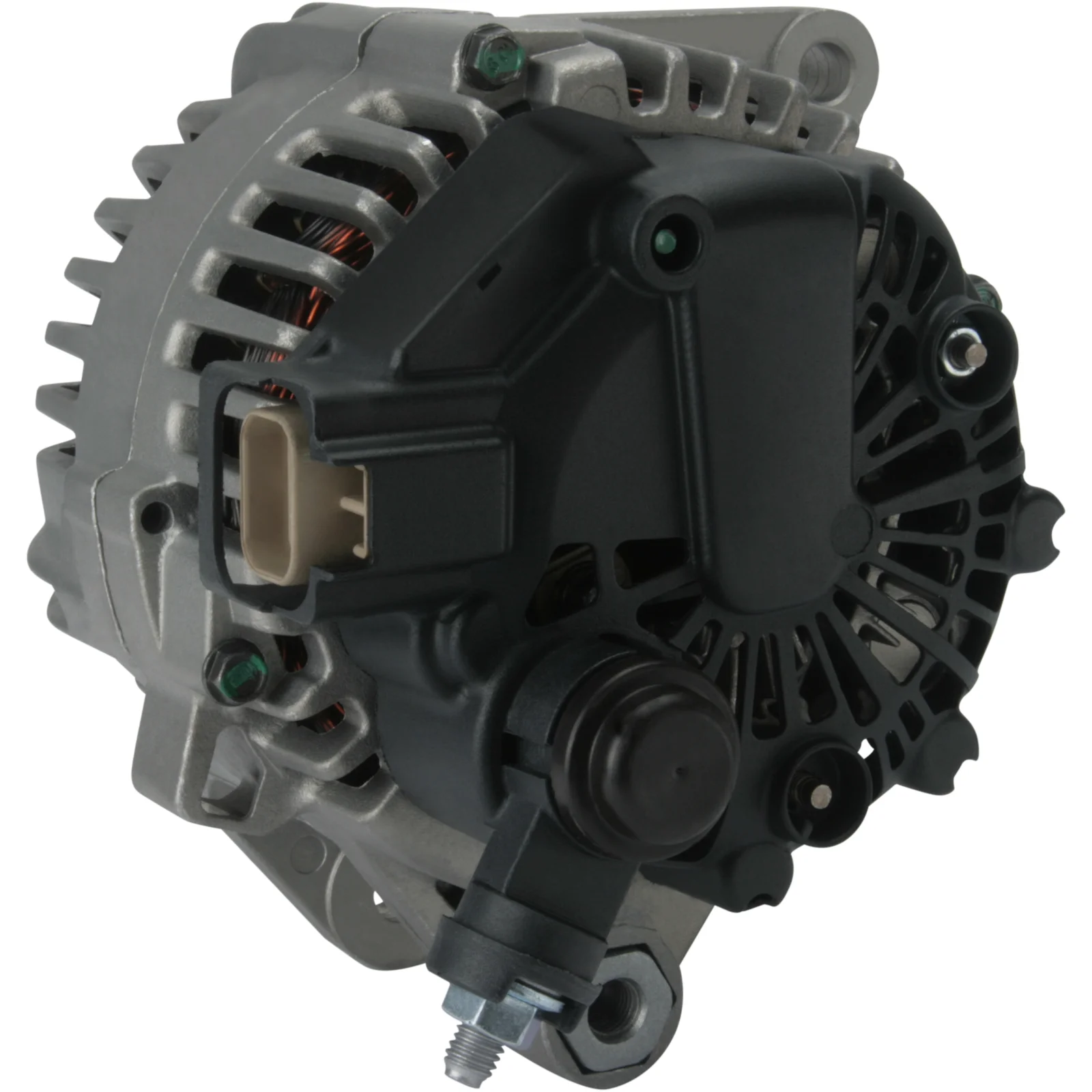

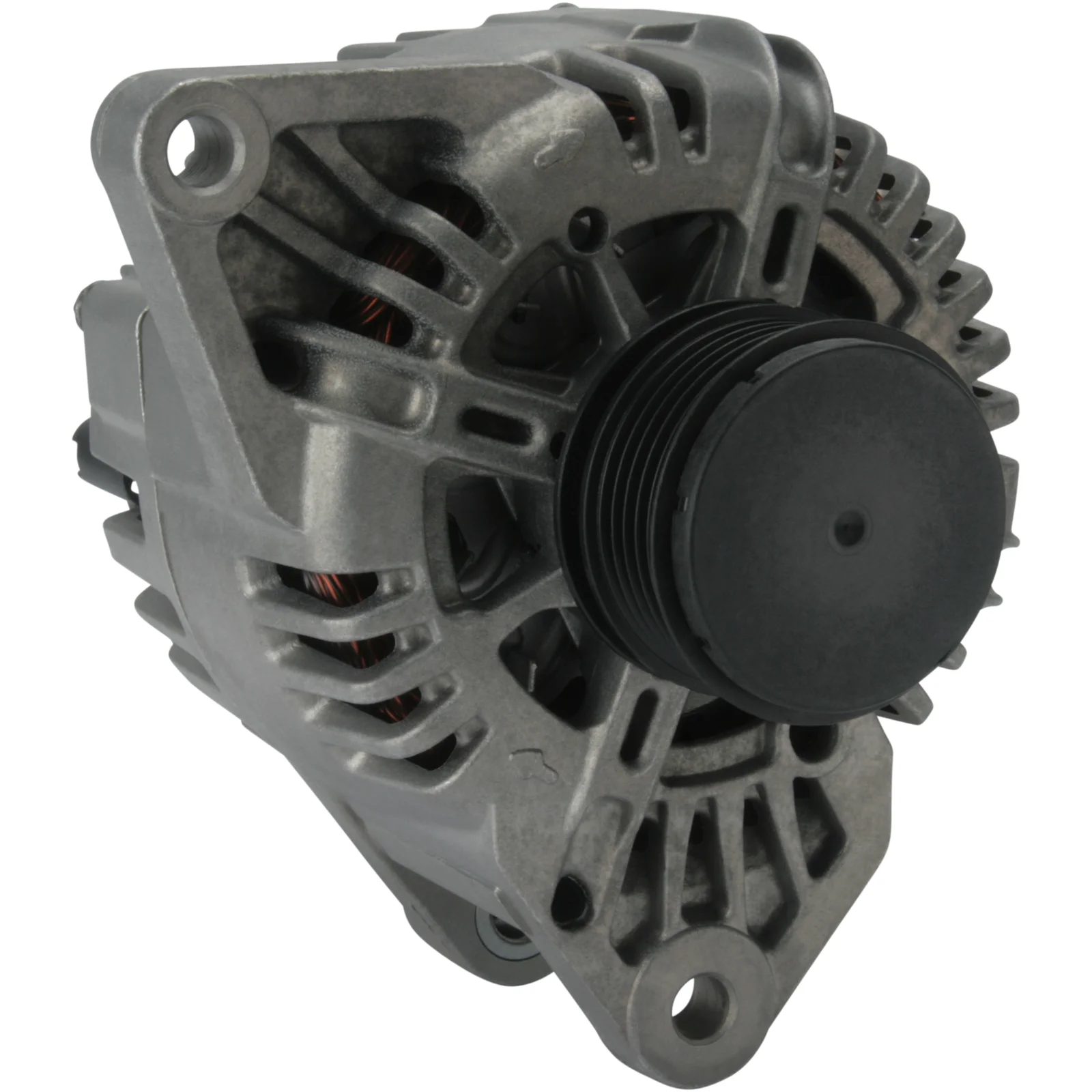

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 120, Rotasjon: CW, Monteringsbrakett avstand: 50,80

Beskrivelse

Hyundai Dynamo 12V-120A 12V - 120A, 5gr.frg, ( - , L) 12V - 120A, 5gr.frg, ( - , L) For Yourrex produktordre 90-228-2010

Spenningsnivå: 14
Ampere: 120
Pulley avstand: 33.00
Bredd / holderarm: 13.00
Monteringsbrakett avstand: 50.80
Brakettshull: 10.40
Båndjusteringsbrakett hullposisjon: 50
Båndjusteringsbrakett hull 1: 10.80
Pulley diameter: 57.00
Grooves / pulley: 5
Radius: 86.00
Radius 2: 97.00
B+: M8
Posisjon / B+ i min.: 35
D+: Stikk → Innslagsrelé
Rotasjon: CW
Stikk nr.: PL100
Total lengde mm: 195.00
Terminaltype: L
Lysbue type: Inaktiv
Pulley: SP/FW
Vifte: IF
Regulator type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 50.80
Belt. adj. bracket hole 1 10.80
Belt. adj. brackethole pos. 50
Plug no. PL100
Bracket hole 10.40
Position/B+ in min. 35
Prod. info BN
Pulley SP/FW
Pulley dia. 57.00
Pulley dist. 33.00
Radius 86.00
D+ Size Plug
Radius 2 97.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 5
Lamp type Inactive
Terminal type L
Voltage 14
Total length 195.00 mm
Width/holder arm 13.00
Amp 120

  • OEM
    A0002655475, A3235(VALEO), A3235PR, A9295S, CAL32130, DRA0355, DRA0355N, DRA1092, DRA1092N, F032114495, F042206027, TG12C 033, tg12c033, 8EL012429-841, 28-5637, 224.194.1202, 0986 081 060, 1906ir, 9409, 20796N, 37300-2A100, 37300-2A110, 37300-2A150, 37300-2A500, 112495, 114495, 210518, 210518A, 210650, 210650A, 210814, 210814A, 373002A160, 373002A200, 439607, 446764, 600161, 600245, 600719, 600724, 2543370, 2543370a, 2543370A, 2606220, 2655475, 12060892, 0986081060, 3730002503

  • Konkurrentreferens
    A3235(VALEO), A3235PR, A9295S, CAL32130, DRA0355, DRA0355N, DRA1092, DRA1092N, F042206027, 8EL012429-841, 28-5637, 224.194.1202, 9409, 20796N, 112495, 210518, 210518A, 210650, 210650A, 210814, 210814A, 439607, 446764, 600161, 600245, 600719, 600724, 12060892, 0986081060

  • Bilmärken
    HYUNDAI, KIA

  • NormaliseratArtNr
    a0002655475, a3235pr, a3235valeo, a9295s, cal32130, dra0355, dra0355n, dra1092, dra1092n, f032114495, f042206027, tg12c033, 8el012429841, 1906ir, 9409, 20796n, 112495, 114495, 210518, 210518a, 210650, 210650a, 210814, 210814a, 285637, 373002a100, 373002a110, 373002a150, 373002a160, 373002a200, 373002a500, 439607, 446764, 600161, 600245, 600719, 600724, 2543370, 2543370a, 2606220, 2655475, 12060892, 0986081060, 2241941202, 3730002503

  • Passar modeller
    HYUNDAI ACCENT II (LC) 1.5 CRDi Engine volume: 1.5 Engine type: D3EA Year: 04.02-11.05
    HYUNDAI ACCENT II Sedan (LC) 1.5 CRDi Engine volume: 1.5 Engine type: D3DA, D3EA Year: 01.02-11.05
    HYUNDAI ACCENT III (MC) 1.5 CRDi GLS Engine volume: 1.5 Engine type: D4FA Year: 11.05-11.10
    HYUNDAI ACCENT III Sedan (MC) 1.5 CRDi GLS Engine volume: 1.5 Engine type: D4FA Year: 11.05-11.10
    HYUNDAI ACCENT IV Sedan (RB) 1.6 CRDI Engine volume: 1.6 Engine type: D4FB Year: 04.11-12.17
    HYUNDAI ATOS (MX) 1.0 i Engine volume: 1.0 Engine type: G4HC Year: 02.98-12.00
    HYUNDAI ATOS (MX) 1.0 i Engine volume: 1.0 Engine type: G4HC Year: 03.01-07.03
    HYUNDAI ELANTRA IV Sedan (HD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 11.05-12.11
    HYUNDAI GETZ (TB) 1.5 CRDi Engine volume: 1.5 Engine type: D4FA Year: 08.05-06.09
    HYUNDAI GETZ (TB) 1.5 CRDi GLS Engine volume: 1.5 Engine type: D4FA Year: 07.04-08.05
    HYUNDAI GETZ (TB) 1.5 CRDi GLS Engine volume: 1.5 Engine type: D4FA Year: 08.05-06.09
    HYUNDAI i20 I (PB, PBT) 1.1 CRDi Engine volume: 1.1 Engine type: D3FA Year: 03.12-12.15
    HYUNDAI i20 I (PB, PBT) 1.4 CRDi Engine volume: 1.4 Engine type: D4FC Year: 09.08-12.12
    HYUNDAI i20 I (PB, PBT) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 01.09-12.12
    HYUNDAI i20 I (PB, PBT) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 09.08-12.12
    HYUNDAI i30 (FD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 01.10-11.11
    HYUNDAI i30 (FD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 10.07-11.11
    HYUNDAI i30 (FD) 1.6 CRDi VGT Engine volume: 1.6 Engine type: D4FB Year: 10.07-11.11
    HYUNDAI i30 Kombi (FD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 01.10-06.12
    HYUNDAI i30 Kombi (FD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 02.08-06.12
    HYUNDAI MATRIX (FC) 1.5 CRDi Engine volume: 1.5 Engine type: D3EA Year: 10.01-08.10
    HYUNDAI MATRIX (FC) 1.5 CRDi Engine volume: 1.5 Engine type: D4FA Year: 12.04-08.10
    HYUNDAI MATRIX (FC) 1.5 CRDi VGT Engine volume: 1.5 Engine type: D4FA Year: 08.05-08.10
    KIA CARENS III Minibus, minivan (UN) 1.6 CRDi 110 Engine volume: 1.6 Engine type: D4FB Year: 10.10-03.13
    KIA CARENS III Minibus, minivan (UN) 1.6 CRDi 128 Engine volume: 1.6 Engine type: D4FB Year: 10.10-03.13
    KIA CEE'D Halvkombi (ED) 1.6 CRDi 115 Engine volume: 1.6 Engine type: D4FB Year: 12.06-12.12
    KIA CEE'D Halvkombi (ED) 1.6 CRDi 90 Engine volume: 1.6 Engine type: D4FB Year: 12.06-12.12
    KIA CEE'D Halvkombi (ED) 2.0 CRDi 140 Engine volume: 2.0 Engine type: D4EA Year: 09.07-12.12
    KIA CEE'D Halvkombi (ED) 2.0 CRDi Engine volume: 2.0 Engine type: D4EA Year: 06.07-12.12
    KIA CEE'D Sportswagon (JD) 1.6 CRDi 128 Engine volume: 1.6 Engine type: D4FB Year: 09.12-07.15
    KIA CEE'D SW (ED) 1.6 CRDi 115 Engine volume: 1.6 Engine type: D4FB Year: 09.07-12.12
    KIA CEE'D SW (ED) 1.6 CRDi 90 Engine volume: 1.6 Engine type: D4FB Year: 09.07-12.12
    KIA CEE'D SW (ED) 2.0 CRDi 140 Engine volume: 2.0 Engine type: D4EA Year: 07.07-12.12
    KIA CERATO I Halvkombi (LD) 1.5 CRDi Engine volume: 1.5 Engine type: D4FA Year: 07.05-08.06
    KIA CERATO I Halvkombi (LD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 06.05-06.08
    KIA CERATO I Sedan (LD) 1.5 CRDi Engine volume: 1.5 Engine type: D4FA Year: 07.05-08.06
    KIA CERATO I Sedan (LD) 1.5 CRDi Engine volume: 1.5 Engine type: D4FA Year: 07.05-12.09
    KIA CERATO I Sedan (LD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 06.05-12.09
    KIA PICANTO I (SA) 1.1 CRDi Engine volume: 1.1 Engine type: D3FA Year: 10.05-04.11
    KIA PRO CEE'D (ED) 1.6 CRDi 115 Engine volume: 1.6 Engine type: D4FB Year: 02.08-09.12
    KIA PRO CEE'D (ED) 1.6 CRDi 90 Engine volume: 1.6 Engine type: D4FB Year: 02.08-09.12
    KIA PRO CEE'D (ED) 2.0 CRDi 140 Engine volume: 2.0 Engine type: D4EA Year: 02.08-09.12
    KIA RIO II (JB) 1.5 CRDi Engine volume: 1.5 Engine type: D4FA Year: 03.05-12.11
    KIA RIO II (JB) 1.5 CRDi Engine volume: 1.5 Engine type: D4FA Year: 06.08-12.11
    KIA RIO II Sedan (JB) 1.5 CRDi Engine volume: 1.5 Engine type: D4FA Year: 03.05-12.11
    KIA RIO II Sedan (JB) 1.5 CRDi Engine volume: 1.5 Engine type: D4FA Year: 06.08-12.11
    KIA SOUL I (AM) 1.6 CRDi 115 Engine volume: 1.6 Engine type: D4FB Year: 02.09-12.14
    KIA SOUL I (AM) 1.6 CRDi 128 Engine volume: 1.6 Engine type: D4FB Year: 02.09-12.14
    KIA VENGA (YN) 1.4 CRDi 75 Engine volume: 1.4 Engine type: D4FC Year: 02.10-03.19
    KIA VENGA (YN) 1.4 CRDi 90 Engine volume: 1.4 Engine type: D4FC Year: 02.10-03.19
    KIA VENGA (YN) 1.6 CRDi 115 Engine volume: 1.6 Engine type: D4FB Year: 02.10-03.19
    KIA VENGA (YN) 1.6 CRDi 128 Engine volume: 1.6 Engine type: D4FB Year: 02.10-03.19
    KIA VENGA Hatchback Van (YN) CRDi Engine volume: 1.4 Engine type: D4FC Year: 04.15-
    1 / 11
  • Beskrivelse
    Hyundai Dynamo 12V-120A 12V - 120A, 5gr.frg, ( - , L) 12V - 120A, 5gr.frg, ( - , L) For Yourrex produktordre 90-228-2010

    Spenningsnivå: 14
    Ampere: 120
    Pulley avstand: 33.00
    Bredd / holderarm: 13.00
    Monteringsbrakett avstand: 50.80
    Brakettshull: 10.40
    Båndjusteringsbrakett hullposisjon: 50
    Båndjusteringsbrakett hull 1: 10.80
    Pulley diameter: 57.00
    Grooves / pulley: 5
    Radius: 86.00
    Radius 2: 97.00
    B+: M8
    Posisjon / B+ i min.: 35
    D+: Stikk → Innslagsrelé
    Rotasjon: CW
    Stikk nr.: PL100
    Total lengde mm: 195.00
    Terminaltype: L
    Lysbue type: Inaktiv
    Pulley: SP/FW
    Vifte: IF
    Regulator type: IR
    Prod. info: BN

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 50.80
    Belt. adj. bracket hole 1 10.80
    Belt. adj. brackethole pos. 50
    Plug no. PL100
    Bracket hole 10.40
    Position/B+ in min. 35
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 57.00
    Pulley dist. 33.00
    Radius 86.00
    D+ Size Plug
    Radius 2 97.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 5
    Lamp type Inactive
    Terminal type L
    Voltage 14
    Total length 195.00 mm
    Width/holder arm 13.00
    Amp 120
  • Kjøretøymatching

    • OEM
      A0002655475, A3235(VALEO), A3235PR, A9295S, CAL32130, DRA0355, DRA0355N, DRA1092, DRA1092N, F032114495, F042206027, TG12C 033, tg12c033, 8EL012429-841, 28-5637, 224.194.1202, 0986 081 060, 1906ir, 9409, 20796N, 37300-2A100, 37300-2A110, 37300-2A150, 37300-2A500, 112495, 114495, 210518, 210518A, 210650, 210650A, 210814, 210814A, 373002A160, 373002A200, 439607, 446764, 600161, 600245, 600719, 600724, 2543370, 2543370a, 2543370A, 2606220, 2655475, 12060892, 0986081060, 3730002503

    • Konkurrentreferens
      A3235(VALEO), A3235PR, A9295S, CAL32130, DRA0355, DRA0355N, DRA1092, DRA1092N, F042206027, 8EL012429-841, 28-5637, 224.194.1202, 9409, 20796N, 112495, 210518, 210518A, 210650, 210650A, 210814, 210814A, 439607, 446764, 600161, 600245, 600719, 600724, 12060892, 0986081060

    • Bilmärken
      HYUNDAI, KIA

    • NormaliseratArtNr
      a0002655475, a3235pr, a3235valeo, a9295s, cal32130, dra0355, dra0355n, dra1092, dra1092n, f032114495, f042206027, tg12c033, 8el012429841, 1906ir, 9409, 20796n, 112495, 114495, 210518, 210518a, 210650, 210650a, 210814, 210814a, 285637, 373002a100, 373002a110, 373002a150, 373002a160, 373002a200, 373002a500, 439607, 446764, 600161, 600245, 600719, 600724, 2543370, 2543370a, 2606220, 2655475, 12060892, 0986081060, 2241941202, 3730002503

    • Passar modeller
      HYUNDAI ACCENT II (LC) 1.5 CRDi Engine volume: 1.5 Engine type: D3EA Year: 04.02-11.05
      HYUNDAI ACCENT II Sedan (LC) 1.5 CRDi Engine volume: 1.5 Engine type: D3DA, D3EA Year: 01.02-11.05
      HYUNDAI ACCENT III (MC) 1.5 CRDi GLS Engine volume: 1.5 Engine type: D4FA Year: 11.05-11.10
      HYUNDAI ACCENT III Sedan (MC) 1.5 CRDi GLS Engine volume: 1.5 Engine type: D4FA Year: 11.05-11.10
      HYUNDAI ACCENT IV Sedan (RB) 1.6 CRDI Engine volume: 1.6 Engine type: D4FB Year: 04.11-12.17
      HYUNDAI ATOS (MX) 1.0 i Engine volume: 1.0 Engine type: G4HC Year: 02.98-12.00
      HYUNDAI ATOS (MX) 1.0 i Engine volume: 1.0 Engine type: G4HC Year: 03.01-07.03
      HYUNDAI ELANTRA IV Sedan (HD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 11.05-12.11
      HYUNDAI GETZ (TB) 1.5 CRDi Engine volume: 1.5 Engine type: D4FA Year: 08.05-06.09
      HYUNDAI GETZ (TB) 1.5 CRDi GLS Engine volume: 1.5 Engine type: D4FA Year: 07.04-08.05
      HYUNDAI GETZ (TB) 1.5 CRDi GLS Engine volume: 1.5 Engine type: D4FA Year: 08.05-06.09
      HYUNDAI i20 I (PB, PBT) 1.1 CRDi Engine volume: 1.1 Engine type: D3FA Year: 03.12-12.15
      HYUNDAI i20 I (PB, PBT) 1.4 CRDi Engine volume: 1.4 Engine type: D4FC Year: 09.08-12.12
      HYUNDAI i20 I (PB, PBT) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 01.09-12.12
      HYUNDAI i20 I (PB, PBT) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 09.08-12.12
      HYUNDAI i30 (FD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 01.10-11.11
      HYUNDAI i30 (FD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 10.07-11.11
      HYUNDAI i30 (FD) 1.6 CRDi VGT Engine volume: 1.6 Engine type: D4FB Year: 10.07-11.11
      HYUNDAI i30 Kombi (FD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 01.10-06.12
      HYUNDAI i30 Kombi (FD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 02.08-06.12
      HYUNDAI MATRIX (FC) 1.5 CRDi Engine volume: 1.5 Engine type: D3EA Year: 10.01-08.10
      HYUNDAI MATRIX (FC) 1.5 CRDi Engine volume: 1.5 Engine type: D4FA Year: 12.04-08.10
      HYUNDAI MATRIX (FC) 1.5 CRDi VGT Engine volume: 1.5 Engine type: D4FA Year: 08.05-08.10
      KIA CARENS III Minibus, minivan (UN) 1.6 CRDi 110 Engine volume: 1.6 Engine type: D4FB Year: 10.10-03.13
      KIA CARENS III Minibus, minivan (UN) 1.6 CRDi 128 Engine volume: 1.6 Engine type: D4FB Year: 10.10-03.13
      KIA CEE'D Halvkombi (ED) 1.6 CRDi 115 Engine volume: 1.6 Engine type: D4FB Year: 12.06-12.12
      KIA CEE'D Halvkombi (ED) 1.6 CRDi 90 Engine volume: 1.6 Engine type: D4FB Year: 12.06-12.12
      KIA CEE'D Halvkombi (ED) 2.0 CRDi 140 Engine volume: 2.0 Engine type: D4EA Year: 09.07-12.12
      KIA CEE'D Halvkombi (ED) 2.0 CRDi Engine volume: 2.0 Engine type: D4EA Year: 06.07-12.12
      KIA CEE'D Sportswagon (JD) 1.6 CRDi 128 Engine volume: 1.6 Engine type: D4FB Year: 09.12-07.15
      KIA CEE'D SW (ED) 1.6 CRDi 115 Engine volume: 1.6 Engine type: D4FB Year: 09.07-12.12
      KIA CEE'D SW (ED) 1.6 CRDi 90 Engine volume: 1.6 Engine type: D4FB Year: 09.07-12.12
      KIA CEE'D SW (ED) 2.0 CRDi 140 Engine volume: 2.0 Engine type: D4EA Year: 07.07-12.12
      KIA CERATO I Halvkombi (LD) 1.5 CRDi Engine volume: 1.5 Engine type: D4FA Year: 07.05-08.06
      KIA CERATO I Halvkombi (LD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 06.05-06.08
      KIA CERATO I Sedan (LD) 1.5 CRDi Engine volume: 1.5 Engine type: D4FA Year: 07.05-08.06
      KIA CERATO I Sedan (LD) 1.5 CRDi Engine volume: 1.5 Engine type: D4FA Year: 07.05-12.09
      KIA CERATO I Sedan (LD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 06.05-12.09
      KIA PICANTO I (SA) 1.1 CRDi Engine volume: 1.1 Engine type: D3FA Year: 10.05-04.11
      KIA PRO CEE'D (ED) 1.6 CRDi 115 Engine volume: 1.6 Engine type: D4FB Year: 02.08-09.12
      KIA PRO CEE'D (ED) 1.6 CRDi 90 Engine volume: 1.6 Engine type: D4FB Year: 02.08-09.12
      KIA PRO CEE'D (ED) 2.0 CRDi 140 Engine volume: 2.0 Engine type: D4EA Year: 02.08-09.12
      KIA RIO II (JB) 1.5 CRDi Engine volume: 1.5 Engine type: D4FA Year: 03.05-12.11
      KIA RIO II (JB) 1.5 CRDi Engine volume: 1.5 Engine type: D4FA Year: 06.08-12.11
      KIA RIO II Sedan (JB) 1.5 CRDi Engine volume: 1.5 Engine type: D4FA Year: 03.05-12.11
      KIA RIO II Sedan (JB) 1.5 CRDi Engine volume: 1.5 Engine type: D4FA Year: 06.08-12.11
      KIA SOUL I (AM) 1.6 CRDi 115 Engine volume: 1.6 Engine type: D4FB Year: 02.09-12.14
      KIA SOUL I (AM) 1.6 CRDi 128 Engine volume: 1.6 Engine type: D4FB Year: 02.09-12.14
      KIA VENGA (YN) 1.4 CRDi 75 Engine volume: 1.4 Engine type: D4FC Year: 02.10-03.19
      KIA VENGA (YN) 1.4 CRDi 90 Engine volume: 1.4 Engine type: D4FC Year: 02.10-03.19
      KIA VENGA (YN) 1.6 CRDi 115 Engine volume: 1.6 Engine type: D4FB Year: 02.10-03.19
      KIA VENGA (YN) 1.6 CRDi 128 Engine volume: 1.6 Engine type: D4FB Year: 02.10-03.19
      KIA VENGA Hatchback Van (YN) CRDi Engine volume: 1.4 Engine type: D4FC Year: 04.15-
