HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115632

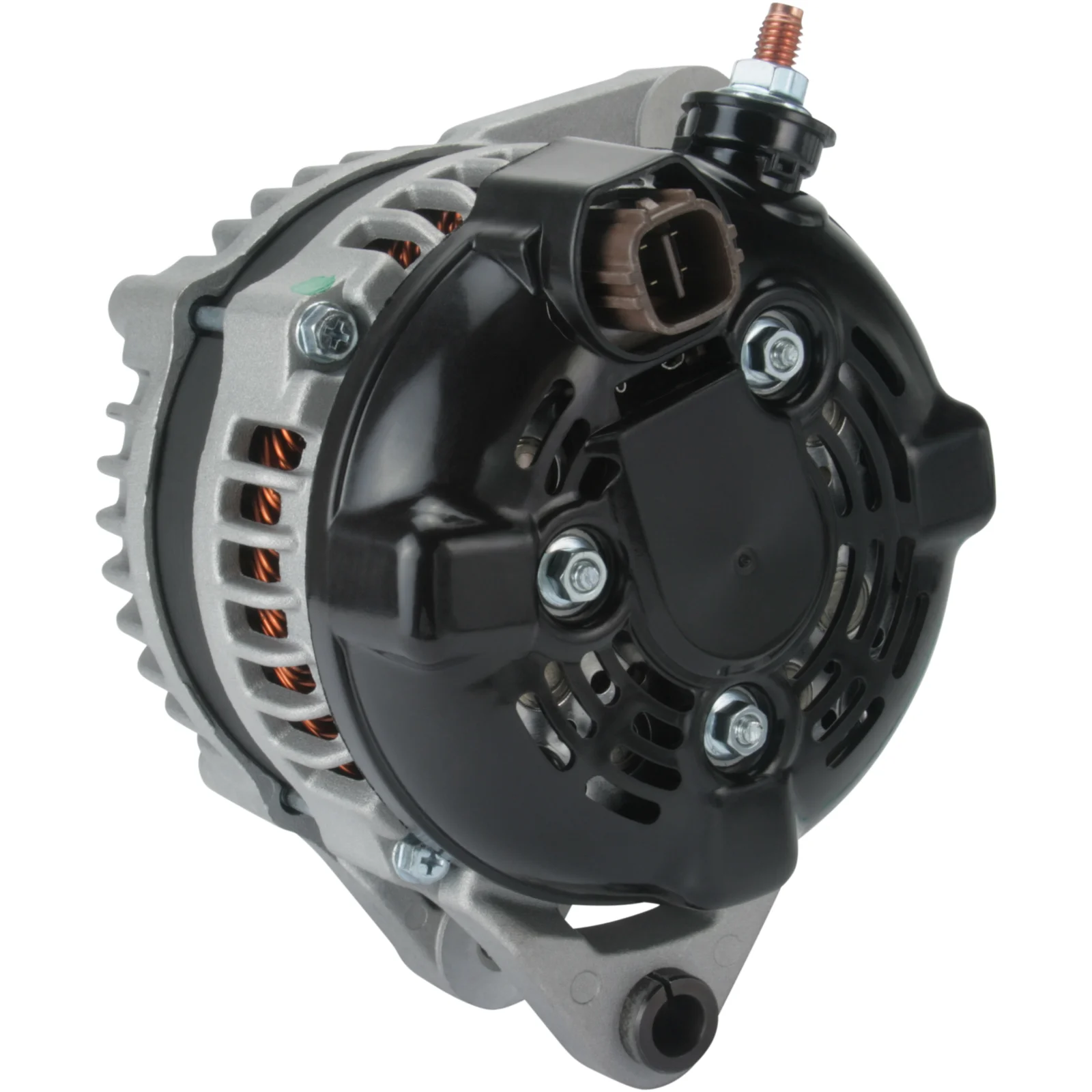

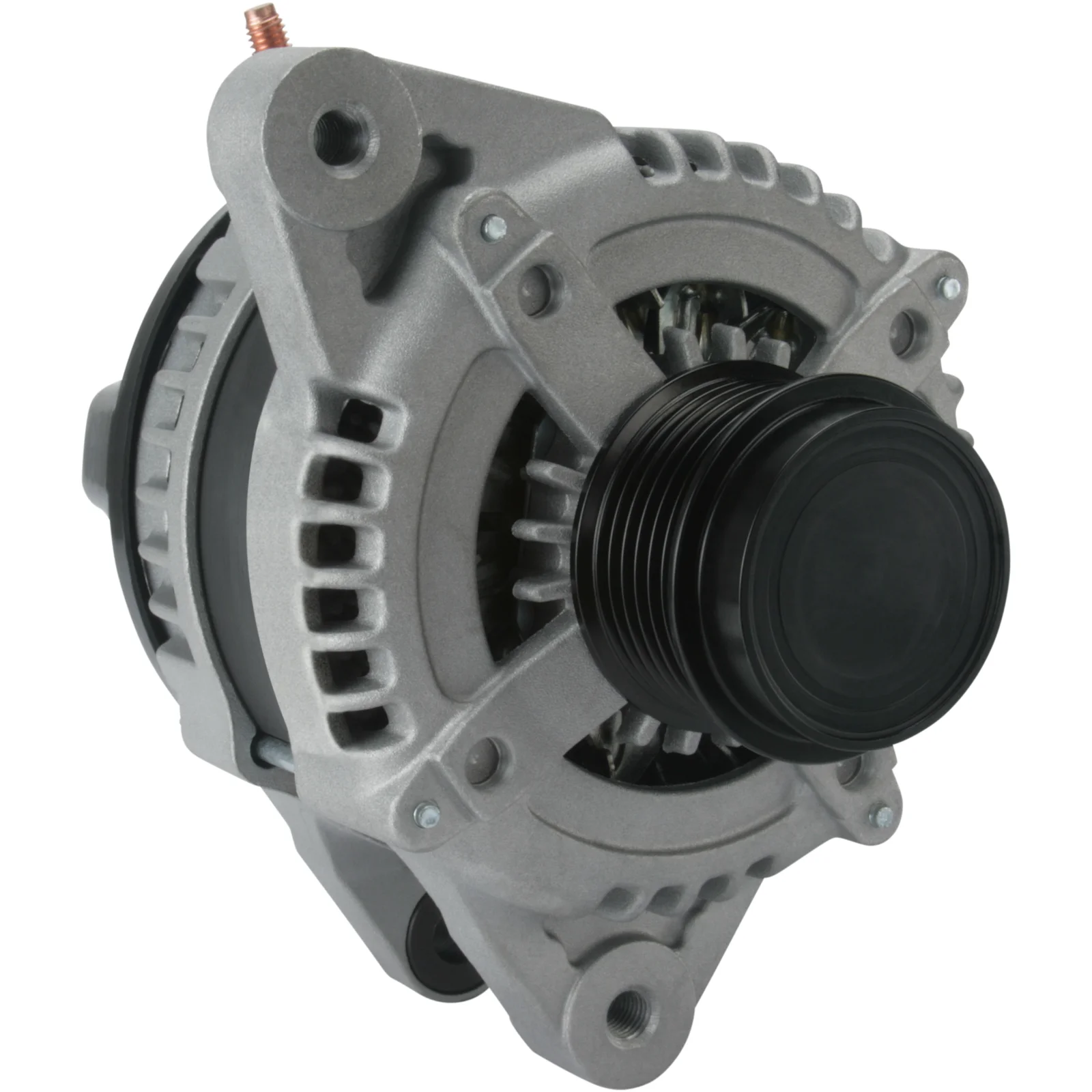

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Ampere: 150, Rotasjon: med klokka, Monteringsbeslag avstand: 38.00

Beskrivelse

Kia/Hyundai Dynamo 12V-150A 12V - 150A, 6grader. frg, (COM, L, FR) Automat! Biler med AUTOMAT! For Yourex produkt bestilling 90-228-1060

Spenningsnivå: 14
Amp: 150
Bøssing av remskive: 52.00
Bredde/holderarm: 20.00
Monteringsbrakett avstand: 38.00
Brakettshull: M10-1.25
Remskivejusteringsbrakettposisjon: 53
Remskivejusteringsbrakettshull 1: M10-1.25
Remskivens diameter: 55.50
Daler/Remskive: 6
Radius: 90.00
Radius 2: 87.00
B+: M8
Posisjon/B+ i min.: 5
Rotasjon: CW
Stikkontaktnummer: PL172
Total lengde mm: 172.00
Kommunikasjon: PWM
Remskive: SP/FW
Regulator type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M8
Communication PWM
Mount. bracket dist. 38.00
Belt. adj. bracket hole 1 M10-1.25
Belt. adj. brackethole pos. 53
Plug no. PL172
Bracket hole M10-1.25
Position/B+ in min. 5
Prod. info BN
Pulley SP/FW
Pulley dia. 55.50
Pulley dist. 52.00
Radius 90.00
Radius 2 87.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 172.00 mm
Width/holder arm 20.00
Amp 150

  • OEM
    F032115632, 0986 082 390, 1986A01282, 2121ir, 021080-0070, 37300-2F200, 104210-1060, 115632

  • Konkurrentreferens
    A6253, CAL32152, DAN1102, DRA0998, 8EL011713-211, 28-6843, 155.578.150, 226.314.1502, 20133R, 209015, 209015A, 444211, 12061017, 0986082390

  • Bilmärken
    Hyundai, Kia

  • NormaliseratArtNr
    a6253, cal32152, dan1102, dra0998, f032115632, 8el011713211, 1986a01282, 2121ir, 20133r, 115632, 209015, 209015a, 286843, 373002f200, 444211, 12061017, 155578150, 0210800070, 0986082390, 1042101060, 2263141502

  • Passar modeller
    Hyundai Model: Grand Santa F? Model series: Grand Santa F? Model type: CRDi All-wheel Drive Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Body: SUV Fuel: Diesel Approved: Yes
    Hyundai Model: ix35 Model series: ix35 Model type: 4WD Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Body: Box Body / Estate From date: 01-08-2009 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Hyundai Model: ix35 Model series: ix35 Model type: 4x4 Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: TM From date: 01-01-2010 Fuel: Diesel Approved: Yes
    Hyundai Model: ix35 Model series: ix35 Model type: AWD Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: LM From date: 01-01-2011 Fuel: Diesel Approved: Yes
    Hyundai Model: ix35 Model series: ix35 Model type: CRDi 4WD Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: LM, EL, ELH Body: SUV Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F Model series: Grand Santa F Model type: 4X4 Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB From date: 01-09-2013 Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F Model series: Grand Santa F Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Body: SUV From date: 01-06-2013 Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Model type: 4WD Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB From date: 01-09-2012 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Model type: 4WD Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: DM From date: 01-10-2015 Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Model type: 4X4 Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: CM Body: Box Body / Estate From date: 01-01-2009 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Model type: 4x4 Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: CM Body: SUV From date: 01-01-2009 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Model type: 4x4 Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: CM From date: 01-01-2009 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Model type: 4X4 Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: DM Body: Box Body / Estate From date: 01-05-2015 Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB From date: 01-09-2012 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: CM Body: Box Body / Estate From date: 01-01-2009 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: CM Body: SUV From date: 01-01-2009 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: CM From date: 01-01-2009 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: DM From date: 01-10-2015 Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F? Model series: Santa F? Model type: CRDi 4WD Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: DM, DMA Body: SUV Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F? Model series: Santa F? Model type: CRDi 4WD Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: DM, DMA Body: SUV Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F? Model series: Santa F? Model type: CRDi Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: DM, DMA Body: SUV Fuel: Diesel Approved: Yes
    Hyundai Series: GRANT Santa Fe Model: 2.2 CRDi Allhjulsdrift Engine volume: 2.2 Engine type: D4HB Year: 06.13-
    Hyundai Series: GRANT Santa Fe Model: 2.2 CRDi Allhjulsdrift Engine volume: 2.2 Engine type: D4HB Year: 09.13-
    Hyundai Series: ix35 (LM) Model: 2.0 CRDi 4WD Engine volume: 2.0 Engine type: D4HA Year: 01.10-
    Hyundai Series: ix35 (LM) Model: 2.0 CRDi Engine volume: 2.0 Engine type: D4HA Year: 01.10-
    Hyundai Series: Santa-Fe (CM) Model: 2.2 CRDi 4x4 A/T Engine volume: 2.2 Engine type: D4HB Year: 01.09-
    Hyundai Series: Santa-Fe III (DM) Model: 2.2 CRDi Engine volume: 2.2 Engine type: D4HB Year: 09.12-12.15
    Kia Model: Carnival Model series: Carnival Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: VQ Body: MPV From date: 01-01-2010 Fuel: Diesel Approved: Yes
    Kia Model: Sorento Model series: Sorento Model type: 4WD Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: XM Body: SUV From date: 01-11-2009 Fuel: Diesel Approved: Yes
    Kia Model: Sorento Model series: Sorento SUV Van Model type: 4WD Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: XM Body: Box Body / Estate From date: 01-11-2009 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Kia Model: Sorento Model series: Sorento SUV Van Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: XM Body: Box Body / Estate From date: 01-11-2009 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Kia Model: Sorento Model series: Sorento Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: XM Body: SUV From date: 01-11-2009 Fuel: Diesel Approved: Yes
    Kia Model: Sorento Model series: Sorento Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: XM From date: 01-11-2009 Fuel: Diesel Approved: Yes
    Kia Model: Sportage Model series: Sportage Model type: AWD Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: SL From date: 01-07-2010 Fuel: Diesel Approved: Yes
    Kia Model: Sportage Model series: Sportage Model type: AWD Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: SL From date: 01-08-2010 Fuel: Diesel Approved: Yes
    Kia Model: Sportage Model series: Sportage Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: SL From date: 01-07-2010 Fuel: Diesel Approved: Yes
    Kia Model: Sportage Model series: Sportage Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: SL From date: 01-08-2010 Fuel: Diesel Approved: Yes
    Kia Series: Sorento (XM) Model: 2.2 CRDi 4WD Engine volume: 2.2 Engine type: D4HB Year: 11.09-
    Kia Series: Sportage (SL) Model: 2.0 CRDi 4WD A/T Engine volume: 2.0 Engine type: D4HA Year: 01.11-
    Kia Series: Sportage Model: 2.0 CRDi 4WD A/T Engine volume: 2.0 Engine type: D4HA Year: 07.10-
    1 / 8
  • Beskrivelse
    Kia/Hyundai Dynamo 12V-150A 12V - 150A, 6grader. frg, (COM, L, FR) Automat! Biler med AUTOMAT! For Yourex produkt bestilling 90-228-1060

    Spenningsnivå: 14
    Amp: 150
    Bøssing av remskive: 52.00
    Bredde/holderarm: 20.00
    Monteringsbrakett avstand: 38.00
    Brakettshull: M10-1.25
    Remskivejusteringsbrakettposisjon: 53
    Remskivejusteringsbrakettshull 1: M10-1.25
    Remskivens diameter: 55.50
    Daler/Remskive: 6
    Radius: 90.00
    Radius 2: 87.00
    B+: M8
    Posisjon/B+ i min.: 5
    Rotasjon: CW
    Stikkontaktnummer: PL172
    Total lengde mm: 172.00
    Kommunikasjon: PWM
    Remskive: SP/FW
    Regulator type: IR
    Prod. info: BN

    Filer

  • Spesifikasjon
    B+ M8
    Communication PWM
    Mount. bracket dist. 38.00
    Belt. adj. bracket hole 1 M10-1.25
    Belt. adj. brackethole pos. 53
    Plug no. PL172
    Bracket hole M10-1.25
    Position/B+ in min. 5
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 55.50
    Pulley dist. 52.00
    Radius 90.00
    Radius 2 87.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 172.00 mm
    Width/holder arm 20.00
    Amp 150
  • Kjøretøymatching

    • OEM
      F032115632, 0986 082 390, 1986A01282, 2121ir, 021080-0070, 37300-2F200, 104210-1060, 115632

    • Konkurrentreferens
      A6253, CAL32152, DAN1102, DRA0998, 8EL011713-211, 28-6843, 155.578.150, 226.314.1502, 20133R, 209015, 209015A, 444211, 12061017, 0986082390

    • Bilmärken
      Hyundai, Kia

    • NormaliseratArtNr
      a6253, cal32152, dan1102, dra0998, f032115632, 8el011713211, 1986a01282, 2121ir, 20133r, 115632, 209015, 209015a, 286843, 373002f200, 444211, 12061017, 155578150, 0210800070, 0986082390, 1042101060, 2263141502

    • Passar modeller
      Hyundai Model: Grand Santa F? Model series: Grand Santa F? Model type: CRDi All-wheel Drive Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Body: SUV Fuel: Diesel Approved: Yes
      Hyundai Model: ix35 Model series: ix35 Model type: 4WD Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Body: Box Body / Estate From date: 01-08-2009 To date: 01-12-2015 Fuel: Diesel Approved: Yes
      Hyundai Model: ix35 Model series: ix35 Model type: 4x4 Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: TM From date: 01-01-2010 Fuel: Diesel Approved: Yes
      Hyundai Model: ix35 Model series: ix35 Model type: AWD Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: LM From date: 01-01-2011 Fuel: Diesel Approved: Yes
      Hyundai Model: ix35 Model series: ix35 Model type: CRDi 4WD Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: LM, EL, ELH Body: SUV Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F Model series: Grand Santa F Model type: 4X4 Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB From date: 01-09-2013 Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F Model series: Grand Santa F Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Body: SUV From date: 01-06-2013 Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Model type: 4WD Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB From date: 01-09-2012 To date: 01-12-2015 Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Model type: 4WD Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: DM From date: 01-10-2015 Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Model type: 4X4 Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: CM Body: Box Body / Estate From date: 01-01-2009 To date: 01-05-2013 Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Model type: 4x4 Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: CM Body: SUV From date: 01-01-2009 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Model type: 4x4 Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: CM From date: 01-01-2009 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Model type: 4X4 Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: DM Body: Box Body / Estate From date: 01-05-2015 Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB From date: 01-09-2012 To date: 01-12-2015 Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: CM Body: Box Body / Estate From date: 01-01-2009 To date: 01-05-2013 Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: CM Body: SUV From date: 01-01-2009 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: CM From date: 01-01-2009 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: DM From date: 01-10-2015 Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F? Model series: Santa F? Model type: CRDi 4WD Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: DM, DMA Body: SUV Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F? Model series: Santa F? Model type: CRDi 4WD Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: DM, DMA Body: SUV Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F? Model series: Santa F? Model type: CRDi Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: DM, DMA Body: SUV Fuel: Diesel Approved: Yes
      Hyundai Series: GRANT Santa Fe Model: 2.2 CRDi Allhjulsdrift Engine volume: 2.2 Engine type: D4HB Year: 06.13-
      Hyundai Series: GRANT Santa Fe Model: 2.2 CRDi Allhjulsdrift Engine volume: 2.2 Engine type: D4HB Year: 09.13-
      Hyundai Series: ix35 (LM) Model: 2.0 CRDi 4WD Engine volume: 2.0 Engine type: D4HA Year: 01.10-
      Hyundai Series: ix35 (LM) Model: 2.0 CRDi Engine volume: 2.0 Engine type: D4HA Year: 01.10-
      Hyundai Series: Santa-Fe (CM) Model: 2.2 CRDi 4x4 A/T Engine volume: 2.2 Engine type: D4HB Year: 01.09-
      Hyundai Series: Santa-Fe III (DM) Model: 2.2 CRDi Engine volume: 2.2 Engine type: D4HB Year: 09.12-12.15
      Kia Model: Carnival Model series: Carnival Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: VQ Body: MPV From date: 01-01-2010 Fuel: Diesel Approved: Yes
      Kia Model: Sorento Model series: Sorento Model type: 4WD Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: XM Body: SUV From date: 01-11-2009 Fuel: Diesel Approved: Yes
      Kia Model: Sorento Model series: Sorento SUV Van Model type: 4WD Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: XM Body: Box Body / Estate From date: 01-11-2009 To date: 01-12-2015 Fuel: Diesel Approved: Yes
      Kia Model: Sorento Model series: Sorento SUV Van Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: XM Body: Box Body / Estate From date: 01-11-2009 To date: 01-12-2015 Fuel: Diesel Approved: Yes
      Kia Model: Sorento Model series: Sorento Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: XM Body: SUV From date: 01-11-2009 Fuel: Diesel Approved: Yes
      Kia Model: Sorento Model series: Sorento Type of engine: CRDi Size of motor: 2.2 Brand of engine: D4HB Type description: XM From date: 01-11-2009 Fuel: Diesel Approved: Yes
      Kia Model: Sportage Model series: Sportage Model type: AWD Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: SL From date: 01-07-2010 Fuel: Diesel Approved: Yes
      Kia Model: Sportage Model series: Sportage Model type: AWD Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: SL From date: 01-08-2010 Fuel: Diesel Approved: Yes
      Kia Model: Sportage Model series: Sportage Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: SL From date: 01-07-2010 Fuel: Diesel Approved: Yes
      Kia Model: Sportage Model series: Sportage Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4HA Type description: SL From date: 01-08-2010 Fuel: Diesel Approved: Yes
      Kia Series: Sorento (XM) Model: 2.2 CRDi 4WD Engine volume: 2.2 Engine type: D4HB Year: 11.09-
      Kia Series: Sportage (SL) Model: 2.0 CRDi 4WD A/T Engine volume: 2.0 Engine type: D4HA Year: 01.11-
      Kia Series: Sportage Model: 2.0 CRDi 4WD A/T Engine volume: 2.0 Engine type: D4HA Year: 07.10-
      1 / 8
