HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115653

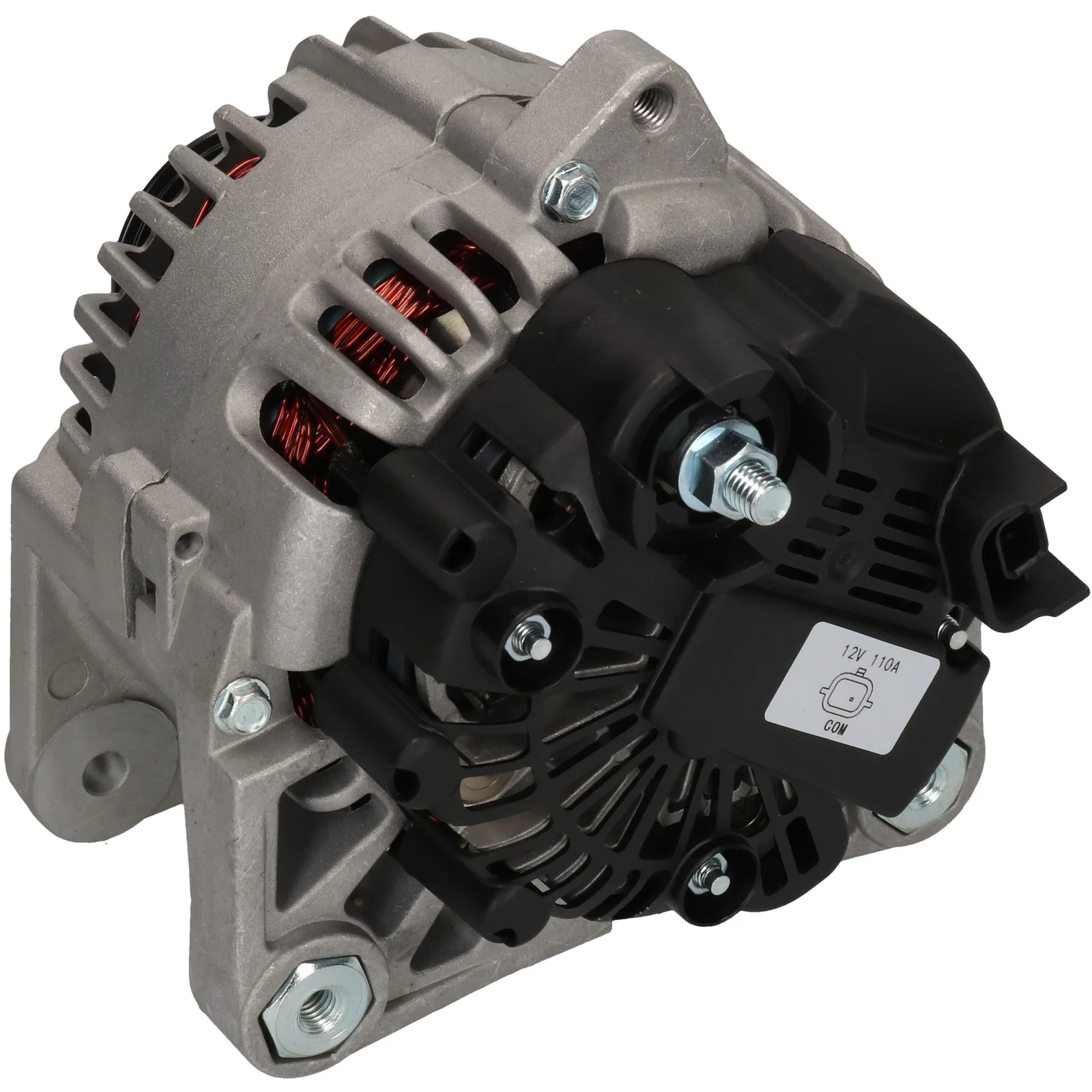

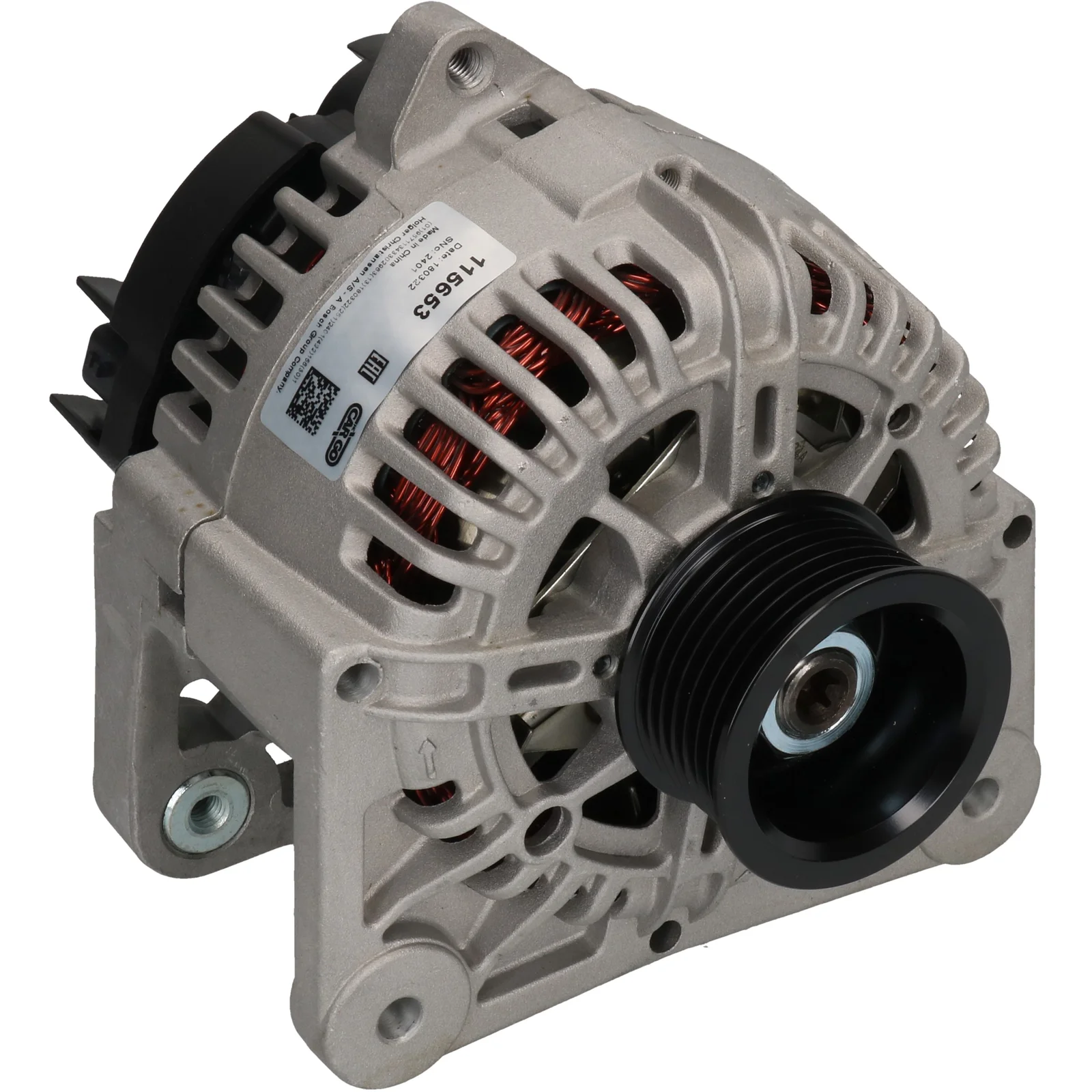

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 110, Rotasjon: CW, Monteringsbeslag avstand: 60,00

Beskrivelse

Renault Gen. 12V-110A, 7gr 12V - 110A, 7gr, Reimhjul Ø 55mm. For Yourex produktordre 90-480-0068

Spenning: 14
Ampere: 110
Reimhjul avstand: 33,50
Bredde/holderarm: 14,00
Festebraketten avstand: 60,00
Brakettåpning: 8,50
Belt. justering brakettåpningsposisjon: 15
Belt. justering brakettåpning 1: 8,50
Reimhjul diameter: 55,00
Spor/reimhjul: 7
Radius: 90,00
Radius 2: 90,00
B+: M8
Posisjon/B+ i min.: 7
Rotasjon: med klokken
Plugg nr.: PL131
Total lengde mm: 185,00
Terminaltype: COM
Kommunikasjon: BSS
Reimhjul: SP
Regulator type: IR
Merknader: Denne Generatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication BSS
Mount. bracket dist. 60.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 15
Plug no. PL131
Bracket hole 8.50
Position/B+ in min. 7
Pulley SP
Pulley dia. 55.00
Pulley dist. 33.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 7
Terminal type COM
Voltage 14
Total length 185.00 mm
Width/holder arm 14.00
Amp 110

  • OEM
    F032115653, TG11C 052, TG11C 056, TG11C 068, TG11C052, TG11C056, tg11c068, 2054ir, 8200 538 817, 8200 623 231, 8200 718 724, 115653, 439596, 440092, 2543469, 2543469A, 2543590, 2543590A, 0124425039, 0124425069, 0124425106, 0124425107, 0124425109, 231000646R, 7711368683, 8200429905, 8200518409, 8200538817, 8200623231, 8200660043, 8200718724

  • Konkurrentreferens
    A0279, CAL15450, DRA0698, LRA03030, 8EL011713-141, 8EL012429-751, 28-5642, 230.329.1102, 575.908.110, 23777N, 24030N, 200275, 210700, 210700A, 439596, 440068, 440092, 9090851, 12090267, 12090296, 32081080, 0986083980

  • Bilmärken
    Renault

  • NormaliseratArtNr
    a0279, cal15450, dra0698, f032115653, lra03030, tg11c052, tg11c056, tg11c068, 8el011713141, 8el012429751, 2054ir, 23777n, 24030n, 115653, 200275, 210700, 210700a, 285642, 439596, 440068, 440092, 2543469, 2543469a, 2543590, 2543590a, 9090851, 12090267, 12090296, 32081080, 0124425039, 0124425069, 0124425106, 0124425107, 0124425109, 231000646r, 575908110, 0986083980, 2303291102, 7711368683, 8200429905, 8200518409, 8200538817, 8200623231, 8200660043, 8200718724

  • Passar modeller
    Renault Model: Clio Model series: Clio Model type: Grandtour Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F740 Body: Estate From date: 01-01-2013 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
    Renault Model: Clio Model series: Clio Model type: Grandtour Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F786 Type description: KR0/1_ Body: Estate From date: 01-03-2010 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
    Renault Model: Clio Model series: Clio Model type: Hi-Flex Size of motor: 1.2 Brand of engine: D4F742 Type description: SB_, SR_ Body: Box From date: 01-11-2007 To date: 01-12-2009 Fuel: Petrol/Ethanol/Natur Approved: Yes
    Renault Model: Clio Model series: Clio Model type: Hi-Flex Type of engine: 16V Size of motor: 1.1 Brand of engine: D4F742 Type description: KR0/1_ Body: Estate From date: 01-07-2008 Fuel: Diesel/Electro Approved: Yes Manufacture type: Sports Tou
    Renault Model: Clio Model series: Clio Model type: LPG Type of engine: LPG Size of motor: 1.1 Brand of engine: D4F744 Body: Box From date: 01-01-2014 Fuel: Petrol/Electro Approved: Yes
    Renault Model: Clio Model series: Clio Model type: LPG Type of engine: LPG Size of motor: 1.1 Brand of engine: D4F744 Type description: BH_ Body: Hatchback From date: 01-01-2014 Fuel: Petrol/Electro Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D4F742 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-07-2008 Fuel: Diesel Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.2 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-10-2005 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: 16V Hi-Flex Size of motor: 1.2 Brand of engine: D4F740 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-07-2008 Fuel: Flex Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: 16V Hi-Flex Size of motor: 1.2 Brand of engine: D4F742 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-07-2008 Fuel: Flex Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F722 Type description: BH_ Body: Van From date: 01-01-2014 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F740 Body: Hatchback From date: 01-11-2012 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F740 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2005 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F740 Type description: KR0/1_ Body: Estate From date: 01-02-2008 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F764 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2005 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F764 Type description: KR0/1_ Body: Estate From date: 01-02-2008 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F784 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-05-2007 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F784 Type description: KR0/1_ Body: Estate From date: 01-02-2008 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F786 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-09-2010 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: Hi-Flex Size of motor: 1.1 Brand of engine: D4F740 Type description: KR0/1_ Body: Estate From date: 01-07-2008 Fuel: Flex Approved: Yes Manufacture type: grandtour
    Renault Model: Clio Model series: Clio Type of engine: LPG 16V Size of motor: 1.2 Brand of engine: D4F740 Body: Hatchback From date: 01-11-2012 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D4F770 Type description: CNO_ Body: Box Body / Hatchback From date: 01-09-2010 To date: 01-09-2014 Fuel: Petrol Approved: Yes
    Renault Series: Clio Grandtour Model: 1.2 16V Engine volume: 1.2 Engine type: D4F 740 Year: 02.08-
    Renault Series: Clio Grandtour Model: 1.2 16V Engine volume: 1.2 Engine type: D4F 784 Year: 02.08-
    Renault Series: Clio III Model: 1.2 16V Engine volume: 1.2 Engine type: D4F 740 / 706 Year: 06.05-
    Renault Series: Clio III Model: 1.2 16V Engine volume: 1.2 Engine type: D4F 740 Year: 06.05-
    Renault Series: Clio III Model: 1.2 16V Engine volume: 1.2 Engine type: D4F 764 Year: 06.05-
    Renault Series: Clio III Model: 1.2 16V Engine volume: 1.2 Engine type: D4F 784 Year: 05.07-
    Renault Series: Clio III Model: 1.2 16V Hi-Flex Engine volume: 1.2 Engine type: D4F 740 / 742 Year: 07.08-
    Renault Series: Clio III Model: 2.0 16V Sport Engine volume: 2.0 Engine type: F4R 830 Year: 02.06-
    Renault Series: Clio IV Model: 1.2 16V Engine volume: 1.2 Engine type: D4F 740 / 728 Year: 11.12-
    Renault Series: MODUS / GRAND MODUS Model: 1.2 Engine volume: 1.2 Engine type: D4F 786 Year: 04.11-
    Renault Series: Modus Model: 1.2 Engine volume: 1.2 Engine type: D4F 740 Year: 12.04-
    Renault Series: Modus Model: 1.2 Engine volume: 1.2 Engine type: D4F 784 Year: 05.07-
    Renault Series: TWINGO II (CN0_) Model: 1.2 16V Engine volume: 1.2 Engine type: D4F 764 / 772 / 770 Year: 03.07-
    Renault Series: TWINGO II (CN0_) Model: 1.2 16V Engine volume: 1.2 Engine type: D4F 772 Year: 03.07-
    1 / 8
  • Beskrivelse
    Renault Gen. 12V-110A, 7gr 12V - 110A, 7gr, Reimhjul Ø 55mm. For Yourex produktordre 90-480-0068

    Spenning: 14
    Ampere: 110
    Reimhjul avstand: 33,50
    Bredde/holderarm: 14,00
    Festebraketten avstand: 60,00
    Brakettåpning: 8,50
    Belt. justering brakettåpningsposisjon: 15
    Belt. justering brakettåpning 1: 8,50
    Reimhjul diameter: 55,00
    Spor/reimhjul: 7
    Radius: 90,00
    Radius 2: 90,00
    B+: M8
    Posisjon/B+ i min.: 7
    Rotasjon: med klokken
    Plugg nr.: PL131
    Total lengde mm: 185,00
    Terminaltype: COM
    Kommunikasjon: BSS
    Reimhjul: SP
    Regulator type: IR
    Merknader: Denne Generatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication BSS
    Mount. bracket dist. 60.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 15
    Plug no. PL131
    Bracket hole 8.50
    Position/B+ in min. 7
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 33.50
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 7
    Terminal type COM
    Voltage 14
    Total length 185.00 mm
    Width/holder arm 14.00
    Amp 110
  • Kjøretøymatching

    • OEM
      F032115653, TG11C 052, TG11C 056, TG11C 068, TG11C052, TG11C056, tg11c068, 2054ir, 8200 538 817, 8200 623 231, 8200 718 724, 115653, 439596, 440092, 2543469, 2543469A, 2543590, 2543590A, 0124425039, 0124425069, 0124425106, 0124425107, 0124425109, 231000646R, 7711368683, 8200429905, 8200518409, 8200538817, 8200623231, 8200660043, 8200718724

    • Konkurrentreferens
      A0279, CAL15450, DRA0698, LRA03030, 8EL011713-141, 8EL012429-751, 28-5642, 230.329.1102, 575.908.110, 23777N, 24030N, 200275, 210700, 210700A, 439596, 440068, 440092, 9090851, 12090267, 12090296, 32081080, 0986083980

    • Bilmärken
      Renault

    • NormaliseratArtNr
      a0279, cal15450, dra0698, f032115653, lra03030, tg11c052, tg11c056, tg11c068, 8el011713141, 8el012429751, 2054ir, 23777n, 24030n, 115653, 200275, 210700, 210700a, 285642, 439596, 440068, 440092, 2543469, 2543469a, 2543590, 2543590a, 9090851, 12090267, 12090296, 32081080, 0124425039, 0124425069, 0124425106, 0124425107, 0124425109, 231000646r, 575908110, 0986083980, 2303291102, 7711368683, 8200429905, 8200518409, 8200538817, 8200623231, 8200660043, 8200718724

    • Passar modeller
      Renault Model: Clio Model series: Clio Model type: Grandtour Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F740 Body: Estate From date: 01-01-2013 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
      Renault Model: Clio Model series: Clio Model type: Grandtour Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F786 Type description: KR0/1_ Body: Estate From date: 01-03-2010 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
      Renault Model: Clio Model series: Clio Model type: Hi-Flex Size of motor: 1.2 Brand of engine: D4F742 Type description: SB_, SR_ Body: Box From date: 01-11-2007 To date: 01-12-2009 Fuel: Petrol/Ethanol/Natur Approved: Yes
      Renault Model: Clio Model series: Clio Model type: Hi-Flex Type of engine: 16V Size of motor: 1.1 Brand of engine: D4F742 Type description: KR0/1_ Body: Estate From date: 01-07-2008 Fuel: Diesel/Electro Approved: Yes Manufacture type: Sports Tou
      Renault Model: Clio Model series: Clio Model type: LPG Type of engine: LPG Size of motor: 1.1 Brand of engine: D4F744 Body: Box From date: 01-01-2014 Fuel: Petrol/Electro Approved: Yes
      Renault Model: Clio Model series: Clio Model type: LPG Type of engine: LPG Size of motor: 1.1 Brand of engine: D4F744 Type description: BH_ Body: Hatchback From date: 01-01-2014 Fuel: Petrol/Electro Approved: Yes
      Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D4F742 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-07-2008 Fuel: Diesel Approved: Yes
      Renault Model: Clio Model series: Clio Size of motor: 1.2 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-10-2005 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Type of engine: 16V Hi-Flex Size of motor: 1.2 Brand of engine: D4F740 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-07-2008 Fuel: Flex Approved: Yes
      Renault Model: Clio Model series: Clio Type of engine: 16V Hi-Flex Size of motor: 1.2 Brand of engine: D4F742 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-07-2008 Fuel: Flex Approved: Yes
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F722 Type description: BH_ Body: Van From date: 01-01-2014 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F740 Body: Hatchback From date: 01-11-2012 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F740 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2005 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F740 Type description: KR0/1_ Body: Estate From date: 01-02-2008 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F764 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2005 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F764 Type description: KR0/1_ Body: Estate From date: 01-02-2008 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F784 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-05-2007 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F784 Type description: KR0/1_ Body: Estate From date: 01-02-2008 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.2 Brand of engine: D4F786 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-09-2010 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Type of engine: Hi-Flex Size of motor: 1.1 Brand of engine: D4F740 Type description: KR0/1_ Body: Estate From date: 01-07-2008 Fuel: Flex Approved: Yes Manufacture type: grandtour
      Renault Model: Clio Model series: Clio Type of engine: LPG 16V Size of motor: 1.2 Brand of engine: D4F740 Body: Hatchback From date: 01-11-2012 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
      Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D4F770 Type description: CNO_ Body: Box Body / Hatchback From date: 01-09-2010 To date: 01-09-2014 Fuel: Petrol Approved: Yes
      Renault Series: Clio Grandtour Model: 1.2 16V Engine volume: 1.2 Engine type: D4F 740 Year: 02.08-
      Renault Series: Clio Grandtour Model: 1.2 16V Engine volume: 1.2 Engine type: D4F 784 Year: 02.08-
      Renault Series: Clio III Model: 1.2 16V Engine volume: 1.2 Engine type: D4F 740 / 706 Year: 06.05-
      Renault Series: Clio III Model: 1.2 16V Engine volume: 1.2 Engine type: D4F 740 Year: 06.05-
      Renault Series: Clio III Model: 1.2 16V Engine volume: 1.2 Engine type: D4F 764 Year: 06.05-
      Renault Series: Clio III Model: 1.2 16V Engine volume: 1.2 Engine type: D4F 784 Year: 05.07-
      Renault Series: Clio III Model: 1.2 16V Hi-Flex Engine volume: 1.2 Engine type: D4F 740 / 742 Year: 07.08-
      Renault Series: Clio III Model: 2.0 16V Sport Engine volume: 2.0 Engine type: F4R 830 Year: 02.06-
      Renault Series: Clio IV Model: 1.2 16V Engine volume: 1.2 Engine type: D4F 740 / 728 Year: 11.12-
      Renault Series: MODUS / GRAND MODUS Model: 1.2 Engine volume: 1.2 Engine type: D4F 786 Year: 04.11-
      Renault Series: Modus Model: 1.2 Engine volume: 1.2 Engine type: D4F 740 Year: 12.04-
      Renault Series: Modus Model: 1.2 Engine volume: 1.2 Engine type: D4F 784 Year: 05.07-
      Renault Series: TWINGO II (CN0_) Model: 1.2 16V Engine volume: 1.2 Engine type: D4F 764 / 772 / 770 Year: 03.07-
      Renault Series: TWINGO II (CN0_) Model: 1.2 16V Engine volume: 1.2 Engine type: D4F 772 Year: 03.07-
      1 / 8
