HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114410

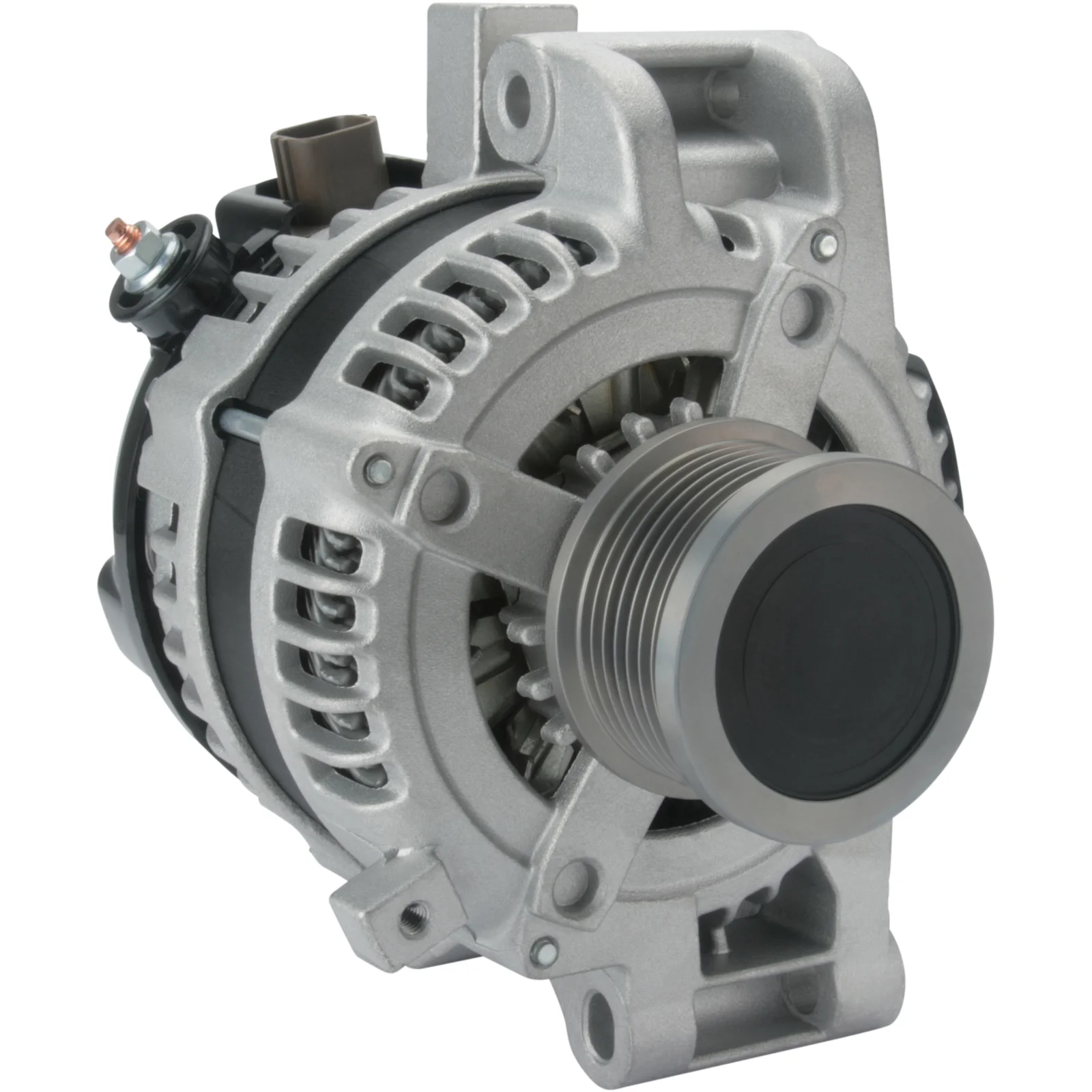

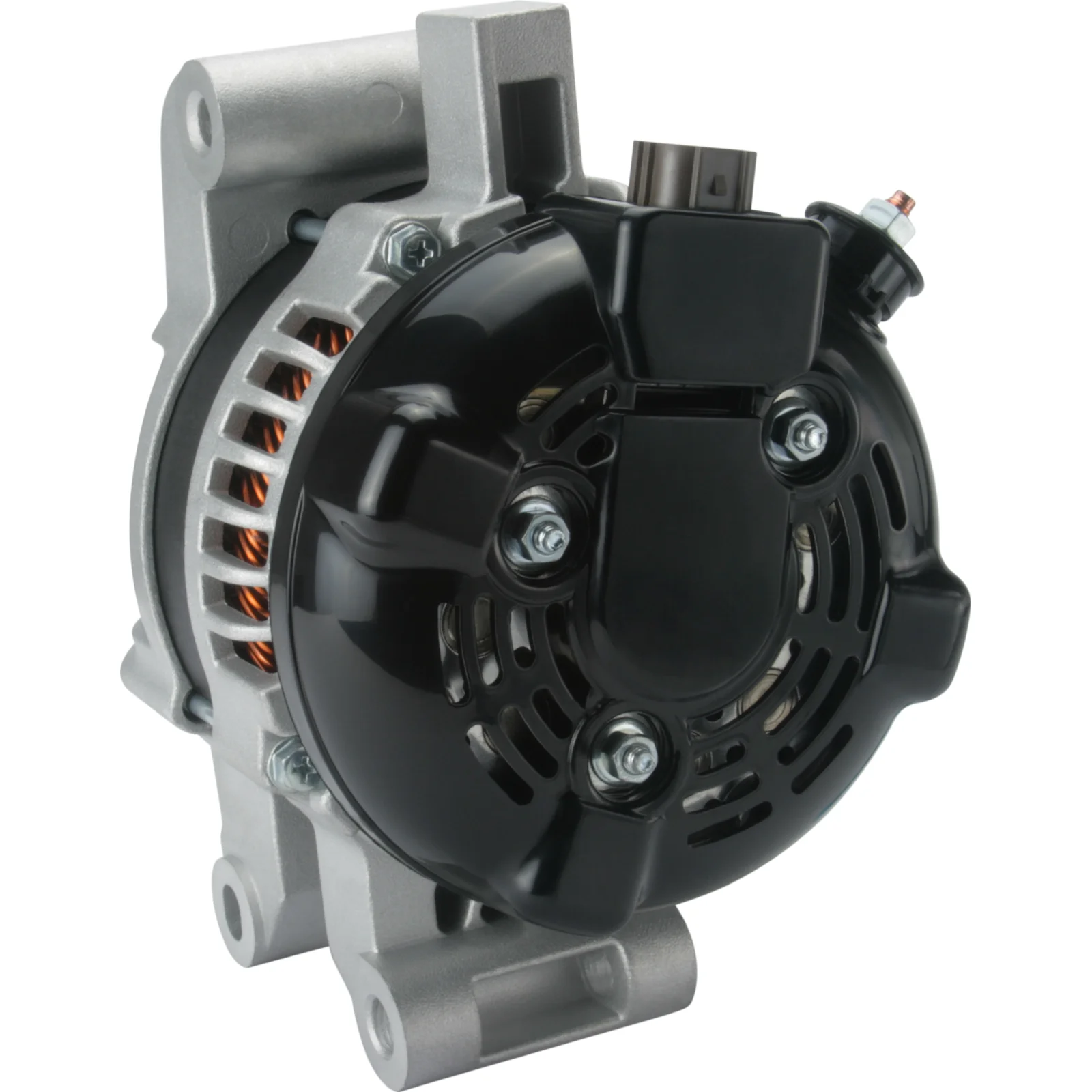

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 130, Rotasjon: CW, Monteringsbeslag avstand: 71,00

Beskrivelse

Toyota 2.2D Dynamo 12V-130A 12V - 130A, 7gr.frg. (IG, RLO, L, M) Alternativ: 90-555-2606 150A For Yourex produktordre 90-555-2603

Spenningsnivå: 14
Ampere: 130
Bøssing avdr.: 24.00
Bredde/holderarm: 60.00
Festebrakett avstand.: 71.00
Brakettshull: 8.50
Brakettshull 2: 10.00
Reimhjul justering brakettshull 1: 8.50
Reimhjul dia.: 58.00
Grooves/reimhjul: 7
B+: M6
Posisjon/B+ i min.: 7
D+ Størrelse: Plugg
Rotasjon: CW
Plugg nr.: PL146
Total lengde mm: 152.00
Reimhjul: SP/FW
Regulator Type: IR

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 71.00
Belt. adj. bracket hole 1 8.50
Plug no. PL146
Bracket hole 8.50
Bracket hole 2 10.00
Position/B+ in min. 7
Pulley SP/FW
Pulley dia. 58.00
Pulley dist. 24.00
D+ Size Plug
Regulator type IR
Rotation CW
Grooves/pulley 7
Voltage 14
Total length 152.00 mm
Width/holder arm 60.00
Amp 130

  • OEM
    DAN 1013, F032114410, 0986 082 070, 1986A01269, 2029ir, 021080-6010, 27060-0G021, 27060-0g021, 27060-0R080, 27060-26030, 104210-1880, 104210-1881, 104210-1882, 104210-4501, 104210-4590, 104210-4591, 104210-4592, 104210-4770, 104210-4771, 114410

  • Konkurrentreferens
    A6063, A6063(DENSO), A6063PR, A6371, CAL40259, CAL40300, DAN1013, DENDAN1013, DRA0616, J5112152, 8EL012428-511, 28-5773, 195.568.130, 195.942.130, 235.318.1302, 9318, 20226, 20226CT, 20226N, 113183, 113316, 210934, 210934A, 302029RI, 440523, 443091, 12060946, 0986082070, 063377534010

  • Bilmärken
    Lexus se Toyota, Toyota

  • NormaliseratArtNr
    a6063, a6063denso, a6063pr, a6371, cal40259, cal40300, dan1013, dendan1013, dra0616, f032114410, j5112152, 8el012428511, 1986a01269, 2029ir, 9318, 20226, 20226ct, 20226n, 113183, 113316, 114410, 210934, 210934a, 270600g021, 270600r080, 285773, 302029ri, 440523, 443091, 12060946, 195568130, 195942130, 0210806010, 0986082070, 1042101880, 1042101881, 1042101882, 1042104501, 1042104590, 1042104591, 1042104592, 1042104770, 1042104771, 2353181302, 2706026030, 063377534010

  • Passar modeller
    Lexus Model: IS Model series: IS 220 Type of engine: Diesel Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: ALE20 From date: 01-08-2005 To date: 01-07-2012 Fuel: Diesel Approved: Yes
    Lexus Model: IS Model series: IS Type of engine: Diesel Size of motor: 2.2 Brand of engine: 2AD-FTV Type description: ALE20 From date: 01-07-2010 To date: 01-07-2012 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1AD-FTV Type description: T27 Body: Estate From date: 01-11-2011 To date: 01-10-2018 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1AD-FTV Type description: T27 From date: 01-11-2011 To date: 01-10-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: Diesel Size of motor: 2.0 Brand of engine: 1AD-FTV Type description: T27 Body: Estate From date: 01-02-2009 To date: 01-10-2018 Fuel: Diesel Approved: Yes Manufacture type: Station Wa
    Toyota Model: Avensis Model series: Avensis Type of engine: Diesel Size of motor: 2.0 Brand of engine: 1AD-FTV Type description: T27 From date: 01-11-2008 To date: 01-10-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: Diesel Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: T27 Body: Estate From date: 01-02-2009 To date: 01-10-2018 Fuel: Diesel Approved: Yes Manufacture type: Station Wa
    Toyota Model: Avensis Model series: Avensis Type of engine: Diesel Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: T27 From date: 01-11-2008 To date: 01-10-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: Diesel Size of motor: 2.2 Brand of engine: 2AD-FTV Type description: T27 Body: Estate From date: 01-02-2009 To date: 01-10-2018 Fuel: Diesel Approved: Yes Manufacture type: Station Wa
    Toyota Model: Avensis Model series: Avensis Type of engine: Diesel Size of motor: 2.2 Brand of engine: 2AD-FTV Type description: T27 From date: 01-11-2008 To date: 01-10-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: Verso Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: ZER_, ZZE_ Body: MPV From date: 01-10-2005 To date: 01-03-2009 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: _E12J_, _E12T_ From date: 01-11-2006 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Toyota Model: RAV 4 Model series: RAV 4 Model type: CAT Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: ALA30 From date: 01-02-2006 To date: 01-06-2013 Fuel: Diesel Approved: Yes
    Toyota Model: RAV 4 Model series: RAV 4 Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: ACA_, ACE_, ALA_ From date: 01-12-2008 To date: 01-06-2013 Fuel: Diesel Approved: Yes
    Toyota Model: RAV 4 Model series: RAV 4 Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FTV Type description: ACA_, ACE_, ALA_ From date: 01-12-2008 To date: 01-06-2013 Fuel: Diesel Approved: Yes
    Toyota Model: RAV 4 Model series: RAV 4 Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FTV Type description: ALA30 From date: 01-02-2006 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Toyota Model: Verso Model series: Verso Model type: D-CAT (AUR21_) Type of engine: Diesel Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: _R2_ Body: MPV From date: 01-04-2009 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Verso Model series: Verso Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1AD-FTV Type description: AUR20 Body: MPV From date: 01-04-2009 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Verso Model series: Verso Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1AD-FTV Type description: _AUR2_, _ZGR2_ Body: MPV From date: 01-11-2012 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Verso Model series: Verso Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: AUR21 Body: MPV From date: 01-04-2009 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Verso Model series: Verso Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: _R2_ Body: MPV From date: 01-04-2009 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Verso Van Model series: Verso Van Size of motor: 2.0 Brand of engine: 1AD-FTV Type description: _R2_ Body: Van From date: 01-11-2012 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Verso Van Model series: Verso Van Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: _R2_ Body: Van From date: 01-04-2009 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Toyota Series: Avensis (T27) Kombi Model: 2.0 D-4D Engine volume: 2.0 Engine type: 1AD-FTV Year: 11.11-
    Toyota Series: Avensis (T27) Kombi Model: 2.0 D-4D Engine volume: 2.2 Engine type: 2AD-FTV Year: 11.11-
    Toyota Series: Avensis (T27) Kombi Model: 2.2 D-4D Engine volume: 2.2 Engine type: 2AD-FHV Year: 11.08-10.11
    Toyota Series: Avensis (T27) Model: 2.0 D-4D Engine volume: 2.0 Engine type: 1AD-FTV Year: 11.08-10.11
    Toyota Series: Avensis (T27) Model: 2.0 D-4D Engine volume: 2.0 Engine type: 1AD-FTV Year: 11.11-
    Toyota Series: Avensis (T27) Model: 2.2 D-4D Engine volume: 2.2 Engine type: 2AD-FTV / FHV Year: 11.08-10.11
    Toyota Series: Corolla Verso Model: 2.2 D-4D Engine volume: 2.2 Engine type: 2AD-FHV Year: 08.05-01.09
    Toyota Series: Corolla Verso Model: 2.2 D-4D Engine volume: 2.2 Engine type: 2AD-FHV Year: 08.05-04.07
    Toyota Series: Lexus IS II Model: 200 d Engine volume: 2.2 Engine type: 2AD-FTV Year: 08.10-07.12
    Toyota Series: Lexus IS II Model: 220 d Engine volume: 2.2 Engine type: 2AD-FHV Year: 11.05-07.10
    Toyota Series: RAV 4 III (ACA_) Model: 2.2 D-4D Engine volume: 2.2 Engine type: 2AD-FTV Year: 03.06-
    Toyota Series: RAV 4 III (ACA_) Model: 2.2 D-4D Engine volume: 2.2 Engine type: 2AD-FTV Year: 12.08-
    Toyota Series: RAV 4 III (_A3_) Model: 2.2 D 4WD Engine volume: 2.2 Engine type: 2AD-FHV Year: 03.06-11.08
    Toyota Series: Verso (_R2_) Model: 2.0 D-4D Engine volume: 2.0 Engine type: 1AD-FTV Year: 02.09-06.10
    Toyota Series: Verso (_R2_) Model: 2.2 D-CAT AUT Engine volume: 2.2 Engine type: 2AD-FHV Year: 05.09-06.10
    Toyota Series: Verso (_R2_) Model: 2.2 D-CAT MAN Engine volume: 2.2 Engine type: 2AD-FHV Year: 07.10-10.12
