Varenr.: F032112387

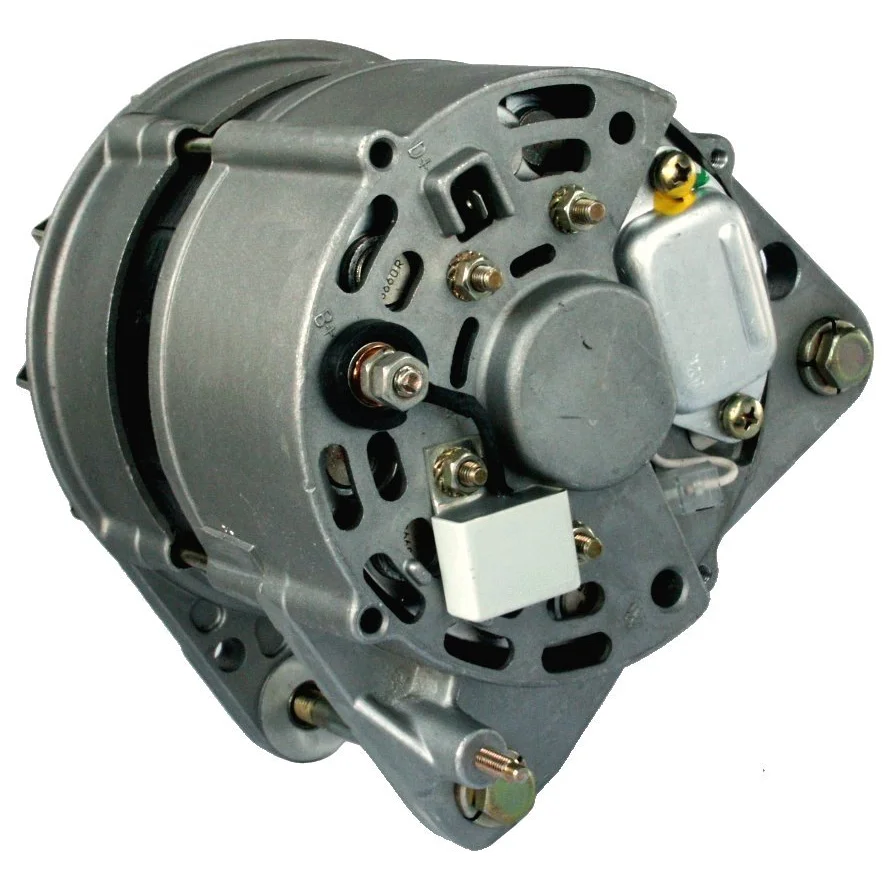

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Strøm: 90, Rotasjon: CW, montering. brakett avstand: 66,00

Beskrivelse

Spenning: 14
Amp: 90
Terminal: W
Drevspole dist.: 32,50
Bredde/holder arm: 14,00
Monteringsbrakett dist.: 66,00
Brakett hull: M8
Bånd. just. brakkethull pos.: 45
Bånd. just. brakett hull 1: M8
Drev diameter: 50,00
Utsparinger/drev: 6
Radius: 90,00
Radius 2: 90,00
B+: M6
Posisjon/B+ i min.: 47
D+ Størrelse: 6,30
Rotasjon: medur
Total lengde mm: 179,00
Drev: SP
Regulator type: IR
Prod. info: BN
Servicing: Skoda

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 66.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 45
Bracket hole M8
Position/B+ in min. 47
Prod. info BN
Pulley SP
Pulley dia. 50.00
Pulley dist. 32.50
Radius 90.00
D+ Size 6.30
Radius 2 90.00
Regulator type IR
Rotation CW
Servicing Skoda
Grooves/pulley 6
Terminal W
Voltage 14
Total length 179.00 mm
Width/holder arm 14.00
Amp 90

  • OEM
    F032112387, 441.04003-226.6, 1626ir, 9516590, 9516591, 047903015m, 443113516591

  • Konkurrentreferens
    A9034, A9034SR, ALT-H101, ALT10108, ALT20404, CAL48101, DRA4153, F042A0H101, LRB00511, 8EL012428-241, 28-2898, 212.106.902, 21610R, 119963, 12049390, 32049390, 0986049390, 944390901200

  • NormaliseratArtNr
    a9034, a9034sr, alt10108, alt20404, alth101, cal48101, dra4153, f032112387, f042a0h101, lrb00511, 8el012428241, 1626ir, 21610r, 119963, 282898, 9516590, 9516591, 12049390, 32049390, 047903015m, 212106902, 0986049390, 441040032266, 443113516591, 944390901200

  • Passar modeller
    Skoda Model: Felicia Model series: Felicia Cube Van Size of motor: 1.3 Brand of engine: AMH Type description: 6U5 Body: Estate From date: 01-03-1997 To date: 01-06-1998 Fuel: Gasoline Approved: Yes
    Skoda Model: Felicia Model series: Felicia Model type: Fun Size of motor: 1.3 Brand of engine: 135B Body: Pick Up From date: 01-06-1997 To date: 01-04-2002 Fuel: Gasoline Approved: Yes
    Skoda Model: Felicia Model series: Felicia Model type: Fun Size of motor: 1.3 Brand of engine: 135M Body: Pick Up From date: 01-06-1997 To date: 01-04-2002 Fuel: Gasoline Approved: Yes
    Skoda Model: Felicia Model series: Felicia Model type: Fun Size of motor: 1.3 Brand of engine: 136B Body: Pick Up From date: 01-06-1997 To date: 01-04-2002 Fuel: Gasoline Approved: Yes
    Skoda Model: Felicia Model series: Felicia Model type: Fun Size of motor: 1.3 Brand of engine: 136M Body: Pick Up From date: 01-06-1997 To date: 01-04-2002 Fuel: Gasoline Approved: Yes
    Skoda Model: Felicia Model series: Felicia Model type: Fun Size of motor: 1.3 Brand of engine: AMG Body: Pick Up From date: 01-06-1997 To date: 01-04-2002 Fuel: Gasoline Approved: Yes
    Skoda Model: Felicia Model series: Felicia Model type: Fun Size of motor: 1.3 Brand of engine: AMH Body: Pick Up From date: 01-06-1997 To date: 01-04-2002 Fuel: Gasoline Approved: Yes
    Skoda Model: Felicia Model series: Felicia Model type: LX Size of motor: 1.3 Brand of engine: 135B Type description: 6U5 Body: Estate From date: 01-08-1995 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
    Skoda Model: Felicia Model series: Felicia Model type: LXi Size of motor: 1.3 Brand of engine: 136B Type description: 6U5 Body: Estate From date: 01-08-1995 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
    Skoda Model: Felicia Model series: Felicia Model type: LXi Size of motor: 1.3 Brand of engine: AMH Type description: 6U5 Body: Estate From date: 01-08-1995 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
    Skoda Model: Felicia Model series: Felicia Size of motor: 1.3 Brand of engine: 135B Type description: 6U1 Body: Hatchback From date: 01-10-1994 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
    Skoda Model: Felicia Model series: Felicia Size of motor: 1.3 Brand of engine: 135L Type description: 6U1 Body: Hatchback From date: 01-10-1994 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
    Skoda Model: Felicia Model series: Felicia Size of motor: 1.3 Brand of engine: 135L Type description: 6U5 Body: Estate From date: 01-08-1995 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
    Skoda Model: Felicia Model series: Felicia Size of motor: 1.3 Brand of engine: 136B Body: Hatchback From date: 01-10-1994 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
    Skoda Model: Felicia Model series: Felicia Size of motor: 1.3 Brand of engine: AMG Body: Hatchback From date: 01-01-1998 To date: 01-06-2001 Fuel: Gasoline Approved: Yes
    Skoda Model: Felicia Model series: Felicia Size of motor: 1.3 Brand of engine: AMG Type description: 6U1 Body: Hatchback From date: 01-10-1994 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
    Skoda Model: Felicia Model series: Felicia Size of motor: 1.3 Brand of engine: AMH Body: Estate From date: 01-01-1998 To date: 01-06-2001 Fuel: Gasoline Approved: Yes
    Skoda Model: Felicia Model series: Felicia Size of motor: 1.3 Brand of engine: AMH Body: Hatchback From date: 01-01-1998 To date: 01-06-2001 Fuel: Gasoline Approved: Yes
    Skoda Model: Felicia Model series: Felicia Size of motor: 1.3 Brand of engine: AMJ Type description: 791 Body: Hatchback From date: 01-10-1994 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
    Skoda Model: Felicia Model series: Felicia Size of motor: 1.3 Brand of engine: AMJ Type description: 795 Body: Estate From date: 01-08-1995 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
    Skoda Model: Felicia Model series: Felicia Size of motor: 1.3 Brand of engine: AMJ,135L Type description: 6U5 Body: Box Body / Estate From date: 01-11-1995 To date: 01-11-2000 Fuel: Gasoline Approved: Yes
    1 / 5
  • Beskrivelse
    Spenning: 14
    Amp: 90
    Terminal: W
    Drevspole dist.: 32,50
    Bredde/holder arm: 14,00
    Monteringsbrakett dist.: 66,00
    Brakett hull: M8
    Bånd. just. brakkethull pos.: 45
    Bånd. just. brakett hull 1: M8
    Drev diameter: 50,00
    Utsparinger/drev: 6
    Radius: 90,00
    Radius 2: 90,00
    B+: M6
    Posisjon/B+ i min.: 47
    D+ Størrelse: 6,30
    Rotasjon: medur
    Total lengde mm: 179,00
    Drev: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Skoda

    Filer

  • Spesifikasjon
    B+ M6
    Mount. bracket dist. 66.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 45
    Bracket hole M8
    Position/B+ in min. 47
    Prod. info BN
    Pulley SP
    Pulley dia. 50.00
    Pulley dist. 32.50
    Radius 90.00
    D+ Size 6.30
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Servicing Skoda
    Grooves/pulley 6
    Terminal W
    Voltage 14
    Total length 179.00 mm
    Width/holder arm 14.00
    Amp 90
  • Kjøretøymatching

    • OEM
      F032112387, 441.04003-226.6, 1626ir, 9516590, 9516591, 047903015m, 443113516591

    • Konkurrentreferens
      A9034, A9034SR, ALT-H101, ALT10108, ALT20404, CAL48101, DRA4153, F042A0H101, LRB00511, 8EL012428-241, 28-2898, 212.106.902, 21610R, 119963, 12049390, 32049390, 0986049390, 944390901200

    • NormaliseratArtNr
      a9034, a9034sr, alt10108, alt20404, alth101, cal48101, dra4153, f032112387, f042a0h101, lrb00511, 8el012428241, 1626ir, 21610r, 119963, 282898, 9516590, 9516591, 12049390, 32049390, 047903015m, 212106902, 0986049390, 441040032266, 443113516591, 944390901200

    • Passar modeller
      Skoda Model: Felicia Model series: Felicia Cube Van Size of motor: 1.3 Brand of engine: AMH Type description: 6U5 Body: Estate From date: 01-03-1997 To date: 01-06-1998 Fuel: Gasoline Approved: Yes
      Skoda Model: Felicia Model series: Felicia Model type: Fun Size of motor: 1.3 Brand of engine: 135B Body: Pick Up From date: 01-06-1997 To date: 01-04-2002 Fuel: Gasoline Approved: Yes
      Skoda Model: Felicia Model series: Felicia Model type: Fun Size of motor: 1.3 Brand of engine: 135M Body: Pick Up From date: 01-06-1997 To date: 01-04-2002 Fuel: Gasoline Approved: Yes
      Skoda Model: Felicia Model series: Felicia Model type: Fun Size of motor: 1.3 Brand of engine: 136B Body: Pick Up From date: 01-06-1997 To date: 01-04-2002 Fuel: Gasoline Approved: Yes
      Skoda Model: Felicia Model series: Felicia Model type: Fun Size of motor: 1.3 Brand of engine: 136M Body: Pick Up From date: 01-06-1997 To date: 01-04-2002 Fuel: Gasoline Approved: Yes
      Skoda Model: Felicia Model series: Felicia Model type: Fun Size of motor: 1.3 Brand of engine: AMG Body: Pick Up From date: 01-06-1997 To date: 01-04-2002 Fuel: Gasoline Approved: Yes
      Skoda Model: Felicia Model series: Felicia Model type: Fun Size of motor: 1.3 Brand of engine: AMH Body: Pick Up From date: 01-06-1997 To date: 01-04-2002 Fuel: Gasoline Approved: Yes
      Skoda Model: Felicia Model series: Felicia Model type: LX Size of motor: 1.3 Brand of engine: 135B Type description: 6U5 Body: Estate From date: 01-08-1995 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
      Skoda Model: Felicia Model series: Felicia Model type: LXi Size of motor: 1.3 Brand of engine: 136B Type description: 6U5 Body: Estate From date: 01-08-1995 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
      Skoda Model: Felicia Model series: Felicia Model type: LXi Size of motor: 1.3 Brand of engine: AMH Type description: 6U5 Body: Estate From date: 01-08-1995 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
      Skoda Model: Felicia Model series: Felicia Size of motor: 1.3 Brand of engine: 135B Type description: 6U1 Body: Hatchback From date: 01-10-1994 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
      Skoda Model: Felicia Model series: Felicia Size of motor: 1.3 Brand of engine: 135L Type description: 6U1 Body: Hatchback From date: 01-10-1994 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
      Skoda Model: Felicia Model series: Felicia Size of motor: 1.3 Brand of engine: 135L Type description: 6U5 Body: Estate From date: 01-08-1995 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
      Skoda Model: Felicia Model series: Felicia Size of motor: 1.3 Brand of engine: 136B Body: Hatchback From date: 01-10-1994 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
      Skoda Model: Felicia Model series: Felicia Size of motor: 1.3 Brand of engine: AMG Body: Hatchback From date: 01-01-1998 To date: 01-06-2001 Fuel: Gasoline Approved: Yes
      Skoda Model: Felicia Model series: Felicia Size of motor: 1.3 Brand of engine: AMG Type description: 6U1 Body: Hatchback From date: 01-10-1994 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
      Skoda Model: Felicia Model series: Felicia Size of motor: 1.3 Brand of engine: AMH Body: Estate From date: 01-01-1998 To date: 01-06-2001 Fuel: Gasoline Approved: Yes
      Skoda Model: Felicia Model series: Felicia Size of motor: 1.3 Brand of engine: AMH Body: Hatchback From date: 01-01-1998 To date: 01-06-2001 Fuel: Gasoline Approved: Yes
      Skoda Model: Felicia Model series: Felicia Size of motor: 1.3 Brand of engine: AMJ Type description: 791 Body: Hatchback From date: 01-10-1994 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
      Skoda Model: Felicia Model series: Felicia Size of motor: 1.3 Brand of engine: AMJ Type description: 795 Body: Estate From date: 01-08-1995 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
      Skoda Model: Felicia Model series: Felicia Size of motor: 1.3 Brand of engine: AMJ,135L Type description: 6U5 Body: Box Body / Estate From date: 01-11-1995 To date: 01-11-2000 Fuel: Gasoline Approved: Yes
      1 / 5
