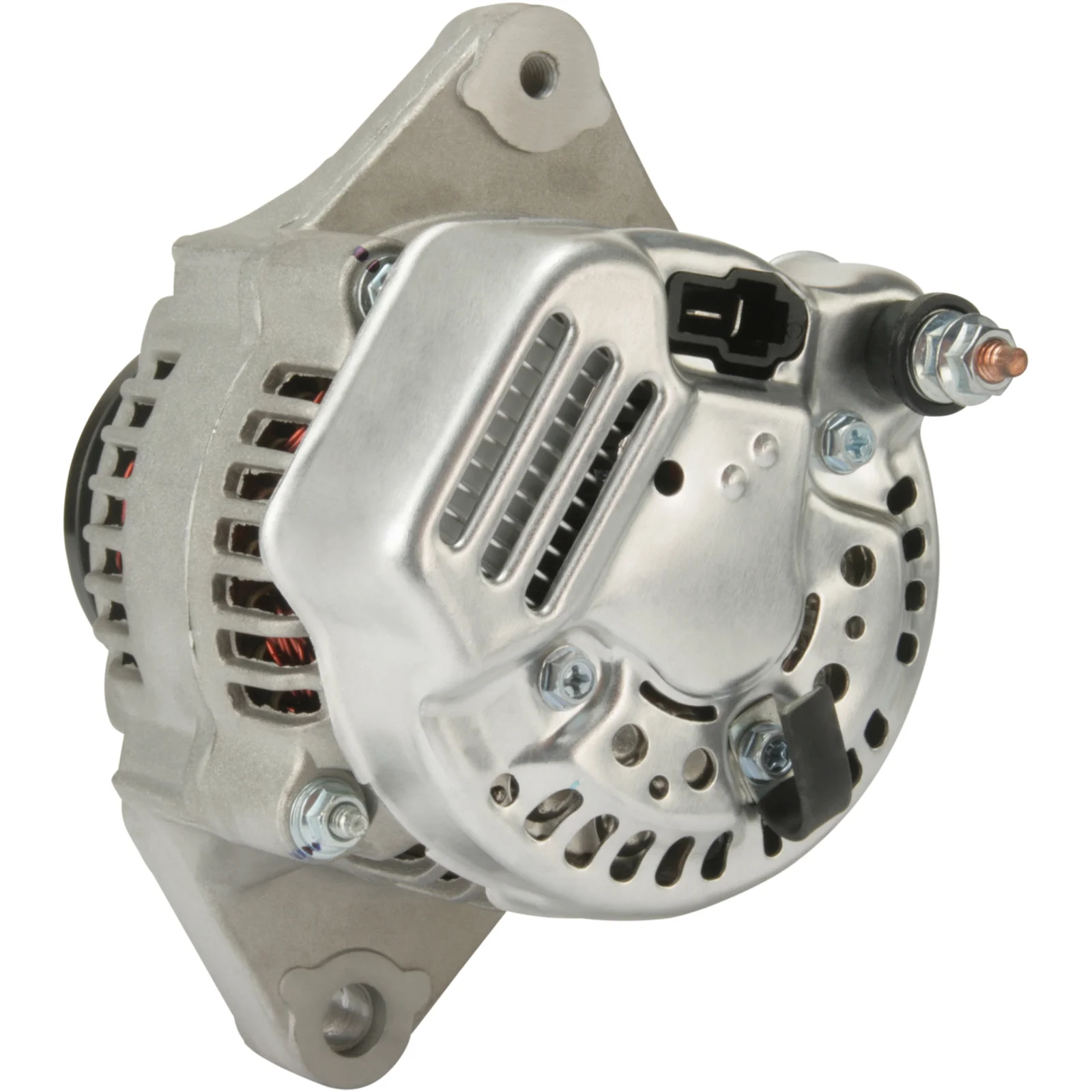

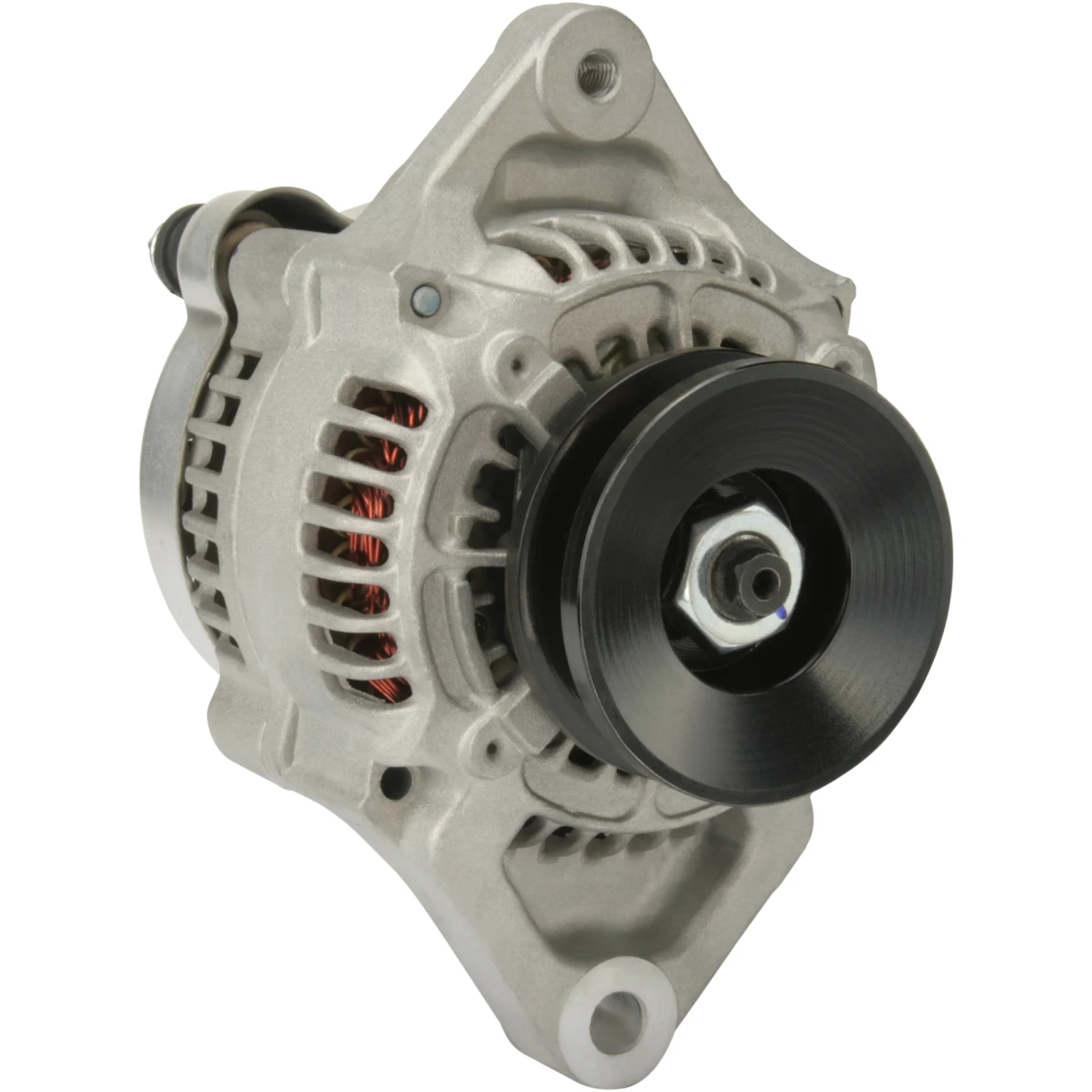

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114751

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 44, Rotasjon: medur, Reimskive diameter: 70.00

Beskrivelse

Spenningsnivå: 14
Amp: 44
Drevkugg avstand: 43.00
Bredde/holderarm: 21.00
Klemmehull: 10.20
Bånd. justeringsbøssingposisjon: 60
Bånd. justeringsbøssing hull 1: M8
Drevdiameter: 70.00
Gafler/drev: 1
Radius: 75.00
Radius 2: 78.00
D+ størrelse: Plugg
Rotasjon: medurs
Plugg nummer: PL10
Total lengde mm: 161.00
Terminaltype: L-IG
Drev: P
Regulator type: IR
Prod. info: BN

Filer

Spesifikasjon

Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL10
Bracket hole 10.20
Prod. info BN
Pulley P
Pulley dia. 70.00
Pulley dist. 43.00
Radius 75.00
D+ Size Plug
Radius 2 78.00
Regulator type IR
Rotation CW
Grooves/pulley 1
Terminal type L-IG
Voltage 14
Total length 161.00 mm
Width/holder arm 21.00
Amp 44

  • OEM
    F032114751, T1065-15682, 101211-3780, 101211-3781

  • Konkurrentreferens
    695.522.045, 11632, 11632N

  • NormaliseratArtNr
    f032114751, t106515682, 11632, 11632n, 695522045, 1012113780, 1012113781

  • Passar modeller
    Bobcat Model: 331 & 335 Model series: 331 & 335 Model type: Excavators Brand of engine: V2403-M Approved: Yes
    Bobcat Model: 430 Model series: 430 Model type: Excavators Brand of engine: V2403-M Approved: Yes
    Bobcat Model: AL275 Model series: AL275 Model type: Wheel Loaders and Dozers Brand of engine: V2403-M-DI Approved: Yes
    Bobcat Model: E 45 Model series: E 45 Model type: Excavators Brand of engine: V2403-M-DI Approved: Yes
    Bobcat Model: E 50 Model series: E 50 Model type: Excavators Brand of engine: V2403-M Approved: Yes
    Bobcat Model: E 55 Model series: E 55 Model type: Excavators Brand of engine: V2403-M-DI Approved: Yes
    Bobcat Model: E42 Model series: E42 Model type: Excavators Brand of engine: V2403-M-DI Approved: Yes
    Bobcat Model: E45 Model series: E45 Model type: Excavators Brand of engine: V2403-M-DI Approved: Yes
    Bobcat Model: S205 Model series: S205 Model type: Skid Steer Loaders Brand of engine: V2403-M-DI Approved: Yes
    Bobcat Model: S510 M SERIES Model series: S510 M SERIES Model type: Skid Steer Loaders Brand of engine: V2403-M-DI Approved: Yes
    Bobcat Model: S530 M SERIES Model series: S530 M SERIES Model type: Skid Steer Loaders Brand of engine: V2403-M-DI Approved: Yes
    Bobcat Model: T 110 Model series: T 110 Model type: Skid Steer Loaders Brand of engine: V2403-M-DI Approved: Yes
    Bobcat Model: T110 Model series: T110 Model type: Skid Steer Loaders Brand of engine: V2403-M-DI Approved: Yes
    Bobcat Model: T180 Model series: T180 Model type: Skid Steer Loaders Brand of engine: V2403-M-DI Approved: Yes
    Bobcat Model: T190 Model series: T190 Model type: Skid Steer Loaders Brand of engine: V2403-M-DI Approved: Yes
    Caterpillar Model: 304E CR Model series: 304E CR Model type: Excavators Brand of engine: V2403-M-DI Approved: Yes
    Caterpillar Model: 305.5E CR Model series: 305.5E CR Model type: Excavators Brand of engine: V2403-M-DI Approved: Yes
    Caterpillar Model: 305E CR Model series: 305E CR Model type: Excavators Brand of engine: V2403-M-DI Approved: Yes
    Doosan Model: C185WKUB Model series: C185WKUB Model type: Air Compressors Brand of engine: V2403-M Approved: Yes
    Doosan Model: MX331 Model series: MX331 Model type: Excavators Brand of engine: V2403-M-DI Approved: Yes
    Kawasaki Model: 42ZV-2 Model series: 42ZV-2 Model type: Wheel Loaders and Dozers Brand of engine: V2403-M-DI Approved: Yes
    Kubota Model: 4LBZ-145G(PRO588i) Model series: 4LBZ-145G(PRO588i) Model type: Combines Brand of engine: V2403-M-DI Approved: Yes
    Kubota Model: 4LZ-1.8(PRO688Q) Model series: 4LZ-1.8(PRO688Q) Model type: Combines Brand of engine: V2403-M-DI Approved: Yes
    Kubota Model: 4LZ-2.5(PRO688Q) Model series: 4LZ-2.5(PRO688Q) Model type: Combines Brand of engine: V2403-M-DI Approved: Yes
    Kubota Model: DC-68G Model series: DC-68G Model type: Combines Brand of engine: V2403-M-DI Approved: Yes
    Kubota Model: DC-70G Model series: DC-70G Model type: Combines Brand of engine: V2403-M-DI Approved: Yes
    Kubota Model: KX155-5 Model series: KX155-5 Model type: Excavators Brand of engine: V2403-M-DI Approved: Yes
    Kubota Model: KX161-3A Model series: KX161-3A Model type: Excavators Brand of engine: V2403-M Approved: Yes
    Kubota Model: KX175-5 Model series: KX175-5 Model type: Excavators Brand of engine: V2403-M-DI Approved: Yes
    Kubota Model: MU 5501 Model series: MU 5501 Model type: Ag Tractors Brand of engine: V2403-M-DI Approved: Yes
    Kubota Model: Tractors Model series: Various models Approved: Yes
    Manitou Model: 160 ATJ+ / 200 ATJ Model series: 160 ATJ+ / 200 ATJ Model type: Aerial Lifts Brand of engine: V2403-M Approved: Yes
    Manitou Model: 260 TJ / 280 TJ Model series: 260 TJ / 280 TJ Model type: Aerial Lifts Brand of engine: V2403-M Approved: Yes
    Manitou Model: TMT 25 I, TMT 25 S, TMT 27 S, TMT 27 P Model series: TMT 25 I, TMT 25 S, TMT 27 S, TMT 27 P Model type: Rough Terrain Forklifts Brand of engine: V2403-M Approved: Yes
    Manitou Model: TMT 25 P Model series: TMT 25 P Model type: Rough Terrain Forklifts Brand of engine: V2403-M Approved: Yes
    Manitou Model: TMT 55 /HT/ST/HT-4W/XT-4W Model series: TMT 55 /HT/ST/HT-4W/XT-4W Model type: Rough Terrain Forklifts Brand of engine: V2403-M Approved: Yes
    Manitou Model: TMT 55-FL-4W Model series: TMT 55-FL-4W Model type: Rough Terrain Forklifts Brand of engine: V2403-M Approved: Yes
    Manitou Model: TMT 55/HT/HT 4W/XT/XT 4W Model series: TMT 55/HT/HT 4W/XT/XT 4W Model type: Rough Terrain Forklifts Brand of engine: V2403-M Approved: Yes
    1 / 8
  • Beskrivelse
    Spenningsnivå: 14
    Amp: 44
    Drevkugg avstand: 43.00
    Bredde/holderarm: 21.00
    Klemmehull: 10.20
    Bånd. justeringsbøssingposisjon: 60
    Bånd. justeringsbøssing hull 1: M8
    Drevdiameter: 70.00
    Gafler/drev: 1
    Radius: 75.00
    Radius 2: 78.00
    D+ størrelse: Plugg
    Rotasjon: medurs
    Plugg nummer: PL10
    Total lengde mm: 161.00
    Terminaltype: L-IG
    Drev: P
    Regulator type: IR
    Prod. info: BN

    Filer

  • Spesifikasjon
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL10
    Bracket hole 10.20
    Prod. info BN
    Pulley P
    Pulley dia. 70.00
    Pulley dist. 43.00
    Radius 75.00
    D+ Size Plug
    Radius 2 78.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 1
    Terminal type L-IG
    Voltage 14
    Total length 161.00 mm
    Width/holder arm 21.00
    Amp 44
  • Kjøretøymatching

    • OEM
      F032114751, T1065-15682, 101211-3780, 101211-3781

    • Konkurrentreferens
      695.522.045, 11632, 11632N

    • NormaliseratArtNr
      f032114751, t106515682, 11632, 11632n, 695522045, 1012113780, 1012113781

    • Passar modeller
      Bobcat Model: 331 & 335 Model series: 331 & 335 Model type: Excavators Brand of engine: V2403-M Approved: Yes
      Bobcat Model: 430 Model series: 430 Model type: Excavators Brand of engine: V2403-M Approved: Yes
      Bobcat Model: AL275 Model series: AL275 Model type: Wheel Loaders and Dozers Brand of engine: V2403-M-DI Approved: Yes
      Bobcat Model: E 45 Model series: E 45 Model type: Excavators Brand of engine: V2403-M-DI Approved: Yes
      Bobcat Model: E 50 Model series: E 50 Model type: Excavators Brand of engine: V2403-M Approved: Yes
      Bobcat Model: E 55 Model series: E 55 Model type: Excavators Brand of engine: V2403-M-DI Approved: Yes
      Bobcat Model: E42 Model series: E42 Model type: Excavators Brand of engine: V2403-M-DI Approved: Yes
      Bobcat Model: E45 Model series: E45 Model type: Excavators Brand of engine: V2403-M-DI Approved: Yes
      Bobcat Model: S205 Model series: S205 Model type: Skid Steer Loaders Brand of engine: V2403-M-DI Approved: Yes
      Bobcat Model: S510 M SERIES Model series: S510 M SERIES Model type: Skid Steer Loaders Brand of engine: V2403-M-DI Approved: Yes
      Bobcat Model: S530 M SERIES Model series: S530 M SERIES Model type: Skid Steer Loaders Brand of engine: V2403-M-DI Approved: Yes
      Bobcat Model: T 110 Model series: T 110 Model type: Skid Steer Loaders Brand of engine: V2403-M-DI Approved: Yes
      Bobcat Model: T110 Model series: T110 Model type: Skid Steer Loaders Brand of engine: V2403-M-DI Approved: Yes
      Bobcat Model: T180 Model series: T180 Model type: Skid Steer Loaders Brand of engine: V2403-M-DI Approved: Yes
      Bobcat Model: T190 Model series: T190 Model type: Skid Steer Loaders Brand of engine: V2403-M-DI Approved: Yes
      Caterpillar Model: 304E CR Model series: 304E CR Model type: Excavators Brand of engine: V2403-M-DI Approved: Yes
      Caterpillar Model: 305.5E CR Model series: 305.5E CR Model type: Excavators Brand of engine: V2403-M-DI Approved: Yes
      Caterpillar Model: 305E CR Model series: 305E CR Model type: Excavators Brand of engine: V2403-M-DI Approved: Yes
      Doosan Model: C185WKUB Model series: C185WKUB Model type: Air Compressors Brand of engine: V2403-M Approved: Yes
      Doosan Model: MX331 Model series: MX331 Model type: Excavators Brand of engine: V2403-M-DI Approved: Yes
      Kawasaki Model: 42ZV-2 Model series: 42ZV-2 Model type: Wheel Loaders and Dozers Brand of engine: V2403-M-DI Approved: Yes
      Kubota Model: 4LBZ-145G(PRO588i) Model series: 4LBZ-145G(PRO588i) Model type: Combines Brand of engine: V2403-M-DI Approved: Yes
      Kubota Model: 4LZ-1.8(PRO688Q) Model series: 4LZ-1.8(PRO688Q) Model type: Combines Brand of engine: V2403-M-DI Approved: Yes
      Kubota Model: 4LZ-2.5(PRO688Q) Model series: 4LZ-2.5(PRO688Q) Model type: Combines Brand of engine: V2403-M-DI Approved: Yes
      Kubota Model: DC-68G Model series: DC-68G Model type: Combines Brand of engine: V2403-M-DI Approved: Yes
      Kubota Model: DC-70G Model series: DC-70G Model type: Combines Brand of engine: V2403-M-DI Approved: Yes
      Kubota Model: KX155-5 Model series: KX155-5 Model type: Excavators Brand of engine: V2403-M-DI Approved: Yes
      Kubota Model: KX161-3A Model series: KX161-3A Model type: Excavators Brand of engine: V2403-M Approved: Yes
      Kubota Model: KX175-5 Model series: KX175-5 Model type: Excavators Brand of engine: V2403-M-DI Approved: Yes
      Kubota Model: MU 5501 Model series: MU 5501 Model type: Ag Tractors Brand of engine: V2403-M-DI Approved: Yes
      Kubota Model: Tractors Model series: Various models Approved: Yes
      Manitou Model: 160 ATJ+ / 200 ATJ Model series: 160 ATJ+ / 200 ATJ Model type: Aerial Lifts Brand of engine: V2403-M Approved: Yes
      Manitou Model: 260 TJ / 280 TJ Model series: 260 TJ / 280 TJ Model type: Aerial Lifts Brand of engine: V2403-M Approved: Yes
      Manitou Model: TMT 25 I, TMT 25 S, TMT 27 S, TMT 27 P Model series: TMT 25 I, TMT 25 S, TMT 27 S, TMT 27 P Model type: Rough Terrain Forklifts Brand of engine: V2403-M Approved: Yes
      Manitou Model: TMT 25 P Model series: TMT 25 P Model type: Rough Terrain Forklifts Brand of engine: V2403-M Approved: Yes
      Manitou Model: TMT 55 /HT/ST/HT-4W/XT-4W Model series: TMT 55 /HT/ST/HT-4W/XT-4W Model type: Rough Terrain Forklifts Brand of engine: V2403-M Approved: Yes
      Manitou Model: TMT 55-FL-4W Model series: TMT 55-FL-4W Model type: Rough Terrain Forklifts Brand of engine: V2403-M Approved: Yes
      Manitou Model: TMT 55/HT/HT 4W/XT/XT 4W Model series: TMT 55/HT/HT 4W/XT/XT 4W Model type: Rough Terrain Forklifts Brand of engine: V2403-M Approved: Yes
      1 / 8
