HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114006

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 90, Rotasjon: CW, Monteringsbeslag avstand: 38,00

Beskrivelse

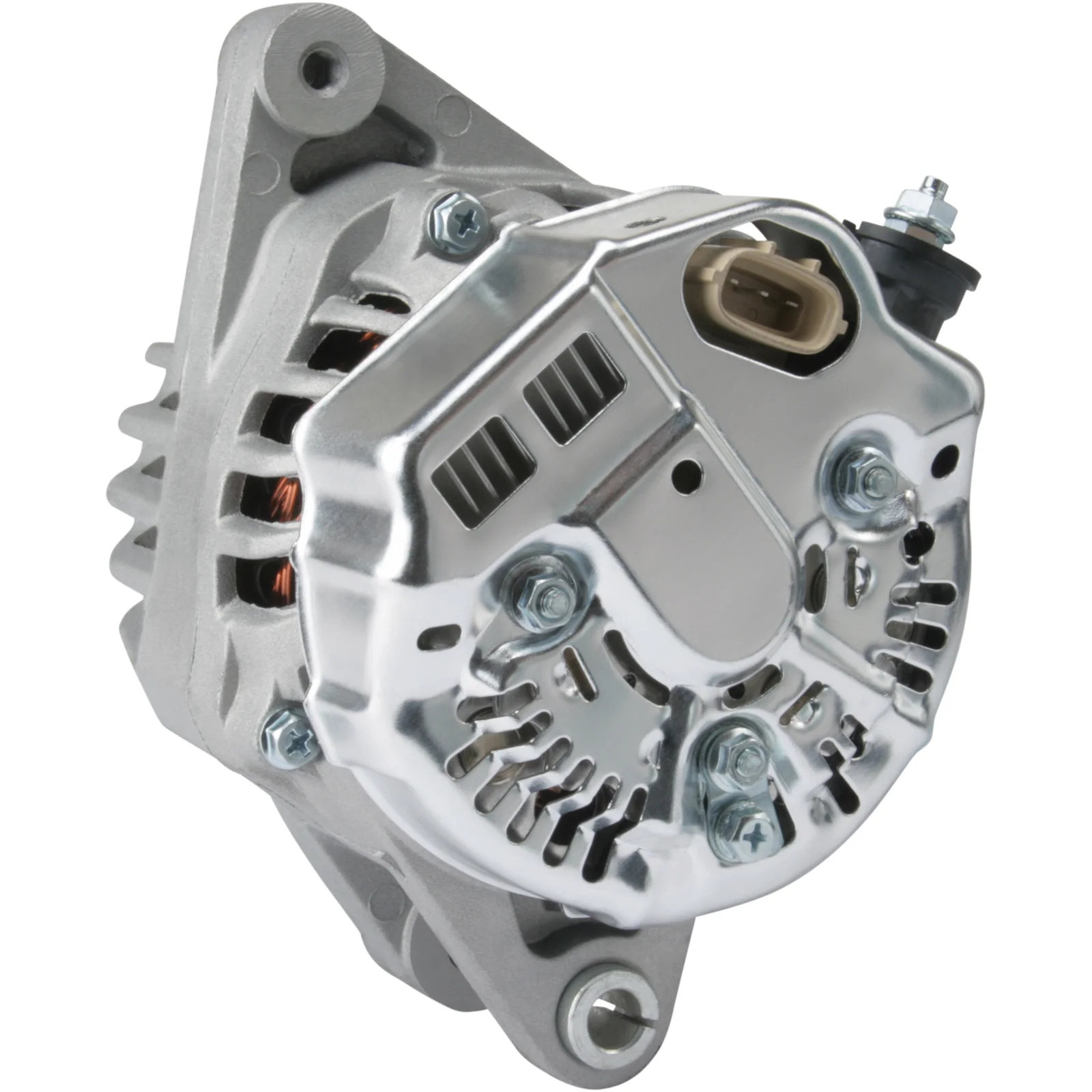

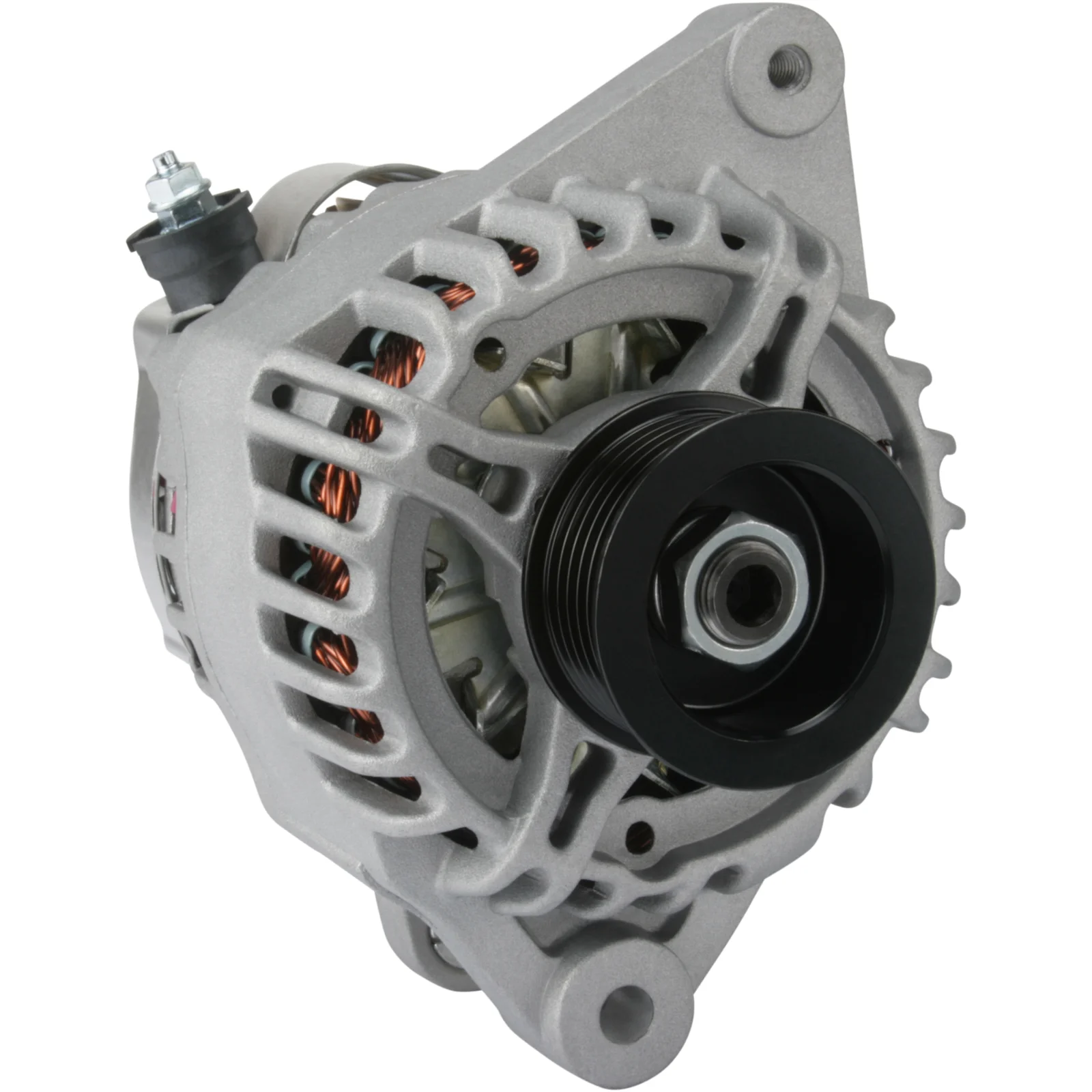

Toyota Yaris Dynamo 12V-90A 12V - 90A, 6gr (M, IG, L) Biler med europeiske deler For Yourex produkt bestilling 90-555-4921

Spenningsf aspects: 14
Ampere: 90
Drevskive avstand: 48.00
Bredde/holder arm: 26.00
Monteringsbrakett avstand: 38.00
Brakett hull: 10.00
Belt. justering brakett hull pos.: 5
Belt. justering brakett hull 1: M8
Drevskive dia.: 55.00
Grovspor/drevskive: 6
Radius: 80.00
Radius 2: 90.00
B+: M6
Posisjon/B+ i min.: 7
D+ Størrelse: Støpselet
Rotasjon: CW
Støpselet nr.: PL67
Total lengde mm: 170.00
Drevskive: SP
Regulator type: IR

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 38.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 5
Plug no. PL67
Bracket hole 10.00
Position/B+ in min. 7
Pulley SP
Pulley dia. 55.00
Pulley dist. 48.00
Radius 80.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 170.00 mm
Width/holder arm 26.00
Amp 90

  • OEM
    F032114006, ja1800ir, 0986 049 211, 1986A01270, 27060-0J020, 27060-0J040, 102211-8010, 102211-8200, 114006

  • Konkurrentreferens
    A6013, A6013PR, A6013SR, CAL40163, DRA0122, LEA1098, 8EL012428-461, 28-4907, 23277N, 112404, 209304, 209304A, 401800RI, 443163, 9212761, 12060856, 0986049211

  • Bilmärken
    Toyota

  • NormaliseratArtNr
    a6013, a6013pr, a6013sr, cal40163, dra0122, f032114006, ja1800ir, lea1098, 8el012428461, 1986a01270, 23277n, 112404, 114006, 209304, 209304a, 270600j020, 270600j040, 284907, 401800ri, 443163, 9212761, 12060856, 0986049211, 1022118010, 1022118200

  • Passar modeller
    Toyota Model: Yaris Model series: Yaris Size of motor: 1.3 Brand of engine: 2SZ-FE Body: Hatchback From date: 01-04-2002 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: 16V Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: _CP10_ Body: Hatchback From date: 01-03-2003 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: i Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: SCP10 Body: Hatchback From date: 01-04-1999 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Series: Yaris (_CP10) Model: 1.0 16V Europe Engine volume: 1.0 Engine type: 1SZ-FE Year: 01.01-10.05
    Toyota Series: Yaris (_CP10) Model: 1.0 16V Europe Engine volume: 1.0 Engine type: 1SZ-FE Year: 03.03-10.05
    Toyota Series: Yaris (_CP10) Model: 1.3 Engine volume: 1.3 Engine type: 2SZ-FE Year: 05.02-10.05
    1 / 2
  • Beskrivelse
    Toyota Yaris Dynamo 12V-90A 12V - 90A, 6gr (M, IG, L) Biler med europeiske deler For Yourex produkt bestilling 90-555-4921

    Spenningsf aspects: 14
    Ampere: 90
    Drevskive avstand: 48.00
    Bredde/holder arm: 26.00
    Monteringsbrakett avstand: 38.00
    Brakett hull: 10.00
    Belt. justering brakett hull pos.: 5
    Belt. justering brakett hull 1: M8
    Drevskive dia.: 55.00
    Grovspor/drevskive: 6
    Radius: 80.00
    Radius 2: 90.00
    B+: M6
    Posisjon/B+ i min.: 7
    D+ Størrelse: Støpselet
    Rotasjon: CW
    Støpselet nr.: PL67
    Total lengde mm: 170.00
    Drevskive: SP
    Regulator type: IR

    Filer

  • Spesifikasjon
    B+ M6
    Mount. bracket dist. 38.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 5
    Plug no. PL67
    Bracket hole 10.00
    Position/B+ in min. 7
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 48.00
    Radius 80.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 170.00 mm
    Width/holder arm 26.00
    Amp 90
  • Kjøretøymatching

    • OEM
      F032114006, ja1800ir, 0986 049 211, 1986A01270, 27060-0J020, 27060-0J040, 102211-8010, 102211-8200, 114006

    • Konkurrentreferens
      A6013, A6013PR, A6013SR, CAL40163, DRA0122, LEA1098, 8EL012428-461, 28-4907, 23277N, 112404, 209304, 209304A, 401800RI, 443163, 9212761, 12060856, 0986049211

    • Bilmärken
      Toyota

    • NormaliseratArtNr
      a6013, a6013pr, a6013sr, cal40163, dra0122, f032114006, ja1800ir, lea1098, 8el012428461, 1986a01270, 23277n, 112404, 114006, 209304, 209304a, 270600j020, 270600j040, 284907, 401800ri, 443163, 9212761, 12060856, 0986049211, 1022118010, 1022118200

    • Passar modeller
      Toyota Model: Yaris Model series: Yaris Size of motor: 1.3 Brand of engine: 2SZ-FE Body: Hatchback From date: 01-04-2002 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: 16V Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: _CP10_ Body: Hatchback From date: 01-03-2003 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: i Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: SCP10 Body: Hatchback From date: 01-04-1999 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Series: Yaris (_CP10) Model: 1.0 16V Europe Engine volume: 1.0 Engine type: 1SZ-FE Year: 01.01-10.05
      Toyota Series: Yaris (_CP10) Model: 1.0 16V Europe Engine volume: 1.0 Engine type: 1SZ-FE Year: 03.03-10.05
      Toyota Series: Yaris (_CP10) Model: 1.3 Engine volume: 1.3 Engine type: 2SZ-FE Year: 05.02-10.05
