HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115860

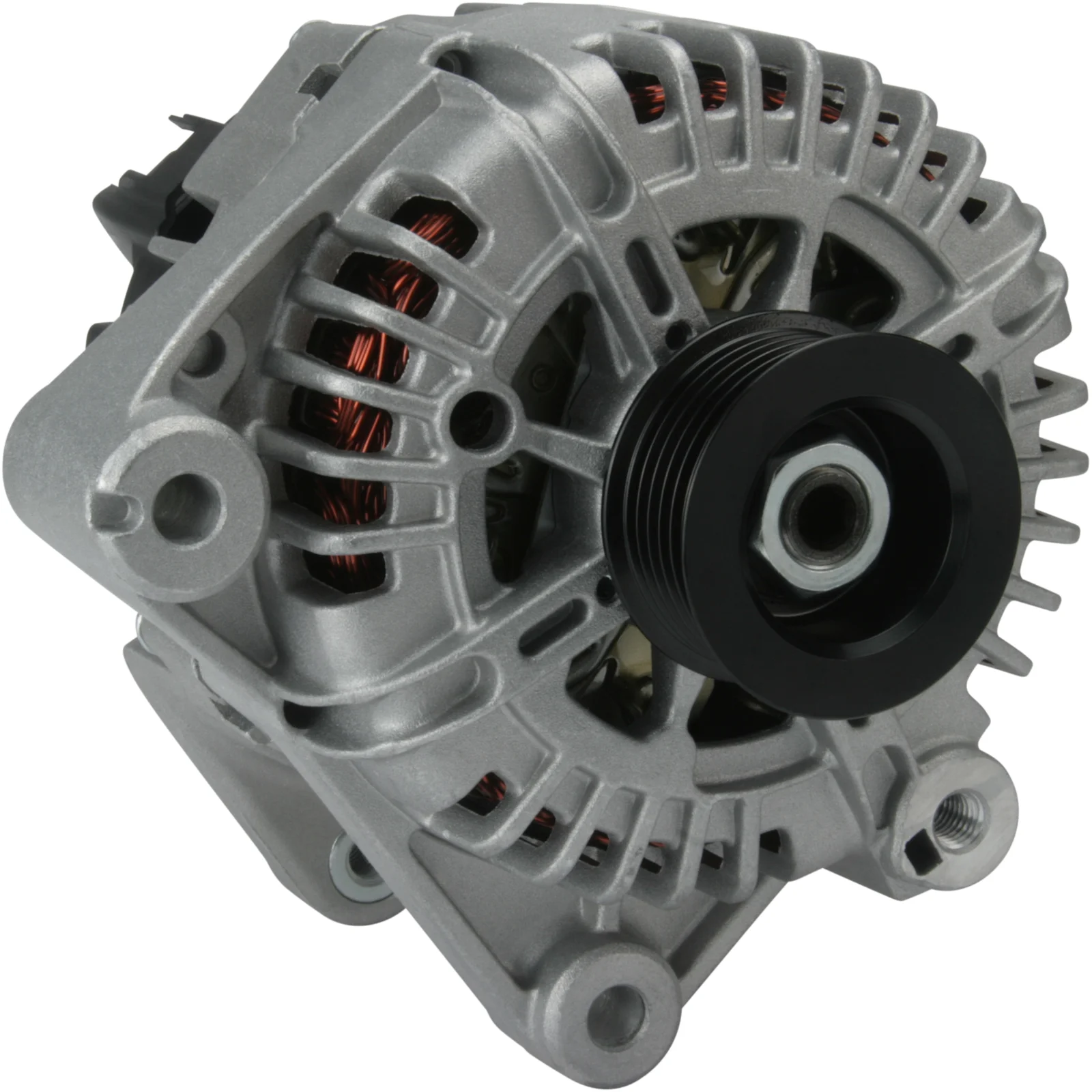

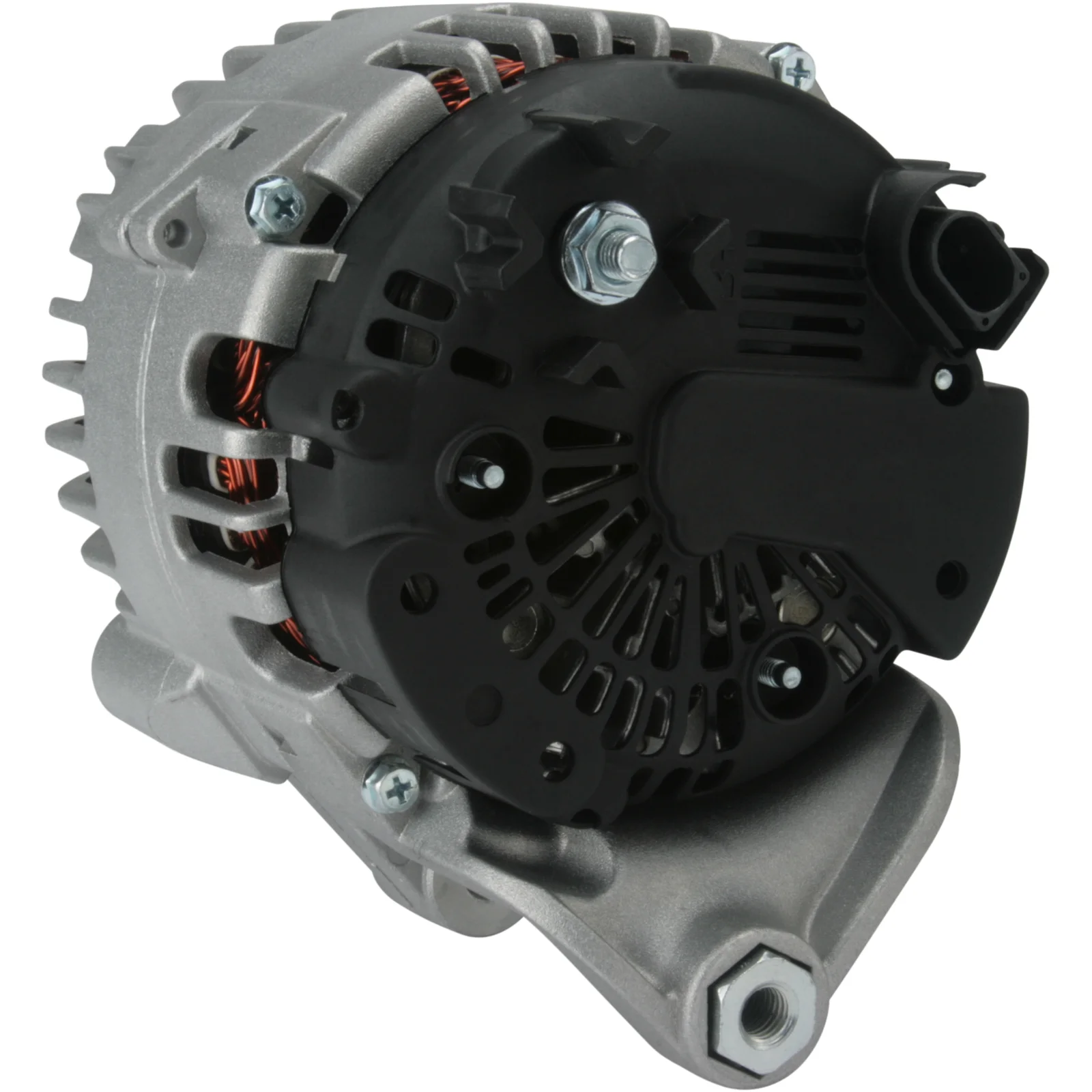

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 150, Dreiing: CW, Monteringsbrakett avstand: 76,00

Beskrivelse

BMW Generator | Gen. 12V-150A, 6gr, (BSS) for Yourex produktordre 90-040-9621

Volt: 14
Ampere: 150
Driveskive dist.: 61.00
Bredde/festemannsarm: 28.00
Monteringsfeste dist.: 76.00
Festehull: 10.50
Båndjust. festeskive pos.: 45
Båndjust. festeskive hull 1: 10.50
Driveskive dia.: 53.50
Groper/driveskive: 6
Radius: 92.00
Radius 2: 92.00
B+: M8
Posisjon/B+ i min.: 52
Rotasjon: med klokka
Plugg nr.: PL86
Total lengde mm: 181.00
Terminaltype: COM
Kommunikasjon: BSS
Driveskive: SP
Regulator type: IR
Prod. info: BN
Anmerkninger: Denne generatoren har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnetheten før bestilling.

Filer

Spesifikasjon

B+ M8
Communication BSS
Mount. bracket dist. 76.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 45
Plug no. PL86
Bracket hole 10.50
Position/B+ in min. 52
Prod. info BN
Pulley SP
Pulley dia. 53.50
Pulley dist. 61.00
Radius 92.00
Radius 2 92.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 181.00 mm
Width/holder arm 28.00
Amp 150

  • OEM
    a3198, A3198, A3198(VALEO), A3198S, CAL15387, DRA0691, F032115860, LRA03415, TG15C 072, tg15c072, 28-6527, 215.147.1502, 215.558.150, 1231 7800308, 1231 7802928, 1986A00604, 1986A00736, 2051ir, 24116N, 24116N-OS, 115860, 209229, 209229A, 439621, 440179, 2543309, 2543309C, 2543309D, 7800308, 7802928, 9090852, 12060992, 32440179, 0986084680, 12317800308, 12317802928

  • Konkurrentreferens
    a3198, A3198(VALEO), A3198S, CAL15387, DRA0691, LRA03415, 28-6527, 215.147.1502, 215.558.150, 24116N, 24116N-OS, 209229, 209229A, 439621, 440179, 9090852, 12060992, 32440179, 0986084680

  • Bilmärken
    BMW

  • NormaliseratArtNr
    a3198, a3198s, a3198valeo, cal15387, dra0691, f032115860, lra03415, tg15c072, 1986a00604, 1986a00736, 2051ir, 24116n, 24116nos, 115860, 209229, 209229a, 286527, 439621, 440179, 2543309, 2543309c, 2543309d, 7800308, 7802928, 9090852, 12060992, 32440179, 215558150, 0986084680, 2151471502, 12317800308, 12317802928

  • Passar modeller
    BMW 3 (E90) 325 d Engine volume: 3.0 Engine type: M57 D30 (306D3) Year: 09.06-02.10
    BMW 3 (E90) 330 d Engine volume: 3.0 Engine type: N57 D30 A Year: 09.08-10.11
    BMW 3 (E90) 330 d xDrive Engine volume: 3.0 Engine type: N57 D30 A Year: 09.08-10.11
    BMW 3 (E90) 335 d Engine volume: 3.0 Engine type: M57 D30 (306D5) Year: 09.06-12.11
    BMW 3 Cabriolet (E93) 330 d Engine volume: 3.0 Engine type: N57 D30 A Year: 01.09-09.13
    BMW 3 Coupé (E92) 330 d Engine volume: 3.0 Engine type: N57 D30 A Year: 01.09-06.13
    BMW 3 Coupé (E92) 330 d xDrive Engine volume: 3.0 Engine type: N57 D30 A Year: 02.10-06.13
    BMW 3 Coupé (E92) 330 xd Engine volume: 3.0 Engine type: N57 D30 A Year: 03.08-02.10
    BMW 3 Coupé (E92) 335 d Engine volume: 3.0 Engine type: M57 D30 (306D5) Year: 03.06-03.13
    BMW 3 Touring (E91) 325 d Engine volume: 3.0 Engine type: M57 D30 (306D3) Year: 09.06-06.12
    BMW 3 Touring (E91) 330 d Engine volume: 3.0 Engine type: N57 D30 A Year: 02.08-05.12
    BMW 3 Touring (E91) 330 d xDrive Engine volume: 3.0 Engine type: N57 D30 A Year: 01.09-06.12
    BMW 3 Touring (E91) 335 d Engine volume: 3.0 Engine type: M57 D30 (306D5) Year: 09.06-06.12
    BMW 5 (E60) 520 d Engine volume: 2.0 Engine type: M47 D20 (204D4) Year: 09.05-02.07
    BMW 5 (E60) 520 d Engine volume: 2.0 Engine type: M47 D20 (204D4), N47 D20 A, N47 D20 C Year: 09.05-12.09
    BMW 5 (E60) 525 d Engine volume: 2.5 Engine type: M57 D25 (256D2) Year: 06.04-03.10
    BMW 5 (E60) 525 d Engine volume: 2.5 Engine type: M57 D25 (256D2) Year: 12.04-03.10
    BMW 5 (E60) 530 d Engine volume: 3.0 Engine type: M57 D30 (306D2) Year: 09.02-09.05
    BMW 5 (E60) 530 d Engine volume: 3.0 Engine type: M57 D30 (306D2), M57 D30 (306D3) Year: 09.02-12.09
    BMW 5 (E60) 530 d Engine volume: 3.0 Engine type: M57 D30 (306D3) Year: 02.07-12.09
    BMW 5 (E60) 530 d Engine volume: 3.0 Engine type: M57 D30 (306D3) Year: 09.05-03.07
    BMW 5 (E60) 530 d xDrive Engine volume: 3.0 Engine type: M57 D30 (306D3) Year: 09.07-12.09
    BMW 5 (E60) 530 xd Engine volume: 3.0 Engine type: M57 D30 (306D3) Year: 02.05-02.07
    BMW 5 (E60) 530 xd Engine volume: 3.0 Engine type: M57 D30 (306D3) Year: 03.07-08.07
    BMW 5 (E60) 535 d Engine volume: 3.0 Engine type: M57 D30 (306D4) Year: 09.04-03.10
    BMW 5 Touring (E61) 520 d Engine volume: 2.0 Engine type: M47 D20 (204D4) Year: 09.05-02.07
    BMW 5 Touring (E61) 520 d Engine volume: 2.0 Engine type: M47 D20 (204D4), N47 D20 A, N47 D20 C Year: 04.05-05.10
    BMW 5 Touring (E61) 525 d Engine volume: 2.5 Engine type: M57 D25 (256D2) Year: 03.04-03.07
    BMW 5 Touring (E61) 530 d Engine volume: 3.0 Engine type: M57 D30 (306D2) Year: 03.04-09.05
    BMW 5 Touring (E61) 530 d Engine volume: 3.0 Engine type: M57 D30 (306D2), M57 D30 (306D3) Year: 03.04-05.10
    BMW 5 Touring (E61) 530 d Engine volume: 3.0 Engine type: M57 D30 (306D3) Year: 02.05-02.07
    BMW 5 Touring (E61) 530 d Engine volume: 3.0 Engine type: M57 D30 (306D3) Year: 02.07-05.10
    BMW 5 Touring (E61) 530 d xDrive Engine volume: 3.0 Engine type: M57 D30 (306D3) Year: 09.07-05.10
    BMW 5 Touring (E61) 530 xd Engine volume: 3.0 Engine type: M57 D30 (306D3) Year: 02.05-02.07
    BMW 5 Touring (E61) 530 xd Engine volume: 3.0 Engine type: M57 D30 (306D3) Year: 03.07-08.07
    BMW 5 Touring (E61) 535 d Engine volume: 3.0 Engine type: M57 D30 (306D4) Year: 09.04-12.10
    BMW 7 (E65, E66, E67) 730 d Engine volume: 3.0 Engine type: M57 D30 (306D2) Year: 06.02-02.05
    BMW 7 (E65, E66, E67) 730 d Engine volume: 3.0 Engine type: M57 D30 (306D2) Year: 09.02-08.03
    BMW 7 (E65, E66, E67) 730 d Engine volume: 3.0 Engine type: M57 D30 (306D2), M57 D30 (306D3) Year: 09.03-08.08
    BMW 7 (E65, E66, E67) 730 Ld Engine volume: 3.0 Engine type: M57 D30 (306D3) Year: 07.05-08.08
    BMW X3 (E83) 3.0 d Engine volume: 3.0 Engine type: M57 D30 (306D2) Year: 01.04-08.05
    BMW X3 (E83) 3.0 d Engine volume: 3.0 Engine type: M57 D30 (306D3) Year: 09.05-08.08
    BMW X3 (E83) 3.0 sd Engine volume: 3.0 Engine type: M57 D30 (306D5) Year: 09.06-08.08
    BMW X3 (E83) xDrive 30 d Engine volume: 3.0 Engine type: M57 D30 (306D3) Year: 09.08-08.10
    BMW X3 (E83) xDrive 35 d Engine volume: 3.0 Engine type: M57 D30 (306D5) Year: 09.08-08.11
    1 / 9
