Varenr.: F032112057

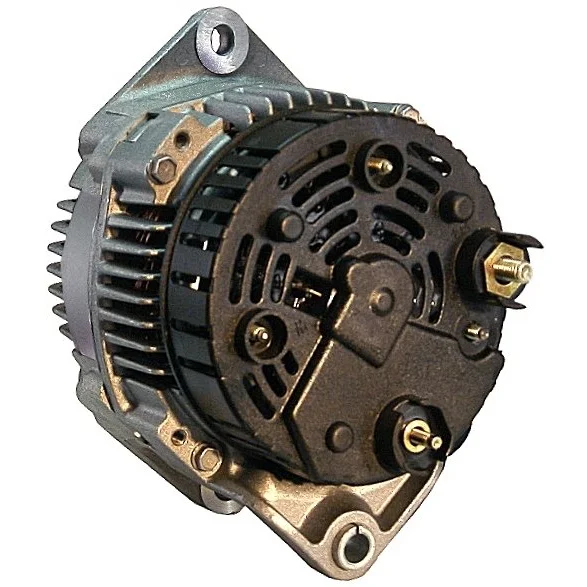

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 110, Rotasjon: CW, Monteringsbeslag avstand: 66,50

Beskrivelse

Spenningsverdi: 14
Ampere: 110
Terminal: W
Drevkugg dist.: 53.00
Bredde/holderarm: 26.40
Monteringsbeslag dist.: 66.50
Beslagshull: 10.40
Båndjustering. beslaghull pos.: 60
Båndjustering. beslaghull 1: 8.00
Drevkugg dia.: 55.00
Riller/drevkugg: 6
Radius: 85.00
Radius 2: 83.00
B+: M8
Posisjon/B+ i min.: 14
D+ Størrelse: M5
Rotasjon: medur
W-kontakttype: 6.30
Total lengde mm: 192.00
Drevkugg: SP
Regulator type: IR
Prod. info: BN
Servicering: Renault

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 66.50
Belt. adj. bracket hole 1 8.00
Belt. adj. brackethole pos. 60
Bracket hole 10.40
Position/B+ in min. 14
Prod. info BN
Pulley SP
Pulley dia. 55.00
Pulley dist. 53.00
Radius 85.00
D+ Size M5
Radius 2 83.00
Regulator type IR
Rotation CW
Servicing Renault
Grooves/pulley 6
Terminal W
Voltage 14
W plug type 6.30
Total length 192.00 mm
Width/holder arm 26.40
Amp 110

  • OEM
    a13vi179, F032112057, R1030105, 1434ir, 2541927, 2541927A, 4500045, 9160345, 9161247, 7700300408, 7711134618

  • Konkurrentreferens
    A3111, CAL15236, DRB2041, lrb00420, NA549, QA2390, 8EL011710-341, 8el737618-001, 28-3738, 230.172.1102, 5731, 21420R, 119744, 200142, 210478, 210478A, 301434RI, 436743, 746112, 746912, 9212247, 12042040, 32436743, 0986042041, 0986042043, 943355150010, 944390420410

  • NormaliseratArtNr
    a13vi179, a3111, cal15236, drb2041, f032112057, lrb00420, na549, qa2390, r1030105, 8el011710341, 8el737618001, 1434ir, 5731, 21420r, 119744, 200142, 210478, 210478a, 283738, 301434ri, 436743, 746112, 746912, 2541927, 2541927a, 4500045, 9160345, 9161247, 9212247, 12042040, 32436743, 0986042041, 0986042043, 2301721102, 7700300408, 7711134618, 943355150010, 944390420410

  • Passar modeller
    Opel Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: 25DG Body: Bus From date: 01-01-1997 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Opel Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: 25DG Body: Van From date: 01-01-1997 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Opel Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: 25DM Body: Bus From date: 01-01-1997 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Opel Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: 25DM Body: Van From date: 01-01-1997 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Opel Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U780 Body: Van From date: 01-03-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Opel Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U782 Body: Van From date: 01-03-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Type description: F9 Body: Van From date: 01-01-1999 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Type description: U9, E9 Body: Platform / Chassis From date: 01-07-1998 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U772 Type description: F9 Body: Van From date: 01-01-1999 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U772 Type description: U9, E9 Body: Platform / Chassis From date: 01-07-1998 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Body: Bus From date: 01-07-1998 To date: 01-01-2001 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Body: Platform / Chassis From date: 01-07-1998 To date: 01-01-2001 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Body: Van From date: 01-07-1998 To date: 01-01-2001 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Type of engine: Diesel Size of motor: 2.8 Brand of engine: S9W702 Body: Platform / Chassis From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W702 Body: Bus From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W702 Body: Van From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Van Type of engine: Diesel Size of motor: 2.8 Brand of engine: S8W700 Type description: FD Body: Van From date: 01-01-2002 To date: 01-09-2004 Fuel: Diesel Approved: Yes
    Vauxhall Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U758 Body: Bus From date: 01-03-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Vauxhall Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U780 Body: Bus From date: 01-03-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Vauxhall Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U782 Body: Bus From date: 01-03-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivelse
    Spenningsverdi: 14
    Ampere: 110
    Terminal: W
    Drevkugg dist.: 53.00
    Bredde/holderarm: 26.40
    Monteringsbeslag dist.: 66.50
    Beslagshull: 10.40
    Båndjustering. beslaghull pos.: 60
    Båndjustering. beslaghull 1: 8.00
    Drevkugg dia.: 55.00
    Riller/drevkugg: 6
    Radius: 85.00
    Radius 2: 83.00
    B+: M8
    Posisjon/B+ i min.: 14
    D+ Størrelse: M5
    Rotasjon: medur
    W-kontakttype: 6.30
    Total lengde mm: 192.00
    Drevkugg: SP
    Regulator type: IR
    Prod. info: BN
    Servicering: Renault

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 66.50
    Belt. adj. bracket hole 1 8.00
    Belt. adj. brackethole pos. 60
    Bracket hole 10.40
    Position/B+ in min. 14
    Prod. info BN
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 53.00
    Radius 85.00
    D+ Size M5
    Radius 2 83.00
    Regulator type IR
    Rotation CW
    Servicing Renault
    Grooves/pulley 6
    Terminal W
    Voltage 14
    W plug type 6.30
    Total length 192.00 mm
    Width/holder arm 26.40
    Amp 110
  • Kjøretøymatching

    • OEM
      a13vi179, F032112057, R1030105, 1434ir, 2541927, 2541927A, 4500045, 9160345, 9161247, 7700300408, 7711134618

    • Konkurrentreferens
      A3111, CAL15236, DRB2041, lrb00420, NA549, QA2390, 8EL011710-341, 8el737618-001, 28-3738, 230.172.1102, 5731, 21420R, 119744, 200142, 210478, 210478A, 301434RI, 436743, 746112, 746912, 9212247, 12042040, 32436743, 0986042041, 0986042043, 943355150010, 944390420410

    • NormaliseratArtNr
      a13vi179, a3111, cal15236, drb2041, f032112057, lrb00420, na549, qa2390, r1030105, 8el011710341, 8el737618001, 1434ir, 5731, 21420r, 119744, 200142, 210478, 210478a, 283738, 301434ri, 436743, 746112, 746912, 2541927, 2541927a, 4500045, 9160345, 9161247, 9212247, 12042040, 32436743, 0986042041, 0986042043, 2301721102, 7700300408, 7711134618, 943355150010, 944390420410

    • Passar modeller
      Opel Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: 25DG Body: Bus From date: 01-01-1997 To date: 01-12-2001 Fuel: Diesel Approved: Yes
      Opel Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: 25DG Body: Van From date: 01-01-1997 To date: 01-12-2001 Fuel: Diesel Approved: Yes
      Opel Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: 25DM Body: Bus From date: 01-01-1997 To date: 01-12-2001 Fuel: Diesel Approved: Yes
      Opel Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: 25DM Body: Van From date: 01-01-1997 To date: 01-12-2001 Fuel: Diesel Approved: Yes
      Opel Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U780 Body: Van From date: 01-03-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
      Opel Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U782 Body: Van From date: 01-03-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Type description: F9 Body: Van From date: 01-01-1999 To date: 01-09-2000 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Type description: U9, E9 Body: Platform / Chassis From date: 01-07-1998 To date: 01-09-2000 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U772 Type description: F9 Body: Van From date: 01-01-1999 To date: 01-09-2000 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U772 Type description: U9, E9 Body: Platform / Chassis From date: 01-07-1998 To date: 01-09-2000 Fuel: Diesel Approved: Yes
      Renault Model: Master Model series: Master Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Body: Bus From date: 01-07-1998 To date: 01-01-2001 Fuel: Diesel Approved: Yes
      Renault Model: Master Model series: Master Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Body: Platform / Chassis From date: 01-07-1998 To date: 01-01-2001 Fuel: Diesel Approved: Yes
      Renault Model: Master Model series: Master Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Body: Van From date: 01-07-1998 To date: 01-01-2001 Fuel: Diesel Approved: Yes
      Renault Model: Master Model series: Master Type of engine: Diesel Size of motor: 2.8 Brand of engine: S9W702 Body: Platform / Chassis From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Renault Model: Master Model series: Master Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W702 Body: Bus From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Renault Model: Master Model series: Master Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W702 Body: Van From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Renault Model: Master Model series: Master Van Type of engine: Diesel Size of motor: 2.8 Brand of engine: S8W700 Type description: FD Body: Van From date: 01-01-2002 To date: 01-09-2004 Fuel: Diesel Approved: Yes
      Vauxhall Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U758 Body: Bus From date: 01-03-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
      Vauxhall Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U780 Body: Bus From date: 01-03-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
      Vauxhall Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U782 Body: Bus From date: 01-03-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
