HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114284

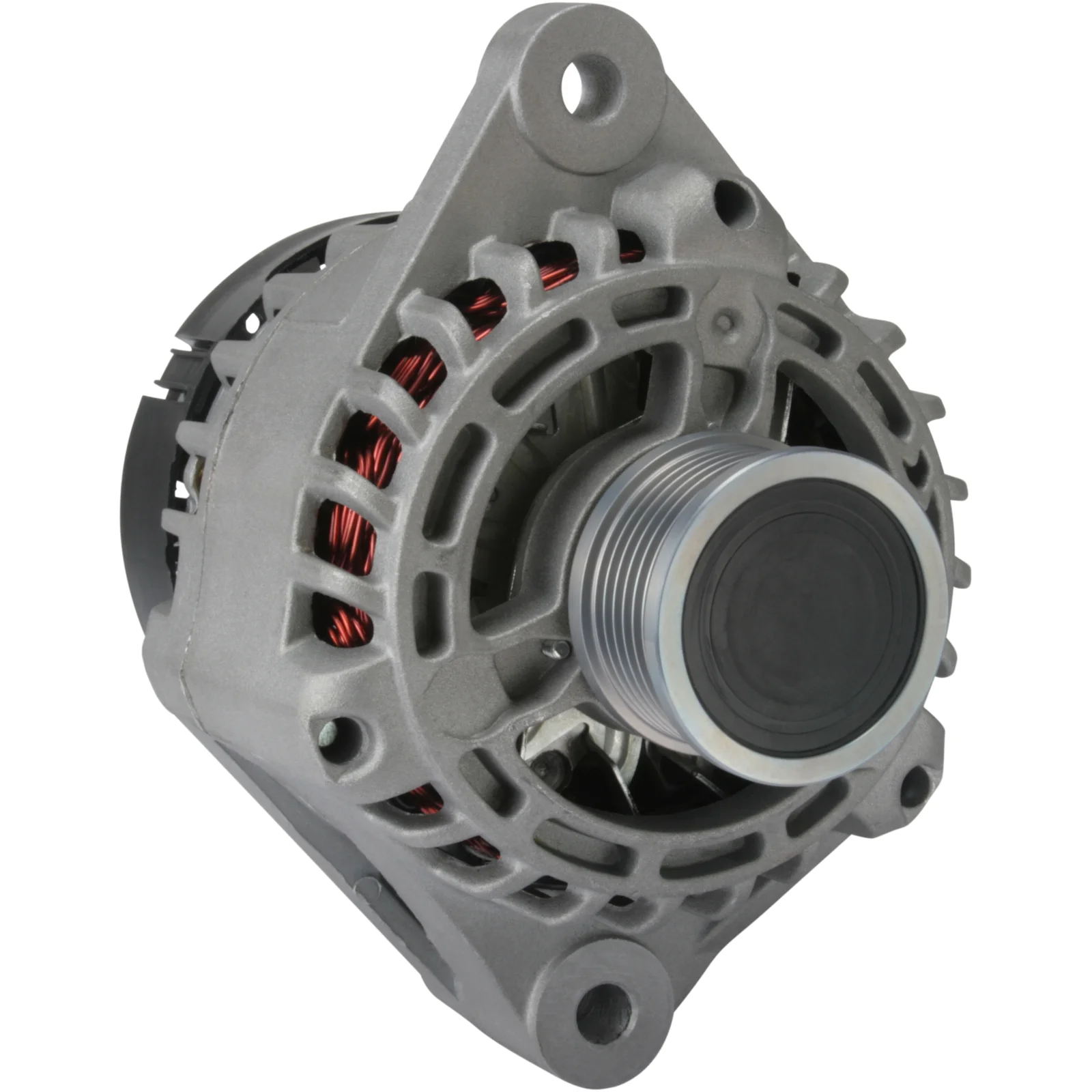

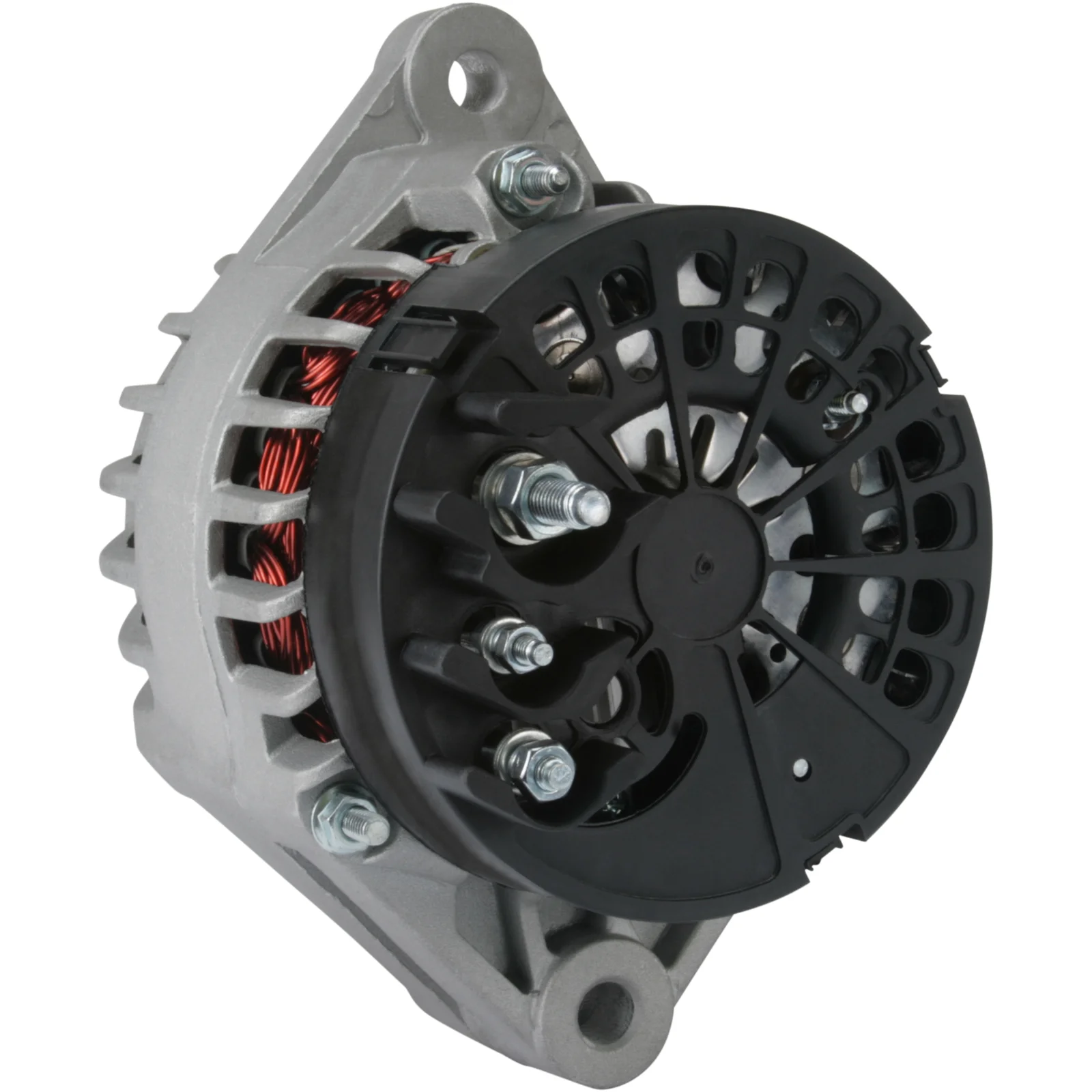

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 130, Rotasjon: CW, Drevskive diameter: 54,00

Beskrivelse

SAAB 1.9TiD Gen12V-130A 12V - 130A, 6 riller.farge (Remskive Ø 54mm Remskiven F/W type OD = 54,3mm, 6 spor = 45-252-1140 For Yourex produkt bestilling 90-485-5959 Spenningsnivå: 14 Ampere: 130 Bøssing av hjulavstand: 112.00 Bredde/holderarm: 61.00 Klammehull: 12.20 Båndspenningsjustering av klammepost: 59 Båndspenningsjustering av klammehull 1: 12.20 Remskivediagram: 54.00 Riller/remskiv: 6 Radius: 90.00 Radius 2: 90.00 B+: M8 Posisjon/B+ i min.: 48 D+ størrelse: M5 Rotasjon: Medur Støpselemsnummer: PL130 Total lengde mm: 200.00 Remskive: SP/FW Regulator type: IR

Filer

Spesifikasjon

B+ M8
Belt. adj. bracket hole 1 12.20
Belt. adj. brackethole pos. 59
Plug no. PL130
Bracket hole 12.20
Position/B+ in min. 48
Pulley SP/FW
Pulley dia. 54.00
Pulley dist. 112.00
Radius 90.00
D+ Size M5
Radius 2 90.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 200.00 mm
Width/holder arm 61.00
Amp 130

  • OEM
    DAN 1009, F032114284, GM 93169260, MS1012100160, SAAB12759595, 0986 049 000, 1952ir, 1986A01355, 101210-0160, 101210-0161, 101210-0162, 101210-0163, 114284, 12759595, 93169260, 93169269

  • Konkurrentreferens
    A4082, CAL30208, DAN1009, DENDAN1009, DRA0146, 8EL012428-451, 28-5619, 4929, 24006N, 210892, 210892A, 301952RI, 440845, 440848, 443028, 12049000, 0986049000, 0986049003, 063377532010

  • Bilmärken
    Saab

  • NormaliseratArtNr
    a4082, cal30208, dan1009, dendan1009, dra0146, f032114284, gm93169260, ms1012100160, saab12759595, 8el012428451, 1952ir, 1986a01355, 4929, 24006n, 114284, 210892, 210892a, 285619, 301952ri, 440845, 440848, 443028, 12049000, 12759595, 93169260, 93169269, 0986049000, 0986049003, 1012100160, 1012100161, 1012100162, 1012100163, 063377532010

  • Passar modeller
    Cadillac Model: BLS Model series: BLS Type of engine: Diesel Size of motor: 1.9 Brand of engine: Z19DTH From date: 01-04-2006 Fuel: Diesel Approved: Yes
    Cadillac Series: BLS Model: 1.9 D Engine volume: 1.9 Engine type: Z19DTH Year: 04.06-
    Saab Model: 9-3 Model series: 9-3 Type of engine: TiD Size of motor: 1.9 Brand of engine: Z19DT Body: Estate From date: 01-03-2005 To date: 01-02-2015 Fuel: Diesel Approved: Yes Manufacture type: kombi
    Saab Model: 9-3 Model series: 9-3 Type of engine: TiD Size of motor: 1.9 Brand of engine: Z19DT Type description: YS3F From date: 01-09-2004 To date: 01-02-2015 Fuel: Diesel Approved: Yes
    Saab Model: 9-3 Model series: 9-3 Type of engine: TiD Size of motor: 1.9 Brand of engine: Z19DTH Body: Estate From date: 01-03-2005 To date: 01-02-2015 Fuel: Diesel Approved: Yes Manufacture type: kombi
    Saab Model: 9-3 Model series: 9-3 Type of engine: TiD Size of motor: 1.9 Brand of engine: Z19DTH Type description: YS3F Body: Convertible From date: 01-01-2006 To date: 01-02-2015 Fuel: Diesel Approved: Yes
    Saab Model: 9-3 Model series: 9-3 Type of engine: TiD Size of motor: 1.9 Brand of engine: Z19DTH Type description: YS3F From date: 01-09-2004 To date: 01-02-2015 Fuel: Diesel Approved: Yes
    Saab Model: 9-3 Model series: 9-3 Type of engine: TTiD Size of motor: 1.9 Brand of engine: A19DTR Body: Estate From date: 01-12-2007 To date: 01-02-2015 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Saab Model: 9-3 Model series: 9-3 Type of engine: TTiD Size of motor: 1.9 Brand of engine: A19DTR Type description: YS3F Body: Convertible From date: 01-12-2007 To date: 01-02-2015 Fuel: Diesel Approved: Yes
    Saab Model: 9-3 Model series: 9-3 Type of engine: TTiD Size of motor: 1.9 Brand of engine: A19DTR Type description: YS3F From date: 01-12-2007 To date: 01-02-2015 Fuel: Diesel Approved: Yes
    Saab Model: 9-3 Model series: 9-3 Type of engine: TTiD Size of motor: 1.9 Brand of engine: Z19DTR Body: Estate From date: 01-12-2007 To date: 01-02-2015 Fuel: Diesel Approved: Yes Manufacture type: kombi
    Saab Model: 9-3 Model series: 9-3 Type of engine: TTiD Size of motor: 1.9 Brand of engine: Z19DTR Type description: YS3F Body: Convertible From date: 01-12-2007 To date: 01-02-2015 Fuel: Diesel Approved: Yes
    Saab Model: 9-3 Model series: 9-3 Type of engine: TTiD Size of motor: 1.9 Brand of engine: Z19DTR Type description: YS3F From date: 01-12-2007 To date: 01-02-2015 Fuel: Diesel Approved: Yes
    Saab Model: 9-3 Model series: 9-3X Type of engine: TTiD Size of motor: 1.9 Brand of engine: A19DTR Body: Estate From date: 01-02-2009 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Saab Model: 9-3 Model series: 9-3X Type of engine: TTiD Size of motor: 1.9 Brand of engine: Z19DTR Body: Estate From date: 01-02-2009 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Saab Model: 9-5 Model series: 9-5 Type of engine: TiD Size of motor: 1.9 Brand of engine: Z19DTH Type description: YS3E Body: Estate From date: 01-01-2006 To date: 01-12-2009 Fuel: Diesel Approved: Yes
    Saab Model: 9-5 Model series: 9-5 Type of engine: TiD Size of motor: 1.9 Brand of engine: Z19DTH Type description: YS3E From date: 01-01-2006 To date: 01-12-2009 Fuel: Diesel Approved: Yes
    Saab Model: 9-5 Model series: 9-5 Type of engine: TiD Size of motor: 1.9 Brand of engine: Z19DTR Type description: YS3E Body: Estate From date: 01-01-2007 To date: 01-12-2009 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Saab Series: 9-3 (YS3F) Cabrio Model: 1.9 TiD Engine volume: 1.9 Engine type: Z 19 DTH Year: 01.06-
    Saab Series: 9-3 (YS3F) Cabrio Model: 1.9 TTiD Engine volume: 1.9 Engine type: Z 19 DTR Year: 12.07-
    Saab Series: 9-3 (YS3F) Model: 1.9 TiD Engine volume: 1.9 Engine type: Z 19 DT Year: 09.04-
    Saab Series: 9-3 (YS3F) Model: 1.9 TiD Engine volume: 1.9 Engine type: Z 19 DTH Year: 09.04-
    Saab Series: 9-3 (YS3F) Model: 1.9 TiD Engine volume: 1.9 Year: 09.04-
    Saab Series: 9-3 (YS3F) Model: 1.9 TTiD Engine volume: 1.9 Year: 12.07-
    Saab Series: 9-3 Kombi Model: 1.9 TiD Engine volume: 1.9 Engine type: Z 19 DTH Year: 03.05-
    Saab Series: 9-3 Kombi Model: 1.9 TiD Engine volume: 1.9 Engine type: Z 19 DTJ Year: 03.05-
    Saab Series: 9-3 Kombi Model: 1.9 TTiD Engine volume: 1.9 Engine type: Z 19 DTH Year: 12.07-
    Saab Series: 9-5 Kombi Model: 1.9 TiD Engine volume: 1.9 Engine type: Z 19 DTH Year: 01.06-
    Saab Series: 9-5 Model: 1.9 TID Engine volume: 1.9 Engine type: Z 19 DTH Year: 01.06-
    Saab Series: 9-5 Model: 1.9 TiD Engine volume: 1.9 Year: 01.06-
    1 / 6
  • Beskrivelse
    SAAB 1.9TiD Gen12V-130A 12V - 130A, 6 riller.farge (Remskive Ø 54mm Remskiven F/W type OD = 54,3mm, 6 spor = 45-252-1140 For Yourex produkt bestilling 90-485-5959 Spenningsnivå: 14 Ampere: 130 Bøssing av hjulavstand: 112.00 Bredde/holderarm: 61.00 Klammehull: 12.20 Båndspenningsjustering av klammepost: 59 Båndspenningsjustering av klammehull 1: 12.20 Remskivediagram: 54.00 Riller/remskiv: 6 Radius: 90.00 Radius 2: 90.00 B+: M8 Posisjon/B+ i min.: 48 D+ størrelse: M5 Rotasjon: Medur Støpselemsnummer: PL130 Total lengde mm: 200.00 Remskive: SP/FW Regulator type: IR

    Filer

  • Spesifikasjon
    B+ M8
    Belt. adj. bracket hole 1 12.20
    Belt. adj. brackethole pos. 59
    Plug no. PL130
    Bracket hole 12.20
    Position/B+ in min. 48
    Pulley SP/FW
    Pulley dia. 54.00
    Pulley dist. 112.00
    Radius 90.00
    D+ Size M5
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 200.00 mm
    Width/holder arm 61.00
    Amp 130
  • Kjøretøymatching

    • OEM
      DAN 1009, F032114284, GM 93169260, MS1012100160, SAAB12759595, 0986 049 000, 1952ir, 1986A01355, 101210-0160, 101210-0161, 101210-0162, 101210-0163, 114284, 12759595, 93169260, 93169269

    • Konkurrentreferens
      A4082, CAL30208, DAN1009, DENDAN1009, DRA0146, 8EL012428-451, 28-5619, 4929, 24006N, 210892, 210892A, 301952RI, 440845, 440848, 443028, 12049000, 0986049000, 0986049003, 063377532010

    • Bilmärken
      Saab

    • NormaliseratArtNr
      a4082, cal30208, dan1009, dendan1009, dra0146, f032114284, gm93169260, ms1012100160, saab12759595, 8el012428451, 1952ir, 1986a01355, 4929, 24006n, 114284, 210892, 210892a, 285619, 301952ri, 440845, 440848, 443028, 12049000, 12759595, 93169260, 93169269, 0986049000, 0986049003, 1012100160, 1012100161, 1012100162, 1012100163, 063377532010

    • Passar modeller
      Cadillac Model: BLS Model series: BLS Type of engine: Diesel Size of motor: 1.9 Brand of engine: Z19DTH From date: 01-04-2006 Fuel: Diesel Approved: Yes
      Cadillac Series: BLS Model: 1.9 D Engine volume: 1.9 Engine type: Z19DTH Year: 04.06-
      Saab Model: 9-3 Model series: 9-3 Type of engine: TiD Size of motor: 1.9 Brand of engine: Z19DT Body: Estate From date: 01-03-2005 To date: 01-02-2015 Fuel: Diesel Approved: Yes Manufacture type: kombi
      Saab Model: 9-3 Model series: 9-3 Type of engine: TiD Size of motor: 1.9 Brand of engine: Z19DT Type description: YS3F From date: 01-09-2004 To date: 01-02-2015 Fuel: Diesel Approved: Yes
      Saab Model: 9-3 Model series: 9-3 Type of engine: TiD Size of motor: 1.9 Brand of engine: Z19DTH Body: Estate From date: 01-03-2005 To date: 01-02-2015 Fuel: Diesel Approved: Yes Manufacture type: kombi
      Saab Model: 9-3 Model series: 9-3 Type of engine: TiD Size of motor: 1.9 Brand of engine: Z19DTH Type description: YS3F Body: Convertible From date: 01-01-2006 To date: 01-02-2015 Fuel: Diesel Approved: Yes
      Saab Model: 9-3 Model series: 9-3 Type of engine: TiD Size of motor: 1.9 Brand of engine: Z19DTH Type description: YS3F From date: 01-09-2004 To date: 01-02-2015 Fuel: Diesel Approved: Yes
      Saab Model: 9-3 Model series: 9-3 Type of engine: TTiD Size of motor: 1.9 Brand of engine: A19DTR Body: Estate From date: 01-12-2007 To date: 01-02-2015 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Saab Model: 9-3 Model series: 9-3 Type of engine: TTiD Size of motor: 1.9 Brand of engine: A19DTR Type description: YS3F Body: Convertible From date: 01-12-2007 To date: 01-02-2015 Fuel: Diesel Approved: Yes
      Saab Model: 9-3 Model series: 9-3 Type of engine: TTiD Size of motor: 1.9 Brand of engine: A19DTR Type description: YS3F From date: 01-12-2007 To date: 01-02-2015 Fuel: Diesel Approved: Yes
      Saab Model: 9-3 Model series: 9-3 Type of engine: TTiD Size of motor: 1.9 Brand of engine: Z19DTR Body: Estate From date: 01-12-2007 To date: 01-02-2015 Fuel: Diesel Approved: Yes Manufacture type: kombi
      Saab Model: 9-3 Model series: 9-3 Type of engine: TTiD Size of motor: 1.9 Brand of engine: Z19DTR Type description: YS3F Body: Convertible From date: 01-12-2007 To date: 01-02-2015 Fuel: Diesel Approved: Yes
      Saab Model: 9-3 Model series: 9-3 Type of engine: TTiD Size of motor: 1.9 Brand of engine: Z19DTR Type description: YS3F From date: 01-12-2007 To date: 01-02-2015 Fuel: Diesel Approved: Yes
      Saab Model: 9-3 Model series: 9-3X Type of engine: TTiD Size of motor: 1.9 Brand of engine: A19DTR Body: Estate From date: 01-02-2009 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Saab Model: 9-3 Model series: 9-3X Type of engine: TTiD Size of motor: 1.9 Brand of engine: Z19DTR Body: Estate From date: 01-02-2009 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Saab Model: 9-5 Model series: 9-5 Type of engine: TiD Size of motor: 1.9 Brand of engine: Z19DTH Type description: YS3E Body: Estate From date: 01-01-2006 To date: 01-12-2009 Fuel: Diesel Approved: Yes
      Saab Model: 9-5 Model series: 9-5 Type of engine: TiD Size of motor: 1.9 Brand of engine: Z19DTH Type description: YS3E From date: 01-01-2006 To date: 01-12-2009 Fuel: Diesel Approved: Yes
      Saab Model: 9-5 Model series: 9-5 Type of engine: TiD Size of motor: 1.9 Brand of engine: Z19DTR Type description: YS3E Body: Estate From date: 01-01-2007 To date: 01-12-2009 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Saab Series: 9-3 (YS3F) Cabrio Model: 1.9 TiD Engine volume: 1.9 Engine type: Z 19 DTH Year: 01.06-
      Saab Series: 9-3 (YS3F) Cabrio Model: 1.9 TTiD Engine volume: 1.9 Engine type: Z 19 DTR Year: 12.07-
      Saab Series: 9-3 (YS3F) Model: 1.9 TiD Engine volume: 1.9 Engine type: Z 19 DT Year: 09.04-
      Saab Series: 9-3 (YS3F) Model: 1.9 TiD Engine volume: 1.9 Engine type: Z 19 DTH Year: 09.04-
      Saab Series: 9-3 (YS3F) Model: 1.9 TiD Engine volume: 1.9 Year: 09.04-
      Saab Series: 9-3 (YS3F) Model: 1.9 TTiD Engine volume: 1.9 Year: 12.07-
      Saab Series: 9-3 Kombi Model: 1.9 TiD Engine volume: 1.9 Engine type: Z 19 DTH Year: 03.05-
      Saab Series: 9-3 Kombi Model: 1.9 TiD Engine volume: 1.9 Engine type: Z 19 DTJ Year: 03.05-
      Saab Series: 9-3 Kombi Model: 1.9 TTiD Engine volume: 1.9 Engine type: Z 19 DTH Year: 12.07-
      Saab Series: 9-5 Kombi Model: 1.9 TiD Engine volume: 1.9 Engine type: Z 19 DTH Year: 01.06-
      Saab Series: 9-5 Model: 1.9 TID Engine volume: 1.9 Engine type: Z 19 DTH Year: 01.06-
      Saab Series: 9-5 Model: 1.9 TiD Engine volume: 1.9 Year: 01.06-
