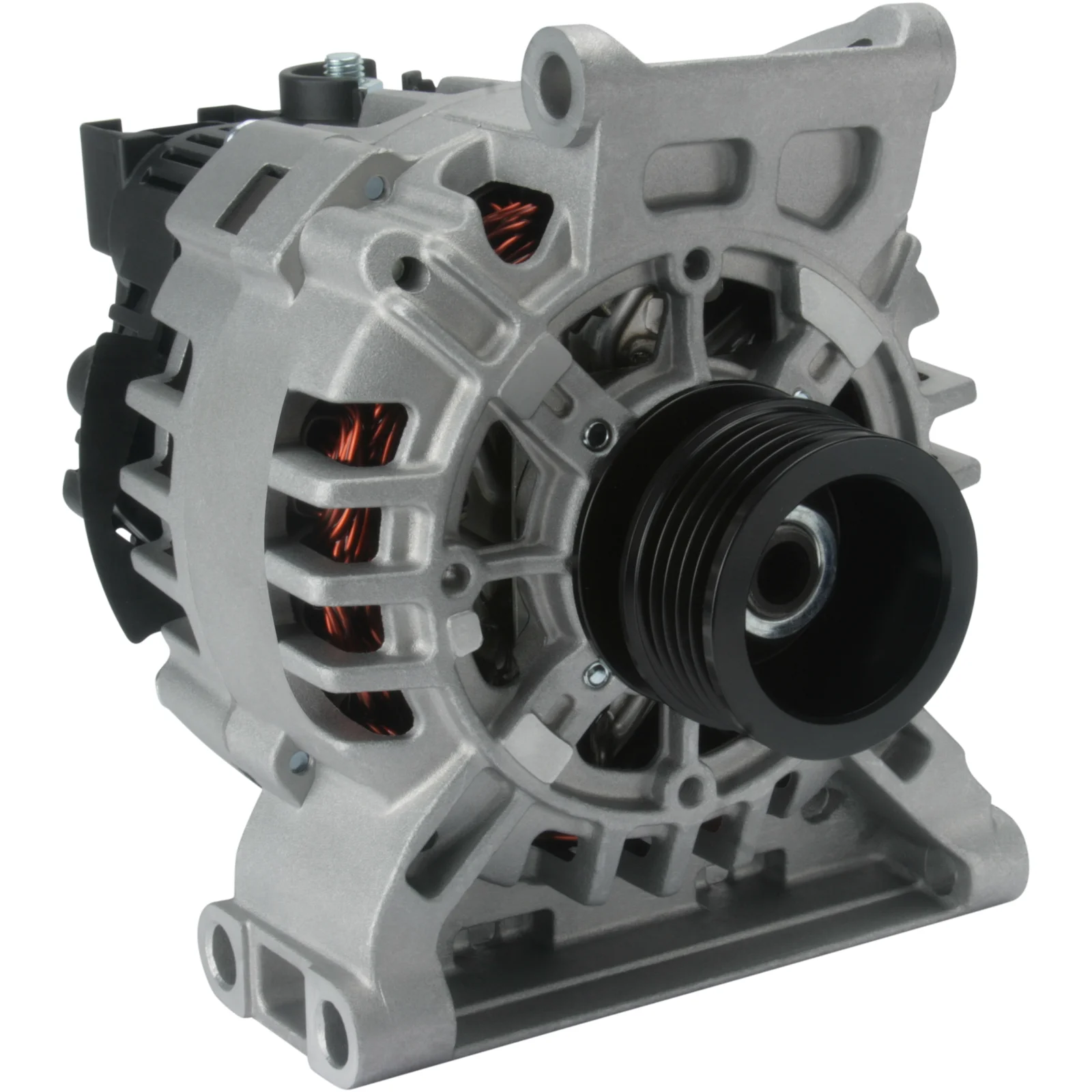

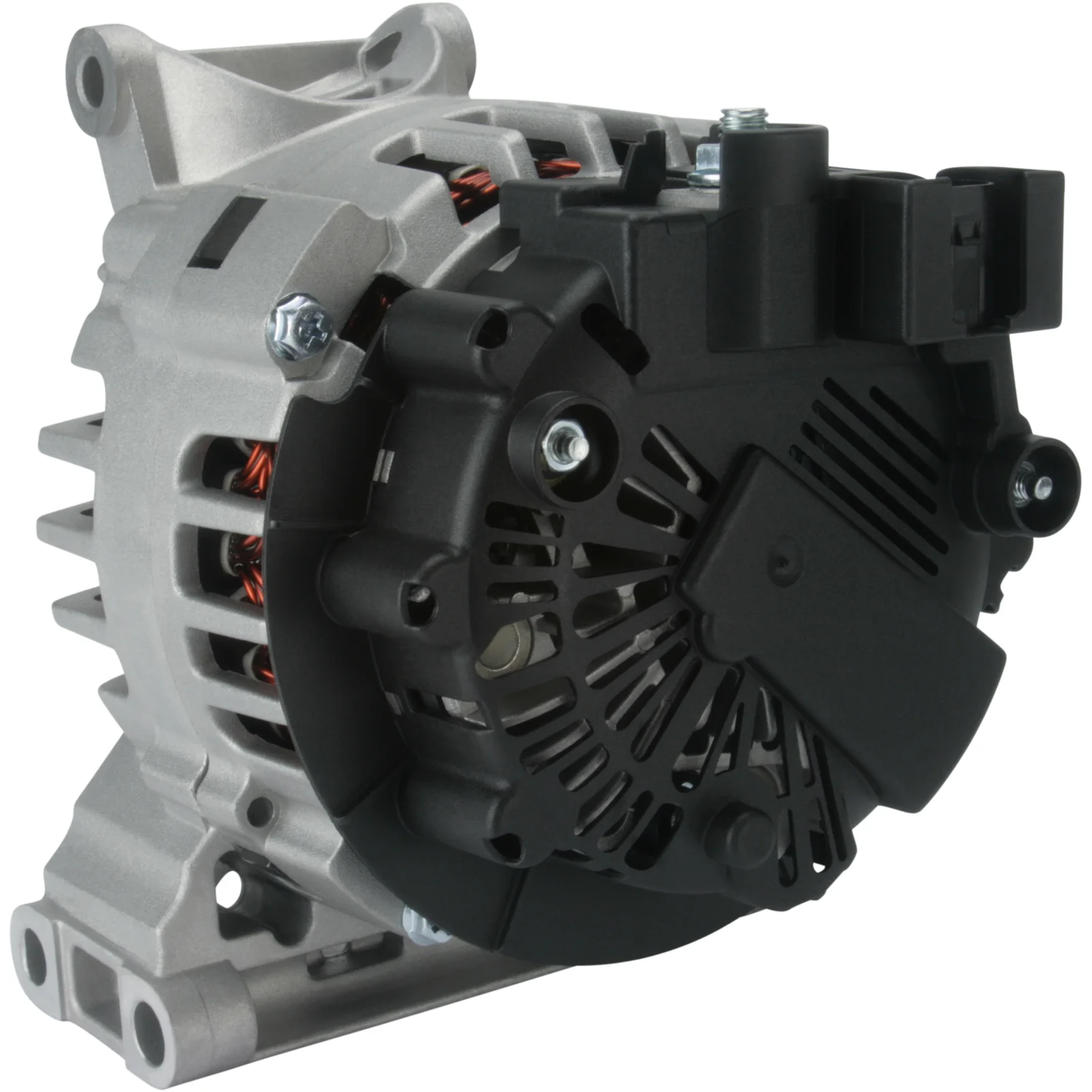

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115418

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 90, Rotasjon: CW, Monteringsbrakett dist.: 42,50

Beskrivelse

Spenning: 14
Amp: 90
Drivehjul dist.: 30.00
Bredde/beslag arm: 142.00
Festebrakett dist.: 42.50
Brakett hull: 10.50
Brakett hull 2: 9.00/11.00
Båndjuster brakket hull 1: 8.00/10.00
Båndjuster brakket hull 2: 8.00/10.00
Drev dia.: 51.80
Riller/drev: 5
B+: M8
Posisjon/B+ i min.: 60
Rotasjon: med klokka
Plugg nr.: PL125
Total lengde mm: 180.50
Terminaltype: COM
Kommunikasjon: LIN
Drev: SP
Regulator type: IR
Prod. info: BN
Anmerkninger: Denne Dynamo har et COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 42.50
Belt. adj. bracket hole 1 8.00/10.00
Belt. adj. bracket hole 2 8.00/10.00
Plug no. PL125
Bracket hole 10.50
Bracket hole 2 9.00/11.00
Position/B+ in min. 60
Prod. info BN
Pulley SP
Pulley dia. 51.80
Pulley dist. 30.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 5
Terminal type COM
Voltage 14
Total length 180.50 mm
Width/holder arm 142.00
Amp 90

  • OEM
    A2661540802, a2661541202, F032115418, SG9B068, SG9B079, SG9B121, 1875ir, 2542955, 2542955A, 2542955B, 2542955E, 2606293A, 2661540802, 2661541202

  • Konkurrentreferens
    A3319, CAL15297, DRA0102, 8EL012430-161, 8EL738211-441, 28-5509, 23892N-OE, 200177, 210552, 210552A, 301875RI, 437537, 439544, 747076, 9213722, 12090311, 32080500, 0986080500

  • NormaliseratArtNr
    a2661540802, a2661541202, a3319, cal15297, dra0102, f032115418, sg9b068, sg9b079, sg9b121, 8el012430161, 8el738211441, 1875ir, 23892noe, 200177, 210552, 210552a, 285509, 301875ri, 437537, 439544, 747076, 2542955, 2542955a, 2542955b, 2542955e, 2606293a, 9213722, 12090311, 32080500, 0986080500, 2661540802, 2661541202

  • Passar modeller
    Mercedes-Benz Model: 150 Model series: A 150 Size of motor: 1.5 Brand of engine: M266.920 Type description: 169 Body: Hatchback From date: 01-09-2004 To date: 01-06-2012 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 150 Model series: B 150 Size of motor: 1.5 Brand of engine: M266.920 Type description: W245 Body: Hatchback From date: 01-03-2005 To date: 01-11-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 150 Model series: B 150 Size of motor: 1.5 Brand of engine: M266.920 Type description: W245 Body: Hatchback From date: 01-04-2009 To date: 01-11-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 160 Model series: A 160 Size of motor: 1.5 Brand of engine: M266.920 Type description: W169 Body: Hatchback From date: 01-04-2009 To date: 01-06-2012 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 170 Model series: A 170 Size of motor: 1.7 Brand of engine: M266.940 Type description: 169 Body: Hatchback From date: 01-09-2004 To date: 01-06-2012 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 170 Model series: A 170 Size of motor: 1.7 Brand of engine: M266.940 Type description: W169 Body: Hatchback From date: 01-04-2009 To date: 01-06-2012 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 170 Model series: B 170 Size of motor: 1.7 Brand of engine: M266.940 Type description: 245 Body: Hatchback From date: 01-03-2005 To date: 01-11-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 170 Model series: B 170 Size of motor: 1.7 Brand of engine: M266.940 Type description: W245 Body: Hatchback From date: 01-04-2009 To date: 01-11-2011 Fuel: Gasoline Approved: Yes
