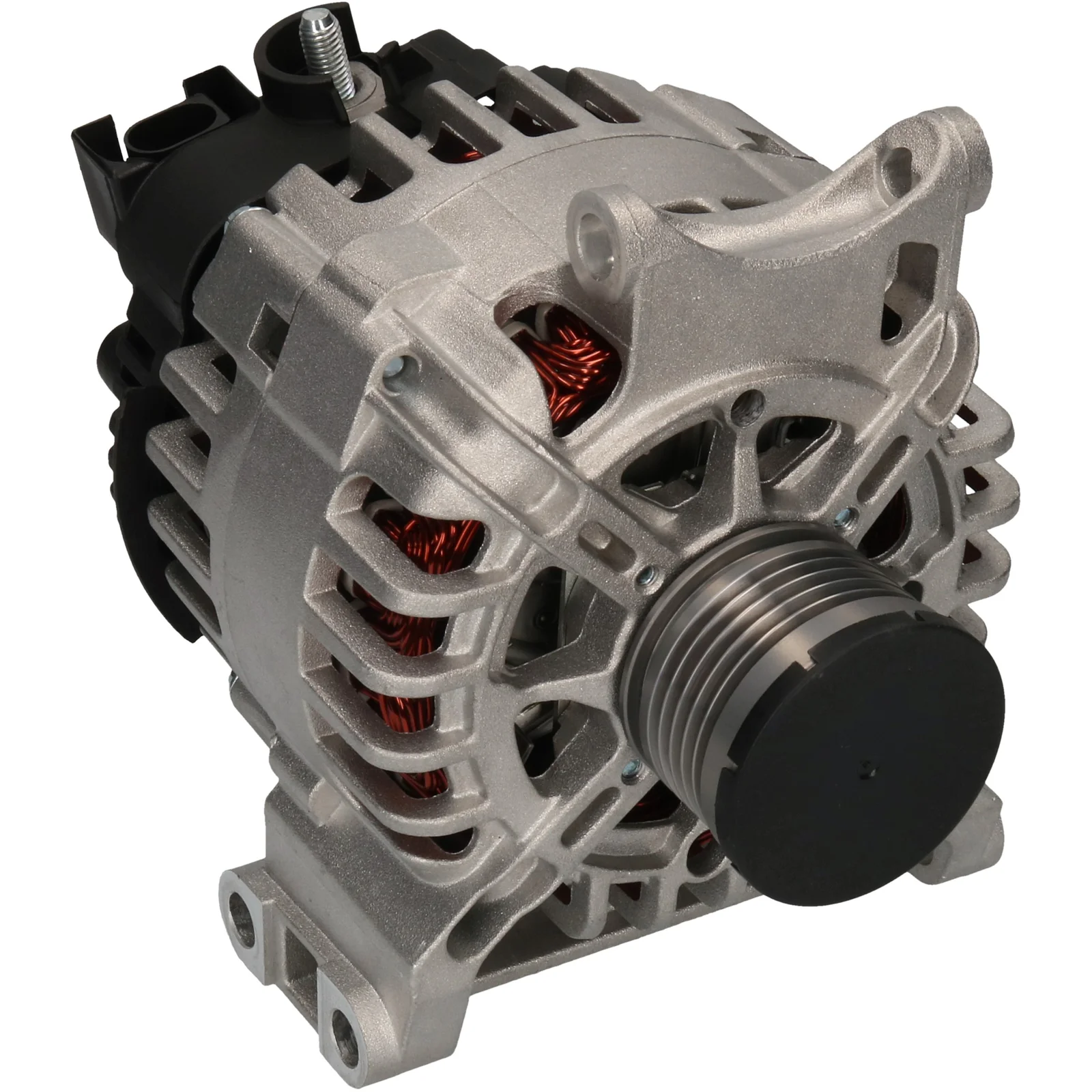

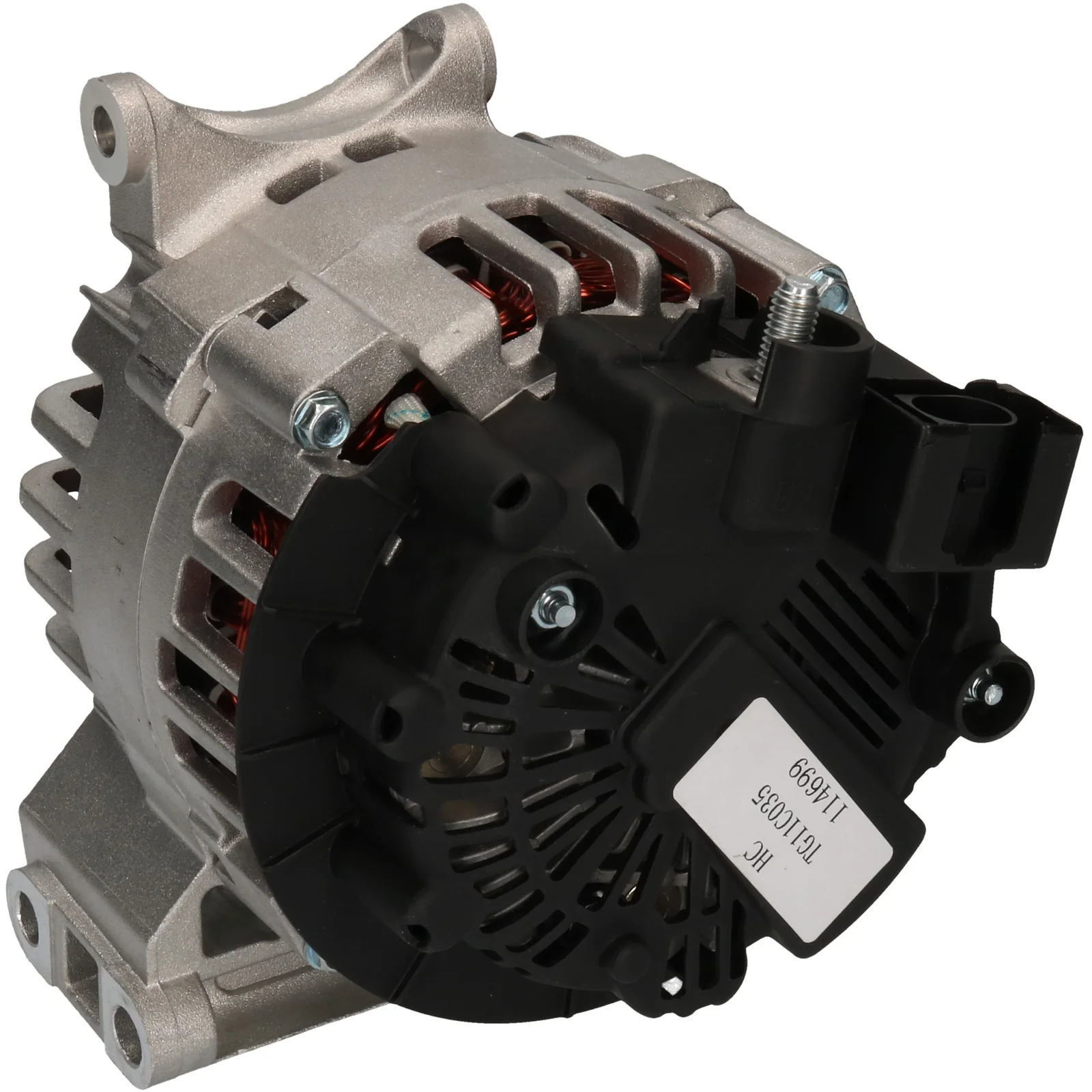

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114699

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 115, Rotasjon: CW, Monteringsbøssing avstand: 41,70

Beskrivelse

Mercedes B-klasse Gen. 12V-110A 12V -110A, 5gr.frg, (COM) For Yourex produktordre 90-365-7544 Spenningsnivå: 14 Ampere: 115 Bøssing av remskive: 29.80 Bredde/holderarmen: 142.00 Festebrakett avstand: 41.70 Brakettmerke hull: 10.50 Brakettmerke hull 2: 10.50 Båndjustering brakettposisjon: 60 Båndjustering brakett hull 1: 10.50 Båndjustering brakett hull 2: 8.50 Remskive diameter: 52.00 Riller/remskive: 5 Radius: 76.00 Radius 2: 75.50 B+: M8 Posisjon/B+ i min.: 5 Rotasjon: med klokken Plugg nr.: PL125 Total lengde mm: 189.00 Terminaltype: COM Remskive: SP/FW Regulator type: IR Merk: Denne generatoren har en COM-terminal på regulatoren. Det anbefales at OEM-nummeret brukes for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 41.70
Belt. adj. bracket hole 1 10.50
Belt. adj. bracket hole 2 8.50
Belt. adj. brackethole pos. 60
Plug no. PL125
Bracket hole 10.50
Bracket hole 2 10.50
Position/B+ in min. 5
Pulley SP/FW
Pulley dia. 52.00
Pulley dist. 29.80
Radius 76.00
Radius 2 75.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 5
Terminal type COM
Voltage 14
Total length 189.00 mm
Width/holder arm 142.00
Amp 115

  • OEM
    A266 1540602, A266 1540902, A2661540602, A2661540902, a2661541302, F032114699, TG11C 021, TG11C 035, TG11C 074, TG11C021, TG11C035, TG11C074, 1874ir, 114699, 437544, 439551, 2542774, 2542954, 2542954C, 2606301, 2606301A, 2661540602, 2661540902, 2661541302

  • Konkurrentreferens
    A3328, CAL15317, DRA4269, DRA4269X, 8EL012429-341, 28-5503, 23886, 23886R, 112393, 210553, 210553A, 301874RI, 747049, 9212679, 12090264, 32437544, 0986081040

  • Bilmärken
    Mercedes Benz

  • NormaliseratArtNr
    a2661540602, a2661540902, a2661541302, a3328, cal15317, dra4269, dra4269x, f032114699, tg11c021, tg11c035, tg11c074, 8el012429341, 1874ir, 23886, 23886r, 112393, 114699, 210553, 210553a, 285503, 301874ri, 437544, 439551, 747049, 2542774, 2542954, 2542954c, 2606301, 2606301a, 9212679, 12090264, 32437544, 0986081040, 2661540602, 2661540902, 2661541302

  • Passar modeller
    Mercedes Benz Series: A (W169) Model: 150 Engine volume: 1.5 Engine type: M 266.920 Year: 09.04-
    Mercedes Benz Series: A (W169) Model: 160 Engine volume: 1.5 Engine type: M 266.920 Year: 04.09-04.12
    Mercedes Benz Series: A (W169) Model: 170 Engine volume: 1.7 Engine type: M 266.940 Year: 09.04-
    Mercedes Benz Series: A (W169) Model: 200 Engine volume: 2.0 Engine type: M 266.960 Year: 09.04-
    Mercedes Benz Series: B (W245) Model: 150 Engine volume: 1.5 Engine type: M 266.920 Year: 03.05-
    Mercedes Benz Series: B (W245) Model: 170 Engine volume: 1.7 Engine type: M 266.940 Year: 03.05-
    Mercedes Benz Series: B (W245) Model: 170 Engine volume: 1.7 Engine type: M 266.940 Year: 03.05-11.11
    Mercedes Benz Series: B (W245) Model: 170 NGT Engine volume: 2.0 Engine type: M 266.960 Year: 04.08-11.11
    Mercedes Benz Series: B (W245) Model: 180 NGT Engine volume: 2.0
    Mercedes Benz Series: B (W245) Model: 200 Engine volume: 2.0 Engine type: M 266.960 Year: 03.05-
    Mercedes Benz Series: B (W245) Model: 200 Engine volume: 2.0 Engine type: M 266.960 Year: 05.05-03.08
    Mercedes-Benz Model: 150 Model series: B 150 Size of motor: 1.5 Brand of engine: M266.920 Type description: W245 Body: Hatchback From date: 01-03-2005 To date: 01-11-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 150 Model series: B 150 Size of motor: 1.5 Brand of engine: M266.920 Type description: W245 Body: Hatchback From date: 01-04-2009 To date: 01-11-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 160 Model series: A 160 Size of motor: 1.5 Brand of engine: M266.920 Type description: W169 Body: Hatchback From date: 01-04-2009 To date: 01-06-2012 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 170 Model series: A 170 Size of motor: 1.7 Brand of engine: M266.940 Type description: W169 Body: Hatchback From date: 01-04-2009 To date: 01-06-2012 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 170 Model series: B 170 Model type: NGT Type of engine: BiFuel Size of motor: 2.0 Brand of engine: M266.960 Type description: W245 Body: Hatchback From date: 01-04-2008 To date: 01-11-2011 Fuel: Bi-Fuel Approved: Yes
    Mercedes-Benz Model: 170 Model series: B 170 Size of motor: 1.7 Brand of engine: M266.940 Type description: 245 Body: Hatchback From date: 01-03-2005 To date: 01-11-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 170 Model series: B 170 Size of motor: 1.7 Brand of engine: M266.940 Type description: W245 Body: Hatchback From date: 01-04-2009 To date: 01-11-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: A 200 Size of motor: 2.0 Brand of engine: M266.960 Type description: 169 Body: Hatchback From date: 01-09-2004 To date: 01-06-2012 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: A 200 Type of engine: Turbo Size of motor: 2.0 Brand of engine: M266.980 Type description: 169 Body: Hatchback From date: 01-09-2005 To date: 01-06-2012 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: B 200 Size of motor: 2.0 Brand of engine: M266.960 Type description: 245 Body: Hatchback From date: 01-03-2005 To date: 01-11-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: B 200 Type of engine: Turbo Size of motor: 2.0 Brand of engine: M266.980 Type description: 245 Body: Hatchback From date: 01-03-2005 To date: 01-11-2011 Fuel: Gasoline Approved: Yes
