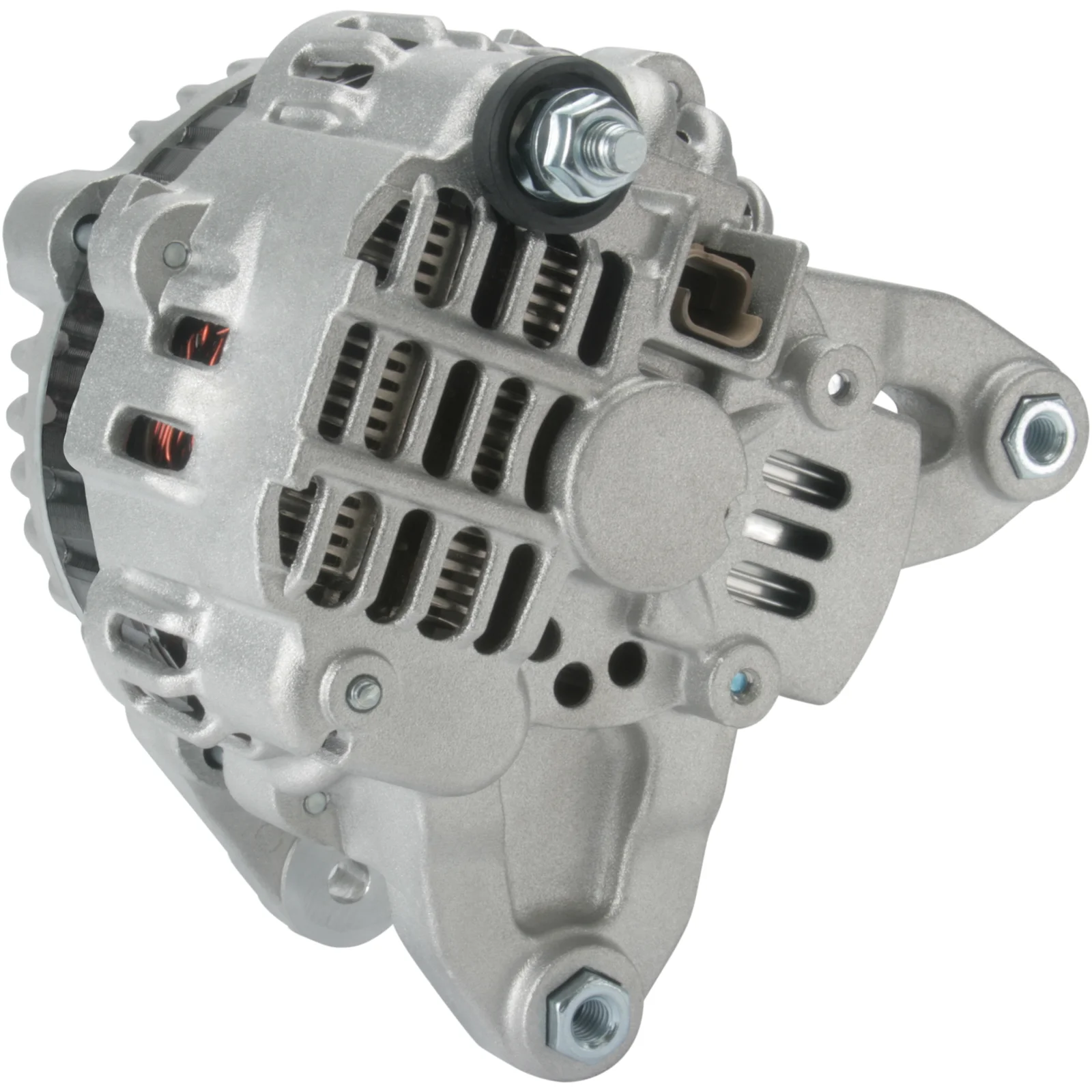

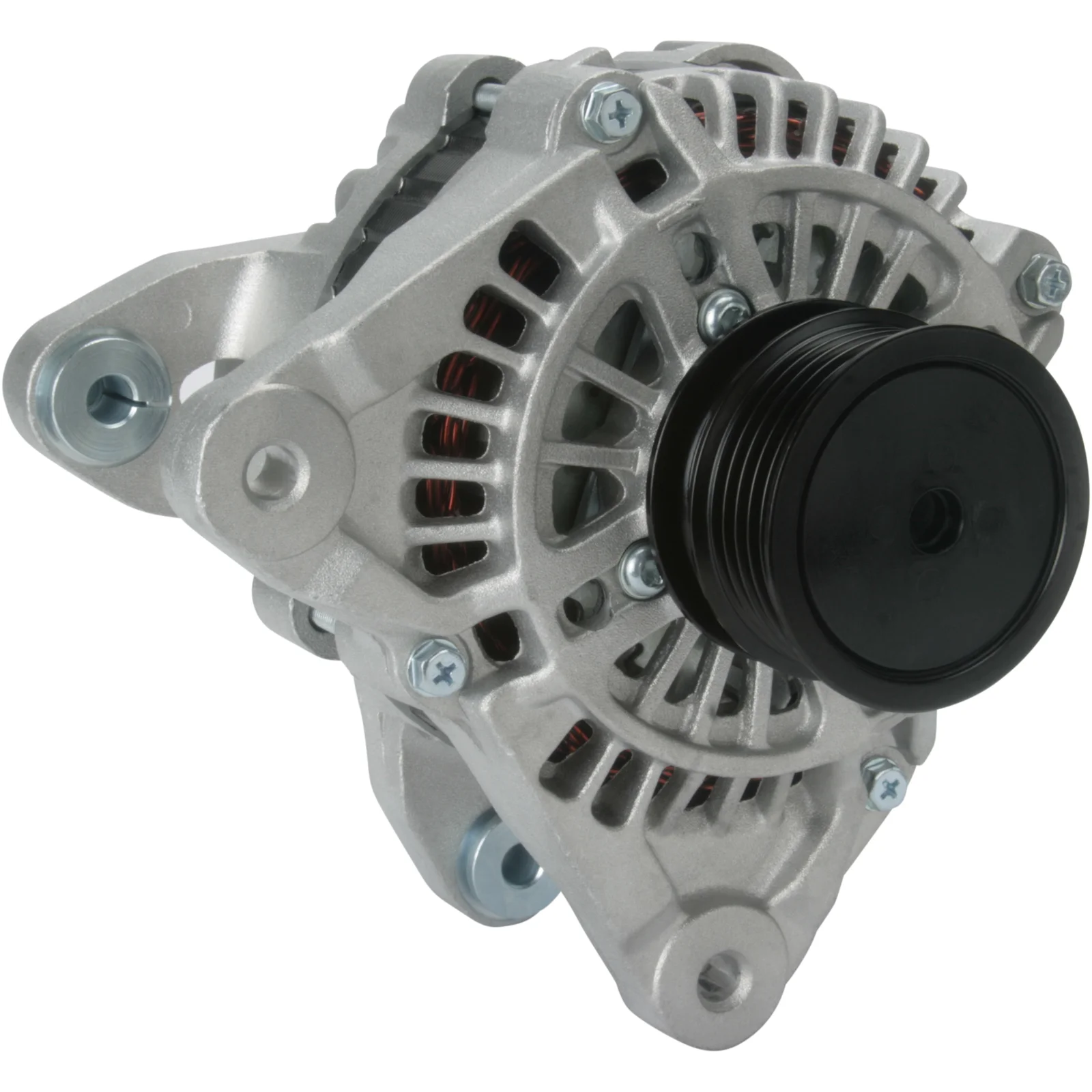

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032112457

HC-Cargo Dynamo

Teknisk info:

Spenningsgiver: 14, Amp: 110, Rotasjon: CW, Monteringsbeslag avstand: 61,00

Beskrivelse

Spenning: 14
Amp: 110
Remskive dist.: 42.00
Bredde/holderarm: 15.70
Monteringsbeslag avstand: 61.00
Beslagshull: 8.50
Bånd justering brakhull pos.: 15
Bånd justering brakhull 1: 8.50
Remskive dia.: 54.50
Groper/remskive: 5
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 12
D+ Størrrelse: Stikk
Rotasjon: med uret
Stikk nr.: PL55
Total lengde mm: 164.50
Remskive: SP/FW
Regulator type: IR
Prod. info: BN
Service: Renault

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 15
Plug no. PL55
Bracket hole 8.50
Position/B+ in min. 12
Prod. info BN
Pulley SP/FW
Pulley dia. 54.50
Pulley dist. 42.00
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Servicing Renault
Grooves/pulley 5
Voltage 14
Total length 164.50 mm
Width/holder arm 15.70
Amp 110

  • OEM
    A002TB6481, A002TC0981, A002TC0982, A002TV0981, a2tb6481, a2tc0981, A2TC0982, a2tv0981, aak5773, F032112457, 11.203.923, 1652ir, 1986A01723, 23100-00QA1, 23100-00qa9, 23100-0q02h, 23100-BN700, 7711134728, 7711497099, 8200053938, 8200120286, 8200373636, 8200468131

  • Konkurrentreferens
    A5009, A5009ER, A5009PR, A5009SR, A5398PR, ALT-3533, ALT10091, CAL35102, CAL35241, DRA0837, DRA4099, F042A03117, F042A0H234, GA13475, GA15481, LRA02174, lra03075, MG70, 8EL011360-121, 8EL011710-621, 8EL012428-491, 28-5687, 28-5903, 230.193.1102, 230.331.1102, 230.345.1102, 230.346.1102, 575.934.110, 575.943.110, 9336, 23174N, 23174N-5GZ, 23174R, 24251N, 112455, 119982, 200079, 200171, 210280, 210280A, 301652RI, 301948RI, 440234, 443026, 443036, 746165, 746827, 746965, 839025, 9090589, 9212741, 12048610, 0986048611, 944390901750

  • NormaliseratArtNr
    a002tb6481, a002tc0981, a002tc0982, a002tv0981, a2tb6481, a2tc0981, a2tc0982, a2tv0981, a5009, a5009er, a5009pr, a5009sr, a5398pr, aak5773, alt10091, alt3533, cal35102, cal35241, dra0837, dra4099, f032112457, f042a03117, f042a0h234, ga13475, ga15481, lra02174, lra03075, mg70, 8el011360121, 8el011710621, 8el012428491, 1652ir, 1986a01723, 9336, 23100bn700, 23174n, 23174n5gz, 23174r, 24251n, 112455, 119982, 200079, 200171, 210280, 210280a, 231000q02h, 285687, 285903, 301652ri, 301948ri, 440234, 443026, 443036, 746165, 746827, 746965, 839025, 2310000qa1, 2310000qa9, 9090589, 9212741, 11203923, 12048610, 575934110, 575943110, 0986048611, 2301931102, 2303311102, 2303451102, 2303461102, 7711134728, 7711497099, 8200053938, 8200120286, 8200373636, 8200468131, 944390901750

  • Passar modeller
    Nissan Model: Kubistar Model series: Kubistar Model type: X76 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K710 Type description: FC09 Body: Van From date: 01-08-2005 Fuel: Diesel Approved: Yes
    Nissan Model: Kubistar Model series: Kubistar Model type: X76 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K714 Type description: FC09 Body: Van From date: 01-08-2005 Fuel: Diesel Approved: Yes
    Nissan Model: Kubistar Model series: Kubistar Type of engine: DCI Size of motor: 1.5 Brand of engine: K9K710 Type description: X76 Body: Van From date: 01-08-2003 To date: 01-10-2009 Fuel: Diesel Approved: Yes
    Nissan Model: Kubistar Model series: Kubistar Type of engine: DCI Size of motor: 1.5 Brand of engine: K9K714 Type description: X76 Body: Van From date: 01-08-2003 To date: 01-10-2009 Fuel: Diesel Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K700 Type description: B/CB07 Body: Hatchback From date: 01-06-2001 Fuel: Diesel Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K700 Type description: SB0/1/2_ Body: Van From date: 01-06-2001 Fuel: Diesel Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K702 Type description: B/CB08 Body: Hatchback From date: 01-06-2001 Fuel: Diesel Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K704 Type description: BB0/1/2_, CB0/1/2_ Body: Hatchback From date: 01-06-2001 To date: 01-12-2006 Fuel: Diesel Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K704 Type description: SB0/1/2_ Body: Van From date: 01-06-2001 Fuel: Diesel Approved: Yes
    Renault Model: Kangoo Model series: Kangoo Model type: Express Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K718 Type description: FC0/1_ Body: Van From date: 01-06-2005 Fuel: Diesel Approved: Yes
    Renault Model: Kangoo Model series: Kangoo Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K700 Type description: KC0/1_ Body: MPV From date: 01-04-2005 To date: 01-06-2010 Fuel: Diesel Approved: Yes
    Renault Model: Kangoo Model series: Kangoo Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K702 Type description: KC0/1_ Body: MPV From date: 01-04-2005 To date: 01-06-2010 Fuel: Diesel Approved: Yes
    Renault Model: Kangoo Model series: Kangoo Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K714 Type description: KC0/1_ Body: MPV From date: 01-06-2005 Fuel: Diesel Approved: Yes
    Renault Model: Kangoo Model series: Kangoo Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K718 Type description: KC0/1_ Body: MPV From date: 01-06-2005 Fuel: Diesel Approved: Yes
    Renault Model: Logan Model series: Logan Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K792 Type description: KS_ Body: Estate From date: 01-04-2007 Fuel: Diesel Approved: Yes Manufacture type: kombi
    Renault Model: Logan Model series: Logan Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K792 Type description: LS_ From date: 01-04-2007 Fuel: Diesel Approved: Yes
    Renault Model: Symbol Model series: Symbol Type of engine: DCI Size of motor: 1.5 Brand of engine: K9K718 Type description: LB_ From date: 01-06-2001 To date: 01-02-2009 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivelse
    Spenning: 14
    Amp: 110
    Remskive dist.: 42.00
    Bredde/holderarm: 15.70
    Monteringsbeslag avstand: 61.00
    Beslagshull: 8.50
    Bånd justering brakhull pos.: 15
    Bånd justering brakhull 1: 8.50
    Remskive dia.: 54.50
    Groper/remskive: 5
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Posisjon/B+ i min.: 12
    D+ Størrrelse: Stikk
    Rotasjon: med uret
    Stikk nr.: PL55
    Total lengde mm: 164.50
    Remskive: SP/FW
    Regulator type: IR
    Prod. info: BN
    Service: Renault

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 61.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 15
    Plug no. PL55
    Bracket hole 8.50
    Position/B+ in min. 12
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 54.50
    Pulley dist. 42.00
    Radius 90.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Servicing Renault
    Grooves/pulley 5
    Voltage 14
    Total length 164.50 mm
    Width/holder arm 15.70
    Amp 110
  • Kjøretøymatching

    • OEM
      A002TB6481, A002TC0981, A002TC0982, A002TV0981, a2tb6481, a2tc0981, A2TC0982, a2tv0981, aak5773, F032112457, 11.203.923, 1652ir, 1986A01723, 23100-00QA1, 23100-00qa9, 23100-0q02h, 23100-BN700, 7711134728, 7711497099, 8200053938, 8200120286, 8200373636, 8200468131

    • Konkurrentreferens
      A5009, A5009ER, A5009PR, A5009SR, A5398PR, ALT-3533, ALT10091, CAL35102, CAL35241, DRA0837, DRA4099, F042A03117, F042A0H234, GA13475, GA15481, LRA02174, lra03075, MG70, 8EL011360-121, 8EL011710-621, 8EL012428-491, 28-5687, 28-5903, 230.193.1102, 230.331.1102, 230.345.1102, 230.346.1102, 575.934.110, 575.943.110, 9336, 23174N, 23174N-5GZ, 23174R, 24251N, 112455, 119982, 200079, 200171, 210280, 210280A, 301652RI, 301948RI, 440234, 443026, 443036, 746165, 746827, 746965, 839025, 9090589, 9212741, 12048610, 0986048611, 944390901750

    • NormaliseratArtNr
      a002tb6481, a002tc0981, a002tc0982, a002tv0981, a2tb6481, a2tc0981, a2tc0982, a2tv0981, a5009, a5009er, a5009pr, a5009sr, a5398pr, aak5773, alt10091, alt3533, cal35102, cal35241, dra0837, dra4099, f032112457, f042a03117, f042a0h234, ga13475, ga15481, lra02174, lra03075, mg70, 8el011360121, 8el011710621, 8el012428491, 1652ir, 1986a01723, 9336, 23100bn700, 23174n, 23174n5gz, 23174r, 24251n, 112455, 119982, 200079, 200171, 210280, 210280a, 231000q02h, 285687, 285903, 301652ri, 301948ri, 440234, 443026, 443036, 746165, 746827, 746965, 839025, 2310000qa1, 2310000qa9, 9090589, 9212741, 11203923, 12048610, 575934110, 575943110, 0986048611, 2301931102, 2303311102, 2303451102, 2303461102, 7711134728, 7711497099, 8200053938, 8200120286, 8200373636, 8200468131, 944390901750

    • Passar modeller
      Nissan Model: Kubistar Model series: Kubistar Model type: X76 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K710 Type description: FC09 Body: Van From date: 01-08-2005 Fuel: Diesel Approved: Yes
      Nissan Model: Kubistar Model series: Kubistar Model type: X76 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K714 Type description: FC09 Body: Van From date: 01-08-2005 Fuel: Diesel Approved: Yes
      Nissan Model: Kubistar Model series: Kubistar Type of engine: DCI Size of motor: 1.5 Brand of engine: K9K710 Type description: X76 Body: Van From date: 01-08-2003 To date: 01-10-2009 Fuel: Diesel Approved: Yes
      Nissan Model: Kubistar Model series: Kubistar Type of engine: DCI Size of motor: 1.5 Brand of engine: K9K714 Type description: X76 Body: Van From date: 01-08-2003 To date: 01-10-2009 Fuel: Diesel Approved: Yes
      Renault Model: Clio Model series: Clio Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K700 Type description: B/CB07 Body: Hatchback From date: 01-06-2001 Fuel: Diesel Approved: Yes
      Renault Model: Clio Model series: Clio Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K700 Type description: SB0/1/2_ Body: Van From date: 01-06-2001 Fuel: Diesel Approved: Yes
      Renault Model: Clio Model series: Clio Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K702 Type description: B/CB08 Body: Hatchback From date: 01-06-2001 Fuel: Diesel Approved: Yes
      Renault Model: Clio Model series: Clio Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K704 Type description: BB0/1/2_, CB0/1/2_ Body: Hatchback From date: 01-06-2001 To date: 01-12-2006 Fuel: Diesel Approved: Yes
      Renault Model: Clio Model series: Clio Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K704 Type description: SB0/1/2_ Body: Van From date: 01-06-2001 Fuel: Diesel Approved: Yes
      Renault Model: Kangoo Model series: Kangoo Model type: Express Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K718 Type description: FC0/1_ Body: Van From date: 01-06-2005 Fuel: Diesel Approved: Yes
      Renault Model: Kangoo Model series: Kangoo Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K700 Type description: KC0/1_ Body: MPV From date: 01-04-2005 To date: 01-06-2010 Fuel: Diesel Approved: Yes
      Renault Model: Kangoo Model series: Kangoo Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K702 Type description: KC0/1_ Body: MPV From date: 01-04-2005 To date: 01-06-2010 Fuel: Diesel Approved: Yes
      Renault Model: Kangoo Model series: Kangoo Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K714 Type description: KC0/1_ Body: MPV From date: 01-06-2005 Fuel: Diesel Approved: Yes
      Renault Model: Kangoo Model series: Kangoo Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K718 Type description: KC0/1_ Body: MPV From date: 01-06-2005 Fuel: Diesel Approved: Yes
      Renault Model: Logan Model series: Logan Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K792 Type description: KS_ Body: Estate From date: 01-04-2007 Fuel: Diesel Approved: Yes Manufacture type: kombi
      Renault Model: Logan Model series: Logan Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K792 Type description: LS_ From date: 01-04-2007 Fuel: Diesel Approved: Yes
      Renault Model: Symbol Model series: Symbol Type of engine: DCI Size of motor: 1.5 Brand of engine: K9K718 Type description: LB_ From date: 01-06-2001 To date: 01-02-2009 Fuel: Diesel Approved: Yes
