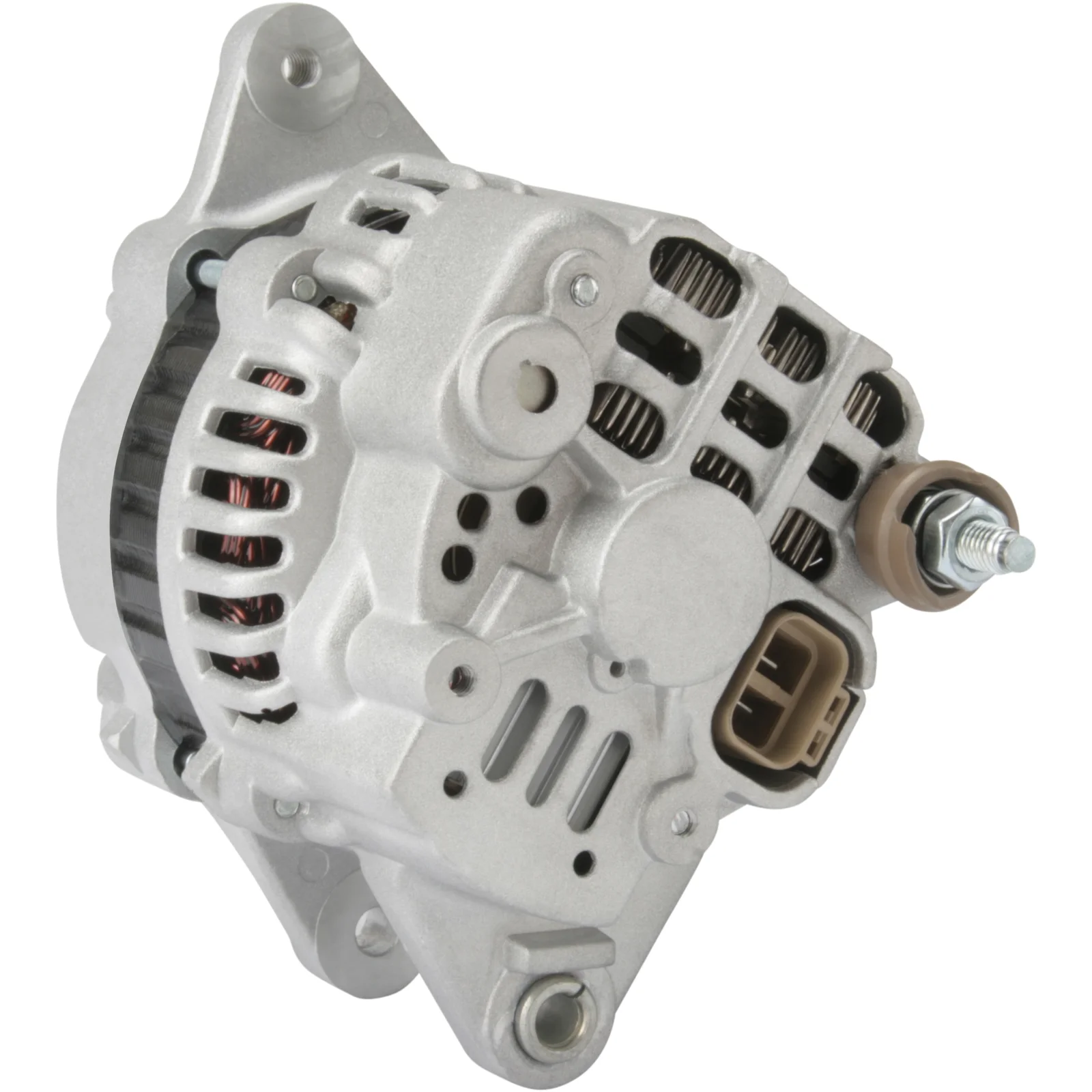

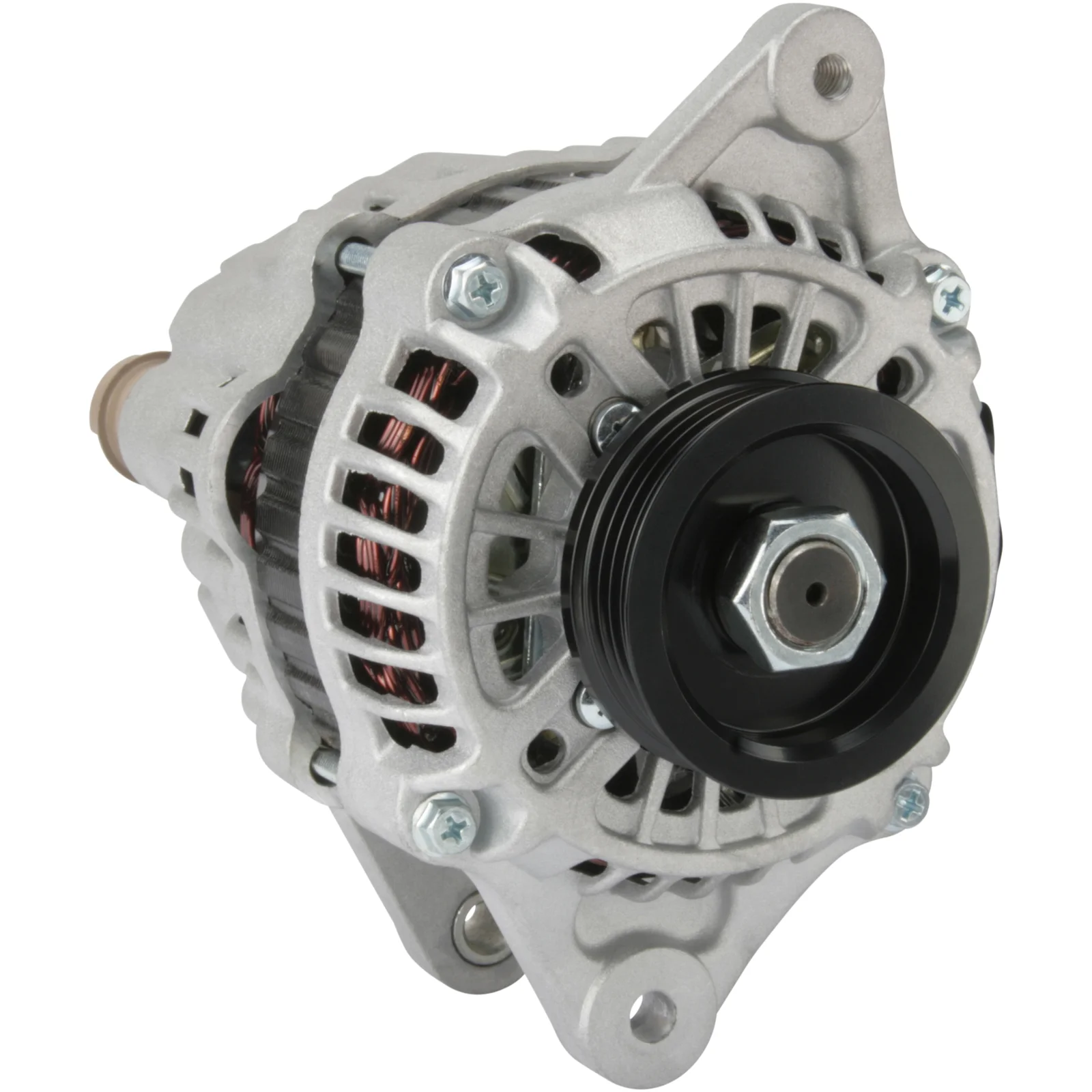

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032113518

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Ampere: 60, Fro.: D, Monteringsfeste avstand: 48,30

Beskrivelse

Spenningsurakter: 14
Amp: 60
Drevkugg dist.: 38,00
Bredde/holder arm: 13,00
Festebrakett dist.: 48,30
Brakett hull: 8,80
Belt. justering brakkethull pos.: 3
Belt. justering brakkethull 1: M8
Drevkugg dia.: 59,50
Grooves/drevkugg: 4
Radius: 78,00
Radius 2: 80,00
B+: M8
Posisjon/B+ i min.: 15
D+ Størrelse: Plugg
Rotasjon: CW
Plugg nr.: PL89
Total lengde mm: 171,00
Drevkugg: SP
Spenningsregulator type: IR
Prod. info: BN
Service: Hyundai

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 48.30
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 3
Plug no. PL89
Bracket hole 8.80
Position/B+ in min. 15
Prod. info BN
Pulley SP
Pulley dia. 59.50
Pulley dist. 38.00
Radius 78.00
D+ Size Plug
Radius 2 80.00
Regulator type IR
Rotation CW
Servicing Hyundai
Grooves/pulley 4
Voltage 14
Total length 171.00 mm
Width/holder arm 13.00
Amp 60

  • OEM
    ab160108, F032113518, ja1715ir, TA000A17301, 37300-02503

  • Konkurrentreferens
    A9006, ALT-7231, ALT35005, CAL32100, DRA3846, DRA3846N, F042A0B038, J5110514, LEA0201, LRA02039, 8EL011711-251, 8EL738102-001, 28-3958, 226.154.602, 23039N, 23039R, 111624, 210081, 210081A, 401715RI, 437337, 439384, 600266, 608377, 747903, 9213303, 12060790, 063532613, 0986049201, 063532613010, 944390605140

  • NormaliseratArtNr
    a9006, ab160108, alt35005, alt7231, cal32100, dra3846, dra3846n, f032113518, f042a0b038, j5110514, ja1715ir, lea0201, lra02039, ta000a17301, 8el011711251, 8el738102001, 23039n, 23039r, 111624, 210081, 210081a, 283958, 401715ri, 437337, 439384, 600266, 608377, 747903, 9213303, 12060790, 063532613, 226154602, 0986049201, 3730002503, 063532613010, 944390605140

  • Passar modeller
    Hyundai Model: Atos Model series: Atos Size of motor: 0.8 Brand of engine: G4HA Type description: MX Body: Hatchback Fuel: Petrol Approved: Yes
    Hyundai Model: Atos Model series: Atos Type of engine: i Size of motor: 1.0 Brand of engine: G4HC Body: MPV From date: 01-02-1998 To date: 01-12-2000 Fuel: Gasoline Approved: Yes
    Hyundai Model: Atos Model series: Atos Type of engine: i Size of motor: 1.0 Brand of engine: G4HC-E Type description: MX Body: MPV From date: 01-03-2001 To date: 01-07-2003 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spenningsurakter: 14
    Amp: 60
    Drevkugg dist.: 38,00
    Bredde/holder arm: 13,00
    Festebrakett dist.: 48,30
    Brakett hull: 8,80
    Belt. justering brakkethull pos.: 3
    Belt. justering brakkethull 1: M8
    Drevkugg dia.: 59,50
    Grooves/drevkugg: 4
    Radius: 78,00
    Radius 2: 80,00
    B+: M8
    Posisjon/B+ i min.: 15
    D+ Størrelse: Plugg
    Rotasjon: CW
    Plugg nr.: PL89
    Total lengde mm: 171,00
    Drevkugg: SP
    Spenningsregulator type: IR
    Prod. info: BN
    Service: Hyundai

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 48.30
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 3
    Plug no. PL89
    Bracket hole 8.80
    Position/B+ in min. 15
    Prod. info BN
    Pulley SP
    Pulley dia. 59.50
    Pulley dist. 38.00
    Radius 78.00
    D+ Size Plug
    Radius 2 80.00
    Regulator type IR
    Rotation CW
    Servicing Hyundai
    Grooves/pulley 4
    Voltage 14
    Total length 171.00 mm
    Width/holder arm 13.00
    Amp 60
  • Kjøretøymatching

    • OEM
      ab160108, F032113518, ja1715ir, TA000A17301, 37300-02503

    • Konkurrentreferens
      A9006, ALT-7231, ALT35005, CAL32100, DRA3846, DRA3846N, F042A0B038, J5110514, LEA0201, LRA02039, 8EL011711-251, 8EL738102-001, 28-3958, 226.154.602, 23039N, 23039R, 111624, 210081, 210081A, 401715RI, 437337, 439384, 600266, 608377, 747903, 9213303, 12060790, 063532613, 0986049201, 063532613010, 944390605140

    • NormaliseratArtNr
      a9006, ab160108, alt35005, alt7231, cal32100, dra3846, dra3846n, f032113518, f042a0b038, j5110514, ja1715ir, lea0201, lra02039, ta000a17301, 8el011711251, 8el738102001, 23039n, 23039r, 111624, 210081, 210081a, 283958, 401715ri, 437337, 439384, 600266, 608377, 747903, 9213303, 12060790, 063532613, 226154602, 0986049201, 3730002503, 063532613010, 944390605140

    • Passar modeller
      Hyundai Model: Atos Model series: Atos Size of motor: 0.8 Brand of engine: G4HA Type description: MX Body: Hatchback Fuel: Petrol Approved: Yes
      Hyundai Model: Atos Model series: Atos Type of engine: i Size of motor: 1.0 Brand of engine: G4HC Body: MPV From date: 01-02-1998 To date: 01-12-2000 Fuel: Gasoline Approved: Yes
      Hyundai Model: Atos Model series: Atos Type of engine: i Size of motor: 1.0 Brand of engine: G4HC-E Type description: MX Body: MPV From date: 01-03-2001 To date: 01-07-2003 Fuel: Gasoline Approved: Yes
