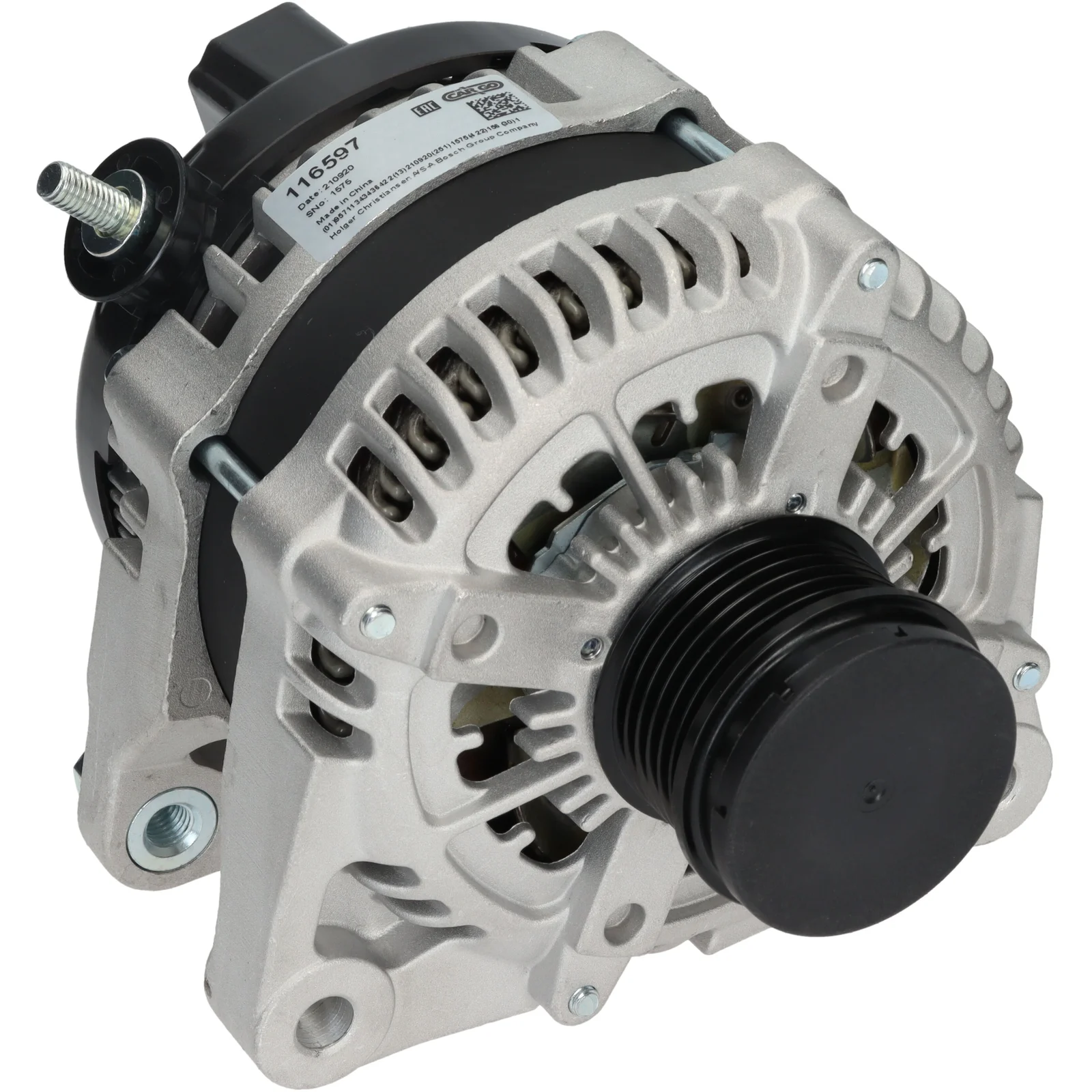

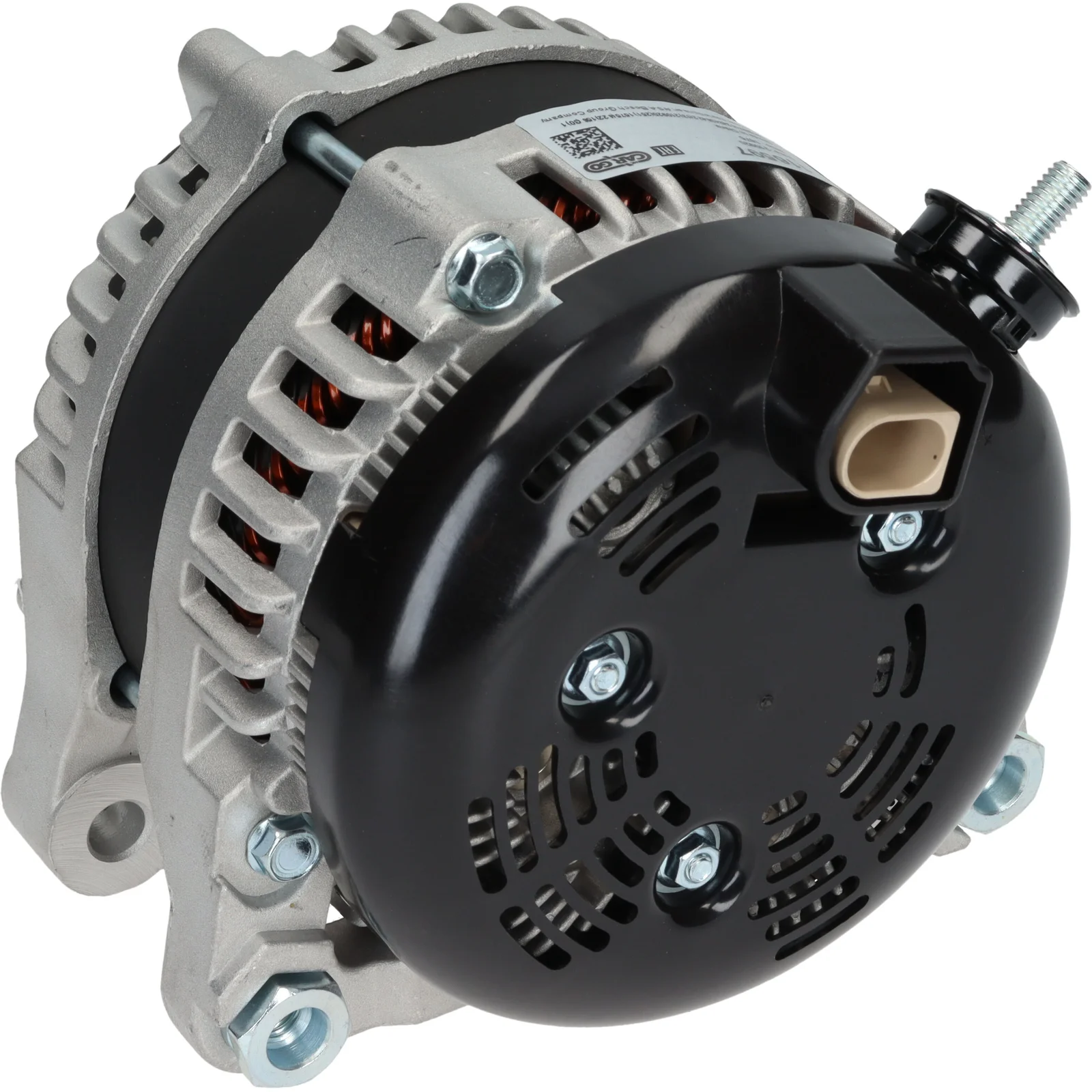

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116597

HC-Cargo Dynamo

Teknisk info:

Spenningsnivå: 14, Amper: 180, Monteringsbrakett for distribusjon: 44,50, Remskive diameter: 54,00

Beskrivelse

Dynamo 12V-180A 12V - 180A, 6-égr.frg, (LIN) Innslagsreimskive = 45-252-0263 For Yourex produktordre 90-258-4636

Spenningsnivå: 14
Ampere: 180
Reimskivens avstand: 43,00
Festebrakett avstand: 44,50
Hull i brakett: 10,20
Reimjusteringsposisjon for brakett: 47
Reimjustering for hull i brakett 1: 10,50
Reimskivediameter: 54,00
Grojder/reimskive: 6
Radius: 90,00
Radius 2: 93,00
B+: M8
Posisjon/B+ i min.: 60
Støpselets nummer: PL174
Total lengde mm: 189,00
ID-kode: 28
Kommunikasjon: LIN_1
Reimskive: SP/FW
Vifte: IF
Regulator type: IR

Filer

Spesifikasjon

B+ M8
Communication LIN_1
Mount. bracket dist. 44.50
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 47
Plug no. PL174
Bracket hole 10.20
Position/B+ in min. 60
Pulley SP/FW
Pulley dia. 54.00
Pulley dist. 43.00
Radius 90.00
Radius 2 93.00
Regulator type IR
Fan IF
Grooves/pulley 6
ID Code 28
Voltage 14
Total length 189.00 mm
Amp 180

  • OEM
    A6434(DENSO), A6434S, BJ32-10300AC, BJ32-10300AD, BJ3210300AC, BJ3210300AD, C2Z-17063, C2Z-31658, C2Z17063, C2Z31658, CAL40399, CZ231658, DAN 1111, DAN1111, DRA1326, F032116597, LR 028116, LR 031026, LR028116, LR0281166, LR031026, LR088854, LRA03624, 8EL011713-181, 28-6734, 214.179.1802, 455.532.180, 0986 085 120, 1986A00640, 104210-6360, 104210-6361, 116597, 209324, 209324A, 440763, 553760RI, 12090755, 32118821, 0986085120

  • Konkurrentreferens
    A6434(DENSO), A6434S, CAL40399, DAN1111, DRA1326, LRA03624, 8EL011713-181, 28-6734, 214.179.1802, 455.532.180, 209324, 209324A, 440763, 553760RI, 12090755, 32118821, 0986085120

  • Bilmärken
    JAGUAR, LAND ROVER

  • NormaliseratArtNr
    a6434denso, a6434s, bj3210300ac, bj3210300ad, c2z17063, c2z31658, cal40399, cz231658, dan1111, dra1326, f032116597, lr028116, lr0281166, lr031026, lr088854, lra03624, 8el011713181, 1986a00640, 116597, 209324, 209324a, 286734, 440763, 553760ri, 12090755, 32118821, 455532180, 0986085120, 1042106360, 1042106361, 2141791802

  • Passar modeller
    JAGUAR XF I (X250) 2.2 D Engine volume: 2.2 Engine type: 224DT(DW12C) Year: 03.12-04.15
    JAGUAR XF I (X250) 2.2 D Engine volume: 2.2 Engine type: 224DT(DW12C) Year: 04.11-04.15
    JAGUAR XF I (X250) 2.2 D Engine volume: 2.2 Engine type: 224DT(DW12C) Year: 05.11-04.15
    JAGUAR XF SPORTBRAKE (X250) 2.2 D Engine volume: 2.2 Engine type: 224DT(DW12C) Year: 09.12-04.14
    LAND ROVER RANGE ROVER EVOQUE (L538) 2.2 D 4x4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 05.11-12.19
    LAND ROVER RANGE ROVER EVOQUE (L538) 2.2 D 4x4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 06.11-12.19
    LAND ROVER RANGE ROVER EVOQUE (L538) 2.2 D Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 06.11-12.19
    LAND ROVER RANGE ROVER EVOQUE VAN (L538) SD4 4x4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 05.15-12.19
    LAND ROVER RANGE ROVER EVOQUE VAN (L538) TD4 4x4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 05.15-12.19
    LAND ROVER RANGE ROVER EVOQUE VAN (L538) TD4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 05.15-12.19
