Varenr.: F032112352

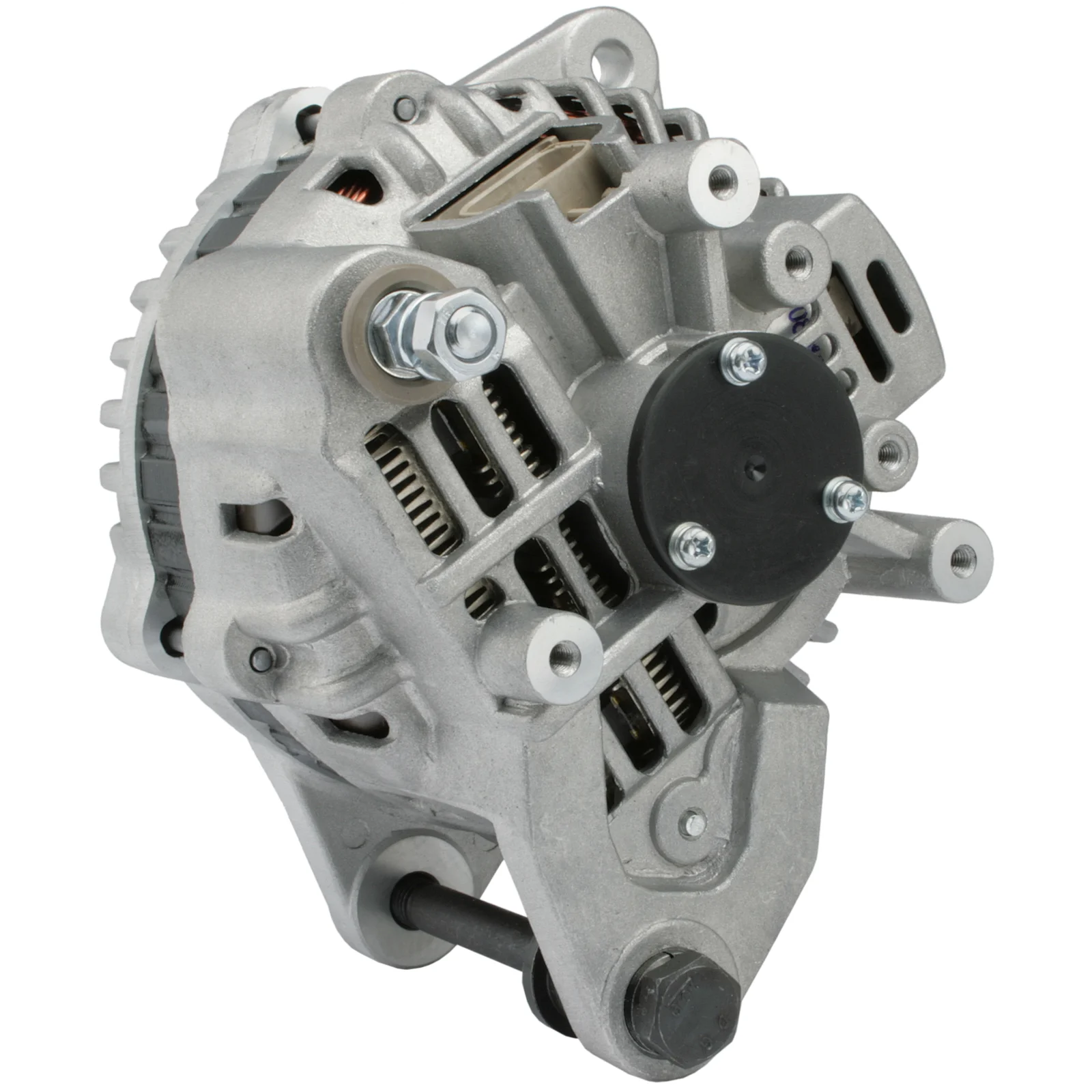

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 70, Rotasjon: CW, Mount. bøsning avstand: 65.00

Beskrivelse

Mazda Dynamo 12V-70A 12V - 70A, 2V, (S, L) For Yourex produkt bestilling 90-360-6099

Spenning: 14
Ampere: 70
Drivreimsskjørt: 42.00
Bredde/holderarm: 13.00
Festebrakettavstand: 65.00
Fres holes i brakett: 10.50
Beltejustering brakettåpning pos.: 57
Beltejustering brakettåpning 1: 9.00
Drivreimsskjørt dia.: 80.00
Grooves/drev: 2
Radius: 90.00
Radius 2: 85.00
B+: M8
Posisjon/B+ i min.: 47
D+ Størrelse: Plug
Rotasjon: medur
Pluggnr.: PL07
Total lengde mm: 179.00
Drev: DP
Regulator type: IR
Prod. info: BN
Servicering: Ford

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 65.00
Belt. adj. bracket hole 1 9.00
Belt. adj. brackethole pos. 57
Plug no. PL07
Bracket hole 10.50
Position/B+ in min. 47
Prod. info BN
Pulley DP
Pulley dia. 80.00
Pulley dist. 42.00
Radius 90.00
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Servicing Ford
Grooves/pulley 2
Voltage 14
Total length 179.00 mm
Width/holder arm 13.00
Amp 70

  • OEM
    A002TA6099, A002TA6099A, A002TA6099AT, A002TC1479ZT, A2T-A6099, A2T-A6099A, a2ta6099, a2ta6099a, a2ta6099at, A2TC1479ZT, F032112352, ja1530ir, WL21-18-300, WL21-18-300A, WL21-18-300T, WL91-18-300, wlaa-18-300a, XM34-10300BA, xm3410300aa, xm3410300ba, 6m3410300ab, 1986A01609, 112352, 1449569, 3601014, 4344538

  • Konkurrentreferens
    A5020, ALT-H094, CAL35159, CAL35242, DRA0352, DRA0382, F042205120, F042205154, F042A0H094, LRA01638, 8EL012430-191, 28-2823, 224.142.702, 9347, 22638N, 111516, 119945, 210442, 210442A, 210450, 210450A, 401530RI, 440872, 443236, 9045541, 12060779, 12090229, 0986045541

  • Bilmärken
    Ford USA Trucks & Vans, Mazda

  • NormaliseratArtNr
    a002ta6099, a002ta6099a, a002ta6099at, a002tc1479zt, a2ta6099, a2ta6099a, a2ta6099at, a2tc1479zt, a5020, alth094, cal35159, cal35242, dra0352, dra0382, f032112352, f042205120, f042205154, f042a0h094, ja1530ir, lra01638, wl2118300, wl2118300a, wl2118300t, wl9118300, wlaa18300a, xm3410300aa, xm3410300ba, 6m3410300ab, 8el012430191, 1986a01609, 9347, 22638n, 111516, 112352, 119945, 210442, 210442a, 210450, 210450a, 282823, 401530ri, 440872, 443236, 1449569, 3601014, 4344538, 9045541, 12060779, 12090229, 224142702, 0986045541

  • Passar modeller
    Ford Europe Trucks & Vans Series: Ranger (TU_) Model: 2.5 D 4X4 Engine volume: 2.5 Engine type: WL Year: 03.01-04.02
    Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: WL Type description: TU_ Body: Pick Up From date: 01-10-1999 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TD Size of motor: 2.5 Brand of engine: WL-T Type description: TU_ Body: Pick Up From date: 01-04-2002 To date: 01-06-2006 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TD Size of motor: 2.5 Brand of engine: WL-T Type description: TU_ Body: Pick Up From date: 01-10-1999 To date: 01-06-2006 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDCi Size of motor: 3.0 Brand of engine: WEAT Body: Pick Up From date: 01-05-2006 To date: 01-07-2012 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Type of engine: TD Size of motor: 2.5 Brand of engine: WL-T Type description: TU_ Body: Pick Up From date: 01-04-2002 To date: 01-06-2006 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Type of engine: TDDi Size of motor: 2.5 Brand of engine: WLAA Type description: TU_ Body: Pick Up From date: 01-05-2006 To date: 01-07-2012 Fuel: Diesel Approved: Yes
    Ford USA Trucks & Vans Series: Ranger (TU_) Model: 2.5 D Engine volume: 2.5 Engine type: WL Year: 03.01-04.02
    Ford USA Trucks & Vans Series: Ranger (TU_) Model: 2.5 TD 4x4 Engine volume: 2.5 Engine type: WL-T Year: 03.01-09.02
    Ford USA Trucks & Vans Series: Ranger Model: 2.5 TD 4X4 Engine volume: 2.5 Engine type: WL-T Year: 10.99-
    Ford USA Trucks & Vans Series: Ranger Model: 2.5 TDCi 4x4 Engine volume: 2.5 Engine type: WLAA Year: 05.06-12.11
    Mazda Model: B 2500 Model series: B 2500 Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: MD25NA Body: Pick Up From date: 01-06-1999 To date: 01-11-2006 Fuel: Diesel Approved: Yes
    Mazda Model: B 2500 Model series: B 2500 Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: WL Type description: UF Body: Pick Up From date: 01-09-1998 To date: 01-06-1999 Fuel: Diesel Approved: Yes
    Mazda Model: B 2500 Model series: B 2500 Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: WLE7 Type description: UN Body: Pick Up From date: 01-12-2002 To date: 01-11-2006 Fuel: Diesel Approved: Yes
    Mazda Model: B 2500 Model series: B 2500 Type of engine: Diesel Size of motor: 2.5 Brand of engine: WLE7 Type description: UN Body: Pick Up From date: 01-12-2002 To date: 01-11-2006 Fuel: Diesel Approved: Yes
    Mazda Model: B-Serie Model series: B-Serie Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: WLE7 Type description: UF Body: Pickup From date: 01-02-1996 To date: 01-06-1999 Fuel: Diesel Approved: Yes
    Mazda Model: B-Serie Model series: B-Serie Type of engine: Diesel Size of motor: 2.5 Brand of engine: WLE7 Type description: UF Body: Pickup From date: 01-04-1996 To date: 01-01-1999 Fuel: Diesel Approved: Yes
    Mazda Model: BT-50 Model series: BT-50 Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: WLAA Body: Pick Up From date: 01-12-2006 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Mazda Model: BT-50 Model series: BT-50 Size of motor: 2.2 Type description: CD, UN Body: Pickup Fuel: Petrol Approved: Yes
    Mazda Model: BT-50 Model series: BT-50 Size of motor: 2.6 Brand of engine: G6Y1 Type description: CD, UN Body: Pickup Fuel: Petrol Approved: Yes
    Mazda Series: B 2500 (Pick-up) Model: 2.5 D 4WD Engine volume: 2.5 Engine type: WL Year: 02.96-04.99
    Mazda Series: B-modell (Pick-up) Model: 2.5 D Engine volume: 2.5 Year: 03.01-09.02
    Mazda Series: B-modell (Pick-up) Model: 2.5 TD 4WD Engine volume: 2.5 Engine type: MD25TI Year: 03.01-09.02
    Mazda Series: B-modell (Pick-up) Model: 2.5 TD 4WD Engine volume: 2.5 Engine type: MD25TI Year: 06.99-
