Varenr.: F032115980

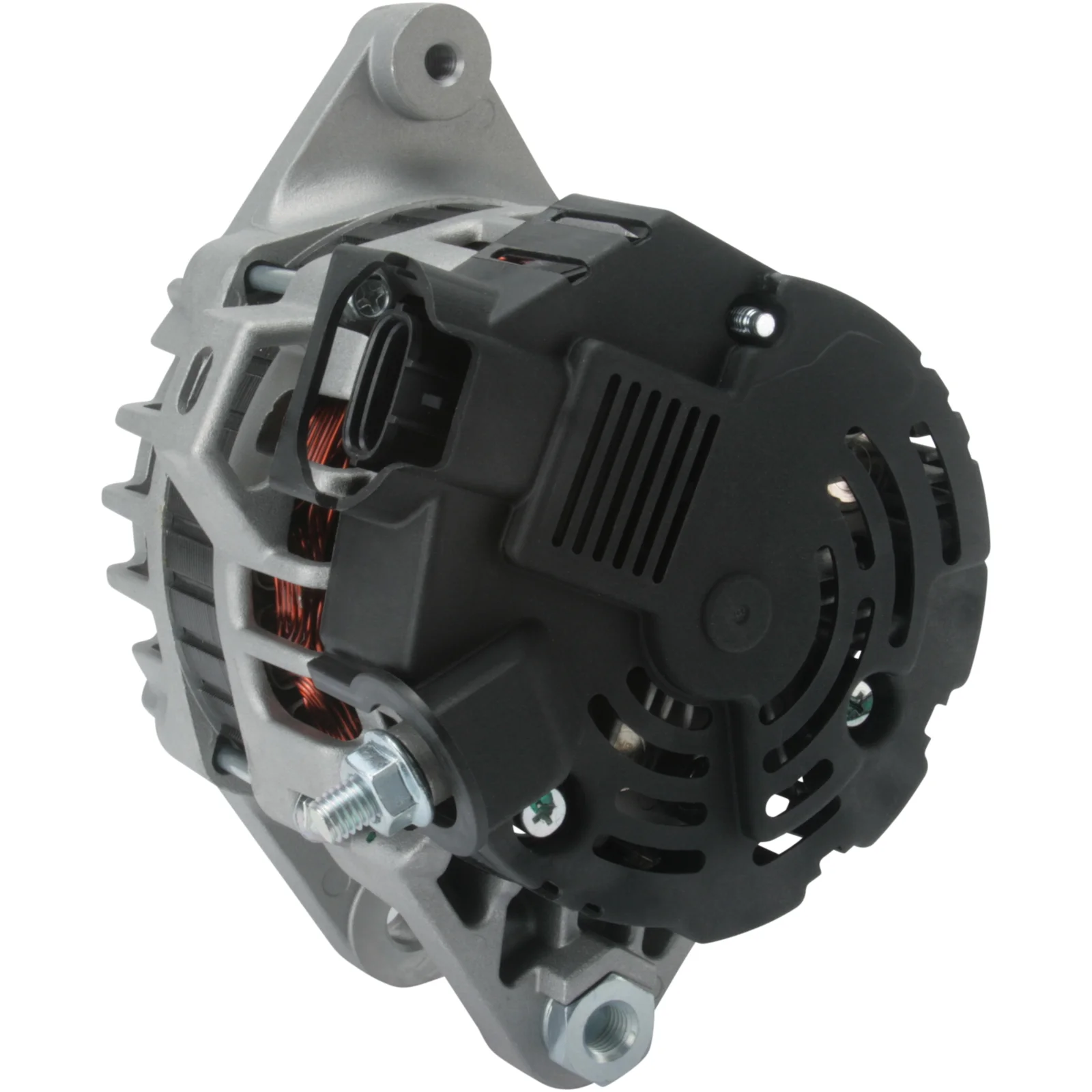

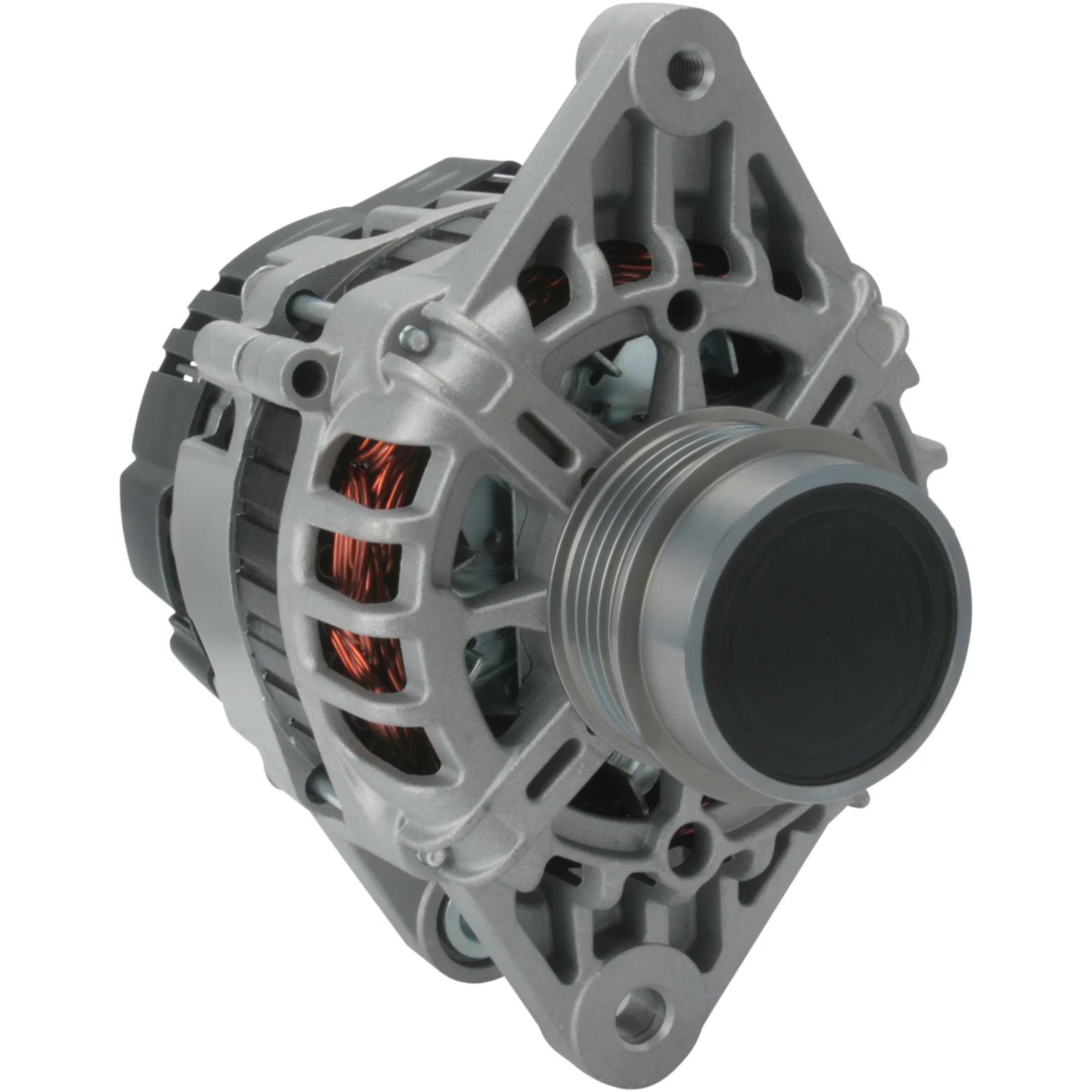

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 70, Rotasjon: CW, Monteringsbrakettavstand: 45,70

Beskrivelse

Spenningsspenning: 14
Ampere: 70
Reimdist.: 35,50
Bredde/beslagarm: 15,00
Festebrakettavstand: 45,70
Brakettone: 10,50
Bånd. justeringsb. posisjon: 60
Bånd. justeringsb. hull 1: M8
Reimskive diameter: 57,50
Groper/reimskive: 5
Radius: 81,50
Radius 2: 85,00
B+: M8
Posisjon/B+ i min.: 42
D+: Støpseletype: Plugg
Rotasjon: medur
Støpsel nr.: PL176
Total lengde mm: 175,00
Reimskive: SP/FW
Regulator type: IR

Spesifikasjon

B+ M8
Mount. bracket dist. 45.70
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL176
Bracket hole 10.50
Position/B+ in min. 42
Pulley SP/FW
Pulley dia. 57.50
Pulley dist. 35.50
Radius 81.50
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Grooves/pulley 5
Voltage 14
Total length 175.00 mm
Width/holder arm 15.00
Amp 70
  • OEM

    F032115980, 1986A00642, 37300-03500, 37300-03550, 2609013
  • Konkurrentreferens

    A3534S, CAL32154, DRA1165, DRA1165N, LRA03671, 8EL015637-351, 28-6811, 155.911.070, 224.311.702, 20295N, 20295N-OE, 209126, 209126A, 600272, 12061231, 0986085140, 0986085790
  • NormaliseratArtNr

    a3534s, cal32154, dra1165, dra1165n, f032115980, lra03671, 8el015637351, 1986a00642, 20295n, 20295noe, 209126, 209126a, 286811, 600272, 2609013, 12061231, 155911070, 224311702, 0986085140, 0986085790, 3730003500, 3730003550
  • Passar modeller

    Hyundai Model: i10 Model series: i10 Size of motor: 1.2 Brand of engine: G4LA Body: Hatchback From date: 01-04-2011 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.2 Brand of engine: G4LA Type description: TA Body: Hatchback From date: 01-09-2011 Fuel: Gasoline Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.3 Brand of engine: G4LA Type description: TA Body: Hatchback From date: 01-09-2011 To date: 01-02-2017 Fuel: Petrol Approved: Yes
  • Beskrivelse
    Spenningsspenning: 14
    Ampere: 70
    Reimdist.: 35,50
    Bredde/beslagarm: 15,00
    Festebrakettavstand: 45,70
    Brakettone: 10,50
    Bånd. justeringsb. posisjon: 60
    Bånd. justeringsb. hull 1: M8
    Reimskive diameter: 57,50
    Groper/reimskive: 5
    Radius: 81,50
    Radius 2: 85,00
    B+: M8
    Posisjon/B+ i min.: 42
    D+: Støpseletype: Plugg
    Rotasjon: medur
    Støpsel nr.: PL176
    Total lengde mm: 175,00
    Reimskive: SP/FW
    Regulator type: IR
  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 45.70
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL176
    Bracket hole 10.50
    Position/B+ in min. 42
    Pulley SP/FW
    Pulley dia. 57.50
    Pulley dist. 35.50
    Radius 81.50
    D+ Size Plug
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 5
    Voltage 14
    Total length 175.00 mm
    Width/holder arm 15.00
    Amp 70
  • Kjøretøymatching
    • OEM

      F032115980, 1986A00642, 37300-03500, 37300-03550, 2609013
    • Konkurrentreferens

      A3534S, CAL32154, DRA1165, DRA1165N, LRA03671, 8EL015637-351, 28-6811, 155.911.070, 224.311.702, 20295N, 20295N-OE, 209126, 209126A, 600272, 12061231, 0986085140, 0986085790
    • NormaliseratArtNr

      a3534s, cal32154, dra1165, dra1165n, f032115980, lra03671, 8el015637351, 1986a00642, 20295n, 20295noe, 209126, 209126a, 286811, 600272, 2609013, 12061231, 155911070, 224311702, 0986085140, 0986085790, 3730003500, 3730003550
    • Passar modeller

      Hyundai Model: i10 Model series: i10 Size of motor: 1.2 Brand of engine: G4LA Body: Hatchback From date: 01-04-2011 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Kia Model: Picanto Model series: Picanto Size of motor: 1.2 Brand of engine: G4LA Type description: TA Body: Hatchback From date: 01-09-2011 Fuel: Gasoline Approved: Yes
      Kia Model: Picanto Model series: Picanto Size of motor: 1.3 Brand of engine: G4LA Type description: TA Body: Hatchback From date: 01-09-2011 To date: 01-02-2017 Fuel: Petrol Approved: Yes
