HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115416

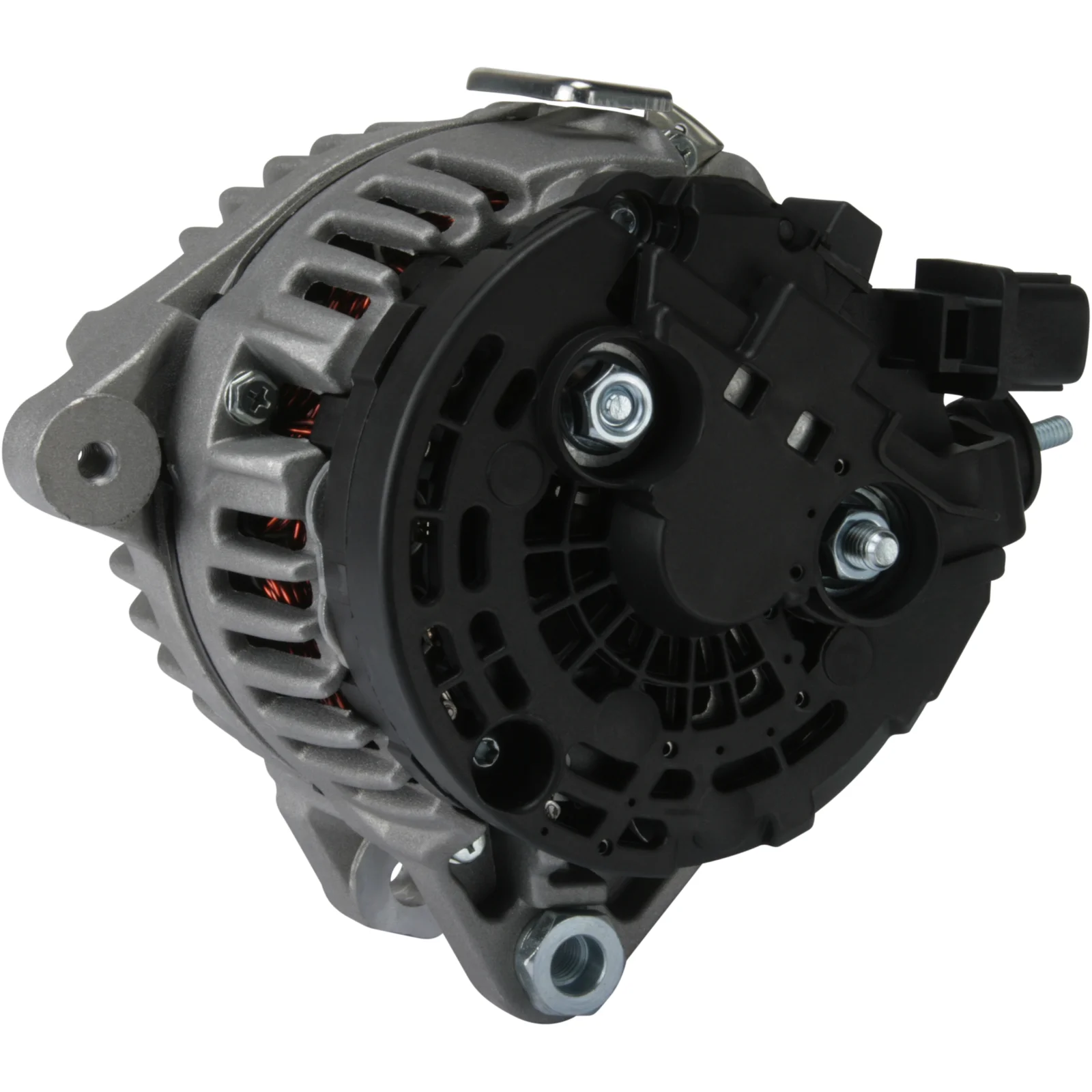

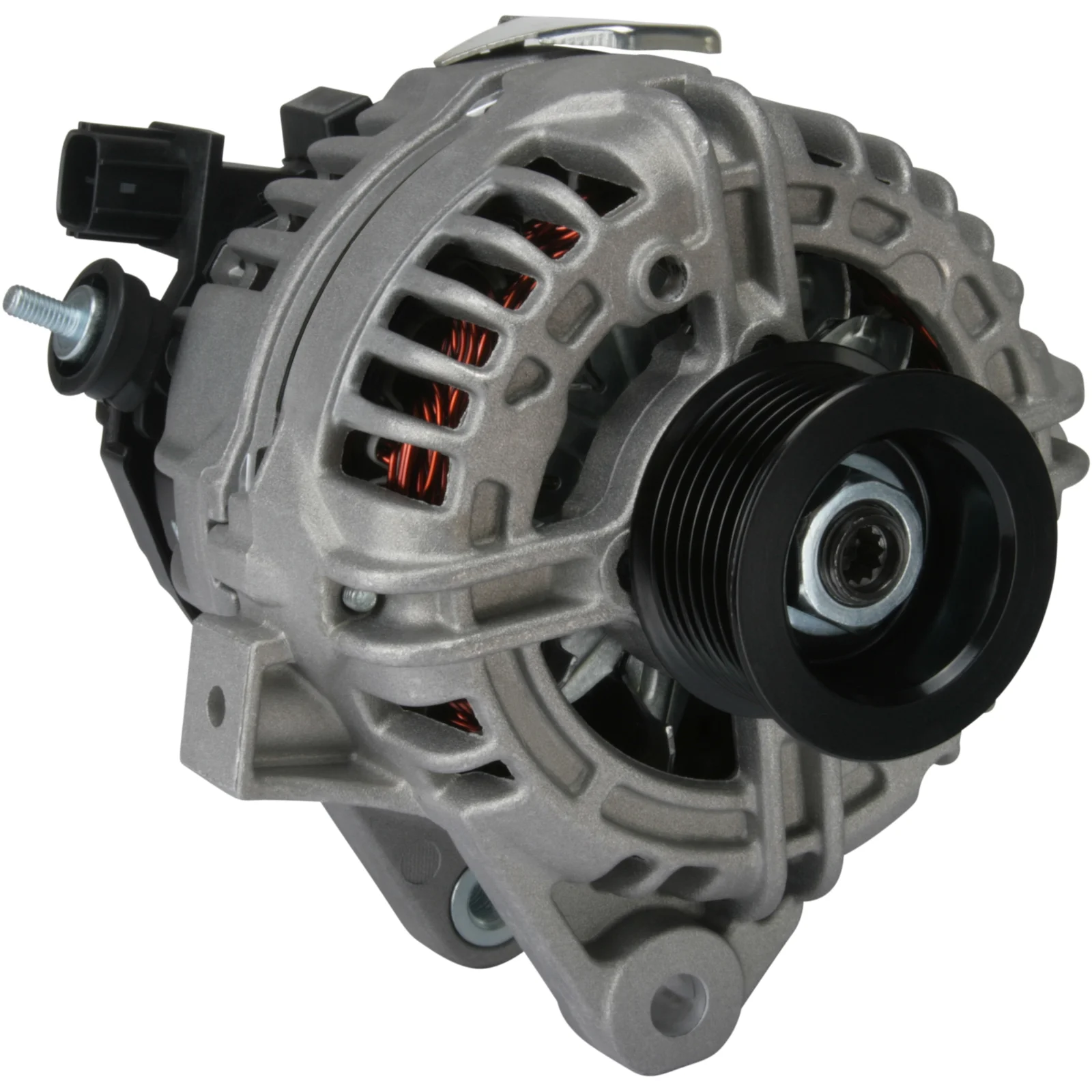

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 100, Rotasjon: CW, Monteringsbrakettavstand: 45.00

Beskrivelse

Toyota Avensis Gen. 12V-100A 12V - 100A, 7grader. (S, IG, L, DFM) Alternativ : 90-555-2823 Densodesign For Yourex produkt bestilling 90-555-4612

Spenning: 14
Amp: 100
Bøssing avstand: 35.00
Bredde/holderarm: 18.00
Monteringsbrakett avstand: 45.00
Brakettåpning: 11.00
Båndjustering brakettåpning pos.: 15
Båndjustering brakettåpning 1: M8
Bøssing diameter: 55.50
Groover/bøssing: 7
Radius: 84.00
Radius 2: 86.00
B+: M6
Posisjon/B+ i min.: 12
Rotasjon: CW
Pluggnr.: PL78
Bøssing: SP
Regulatorsort: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 45.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 15
Plug no. PL78
Bracket hole 11.00
Position/B+ in min. 12
Prod. info BN
Pulley SP
Pulley dia. 55.50
Pulley dist. 35.00
Radius 84.00
Radius 2 86.00
Regulator type IR
Rotation CW
Grooves/pulley 7
Voltage 14
Width/holder arm 18.00
Amp 100

  • OEM
    F032115416, 0124 325 085, 0124 325 086, 0986 046 120, 1907ir, 1986A00795, 27060-0H070, 27060-0h070, 27060-0H080, 27060-0H221, 115416, 0124325071, 0124325082, 0124325084, 0124325085, 0124325086

  • Konkurrentreferens
    A0224, A0646S, A0740S, A6055(DENSO), A6055(P), CAL40209, DRB6120, LRA03500, 8EL738212-721, 28-6610, 195.530.100, 195.530.110, 11088, 11088N, 209366, 209366A, 301907RI, 440843, 443022, 12060778, 0986046120, 0986046123

  • Bilmärken
    Toyota

  • NormaliseratArtNr
    a0224, a0646s, a0740s, a6055denso, a6055p, cal40209, drb6120, f032115416, lra03500, 8el738212721, 1907ir, 1986a00795, 11088, 11088n, 115416, 209366, 209366a, 270600h070, 270600h080, 270600h221, 286610, 301907ri, 440843, 443022, 12060778, 0124325071, 0124325082, 0124325084, 0124325085, 0124325086, 195530100, 195530110, 0986046120, 0986046123

  • Passar modeller
    Toyota Model: Avensis Model series: Avensis Size of motor: 2.0 Brand of engine: 1AZ-FSE Type description: T25 Body: Estate From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Size of motor: 2.0 Brand of engine: 1AZ-FSE Type description: T25 Body: Hatchback From date: 01-03-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Size of motor: 2.0 Brand of engine: 1AZ-FSE Type description: T25 From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Size of motor: 2.4 Brand of engine: 2AZ-FSE Type description: T25 Body: Estate From date: 01-09-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Size of motor: 2.4 Brand of engine: 2AZ-FSE Type description: T25 Body: Estate From date: 01-10-2003 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Size of motor: 2.4 Brand of engine: 2AZ-FSE Type description: T25 Body: Hatchback From date: 01-09-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Size of motor: 2.4 Brand of engine: 2AZ-FSE Type description: T25 Body: Hatchback From date: 01-10-2003 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Size of motor: 2.4 Brand of engine: 2AZ-FSE Type description: T25 From date: 01-09-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Size of motor: 2.4 Brand of engine: 2AZ-FSE Type description: T25 From date: 01-10-2003 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: VVTi Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: T25 Body: Estate From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    Toyota Series: Avensis (T25) Kombi Model: 2.0 Engine volume: 2.0 Engine type: 1AZ-FSE Year: 04.03-11.08
    Toyota Series: Avensis (T25) Kombi Model: 2.0 Engine volume: 2.0 Engine type: 1AZ-RE Year: 01.03-10.04
    Toyota Series: Avensis (T25) Kombi Model: 2.4 Engine volume: 2.4 Engine type: 2AZ-FSE Year: 10.03-11.08
    Toyota Series: Avensis (T25) Model: 2.0 Engine volume: 2.0 Engine type: 1AZ-FE Year: 01.03-10.08
    Toyota Series: Avensis (T25) Model: 2.0 Engine volume: 2.0 Engine type: 1AZ-FSE Year: 01.03-03.06
    Toyota Series: Avensis (T25) Model: 2.0 Engine volume: 2.0 Engine type: 1AZ-FSE Year: 04.03-
    Toyota Series: Avensis (T25) Model: 2.4 Engine volume: 2.4 Engine type: 2AZ-FSE Year: 09.03-03.06
    Toyota Series: Avensis (T25) Model: 2.4 Engine volume: 2.4 Engine type: 2AZ-FSE Year: 09.03-10.08
    Toyota Series: Avensis (T25) Model: 2.4 Engine volume: 2.4 Engine type: 2AZ-FSE Year: 10.03-03.06
    1 / 4
  • Beskrivelse
    Toyota Avensis Gen. 12V-100A 12V - 100A, 7grader. (S, IG, L, DFM) Alternativ : 90-555-2823 Densodesign For Yourex produkt bestilling 90-555-4612

    Spenning: 14
    Amp: 100
    Bøssing avstand: 35.00
    Bredde/holderarm: 18.00
    Monteringsbrakett avstand: 45.00
    Brakettåpning: 11.00
    Båndjustering brakettåpning pos.: 15
    Båndjustering brakettåpning 1: M8
    Bøssing diameter: 55.50
    Groover/bøssing: 7
    Radius: 84.00
    Radius 2: 86.00
    B+: M6
    Posisjon/B+ i min.: 12
    Rotasjon: CW
    Pluggnr.: PL78
    Bøssing: SP
    Regulatorsort: IR
    Prod. info: BN

    Filer

  • Spesifikasjon
    B+ M6
    Mount. bracket dist. 45.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 15
    Plug no. PL78
    Bracket hole 11.00
    Position/B+ in min. 12
    Prod. info BN
    Pulley SP
    Pulley dia. 55.50
    Pulley dist. 35.00
    Radius 84.00
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 7
    Voltage 14
    Width/holder arm 18.00
    Amp 100
  • Kjøretøymatching

    • OEM
      F032115416, 0124 325 085, 0124 325 086, 0986 046 120, 1907ir, 1986A00795, 27060-0H070, 27060-0h070, 27060-0H080, 27060-0H221, 115416, 0124325071, 0124325082, 0124325084, 0124325085, 0124325086

    • Konkurrentreferens
      A0224, A0646S, A0740S, A6055(DENSO), A6055(P), CAL40209, DRB6120, LRA03500, 8EL738212-721, 28-6610, 195.530.100, 195.530.110, 11088, 11088N, 209366, 209366A, 301907RI, 440843, 443022, 12060778, 0986046120, 0986046123

    • Bilmärken
      Toyota

    • NormaliseratArtNr
      a0224, a0646s, a0740s, a6055denso, a6055p, cal40209, drb6120, f032115416, lra03500, 8el738212721, 1907ir, 1986a00795, 11088, 11088n, 115416, 209366, 209366a, 270600h070, 270600h080, 270600h221, 286610, 301907ri, 440843, 443022, 12060778, 0124325071, 0124325082, 0124325084, 0124325085, 0124325086, 195530100, 195530110, 0986046120, 0986046123

    • Passar modeller
      Toyota Model: Avensis Model series: Avensis Size of motor: 2.0 Brand of engine: 1AZ-FSE Type description: T25 Body: Estate From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Size of motor: 2.0 Brand of engine: 1AZ-FSE Type description: T25 Body: Hatchback From date: 01-03-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Size of motor: 2.0 Brand of engine: 1AZ-FSE Type description: T25 From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Size of motor: 2.4 Brand of engine: 2AZ-FSE Type description: T25 Body: Estate From date: 01-09-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Size of motor: 2.4 Brand of engine: 2AZ-FSE Type description: T25 Body: Estate From date: 01-10-2003 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Size of motor: 2.4 Brand of engine: 2AZ-FSE Type description: T25 Body: Hatchback From date: 01-09-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Size of motor: 2.4 Brand of engine: 2AZ-FSE Type description: T25 Body: Hatchback From date: 01-10-2003 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Size of motor: 2.4 Brand of engine: 2AZ-FSE Type description: T25 From date: 01-09-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Size of motor: 2.4 Brand of engine: 2AZ-FSE Type description: T25 From date: 01-10-2003 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Type of engine: VVTi Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: T25 Body: Estate From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
      Toyota Series: Avensis (T25) Kombi Model: 2.0 Engine volume: 2.0 Engine type: 1AZ-FSE Year: 04.03-11.08
      Toyota Series: Avensis (T25) Kombi Model: 2.0 Engine volume: 2.0 Engine type: 1AZ-RE Year: 01.03-10.04
      Toyota Series: Avensis (T25) Kombi Model: 2.4 Engine volume: 2.4 Engine type: 2AZ-FSE Year: 10.03-11.08
      Toyota Series: Avensis (T25) Model: 2.0 Engine volume: 2.0 Engine type: 1AZ-FE Year: 01.03-10.08
      Toyota Series: Avensis (T25) Model: 2.0 Engine volume: 2.0 Engine type: 1AZ-FSE Year: 01.03-03.06
      Toyota Series: Avensis (T25) Model: 2.0 Engine volume: 2.0 Engine type: 1AZ-FSE Year: 04.03-
      Toyota Series: Avensis (T25) Model: 2.4 Engine volume: 2.4 Engine type: 2AZ-FSE Year: 09.03-03.06
      Toyota Series: Avensis (T25) Model: 2.4 Engine volume: 2.4 Engine type: 2AZ-FSE Year: 09.03-10.08
      Toyota Series: Avensis (T25) Model: 2.4 Engine volume: 2.4 Engine type: 2AZ-FSE Year: 10.03-03.06
