Varenr.: F032111937

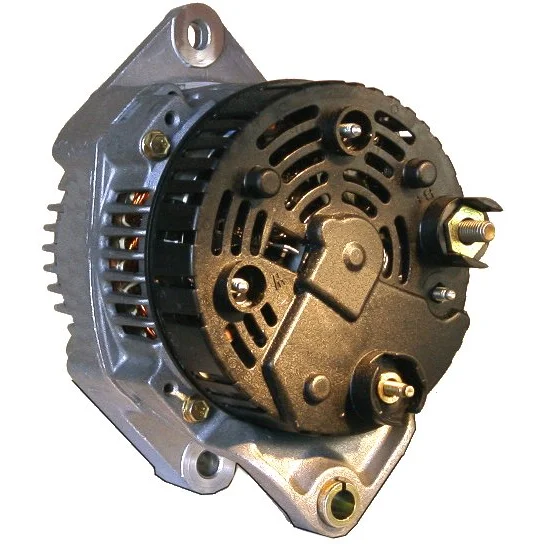

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 75, Rotasjon: CW, Monteringsbrakettavsnekking: 66,00

Beskrivelse

Spenningsnivå: 14
Ampere: 75
Terminal: W
Drevavstand: 52.00
Bredde/holderarm: 27.00
Festebrakettavstand: 66.00
Frakobling for brakkethull: 10.50
Belt. justering brakkethullposisjon: 60
Belt. justering brakkethull 1: 8.30
Drevskive diameter: 52.00
Groove/drevskive: 6
Radius: 86.00
Radius 2: 84.00
B+: M8
Posisjon/B+ i min.: 3
D+: Størrelse: M5
Rotasjon: med urviseren
W-kontakttype: 6.30
Total lengde mm: 192.00
Drevskive: SP
Regulator type: IR
Prod. info: BN
Service: Opel

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 66.00
Belt. adj. bracket hole 1 8.30
Belt. adj. brackethole pos. 60
Bracket hole 10.50
Position/B+ in min. 3
Prod. info BN
Pulley SP
Pulley dia. 52.00
Pulley dist. 52.00
Radius 86.00
D+ Size M5
Radius 2 84.00
Regulator type IR
Rotation CW
Servicing Opel
Grooves/pulley 6
Terminal W
Voltage 14
W plug type 6.30
Total length 192.00 mm
Width/holder arm 27.00
Amp 75

  • OEM
    a11vi81, F032111937, 1343ir, 1986A00678, 1986A01182, 2541928, 2541928A, 4500044, 9160344, 7700300407, 7711134617

  • Konkurrentreferens
    A3187, A3187PR, A3379PR, ALT-H068, ALT14107, CAL15170, dra3735, F042A0H068, lrb00419, QA2389, 8EL012430-211, 8el737539-001, 28-3727, 230.172.752, 575.595.075, 4952, 6005, 21419R, 119674, 200119, 210676, 210676A, 436706, 439182, 746083, 746883, 9042031, 12042030, 32042031, 0986042031, 0986042033, 943355149010, 944390420310

  • NormaliseratArtNr
    a11vi81, a3187, a3187pr, a3379pr, alt14107, alth068, cal15170, dra3735, f032111937, f042a0h068, lrb00419, qa2389, 8el012430211, 8el737539001, 1343ir, 1986a00678, 1986a01182, 4952, 6005, 21419r, 119674, 200119, 210676, 210676a, 283727, 436706, 439182, 746083, 746883, 2541928, 2541928a, 4500044, 9042031, 9160344, 12042030, 32042031, 230172752, 575595075, 0986042031, 0986042033, 7700300407, 7711134617, 943355149010, 944390420310

  • Passar modeller
    Opel Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: 25DG Body: Bus From date: 01-01-1997 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Opel Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: 25DG Body: Van From date: 01-01-1997 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Opel Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: 25DM Body: Bus From date: 01-01-1997 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Opel Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: 25DM Body: Van From date: 01-01-1997 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Opel Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U780 Body: Bus From date: 01-03-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Opel Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U780 Body: Van From date: 01-03-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Type description: F9 Body: Van From date: 01-01-1999 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Type description: J9 Body: Bus From date: 01-07-1998 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Type description: U9, E9 Body: Platform / Chassis From date: 01-07-1998 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U772 Type description: F9 Body: Van From date: 01-01-1999 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U772 Type description: J9 Body: Bus From date: 01-07-1998 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U772 Type description: U9, E9 Body: Platform / Chassis From date: 01-07-1998 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W700 Type description: F9 Body: Van From date: 01-01-1999 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W700 Type description: J9 Body: Bus From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W700 Type description: U9,E9 Body: Platform / Chassis From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W702 Type description: F9 Body: Van From date: 01-01-1999 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W702 Type description: J9 Body: Bus From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W702 Type description: U9,E9 Body: Platform / Chassis From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Body: Bus From date: 01-07-1998 To date: 01-01-2001 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Body: Platform / Chassis From date: 01-07-1998 To date: 01-01-2001 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Body: Van From date: 01-07-1998 To date: 01-01-2001 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Type of engine: Diesel Size of motor: 2.8 Brand of engine: S9W702 Body: Platform / Chassis From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W702 Body: Bus From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W702 Body: Van From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Van Type of engine: Diesel Size of motor: 2.8 Brand of engine: S8W700 Type description: FD Body: Van From date: 01-01-2002 To date: 01-09-2004 Fuel: Diesel Approved: Yes
    Vauxhall Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U758 Body: Bus From date: 01-03-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Vauxhall Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U780 Body: Bus From date: 01-03-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Vauxhall Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U780 Body: Van From date: 01-03-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Vauxhall Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U782 Body: Bus From date: 01-03-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Vauxhall Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U Body: Van From date: 01-10-1998 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Vauxhall Model: Movano Model series: Movano Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W702 Body: Bus From date: 01-10-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Vauxhall Model: Movano Model series: Movano Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W702 Body: Platform / Chassis From date: 01-10-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Vauxhall Model: Movano Model series: Movano Type of engine: TDi Size of motor: 2.8 Brand of engine: S9W702 Body: Van From date: 01-10-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    1 / 7
  • Beskrivelse
    Spenningsnivå: 14
    Ampere: 75
    Terminal: W
    Drevavstand: 52.00
    Bredde/holderarm: 27.00
    Festebrakettavstand: 66.00
    Frakobling for brakkethull: 10.50
    Belt. justering brakkethullposisjon: 60
    Belt. justering brakkethull 1: 8.30
    Drevskive diameter: 52.00
    Groove/drevskive: 6
    Radius: 86.00
    Radius 2: 84.00
    B+: M8
    Posisjon/B+ i min.: 3
    D+: Størrelse: M5
    Rotasjon: med urviseren
    W-kontakttype: 6.30
    Total lengde mm: 192.00
    Drevskive: SP
    Regulator type: IR
    Prod. info: BN
    Service: Opel

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 66.00
    Belt. adj. bracket hole 1 8.30
    Belt. adj. brackethole pos. 60
    Bracket hole 10.50
    Position/B+ in min. 3
    Prod. info BN
    Pulley SP
    Pulley dia. 52.00
    Pulley dist. 52.00
    Radius 86.00
    D+ Size M5
    Radius 2 84.00
    Regulator type IR
    Rotation CW
    Servicing Opel
    Grooves/pulley 6
    Terminal W
    Voltage 14
    W plug type 6.30
    Total length 192.00 mm
    Width/holder arm 27.00
    Amp 75
  • Kjøretøymatching

    • OEM
      a11vi81, F032111937, 1343ir, 1986A00678, 1986A01182, 2541928, 2541928A, 4500044, 9160344, 7700300407, 7711134617

    • Konkurrentreferens
      A3187, A3187PR, A3379PR, ALT-H068, ALT14107, CAL15170, dra3735, F042A0H068, lrb00419, QA2389, 8EL012430-211, 8el737539-001, 28-3727, 230.172.752, 575.595.075, 4952, 6005, 21419R, 119674, 200119, 210676, 210676A, 436706, 439182, 746083, 746883, 9042031, 12042030, 32042031, 0986042031, 0986042033, 943355149010, 944390420310

    • NormaliseratArtNr
      a11vi81, a3187, a3187pr, a3379pr, alt14107, alth068, cal15170, dra3735, f032111937, f042a0h068, lrb00419, qa2389, 8el012430211, 8el737539001, 1343ir, 1986a00678, 1986a01182, 4952, 6005, 21419r, 119674, 200119, 210676, 210676a, 283727, 436706, 439182, 746083, 746883, 2541928, 2541928a, 4500044, 9042031, 9160344, 12042030, 32042031, 230172752, 575595075, 0986042031, 0986042033, 7700300407, 7711134617, 943355149010, 944390420310

    • Passar modeller
      Opel Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: 25DG Body: Bus From date: 01-01-1997 To date: 01-12-2001 Fuel: Diesel Approved: Yes
      Opel Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: 25DG Body: Van From date: 01-01-1997 To date: 01-12-2001 Fuel: Diesel Approved: Yes
      Opel Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: 25DM Body: Bus From date: 01-01-1997 To date: 01-12-2001 Fuel: Diesel Approved: Yes
      Opel Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: 25DM Body: Van From date: 01-01-1997 To date: 01-12-2001 Fuel: Diesel Approved: Yes
      Opel Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U780 Body: Bus From date: 01-03-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
      Opel Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U780 Body: Van From date: 01-03-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Type description: F9 Body: Van From date: 01-01-1999 To date: 01-09-2000 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Type description: J9 Body: Bus From date: 01-07-1998 To date: 01-09-2000 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Type description: U9, E9 Body: Platform / Chassis From date: 01-07-1998 To date: 01-09-2000 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U772 Type description: F9 Body: Van From date: 01-01-1999 To date: 01-09-2000 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U772 Type description: J9 Body: Bus From date: 01-07-1998 To date: 01-09-2000 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U772 Type description: U9, E9 Body: Platform / Chassis From date: 01-07-1998 To date: 01-09-2000 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W700 Type description: F9 Body: Van From date: 01-01-1999 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W700 Type description: J9 Body: Bus From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W700 Type description: U9,E9 Body: Platform / Chassis From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W702 Type description: F9 Body: Van From date: 01-01-1999 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W702 Type description: J9 Body: Bus From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W702 Type description: U9,E9 Body: Platform / Chassis From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Renault Model: Master Model series: Master Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Body: Bus From date: 01-07-1998 To date: 01-01-2001 Fuel: Diesel Approved: Yes
      Renault Model: Master Model series: Master Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Body: Platform / Chassis From date: 01-07-1998 To date: 01-01-2001 Fuel: Diesel Approved: Yes
      Renault Model: Master Model series: Master Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Body: Van From date: 01-07-1998 To date: 01-01-2001 Fuel: Diesel Approved: Yes
      Renault Model: Master Model series: Master Type of engine: Diesel Size of motor: 2.8 Brand of engine: S9W702 Body: Platform / Chassis From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Renault Model: Master Model series: Master Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W702 Body: Bus From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Renault Model: Master Model series: Master Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W702 Body: Van From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Renault Model: Master Model series: Master Van Type of engine: Diesel Size of motor: 2.8 Brand of engine: S8W700 Type description: FD Body: Van From date: 01-01-2002 To date: 01-09-2004 Fuel: Diesel Approved: Yes
      Vauxhall Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U758 Body: Bus From date: 01-03-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
      Vauxhall Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U780 Body: Bus From date: 01-03-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
      Vauxhall Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U780 Body: Van From date: 01-03-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
      Vauxhall Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U782 Body: Bus From date: 01-03-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
      Vauxhall Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U Body: Van From date: 01-10-1998 To date: 01-09-2000 Fuel: Diesel Approved: Yes
      Vauxhall Model: Movano Model series: Movano Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W702 Body: Bus From date: 01-10-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Vauxhall Model: Movano Model series: Movano Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W702 Body: Platform / Chassis From date: 01-10-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Vauxhall Model: Movano Model series: Movano Type of engine: TDi Size of motor: 2.8 Brand of engine: S9W702 Body: Van From date: 01-10-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
