- Dynamo
-
HC-Cargo Dynamo
- Dynamo
-
HC-Cargo Dynamo
Varenr.: F032114064
HC-Cargo Dynamo
Spenning: 14, Amp: 150, Rotasjon: CW, Monteringsbrakett avstand: 74.00
Beskrivelse

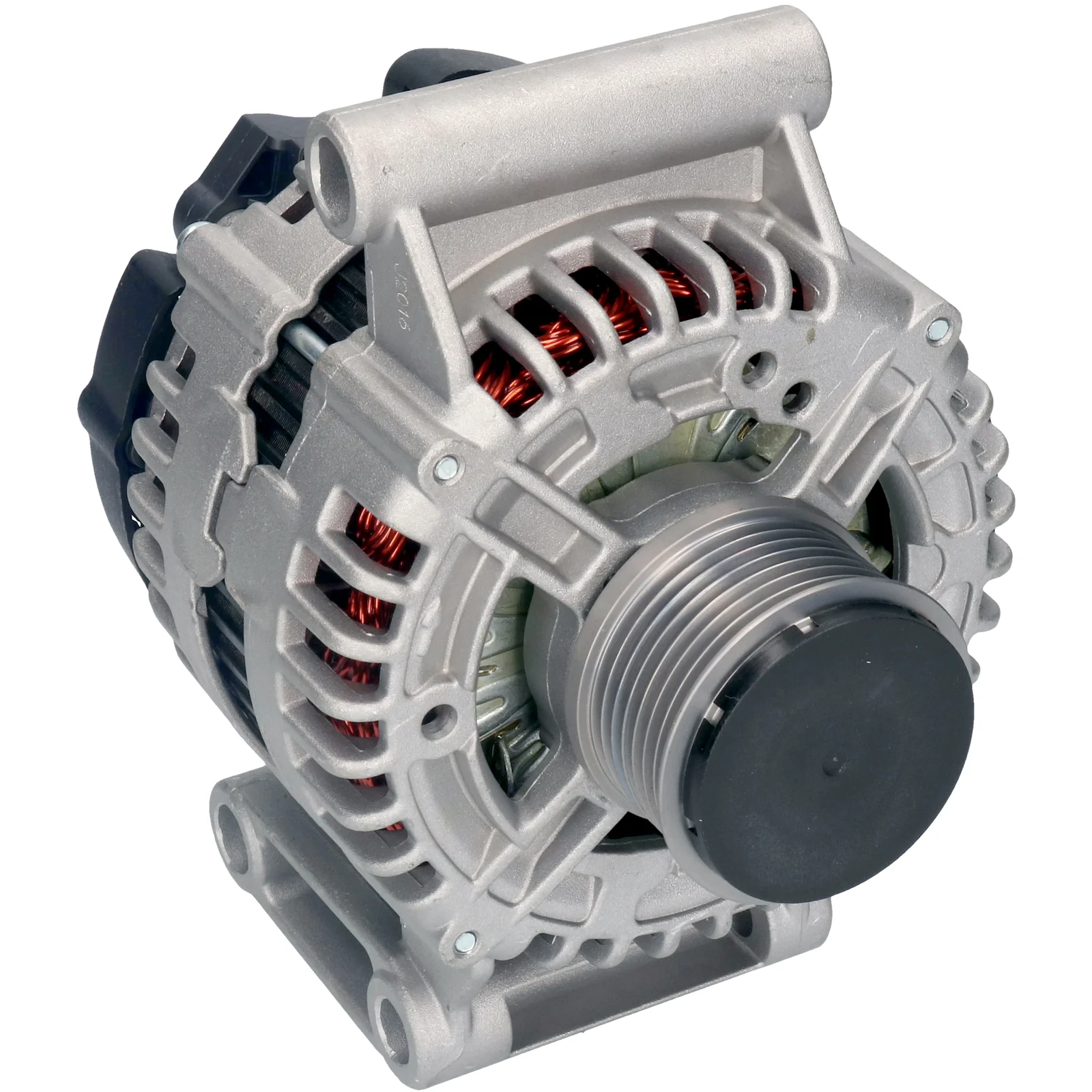

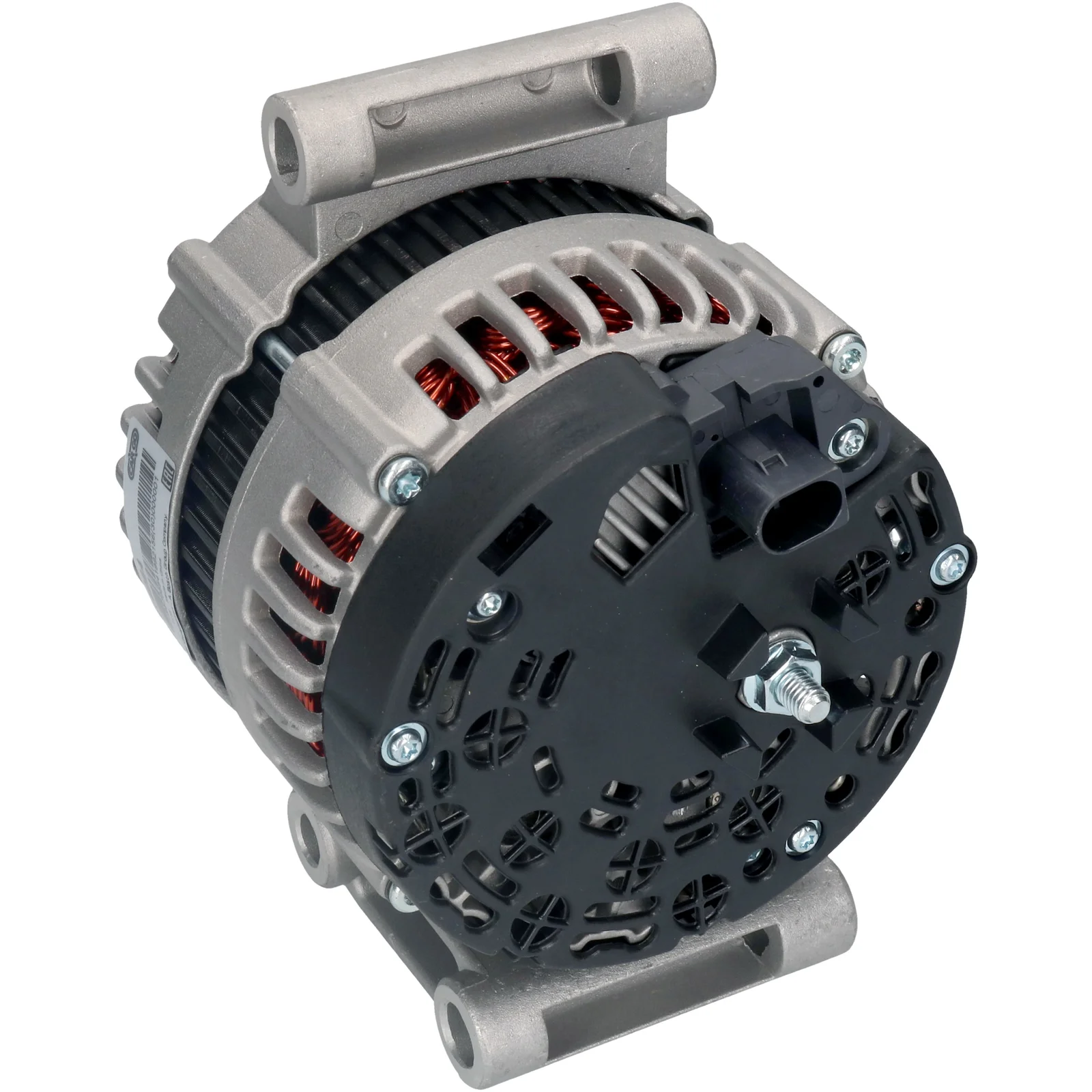

HC-Cargo Dynamo 12V - 150A, 7-grad. frg, (L, DFM) For Yourex produkt ordre 90-180-4792
Spenningsnivå: 14
Amp: 150
Regulervirsling: 42.50
Bredd/holderarm: 93.00
Monteringsbeslag avstand: 74.00
Beslagshull: 11.00
Beslagshull 2: 13.00
Belt. justering beslagshull 1: 10.50
Regulervirsling diameter: 58.50
Spor/diameter: 7
Radius: 87.50
Radius 2: 87.50
B+: M8
Posisjon/B+ i min.: 15
D+ Størrelse: Kontakt
Rotasjon: Medur
Kontakt nr.: PL61
Total lengde mm: 185.00
Dreven: SP/FW
Regulator type: IR
Prod. info: BN
Filer
Spesifikasjon
| B+ | M8 |
|---|---|
| Mount. bracket dist. | 74.00 |
| Belt. adj. bracket hole 1 | 10.50 |
| Plug no. | PL61 |
| Bracket hole | 11.00 |
| Bracket hole 2 | 13.00 |
| Position/B+ in min. | 15 |
| Prod. info | BN |
| Pulley | SP/FW |
| Pulley dia. | 58.50 |
| Pulley dist. | 42.50 |
| Radius | 87.50 |
| D+ Size | Plug |
| Radius 2 | 87.50 |
| Regulator type | IR |
| Rotation | CW |
| Grooves/pulley | 7 |
| Voltage | 14 |
| Total length | 185.00 mm |
| Width/holder arm | 93.00 |
| Amp | 150 |
-
OEM
F032114064, FO 1404792, FO 1581844, LR008856, YLE 500310, yle500310, 1T10300CA, 1T10300CB, 6C1J10300CA, 6C1T-10300CA, 6C1T-10300CB, 6C1T-10300CC, 6c1t10300ca, 6c1t10300cb, 6c1t10300cc, 6C1T10300CD, 7H1210300AA, 0121 615 003, 0986 047 920, 01210AA68B, 1922ir, 1986A00678, 114064, 1372737, 1404792, 1581844, 1730987, 1747017, 1791837, 2097255, 0121415003, 0121615003, 0121615049, 0121615103, 0125711018, 0125711049 -
Konkurrentreferens
A0200PR, A0200SR, A0364, A0364PR, A0692S, CAL10308, CAL10444, DRA1035, DRB7920, DRB7920N, 8EL012428-821, 28-5592, 4721, 23977N, 23977R, 112234, 210422, 210422A, 210862, 210862A, 301922RI, 440476, 440717, 443120, 12047920, 32047920, 0986047920, 944390902420 -
Bilmärken
Ford Europe Trucks & Vans, Land Rover -
NormaliseratArtNr
a0200pr, a0200sr, a0364, a0364pr, a0692s, cal10308, cal10444, dra1035, drb7920, drb7920n, f032114064, fo1404792, fo1581844, lr008856, yle500310, 1t10300ca, 1t10300cb, 6c1j10300ca, 6c1t10300ca, 6c1t10300cb, 6c1t10300cc, 6c1t10300cd, 7h1210300aa, 8el012428821, 01210aa68b, 1922ir, 1986a00678, 4721, 23977n, 23977r, 112234, 114064, 210422, 210422a, 210862, 210862a, 285592, 301922ri, 440476, 440717, 443120, 1372737, 1404792, 1581844, 1730987, 1747017, 1791837, 2097255, 12047920, 32047920, 0121415003, 0121615003, 0121615049, 0121615103, 0125711018, 0125711049, 0986047920, 944390902420 -
Passar modeller
Ford Europe Trucks & Vans Series: Transit (2006 >) Model: 2.4 TDCI Engine volume: 2.4 Engine type: H9FB Year: 07.06- Ford Europe Trucks & Vans Series: Transit (2006 >) Model: 2.4 TDCi Engine volume: 2.4 Engine type: H9FD Year: 07.06-01.11 Ford Europe Trucks & Vans Series: Transit (2006 >) Model: 2.4 TDCi Engine volume: 2.4 Engine type: JXFA / JXFC Year: 07.06-01.11 Ford Europe Trucks & Vans Series: Transit (2006 >) Model: 2.4 TDCI Engine volume: 2.4 Engine type: JXFA Year: 07.06- Ford Europe Trucks & Vans Series: Transit (2006 >) Model: 2.4 TDCi Engine volume: 2.4 Engine type: PHFA / PHFC Year: 07.06- Ford Europe Trucks & Vans Series: Transit (2006 >) Model: 2.4 TDCi 4x4 Engine volume: 2.4 Engine type: H9FB Year: 09.07-01.11 Ford Europe Trucks & Vans Series: Transit Flak/Chassi Model: 3.2 TDCI Engine volume: 3.2 Engine type: SAFA / SAFB Year: 09.07-01.11 Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.4 Brand of engine: H9FB Body: Bus From date: 01-11-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.4 Brand of engine: H9FB Body: Platform / Chassis From date: 01-11-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.4 Brand of engine: H9FB Body: Van From date: 01-11-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: H9FB Body: Bus From date: 01-04-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: H9FD Body: Platform / Chassis From date: 01-04-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: H9FD Body: Van From date: 01-04-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: JXFA Body: Bus From date: 01-04-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: JXFA Body: Platform / Chassis From date: 01-04-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: JXFA Body: Van From date: 01-04-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: JXFC Body: Bus From date: 01-04-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: JXFC Body: Platform / Chassis From date: 01-04-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: JXFC Body: Van From date: 01-04-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: PHFA Body: Bus From date: 01-04-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: PHFA Body: Platform / Chassis From date: 01-04-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: PHFA Body: Van From date: 01-04-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: PHFC Body: Bus From date: 01-04-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: PHFC Body: Platform / Chassis From date: 01-04-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: PHFC Body: Van From date: 01-04-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 3.2 Brand of engine: SAFA Body: Bus From date: 01-02-2008 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 3.2 Brand of engine: SAFA Body: Platform / Chassis From date: 01-09-2007 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 3.2 Brand of engine: SAFA Body: Van From date: 01-09-2007 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 3.2 Brand of engine: SAFB Body: Bus From date: 01-02-2008 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 3.2 Brand of engine: SAFB Body: Platform / Chassis From date: 01-09-2007 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 3.2 Brand of engine: SAFB Body: Van From date: 01-09-2007 To date: 01-08-2014 Fuel: Diesel Approved: Yes Land Rover Model: Defender Model series: Defender Model type: 4x4 Type of engine: TDI Size of motor: 2.4 Brand of engine: DT244 Type description: L316 From date: 01-07-2007 To date: 01-02-2016 Fuel: Diesel Approved: Yes Land Rover Model: Defender Model series: Defender Model type: TD4 Type of engine: TD Size of motor: 2.4 Brand of engine: 244DT Type description: LD From date: 01-05-2007 To date: 01-02-2016 Fuel: Diesel Approved: Yes Land Rover Model: Defender Model series: Defender Model type: TD4 Type of engine: TD Size of motor: 2.4 Brand of engine: 244DT Type description: LD From date: 01-10-2006 To date: 01-02-2016 Fuel: Diesel Approved: Yes Land Rover Model: Defender Model series: Defender Model type: TD4 Type of engine: TD Size of motor: 2.4 Brand of engine: 244DT Type description: LD_ Body: Pick Up From date: 01-05-2007 To date: 01-02-2016 Fuel: Diesel Approved: Yes Land Rover Series: Defender Model: 2.4 Td4 Engine volume: 2.4 Engine type: 244 DT Year: 08.07- 1 / 8
-
Beskrivelse
HC-Cargo Dynamo 12V - 150A, 7-grad. frg, (L, DFM) For Yourex produkt ordre 90-180-4792 Spenningsnivå: 14 Amp: 150 Regulervirsling: 42.50 Bredd/holderarm: 93.00 Monteringsbeslag avstand: 74.00 Beslagshull: 11.00 Beslagshull 2: 13.00 Belt. justering beslagshull 1: 10.50 Regulervirsling diameter: 58.50 Spor/diameter: 7 Radius: 87.50 Radius 2: 87.50 B+: M8 Posisjon/B+ i min.: 15 D+ Størrelse: Kontakt Rotasjon: Medur Kontakt nr.: PL61 Total lengde mm: 185.00 Dreven: SP/FW Regulator type: IR Prod. info: BN
Filer
-
Spesifikasjon
B+ M8 Mount. bracket dist. 74.00 Belt. adj. bracket hole 1 10.50 Plug no. PL61 Bracket hole 11.00 Bracket hole 2 13.00 Position/B+ in min. 15 Prod. info BN Pulley SP/FW Pulley dia. 58.50 Pulley dist. 42.50 Radius 87.50 D+ Size Plug Radius 2 87.50 Regulator type IR Rotation CW Grooves/pulley 7 Voltage 14 Total length 185.00 mm Width/holder arm 93.00 Amp 150 -
Kjøretøymatching
-
OEM
F032114064, FO 1404792, FO 1581844, LR008856, YLE 500310, yle500310, 1T10300CA, 1T10300CB, 6C1J10300CA, 6C1T-10300CA, 6C1T-10300CB, 6C1T-10300CC, 6c1t10300ca, 6c1t10300cb, 6c1t10300cc, 6C1T10300CD, 7H1210300AA, 0121 615 003, 0986 047 920, 01210AA68B, 1922ir, 1986A00678, 114064, 1372737, 1404792, 1581844, 1730987, 1747017, 1791837, 2097255, 0121415003, 0121615003, 0121615049, 0121615103, 0125711018, 0125711049 -
Konkurrentreferens
A0200PR, A0200SR, A0364, A0364PR, A0692S, CAL10308, CAL10444, DRA1035, DRB7920, DRB7920N, 8EL012428-821, 28-5592, 4721, 23977N, 23977R, 112234, 210422, 210422A, 210862, 210862A, 301922RI, 440476, 440717, 443120, 12047920, 32047920, 0986047920, 944390902420 -
Bilmärken
Ford Europe Trucks & Vans, Land Rover -
NormaliseratArtNr
a0200pr, a0200sr, a0364, a0364pr, a0692s, cal10308, cal10444, dra1035, drb7920, drb7920n, f032114064, fo1404792, fo1581844, lr008856, yle500310, 1t10300ca, 1t10300cb, 6c1j10300ca, 6c1t10300ca, 6c1t10300cb, 6c1t10300cc, 6c1t10300cd, 7h1210300aa, 8el012428821, 01210aa68b, 1922ir, 1986a00678, 4721, 23977n, 23977r, 112234, 114064, 210422, 210422a, 210862, 210862a, 285592, 301922ri, 440476, 440717, 443120, 1372737, 1404792, 1581844, 1730987, 1747017, 1791837, 2097255, 12047920, 32047920, 0121415003, 0121615003, 0121615049, 0121615103, 0125711018, 0125711049, 0986047920, 944390902420 -
Passar modeller
Ford Europe Trucks & Vans Series: Transit (2006 >) Model: 2.4 TDCI Engine volume: 2.4 Engine type: H9FB Year: 07.06- Ford Europe Trucks & Vans Series: Transit (2006 >) Model: 2.4 TDCi Engine volume: 2.4 Engine type: H9FD Year: 07.06-01.11 Ford Europe Trucks & Vans Series: Transit (2006 >) Model: 2.4 TDCi Engine volume: 2.4 Engine type: JXFA / JXFC Year: 07.06-01.11 Ford Europe Trucks & Vans Series: Transit (2006 >) Model: 2.4 TDCI Engine volume: 2.4 Engine type: JXFA Year: 07.06- Ford Europe Trucks & Vans Series: Transit (2006 >) Model: 2.4 TDCi Engine volume: 2.4 Engine type: PHFA / PHFC Year: 07.06- Ford Europe Trucks & Vans Series: Transit (2006 >) Model: 2.4 TDCi 4x4 Engine volume: 2.4 Engine type: H9FB Year: 09.07-01.11 Ford Europe Trucks & Vans Series: Transit Flak/Chassi Model: 3.2 TDCI Engine volume: 3.2 Engine type: SAFA / SAFB Year: 09.07-01.11 Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.4 Brand of engine: H9FB Body: Bus From date: 01-11-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.4 Brand of engine: H9FB Body: Platform / Chassis From date: 01-11-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.4 Brand of engine: H9FB Body: Van From date: 01-11-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: H9FB Body: Bus From date: 01-04-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: H9FD Body: Platform / Chassis From date: 01-04-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: H9FD Body: Van From date: 01-04-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: JXFA Body: Bus From date: 01-04-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: JXFA Body: Platform / Chassis From date: 01-04-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: JXFA Body: Van From date: 01-04-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: JXFC Body: Bus From date: 01-04-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: JXFC Body: Platform / Chassis From date: 01-04-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: JXFC Body: Van From date: 01-04-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: PHFA Body: Bus From date: 01-04-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: PHFA Body: Platform / Chassis From date: 01-04-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: PHFA Body: Van From date: 01-04-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: PHFC Body: Bus From date: 01-04-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: PHFC Body: Platform / Chassis From date: 01-04-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.4 Brand of engine: PHFC Body: Van From date: 01-04-2006 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 3.2 Brand of engine: SAFA Body: Bus From date: 01-02-2008 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 3.2 Brand of engine: SAFA Body: Platform / Chassis From date: 01-09-2007 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 3.2 Brand of engine: SAFA Body: Van From date: 01-09-2007 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 3.2 Brand of engine: SAFB Body: Bus From date: 01-02-2008 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 3.2 Brand of engine: SAFB Body: Platform / Chassis From date: 01-09-2007 To date: 01-08-2014 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 3.2 Brand of engine: SAFB Body: Van From date: 01-09-2007 To date: 01-08-2014 Fuel: Diesel Approved: Yes Land Rover Model: Defender Model series: Defender Model type: 4x4 Type of engine: TDI Size of motor: 2.4 Brand of engine: DT244 Type description: L316 From date: 01-07-2007 To date: 01-02-2016 Fuel: Diesel Approved: Yes Land Rover Model: Defender Model series: Defender Model type: TD4 Type of engine: TD Size of motor: 2.4 Brand of engine: 244DT Type description: LD From date: 01-05-2007 To date: 01-02-2016 Fuel: Diesel Approved: Yes Land Rover Model: Defender Model series: Defender Model type: TD4 Type of engine: TD Size of motor: 2.4 Brand of engine: 244DT Type description: LD From date: 01-10-2006 To date: 01-02-2016 Fuel: Diesel Approved: Yes Land Rover Model: Defender Model series: Defender Model type: TD4 Type of engine: TD Size of motor: 2.4 Brand of engine: 244DT Type description: LD_ Body: Pick Up From date: 01-05-2007 To date: 01-02-2016 Fuel: Diesel Approved: Yes Land Rover Series: Defender Model: 2.4 Td4 Engine volume: 2.4 Engine type: 244 DT Year: 08.07- 1 / 8
-
