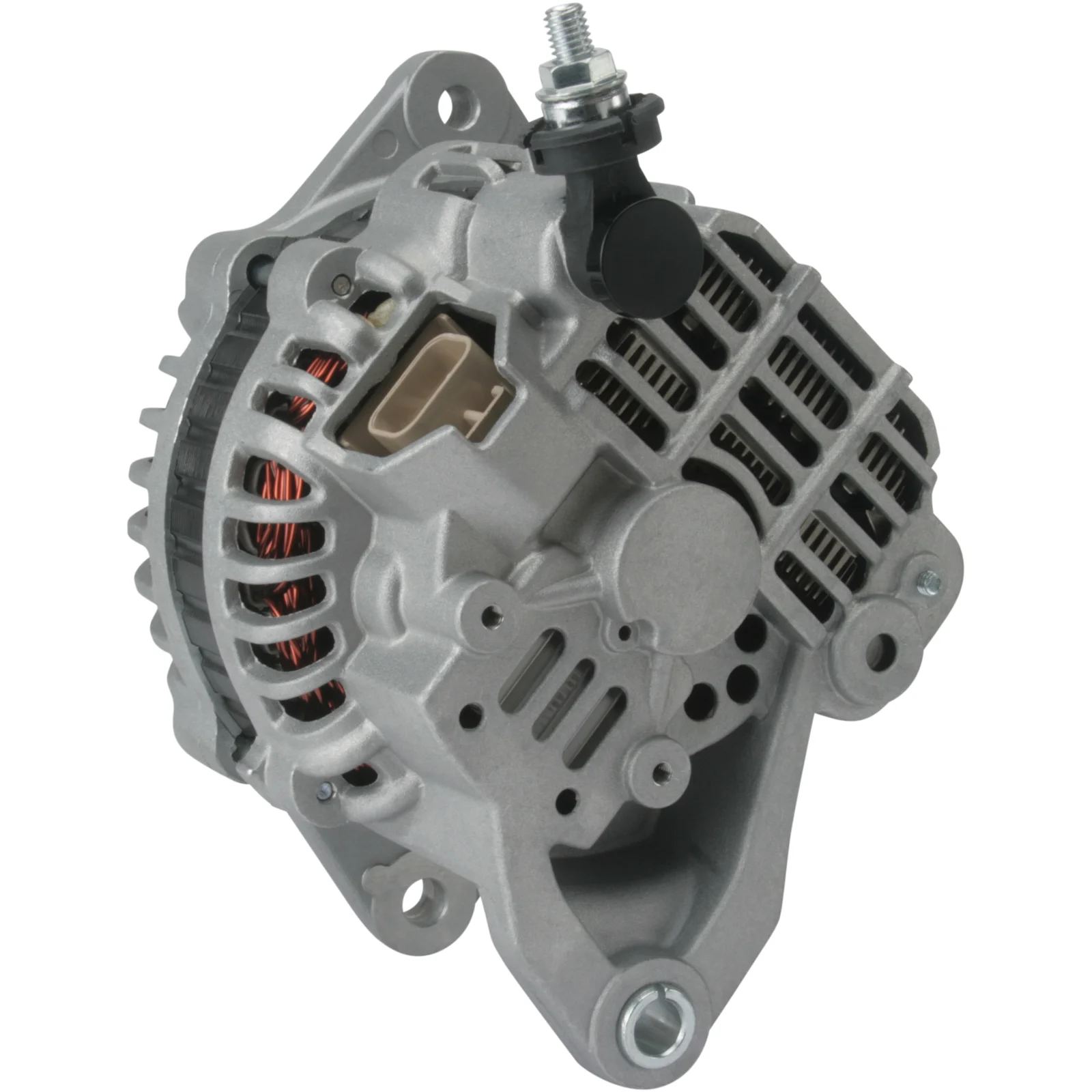

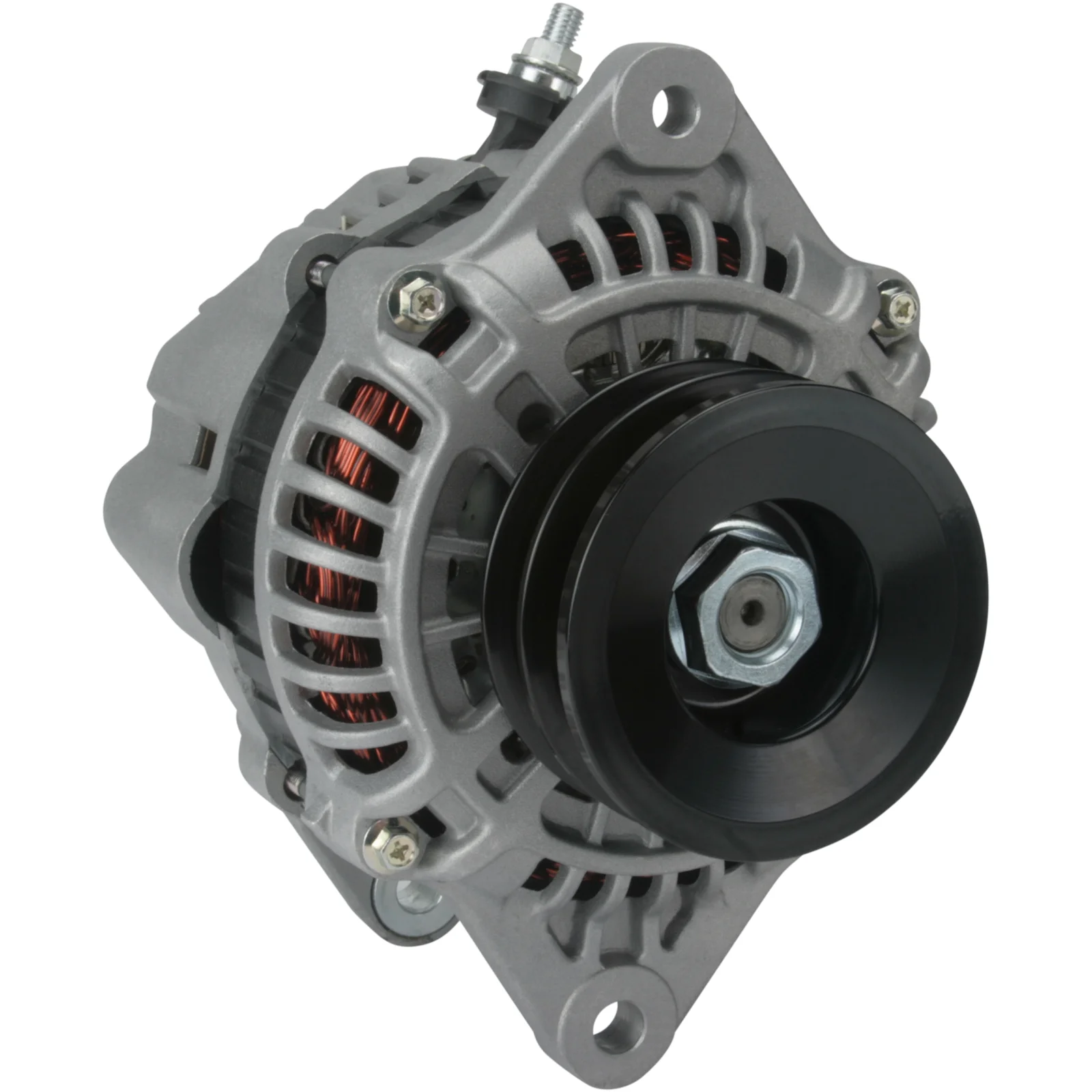

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032115550

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 90, Rotasjon: CW, Festebrakett avstand: 81.00

Beskrivelse

Nissan Pickup Dynamo 12V-90A 12V - 90A, 2V, (S, L) 12V - 90A, dobbel remskive med 1spor remskive = 90-400-5312. For Yourex produktbestilling 90-400-5099

Spenning: 14
Ampere: 90
Remskive avstand: 37,50
Bredde/holderarm: 13,00
Festebrakett avstand: 81,00
Brakettbolt: 10,50
Båndjustering brakettboltposisjon: 60
Remskivens diameter: 86,00
Riller/remskive: 2
Radius: 90,00
Radius 2: 85,00
B+: M8
Posisjon/B+ i min.: 58
Roation: CW
Stikkontakt nr.: PL07
Total lengde mm: 178,50
Remskive: DP
Regulator type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 81.00
Belt. adj. brackethole pos. 60
Plug no. PL07
Bracket hole 10.50
Position/B+ in min. 58
Prod. info BN
Pulley DP
Pulley dia. 86.00
Pulley dist. 37.50
Radius 90.00
Radius 2 85.00
Regulator type IR
Rotation CW
Grooves/pulley 2
Voltage 14
Total length 178.50 mm
Width/holder arm 13.00
Amp 90

  • OEM
    A003TB5099, A3T-B5099, A3TB0699, A3TB5099, F032115550, 1983ir, 1986A01416, 23100-VK010, 23100-VK0R0, 115550

  • Konkurrentreferens
    A5043, ALT-3520, CAL35163, DRA0145, DRA0145N, F042303120, F042A03120, 165.536.090, 23308N, 23308R, 440539, 12060911, 0986080740

  • Bilmärken
    Nissan

  • NormaliseratArtNr
    a003tb5099, a3tb0699, a3tb5099, a5043, alt3520, cal35163, dra0145, dra0145n, f032115550, f042303120, f042a03120, 1983ir, 1986a01416, 23100vk010, 23100vk0r0, 23308n, 23308r, 115550, 440539, 12060911, 165536090, 0986080740

  • Passar modeller
    Nissan Model: NP 300 Model series: NP 300 Model type: 4x4 Type of engine: DCi Size of motor: 2.5 Brand of engine: YD25DDTI Body: Pick Up From date: 01-04-2008 Fuel: Diesel Approved: Yes
    Nissan Model: NP 300 Model series: NP 300 Type of engine: DCi Size of motor: 2.5 Brand of engine: YD25DDTi Body: Pick Up From date: 01-04-2008 Fuel: Diesel Approved: Yes
    Nissan Model: Pick Up Model series: Pick Up Model type: 4WD Type of engine: dCi Size of motor: 2.5 Brand of engine: YD25DDTi Type description: D22 Body: Pickup From date: 01-03-2002 Fuel: Diesel Approved: Yes
    Nissan Model: Pick Up Model series: Pick Up Model type: dCi Type of engine: dci Size of motor: 2.5 Brand of engine: YD25DDTi Type description: D22G Body: Platform/Chassis Fuel: Diesel Approved: Yes
    Nissan Model: Pick-Up Model series: Pick-Up Type of engine: TD Size of motor: 2.5 Brand of engine: YD25DDTi Type description: D22 Body: Pick Up From date: 01-03-2002 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Nissan Series: Navara (D22) Model: 2.5 D 4x4 Engine volume: 2.5 Engine type: YD 25 DDTi Year: 11.01-01.08
    Nissan Series: Pick-Up (D22) Model: 2.5 dCi 4x4 Engine volume: 2.5 Engine type: YD 25 DDTi Year: 04.08-
    Nissan Series: Pick-Up (D22) Model: 2.5 dCi Engine volume: 2.5 Year: 04.08-
    Nissan Series: Pick-Up (D22) Model: 2.5 TD 4WD Engine volume: 2.5 Engine type: TD 25 TI Year: 01.00-
    1 / 2
  • Beskrivelse
    Nissan Pickup Dynamo 12V-90A 12V - 90A, 2V, (S, L) 12V - 90A, dobbel remskive med 1spor remskive = 90-400-5312. For Yourex produktbestilling 90-400-5099

    Spenning: 14
    Ampere: 90
    Remskive avstand: 37,50
    Bredde/holderarm: 13,00
    Festebrakett avstand: 81,00
    Brakettbolt: 10,50
    Båndjustering brakettboltposisjon: 60
    Remskivens diameter: 86,00
    Riller/remskive: 2
    Radius: 90,00
    Radius 2: 85,00
    B+: M8
    Posisjon/B+ i min.: 58
    Roation: CW
    Stikkontakt nr.: PL07
    Total lengde mm: 178,50
    Remskive: DP
    Regulator type: IR
    Prod. info: BN

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 81.00
    Belt. adj. brackethole pos. 60
    Plug no. PL07
    Bracket hole 10.50
    Position/B+ in min. 58
    Prod. info BN
    Pulley DP
    Pulley dia. 86.00
    Pulley dist. 37.50
    Radius 90.00
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 2
    Voltage 14
    Total length 178.50 mm
    Width/holder arm 13.00
    Amp 90
  • Kjøretøymatching

    • OEM
      A003TB5099, A3T-B5099, A3TB0699, A3TB5099, F032115550, 1983ir, 1986A01416, 23100-VK010, 23100-VK0R0, 115550

    • Konkurrentreferens
      A5043, ALT-3520, CAL35163, DRA0145, DRA0145N, F042303120, F042A03120, 165.536.090, 23308N, 23308R, 440539, 12060911, 0986080740

    • Bilmärken
      Nissan

    • NormaliseratArtNr
      a003tb5099, a3tb0699, a3tb5099, a5043, alt3520, cal35163, dra0145, dra0145n, f032115550, f042303120, f042a03120, 1983ir, 1986a01416, 23100vk010, 23100vk0r0, 23308n, 23308r, 115550, 440539, 12060911, 165536090, 0986080740

    • Passar modeller
      Nissan Model: NP 300 Model series: NP 300 Model type: 4x4 Type of engine: DCi Size of motor: 2.5 Brand of engine: YD25DDTI Body: Pick Up From date: 01-04-2008 Fuel: Diesel Approved: Yes
      Nissan Model: NP 300 Model series: NP 300 Type of engine: DCi Size of motor: 2.5 Brand of engine: YD25DDTi Body: Pick Up From date: 01-04-2008 Fuel: Diesel Approved: Yes
      Nissan Model: Pick Up Model series: Pick Up Model type: 4WD Type of engine: dCi Size of motor: 2.5 Brand of engine: YD25DDTi Type description: D22 Body: Pickup From date: 01-03-2002 Fuel: Diesel Approved: Yes
      Nissan Model: Pick Up Model series: Pick Up Model type: dCi Type of engine: dci Size of motor: 2.5 Brand of engine: YD25DDTi Type description: D22G Body: Platform/Chassis Fuel: Diesel Approved: Yes
      Nissan Model: Pick-Up Model series: Pick-Up Type of engine: TD Size of motor: 2.5 Brand of engine: YD25DDTi Type description: D22 Body: Pick Up From date: 01-03-2002 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Nissan Series: Navara (D22) Model: 2.5 D 4x4 Engine volume: 2.5 Engine type: YD 25 DDTi Year: 11.01-01.08
      Nissan Series: Pick-Up (D22) Model: 2.5 dCi 4x4 Engine volume: 2.5 Engine type: YD 25 DDTi Year: 04.08-
      Nissan Series: Pick-Up (D22) Model: 2.5 dCi Engine volume: 2.5 Year: 04.08-
      Nissan Series: Pick-Up (D22) Model: 2.5 TD 4WD Engine volume: 2.5 Engine type: TD 25 TI Year: 01.00-
      1 / 2
