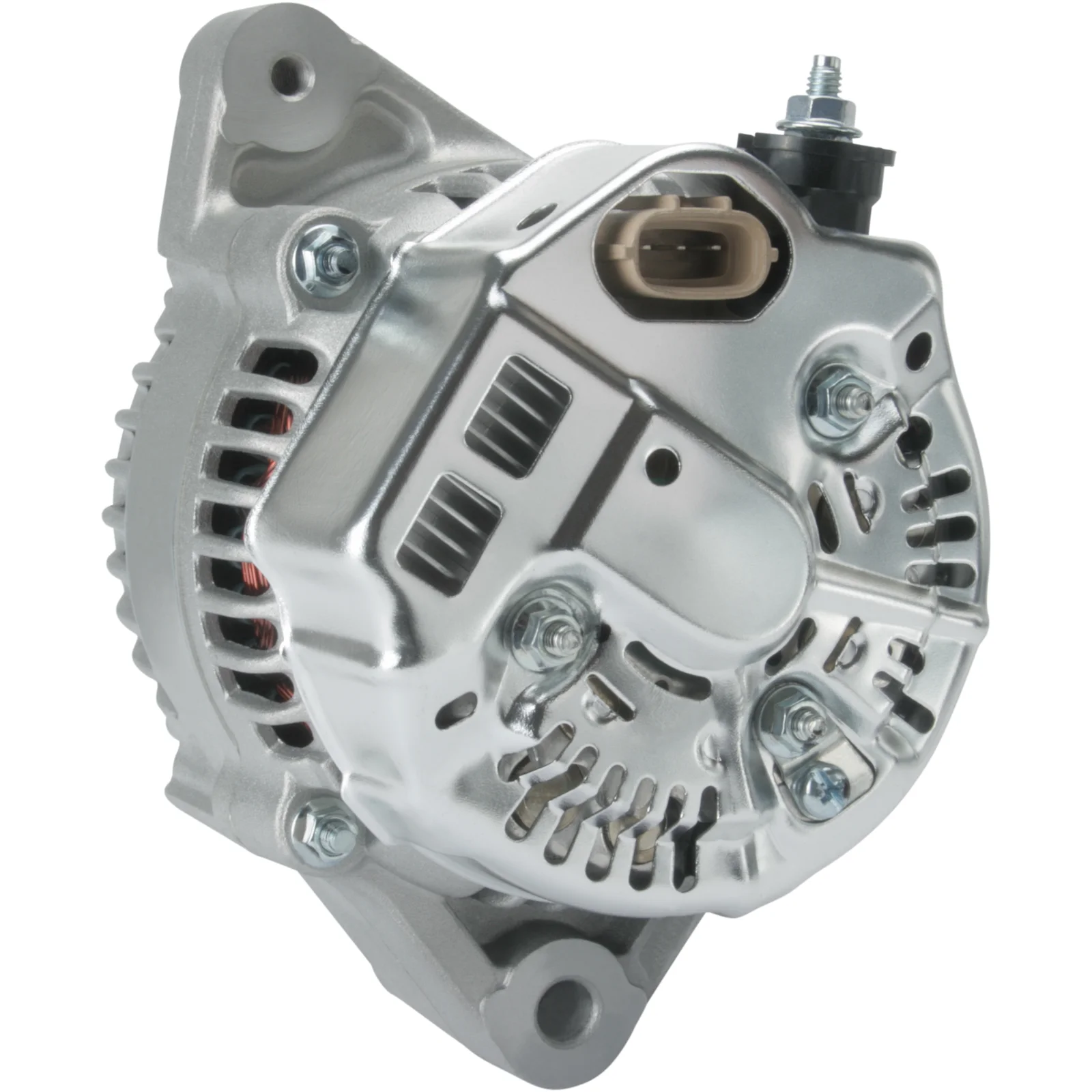

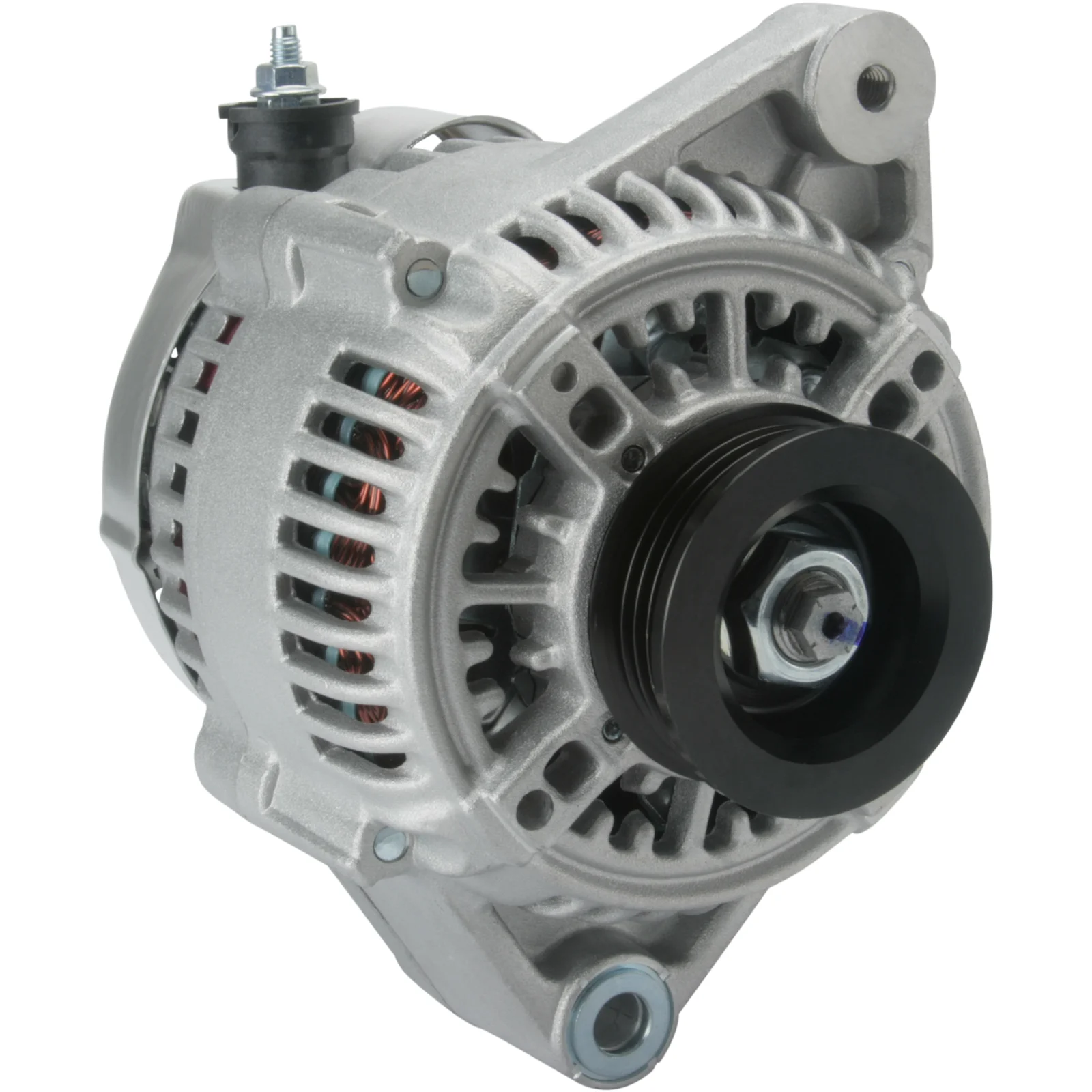

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032111518

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 70, Rotasjon: CW, Reimskive diameter: 59.50

Beskrivelse

Toyota Corolla 1.3 Gen.12V-70A 12V - 70A, 4-kr. remskive, (S, IG, L) 12V - 70A, 4-kr. remskive, (S-IG-L) For Yourex produktbestilling 90-555-1127

Spennings: 14
Ampere: 70
Reimhjul avstand: 89.00
Bredde/holderarm: 58.00
Støttebenshull: 10.20
Bånd. justering av reimskiveposisjon: 5
Bånd. justering av reimskive hull 1: M8
Remskive diameter: 59.50
Groover/remskive: 4
Radius: 79.00
Radius 2: 85.50
B+: M6
Posisjon/B+ i min.: 5
D+ størrelse: Plugg
Rotasjon: med urviseren
Plugg nr.: PL42
Total lengde mm: 155.00
Terminaltype: L-IG-S
Remskive: SP
Regulator type: IR
Produktsinformasjon: BN
Service: Toyota

Filer

Spesifikasjon

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 5
Plug no. PL42
Bracket hole 10.20
Position/B+ in min. 5
Prod. info BN
Pulley SP
Pulley dia. 59.50
Pulley dist. 89.00
Radius 79.00
D+ Size Plug
Radius 2 85.50
Regulator type IR
Rotation CW
Servicing Toyota
Grooves/pulley 4
Terminal type L-IG-S
Voltage 14
Total length 155.00 mm
Width/holder arm 58.00
Amp 70

  • OEM
    F032111518, ja1178ir, 1986A01276, 27060-11170, 27060-11270, 27060-11280, 27060-11281, 27060-11320, 27060-11340, 27060-55060, 27060-55070, 101211-0050, 101211-0051, 101211-0052, 101211-0340, 101211-0341, 101211-0342, 101211-0430, 101211-0431, 101211-0432, 101211-0740, 101211-0741, 101211-5150, 101211-5151, 101211-5970, 102211-5090, 102211-5091, 111518

  • Konkurrentreferens
    A6009, AL3249X, AL3262X, ALT-5062, ALT5062, CAL40140, dra3506, dra3508, F042302053, F042A02053, J5112088, lrb00212, lrb00337, QA2017, 1-1839-01ND, 1-1936-01ND, 1-1978-01ND, 1-2081-01ND, 1-2211-01ND, 8EL012426-621, 8EL012427-891, 8el737063-001, 8el737321-001, 28-2537, 28-2540, 235.139.552, 235.139.702, 535.132.702, 3142N, 3142R, 5478, 5666, 13457, 13457N, 13486N, 13486R, 13489R, 13711N, 13711R, 21337R, 40988RI, 56408, 118950, 119391, 210629, 210629A, 401178RI, 437509, 437643, 440099, 747906, 9051288, 9213142, 12060398, 12060399, 0986040461, 0986040501, 943346172010, 944390512880

  • Bilmärken
    Toyota

  • NormaliseratArtNr
    a6009, al3249x, al3262x, alt5062, cal40140, dra3506, dra3508, f032111518, f042302053, f042a02053, j5112088, ja1178ir, lrb00212, lrb00337, qa2017, 8el012426621, 8el012427891, 8el737063001, 8el737321001, 1986a01276, 3142n, 3142r, 5478, 5666, 13457, 13457n, 13486n, 13486r, 13489r, 13711n, 13711r, 21337r, 40988ri, 56408, 111518, 118950, 119391, 210629, 210629a, 282537, 282540, 401178ri, 437509, 437643, 440099, 747906, 1183901nd, 1193601nd, 1197801nd, 1208101nd, 1221101nd, 9051288, 9213142, 12060398, 12060399, 235139552, 235139702, 535132702, 0986040461, 0986040501, 1012110050, 1012110051, 1012110052, 1012110340, 1012110341, 1012110342, 1012110430, 1012110431, 1012110432, 1012110740, 1012110741, 1012115150, 1012115151, 1012115970, 1022115090, 1022115091, 2706011170, 2706011270, 2706011280, 2706011281, 2706011320, 2706011340, 2706055060, 2706055070, 943346172010, 944390512880

  • Passar modeller
    Toyota Model: Corolla Model series: Corolla Model type: 4WD Type of engine: 16V Size of motor: 1.8 Brand of engine: 7A-FE Type description: E10 Body: Estate From date: 01-09-1995 To date: 01-04-1997 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: GLi Type of engine: 16V Size of motor: 1.4 Brand of engine: 4E-FE Type description: EE101 Body: Hatchback From date: 01-07-1992 To date: 01-09-1995 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: XLi Size of motor: 1.3 Brand of engine: 4E-FE Type description: E10 Body: Estate From date: 01-09-1995 To date: 01-04-1997 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: XLi Size of motor: 1.3 Brand of engine: 4E-FE Type description: E10 Body: Hatchback From date: 01-08-1995 To date: 01-04-1997 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: XLi Size of motor: 1.3 Brand of engine: 4E-FE Type description: EE101 Body: Hatchback From date: 01-07-1992 To date: 01-04-1997 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: XLi Size of motor: 1.3 Brand of engine: 4E-FE Type description: EE101 From date: 01-09-1995 To date: 01-04-1997 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: XLi Type of engine: 16V Size of motor: 1.3 Brand of engine: 4E-FE Type description: EE101 Body: Estate From date: 01-07-1992 To date: 01-09-1995 Fuel: Gasoline Approved: Yes Manufacture type: Wagon
    Toyota Model: Corolla Model series: Corolla Model type: XLi Type of engine: 16V Size of motor: 1.4 Brand of engine: 4E-FE Type description: EE101 From date: 01-07-1992 To date: 01-09-1995 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Size of motor: 1.3 Brand of engine: 4E-FE Type description: _E11_ From date: 01-05-1997 To date: 01-09-1999 Fuel: Petrol Approved: Yes
    Toyota Model: Corolla Model series: Corolla Size of motor: 1.4 Brand of engine: 4E-FE Body: Estate From date: 01-04-1997 To date: 01-02-2000 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Size of motor: 1.4 Brand of engine: 4E-FE Body: Hatchback From date: 01-05-1997 To date: 01-09-1999 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Size of motor: 1.4 Brand of engine: 4E-FE From date: 01-05-1997 To date: 01-09-1999 Fuel: Gasoline Approved: Yes
    Toyota Model: Paseo Model series: Paseo Type of engine: 16V Size of motor: 1.5 Brand of engine: 5E-FE Type description: EL54 Body: Convertible From date: 01-10-1996 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Toyota Model: Paseo Model series: Paseo Type of engine: 16V Size of motor: 1.5 Brand of engine: 5E-FE Type description: EL54 Body: Coupe From date: 01-08-1995 To date: 01-06-1999 Fuel: Gasoline Approved: Yes
    Toyota Model: Starlet Model series: Starlet Size of motor: 1.3 Brand of engine: 4E-FE Body: Hatchback From date: 01-01-1996 To date: 01-10-1999 Fuel: Gasoline Approved: Yes
    Toyota Model: Starlet Model series: Starlet Type of engine: 12V Size of motor: 1.3 Brand of engine: 2E-E Type description: EP81 Body: Hatchback From date: 01-12-1989 To date: 01-03-1996 Fuel: Gasoline Approved: Yes
    Toyota Model: Starlet Model series: Starlet Type of engine: Diesel Size of motor: 1.5 Brand of engine: 1N Type description: _P8_ Body: Hatchback From date: 01-12-1989 To date: 01-03-1996 Fuel: Diesel Approved: Yes
    Toyota Series: Corolla (_E10_) Model: 1.3 XLI Engine volume: 1.3 Engine type: 4E-FE Year: 05.95-04.97
    Toyota Series: Corolla (_E10_) Model: 1.3 XLI 16V Engine volume: 1.3 Engine type: 4E-FE Year: 07.92-05.95
    Toyota Series: Corolla (_E11_) Comp Model: 1.4 Engine volume: 1.4 Engine type: 4E-FE Year: 05.97-09.99
    Toyota Series: Corolla (_E11_) Model: 1.4 Engine volume: 1.4 Engine type: 4E-FE Year: 04.97-02.00
    Toyota Series: Corolla Liftback Model: 1.4 Engine volume: 1.4 Engine type: 4E-FE Year: 05.97-09.99
    Toyota Series: Starlet (EP91) Model: 1.3 Engine volume: 1.3 Engine type: 4E-FE Year: 04.96-03.99
    Toyota Series: Starlet (_P8_) Model: 1.3 12V Engine volume: 1.3 Engine type: 2E-E Year: 12.89-03.96
